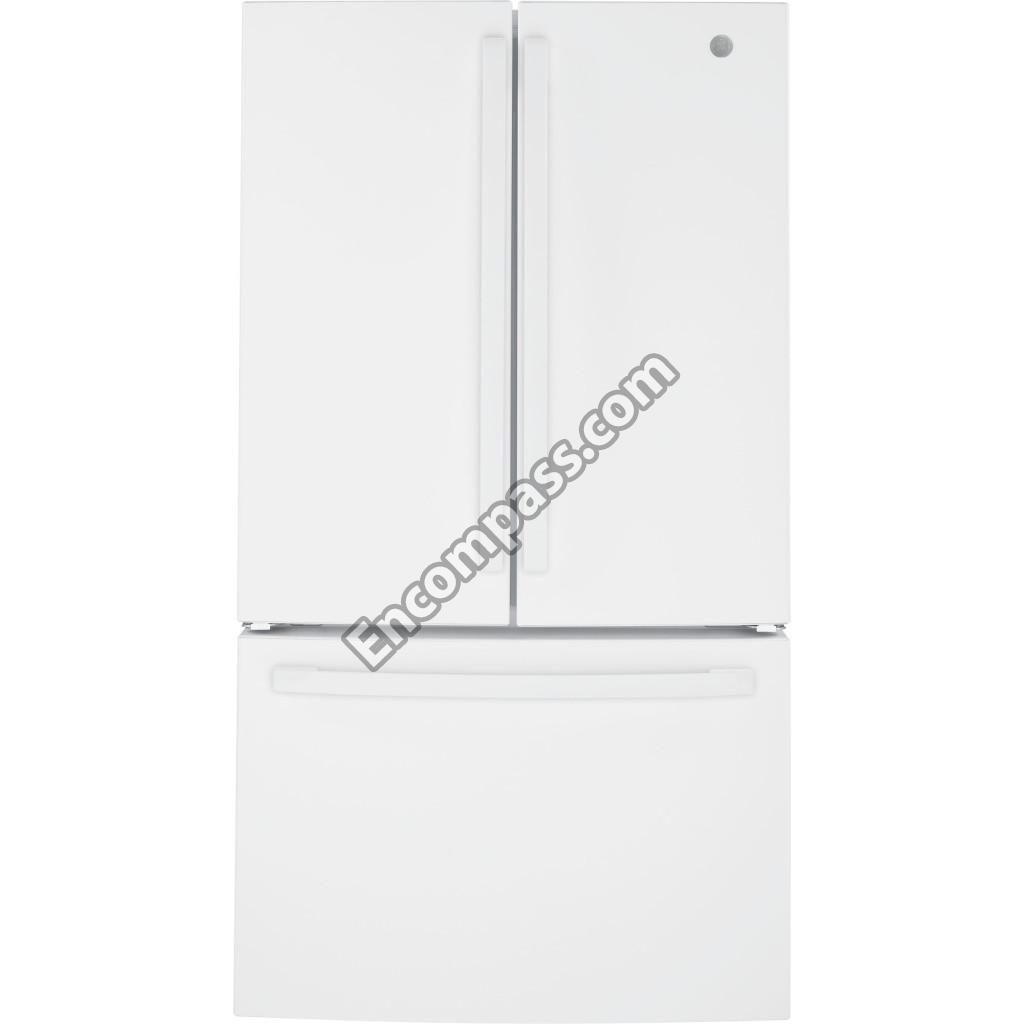

Model Image
Manufacturer

GE

Model Number

GNE27JGMTFWW

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR97X10142 WR97X10142 GE 10MM X 8MM LOKRING
WR97X10075 WR97X10075 GE 5MM X 4MM LOKRING
WR97X10032 WR97X10032 GE 6MM X 2MM LOKRING
WR97X10033 WR97X10033 GE 6MM X 4MM LOKRING
WR97X25268 WR97X25268 GE 7MM X 5MM LOKRING
WR97X10076 WR97X10076 GE 8.5MM X 6MM LOKRING
WR97X31246 WR97X31246 GE 8MM X 7MM LOKRING
WR97X10021 WR97X10021 GE 8MM X 8MM LOKRING
WR17X25613 WR17X25613 GE ARTICULATING MULLION ASM
WR60X24484 WR60X24484 GE BLADE CONF FAN ASM
WR55X24870 WR55X24870 GE BOARD LED LIGHT ASM
WR02X11863 WR02X11863 GE BRACKET COND FAN (MTG)
WR02X10593 WR02X10593 GE BRACKET COND FAN (REAR)
WR72X30560 WR72X30560 GE BRACKET DRAWER
WR72X30559 WR72X30559 GE BRACKET DRAWER
WR02X12870 WR02X12870 GE BRACKET SUPPORT
WR17X33825 WR17X33825 GE BYPASS FILTER PLUG
WR02X25611 WR02X25611 GE CAM CLOSURE WW
WR55X24064 WR55X24064 GE CAPACITOR 12 UF
WR02X8203 WR02X8203 GE CLIP COMPRESSOR MOUNT
WR02X26153 WR02X26153 GE CLIP RETAINER MEI
WR07X10131 WR07X10131 GE COMBO DEVICE TSD-2
WR87X43267 WR87X43267 GE COMPRESSOR
WR60X29573 WR60X29573 GE CONDENSER FAN & HOUSING
WR02X40125 WR02X40125 GE CONNECTOR COVER
WR82X22767 WR82X22767 GE COVER ACCESS ASM
WR13X25607 WR13X25607 GE COVER HINGE TOP LH WW
WR13X25606 WR13X25606 GE COVER HINGE TOP RH WW
WR17X37725 WR17X37725 GE COVER WATER LINE
WR02X32247 WR02X32247 GE CROSS BAR PINION
WR29X24823 WR29X24823 GE CUP FILL IM
WR60X27396 WR60X27396 GE DAMPER ASM
WR17X25225 WR17X25225 GE DISPENSER INTERNAL ASM
WR02X27906 WR02X27906 GE DIVIDER
WR02X24849 WR02X24849 GE DIVIDER BASKET LOWER FZ
WR02X24969 WR02X24969 GE DIVIDER PANTRY
WR78X30449 WR78X30449 GE DOOR FOAM FF ASM LH WW
WR78X30447 WR78X30447 GE DOOR FOAM FF ASM RH WW
WR17X30140 WR17X30140 GE DRAIN TROUGH
WR02X30155 WR02X30155 GE DRAIN TUBE
WR14X25128 WR14X25128 GE DUCT AIR TOWER FF ASM
WR17X40007 WR17X40007 GE EVAP COVER & FAN
WR85X40009 WR85X40009 GE EVAPORATOR
WR49X40247 WR49X40247 GE EVAPORATOR COVER & FAN
WR60X30922 WR60X30922 GE EVAPORATOR FAN BLADE
WR01X39781 WR01X39781 GE FASTENER
WR14X24804 WR14X24804 GE FOAM STRIP SE ADH
WR30X30260 WR30X30260 GE FREEZER ICE BUCKET
WR71X30122 WR71X30122 GE FREEZER LOWER BASKET
WR71X30132 WR71X30132 GE FREEZER UPPER BASKET
WR14X29199 WR14X29199 GE FRESH FOOD AIR TOWER GRILL
WR23X29170 WR23X29170 GE FRESH FOOD DOOR LIGHT SWITCH PAIR
WR71X38309 WR71X38309 GE FRESH FOOD DOOR LOWER BIN
WR71X38307 WR71X38307 GE FRESH FOOD DOOR SHELF MODULE
WR14X30448 WR14X30448 GE GASKET DOOR FRENCH WHITE
WR14X30451 WR14X30451 GE GASKET DOOR FZ WW
WR14X24747 WR14X24747 GE GASKET TOWER FF
WR04X29375 WR04X29375 GE GEA BADGE FLAT CHROME
WR02X13387 WR02X13387 GE GEAR PINION RH
WR71X30138 WR71X30138 GE GLASS SHELF LEFT HAND
WR71X30137 WR71X30137 GE GLASS SHELF RIGHT HAND
WR02X40305 WR02X40305 GE GROMMET
WR29X24766 WR29X24766 GE GROMMET AND TUBE IM ASM
WR02X10520 WR02X10520 GE GROMMET FAN MOTOR
WR23X26787 WR23X26787 GE HARNESS BOARD INDIV
WR55X24897 WR55X24897 GE HARNESS INTERFACE
WR55X30266 WR55X30266 GE HARNESS SWITCH
WR51X39268 WR51X39268 GE HEATER & HARNESS ASM
WR02X24999 WR02X24999 GE HINGE BUSHING BB
WR02X24876 WR02X24876 GE HINGE BUSHING BB
WR02X24875 WR02X24875 GE HINGE BUSHING BB
WR13X29171 WR13X29171 GE HINGE CENTER
WR13X25617 WR13X25617 GE HINGE TOP ASM LH WW
WR13X25616 WR13X25616 GE HINGE TOP ASM RH WW
WR72X24768 WR72X24768 GE HOLDER SLIDE FZ LH
WR72X24767 WR72X24767 GE HOLDER SLIDE FZ RH
WR55X40048 WR55X40048 GE HUMIDITY BOARD
WR30X39385 WR30X39385 GE ICEMAKER
WR55X35812 WR55X35812 GE INTERFACE TOP ASM WHITE
WR87X32326 WR87X32326 GE L-FIN AL CONDENSER 10 PASS
WR55X30124 WR55X30124 GE LIGHT HOUSING
WR23X39269 WR23X39269 GE LIGHT SWITCH
WR55X46945 WR55X46945 GE MAIN CONTROL BOARD
WR02X40325 WR02X40325 GE MAIN CONTROL BOARD COVER
WR71X38313 WR71X38313 GE MEAT DRAWER
WR71X42032 WR71X42032 GE MEAT PAN COVER
WR02X30159 WR02X30159 GE MOBILITY WHEEL
WR02X30160 WR02X30160 GE MOBILITY WHEEL PIN
WR60X10209 WR60X10209 GE MOTOR DC COND FAN
WR60X39625 WR60X39625 GE MOTOR DC EVAP FAN
WR55X43866 WR55X43866 GE PCB NEXTGEN RFID
31-1000534 31-1000534 GE PM MINI MANUAL AND WIRING
49-1000622 49-1000622 GE PM QUICK OWNERS MANUAL
WR23X30131 WR23X30131 GE POWER CORD
WR71X30139 WR71X30139 GE QUICK SPACE SHELF
WR87X30875 WR87X30875 GE R600 DRIER W/ RED CAP
WR98X20 WR98X20 GE R600A CHARGE CAN 20 GRAMS
WR98X35 WR98X35 GE R600A CHARGE CAN 35 GRAMS
WR78X30450 WR78X30450 GE REFRIGERATOR - FREEZER DOOR WHITE
WR02X35925 WR02X35925 GE RFID COVER & FCC LABEL
WR01X10843 WR01X10843 GE SCR 1/4 - 20 UNC -2A
WR01X10885 WR01X10885 GE SCR 1/4-20 RT FLAT 3/4 S
WR01X10939 WR01X10939 GE SCR 10-14 PL FLT20 3/4 S
WR01X25308 WR01X25308 GE SCR 10-16 B HXW 1/4 S
WR1X1786 WR1X1786 GE SCR 10-32 TR 1/2
WR01X10654 WR01X10654 GE SCR 10-32 TT HXW 5/16 S
WR01X27994 WR01X27994 GE SCR 12-24 HXT20 .90 S
WR01X10626 WR01X10626 GE SCR 8-18 AB HXW 5/4 S
WR01X10652 WR01X10652 GE SCR 8-18 AB IHW 5/8 S
WR01X10606 WR01X10606 GE SCR 8-18 CA HX 1/2 S
WR01X10844 WR01X10844 GE SCR 8-32 AB IHWS 3/8 S
WR01X10065 WR01X10065 GE SCREW 10-32 GXTT FLP 595
WR01X10196 WR01X10196 GE SCREW 8-18 HI/LO 5/8
WR01X10379 WR01X10379 GE SCREW HINGE COVER
WR01X10850 WR01X10850 GE SCREW LEVELING
WR02X38285 WR02X38285 GE SHIELD LIGHT
WR72X24815 WR72X24815 GE SLIDE BASKET LOWER FZ
WR72X24869 WR72X24869 GE SLIDE BASKET UPPER LH
WR72X24868 WR72X24868 GE SLIDE BASKET UPPER RH
WR02X13573 WR02X13573 GE SOUND DAMPER
WR02X25443 WR02X25443 GE SPRING CLUSRE
WR02X10663 WR02X10663 GE STAND OFF
WR02X24905 WR02X24905 GE STEEL PIN HINGE
WR02X24874 WR02X24874 GE STOP DOOR
WR02X24944 WR02X24944 GE STRIKER TOP MULLION
WR1X1779 WR1X1779 GE STUD MTG COMPR
WR02X24817 WR02X24817 GE SUPPORT IM
WR02X30289 WR02X30289 GE SUPPORT PIN
WR55X39626 WR55X39626 GE SWITCH ACTUATOR
WR17X25212 WR17X25212 GE TANK COLD WATER
WR55X10025 WR55X10025 GE TEMPERATUR SENSOR FF
WR50X10069 WR50X10069 GE THERMOSTAT DEF
WR13X38305 WR13X38305 GE TOP LED COVER
WR14X26167 WR14X26167 GE TRACK CENTER ASM
WR02X13774 WR02X13774 GE TUBE LEAD
WR57X30890 WR57X30890 GE VALVE ISOLATION ASM
WR71X38311 WR71X38311 GE VEGETABLE DRAWER
WR71X42029 WR71X42029 GE VEGETABLE PAN COVER
WR12X34315 WR12X34315 GE WHITE DOOR HANDLE
WR12X34316 WR12X34316 GE WHITE FREEZER DOOR HANDLE
WR17X34686 WR17X34686 GE XWFE FILTER COVER
WR14X34687 WR14X34687 GE XWFE MANIFOLD & HOUSING
XWFE XWFE GE XWFE RETAIL FILTER
