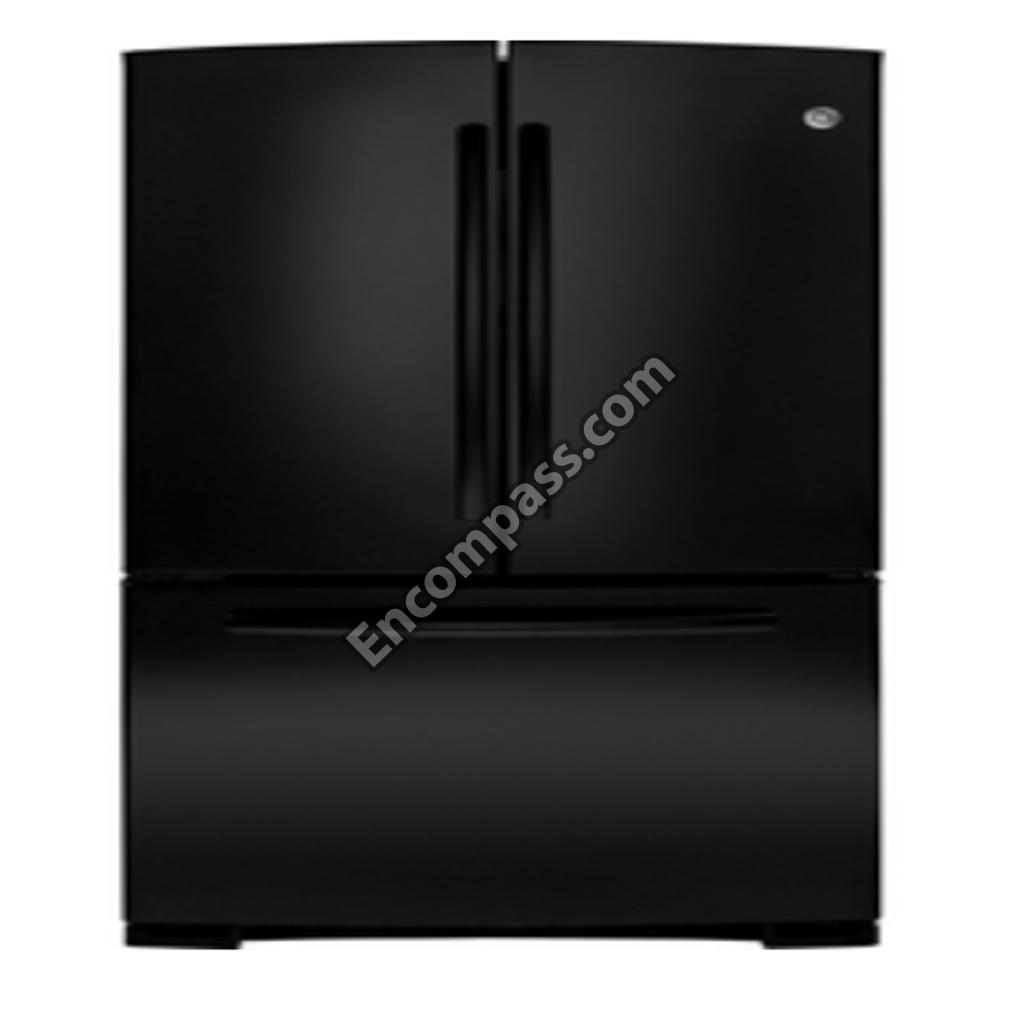

Model Image
Manufacturer

GE

Model Number

GNR22DGEBFBB

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
WR12X20318 WR12X20318 ARC HANDLE ASM FZ
WR04X10223 WR04X10223 BADGE GE
WR17X13160 WR17X13160 BAFFLE COND AIR
WR21X10179 WR21X10179 BASKET LOWER
WR02X12872 WR02X12872 BEAM SUPPORT
WR55X10982 WR55X10982 BOARD ASM TEMP CONTROL
WR02X11863 WR02X11863 BRACKET COND FAN (MTG)
WR02X10593 WR02X10593 BRACKET COND FAN (REAR)
WR02X12874 WR02X12874 BRACKET LEG ASM
WR72X10300 WR72X10300 BRACKET LOWER
WR02X10540 WR02X10540 BUMPER
WR02X12469 WR02X12469 BUMPER FRENCH DOOR
WR02X12360 WR02X12360 CAM FF CLOSURE LH
WR02X12359 WR02X12359 CAM FF CLOSURE RH
WR02X10781 WR02X10781 CAP CORNER OC BLACK
WR2X4039 WR2X4039 CLAMP
WR01X10684 WR01X10684 CLAMP CABLE
WR2X8203 WR2X8203 CLIP
WR02X10879 WR02X10879 CLIP EVAP THERMISTOR
WR55X10981 WR55X10981 CONTROL CUSTOMER ASM
WR17X12839 WR17X12839 COVER DAMPER DUCT
WR17X12564 WR17X12564 COVER DRAWER ICE
WR02X12887 WR02X12887 COVER HINGE
WR02X12886 WR02X12886 COVER HINGE TOP
WR02X12885 WR02X12885 COVER HINGE TOP
WR02X12027 WR02X12027 COVER MAIN BOARD ASM
WR17X12573 WR17X12573 DAMPER DUCT ASM
WR02X13594 WR02X13594 DIVIDER GUIDE RAIL
WR22X10063 WR22X10063 DOOR DAIRY
WR01X11007 WR01X11007 FASTNER
WR14X10199 WR14X10199 FOAM STRIP SE ADH
WR14X20490 WR14X20490 GASKET
WR74X10246 WR74X10246 GRILLE BASE
WR02X10647 WR02X10647 GRILLE SENSOR
WR02X10520 WR02X10520 GROMMET FAN MOTOR
WR2X8349 WR2X8349 GROMMET SCR
WR23X10510 WR23X10510 HARNESS BOARD INDIV
WR23X10637 WR23X10637 HARNESS CONTROL FF
WR51X10052 WR51X10052 HEATER CONDUCTION
WR51X10092 WR51X10092 HEATER CONDUCTION
WR51X10108 WR51X10108 HEATER DEF ASM
WR13X10637 WR13X10637 HINGE CENTER AND PIN ASM
WR02X13678 WR02X13678 HOLDER ELEMENT ASM
WR55X24064 WR55X24064 KIT CAPACITOR 12 UF
WR17X12571 WR17X12571 KNOB HUMIDITY CTRL
WR17X12572 WR17X12572 KNOB HUMIDITY CTRL
WR17X12567 WR17X12567 LIGHT SHIELD FF
WR85X10107 WR85X10107 LOW SIDE ASM
WR02X12807 WR02X12807 MOBILITY FRONT ASM
WR60X10209 WR60X10209 MOTOR DC COND FAN
WR17X12584 WR17X12584 MULLION ARTICULATION ASM
WR01X10793 WR01X10793 PIN HINGE ADJ BM
WR02X11760 WR02X11760 PLUG BUTTON
WR02X13058 WR02X13058 PLUG BUTTON
WR02X12873 WR02X12873 REFLECTOR LAMP FF
WR01X10611 WR01X10611 SCR 10-16
WR01X10620 WR01X10620 SCR 10-32
WR01X10654 WR01X10654 SCR 10-32 TT HXW 5/16 S
WR01X10939 WR01X10939 SCR 1014 PL FLT20 3/4 S
WR01X10683 WR01X10683 SCR 12-24 TT HXT20 .90 S
WR01X10918 WR01X10918 SCR 12-24 TT OVT 1.000 S
WR01X10626 WR01X10626 SCR 8-18 AB HXW 5/4 S
WR01X10607 WR01X10607 SCR 8-18 AB PHR 1/2 S
WR01X10858 WR01X10858 SCR 8-18 AB PNP 5/8 S
WR01X10606 WR01X10606 SCR 8-18 CA HX 1/2 S
WR01X10621 WR01X10621 SCR 8-18 DG TRT20 5/8 S
WR1X1753 WR1X1753 SCREW
WR01X10065 WR01X10065 SCREW 10-32 GXTT FLP 595 S
WR01X10850 WR01X10850 SCREW LEVELING
WR17X12295 WR17X12295 SEPARATOR AIR HISIDE
WR30X10143 WR30X10143 SHELF CHILLER
WR71X10904 WR71X10904 SHELF GLASS ASM
WR32X20428 WR32X20428 SHELF MODULE
WR71X20333 WR71X20333 SHELF MODULE
WR17X12668 WR17X12668 SHROUD CONDENSER
WR02X10668 WR02X10668 SHUNT SENSOR
WR2X9391 WR2X9391 SOCKET&TERM
WR02X13569 WR02X13569 SOUND DAMPER
WR02X10892 WR02X10892 SPACER TRACK
WR01X10827 WR01X10827 SPRING CLOSURE
WR02X10663 WR02X10663 STAND OFF
WR02X12900 WR02X12900 STOP DOOR
WR02X12899 WR02X12899 STOP DOOR
WR02X12884 WR02X12884 STRIKER TOP
WR02X13504 WR02X13504 SUPPORT VEG PAN ASM
WR02X12363 WR02X12363 THIMBLE DOOR FF
WR02X12903 WR02X12903 THIMBLE DOOR PLASTIC
WR72X10305 WR72X10305 TRACK SIDE FF
WR12X20403 WR12X20403 TRIM BASKET
WR17X12506 WR17X12506 TROUGH DRAIN ASM
WR08X21100 WR08X21100 TSD COMBO
WR02X11426 WR02X11426 TUBE DRAIN
WR32X21098 WR32X21098 VEG PAN
