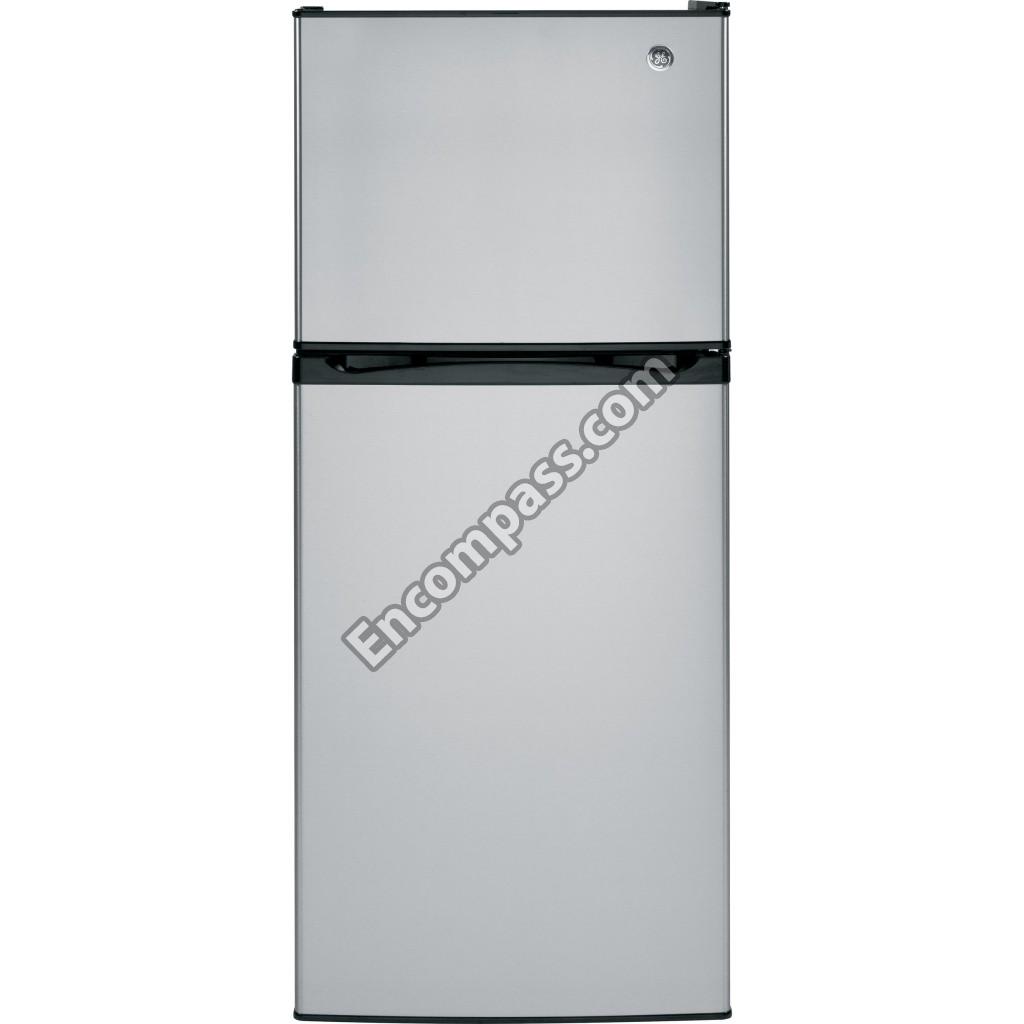

Model Image
Manufacturer

GE

Model Number

GPE12FSKDSB

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR97X30613 WR97X30613 1/4 - 1/4 BRASS CONNECTOR W/
WR97X10075 WR97X10075 3/16 - 5/32 BRASS REDU
WR97X10137 WR97X10137 4MM X 4MM LOKRING
WR97X31242 WR97X31242 6.5MM X 5MM LOKRING
WR97X10085 WR97X10085 6MM X 1.8MM LOKRING
WR97X10033 WR97X10033 6MM X 4MM LOKRING
WR97X10031 WR97X10031 6MM X 6MM LOKRING
WR97X10036 WR97X10036 8MM X 6MM LOKRING
WR02X4039 WR02X4039 ADHESIVE CLIP
WR02X20374 WR02X20374 ADJUSTABLE FOOT
WR87X31707 WR87X31707 AUXILLARY CONDENSER
WR04X10222 WR04X10222 BADGE ASSEMBLY GE
WR55X26266 WR55X26266 BOARD MAIN ASSEMBLY
WR13X20369 WR13X20369 BOTTOM HINGE
WR02X20370 WR02X20370 BOTTOM HINGE GASKET
WR13X20398 WR13X20398 BOTTOM HINGE LEFT
WR30X30034 WR30X30034 BUCKET ICE
WR55X31704 WR55X31704 CAPACITOR
WR13X20414 WR13X20414 CENTER HINGE
WR02X20400 WR02X20400 CENTER HINGE BUSHING
WR02X20339 WR02X20339 CENTER HINGE GASKET
WR2X4039 WR2X4039 CLAMP
WR01X10182 WR01X10182 CLIP U
WR87X31702 WR87X31702 COMPRESSOR
WR71X22025 WR71X22025 CONDIMENT SHELF
WR02X25072 WR02X25072 CONTROL BOX
WR02X25073 WR02X25073 CONTROL BOX COVER
WR09X26264 WR09X26264 CONTROL INTERFACE ASSEMBLY
WR02X26261 WR02X26261 COVER AMBIENT THERMISTOR
WR97X10032 WR97X10032 CPLG. 1/4- .079
WR97X10035 WR97X10035 CPLG. 5/16- .079
WR29X10092 WR29X10092 CUP FILL IM
WR17X20390 WR17X20390 DEFROST DRAIN TRAY
WR09X31705 WR09X31705 DEFROST HEATER
WR78X26270 WR78X26270 DOOR FOAM ASSEMBLY FF SS
WR01X20356 WR01X20356 DOOR STOPPER
WR01X20397 WR01X20397 DOOR STOPPER
WR02X26828 WR02X26828 DRAIN CHECK VALVE
WR02X26260 WR02X26260 DRAIN TRAY
WR86X22669 WR86X22669 DRYER
WR87X31706 WR87X31706 EVAPORATOR
WR14X26263 WR14X26263 EVAPORATOR COVER AND FAN ASSEMBLY
WR02X20348 WR02X20348 EVAPORATOR CVR SCREW CVR
WR60X32249 WR60X32249 EVAPORATOR FAN MOTOR
WR60X20344 WR60X20344 FAN BLADE RPLCMNT KIT
WR71X22032 WR71X22032 FIXED SHELF FF
WR71X22033 WR71X22033 FIXED SHELF FZ
WR78X20412 WR78X20412 GASKET DOOR FF
WR14X26262 WR14X26262 GASKET DOOR FZ BB
WR71X20409 WR71X20409 GLASS SHELF ASSEMBLY
WR13X20388 WR13X20388 I/M CONNECTOR CVR
WR02X20347 WR02X20347 I/M FILL PLUG BUTTON
WR13X20396 WR13X20396 I/M JUNCTION CVR
WR30X311 WR30X311 ICE TRAY
WR30X30972 WR30X30972 ICEMAKER REPLACEMENT KIT
WR78X20351 WR78X20351 INNER DOOR SEAL
WR02X20367 WR02X20367 LAMP COVER
WR02X25093 WR02X25093 LED LAMP
WR09X31703 WR09X31703 OVERLOAD PROTECTOR
WR01X20353 WR01X20353 PLASTIC RIVET
WR13X20258 WR13X20258 PLASTIC RIVET
WR02X20411 WR02X20411 PLUG BUTTON
31-51925-4 31-51925-4 PM MINI MANUAL
49-60749 49-60749 PM OWNERS & INSTALL
WR55X31054 WR55X31054 POWER CORD
WR78X27508 WR78X27508 PS DOOR FZ STAINLESS STEEL
WR55X31710 WR55X31710 PTC STARTER
WR87X30875 WR87X30875 R600 DRIER W/ RED CAP
WR87X30876 WR87X30876 R600 PROCESS VALVE W/ RED CAP
WR98X20 WR98X20 R600A CHARGE CAN 20 GRAMS
WR01X20368 WR01X20368 REAR CHANNEL EPS
WR57X39965 WR57X39965 REFRIGERATOR VALVE AND TUBE ASSEMBLY
WR02X20352 WR02X20352 RVSBL DOOR HINGE PLUG
WR01X20263 WR01X20263 SCREW
WR01X20342 WR01X20342 SCREW
WR01X25811 WR01X25811 SCREW
WR01X20373 WR01X20373 SCREW
WR01X20385 WR01X20385 SCREW
WR01X20341 WR01X20341 SPACER DOOR FZ
WR29X10083 WR29X10083 STRIPPER IM
WR87X20387 WR87X20387 SUCTION TUBE
WR23X20371 WR23X20371 SWITCH LIGHT
WR09X25818 WR09X25818 THERMISTOR
WR13X20338 WR13X20338 TOP HINGE
WR13X20423 WR13X20423 TOP HINGE COVER
WR02X20337 WR02X20337 TOP HINGE GASKET
WR13X20418 WR13X20418 TOP HINGE RVSBL COVER
WR17X11492 WR17X11492 TUBE PLASTIC
WR71X20360 WR71X20360 VEGETABLE PAN
WR71X20361 WR71X20361 VEGETABLE PAN COVER ASSEMBLY
WR13X20070 WR13X20070 WATER CONNECTOR COVER
WR71X23083 WR71X23083 WIRE SHELF FZ
WZ4X416 WZ4X416 WZ04X0408
