Manufacturer
GE
Model Number
GPT225SGL2WW
Description

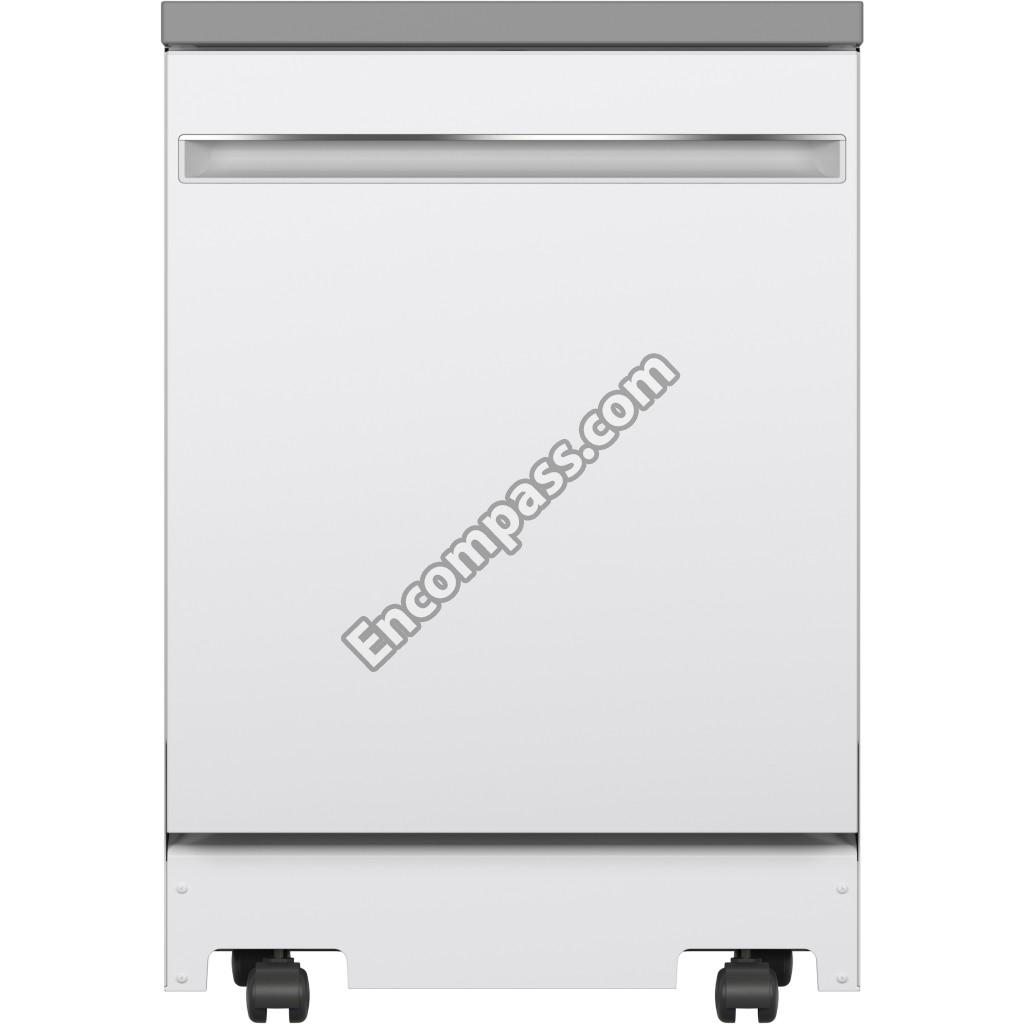

Dishwasher
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
"24"" BLACK TOE KICK" |
|
|
"24"" BOTTOM COVER" |
|
|
"24"" COUNTERWEIGHT AND REAR CASTER BRACKE" |
|
|
"24"" COUNTERWEIGHT STRAP" |
|
|
"24"" FRONT BOTTOM BRACE" |
|
|
"24"" REAR BOTTOM BRACE" |
|
|
"24"" TOP REAR BRACE COLLAR" |
|
|
"24"" TUB INSULATION BLANKET" |
|
|
"24"" WHITE COUNTERTOP" |
|
|
AIR BREAK TO SUMP FILL HOSE |
|
|
AIRBREAK FLOW METER ASM |
|
|
BOTTOM SCREW |
|
|
BUTTONS WHITE |
|
|
CASTER |
|
|
CHECK VALVE AND HOUSING |
|
|
CLAMP |
|
|
CLAMP |
|
|
CONSOLE |
|
|
CONSOLE COVER GDT WW |
|
|
CONTROL BOARD CLIP |
|
|
CONTROL BOX BACK |
|
|
CONTROL BOX BRACKET |
|
|
CONTROL BOX FRONT |
|
|
COUNTERTOP SCREW |
|
|
COUNTERWEIGHT BRACKET SCREW |
|
|
CUP SHELF |
|
|
DETERGENT MODULE |
|
|
DOOR DOOR LATCH |
|
|
DOOR SPRING |
|
|
DOOR STRIKER ASM |
|
|
DOOR SUPPORTING BLOCK |
|
|
DOOR SUPPORTING FOAM |
|
|
DRAIN PUMP ASM |
|
|
FAUCET ADAPTOR |
|
|
FILL HOSE |
|
|
FINE FILTER |
|
|
FLOOD FLOAT & SWITCH ASM |
|
|
FLOOD FLOAT COVER |
|
|
FLOOD FLOAT STEM |
|
|
FLOOD FLOAT STEM GASKET |
|
|
FRONT APRON SCREW |
|
|
FRONT CASTER ASM |
|
|
GLASS TRAP |
|
|
GROUND SCREW |
|
|
HINGE MECHANISM LH |
|
|
HINGE MECHANISM RH |
|
|
INNER DOOR ASM |
|
|
LEFT COUNTERWEIGHT |
|
|
LEFT SIDE BRACE SUPPORT |
|
|
LIGHT PIPE 1 |
|
|
LIGHT PIPE 2 |
|
|
LIGHT PIPE 3 |
|
|
LOWER RACK ASM |
|
|
LOWER SPRAY ARM |
|
|
LOWER SPRAY ARM BASE |
|
|
MACHINE CONTROL FUSE |
|
|
MAIN CONDUIT |
|
|
MAIN CONDUIT GASKET |
|
|
MAIN CONDUIT HOSE |
|
|
MAIN CONTROL BOARD |
|
|
MID SPRAY ARM AND GASKET ASM |
|
|
MID SPRAY ARM CONDUIT ASSEMBLY |
|
|
MID SPRAY DOCKING PORT |
|
|
MOUNTING PLATE |
|
|
OUTER DOOR PANEL ASM GDT WW |
|
|
PLASTIC COARSE FILTER |
|
|
PM INSTALL INSTRUCTIONS |
|
|
PM OWNERS MANUAL |
|
|
PM QUICK START GUIDE |
|
|
POWER CORD |
|
|
PRINTED ONLYMINI MANUAL AND WIRING |
|
|
PULLEY CABLE ASSEMBLY |
|
|
QUEEZE CLAMP SMALL |
|
|
RACK SLIDE END CAP |
|
|
RACK SLIDE SUPPORT |
|
|
RIGHT COUNTERWEIGHT |
|
|
RIGHT SIDE BRACE SUPPORT |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW DOOR LATCH ASSEMBLY |
|
|
SCREW GROUND |
|
|
SCREW TOE KICK WHITE |
|
|
SCREW WATER VALVE |
|
|
SILVERWARE BASKET AND LID |
|
|
SUMP ASM |
|
|
SUMP GASKET |
|
|
SUMP INSERT |
|
|
SUMP PORT PLUG |
|
|
SUMP PORT PLUG GASKET |
|
|
TUB BOLT |
|
|
TUB GASKET |
|
|
TURBIDITY SENSOR |
|
|
UI CONTROL ASM |
|
|
UNICOUPLE ASM WITH FAUCET ADAPTER |
|
|
UNICOUPLE POCKET |
|
|
UPPER RACK ASM |
|
|
UPPER RACK SLIDE |
|
|
UPPER SPRAY ASM |
|
|
UPPER SPRAY NOZZLE |
|
|
VENT FUNNEL ASM |
|
|
VENT FUNNEL GASKET |
|
|
VENT FUNNEL INLET NUT |
|
|
WASH PUMP ASM |
|
|
WASH PUMP DISCHARGE HOSE |
|
|
WASH PUMP HANGER |
|
|
WATER INLET NUT |
|
|
WATER INLET NUT GASKET |
|
|
WATER VALVE |
|
|
WHEEL STUD ASM LOWER RACK |
|
|
WHEEL STUD ASM UPPER RACK |
