Model Image
Manufacturer

GE

Model Number

GSC3230F00WW

Description

Dishwasher

Interactive Exploded View

Parts List

Part Number Description
WD02X0295 WD02X0295 #10X1\2 PH SMS
WD14M10 WD14M10 *NLA*ARM HINGE COMPLETE RH
WD12X0383 WD12X0383 4-RLR & STD ASM UPR RACK
WD01X1447 WD01X1447 ADAPTER ASM FAUCET
WD2M206 WD2M206 ADAPTER HOSE
WD14M9 WD14M9 ARM HINGE COMPLETE LH
WD14M12 WD14M12 ARM HINGE COMPLETE RH
WD01X1316 WD01X1316 ARMATURE LINK ASSEMBLY
WD1X1316 WD1X1316 ARMATURE&LNK
WD8X228 WD8X228 BAFFLE LH
WD8X227 WD8X227 BAFFLE RH
WD08X0228 WD08X0228 BAFFLE TUB CORNER LH
WD08X0227 WD08X0227 BAFFLE TUB CORNER RH
WD28X0256 WD28X0256 BASKET SILVERWARE
WD12X231 WD12X231 BEARG HG ARM
WD12X0231 WD12X0231 BEARING HINGE ARM
WD12X10025 WD12X10025 BEARING HINGE ARM
WD22X10018 WD22X10018 BODY VALVE & CHECK ASM
WD35M0033 WD35M0033 BRACE FRONT
WD35M33 WD35M33 BRACE FRONT
WD35M0029 WD35M0029 BRACE REAR
WD35M29 WD35M29 BRACE REAR
WD21X10268 WD21X10268 BRACKET & SOLENOID
WD12X0376 WD12X0376 BRACKET FLOOD SWITCH
WD12X10023 WD12X10023 BRACKET FLOOD SWITCH
WD03M0072 WD03M0072 BRACKET REAR
WD3M72 WD3M72 BRACKET REAR
WD01X1439 WD01X1439 BRACKET SOLENOID
WD28X265 WD28X265 BSKT SILV TI
WD16X10007 WD16X10007 CAM TIMER
WD12X10284 WD12X10284 CAP FILL
WD12X0418 WD12X0418 CAP SUMP
WD2M201 WD2M201 CASTER
WD1X1376 WD1X1376 CLAMP
WD01X1376 WD01X1376 CLAMP (PUMP CONNECTOR)
WD18X214 WD18X214 CONNECT PUMP
WD18X0214 WD18X0214 CONNECTOR PUMP ASM
WD06M0006 WD06M0006 CORD POWER
WD6M18 WD6M18 CORD POWER
WD35M0028 WD35M0028 COUNTERWEIGHT
WD35M28 WD35M28 COUNTRWEIGHT
WD12X377 WD12X377 COVER
WD12X0377 WD12X0377 COVER BRACKET
WD12X24237 WD12X24237 COVER DETERGENT CUP
WD16X297 WD16X297 COVER DETERGENT CUP
WD12X0417 WD12X0417 COVER INLET
WD12X433 WD12X433 COVER INSULATING SW
WD12X10016 WD12X10016 COVER INSULATING SW
WD12X417 WD12X417 COVER SUMP
WD35M0032 WD35M0032 CROSS PIECE
WD12X0324 WD12X0324 DETERGENT TIMER LEVER
WD03X0764 WD03X0764 DETERGENT TRIP SPRING
WD35X21038 WD35X21038 DISHWASHER LOWER RACK KIT 8 PK
WD26X10013 WD26X10013 DISHWASHER MOTOR AND PUMP ASSEMBLY
WD24X10018 WD24X10018 DISHWASHER PISTON AND NUT ASSEMBLY
WD12X332 WD12X332 DISHWASHER ROLLER BUSHING STUD
WD3X749 WD3X749 DISHWASHER TIMER LEVER SPRING
WD31X10004 WD31X10004 DOOR INNER
WD13X0069 WD13X0069 DOOR LATCH ASM
WD16X0292 WD16X0292 DOOR LATCH DETERGENT CUP
WD27X10080 WD27X10080 DOOR PANEL COVER WH
WD12X0338 WD12X0338 DRIP SHIELD
WD5M6 WD5M6 ELEMENT HEATING ASSEMBLY D&D
WD34X10389 WD34X10389 ESCUTCHEON BK
WD34X10392 WD34X10392 ESCUTCHEON WHITE
WD1X1447 WD1X1447 FAUCET ADAPT
WD18X202 WD18X202 FILL HOSE
WD12X334 WD12X334 FLOAT
WD12X0445 WD12X0445 FLOAT DOME
WD12X445 WD12X445 FLOAT DOME
WD12X0335 WD12X0335 FLOAT STEM
WD12X335 WD12X335 FLOAT STEM
WD12X0334 WD12X0334 FLOOD FLOAT
WD31X10008 WD31X10008 FRONT PANEL
WD08X10057 WD08X10057 GASKET
WD08X10016 WD08X10016 GASKET DOOR
WD08X10015 WD08X10015 GASKET INSERT
WD8X219 WD8X219 GASKET VALVE BODY
WD08X0181 WD08X0181 GATE SHAFT SEAL
WD35X0192 WD35X0192 GATE VALVE ARM KIT
WD01X1455 WD01X1455 HANGER MECH
WD24X221 WD24X221 HOSE CHAMBER
WD24X10015 WD24X10015 HOSE CHAMBER
WD24X0214 WD24X0214 HOSE POWER SHOWER
WD24X214 WD24X214 HOSE POWER SHR
WH02X0042 WH02X0042 HOSE WASHER
WD01X1432 WD01X1432 HOUSING TERMINAL (BLACK)
WD1X1459 WD1X1459 HSNG INSUL.
WD1X1432 WD1X1432 HSNG TERM BK
WD19X0060 WD19X0060 IMPELLER ASM
WD18X213 WD18X213 INLET SUMP
WD34X10412 WD34X10412 INSERT ESCUTCHEON
WD34X10415 WD34X10415 INSERT ESCUTCHEON
WD01X10019 WD01X10019 INSULATION
WD01X10023 WD01X10023 INSULATION
WD01X10084 WD01X10084 INSULATION
WD01X10083 WD01X10083 INSULATION
WD01X1498 WD01X1498 INSULATION TUB
WD01X10262 WD01X10262 INSULATION TUB BLANKET
WD01X1459 WD01X1459 INSULATOR HSNG TERM
WD13X0067 WD13X0067 KEEPER DOOR LATCH
WD19X10032 WD19X10032 KIT IMPELLER ASM
WD35M27 WD35M27 KIT REPAIR
WD35M0027 WD35M0027 KIT REPAIR UNICOUPLE
WD21X802 WD21X802 KIT SOLENOID
WD35X10014 WD35X10014 KIT SWITCH ASSEMBLY PS
WD09X0352 WD09X0352 KNOB DOOR LATCH HANDLE WH
WD9X352 WD9X352 KNOB LATCH HANDLE WH
WD09X10024 WD09X10024 KNOB TIMER BK
WD09X10025 WD09X10025 KNOB TIMER WH
WD13X71 WD13X71 LATCH ASM
WD13X10003 WD13X10003 LATCH ASM
WD16X10011 WD16X10011 LATCH DETERGENT CUP
WD13X67 WD13X67 LATCH KEEPER
WD01X1363 WD01X1363 LEAF SWITCH
WD12X324 WD12X324 LEVER
WD14X10009 WD14X10009 LINK HINGE ARM
WD1X1455 WD1X1455 MECH HANGER
WD02X0429 WD02X0429 NUT PUSH ON
WD01X1491 WD01X1491 NUT TOWER HEATER
WD01X10256 WD01X10256 NUT TOWER HEATER
WD27X10225 WD27X10225 PANEL ACCESS FINISHED WW
WD31X10018 WD31X10018 PANEL FRONT - SHORT W
31-30130 31-30130 PM INSTRUCTION INSTALL
WD1M270 WD1M270 PM MANUAL USE & CARE
31-31007 31-31007 PM SHEET MINI MANUAL
WD12M0079 WD12M0079 POCKET UNICOUPLE
WD03X0487 WD03X0487 PS RETAINER
WD21X10085 WD21X10085 PUSH-BUTTON BLACK
WD21X10088 WD21X10088 PUSH-BUTTON WHITE
WR2X7054 WR2X7054 PUSH-ON NUT
WD09X0355 WD09X0355 PUSHBUTTON
WD9X355 WD9X355 PUSHBUTTON
WD28X31819 WD28X31819 RACK ASM FINAL LOWER
WD28X31820 WD28X31820 RACK ASSEMBLY FINAL UPPER
WD28X0305 WD28X0305 RACK LOWER ROLLER ASM
WD12X271 WD12X271 RACK RLR ASM
WD30X0098 WD30X0098 RACK SLIDE
WD12X0344 WD12X0344 RACK SLIDE END CAP
WD12X10304 WD12X10304 RACK SLIDE END CAP
WD28X10210 WD28X10210 RACK UPPER & ROLLER ASM
WD3X487D WD3X487D RETNR-PKG 12
WD2M207 WD2M207 RING CLIP CASTER
WD12X0398 WD12X0398 RINSE AID INJ ASM
WD12X10327 WD12X10327 ROLLER & STUD ASM - 4 PACK
WD12X0271 WD12X0271 ROLLER ASM LWR RACK FRNT
WD12X0272 WD12X0272 ROLLER ASM LWR RACK REAR
WD12X0332 WD12X0332 ROLLER STUD ASM
WD02X0425 WD02X0425 SCR 10-12X1/2 AC PNR S
WD02X5166 WD02X5166 SCR 10-16X1/2 AB HEXW S
WD02X10057 WD02X10057 SCR 10-16X1/2 AB HXW S
WZ04X0376 WZ04X0376 SCR 10-16X3/4 #8 HX SSTL
WZ02X0492 WZ02X0492 SCR 10-24X1/2 TT TRR S
WD02X0248 WD02X0248 SCR 10-24X3/8 TT HEX
WD02X0433 WD02X0433 SCR 10-32 CA IHW 7/16S8H
WZ05X0222 WZ05X0222 SCR 10-32 T HEX 7/16 S
WD02X0322 WD02X0322 SCR 8-18X7/8 BT
WD01X0550 WD01X0550 SCR 8-32 PNT 1/2 S
WD02X22736 WD02X22736 SCR10 16 AB HXW 3/4 SS
WE02M0154 WE02M0154 SCREW
WD03M0063 WD03M0063 SCREW
WD02X0444 WD02X0444 SCREW
WZ05X0219 WZ05X0219 SCREW
WZ5X222 WZ5X222 SCREW
WD2X435 WD2X435 SCREW
WD2X322 WD2X322 SCREW
WD2X296 WD2X296 SCREW
WD1X550 WD1X550 SCREW
WD2X295 WD2X295 SCREW
WD2X425 WD2X425 SCREW
WD2X248 WD2X248 SCREW
WD2X5166 WD2X5166 SCREW
WE02X0263 WE02X0263 SCREW 10-16X1/2 HXW
WD02X0435 WD02X0435 SCREW 10-16X5/8 HXP CHR
NCN NCN SCREW 8-16 B FLP 625 ZN
WD02X10061 WD02X10061 SCREW 8-18 PL HXW 3/8 SS
WD02X0323 WD02X0323 SCREW 8-32 X 3/8 SPH
WD02X0296 WD02X0296 SCREW 8-32X5/8
WD2X444 WD2X444 SCREW MECH
WD2M202 WD2M202 SCREW T0E KICK
WZ2X492D WZ2X492D SCREW-PKG 12
WZ2X45D WZ2X45D SCREW-PKG 12
WE2X263D WE2X263D SCREW-PKG 12
WD2X323D WD2X323D SCREW-PKG 12
WZ02X0045 WZ02X0045 SCREW-PKG 12
WZ5X219D WZ5X219D SCREW-PKG 12
WD16X313 WD16X313 SHAFT DET CP
WD8X181 WD8X181 SHAFT SEAL
WD16X0313 WD16X0313 SHAFT/HANDLE DET CUP
WD12X0370 WD12X0370 SHIELD SWITCH
WD12X22757 WD12X22757 SHIELD SWITCH
WD2M197 WD2M197 SHIELD TIMER
WD12X338 WD12X338 SHLD&CLIP KT
WD30X98 WD30X98 SLIDE
WD30X10040 WD30X10040 SLIDE RACK ASSEMBLY
WD1X1439 WD1X1439 SOLEN BRKT
WD21X0710 WD21X0710 SOLENOID
WD35X192 WD35X192 SPR PLATE KT
WD22X154 WD22X154 SPRAY ARM AS
WD22X0154 WD22X0154 SPRAY ARM ASM
WD28X10103 WD28X10103 SPRAYARM ASSEMBLY 3RD LEVEL
WD3X764 WD3X764 SPRING
WD03X10004 WD03X10004 SPRING DOOR
WD03X10006 WD03X10006 SPRING DOOR
WD02X10003 WD02X10003 SPRING DOOR (WHITE-20
WD03X0721 WD03X0721 SPRING SET
WD3X721 WD3X721 SPRING SET
WD03X0749 WD03X0749 SPRING TIMER LEVER
WD12X418 WD12X418 SUMP CAP
WD1X1392 WD1X1392 SUMP CLAMP
WD18X0213 WD18X0213 SUMP INLET
WD01X1430 WD01X1430 SUPPORT ASM
WD01X10086 WD01X10086 SUPPORT CALROD ASSEMBLY
WD01X1472 WD01X1472 SUPPORT HEATER
WD1X1472 WD1X1472 SUPT HEATER
WD1X1430 WD1X1430 SUPT HTR R
WD21X479 WD21X479 SWITCH
WD21X0479 WD21X0479 SWITCH FLOOD
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WD1X1363 WD1X1363 SWITCH LEAF
WD35X10346 WD35X10346 TANK RINSE AID KIT
WD01X1434 WD01X1434 TERMINAL SPECIAL
WD1X1434D WD1X1434D TERMN-PKG 12

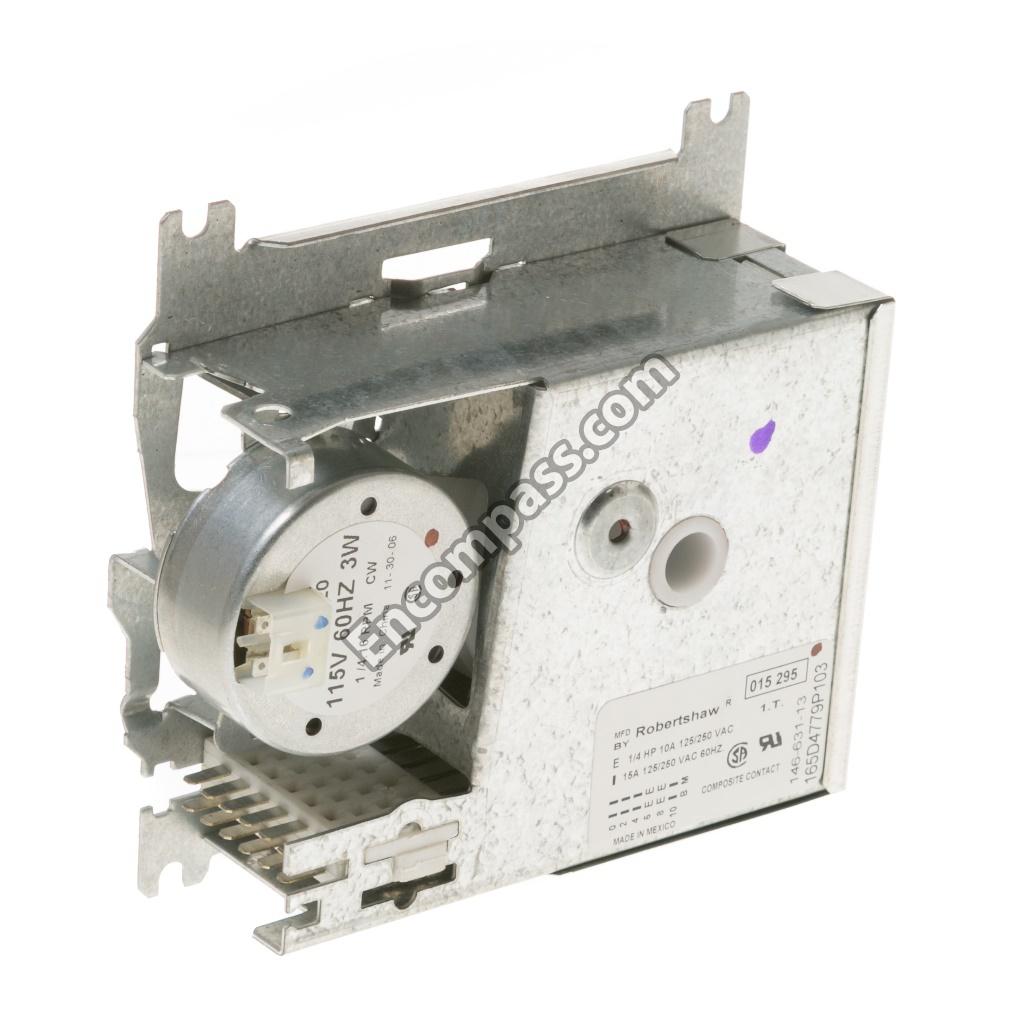

WD21X10079 WD21X10079 TIMER
WD27M255 WD27M255 TOE KICK ASSEMBLY - PORTABLE
WD27M0255 WD27M0255 TOEKICK ASM
WD31M62 WD31M62 TOP MELAMINE/ GRAY
WD2X433 WD2X433 TRIM SCREW
WD35X194 WD35X194 UNICOUPL KIT
WD24M0030 WD24M0030 UNICOUPLE HOSE COMPLET
WD12M79 WD12M79 UNICPLE PKT
WH1X2036 WH1X2036 UNIV CLAMP
WD22X10024 WD22X10024 VALVE CHECK ASSEMBLY
WD12X10026 WD12X10026 VENT
WD12X0328 WD12X0328 VENT ASM
WD01X1467 WD01X1467 VENT PAD
WD1X1467 WD1X1467 VENT PAD
WD03X0588 WD03X0588 WASHER
WD3X767 WD3X767 WASHER
WD03X0767 WD03X0767 WASHER ST STL
WH2X42D WH2X42D WASHR PKG 12
WD18X0202 WD18X0202 WATER INLET HOSE
WD10M10 WD10M10 WATER VALVE
WD10M0010 WD10M0010 WATER VALVE INLET
