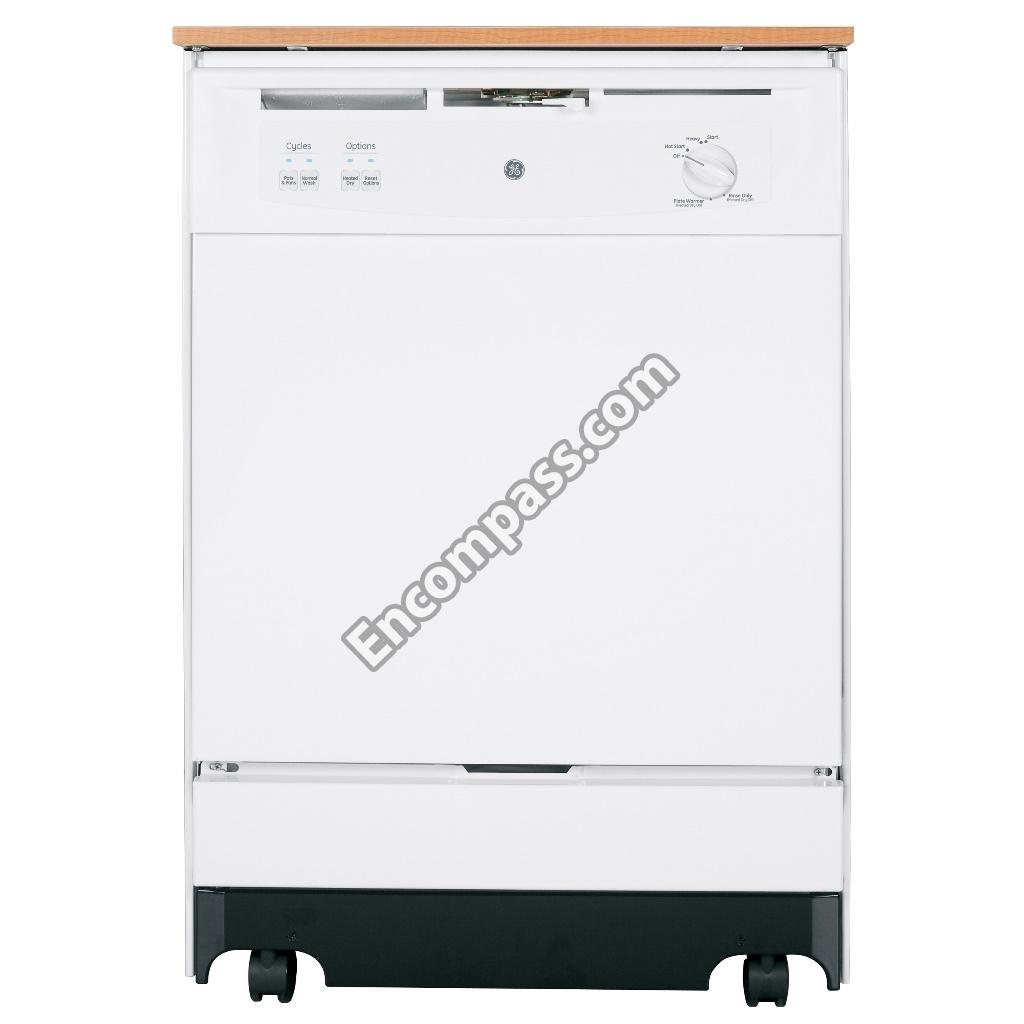

Model Image
Manufacturer

GE

Model Number

GSC3500N10BB

Description

Dishwasher

Interactive Exploded View

Parts List

Part Number Description
WD02X0295 WD02X0295 GE #10X1\2 PH SMS
WD14X10029 WD14X10029 GE ARM HINGE LH
WD14X10030 WD14X10030 GE ARM HINGE RH
WD01X22721 WD01X22721 GE ARM VALVE
WD01X1316 WD01X1316 GE ARMATURE LINK ASSEMBLY
WD1X1316 WD1X1316 GE ARMATURE&LNK
WD8X228 WD8X228 GE BAFFLE LH
WD8X227 WD8X227 GE BAFFLE RH
WD08X0228 WD08X0228 GE BAFFLE TUB CORNER LH
WD08X0227 WD08X0227 GE BAFFLE TUB CORNER RH
WD12X10408 WD12X10408 GE BALL FILTER - ORANGE
WD12X10244 WD12X10244 GE BASE SPRAY ARM
WD28X0265 WD28X0265 GE BASKET SILVERWARE TM
WD12X10025 WD12X10025 GE BEARING HINGE ARM
WD01X10340 WD01X10340 GE BEARING SPRAY ARM
WD01X10368 WD01X10368 GE BLOCK COUNTER WEIGHT
WD01X10369 WD01X10369 GE BRACE CASTOR FRONT
WD01X10370 WD01X10370 GE BRACE CASTOR REAR
WD01X10371 WD01X10371 GE BRACE SUPPORT
WD21X10268 WD21X10268 GE BRACKET & SOLENOID
WD35X0200 WD35X0200 GE BRACKET COUNTER
WD12X10023 WD12X10023 GE BRACKET FLOOD SWITCH
WD01X10366 WD01X10366 GE BRACKET TOP
WD28X265 WD28X265 GE BSKT SILV TI
WD16X10010 WD16X10010 GE CAM TIMER
WD12X10284 WD12X10284 GE CAP FILL
WD12X10247 WD12X10247 GE CAP SUMP
WD01X10367 WD01X10367 GE CASTER ASM
WD12X10245 WD12X10245 GE CHAMBER COLLECTION
WD1X1376 WD1X1376 GE CLAMP
WD01X10341 WD01X10341 GE CLAMP
WD01X1376 WD01X1376 GE CLAMP (PUMP CONNECTOR)
WD01X10065 WD01X10065 GE CLAMP HOSE
WD01X10110 WD01X10110 GE CLIP HARNESS
WD18X214 WD18X214 GE CONNECT PUMP
WD18X0214 WD18X0214 GE CONNECTOR PUMP ASM
WD01X10365 WD01X10365 GE CORD POWER ASM
WD01X10342 WD01X10342 GE COUPLER
WD12X377 WD12X377 GE COVER
WD12X0377 WD12X0377 GE COVER BRACKET
WD16X0297 WD16X0297 GE COVER DET CUP
WD27X10255 WD27X10255 GE COVER FRONT - LONG BK
WD12X10242 WD12X10242 GE COVER INLET
WD16X297 WD16X297 GE DET CUP COVR
WD12X0324 WD12X0324 GE DETERGENT TIMER LEVER
WD03X0764 WD03X0764 GE DETERGENT TRIP SPRING
WD9X351 WD9X351 GE DISHWASHER LATCH KNOB - BLACK
WD12X332 WD12X332 GE DISHWASHER ROLLER BUSHING STUD
WD3X749 WD3X749 GE DISHWASHER TIMER LEVER SPRING
WD35X20994 WD35X20994 GE DISHWASHER UPPER RACK KIT (4 P
WD08X10057 WD08X10057 GE DOOR GASKET
WD31X10004 WD31X10004 GE DOOR INNER
WD12X0338 WD12X0338 GE DRIP SHIELD
WD12X10259 WD12X10259 GE DRIP SHIELD
WD02X10153 WD02X10153 GE E-RING
WD05X0070 WD05X0070 GE ELEMENT HEATING ASM D&D
WD34X11680 WD34X11680 GE ESCUTCHEON
WD34X11304 WD34X11304 GE ESCUTCHEON & INSERT ASM
WD34X11307 WD34X11307 GE ESCUTCHEON & INSERT ASM
WD01X10383 WD01X10383 GE FAUCET ADAPTOR
WD18X202 WD18X202 GE FILL HOSE
WD12X10243 WD12X10243 GE FINE FILTER ASM
WD02X10155 WD02X10155 GE FITTING
WD12X334 WD12X334 GE FLOAT
WD12X0445 WD12X0445 GE FLOAT DOME
WD12X445 WD12X445 GE FLOAT DOME
WD12X0335 WD12X0335 GE FLOAT STEM
WD12X335 WD12X335 GE FLOAT STEM
WD12X0334 WD12X0334 GE FLOOD FLOAT
WD08X0181 WD08X0181 GE GATE SHAFT SEAL
WD08X0225 WD08X0225 GE GROMMET HEATER
WD8X225 WD8X225 GE GROMMET HTR
WD01X1482 WD01X1482 GE HANGER MECH
WD1X1482 WD1X1482 GE HANGER MECH
WD01X1168 WD01X1168 GE HEATER WASHER
WD1X1168 WD1X1168 GE HEATER WASHR
WD05X26780 WD05X26780 GE HEATING ELEMENT ASM
WD24X10041 WD24X10041 GE HOSE CHAMBER
WD19X10020 WD19X10020 GE HOUSING PUMP ASSEMBLY
WD01X10349 WD01X10349 GE HOUSING TERMINAL
WD21X10356 WD21X10356 GE HSNG SPECIAL-DRAIN SOLEN
WD21X10355 WD21X10355 GE HSNG SPECIAL-WATER VALVE
WD34X11349 WD34X11349 GE INSERT ESCUTCHEON
WD34X11351 WD34X11351 GE INSERT ESCUTCHEON
WD13X0067 WD13X0067 GE KEEPER DOOR LATCH
WD19X10039 WD19X10039 GE KIT - IMPELLER ASM
WD09X0351 WD09X0351 GE KNOB DOOR LATCH HANDLE BK
WD09X10024 WD09X10024 GE KNOB TIMER BLACK
WD09X10025 WD09X10025 GE KNOB TIMER WHITE
WD13X10003 WD13X10003 GE LATCH ASM
WD16X10011 WD16X10011 GE LATCH DETERGENT CUP
WD13X67 WD13X67 GE LATCH KEEPER
WD01X1363 WD01X1363 GE LEAF SWITCH
WD2X320 WD2X320 GE LEVELING LEG
WD12X324 WD12X324 GE LEVER
WD14X10009 WD14X10009 GE LINK HINGE ARM
WD26X10051 WD26X10051 GE MECHANISM S/S ASSEMBLY
WD35X200 WD35X200 GE MOUNTING KIT
WD02X0429 WD02X0429 GE NUT PUSH ON
WD01X10070 WD01X10070 GE NUT TOWER HEATER
WD27X10223 WD27X10223 GE PANEL ACCESS FINISHED BK
WD27X10225 WD27X10225 GE PANEL ACCESS FINISHED WW
WD31X10024 WD31X10024 GE PANEL FRONT- LONG BLACK
WD31X10025 WD31X10025 GE PANEL FRONT- LONG WHITE
WD31X10101 WD31X10101 GE PANEL WOODEN
31-30234 31-30234 GE PM INSTRUCTION INSTALL
49-55034-1 49-55034-1 GE PM MANUAL USE & CARE
31-30487-1 31-30487-1 GE PM SHEET MINI MANUAL
WD03X0487 WD03X0487 GE PS RETAINER
WR2X7054 WR2X7054 GE PUSH-ON NUT
WD28X10284 WD28X10284 GE RACK ASM FINAL LOWER
WD28X31819 WD28X31819 GE RACK ASM FINAL LOWER
WD28X10210 WD28X10210 GE RACK ASM FINAL UPPER
WD28X31820 WD28X31820 GE RACK ASM FINAL UPPER
WD30X0098 WD30X0098 GE RACK SLIDE
WD12X0344 WD12X0344 GE RACK SLIDE END CAP
WD12X10304 WD12X10304 GE RACK SLIDE END CAP
WD3X487D WD3X487D GE RETNR-PKG 12
WD12X0332 WD12X0332 GE ROLLER STUD ASM
WD02X0425 WD02X0425 GE SCR 10-12X1/2 AC PNR S
WD02X10157 WD02X10157 GE SCR 10-16 AB 36PNQ 1/2 S
WD02X10154 WD02X10154 GE SCR 10-16 AB 36WHEX 1/2
WD02X10151 WD02X10151 GE SCR 10-16 AB 43WHEX 5/8
WD02X10127 WD02X10127 GE SCR 10-16 HXW 3/8 S
WD02X10152 WD02X10152 GE SCR 10-16 WHEXQ 1/2 S
WD02X0248 WD02X0248 GE SCR 10-24X3/8 TT HEX
WD02X10159 WD02X10159 GE SCR 10-32 C HX 7/16 S
WD02X0445 WD02X0445 GE SCR 10-32 T HEX .7 S
WD02X10141 WD02X10141 GE SCR 10-32 TT HEX .575S
WD02X10104 WD02X10104 GE SCR 8-10 PL TRP 1/2 S
WD02X10156 WD02X10156 GE SCR 8-18 AB FL 1/2 S
WD02X10106 WD02X10106 GE SCR 8-18 AB TR 7/8S
WH23X10028 WH23X10028 GE SCR 8-18 AB TR 7/8S
WD02X10130 WD02X10130 GE SCR 8-18 B POR 1/4 SS
WZ5X219D WZ5X219D GE SCR 8-18 BT TRQ2 1/2 S
WD02X10162 WD02X10162 GE SCR 8-32 HXP 1/4 S
WD01X0550 WD01X0550 GE SCR 8-32 PNT 1/2 S
WD02X0444 WD02X0444 GE SCREW
WZ05X0219 WZ05X0219 GE SCREW
WD2X296 WD2X296 GE SCREW
WD1X550 WD1X550 GE SCREW
WD2X432 WD2X432 GE SCREW
WD2X295 WD2X295 GE SCREW
WD2X425 WD2X425 GE SCREW
WD2X248 WD2X248 GE SCREW
WD02X22736 WD02X22736 GE SCREW #8-3/4 L HX HD SS
WD02X10066 WD02X10066 GE SCREW 10-24X1/2 TT TRR S
WD02X10067 WD02X10067 GE SCREW 8-16 HXW 1/2 SS
WD02X0432 WD02X0432 GE SCREW 8-18 X 5/16 BK
WD02X0296 WD02X0296 GE SCREW 8-32X5/8
WD02X0320 WD02X0320 GE SCREW LEVEL
WD2X444 WD2X444 GE SCREW MECH
WZ2X45D WZ2X45D GE SCREW-PKG 12
WZ02X0045 WZ02X0045 GE SCREW-PKG 12
WD16X313 WD16X313 GE SHAFT DET CP
WD8X181 WD8X181 GE SHAFT SEAL
WD16X0313 WD16X0313 GE SHAFT/HANDLE DET CUP
WD12X0370 WD12X0370 GE SHIELD SWITCH
WD12X22757 WD12X22757 GE SHIELD SWITCH
WD12X338 WD12X338 GE SHLD&CLIP KT
WD30X98 WD30X98 GE SLIDE
WD22X10055 WD22X10055 GE SPRAY ARM WELD
WD3X764 WD3X764 GE SPRING
WD03X10007 WD03X10007 GE SPRING DOOR PURPLE 21 LB
WD03X0721 WD03X0721 GE SPRING SET
WD3X721 WD3X721 GE SPRING SET
WD03X0749 WD03X0749 GE SPRING TIMER LEVER
WD35X21039 WD35X21039 GE STUD AND ROLLER ASSEMBLY - UPPER
WD35X21038 WD35X21038 GE STUD ROLLER - LOWER
WD12X10269 WD12X10269 GE STUD ROLLER - UPPER
WD1X1392 WD1X1392 GE SUMP CLAMP
WD18X10039 WD18X10039 GE SUMP INLET
WD01X10086 WD01X10086 GE SUPPORT CALROD ASSEMBLY
WD01X1472 WD01X1472 GE SUPPORT HEATER
WD1X1472 WD1X1472 GE SUPT HEATER
WD21X479 WD21X479 GE SWITCH
WD12X10154 WD12X10154 GE SWITCH COVER
WD21X0479 WD21X0479 GE SWITCH FLOOD
WD21X10261 WD21X10261 GE SWITCH INTERLOCK
WD1X1363 WD1X1363 GE SWITCH LEAF
WD21X10266 WD21X10266 GE SWITCH PUSHBUTTON
WD12X10264 WD12X10264 GE TANK RINSE AID TANK
WD01X1434 WD01X1434 GE TERMINAL SPECIAL
WD1X1434D WD1X1434D GE TERMN-PKG 12
WD21X10349 WD21X10349 GE TIMER
WD31X10141 WD31X10141 GE TIMER COVER
WD27X10231 WD27X10231 GE TOE KICK
WD34X11423 WD34X11423 GE TRIM TUB
WD24X10066 WD24X10066 GE UNICOUPLE ASSEMBLY
WD12X10258 WD12X10258 GE UNICOUPLE POCKET
WH1X2036 WH1X2036 GE UNIV CLAMP
WD15X10014 WD15X10014 GE VALVE WATER INLET
WD12X10026 WD12X10026 GE VENT
WD01X1467 WD01X1467 GE VENT PAD
WD1X1467 WD1X1467 GE VENT PAD
WD3X767 WD3X767 GE WASHER
WD03X0767 WD03X0767 GE WASHER ST STL
WD18X0202 WD18X0202 GE WATER INLET HOSE
