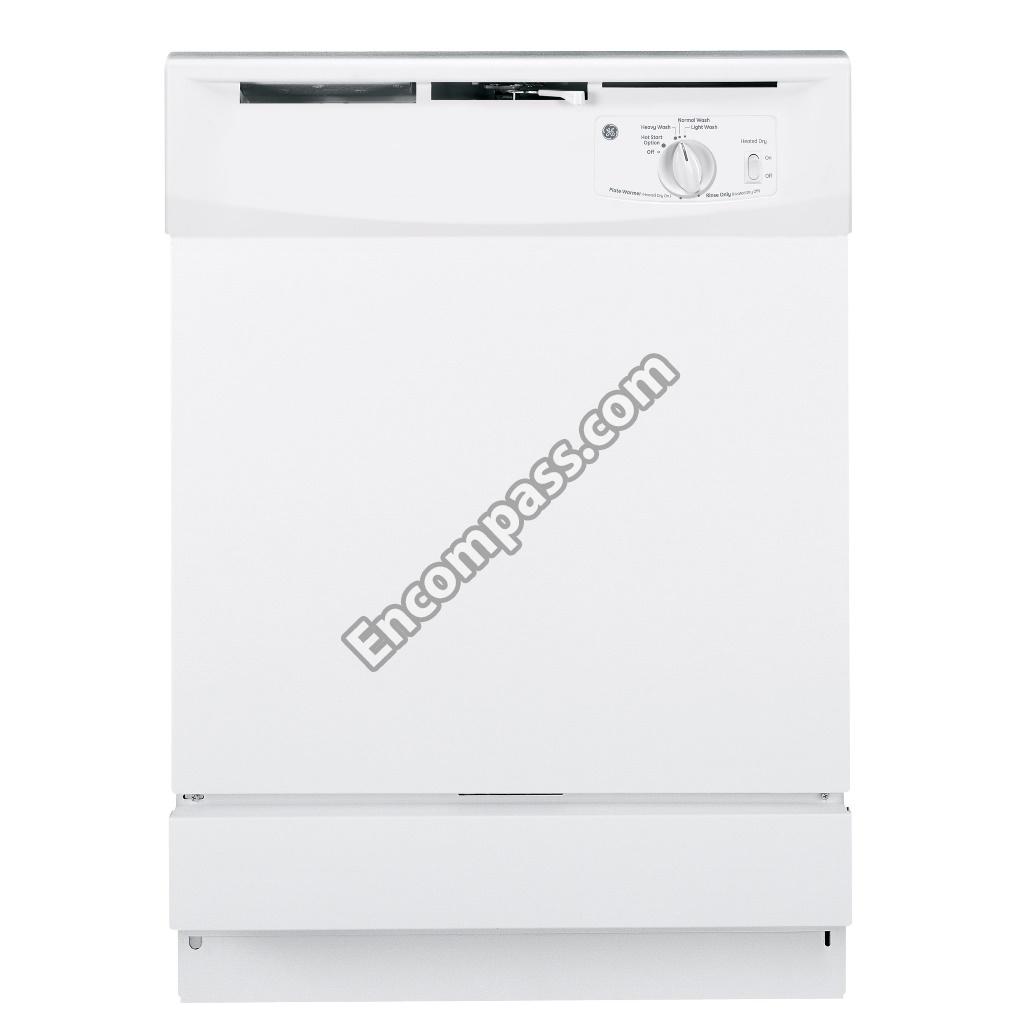

Model Image
Manufacturer

GE

Model Number

GSD2100N00CC

Description

Dishwasher

Interactive Exploded View

Parts List

Part Number Description
WD02X0295 WD02X0295 #10X1\2 PH SMS
WD12X0383 WD12X0383 4-RLR & STD ASM UPR RACK
WD14X10029 WD14X10029 ARM HINGE LH
WD14X10030 WD14X10030 ARM HINGE RH
WD01X22721 WD01X22721 ARM VALVE
WD01X1316 WD01X1316 ARMATURE LINK ASSEMBLY
WD1X1316 WD1X1316 ARMATURE&LNK
WD8X228 WD8X228 BAFFLE LH
WD8X227 WD8X227 BAFFLE RH
WD08X0228 WD08X0228 BAFFLE TUB CORNER LH
WD08X0227 WD08X0227 BAFFLE TUB CORNER RH
WD12X10408 WD12X10408 BALL FILTER - ORANGE
WD12X10244 WD12X10244 BASE SPRAY ARM
WD28X0265 WD28X0265 BASKET SILVERWARE TM
WD12X10025 WD12X10025 BEARING HINGE ARM
WD01X10340 WD01X10340 BEARING SPRAY ARM
WD21X10268 WD21X10268 BRACKET & SOLENOID
WD35X0200 WD35X0200 BRACKET COUNTER
WD12X10023 WD12X10023 BRACKET FLOOD SWITCH
WD28X265 WD28X265 BSKT SILV TI
WD16X10010 WD16X10010 CAM TIMER
WD12X10284 WD12X10284 CAP FILL
WD12X10247 WD12X10247 CAP SUMP

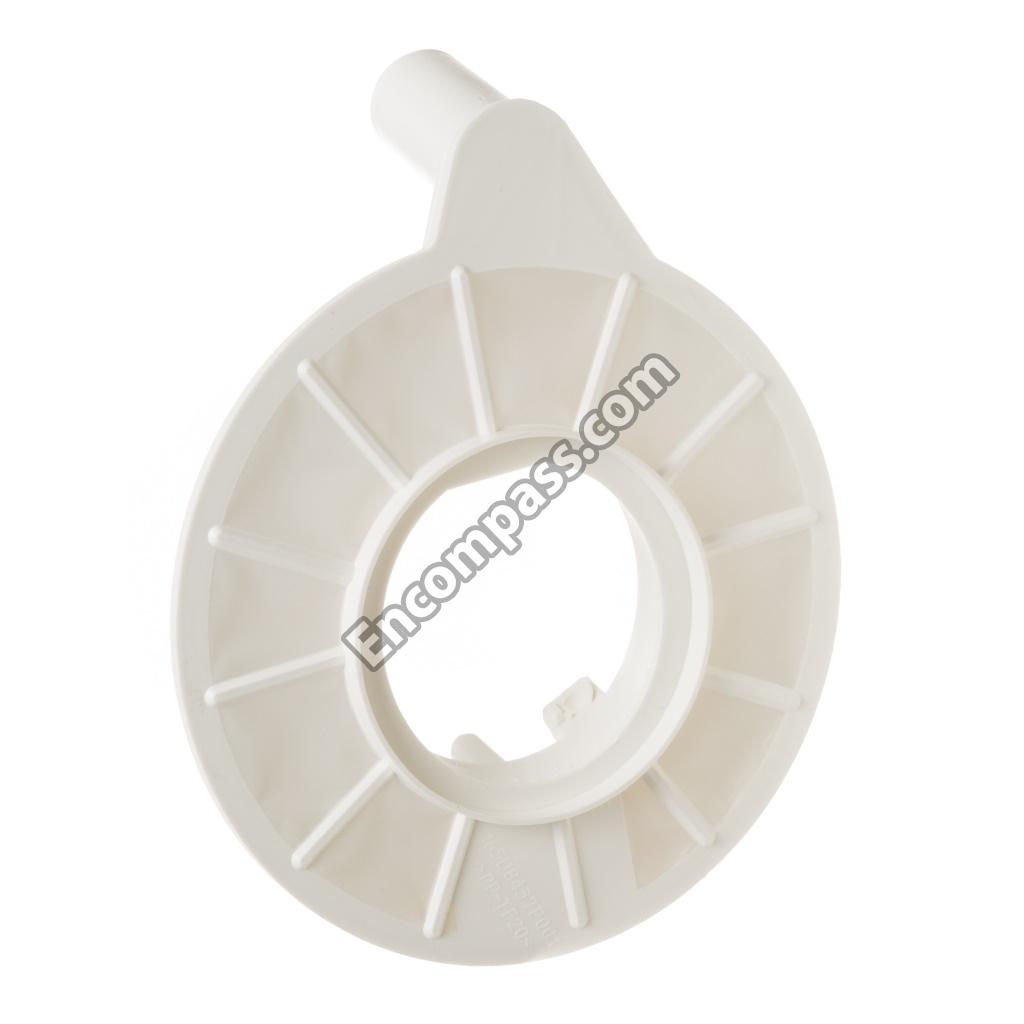

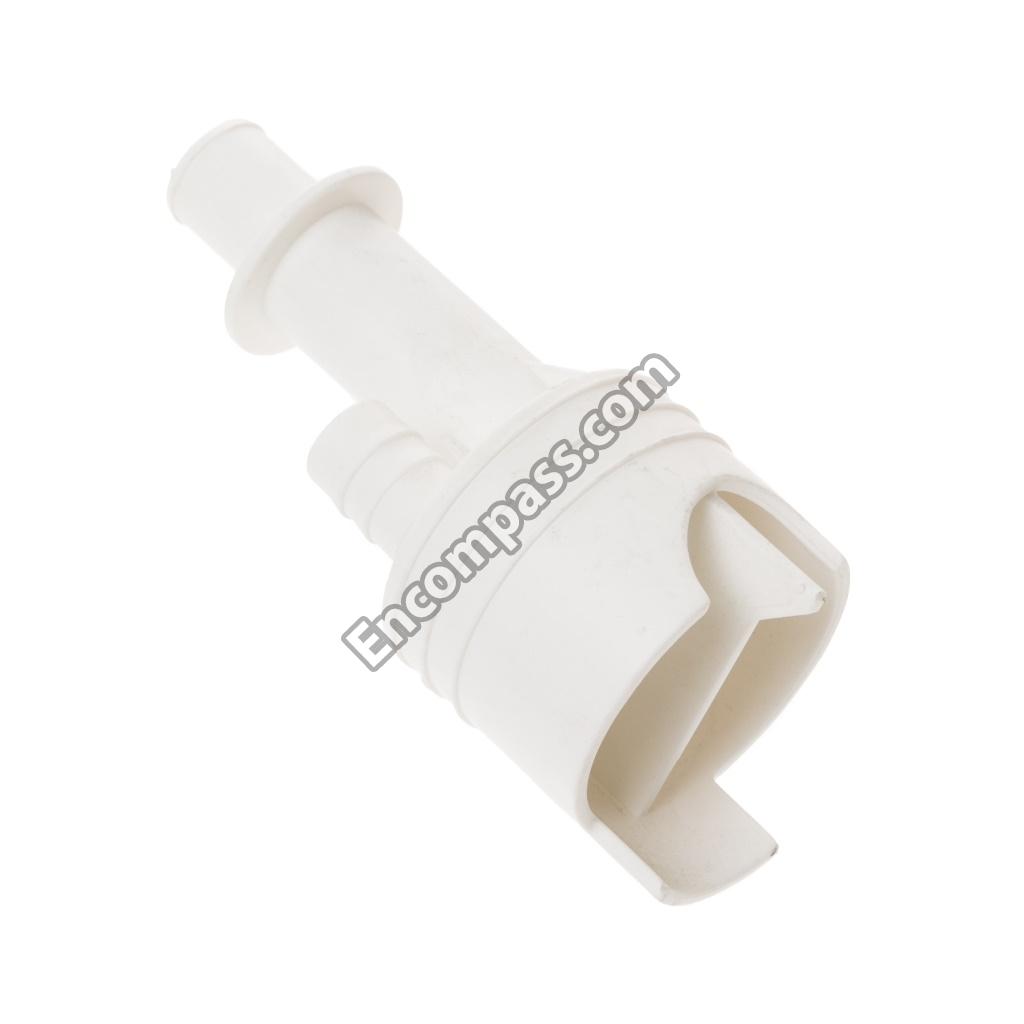

WD12X10245 WD12X10245 CHAMBER COLLECTION
WD1X1376 WD1X1376 CLAMP
WD01X10341 WD01X10341 CLAMP
WD01X1376 WD01X1376 CLAMP (PUMP CONNECTOR)
WD01X10065 WD01X10065 CLAMP HOSE
WD01X10110 WD01X10110 CLIP HARNESS
WD18X214 WD18X214 CONNECT PUMP
WD18X0214 WD18X0214 CONNECTOR PUMP ASM
WD01X10342 WD01X10342 COUPLER
WD12X377 WD12X377 COVER
WD12X0377 WD12X0377 COVER BRACKET
WD16X0297 WD16X0297 COVER DET CUP
WD27X10255 WD27X10255 COVER FRONT - LONG BK
WD12X10242 WD12X10242 COVER INLET
WD12X448 WD12X448 COVER JUNCTION BOX
WD16X297 WD16X297 DET CUP COVR
WD12X0324 WD12X0324 DETERGENT TIMER LEVER
WD03X0764 WD03X0764 DETERGENT TRIP SPRING
WD12X332 WD12X332 DISHWASHER ROLLER BUSHING STUD
WD3X749 WD3X749 DISHWASHER TIMER LEVER SPRING
WD08X10057 WD08X10057 DOOR GASKET
WD31X10004 WD31X10004 DOOR INNER
WD12X0338 WD12X0338 DRIP SHIELD
WD05X0070 WD05X0070 ELEMENT HEATING ASM D&D

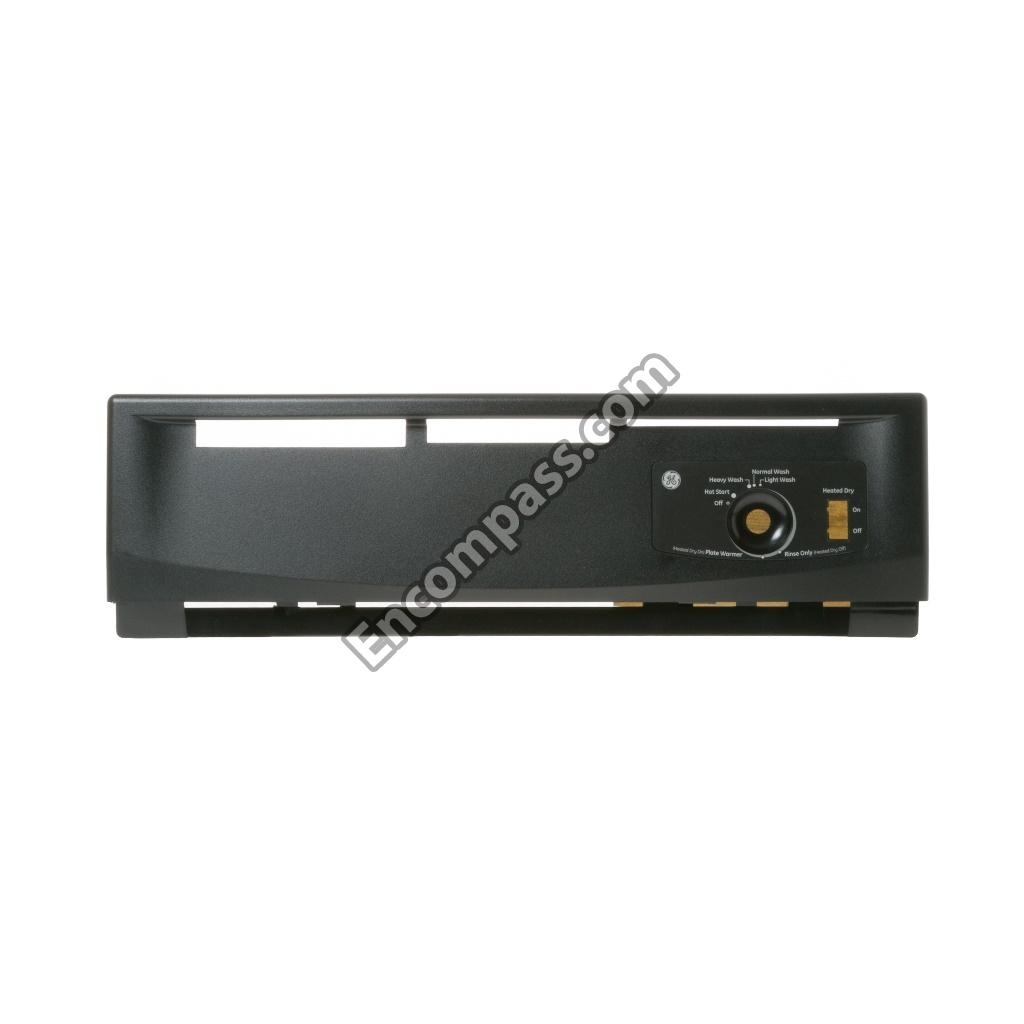

WD34X11333 WD34X11333 ESCUTCHEON
WD34X11844 WD34X11844 ESCUTCHEON
WD34X11308 WD34X11308 ESCUTCHEON & INSERT ASM
WD34X11309 WD34X11309 ESCUTCHEON & INSERT ASM
WD34X11303 WD34X11303 ESCUTCHEON & INSERT ASM
WD34X11686 WD34X11686 ESCUTCHEON.
WD18X202 WD18X202 FILL HOSE
WD12X10243 WD12X10243 FINE FILTER ASM
WD12X334 WD12X334 FLOAT
WD12X0445 WD12X0445 FLOAT DOME
WD12X445 WD12X445 FLOAT DOME
WD12X0335 WD12X0335 FLOAT STEM
WD12X335 WD12X335 FLOAT STEM
WD12X0334 WD12X0334 FLOOD FLOAT
WD08X0181 WD08X0181 GATE SHAFT SEAL
WD08X0225 WD08X0225 GROMMET HEATER
WD8X225 WD8X225 GROMMET HTR
WD01X1482 WD01X1482 HANGER MECH
WD1X1482 WD1X1482 HANGER MECH
WD01X1168 WD01X1168 HEATER WASHER
WD1X1168 WD1X1168 HEATER WASHR
WD05X26780 WD05X26780 HEATING ELEMENT ASM
WD24X10041 WD24X10041 HOSE CHAMBER
WD24X10014 WD24X10014 HOSE DRAIN

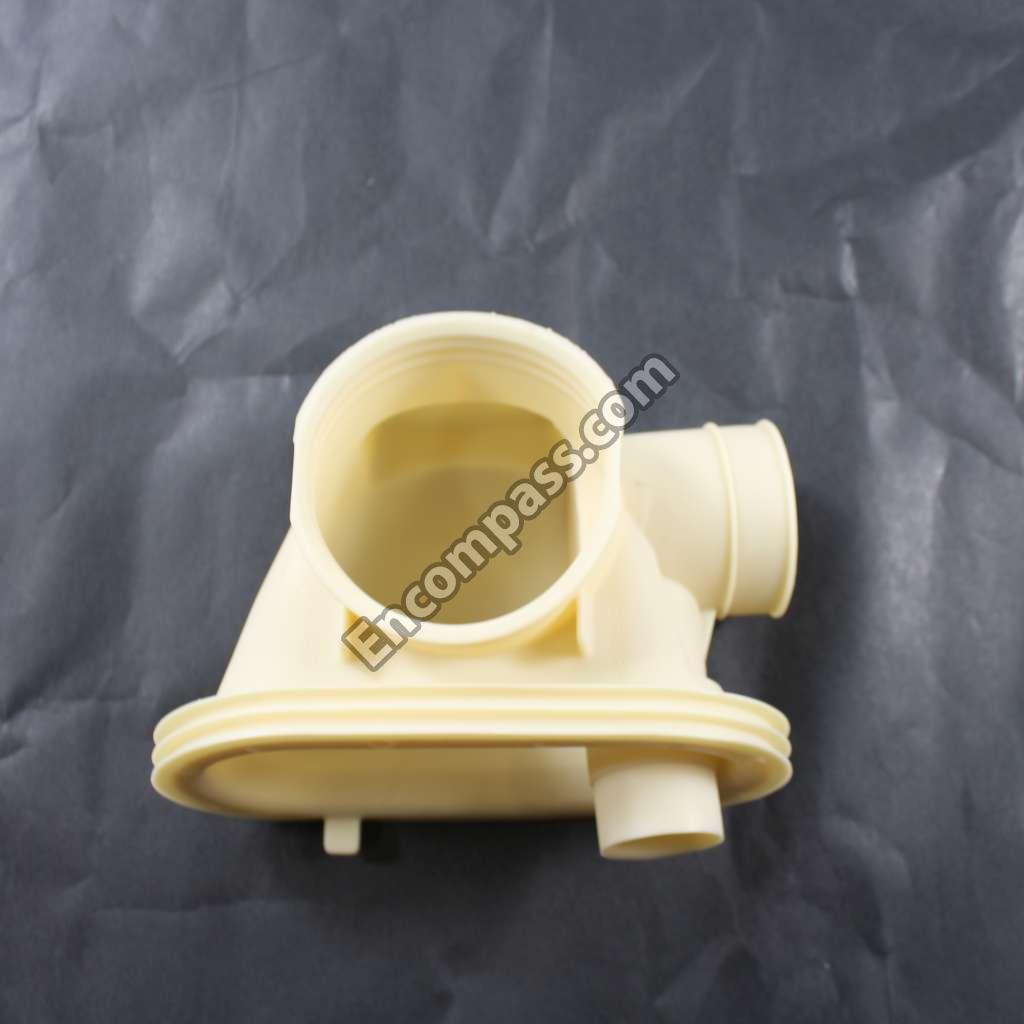

WD19X10020 WD19X10020 HOUSING PUMP ASSEMBLY
WD21X10355 WD21X10355 HOUSING SPECIAL
WD01X10349 WD01X10349 HOUSING TERMINAL
WD34X11355 WD34X11355 INSERT ESCUTCHEON
WD34X11354 WD34X11354 INSERT ESCUTCHEON
WD34X11353 WD34X11353 INSERT ESCUTCHEON
WD13X0067 WD13X0067 KEEPER DOOR LATCH

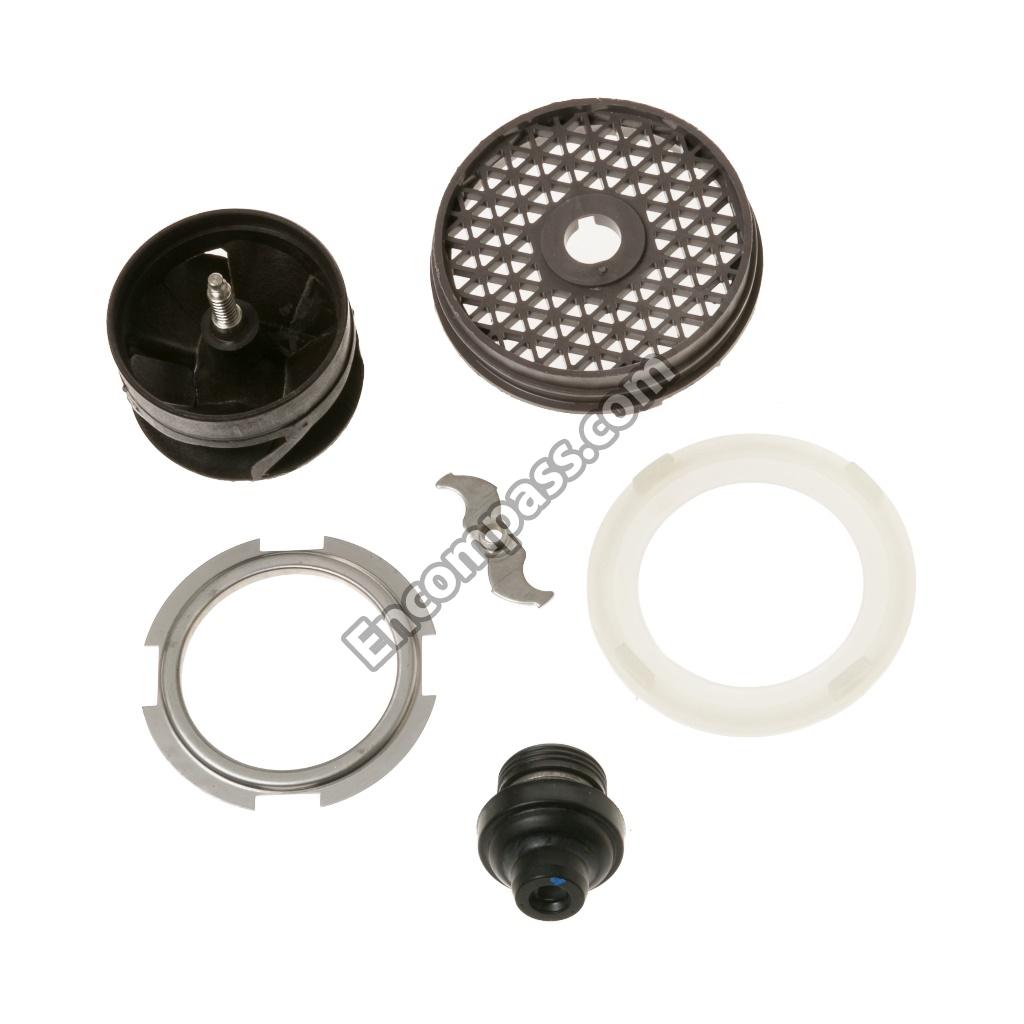

WD19X10039 WD19X10039 KIT - IMPELLER ASM
WD09X10020 WD09X10020 KNOB LATCH HANDLE CC
WD09X10031 WD09X10031 KNOB TIMER

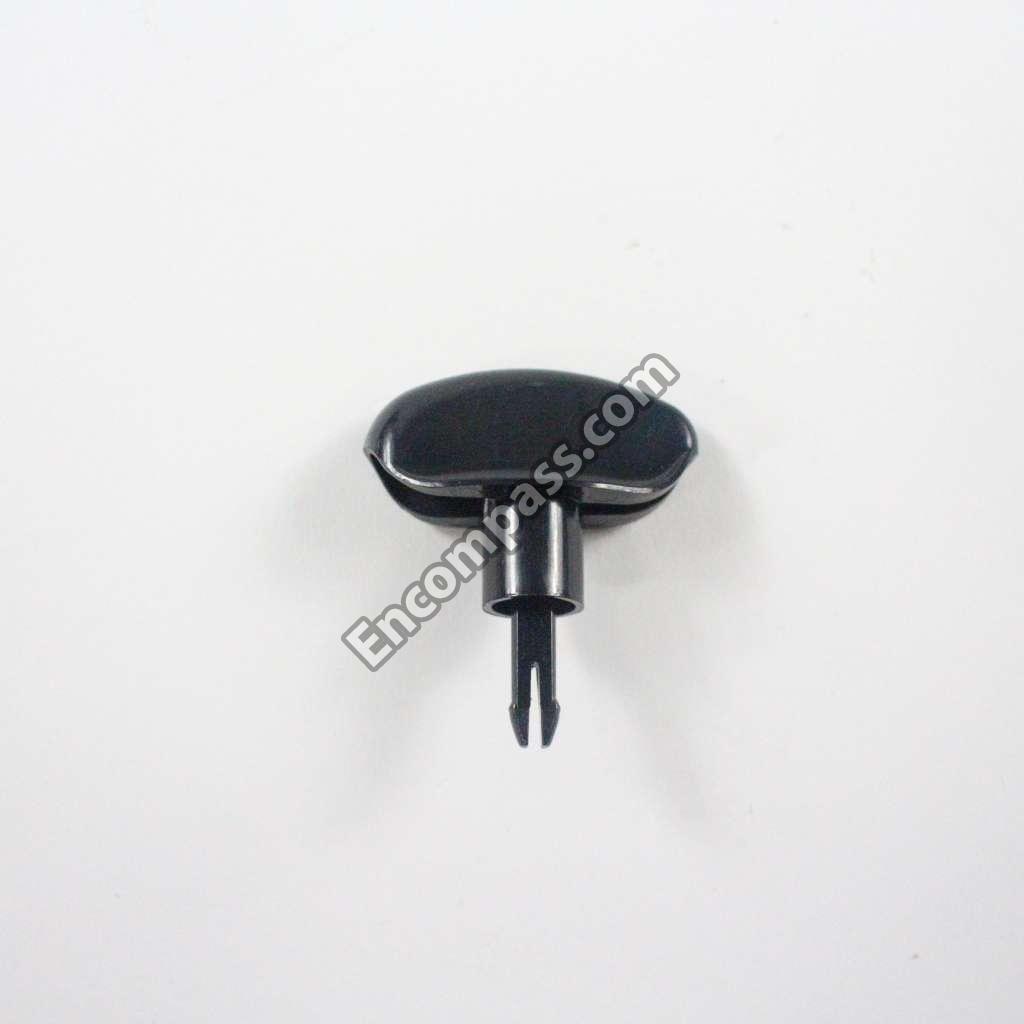

WD09X10024 WD09X10024 KNOB TIMER BLACK

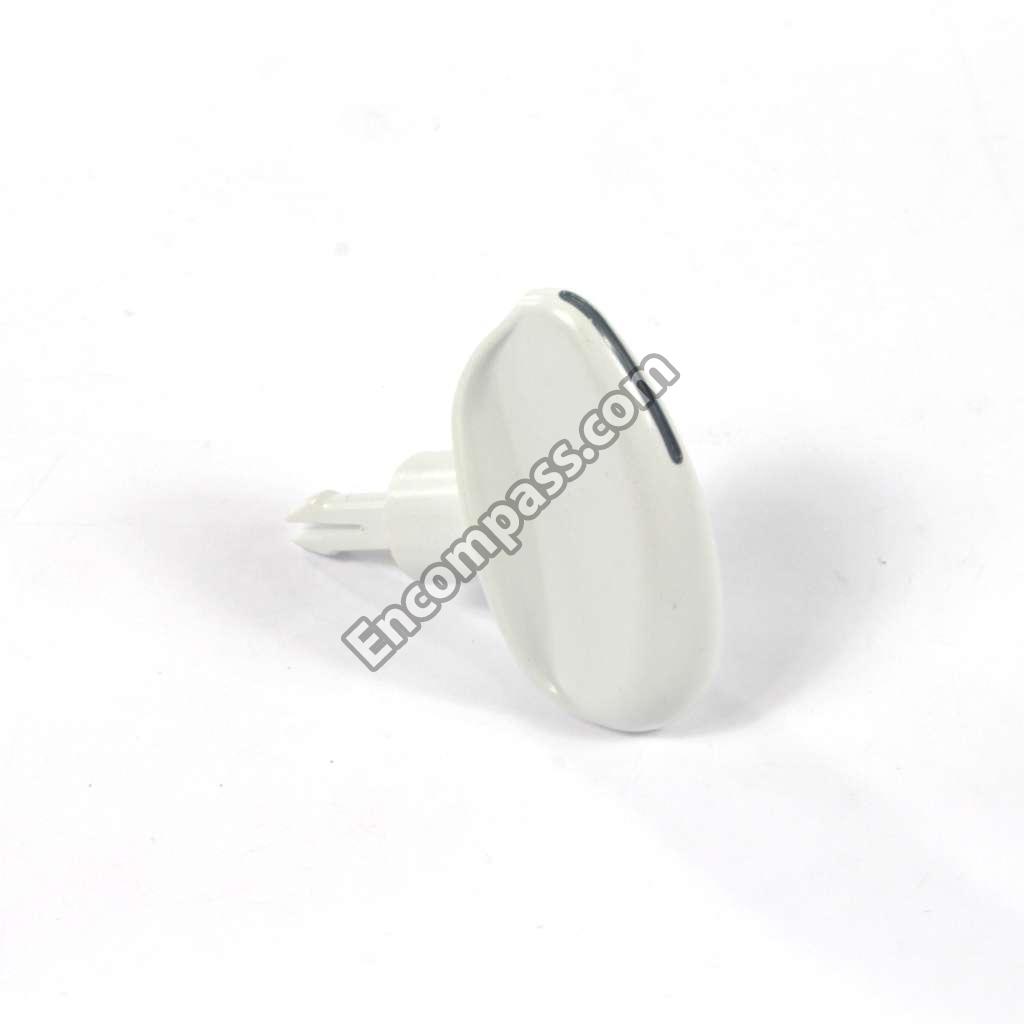

WD09X10025 WD09X10025 KNOB TIMER WHITE
WD13X10003 WD13X10003 LATCH ASM
WD16X10011 WD16X10011 LATCH DETERGENT CUP
WD13X67 WD13X67 LATCH KEEPER
WD01X1363 WD01X1363 LEAF SWITCH
WD2X320 WD2X320 LEVELING LEG
WD12X324 WD12X324 LEVER
WD14X10009 WD14X10009 LINK HINGE ARM
WD26X10051 WD26X10051 MECHANISM S/S ASSEMBLY
WD35X200 WD35X200 MOUNTING KIT
WD02X0429 WD02X0429 NUT PUSH ON
WD01X10070 WD01X10070 NUT TOWER HEATER
WD27X10223 WD27X10223 PANEL ACCESS FINISHED BK
WD27X10222 WD27X10222 PANEL ACCESS FINISHED CC
WD27X10225 WD27X10225 PANEL ACCESS FINISHED WW
WD31X10026 WD31X10026 PANEL FRONT - LONG CT
WD31X10024 WD31X10024 PANEL FRONT- LONG BLACK
WD31X10025 WD31X10025 PANEL FRONT- LONG WHITE
WD27X10068 WD27X10068 PANEL TOE KICK BLACK
WD27X10072 WD27X10072 PANEL TOE KICK FINISHED
WD27X10066 WD27X10066 PANEL TOE KICK WHITE
31-30218 31-30218 PM INSTRUCTION INSTALL
49-55023 49-55023 PM MANUAL USE & CARE
31-30491-1 31-30491-1 PM SHEET MINI MANUAL
WD03X0487 WD03X0487 PS RETAINER
WR2X7054 WR2X7054 PUSH-ON NUT
WD28X31819 WD28X31819 RACK ASM FINAL LOWER
WD28X31818 WD28X31818 RACK KIT SERV
WD28X0305 WD28X0305 RACK LOWER ROLLER ASM
WD12X271 WD12X271 RACK RLR ASM
WD30X0098 WD30X0098 RACK SLIDE
WD12X0344 WD12X0344 RACK SLIDE END CAP
WD12X10304 WD12X10304 RACK SLIDE END CAP
WD28X0277 WD28X0277 RACK UPPER ROLLER TM
WD3X487D WD3X487D RETNR-PKG 12
WD12X0398 WD12X0398 RINSE AID INJ ASM
WD12X10327 WD12X10327 ROLLER & STUD ASM - 4 PACK
WD12X0271 WD12X0271 ROLLER ASM LWR RACK FRNT
WD12X0272 WD12X0272 ROLLER ASM LWR RACK REAR
WD35X21038 WD35X21038 ROLLER LOWER RACK.
WD12X0332 WD12X0332 ROLLER STUD ASM
WD02X0425 WD02X0425 SCR 10-12X1/2 AC PNR S
WD02X10127 WD02X10127 SCR 10-16 HXW 3/8 S
WD02X10126 WD02X10126 SCR 10-16 HXW 3/8 S
WD02X5166 WD02X5166 SCR 10-16X1/2 AB HEXW S
WD02X0248 WD02X0248 SCR 10-24X3/8 TT HEX
WD02X0445 WD02X0445 SCR 10-32 T HEX .7 S
WZ05X0222 WZ05X0222 SCR 10-32 T HEX 7/16 S
WD02X10141 WD02X10141 SCR 10-32 TT HEX .575S
WD02X10104 WD02X10104 SCR 8-10 PL TRP 1/2 S
WD02X10106 WD02X10106 SCR 8-18 AB TR 7/8S
WH23X10028 WH23X10028 SCR 8-18 AB TR 7/8S
WD01X0550 WD01X0550 SCR 8-32 PNT 1/2 S
WD02X0444 WD02X0444 SCREW
WZ05X0219 WZ05X0219 SCREW
WZ5X222 WZ5X222 SCREW
WD2X295 WD2X295 SCREW
WD2X425 WD2X425 SCREW
WD2X296 WD2X296 SCREW
WD1X550 WD1X550 SCREW
WD2X248 WD2X248 SCREW
WD2X5166 WD2X5166 SCREW
WD02X22736 WD02X22736 SCREW #8-3/4 L HX HD SS
WD02X10066 WD02X10066 SCREW 10-24X1/2 TT TRR S
WD02X10067 WD02X10067 SCREW 8-16 HXW 1/2 SS
WD02X10056 WD02X10056 SCREW 8-32 X 5/16 SPH
WD02X0296 WD02X0296 SCREW 8-32X5/8
WD02X0320 WD02X0320 SCREW LEVEL
WD2X444 WD2X444 SCREW MECH
WZ2X45D WZ2X45D SCREW-PKG 12
WZ02X0045 WZ02X0045 SCREW-PKG 12
WZ5X219D WZ5X219D SCREW-PKG 12
WD16X313 WD16X313 SHAFT DET CP
WD8X181 WD8X181 SHAFT SEAL
WD16X0313 WD16X0313 SHAFT/HANDLE DET CUP
WD12X0370 WD12X0370 SHIELD SWITCH
WD12X22757 WD12X22757 SHIELD SWITCH
WD12X0429 WD12X0429 SHIELD TIMER
WD12X338 WD12X338 SHLD&CLIP KT
WD30X98 WD30X98 SLIDE
WD22X10055 WD22X10055 SPRAY ARM WELD
WD3X764 WD3X764 SPRING
WD03X10006 WD03X10006 SPRING DOOR BK 20 LB
WD03X0721 WD03X0721 SPRING SET
WD3X721 WD3X721 SPRING SET
WD03X0749 WD03X0749 SPRING TIMER LEVER
WD1X1392 WD1X1392 SUMP CLAMP
WD18X10039 WD18X10039 SUMP INLET
WD01X10086 WD01X10086 SUPPORT CALROD ASSEMBLY
WD01X1472 WD01X1472 SUPPORT HEATER
WD1X1472 WD1X1472 SUPT HEATER
WD21X479 WD21X479 SWITCH
WD21X0479 WD21X0479 SWITCH FLOOD
WD21X10261 WD21X10261 SWITCH INTERLOCK
WD1X1363 WD1X1363 SWITCH LEAF

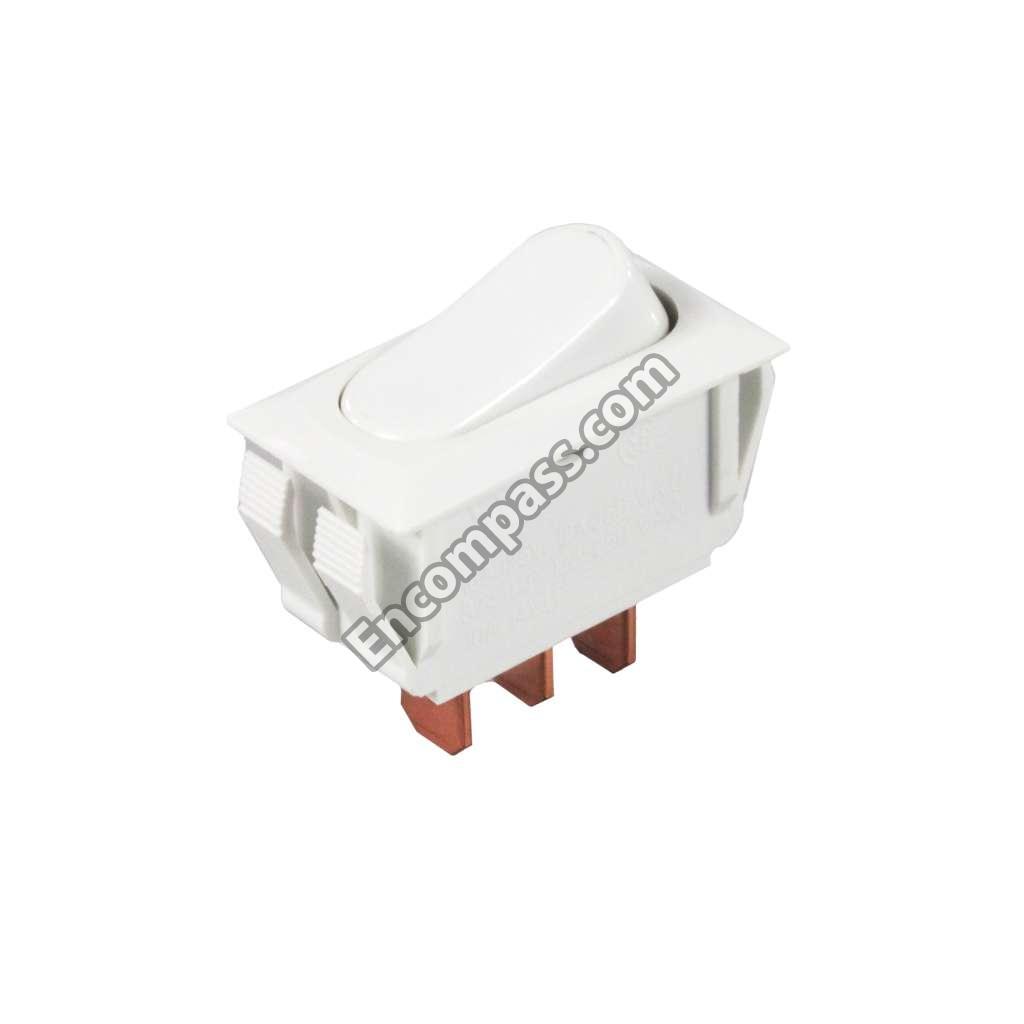

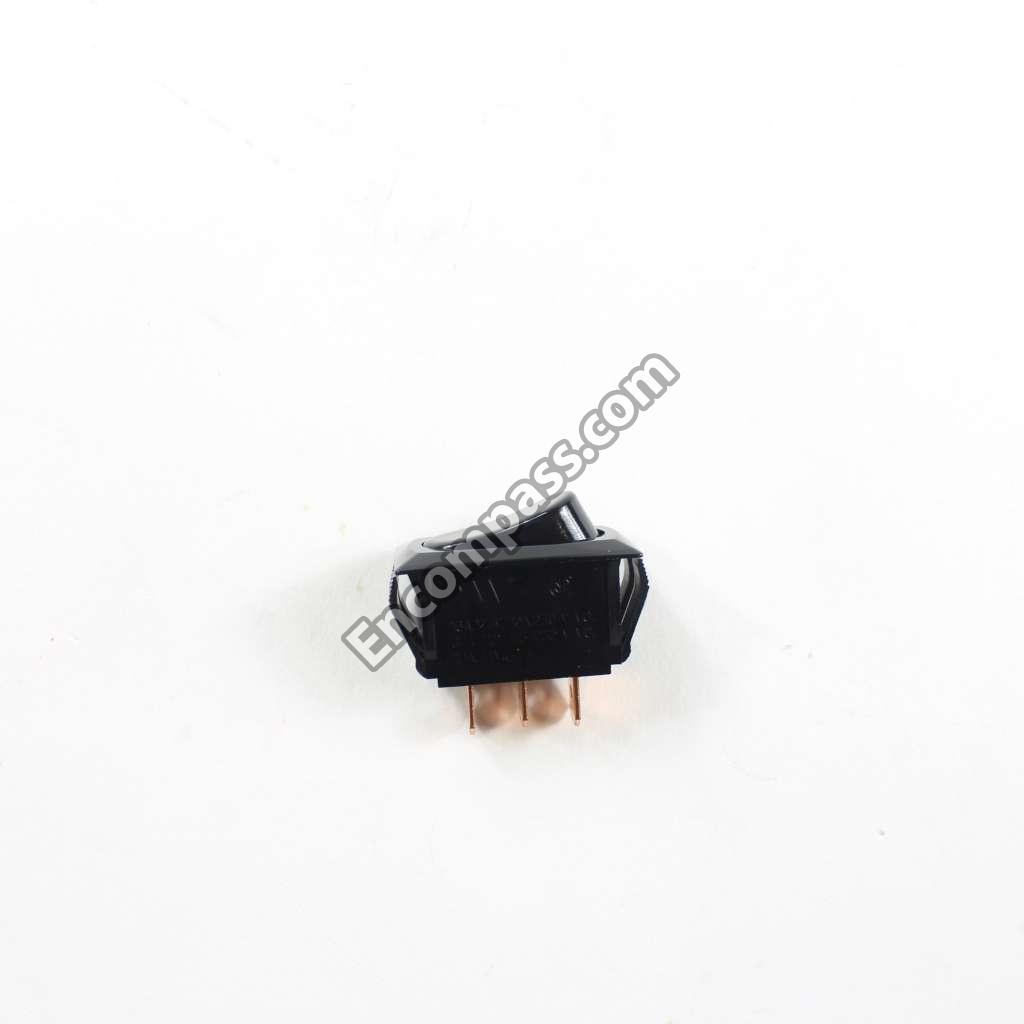

WD21X10111 WD21X10111 SWITCH ROCKER
WD21X10084 WD21X10084 SWITCH ROCKER
WD21X10083 WD21X10083 SWITCH ROCKER
WD35X10346 WD35X10346 TANK RINSE AID KIT
WD21X10356 WD21X10356 TERM HSNG - W/VALVE
WD01X1434 WD01X1434 TERMINAL SPECIAL
WD1X1434D WD1X1434D TERMN-PKG 12
WD21X33643 WD21X33643 TIMER
WD31X10141 WD31X10141 TIMER COVER
WH1X2036 WH1X2036 UNIV CLAMP

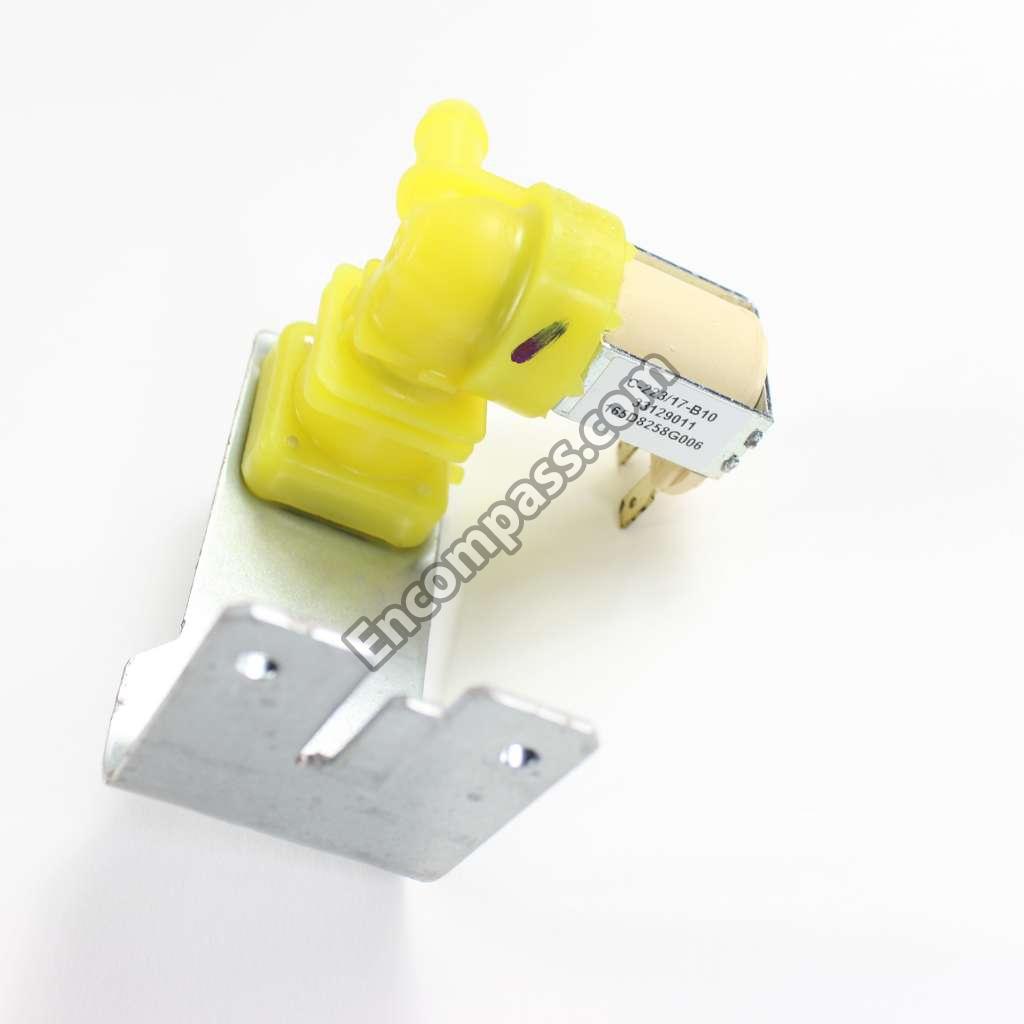

WD15X10014 WD15X10014 VALVE WATER INLET
WD12X10026 WD12X10026 VENT
WD01X1467 WD01X1467 VENT PAD
WD1X1467 WD1X1467 VENT PAD
WD3X767 WD3X767 WASHER
WD03X0767 WD03X0767 WASHER ST STL
WD18X0202 WD18X0202 WATER INLET HOSE
