GE
Model Number
GSE23GGPBCBB
Description

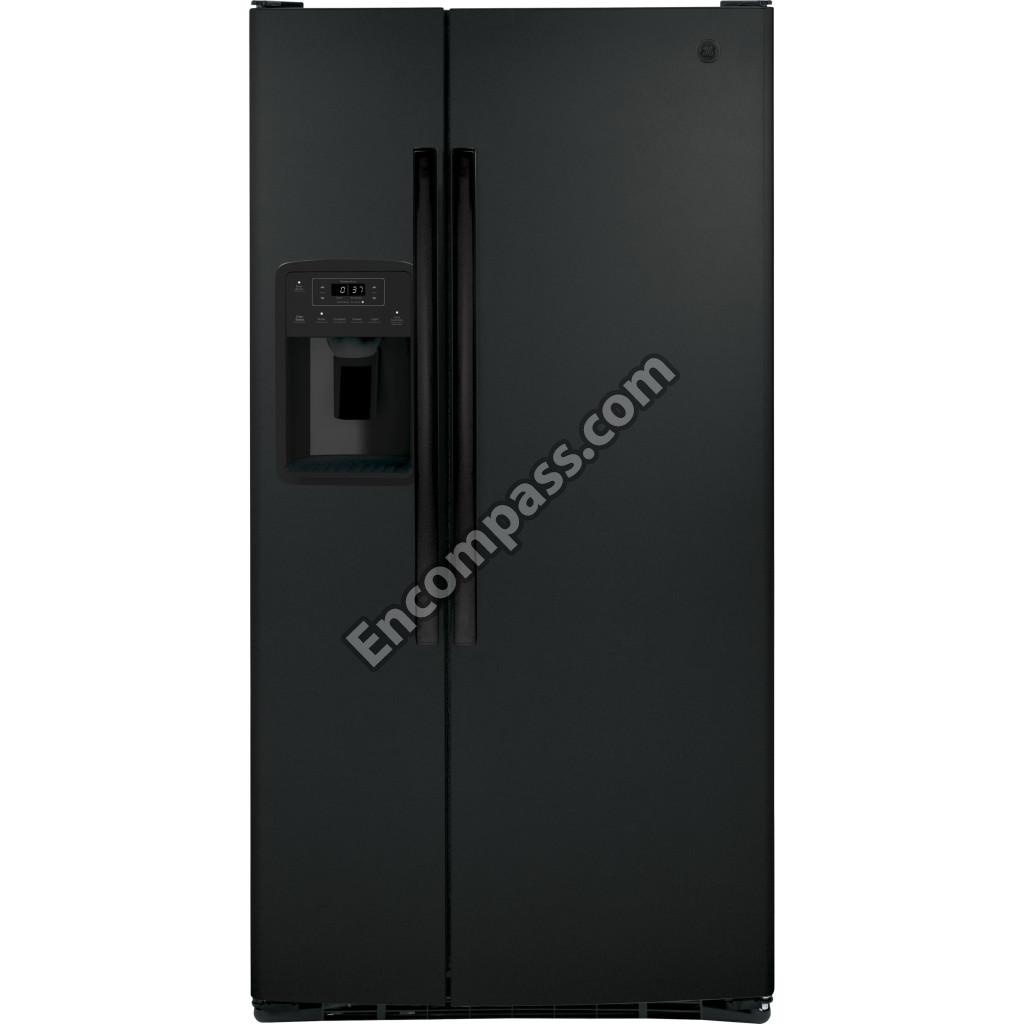

Side-by-side Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
"CLIP, COND MNT" |
|
|
ACCESS COVER |
|
|
BAFFLE COND AIR |
|
|
BASKET WIRE SLIDEOUT FZ |
|
|
BLACK GE BADGE |
|
|
BLACK HANDLE DOOR ASSEMBLY |
|
|
BLADE CONF FAN ASSEMBLY |
|
|
BOARD ASM MAIN CONTROL |
|
|
BOOT AUGER MOTOR |
|
|
BRACKET ANGLE |
|
|
BRACKET COND FAN (REAR) |
|
|
BRACKET CONDENSER BAR |
|
|
BRACKET EVAPORATOR FAN BTM |
|
|
BRACKET FZ TOWER LOWER |
|
|
BRACKET FZ TOWER UPPER |
|
|
BRACKET IM MOUNTING |
|
|
BRACKET ORIFICE FAN |
|
|
BRKT COND FAN (MTG) |
|
|
BUCKET & AUGER ASM |
|
|
BUMPER |
|
|
BYPASS FILTER PLUG |
|
|
CAM CLOSURE FF BLACK |
|
|
CAM CLOSURE FZ BLACK |
|
|
CAP CORNER OC BLACK |
|
|
CAP DUST |
|
|
CLAMP TUBE |
|
|
COND ASSEMBLY FORMED |
|
|
COVER ASSEMBLY FF INLET |
|
|
COVER BOTTOM PAN |
|
|
COVER EVAPORATOR |
|
|
COVER FF INLET |
|
|
COVER GASKET FF ASSEMBLY |
|
|
COVER HINGE BLACK |
|
|
COVER HINGE BLACK |
|
|
COVER INLET DISCHARGE |
|
|
COVER LED |
|
|
COVER MOTOR AND SOLENOID |
|
|
COVER PAN GLASS |
|
|
COVER PAN GLASS |
|
|
COVER WATER LINE |
|
|
CRANK DOOR RECESS |
|
|
CUP FILL IM |
|
|
DISPENSER ICE FUNNEL |
|
|
DIVERTER FF AIRFLOW |
|
|
DOOR DAIRY |
|
|
DOOR FOAM ASSEMBLY FF |
|
|
DOOR FOAM ASSEMBLY FZ |
|
|
DRIVE AUGER DISP |
|
|
DUCT ASSEMBLY FF TRANSITION |
|
|
DUCT FZ ASSEMBLY |
|
|
EVAPORATOR FAN BLADE |
|
|
EVAPORATOR REPL KIT |
|
|
FILTER AND DRYER ASSEMBLY |
|
|
FRIDGE BOTTOM FREEZER DOOR THIMBLE-BLACK |
|
|
GASKET |
|
|
GASKET EVAPORATOR COVER |
|
|
GASKET PAN CRV FRONT |
|
|
GASKET PAN CRV REAR |
|
|
GLIDE BRACKET LH |
|
|
GLIDE BRACKET RH |
|
|
GRILL RECESS |
|
|
GRILLE AIR RETURN |
|
|
GRILLE BASE |
|
|
GRILLE SENSOR |
|
|
GROMMET |
|
|
GROMMET |
|
|
GROMMET AND TUBE ASSEMBLY |
|
|
GROMMET BASE GRILL |
|
|
GROMMET EVAPORATOR FAN |
|
|
GROMMET EVAPORATOR FAN |
|
|
HARNESS AC FZ INTERMEDIA |
|
|
HARNESS CAB LOWER |
|
|
HARNESS INVERTER COMM |
|
|
HARNESS MOTOR AND SOL |
|
|
HARNESS RECESS DISP |
|
|
HEATER HARNESS DEF ASSEMBLY |
|
|
HINGE BTM AND PIN ASSEMBLY |
|
|
HINGE BTM BLACK |
|
|
HINGE TOP AND PIN ASSEMBLY |
|
|
HINGE TOP AND PIN ASSEMBLY FZ |
|
|
HOUSING SHIELD DISPLAY BLACK |
|
|
HUMIDITY CONTROL |
|
|
ICEMAKER |
|
|
INSERT PLENUM |
|
|
INSUL TUBE FOAM |
|
|
INSULATION TANK FOAM |
|
|
INTERFACE DISPENSER ASSEMBLY BLACK |
|
|
INVERTER |
|
|
INVERTER COMPRESSOR EMB |
|
|
LEVER ASSEMBLY FF SIDE BLACK |
|
|
LEVER ASSEMBLY FZ BLACK |
|
|
MOBILITY FRONT ASSEMBLY |
|
|
MOBILITY WHEEL S KIT ASSEMBLY |
|
|
MODULE SHELF FZ |
|
|
MODULE SHELF FZ FIXED |
|
|
MOTOR DC COND FAN |
|
|
MOTOR DC EVAPORATOR FAN ASSEMBLY |
|
|
ORIFICE EVAPORATOR ASSEMBLY |
|
|
PADDLE ASSEMBLY |
|
|
PAN BOTTOM ASSEMBLY |
|
|
PAN MIDDLE ASSEMBLY |
|
|
PCB NEXTGEN RFID |
|
|
PIN HINGE BTM ADJ HOLLOW |
|
|
PM MINI MANUAL AND WIRING |
|
|
PM QUICK OWNERS MANUAL |
|
|
REFER CONNCTR PLSTC H20 LINE 5/16-INCH-5/16-INCH |
|
|
REFRIGERATION WATER FILTER |
|
|
REFRIGERATOR CLIP |
|
|
REFRIGERATOR DISPENSER DOOR FLAP - BLACK |
|
|
REFRIGERATOR DISPENSER ICE CRUSHER MOTOR |
|
|
REFRIGERATOR DISPENSER SOLENOID ASSEMBLY |
|
|
REFRIGERATOR DOOR GASKET - BLACK |
|
|
REFRIGERATOR DOOR HANDLE FASTENER |
|
|
REFRIGERATOR LED LIGHT BOARD |
|
|
REFRIGERATOR MAIN BOARD ENCLOSURE |
|
|
REFRIGERATOR MIDDLE PAN COVER |
|
|
REFRIGERATOR REAR GASKET COVER |
|
|
REFRIGERATOR TEMPERATURE SENSOR |
|
|
REFRIGERATOR WATER TANK ASSEMBLY |
|
|
RETAINER RECESS DOOR |
|
|
RFID COVER AND FCC LABEL |
|
|
RING COMPRESSION |
|
|
SADDLE SOLEN |
|
|
SADDLE SOLENOID |
|
|
SCR 1/4-14 AB IHW 3/4 S |
|
|
SCR 10-16 |
|
|
SCR 10-16 |
|
|
SCR 10-18 HI/LO HXW 1/2 |
|
|
SCR 10-32 B IHXW 1/2 |
|
|
SCR 10-32 TR 1/2 |
|
|
SCR 12-24 TT HX 7/8 S |
|
|
SCR 4-10 PL PNP 3/4 SS |
|
|
SCR 8-18 AB IHXW 9/16 S |
|
|
SCR 8-18 AB PNP 5/8 S |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCR8-18 AB UFL 1 1/2 SS |
|
|
SCREW 10-32 TT HXW 5/16 S |
|
|
SCREW 8-18 AB IHW 5/8 S |
|
|
SCREW 818 BA POR 5/8 SS |
|
|
SCREW MOBILITY. |
|
|
SEPARATOR AIR HISIDE |
|
|
SET SCREW |
|
|
SHELF CHILLER |
|
|
SHELF FIXED FF |
|
|
SHELF FIXED FF |
|
|
SHELF FIXED FZ |
|
|
SHELF MODULE FF |
|
|
SHELF SLIDEOUT FZ |
|
|
SHIELD ASSEMBLY TROUGH |
|
|
SHROUD CONDENSER |
|
|
SHROUD SOLENOID |
|
|
SHUNT SENSOR |
|
|
SLIDE MIDDLE PAN COVER |
|
|
SLIDEOUT SHELF |
|
|
SOLENOID AND ARM ASSEMBLY |
|
|
SOUND DAMPER |
|
|
SOUND DAMPER |
|
|
SPRING CLOSU |
|
|
SPRING RECESS DOOR |
|
|
SPRING SOLENOID LINKAGE |
|
|
SPRING TORSION |
|
|
ST AND OFF |
|
|
STOP DOOR BLACK |
|
|
STRIPPER IM |
|
|
STUD MTG COMPR |
|
|
SUPPORT SHELF |
|
|
SUPPORT SLIDE BASKET |
|
|
SUPPORT SLIDE BASKET |
|
|
SWITCH |
|
|
SWITCH LIGHT |
|
|
SWITCH LIGHT |
|
|
THERMOSTAT DEF |
|
|
THIMBLE DOOR |
|
|
THIMBLE DOOR |
|
|
TOWER AIR FZ LOWER |
|
|
TRIM SHELF FZ |
|
|
TUBE DRAIN |
|
|
TUBE LEAD |
|
|
TUBE PLASTIC |
|
|
TUBE PLASTIC |
|
|
VALVE ISOLATION ASSEMBLY |
|
|
WATER VALVE DIODE HARNESS JUMPER KIT |
|
|
WHEEL MOBILITY |
|
|
WHEEL PAN COVER |
|
|
XWF MANIFOLD AND TUBING |
|
|
XWFE FILTER COVER |
