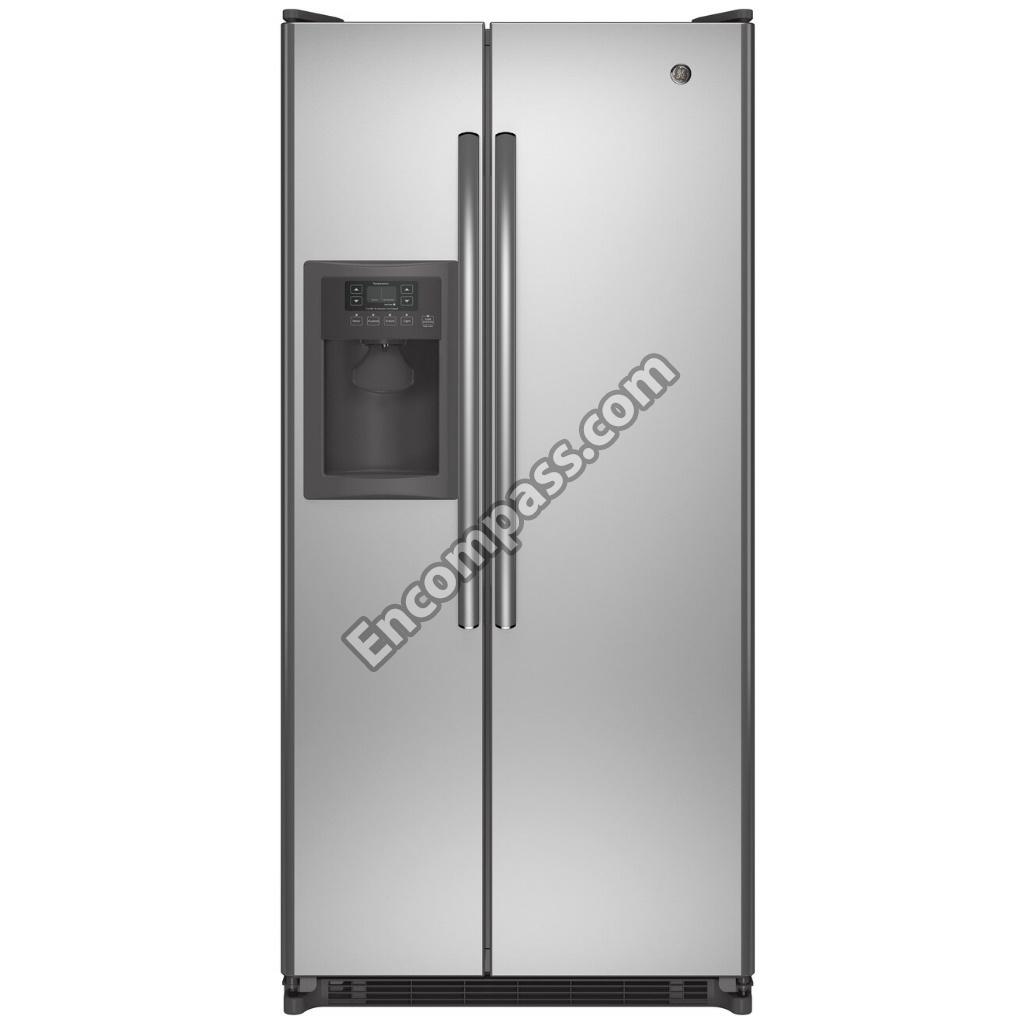

Model Image
Manufacturer

GE

Model Number

GSS20ESHDSS

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR17X13159 WR17X13159 GE AIR CONDENSER BAFFLE
WR17X12088 WR17X12088 GE AIR DUCT
40A15 40A15 GE APPLIANCE LIGHT BULB, 40-WATT
WR17X11939 WR17X11939 GE AUGER ASM DISP
WR29X43990 WR29X43990 GE AUGER ASM DISP
WR17X12735 WR17X12735 GE AUGER MOTOR COVER, REAR
WR1X2048 WR1X2048 GE BEAR SLIDE
WR02X9299 WR02X9299 GE CAP MULLION DUCT
WR55X24064 WR55X24064 GE CAPACITOR
WR01X5278 WR01X5278 GE CLAMP CABLE
WR02X8203 WR02X8203 GE CLIP COMPRESSOR MOUNT
WR02X7064 WR02X7064 GE CLIP COND LOOP
WR2X9000 WR2X9000 GE CLIP CONDENSER
WR2X7064 WR2X7064 GE CLIP CONDENSER
WR55X23199 WR55X23199 GE COMBINED HMI
WR87X33165 WR87X33165 GE COMPRESSOR EMBRACO
WR17X35527 WR17X35527 GE CONDENSER FAN SHROUD
WR17X11444 WR17X11444 GE CURB HANDLE BAR
WD2X323D WD2X323D GE DISHWASHER SCREW, 12-PACK
WR78X23202 WR78X23202 GE DOOR FOAM ASSEMBLY
WR78X23201 WR78X23201 GE DOOR FOAM ASSEMBLY
WR86X25269 WR86X25269 GE DRYER
WR14X10048 WR14X10048 GE DUCT GASKET
WR14X10049 WR14X10049 GE DUCT GASKET
WR02X10561 WR02X10561 GE DUCT MULLION
WR01X1936 WR01X1936 GE FASTENER WATER TUBE
WR02X10540 WR02X10540 GE FREEZER BASKET BUMPER
WR2X3139 WR2X3139 GE FREEZER LINER BUTTON PLUG
WR14X10056 WR14X10056 GE GASKET SHIELD
WR17X10262 WR17X10262 GE GRILLE AIR R
WR02X10678 WR02X10678 GE GROMMET
WR02X4676 WR02X4676 GE GROMMET SHELF
WR49X23204 WR49X23204 GE HOUSING RECEPTACLE
WR02X9561 WR02X9561 GE LAMP SOCKET
WR1X1815 WR1X1815 GE LEVELING
WR01X1815 WR01X1815 GE LEVELING NUT
WR87X28949 WR87X28949 GE LOW SIDE ASM
WR02X10763 WR02X10763 GE MEAT PAN DUC
WR02X4143 WR02X4143 GE PIN DEFLECTOR DISP
WR2X4259 WR2X4259 GE PIN SPIRAL
WR62X26536 WR62X26536 GE PIN SPIRAL
WR02X23187 WR02X23187 GE PLATE DOOR
WR02X23186 WR02X23186 GE PLATE DOOR
WR02X3139 WR02X3139 GE PLUG BUTTON
WR2X7051 WR2X7051 GE PLUG BUTTON
WR02X8525 WR02X8525 GE PLUG BUTTON BK
WR82X10107 WR82X10107 GE REFRIGERATOR ACCESS COVER ASSEMBLY
WR13X10988 WR13X10988 GE REFRIGERATOR AIR DAMPER ASSEMBLY
WR60X10215 WR60X10215 GE REFRIGERATOR AIR DAMPER ASSEMBLY
WR02X12261 WR02X12261 GE REFRIGERATOR AIR DAMPER COVER
WR60X10258 WR60X10258 GE REFRIGERATOR AUGER MOTOR
WR02X11941 WR02X11941 GE REFRIGERATOR AUGER MOTOR COUPLER
WR01X10315 WR01X10315 GE REFRIGERATOR AUGER NUT
WR2X8525 WR2X8525 GE REFRIGERATOR BUTTON PLUG
WR02X7051 WR02X7051 GE REFRIGERATOR BUTTON PLUG
WR2X8203 WR2X8203 GE REFRIGERATOR COMPRESSOR MOUNTING CLIP
WR1X1779 WR1X1779 GE REFRIGERATOR COMPRESSOR MOUNTING POST
WR08X22874 WR08X22874 GE REFRIGERATOR COMPRESSOR START RELAY
WR17X10763 WR17X10763 GE REFRIGERATOR CONDENSER BRACKET
WR84X10022 WR84X10022 GE REFRIGERATOR CONDENSER COIL
WR01X10654 WR01X10654 GE REFRIGERATOR CONDENSER COILS MOUNTING SCREW
WR60X24484 WR60X24484 GE REFRIGERATOR CONDENSER FAN
WR60X10209 WR60X10209 GE REFRIGERATOR CONDENSER FAN
WR02X11742 WR02X11742 GE REFRIGERATOR CONDENSER FAN BRACKET
WR02X11863 WR02X11863 GE REFRIGERATOR CONDENSER FAN MOTOR BRACKET
WR02X23185 WR02X23185 GE REFRIGERATOR CORNER CAP
WR32X10838 WR32X10838 GE REFRIGERATOR CRISPER DRAWER
WR32X10837 WR32X10837 GE REFRIGERATOR CRISPER DRAWER
WR32X10592 WR32X10592 GE REFRIGERATOR CRISPER DRAWER COVER INSERT
WR72X239 WR72X239 GE REFRIGERATOR CRISPER DRAWER SLIDE RAIL
WR01X2048 WR01X2048 GE REFRIGERATOR CRISPER PAN RAIL SLIDE BEARING
WR22X10013 WR22X10013 GE REFRIGERATOR DAIRY BIN COVER
WR02X11768 WR02X11768 GE REFRIGERATOR DEFLECTOR SPRING
WR1X1367D WR1X1367D GE REFRIGERATOR DISPENSER BUCKET RETAINER RING, 12...
WR1X1366D WR1X1366D GE REFRIGERATOR DISPENSER BUCKET WASHER, 12-PACK
WR17X11170 WR17X11170 GE REFRIGERATOR DISPENSER HOUSING SHIELD
WR17X10706 WR17X10706 GE REFRIGERATOR DISPENSER ICE CHUTE DOOR CRANK
WR17X11653 WR17X11653 GE REFRIGERATOR DISPENSER ICE CHUTE DOOR KIT
WR62X10055 WR62X10055 GE REFRIGERATOR DISPENSER ICE CHUTE DOOR SOLENOID
WR49X10233 WR49X10233 GE REFRIGERATOR DISPENSER ICE CHUTE FUNNEL SPRING KIT
WR02X10585 WR02X10585 GE REFRIGERATOR DISPENSER LEVER SPRING
WR2X8818 WR2X8818 GE REFRIGERATOR DISPENSER MOUNTING BRACKET
WR2X4143 WR2X4143 GE REFRIGERATOR DISPENSER PIVOT PIN
WR23X10783 WR23X10783 GE REFRIGERATOR DISPENSER SWITCH
WR02X11743 WR02X11743 GE REFRIGERATOR DOOR CAM RISER
WR02X11479 WR02X11479 GE REFRIGERATOR DOOR CLOSER CAM
WR02X11478 WR02X11478 GE REFRIGERATOR DOOR CLOSER CAM
WR24X23194 WR24X23194 GE REFRIGERATOR DOOR GASKET
WR12X21070 WR12X21070 GE REFRIGERATOR DOOR HANDLE
WR13X10711 WR13X10711 GE REFRIGERATOR DOOR HINGE
WR02X10592 WR02X10592 GE REFRIGERATOR DOOR HINGE PIN
WR01X10379 WR01X10379 GE REFRIGERATOR DOOR HINGE SCREW, #8-32 X 7/16-IN
WR01X10650 WR01X10650 GE REFRIGERATOR DOOR HINGE SCREW, UPPER
WR13X11006 WR13X11006 GE REFRIGERATOR DOOR HINGE, LOWER
WR23X21443 WR23X21443 GE REFRIGERATOR DOOR SWITCH
WR23X21444 WR23X21444 GE REFRIGERATOR DOOR SWITCH
WR02X11476 WR02X11476 GE REFRIGERATOR DRAIN TUBE
WR02X10558 WR02X10558 GE REFRIGERATOR DRAIN TUBE CLIP
WR72X241 WR72X241 GE REFRIGERATOR DRAWER SLIDE RAIL
WR72X242 WR72X242 GE REFRIGERATOR DRAWER SLIDE RAIL
WR72X240 WR72X240 GE REFRIGERATOR DRAWER SLIDE RAIL
WR55X11072C WR55X11072C GE REFRIGERATOR ELECTRONIC CONTROL BOARD
WR17X11862 WR17X11862 GE REFRIGERATOR ELECTRONIC CONTROL BOARD COVER
WR17X12409 WR17X12409 GE REFRIGERATOR EVAPORATOR COVER
WR14X10054 WR14X10054 GE REFRIGERATOR EVAPORATOR COVER SEAL
WR60X30922 WR60X30922 GE REFRIGERATOR EVAPORATOR FAN BLADE
WR60X10185 WR60X10185 GE REFRIGERATOR EVAPORATOR FAN MOTOR
WR02X11622 WR02X11622 GE REFRIGERATOR EVAPORATOR FAN MOTOR BRACKET, LOWER
WR02X11124 WR02X11124 GE REFRIGERATOR EVAPORATOR FAN MOTOR BRACKET, UPPER
WR02X10322 WR02X10322 GE REFRIGERATOR EVAPORATOR FAN MOTOR DUST CAP
WR02X10520 WR02X10520 GE REFRIGERATOR EVAPORATOR FAN MOTOR GROMMET
WR02X11331 WR02X11331 GE REFRIGERATOR EVAPORATOR FAN MOTOR GROMMET
WR01X10652 WR01X10652 GE REFRIGERATOR EVAPORATOR FAN MOTOR MOUNTING SCREW
WR17X12082 WR17X12082 GE REFRIGERATOR EVAPORATOR FAN ORIFICE
WR02X12149 WR02X12149 GE REFRIGERATOR FAN BLADE RETAINER RING
WR1X1936 WR1X1936 GE REFRIGERATOR FASTENER
WR02X12209 WR02X12209 GE REFRIGERATOR FASTENER BOARD
WR01X11039 WR01X11039 GE REFRIGERATOR FASTENER HANDLE
WR14X10050 WR14X10050 GE REFRIGERATOR FOAM GASKET
WR14X10053 WR14X10053 GE REFRIGERATOR FOAM STRIP
WR21X10015 WR21X10015 GE REFRIGERATOR FREEZER BASKET
WR72X10134 WR72X10134 GE REFRIGERATOR FREEZER BASKET SLIDE RAIL, LEFT
WR71X10961 WR71X10961 GE REFRIGERATOR FREEZER CHILLER SHELF
WR23X10496 WR23X10496 GE REFRIGERATOR FREEZER DOOR EVAPORATOR FAN MOTOR ...
WR24X23195 WR24X23195 GE REFRIGERATOR FREEZER DOOR GASKET
WR01X10201 WR01X10201 GE REFRIGERATOR FREEZER DOOR HINGE BUSHING
WR01X10200 WR01X10200 GE REFRIGERATOR FREEZER DOOR HINGE BUSHING
WR13X10712 WR13X10712 GE REFRIGERATOR FREEZER DOOR HINGE, UPPER
WR13X11005 WR13X11005 GE REFRIGERATOR FREEZER DOOR LOWER HINGE
WR17X12075 WR17X12075 GE REFRIGERATOR FREEZER DOOR SHELF RAIL
WR17X12069 WR17X12069 GE REFRIGERATOR FREEZER DOOR SHELF RAIL
WR72X10097 WR72X10097 GE REFRIGERATOR FREEZER DRAWER SLIDE RAIL
WR02X10591 WR02X10591 GE REFRIGERATOR FREEZER LIGHT SOCKET ASSEMBLY
WR2X4676 WR2X4676 GE REFRIGERATOR FREEZER SHELF SUPPORT GROMMET
WR32X10591 WR32X10591 GE REFRIGERATOR GLASS SHELF
WR38X10209 WR38X10209 GE REFRIGERATOR GLASS SHELF TRIM
WR74X23200 WR74X23200 GE REFRIGERATOR GRILLE BASE ASSEMBLY
WR17X23189 WR17X23189 GE REFRIGERATOR GRILLE RECESS
WR23X10525 WR23X10525 GE REFRIGERATOR HARNESS RECEPTACLE
WR02X23188 WR02X23188 GE REFRIGERATOR HINGE COVER
WR30X10017 WR30X10017 GE REFRIGERATOR ICE CONTAINER
WR17X23191 WR17X23191 GE REFRIGERATOR ICE CONTAINER ASSEMBLY
WR17X11450 WR17X11450 GE REFRIGERATOR ICE CONTAINER DEFLECTOR COVER
WR17X23192 WR17X23192 GE REFRIGERATOR ICE CONTAINER FRONT COVER
WR17X10703 WR17X10703 GE REFRIGERATOR ICE CONTAINER ICE DEFLECTOR
WR2X4561 WR2X4561 GE REFRIGERATOR ICE CONTAINER ICE DEFLECTOR SPRING
WR72X10233 WR72X10233 GE REFRIGERATOR ICE CONTAINER SLIDE RAIL, LEFT
WR72X10234 WR72X10234 GE REFRIGERATOR ICE CONTAINER SLIDE RAIL, RIGHT
WR17X11241 WR17X11241 GE REFRIGERATOR ICE CRUSHER BLADE
WR17X11497 WR17X11497 GE REFRIGERATOR ICE CRUSHER HOUSING
WR17X11505 WR17X11505 GE REFRIGERATOR ICE CRUSHER HOUSING
WR02X10580 WR02X10580 GE REFRIGERATOR ICE CRUSHER HOUSING RETAINER RING
WR02X11266 WR02X11266 GE REFRIGERATOR ICE CRUSHER SPACER
WR02X10691 WR02X10691 GE REFRIGERATOR ICE DISPENSER BUCKET STATIONARY BL...
WR62X23154 WR62X23154 GE REFRIGERATOR ICE DISPENSER SOLENOID SERVICE KIT
WR17X23190 WR17X23190 GE REFRIGERATOR ICE FUNNEL
WR17X12734 WR17X12734 GE REFRIGERATOR ICE MAKER AUGER MOTOR COVER
WR29X10054 WR29X10054 GE REFRIGERATOR ICE MAKER CUBE GUIDE
WR29X10109 WR29X10109 GE REFRIGERATOR ICE MAKER FILL CUP
WR17X11168 WR17X11168 GE REFRIGERATOR ICE MAKER FILL TUBE
WR30X10093 WR30X10093 GE REFRIGERATOR ICE MAKER KIT
WR17X11403 WR17X11403 GE REFRIGERATOR ICE MAKER SHUT-OFF ARM
WR29X10083 WR29X10083 GE REFRIGERATOR ICE MAKER STRIPPER ARM
WR02X13570 WR02X13570 GE REFRIGERATOR LAMP SOCKET
WR2X9561 WR2X9561 GE REFRIGERATOR LAMP SOCKET
WR01X37886 WR01X37886 GE REFRIGERATOR LIGHT BULB
WR17X12114 WR17X12114 GE REFRIGERATOR LIGHT COVER
31-51914 31-51914 GE REFRIGERATOR MINI WIRING MANUAL
WR01X10199 WR01X10199 GE REFRIGERATOR MOBILITY SCREW
WR23X10551 WR23X10551 GE REFRIGERATOR MOTOR HARNESS
WR2X9299 WR2X9299 GE REFRIGERATOR MULLION AIR DUCT CAP
WR04X10181 WR04X10181 GE REFRIGERATOR NAMEPLATE
49-60514 49-60514 GE REFRIGERATOR OWNER'S MANUAL
WR32X10593 WR32X10593 GE REFRIGERATOR PAN GLASS COVER
WR02X4141 WR02X4141 GE REFRIGERATOR PIN
WR23X10300 WR23X10300 GE REFRIGERATOR POWER CORD
WR02X12454 WR02X12454 GE REFRIGERATOR ROLLER ASSEMBLY
WR02X12254 WR02X12254 GE REFRIGERATOR ROLLER WHEEL AXLE PIN
WR02X10695 WR02X10695 GE REFRIGERATOR ROLLER, REAR
WR1X1786 WR1X1786 GE REFRIGERATOR SCREW
WR01X10602 WR01X10602 GE REFRIGERATOR SCREW
WR01X10601 WR01X10601 GE REFRIGERATOR SCREW
WR01X10789 WR01X10789 GE REFRIGERATOR SCREW
WR01X10600 WR01X10600 GE REFRIGERATOR SCREW
WR01X10655 WR01X10655 GE REFRIGERATOR SCREW
WR1X1505D WR1X1505D GE REFRIGERATOR SCREW
WR01X10616 WR01X10616 GE REFRIGERATOR SCREW
WR01X10656 WR01X10656 GE REFRIGERATOR SCREW
WR01X10649 WR01X10649 GE REFRIGERATOR SCREW
WR01X10380 WR01X10380 GE REFRIGERATOR SCREW, 8-18 X 5/8-IN
WR01X20424 WR01X20424 GE REFRIGERATOR SET SCREW
WR71X10237 WR71X10237 GE REFRIGERATOR SHELF
WR71X11021 WR71X11021 GE REFRIGERATOR SHELF MODULE
WR71X11009 WR71X11009 GE REFRIGERATOR SHELF MODULE
WR71X2588 WR71X2588 GE REFRIGERATOR SHELF SUPPORT
WR38X10210 WR38X10210 GE REFRIGERATOR SHELF TRIM
WR2X2880 WR2X2880 GE REFRIGERATOR SUPPORT
WR55X10025 WR55X10025 GE REFRIGERATOR TEMPERATURE SENSOR
WR02X12258 WR02X12258 GE REFRIGERATOR TEMPERATURE SENSOR COVER
WR02X10552 WR02X10552 GE REFRIGERATOR TEMPERATURE SENSOR MOUNTING BRACKET
WR02X10560 WR02X10560 GE REFRIGERATOR TOE GRILLE CLIP
WR38X23196 WR38X23196 GE REFRIGERATOR TRIM
WR17X23193 WR17X23193 GE REFRIGERATOR VEGETABLE PAN HANDLE
WR01X10606 WR01X10606 GE REFRIGERATOR WATER FILTER HEAD MOUNTING SCREW
WR57X10050 WR57X10050 GE REFRIGERATOR WATER INLET VALVE ASSEMBLY
WR17X11324 WR17X11324 GE REFRIGERATOR WATER RESERVOIR
WR02X11330 WR02X11330 GE REFRIGERATOR WATER TUBE FITTING, 5/16 X 5/16-IN
WR17X11625 WR17X11625 GE REFRIGERATOR WATER TUBING
WR1X5278 WR1X5278 GE REFRIGERATOR WATER TUBING CLIP
WR2X8933 WR2X8933 GE REFRIGERATOR WATER TUBING SLEEVE
WR51X10101 WR51X10101 GE REFRIGERATOR WIRE HARNESS
WR01X1367 WR01X1367 GE RETAINER RING E
WR2X4141 WR2X4141 GE ROLL PIN
WZ04X0263 WZ04X0263 GE SCR 10-16 AB HXW 1/2
WR01X10194 WR01X10194 GE SCR 10-32 TT
WR01X10651 WR01X10651 GE SCR 8-18 AB
WR01X10607 WR01X10607 GE SCR 8-18 AB
WR01X10635 WR01X10635 GE SCR 8-32 CA
WR01X10646 WR01X10646 GE SCR 8-36 T I
WD2X5166 WD2X5166 GE SCREW 10-16 AB HXW 1/2
WD02X0323 WD02X0323 GE SCREW 8-32 X 3/8 SPH
WZ04X0241D WZ04X0241D GE SCREW-12 PK
WZ4X241D WZ4X241D GE SCREW-PKG 12
WR02X8933 WR02X8933 GE SLEEVE WATER LINE
WR72X0241 WR72X0241 GE SLIDE ASM LH
WR72X0239 WR72X0239 GE SLIDE ASM LH
WR72X0242 WR72X0242 GE SLIDE ASM RH
WR72X0240 WR72X0240 GE SLIDE ASM RH
WR2X4138 WR2X4138 GE SPACER
WR02X4138 WR02X4138 GE SPACER CRUSHER STATIONAR
WR02X4561 WR02X4561 GE SPRING ICE DEFLECTOR
WR2X4258 WR2X4258 GE SPRING SOLENOID LINKAGE
WR01X1366 WR01X1366 GE WASHER
WR71X26627 WR71X26627 GE WIRE SHELF F
WR71X26629 WR71X26629 GE WIRE SHELF F
WR02X11607 WR02X11607 GE WIRE TIE PLUG
Main Menu x
