Manufacturer
GE
Model Number

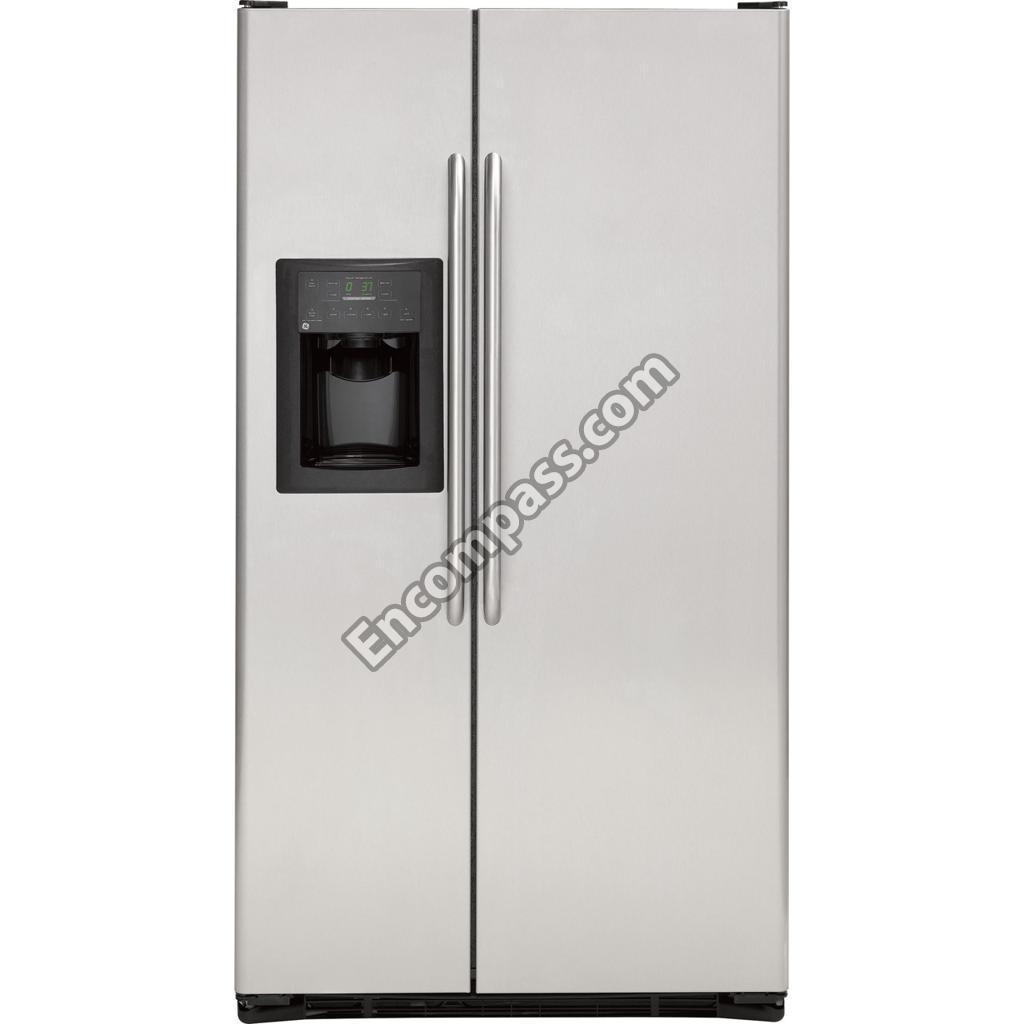

GSS23WSTASS
Description
Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
60A - 2BULBS |
|
|
60A - 2BULBS |
|
|
A ASSEMBLY HI SIDE |
|
|
ACCESS COVER |
|
|
AUGER ASM DISP |
|
|
AUGER ASM DISP |
|
|
BAFFLE COND AIR |
|
|
BASKET WIRE SLIDEOUT FZ |
|
|
BLADE CONF FAN ASSEMBLY |
|
|
BLADE EVAP FAN ASM |
|
|
BLADES MOVING DISP |
|
|
BLADES MOVING DISP |
|
|
BLADES MOVING DISP |
|
|
BLOCK EVAP SEAL |
|
|
BOARD ASM MAIN DOMESTIC |
|
|
BOARD ASM MAIN DOMESTIC |
|
|
BRACKET ANGLE |
|
|
BRACKET COND FAN (MTG) |
|
|
BRACKET COND FAN (REAR) |
|
|
BRACKET CONDENSER BAR |
|
|
BRACKET EVAP FAN BTM |
|
|
BRACKET FZ TOWER LOWER |
|
|
BRACKET FZ TOWER UPPER |
|
|
BRACKET ORIFICE FAN |
|
|
BUCKET & AUGER ASM |
|
|
BUCKET ICE DISPENSER |
|
|
BUMPER |
|
|
CABLE CLAMP |
|
|
CAM CLOSURE FF BLACK |
|
|
CAM CLOSURE FZ BLACK |
|
|
CAP CORNER OC BLACK |
|
|
CAP DUST |
|
|
CAP FILTER BYPASS |
|
|
CAPACITOR |
|
|
CAPACITOR |
|
|
CLAMP CABLE |
|
|
CLIP COMPRESSOR MOUNT |
|
|
CLIP EVAP THERMISTOR |
|
|
CLIP RETAINER MEI |
|
|
COARSE THREAD AUGER NUT |
|
|
COND ASSEMBLY FORMED |
|
|
CONDENSER FAN SHROUD |
|
|
COVER ASSEMBLY FF INLET |
|
|
COVER BUCKET DISP |
|
|
COVER CRUSHER HSG DISP |
|
|
COVER EVAP |
|
|
COVER FF INLET |
|
|
COVER FRONT MEAT |
|
|
COVER HINGE BLACK |
|
|
COVER HINGE BLACK |
|
|
COVER INLET DISCHARGE |
|
|
COVER MIDDLE PAN |
|
|
COVER MOTOR AND SOLENOID |
|
|
COVER PAN GLASS |
|
|
COVER PAN GLASS |
|
|
COVER WATER FILTER |
|
|
CRANK DOOR RECESS |
|
|
CUP FILL IM |
|
|
CUP FILL IM |
|
|
DEFLECTOR ICE DISPLAY |
|
|
DEFROST THERMOSTAT |
|
|
DIVERTER FF AIRFLOW |
|
|
DOOR ASSEMBLY FF KIT SS |
|
|
DOOR BIN FF ADJ |
|
|
DOOR DAIRY |
|
|
DOOR FOAM ASM FZ SS |
|
|
DOOR RECESS ASM |
|
|
DRIVE AUGER DISP |
|
|
DUCT FZ ASM |
|
|
ELECTRONIC IM DOMESTIC |
|
|
FAN FRESH FOOD |
|
|
FASTENER HANDLE SS |
|
|
FILTER ASSEMBLY AND TUBE |
|
|
FILTER ASSEMBLY AND TUBE |
|
|
FOAM STRIP SE ADH |
|
|
FRONT DOOR SHELF FZ |
|
|
FRONT DOOR SHELF FZ |
|
|
GASKET COVER REAR |
|
|
GASKET DOOR FF BK** |
|
|
GASKET DOOR FZ |
|
|
GASKET EVAP COVER |
|
|
GASKET PAN CRV FRONT |
|
|
GASKET PAN CRV REAR |
|
|
GLIDE BRACKET LH |
|
|
GLIDE BRACKET RH |
|
|
GRILLE AIR RETURN |
|
|
GRILLE BASE |
|
|
GRILLE RECESS BK |
|
|
GRILLE SENSOR |
|
|
GROMMET |
|
|
GROMMET |
|
|
GROMMET AND TUBE ASSEMBLY |
|
|
GROMMET BASE GRILL |
|
|
GROMMET EVAP FAN |
|
|
HARNESS AC FZ INTER |
|
|
HARNESS MOTOR & SOL |
|
|
HEATER AND BRACKET ASSEMBLY |
|
|
HINGE BTM & PIN ASSEMBLY |
|
|
HINGE BTM BLACK |
|
|
HINGE TOP & PIN ASSEMBLY FZ |
|
|
HINGE TOP AND PIN ASSEMBLY FF. |
|
|
HOUSING CRUSHER DISPLAY |
|
|
HOUSING LAMP ASM |
|
|
HOUSING SHIELD DISPLAY KIT |
|
|
HUMIDITY CONTROL |
|
|
INSUL TUBE FOAM |
|
|
INSULATION TANK FOAM |
|
|
INTERFACE DISPENSER ASSEMBLY |
|
|
LEVER ASSEMBLY FF SIDE BLACK |
|
|
LEVER ASSEMBLY FZ BLACK |
|
|
LIGHT DISPENSER |
|
|
LIGHT SHIELD |
|
|
MAIN BOARD ENCLOSURE ASM |
|
|
MOBILITY BACK ASSEMBLY |
|
|
MOBILITY FRONT ASSEMBLY |
|
|
MOTOR CRUSHER DISP |
|
|
MOTOR DC COND FAN |
|
|
MOTOR DC EVAP FAN ASM |
|
|
MOTOR DC EVAPORATOR FAN ASSEMBLY |
|
|
NO ITEM DESCRIPTION |
|
|
ORIFICE EVAP ASM |
|
|
OVERLOAD PTCR COMBO |
|
|
P/S DRYER KIT R134A |
|
|
P/S DRYER KIT R134A |
|
|
PAN ASM MEAT |
|
|
PAN MIDDLE ASM |
|
|
PAN MIDDLE ASM |
|
|
PAN SNACK ASM |
|
|
PIN DEFLECTOR DISP |
|
|
PIN HINGE BTM ADJ HOLLOW |
|
|
PIN SPIRAL |
|
|
PIN SPIRAL |
|
|
PIN SPIRAL |
|
|
PIVOT |
|
|
PM MINI WIRING MANUAL |
|
|
RACK CAN |
|
|
REFLECTOR LIGHT |
|
|
REFRIGERATOR CLIP |
|
|
REFRIGERATOR CONDENSER |
|
|
REFRIGERATOR CONDENSER CLIP |
|
|
REFRIGERATOR DISPENSER SOLENOID ASSEMBLY |
|
|
REFRIGERATOR DOOR LIGHT SWITCH |
|
|
REFRIGERATOR EVAPORATOR |
|
|
REFRIGERATOR WATER VALVE ASSEMBLY |
|
|
RETAINER RECESS DOOR |
|
|
RETAINER RING E |
|
|
RETAINER SPRING |
|
|
RETRNG-PKG12 |
|
|
RING COMPRESSION |
|
|
SADDLE SOLEN |
|
|
SADDLE SOLENOID |
|
|
SCR 1/4-14 X 3/4 |
|
|
SCR 10-18 HI/LO HXW 1/2 |
|
|
SCR 12-24 TT OVT .900 S |
|
|
SCR 8-18 AB IHXW 1/2 S |
|
|
SCR 8-18 AB PHR 1/2 S |
|
|
SCR 8-18 TPT 1/4 |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCR 8-32 T HXW 3/8 S |
|
|
SCR8-18 AB UFL 1 1/2 SS |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW 10-16 PL PNP 5/8 SZN |
|
|
SCREW 10-32 GXTT FLP 595 S |
|
|
SCREW 10-32 TT HXW 5/16 S |
|
|
SCREW 10-32 TT HXW 5/16 S |
|
|
SCREW 8-18 AB IHW 5/8 S |
|
|
SCREW DOOR STOP T20 |
|
|
SCREW MOBILITY. |
|
|
SENSOR TEMP FF |
|
|
SEPARATOR AIR HISIDE |
|
|
SHELF CHILLER |
|
|
SHELF FIXED FZ |
|
|
SHELF MODULE FIXED FF |
|
|
SHELF SLIDEOUT ASM |
|
|
SHELF SLIDEOUT FZ |
|
|
SHELF SNACK PAN ASM |
|
|
SHIELD ASM TROUGH |
|
|
SHIELD LIGHT FF |
|
|
SHIELD LIGHT FZ |
|
|
SHOULDER SCR |
|
|
SHUNT SENSOR |
|
|
SLIDE MIDDLE PAN COVER |
|
|
SOCKET & TERMINAL ASM |
|
|
SOCKET AND TERM |
|
|
SOCKET LAMP |
|
|
SOCKET LAMP |
|
|
SOCKET LAMP |
|
|
SOLE/ARM ASSEMBLY |
|
|
SOLENOID & ARM ASM |
|
|
SPACER |
|
|
SPACER |
|
|
SPACER CRUSHER MIDDLE |
|
|
SPACER CRUSHER STATIONAR |
|
|
SPRING |
|
|
SPRING CLOSU |
|
|
SPRING DEFLECTOR INT. |
|
|
SPRING ICE DEFLECTOR |
|
|
SPRING RECESS DOOR |
|
|
SPRING SOLENOID LINKAGE |
|
|
SPRING TORSION FIT |
|
|
STAND OFF |
|
|
STATIONARY BLADES ASSEMBLY |
|
|
STOP DOOR BLACK |
|
|
STOP SHELF |
|
|
STR RELIEF |
|
|
STUD MTGCOMP |
|
|
SUPPORT SHELF |
|
|
SUPPORT SLIDE BASKET |
|
|
SUPPORT SLIDE BASKET |
|
|
SWITCH |
|
|
SWITCH LIGHT |
|
|
SWITCH LIGHT FZ |
|
|
THIMBLE DOOR BOT BLACK |
|
|
THIMBLE DOOR BTM FZ BLACK |
|
|
THIMBLE DOOR TOP BLACK |
|
|
TOWER AIR FZ LOWER |
|
|
TRIM RECESS DISP FLAT |
|
|
TUBE DRAIN |
|
|
TUBE PLASTIC |
|
|
TUBE PLASTIC |
|
|
TUBULAR HANDLE ASM |
|
|
UNION CONNECTOR |
|
|
WASHER |
|
|
WASHER CRUSHER BLADE |
|
|
WASHR-PKG 12 |
|
|
WATER FILTER REF CYST |
|
|
WATER TANK DISP ASM |
|
|
WATER VALVE ASSEMBLY W/O GUARD |
|
|
WHEEL PAN COVER |
|
|
WIRE ACTUATOR DISP |
|
|
WIRE TIE |
