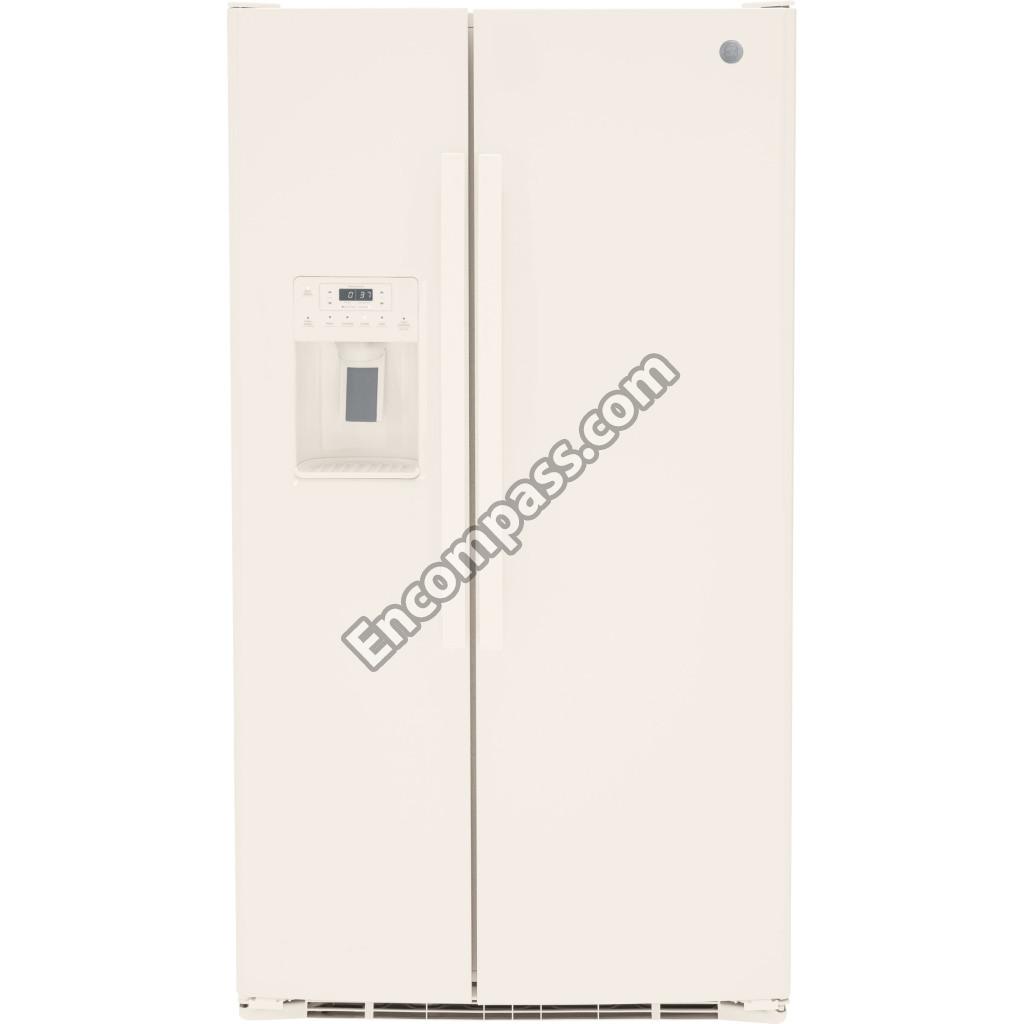

Model Image
Manufacturer

GE

Model Number

GSS25GGPBCCC

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR2X9000 WR2X9000 GE "CLIP, COND MNT"
WR12X32253 WR12X32253 GE ARC HANDLE ASSEMBLY BISQUE
WR17X13159 WR17X13159 GE BAFFLE COND AIR
WR60X24484 WR60X24484 GE BLADE CONF FAN ASSEMBLY
WR55X40445 WR55X40445 GE BOARD ASM MAIN CONTROL
WR17X12635 WR17X12635 GE BOTTOM BRACKET EVAP
WR02X10593 WR02X10593 GE BRACKET COND FAN (REAR)
WR17X10763 WR17X10763 GE BRACKET CONDENSER BAR
WR02X11863 WR02X11863 GE BRKT COND FAN (MTG)
WR29X43993 WR29X43993 GE BUCKET AND AUGER ASM
WR02X10540 WR02X10540 GE BUMPER
WR17X33825 WR17X33825 GE BYPASS FILTER PLUG
WR02X10637 WR02X10637 GE CAM CLOSURE FF WHITE
WR02X10638 WR02X10638 GE CAM CLOSURE FZ WHITE
WR02X10785 WR02X10785 GE CAP CORNER OC BISQUE
WR02X10322 WR02X10322 GE CAP DUST
WR55X24064 WR55X24064 GE CAPACITOR 12 UF
WR71X31007 WR71X31007 GE CHILLER SHELF
WR1X5278 WR1X5278 GE CLAMP TUBE
WR02X26153 WR02X26153 GE CLIP RETAINER MEI
WR87X10224 WR87X10224 GE COMPRESSOR MEIZHI
WR84X10022 WR84X10022 GE COND ASSEMBLY FORMED
WR14X30921 WR14X30921 GE CONDENSER FOAM STRIP
WR82X22767 WR82X22767 GE COVER ACCESS ASSEMBLY
WR49X10251 WR49X10251 GE COVER ASSEMBLY FF INLET
WR02X12491 WR02X12491 GE COVER AUGER MOTOR
WR32X10885 WR32X10885 GE COVER BOTTOM PAN
WR17X12880 WR17X12880 GE COVER EVAPORATORORATOR FRONT
WR17X12881 WR17X12881 GE COVER FF INLET
WR17X12977 WR17X12977 GE COVER GASKET FF ASSEMBLY
WR02X10788 WR02X10788 GE COVER HINGE BISQUE
WR02X10787 WR02X10787 GE COVER HINGE BISQUE
WR17X10909 WR17X10909 GE COVER INLET DISCHARGE
WR17X12871 WR17X12871 GE COVER LED
WR17X12323 WR17X12323 GE COVER MOTOR BACK
WR32X10155 WR32X10155 GE COVER PAN GLASS
WR32X10156 WR32X10156 GE COVER PAN GLASS
WR17X13124 WR17X13124 GE COVER WATER LINE
WR17X10706 WR17X10706 GE CRANK DOOR RECESS
WR29X10109 WR29X10109 GE CUP FILL IM
WR17X21781 WR17X21781 GE DISPENSER ICE FUNNEL
WR17X11609 WR17X11609 GE DIVERTER FF AIRFLOW
WR71X38317 WR71X38317 GE DOOR DAIRY
WR78X12854 WR78X12854 GE DOOR FOAM ASSEMBLY FF
WR78X12664 WR78X12664 GE DOOR FOAM ASSEMBLY FZ
WR02X11941 WR02X11941 GE DRIVE AUGER DISP
WR02X13091 WR02X13091 GE DUCT ASSEMBLY FF TRANSITION
WR60X30922 WR60X30922 GE EVAPORATOR FAN BLADE
WR86X25269 WR86X25269 GE FILTER AND DRYER ASSEMBLY
WR24X10155 WR24X10155 GE GASKET DOOR FF WW
WR24X10156 WR24X10156 GE GASKET DOOR FZ WH
WR14X10072 WR14X10072 GE GASKET EVAPORATOR COVER
WR14X10059 WR14X10059 GE GASKET PAN CRV FRONT
WR14X10058 WR14X10058 GE GASKET PAN CRV REAR
WR14X10165 WR14X10165 GE GASKET PLENUM
WR04X29994 WR04X29994 GE GE BADGE
WR72X10233 WR72X10233 GE GLIDE BUCKET LH DISP
WR72X10234 WR72X10234 GE GLIDE BUCKET RH DISP
WR17X12233 WR17X12233 GE GRILL RECESS
WR02X10671 WR02X10671 GE GRILLE AIR RETURN
WR74X10272 WR74X10272 GE GRILLE BASE WHITE
WR02X10647 WR02X10647 GE GRILLE SENSOR
WR02X10678 WR02X10678 GE GROMMET
WR02X22869 WR02X22869 GE GROMMET
WR17X11168 WR17X11168 GE GROMMET AND TUBE ASSEMBLY
WR02X10689 WR02X10689 GE GROMMET BASE GRILL
WR02X11331 WR02X11331 GE GROMMET EVAPORATOR FAN
WR02X12008 WR02X12008 GE GROMMET EVAPORATOR FAN
WR12X10626 WR12X10626 GE HANDLE
WR55X28709 WR55X28709 GE HARNESS AC FZ INTERMEDIA
WR23X29305 WR23X29305 GE HARNESS CAB LOWER
WR23X26670 WR23X26670 GE HARNESS MOTOR DISP
WR23X34250 WR23X34250 GE HARNESS RECESS DISP
WR13X10162 WR13X10162 GE HINGE BTM AND PIN ASSEMBLY
WR13X10161 WR13X10161 GE HINGE BTM BISQUE
WR13X24863 WR13X24863 GE HINGE TOP AND PIN ASSEMBLY
WR13X10216 WR13X10216 GE HINGE TOP AND PIN ASSEMBLY FZ
WR17X34365 WR17X34365 GE HOUSING SHIELD DISPLAY BISQUE
WR02X10821 WR02X10821 GE HUMIDITY CONTROL
WR30X10093 WR30X10093 GE ICEMAKER
WR17X30670 WR17X30670 GE INSERT PLENUM
WR02X11288 WR02X11288 GE INSUL TUBE FOAM
WR17X11620 WR17X11620 GE INSULATION TANK FOAM
WR55X36229 WR55X36229 GE INTERFACE DISPENSER ASSEMBLY BISQUE
WR11X10007 WR11X10007 GE LEVER ASSEMBLY FF SIDE
WR11X10008 WR11X10008 GE LEVER ASSEMBLY FZ SIDE WHITE
WR02X12274 WR02X12274 GE MOBILITY FRONT ASSEMBLY
WR02X11998 WR02X11998 GE MOBILITY WHEEL S KIT ASSEMBLY
WR71X10953 WR71X10953 GE MODULE SHELF FZ
WR71X10291 WR71X10291 GE MODULE SHELF FZ
WR49X32252 WR49X32252 GE MOTOR CRUSHER DISP
WR60X10209 WR60X10209 GE MOTOR DC COND FAN
WR60X10307 WR60X10307 GE MOTOR DC EVAPORATOR FAN ASSEMBLY
WR17X12642 WR17X12642 GE ORIFICE FAN ASSEMBLY
WR08X31586 WR08X31586 GE OVERLOAD PTCR COMBO
WR17X12897 WR17X12897 GE PADDLE ASSEMBLY
WR32X32346 WR32X32346 GE PAN BOTTOM ASSEMBLY
WR71X38328 WR71X38328 GE PAN MIDDLE ASSEMBLY
WR55X43866 WR55X43866 GE PCB NEXTGEN RFID
WR02X12263 WR02X12263 GE PIN HINGE BTM ADJ HOLLOW
WR2X4259 WR2X4259 GE PIN SPIRAL
WR62X26536 WR62X26536 GE PIN SPIRAL
WR17X39946 WR17X39946 GE PLENUM FAN EVAPORATOR
31-1000505 31-1000505 GE PM MINI MANUAL AND WIRING
49-1000468 49-1000468 GE PM QUICK OWNERS MANUAL
WR02X11330 WR02X11330 GE REFER CONNCTR PLSTC H20 LINE 5/16-INCH-5/16-INCH
XWFE XWFE GE REFRIGERATION WATER FILTER
WR2X8203 WR2X8203 GE REFRIGERATOR CLIP
WR51X10055 WR51X10055 GE REFRIGERATOR DEFROST HEATER ASSEMBLY
WR17X11653 WR17X11653 GE REFRIGERATOR DISPENSER DOOR FLAP - BLACK
WR62X10055 WR62X10055 GE REFRIGERATOR DISPENSER SOLENOID ASSEMBLY
WR01X11007 WR01X11007 GE REFRIGERATOR DOOR HANDLE FASTENER
WR87X29147 WR87X29147 GE REFRIGERATOR EVAPORATOR REPLACEMENT KIT
WR74X10216 WR74X10216 GE REFRIGERATOR FREEZER PLENUM EXTENSION
WR71X10501 WR71X10501 GE REFRIGERATOR FREEZER SHELF
WR21X10061 WR21X10061 GE REFRIGERATOR FREEZER WIRE BASKET
WR14X10164 WR14X10164 GE REFRIGERATOR GASKET CASE
WR55X26671 WR55X26671 GE REFRIGERATOR LED LIGHT BOARD
WR02X12025 WR02X12025 GE REFRIGERATOR MAIN BOARD ENCLOSURE
WR32X26246 WR32X26246 GE REFRIGERATOR MIDDLE PAN COVER
WR14X10197 WR14X10197 GE REFRIGERATOR REAR GASKET COVER
WR55X10025 WR55X10025 GE REFRIGERATOR TEMPERATURE SENSOR
WR17X11440 WR17X11440 GE REFRIGERATOR WATER TANK ASSEMBLY
WR2X8818 WR2X8818 GE RETAINER RECESS DOOR
WR02X35926 WR02X35926 GE RFID COVER AND FCC LABEL
WR02X12149 WR02X12149 GE RING COMPRESSION
WR01X10617 WR01X10617 GE SCR 1/4-14 AB IHW 3/4 S
WR01X10611 WR01X10611 GE SCR 10-16
WR01X10615 WR01X10615 GE SCR 10-16
WR01X10619 WR01X10619 GE SCR 10-18 HI/LO HXW 1/2
WR01X10622 WR01X10622 GE SCR 10-32 B IHXW 1/2
WR1X1786 WR1X1786 GE SCR 10-32 TR 1/2
WR01X10792 WR01X10792 GE SCR 12-24 TT HX 7/8 S
WR02X12257 WR02X12257 GE SCR 4-10 PL PNP 3/4 SS
WR01X10649 WR01X10649 GE SCR 8-10 PL PNP 1/2 S
WR01X10588 WR01X10588 GE SCR 8-18 AB IHXW 9/16 S
WR01X10858 WR01X10858 GE SCR 8-18 AB PNP 5/8 S
WR01X10621 WR01X10621 GE SCR 8-18 DG TRT20 5/8 S
WR1X1466 WR1X1466 GE SCR 8-32 T HXW 3/8 S
WZ5X158D WZ5X158D GE SCR 8-32 T HXW 3/8 S
WR01X10568 WR01X10568 GE SCR8-18 AB UFL 1 1/2 SS
WR01X10654 WR01X10654 GE SCREW 10-32 TT HXW 5/16 S
WR01X10652 WR01X10652 GE SCREW 8-18 AB IHW 5/8 S
WR01X10065 WR01X10065 GE SCREW 818 BA POR 5/8 SS
WR01X10210 WR01X10210 GE SCREW MOBILITY.
WR17X12295 WR17X12295 GE SEPARATOR AIR HISIDE
WR01X20424 WR01X20424 GE SET SCREW
WR71X24429 WR71X24429 GE SHELF FIXED FF
WR71X24430 WR71X24430 GE SHELF FIXED FF
WR71X10965 WR71X10965 GE SHELF FIXED FZ
WR71X38318 WR71X38318 GE SHELF MODULE FF
WR71X10703 WR71X10703 GE SHELF SLIDEOUT FZ
WR17X10811 WR17X10811 GE SHIELD ASSEMBLY TROUGH
WR17X12668 WR17X12668 GE SHROUD CONDENSER
WR02X10668 WR02X10668 GE SHUNT SENSOR
WR02X10633 WR02X10633 GE SLIDE MIDDLE PAN COVER
WR71X28078 WR71X28078 GE SLIDEOUT SHELF
WR62X23154 WR62X23154 GE SOLENOID AND ARM ASSEMBLY
WR02X13573 WR02X13573 GE SOUND DAMPER
WR02X13569 WR02X13569 GE SOUND DAMPER
WR1X2027 WR1X2027 GE SPRING CLOSU
WR02X10585 WR02X10585 GE SPRING RECESS DOOR
WR2X4258 WR2X4258 GE SPRING SOLENOID LINKAGE
WR02X12256 WR02X12256 GE SPRING TORSION
WR02X10663 WR02X10663 GE ST AND OFF
WR02X10786 WR02X10786 GE STOP DOOR BISQUE
WR29X10083 WR29X10083 GE STRIPPER IM
WR1X1779 WR1X1779 GE STUD MTG COMPR
WR02X12187 WR02X12187 GE SUPPORT SHELF
WR23X10783 WR23X10783 GE SWITCH
WR23X31507 WR23X31507 GE SWITCH LIGHT
WR23X25635 WR23X25635 GE SWITCH LIGHT
WR50X10065 WR50X10065 GE THERMOSTAT DEF
WR01X10957 WR01X10957 GE THIMBLE DOOR
WR01X10954 WR01X10954 GE THIMBLE DOOR
WR01X10237 WR01X10237 GE THIMBLE DOOR BTM FZ BISQUE
WR38X10456 WR38X10456 GE TRIM SHELF FZ
WR02X11426 WR02X11426 GE TUBE DRAIN
WR02X13774 WR02X13774 GE TUBE LEAD
WR17X11625 WR17X11625 GE TUBE PLASTIC
WR17X2891 WR17X2891 GE TUBE PLASTIC
WR57X30890 WR57X30890 GE VALVE ISOLATION ASSEMBLY
WR55X30923 WR55X30923 GE WATER VALVE DIODE HARNESS JUMPER KIT
WR02X10695 WR02X10695 GE WHEEL MOBILITY
WR01X10209 WR01X10209 GE WHEEL PAN COVER
WR14X47687 WR14X47687 GE XWF MANIFOLD AND TUBING
WR17X34485 WR17X34485 GE XWFE FILTER COVER
