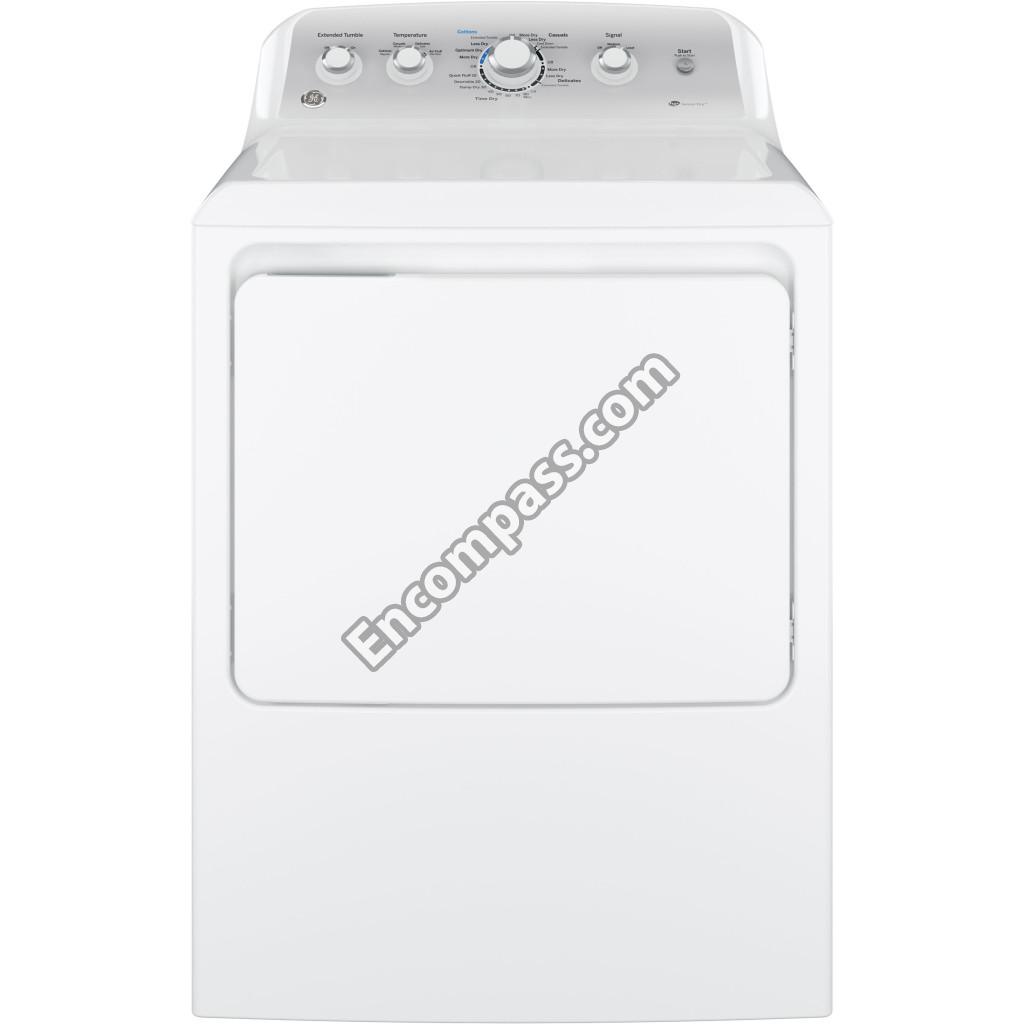

Model Image
Manufacturer

GE

Model Number

GTD45EASJ3WS

Description

Dryer Electric

Interactive Exploded View
Exploded View

Parts List

Part Number Description

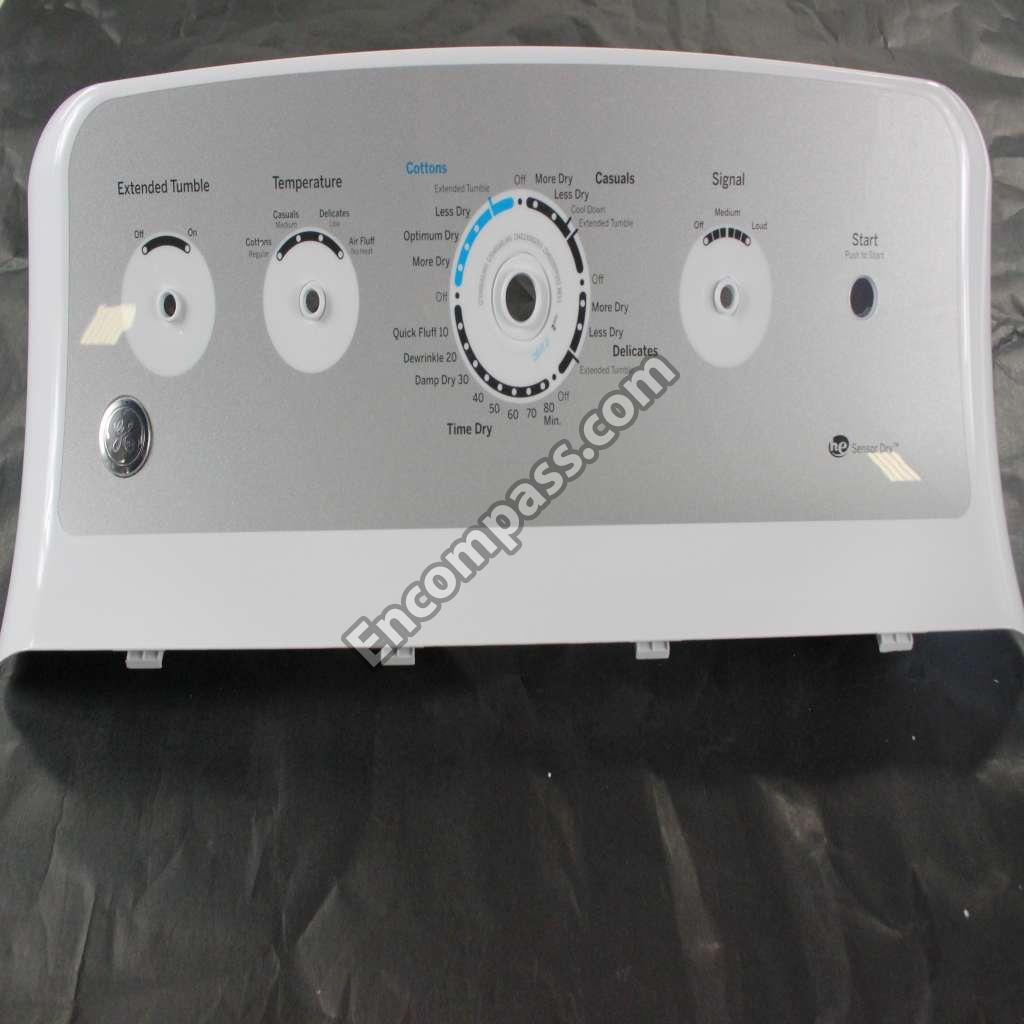

WE03X24548 WE03X24548 BACKSPLASH ASM
WE14X20683 WE14X20683 BAFFLE
WE1M300 WE1M300 BEARING RETAINER
WE03X37320 WE03X37320 BEARING SLIDE
WE03X37319 WE03X37319 BEARING SLIDE
WE03X25576 WE03X25576 BEARING TOP ASM
WE03X23956 WE03X23956 BEARING TOP SLIDES
WE03X29897 WE03X29897 BELT DRIVE
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE03X24536 WE03X24536 BLOWER HOUSING ASM
WH16X34317 WH16X34317 BLOWER WHEEL
WE04X25137 WE04X25137 BOARD DRY ASM
WE04X24719 WE04X24719 BUTTON START ASM
WE02X24718 WE02X24718 BUZZER VARIABLE
WE2M96 WE2M96 CAP NUT
WE04X25159 WE04X25159 CHASSIS AND LEG ASM
WE03X23883 WE03X23883 COVER BOTTOM
WE1M1007 WE1M1007 COVER FUSE TERMINAL
WE03X24721 WE03X24721 COVER TOP LOW DEPTH
WE11X29438 WE11X29438 DIFFUSER

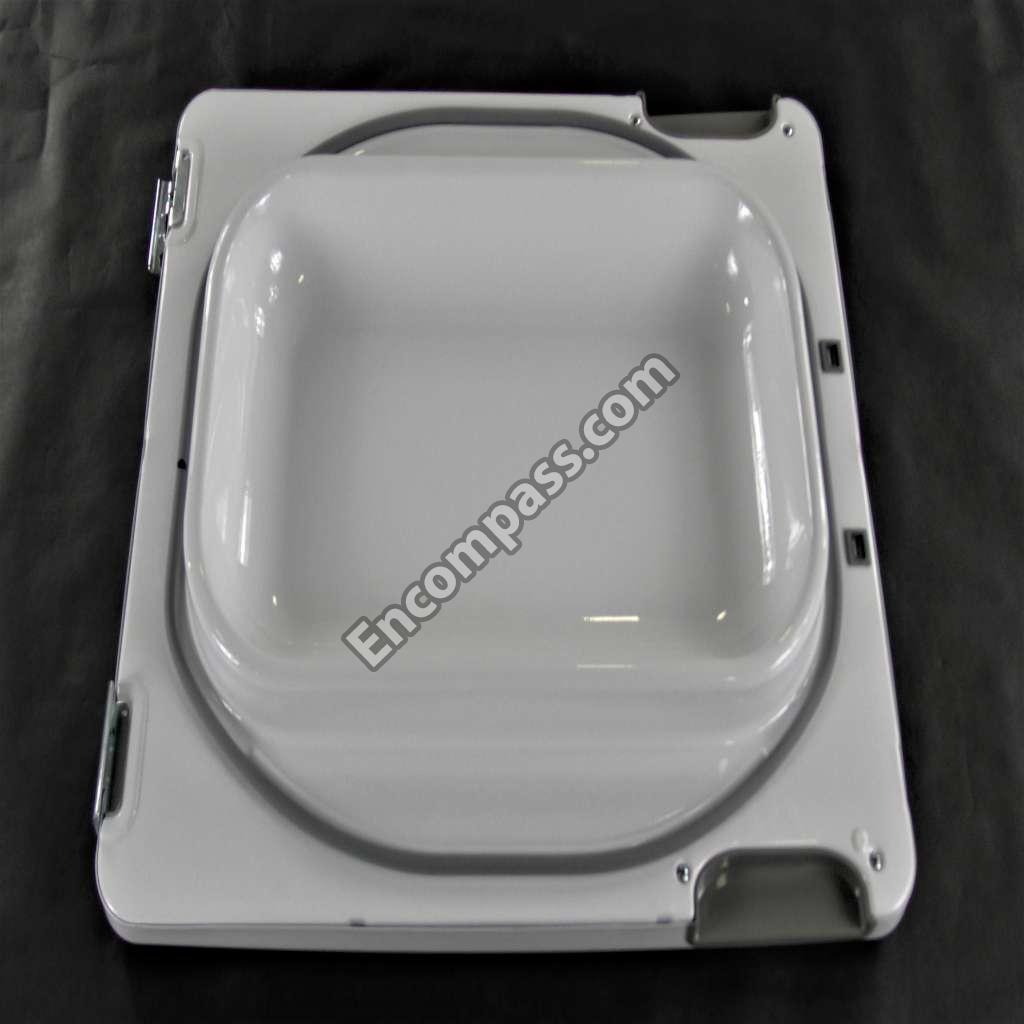

WE10X26854 WE10X26854 DOOR ASM
WE01X25316 WE01X25316 DOOR LATCH
WE04X28977 WE04X28977 DOOR SWITCH
WE21X24544 WE21X24544 DRUM ASM
WE01X23892 WE01X23892 EXHAUST DUCT
WE09X27634 WE09X27634 FELT TRAP DUCT
WE03X23881 WE03X23881 FILTER LINT ASM
WE1X21975 WE1X21975 FUSE 3AB
WE1X21955 WE1X21955 FUSE HOLDER 3AB
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE1M1015 WE1M1015 GROUND STRAP ASM
WE15X25211 WE15X25211 HARNESS BOARD PC ASM
WE15X26140 WE15X26140 HARNESS HIGH LIMIT ASM
WE11X21156 WE11X21156 HEATER AND HOUSING ASM
WE11M43 WE11M43 HEATER HOUSING

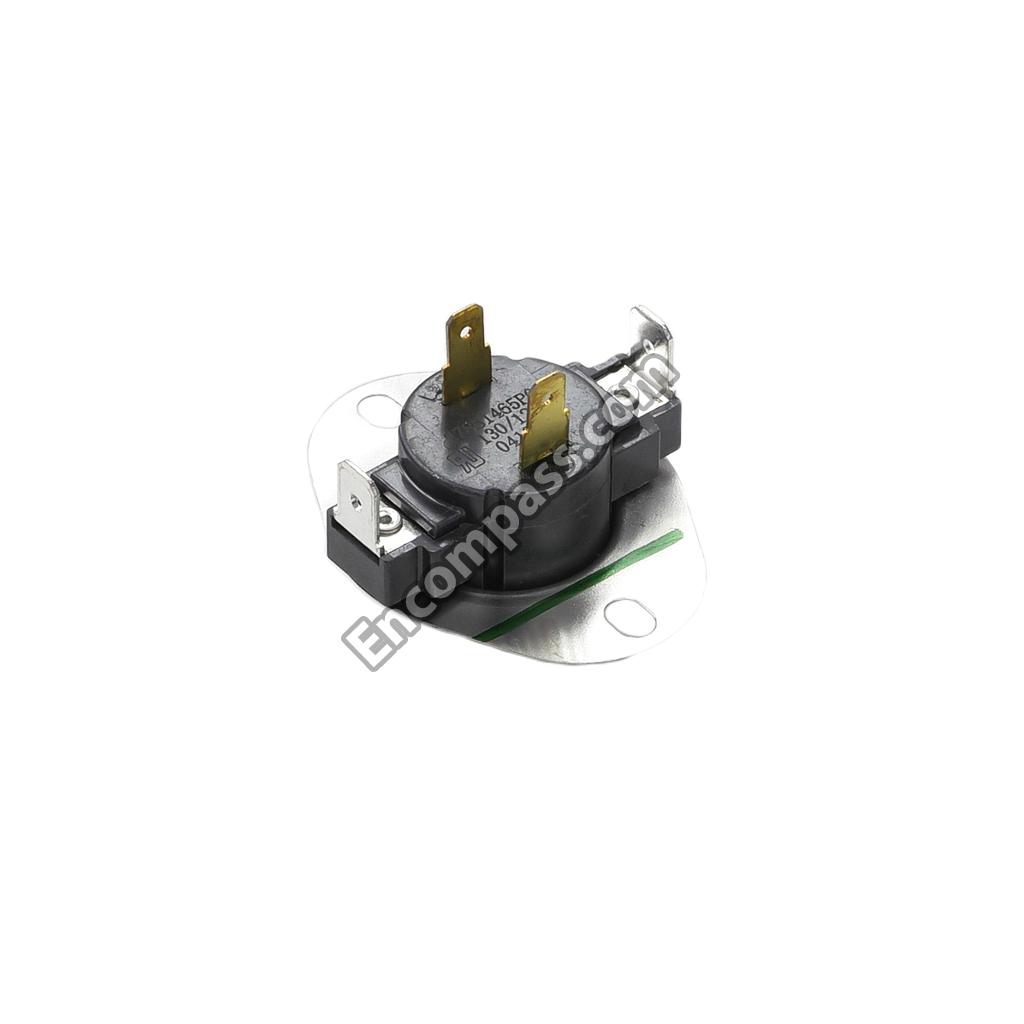

WE04X26139 WE04X26139 HIGH LIMIT THERMOSTAT
WE01X25317 WE01X25317 HINGE ASM
WE03X20434 WE03X20434 IDLER ARM
WE03X31620 WE03X31620 IDLER PULLEY
WE04X25201 WE04X25201 INLET THERMOSTAT
WE15X25209 WE15X25209 JUMPER HARNESS
WE15X25210 WE15X25210 JUMPER HARNESS
WE04X25202 WE04X25202 JUMPER HARNESS ORANGE TI
WE01X25160 WE01X25160 KIT DRYING RACK
WE01X24552 WE01X24552 KNOB MAIN ASM
WH01X24378 WH01X24378 KNOB OPTIONS ASM
WE05X20431 WE05X20431 LAMP
WE01X29357 WE01X29357 LEVELLING FOOT
WE1M418 WE1M418 LOCKING C B SUPPORT
WE08X38318 WE08X38318 MAIN HARNESS ELECTRIC TL DRYER 74
WE11M10001 WE11M10001 MICA HEATER
WE17X24535 WE17X24535 MOTOR & BLOWER ASM
WE49X28295 WE49X28295 MOTOR AND PULLEY ASM
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE20X24556 WE20X24556 PANEL BACK
WE20X25260 WE20X25260 PANEL FRONT
WE02X23955 WE02X23955 PANEL REAR
WE10X29822 WE10X29822 PANEL SIDE
WE03X23858 WE03X23858 PLATE MOTOR
WE1M934 WE1M934 PLUG BUTTON WHITE
31-16775 31-16775 PM INSTALLATION INSTRUCTION USA ELEC Y G
49-90543 49-90543 PM USE AND CARE
WE1M780 WE1M780 PROTECTION BRACKET
31-16927 31-16927 PUB NUMBER MINI MANUAL
WZ4X241D WZ4X241D SCR
WE01X24720 WE01X24720 SCR 30 X 20 IA PP
WE2X21976 WE2X21976 SCR 6-20 AB PNP#2 1
WE2M302 WE2M302 SCREW
WE2M202 WE2M202 SCREW
WE01X25535 WE01X25535 SCREW
WE01X25318 WE01X25318 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WZ5X158D WZ5X158D SCREW 8-32X3/8 GRD SCR
WE00X181L WE00X181L SHAFT
WE3M33 WE3M33 SHAFT & BRACKET ASS'Y
WE01X23880 WE01X23880 SHIELD SWITCH
WE1M462 WE1M462 SLEEVE DRUM
WE01X26494 WE01X26494 SOCKET ASM
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET EL
WE13X0200 WE13X0200 STRAP MOTOR
WE1X921 WE1X921 STRAP MOTOR
WE01M10007 WE01M10007 STRIKE
WE1X1192 WE1X1192 STRIKE DOOR
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WE4M416 WE4M416 SWITCH PTS

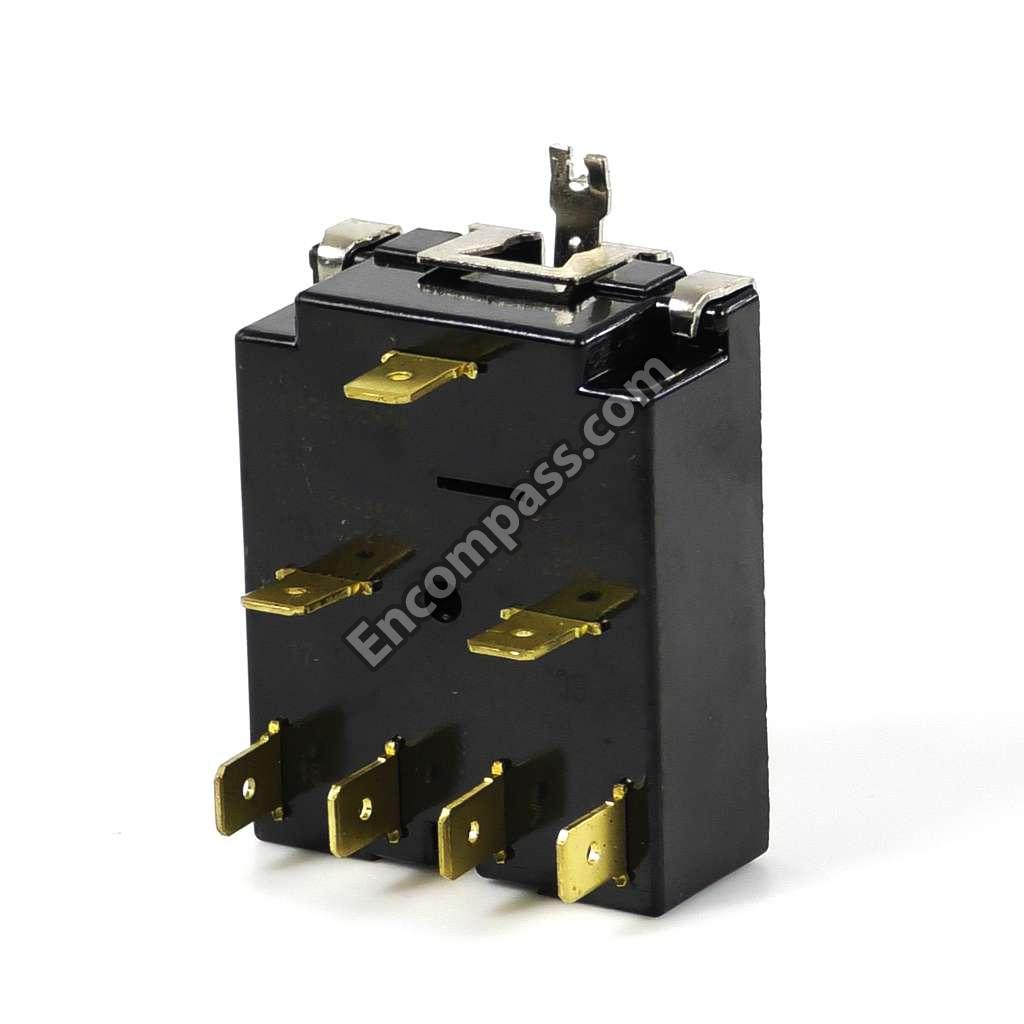

WE04X24717 WE04X24717 SWITCH ROTARY
WE04X24555 WE04X24555 SWITCH ROTARY
WE4M325 WE4M325 TERM BLK & GRND STRAP
WE04X26216 WE04X26216 THERMOSTAT
WE04X25194 WE04X25194 THERMOSTAT

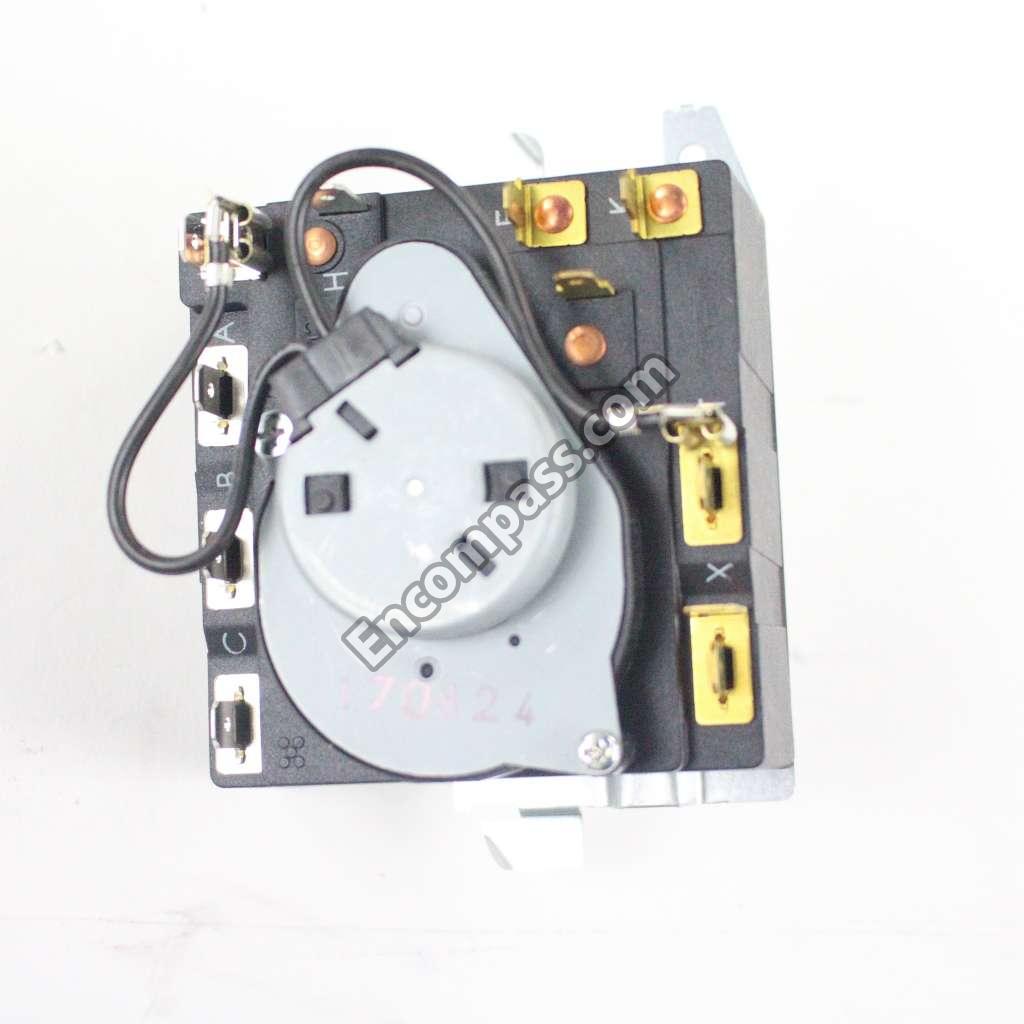

WE04X24551 WE04X24551 TIMER
WE01X25334 WE01X25334 TRAP DUCT ASM
WE01X24546 WE01X24546 TRAP DUCT SLIDES
WE01X26154 WE01X26154 WASHER
WE15X25203 WE15X25203 WIRE BLACK TIMER-BUZZER
