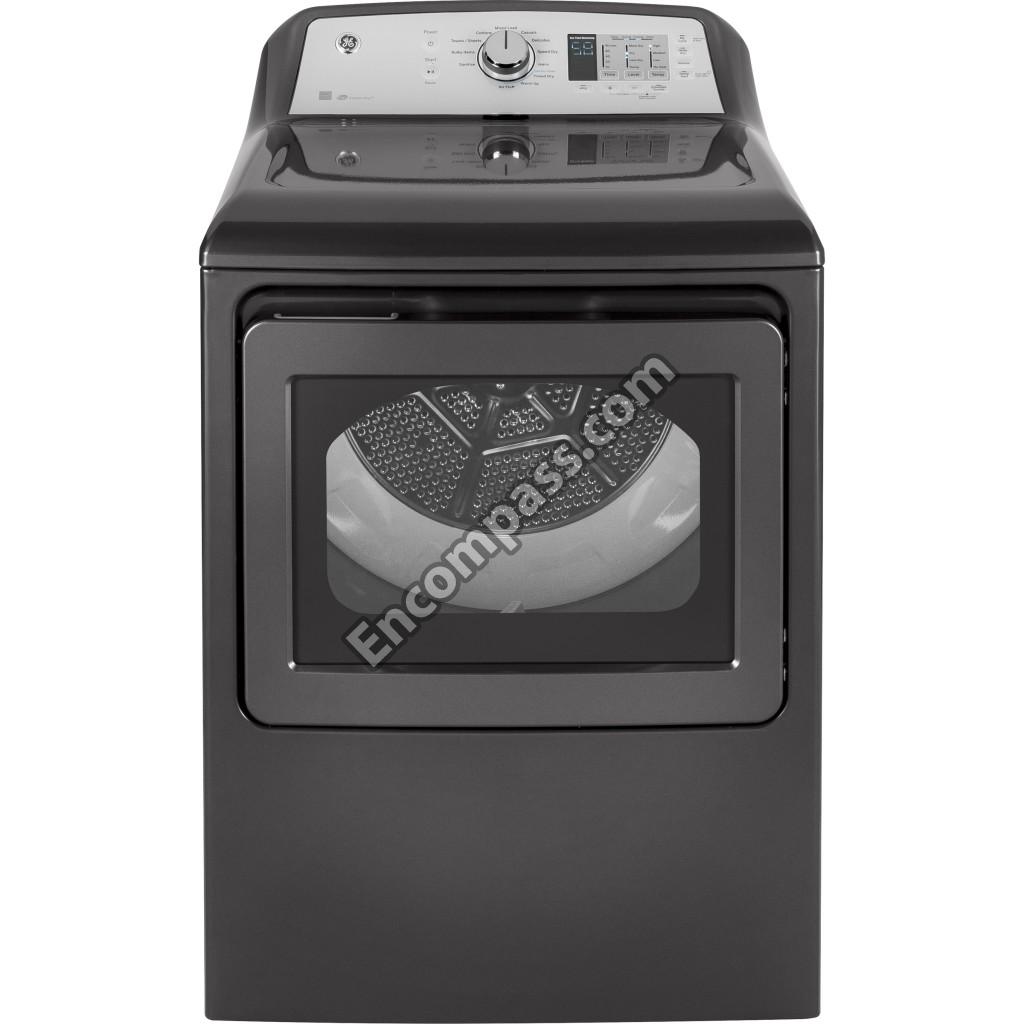

Model Image
Manufacturer

GE

Model Number

GTD65GBPL1DG

Description

Dryer Gas

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE1M300 WE1M300 BEARING RETAINER
WE03X37320 WE03X37320 BEARING SLIDE
WE03X23875 WE03X23875 BEARING TOP ASSEMBLY
WE03X23956 WE03X23956 BEARING TOP SLIDES
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE03X23859 WE03X23859 BLOWER HOUSING ASSEMBLY
WH16X34317 WH16X34317 BLOWER WHEEL
WE01X25074 WE01X25074 BRACKET IDLER
WE11X29440 WE11X29440 CHAMBER COMBUSTION
WE22X35978 WE22X35978 CHASSIS AND BOARD ASM
WE04X25158 WE04X25158 CHASSIS AND LEG ASSEMBLY
WE1X1091 WE1X1091 CLIP CORDSET.
WE03X23884 WE03X23884 COVER BOTTOM
WE11X25154 WE11X25154 DEFLECTOR FLAME
WE01X29060 WE01X29060 DEFLECTOR FRONT
WE11X29438 WE11X29438 DIFFUSER
WE10X27467 WE10X27467 DOOR ASSEMBLY
WE04X28977 WE04X28977 DOOR SWITCH
WE21X23869 WE21X23869 DRUM ASSEMBLY
WE14X20683 WE14X20683 DRYER BAFFLE
WE03X37319 WE03X37319 DRYER BEARING SLIDE
WE03X29897 WE03X29897 DRYER DRUM DRIVE BELT
WE1M462 WE1M462 DRYER DRUM SLEEVE
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE01X25335 WE01X25335 DRYER EXHAUST DUCT
WE14M104 WE14M104 DRYER GAS BURNER
WE14X21174 WE14X21174 DRYER GAS DIFFUSER
WE1M1015 WE1M1015 DRYER GROUND STRAP
WE03X27536 WE03X27536 DRYER HIGH DEPTH TOP COVER
WE01X25317 WE01X25317 DRYER HINGE
WE01X25316 WE01X25316 DRYER LATCH
WE03X23881 WE03X23881 DRYER LINT FILTER
WE13X200 WE13X200 DRYER MOTOR STRAP
WE1X921 WE1X921 DRYER MOTOR STRAP
WE26M345 WE26M345 DRYER POWER CORD - 120V GAS
WE01X25160 WE01X25160 DRYER RACK
WE15X26994 WE15X26994 DRYER SENSOR HARNESS
WE04X25200 WE04X25200 DRYER THERMOSTAT
WE04X26138 WE04X26138 DRYER THERMOSTAT
WE03X23918 WE03X23918 DRYER VALVE AND PIPE
WE01X23893 WE01X23893 EXHAUST DUCT
WE4X448 WE4X448 FLAME DETECTOR
WE2M188 WE2M188 FRONT STABILIZING LEGS
WE14X215 WE14X215 GAS VALVE ASM
WE13X20405 WE13X20405 GAS VALVE BRACKET
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE15X26202 WE15X26202 HARNESS GAS ASSEMBLY
WE15X23882 WE15X23882 HARNESS LED ASSEMBLY
WE03X20434 WE03X20434 IDLER ARM
WE03X27417 WE03X27417 IDLER ARM ASM
WE03X31620 WE03X31620 IDLER PULLEY
WE04X25996 WE04X25996 IGNITER
WE22X28938 WE22X28938 IMD AND BACKSPLASH ASSEMBLY
WE4M398 WE4M398 INLET CONTROL THERMISTOR
WE01X23886 WE01X23886 KNOB ASSEMBLY
WE15X25754 WE15X25754 LED
WE01X29357 WE01X29357 LEVELLING FOOT
WE17X23056 WE17X23056 MOTOR AND BLOWER ASSEMBLY
WE49X28295 WE49X28295 MOTOR AND PULLEY ASSEMBLY
WE01X0921 WE01X0921 MOTOR BRACKET
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE4M448 WE4M448 OUTLET CONTROL THERMISTOR
WE20X24556 WE20X24556 PANEL BACK
WE20X27466 WE20X27466 PANEL FRONT
WE02X23955 WE02X23955 PANEL REAR
WE20X26817 WE20X26817 PANEL SIDE
WE13X29444 WE13X29444 PLATE BLOWER
WE10X30380 WE10X30380 PLATE DIFFUSER
WE03X23858 WE03X23858 PLATE MOTOR
WE1M949 WE1M949 PLUG BUTTON GREY
31-16775 31-16775 PM INSTALLATION INSTRUCTION USA ELEC Y G
49-90536 49-90536 PM USE AND CARE DRYER 2015
31-16922 31-16922 PUB NUMBER MINI MANUAL
WE04X25199 WE04X25199 SAFETY THERMOSTAT
WE2X21854 WE2X21854 SCREW
WE2M202 WE2M202 SCREW
WE01X25318 WE01X25318 SCREW
WE01X25535 WE01X25535 SCREW
WE2M302 WE2M302 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WR01X10196 WR01X10196 SCREW 8-18 HI/LO 5/8
WE2M200 WE2M200 SCREW GROUND
WZ5X158D WZ5X158D SCREW-PKG 12
WE00X181L WE00X181L SHAFT
WE3M33 WE3M33 SHAFT AND BRACKET ASSEMBLY
WE01X23880 WE01X23880 SHIELD SWITCH
WE02X24214 WE02X24214 SHUTTER AIR
WE01M10007 WE01M10007 STRIKE
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE11X29441 WE11X29441 TRANSITION DUCT
WE01X24546 WE01X24546 TRAP DUCT SLIDES
WE03X29303 WE03X29303 VALVE AND BURNER
WE03X23916 WE03X23916 VALVE AND PIPE ASSEMBLY
WE01X26154 WE01X26154 WASHER
WE2M96 WE2M96 WE2X329
