Model Image
Manufacturer

GE

Model Number

GTD65GBSJ2WS

Description

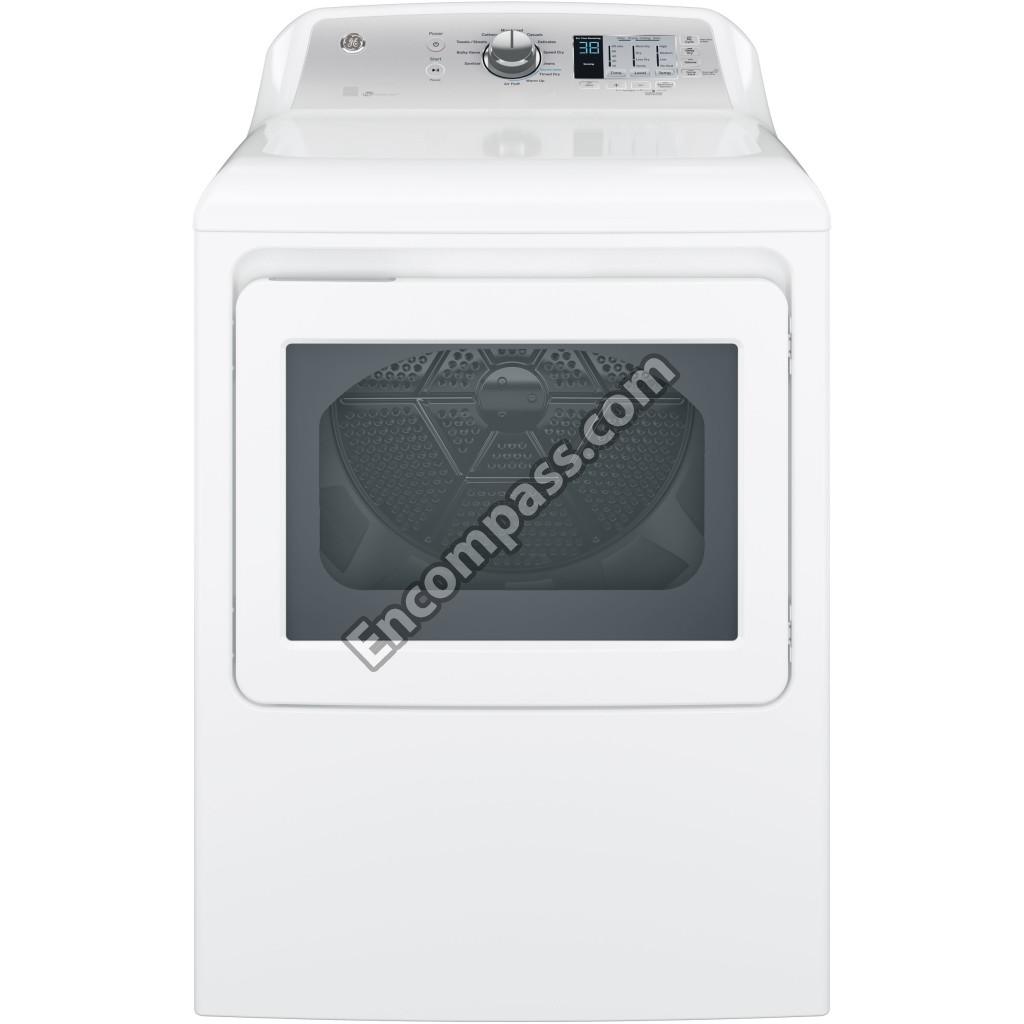

Gas Dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE02X24214 WE02X24214 AIR SHUTTER
WE03X23956 WE03X23956 BEARING
WE03X37320 WE03X37320 BEARING SLIDE
WE03X23875 WE03X23875 BEARING TOP
WE03X29897 WE03X29897 BELT DRIVE
WE11X29440 WE11X29440 CHAMBER COMB
WE04X25158 WE04X25158 CHASSIS AND
WE22X35978 WE22X35978 CHASSIS AND BOARD ASM
WE1X1091 WE1X1091 CORDSET CLIP
WE03X23884 WE03X23884 COVER
WE11X25154 WE11X25154 DEFLECTOR FL
WE10X23891 WE10X23891 DOOR ASSEMBLY
WE1M934 WE1M934 DOOR REVERSAL PLUG
WE03X23885 WE03X23885 DRYER BACKSPLASH ASSEMBLY
WE14X20683 WE14X20683 DRYER BAFFLE
WE03X23859 WE03X23859 DRYER BLOWER
WE09X27636 WE09X27636 DRYER BLOWER GASKET
WH16X34317 WH16X34317 DRYER BLOWER WHEEL
WE14M104 WE14M104 DRYER BURNER
WE04X25996 WE04X25996 DRYER BURNER IGNITER
WE2M96 WE2M96 DRYER CAP NUT
WE01X25316 WE01X25316 DRYER DOOR CATCH
WE1M825 WE1M825 DRYER DOOR SEAL
WE04X28977 WE04X28977 DRYER DOOR SWITCH
WE21X23869 WE21X23869 DRYER DRUM ASSEMBLY
WE1M300 WE1M300 DRYER DRUM BEARING BRACKET
WE09X27634 WE09X27634 DRYER DRUM FELT SEAL
WE03X37319 WE03X37319 DRYER DRUM GLIDE BEARING
WE11X29438 WE11X29438 DRYER DRUM REAR COVER
WE1X21955 WE1X21955 DRYER FUSE HOLDER
WE1X21975 WE1X21975 DRYER FUSE, 30-AMP
WE4M398 WE4M398 DRYER HEATING ELEMENT CONTROL THERMISTOR
WE03X31620 WE03X31620 DRYER IDLER PULLEY
WE03X20434 WE03X20434 DRYER IDLER PULLEY ARM
WE03X23881 WE03X23881 DRYER LINT SCREEN
WE03X23918 WE03X23918 DRYER LP CONVERSION KIT
WE17X23056 WE17X23056 DRYER MOTOR AND BLOWER WHEEL ASSEMBLY
WE13X200 WE13X200 DRYER MOTOR CLAMP
WE4X448 WE4X448 DRYER RADIANT SENSOR
WE1M462 WE1M462 DRYER REAR BEARING
WE1M461 WE1M461 DRYER REAR BEARING O-RING
WE1M570 WE1M570 DRYER RETAINER CLIP
WE01X23893 WE01X23893 EXHAUST DUCT
WE20X25260 WE20X25260 FRONT PANEL
WE01X29060 WE01X29060 FT HEAT DEFL
WE1M1007 WE1M1007 FUSE COVER
WE14X21174 WE14X21174 GAS DIFFUSER
WE13X20405 WE13X20405 GAS VALVE BR
WE2M200 WE2M200 GROUND SCREW
WE1M1015 WE1M1015 GROUND STRAP

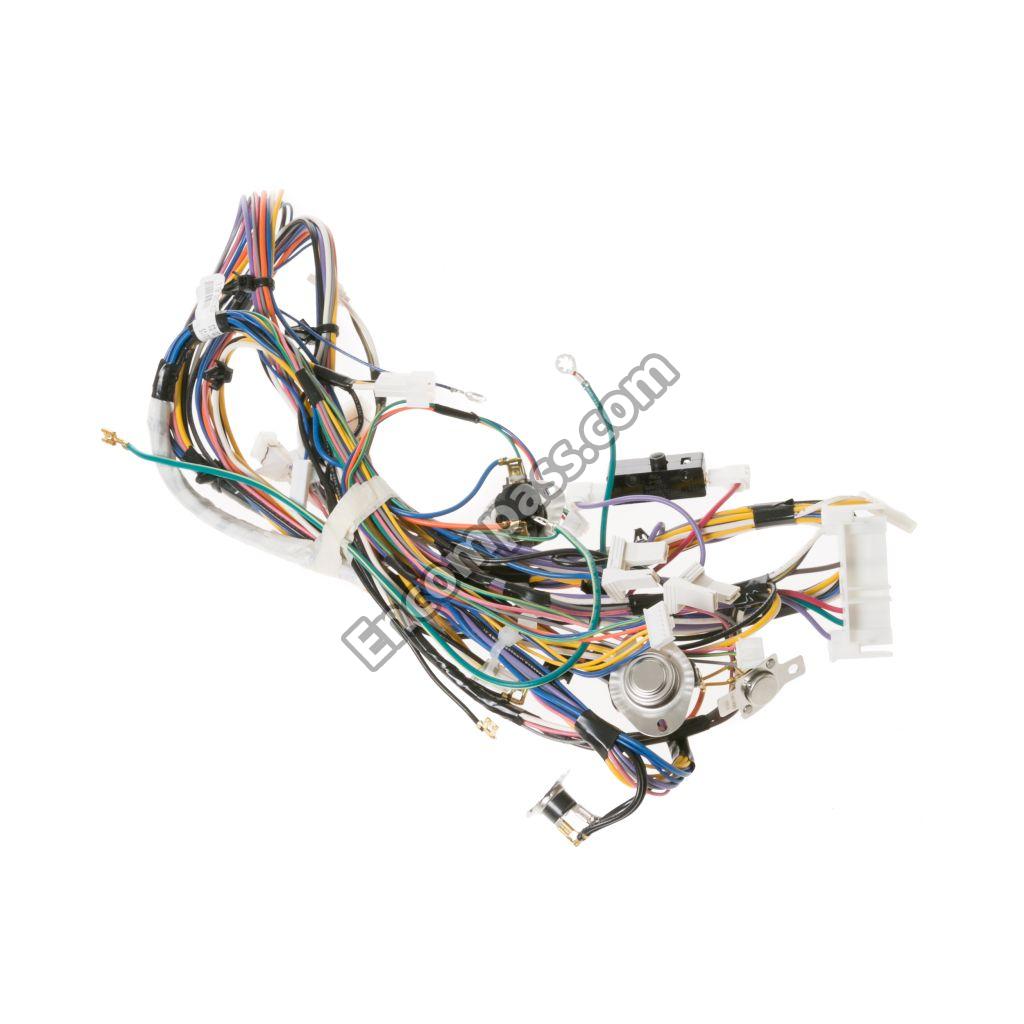

WE15X23864 WE15X23864 HARNESS ASSEMBLY
WE15X23882 WE15X23882 HARNESS LED
WE15X26994 WE15X26994 HARNESS SENS
WE03X23889 WE03X23889 HIGH DEPTH COVER TOP
WE04X26138 WE04X26138 HIGH-LIMIT THERMOSTAT
WE01X25317 WE01X25317 HINGE ASSEMBLY
WE04X0739 WE04X0739 IGNITER ASM
WE01X23886 WE01X23886 KNOB ASSEMBLY
WE5M94 WE5M94 LED
WE2M188 WE2M188 LEG
WE01X29357 WE01X29357 LEVELLING FO
WE49X28295 WE49X28295 MOTOR AND PULLEY
WE01X0921 WE01X0921 MOTOR BRACKET
WE13M39 WE13M39 MOTOR SUPPORT
WE4M448 WE4M448 OUTLET CONTROL

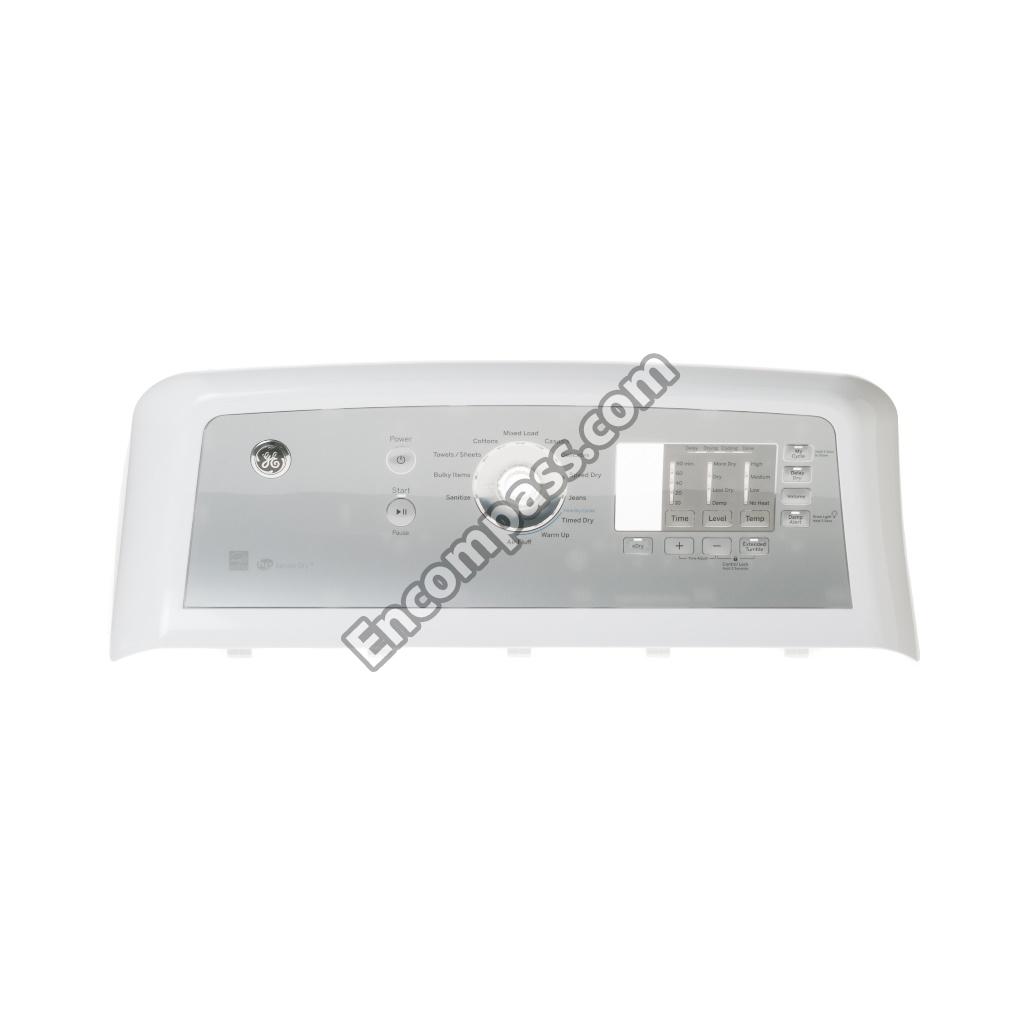

WE20X23867 WE20X23867 PANEL
WE20X25221 WE20X25221 PANEL BACK A
WE03X23916 WE03X23916 PIPE AND VALVE
WE03X23858 WE03X23858 PLATE MOTOR
49-90536 49-90536 PM USE AND CARE DRYER 2015
WE26M345 WE26M345 POWER CORD
31-16887 31-16887 PUB # MINIMANUAL
31-16756 31-16756 PUB NUMBER INSTALLATION INSTRUCTION
WE02X23955 WE02X23955 REAR PANEL
WE2X21976 WE2X21976 SCR 6-20 AB
WR01X10196 WR01X10196 SCR 8-18 HI/
WE2M160 WE2M160 SCREW
WE2M302 WE2M302 SCREW
WD02X10057 WD02X10057 SCREW
WE2M202 WE2M202 SCREW
WE01X25535 WE01X25535 SCREW
WZ5X158D WZ5X158D SCREW 8-32 X 3/8 GRD SCR
WE00X181L WE00X181L SHAFT
WE3M33 WE3M33 SHAFT BRACKET
WE01X23880 WE01X23880 SHIELD
WE01X25160 WE01X25160 SHOE RACK
WE01X20424 WE01X20424 STRAIN RELIEF
WE1X921 WE1X921 STRAP MOTOR
WE01M10007 WE01M10007 STRIKE
WE1M569 WE1M569 STRIKE PLATE
WE04X25199 WE04X25199 THERMOSTAT
WE04X25200 WE04X25200 THERMOSTAT
WE11X29441 WE11X29441 TRANSITION
WE01X25335 WE01X25335 TRAP DUCT AS
WE01X24546 WE01X24546 TRAP DUCT SL

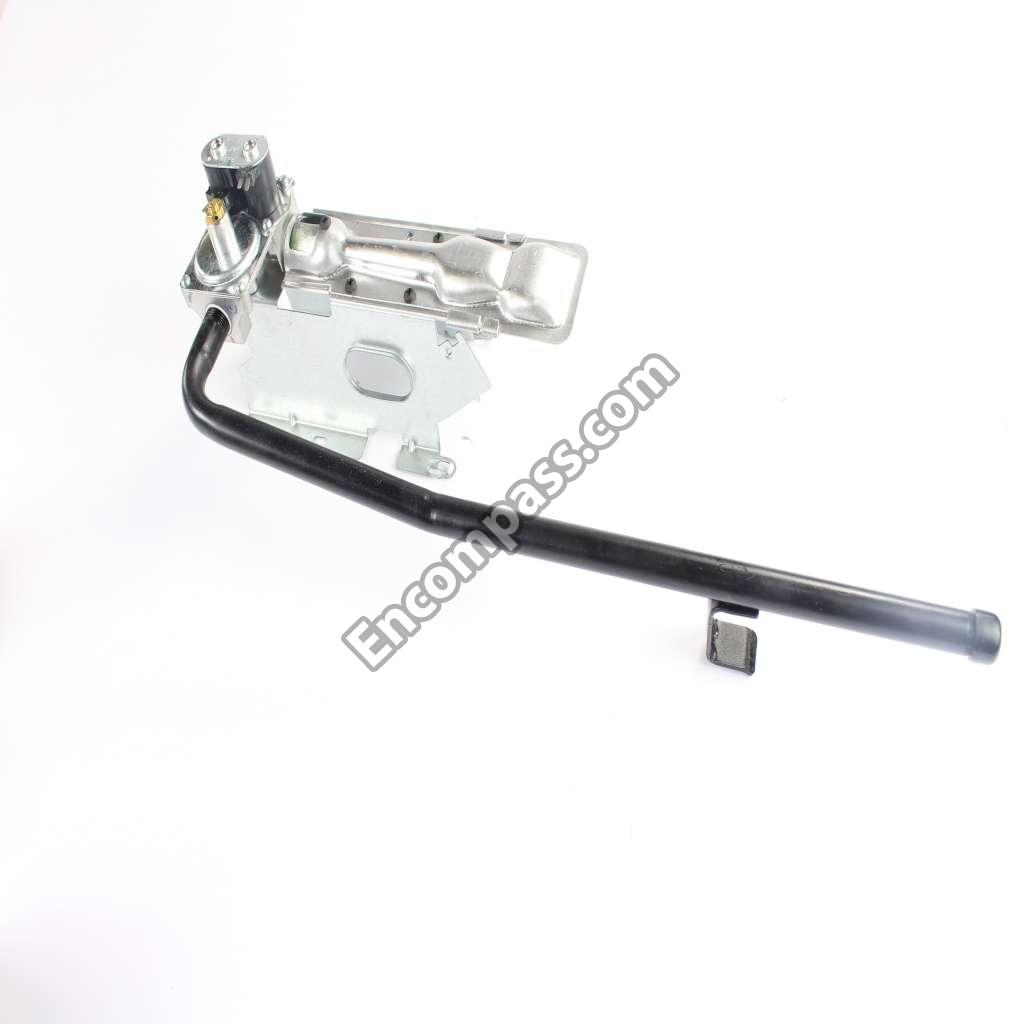

WE03X23914 WE03X23914 VALVE & BURN
WE01X26154 WE01X26154 WASHER
WE2M163 WE2M163 WASHER SCREW
WE2M174 WE2M174 WASHER SCREW
