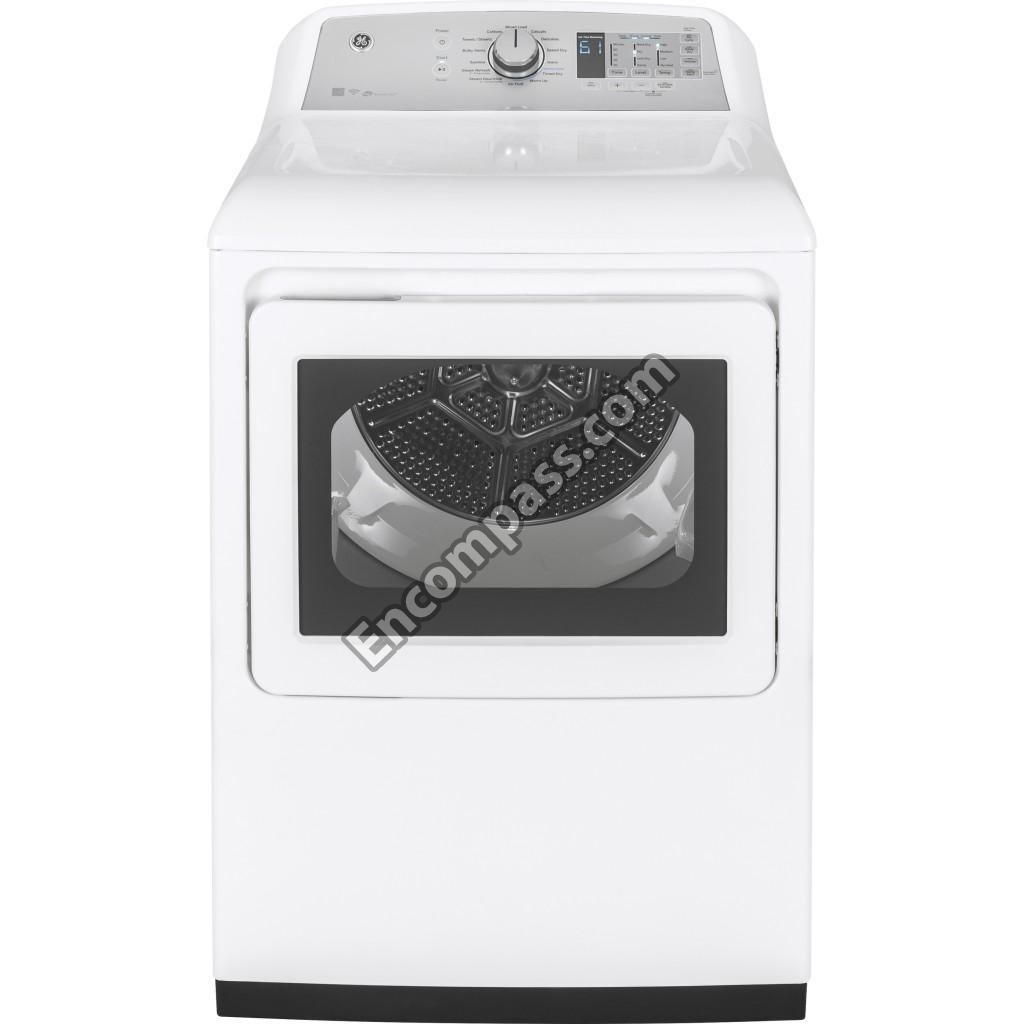

Model Image
Manufacturer

GE

Model Number

GTD75ECSL1WS

Description

Dryer Electric

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE1M300 WE1M300 BEARING RETAINER
WE03X37320 WE03X37320 BEARING SLIDE
WE03X23875 WE03X23875 BEARING TOP ASSEMBLY
WE03X23956 WE03X23956 BEARING TOP SLIDES
WE03X29897 WE03X29897 BELT DRIVE
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE03X23859 WE03X23859 BLOWER HOUSING ASSEMBLY
WH16X34317 WH16X34317 BLOWER WHEEL
WE01X25074 WE01X25074 BRACKET IDLER
WE04X29098 WE04X29098 CHASSIS AND BOARD ASSEMBLY WIFI
WE20X27594 WE20X27594 CHASSIS BASE
WE01X20560 WE01X20560 CONNECTOR SERVICE
WE03X23884 WE03X23884 COVER BOTTOM
WE1M1007 WE1M1007 COVER FUSE TERMINAL
WE03X23889 WE03X23889 COVER TOP HIGH DEPTH
WE01X29060 WE01X29060 DEFLECTOR FRONT
WE11X29438 WE11X29438 DIFFUSER
WE10X23891 WE10X23891 DOOR ASSEMBLY
WE04X28977 WE04X28977 DOOR SWITCH
WE21X23869 WE21X23869 DRUM ASSEMBLY
WE14X20683 WE14X20683 DRYER BAFFLE
WE03X37319 WE03X37319 DRYER BEARING SLIDE
WE1M462 WE1M462 DRYER DRUM SLEEVE
WE01X26815 WE01X26815 DRYER DUCT ASSEMBLY
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE1M1015 WE1M1015 DRYER GROUND STRAP
WE01X25317 WE01X25317 DRYER HINGE
WE01X25316 WE01X25316 DRYER LATCH
WE03X23881 WE03X23881 DRYER LINT FILTER
WE1X921 WE1X921 DRYER MOTOR STRAP
WE13X200 WE13X200 DRYER MOTOR STRAP
WE01X25160 WE01X25160 DRYER RACK
WE15X26994 WE15X26994 DRYER SENSOR HARNESS
WE04X26138 WE04X26138 DRYER THERMOSTAT
WE04X25200 WE04X25200 DRYER THERMOSTAT
WE4M503 WE4M503 DRYER WATER VALVE
WE1M933 WE1M933 DRYER WATER VALVE SHIELD
WE16X33649 WE16X33649 DUCT TRAP
WE1M943 WE1M943 ELBOW AND NOZZLE ASSEMBLY
WE01X23893 WE01X23893 EXHAUST DUCT
WE20X25260 WE20X25260 FRONT PANEL WHITE
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE15X26819 WE15X26819 HARNESS ASSEMBLY ELEC
WE15X26821 WE15X26821 HARNESS HIGH LIMIT ASSEMBLY
WE11X21156 WE11X21156 HEATER AND HOUSING ASSEMBLY
WE11M43 WE11M43 HEATER HOUSING
WE03X20434 WE03X20434 IDLER ARM
WE03X27417 WE03X27417 IDLER ARM ASM
WE03X31620 WE03X31620 IDLER PULLEY
WE03X26824 WE03X26824 IMD AND BACKSPLASH ASSEMBLY
WE4M398 WE4M398 INLET CONTROL THERMISTOR
WE01X23886 WE01X23886 KNOB ASSEMBLY
WE15X25754 WE15X25754 LED
WE11M10001 WE11M10001 MICA HEATER
WE17X23056 WE17X23056 MOTOR AND BLOWER ASSEMBLY
WE49X28295 WE49X28295 MOTOR AND PULLEY ASSEMBLY
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE4M448 WE4M448 OUTLET CONTROL THERMISTOR
WE20X24556 WE20X24556 PANEL BACK
WE02X23955 WE02X23955 PANEL REAR
WE20X23867 WE20X23867 PANEL SIDE
WE13X29444 WE13X29444 PLATE BLOWER
WE03X23858 WE03X23858 PLATE MOTOR
WE1M934 WE1M934 PLUG BUTTON WHITE
31-16775 31-16775 PM INSTALLATION INSTRUCTION USA ELEC Y G
49-90536 49-90536 PM USE AND CARE DRYER 2015
WE1M780 WE1M780 PROTECTION BRACKET
31-16916 31-16916 PUB NUMBER MINI MANUAL
WE01X26822 WE01X26822 RISER ASSEMBLY
WE2X21854 WE2X21854 SCREW
WE2M302 WE2M302 SCREW
WE01X25318 WE01X25318 SCREW
WE01X25535 WE01X25535 SCREW
WE2M202 WE2M202 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WR01X10196 WR01X10196 SCREW 8-18 HI/LO 5/8
WZ5X158D WZ5X158D SCREW-PKG 12
WZ4X241D WZ4X241D SCREW-PKG 12
WE00X181L WE00X181L SHAFT
WE0X181L WE0X181L SHAFT
WE3M33 WE3M33 SHAFT AND BRACKET ASSEMBLY
WE01X23880 WE01X23880 SHIELD SWITCH
WE25X20060 WE25X20060 STEAM KIT
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET EL
WE01M10007 WE01M10007 STRIKE
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M325 WE4M325 TERM BLK AND GRND STRAP
WE04X25198 WE04X25198 THERMOSTAT
WE01X33121 WE01X33121 TRAP DUCT
WE01X24546 WE01X24546 TRAP DUCT SLIDES
WE1M1035 WE1M1035 TUBE
WE01X28094 WE01X28094 TUBE
WE01X26154 WE01X26154 WASHER
WE2M96 WE2M96 WE2X329
