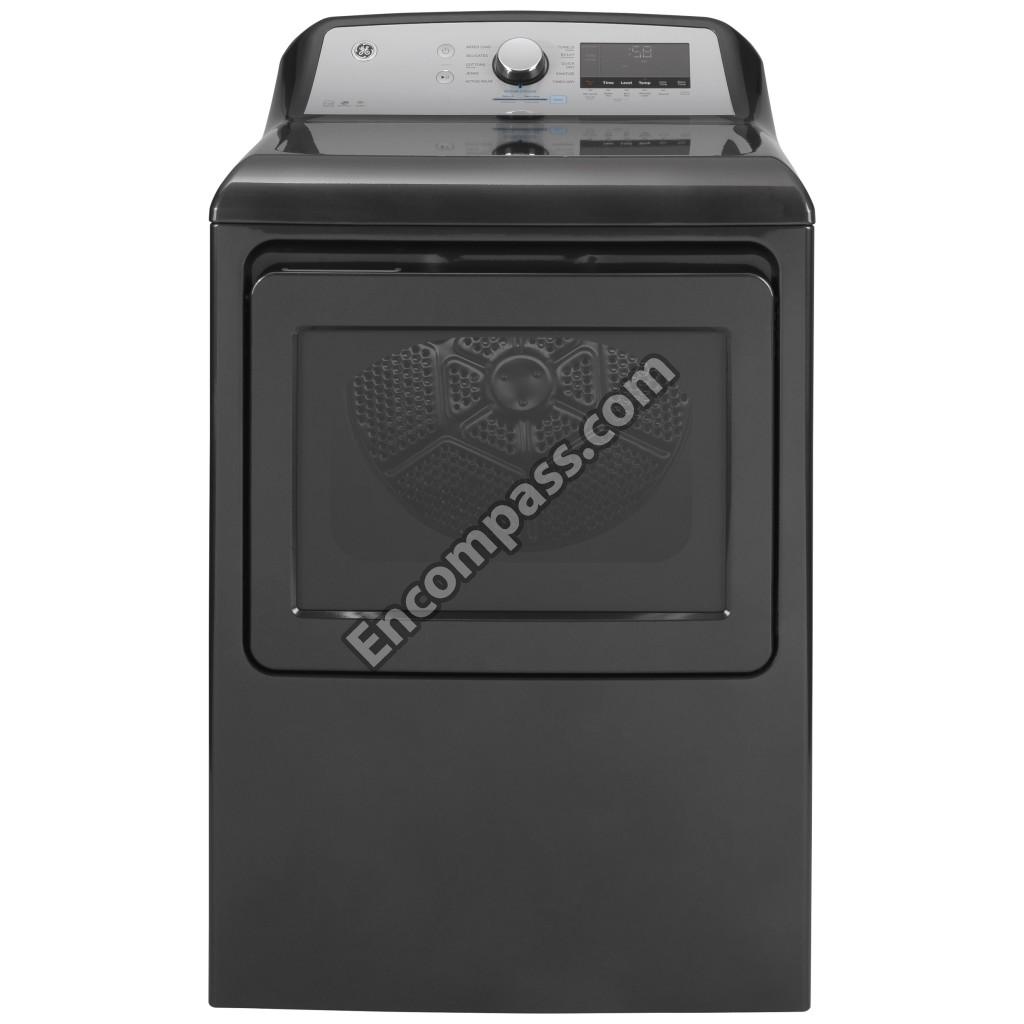

Model Image
Manufacturer

GE

Model Number

GTD84ECPN2DG

Description

Dryer Electric

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE14X20683 WE14X20683 BAFFLE
WE1M300 WE1M300 BEARING RETAINER
WE03X37320 WE03X37320 BEARING SLIDE
WE03X37319 WE03X37319 BEARING SLIDE
WE03X23875 WE03X23875 BEARING TOP ASM
WE03X23956 WE03X23956 BEARING TOP SLIDES
WE03X29259 WE03X29259 BELT DRIVE
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WH16X34317 WH16X34317 BLOWER WHEEL
WE01X25074 WE01X25074 BRACKET IDLER
WE2M96 WE2M96 CAP NUT
WE08X29476 WE08X29476 CAP TOUCH TO MAIN UI HARNESS
WE13X29562 WE13X29562 CHASSIS BASE
WE01X20560 WE01X20560 CONNECTOR SERVICE
WE22X29475 WE22X29475 CONTROL PANEL DIAMOND GRAY
WE03X23884 WE03X23884 COVER BOTTOM
WE1M1007 WE1M1007 COVER FUSE TERMINAL
WE03X27536 WE03X27536 COVER TOP HIGH DEPTH
WE11X29438 WE11X29438 DIFFUSER
WE10X27467 WE10X27467 DOOR ASM
WE01X25316 WE01X25316 DOOR LATCH
WE04X28977 WE04X28977 DOOR SWITCH
WE21X23869 WE21X23869 DRUM ASM
WE01X25160 WE01X25160 DRYER RACK
WE08X29466 WE08X29466 ELECTRIC DRYER HARNESS
WE01X23893 WE01X23893 EXHAUST DUCT
WE09X27635 WE09X27635 FELT TOP BEARING
WE09X27634 WE09X27634 FELT TRAP DUCT
WE03X23881 WE03X23881 FILTER LINT ASM
WE10X29582 WE10X29582 FRONT PANEL DIAMOND GRAY
WE09X25276 WE09X25276 GASKET
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE13X29439 WE13X29439 GROUND STRAP ASM
WE15X26994 WE15X26994 HARNESS SENSOR ASM
WE11X21156 WE11X21156 HEATER AND HOUSING ASM
WE11M43 WE11M43 HEATER HOUSING
WE08X29468 WE08X29468 HIGH LIMIT HARNESS
WE04X30381 WE04X30381 HIGH-LIMIT THERMOSTAT
WE01X25317 WE01X25317 HINGE ASM
WE13X29560 WE13X29560 HOUSING BLOWER
WE03X20434 WE03X20434 IDLER ARM
WE03X27417 WE03X27417 IDLER ARM ASM
WE03X31620 WE03X31620 IDLER PULLEY
WE4M398 WE4M398 INLET CONTROL THERMISTOR
WE04X31037 WE04X31037 INLET SAFETY THERMOSTAT
WE15X25754 WE15X25754 LED
WE22X32178 WE22X32178 MAIN BOARD & CHASSIS 84
WE11M10001 WE11M10001 MICA HEATER
WE03X29257 WE03X29257 MOTOR & BLOWER
WE49X28295 WE49X28295 MOTOR AND PULLEY ASM
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE4M448 WE4M448 OUTLET CNTRL THERMISTOR
WE04X31007 WE04X31007 OUTLET THERMOSTAT
WE20X24556 WE20X24556 PANEL BACK
WE13X29444 WE13X29444 PLATE BLOWER
WE03X23858 WE03X23858 PLATE MOTOR
WE1M949 WE1M949 PLUG BUTTON GREY
31-3000199 31-3000199 PM INSTALL INSTRUCTIONS
31-3000202 31-3000202 PM MINI MANUAL AND WIRING
WE1M780 WE1M780 PROTECTION BRACKET
WE1M723 WE1M723 REAR HEAT SHIELD
WE10X29463 WE10X29463 REAR PANEL
WE01X33179 WE01X33179 SCENT NOZZLE
WZ4X241D WZ4X241D SCR
WE01X25535 WE01X25535 SCR 10-16 GX IHXW Q2 3/8 S ZN
WE2M302 WE2M302 SCR 8-15 B PNQ2 7/8
WR01X10634 WR01X10634 SCR 8-18 AB 13/4 S HXW
WE2M202 WE2M202 SCREW
WE2X21854 WE2X21854 SCREW
WE01X25318 WE01X25318 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WR01X10196 WR01X10196 SCREW 8-18 HI/LO 5/8
WZ5X158D WZ5X158D SCREW 8-32X3/8 GRD SCR
WH01X28943 WH01X28943 SELECTOR KNOB
WE1M575 WE1M575 SENSOR RODS
WE00X181L WE00X181L SHAFT
WE3M33 WE3M33 SHAFT & BRACKET ASS'Y
WE1M933 WE1M933 SHIELD WATER VALVE
WE10X29471 WE10X29471 SIDE PANEL
WE1M462 WE1M462 SLEEVE DRUM
WE25X20060 WE25X20060 STEAM KIT
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET ELECTRIC
WE13X200 WE13X200 STRAP MOTOR
WE1X921 WE1X921 STRAP MOTOR
WE01M10007 WE01M10007 STRIKE
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M325 WE4M325 TERM BLK & GRND STRAP
WE16X33858 WE16X33858 TRAP DUCT
WE16X33857 WE16X33857 TRAP DUCT ASM
WE01X28094 WE01X28094 TUBE
WE01X29465 WE01X29465 TUBE
WE01X26154 WE01X26154 WASHER
WE4M503 WE4M503 WATER VALVE
WH22X33297 WH22X33297 WIFI BOARD W/INSTRUCTIONS
