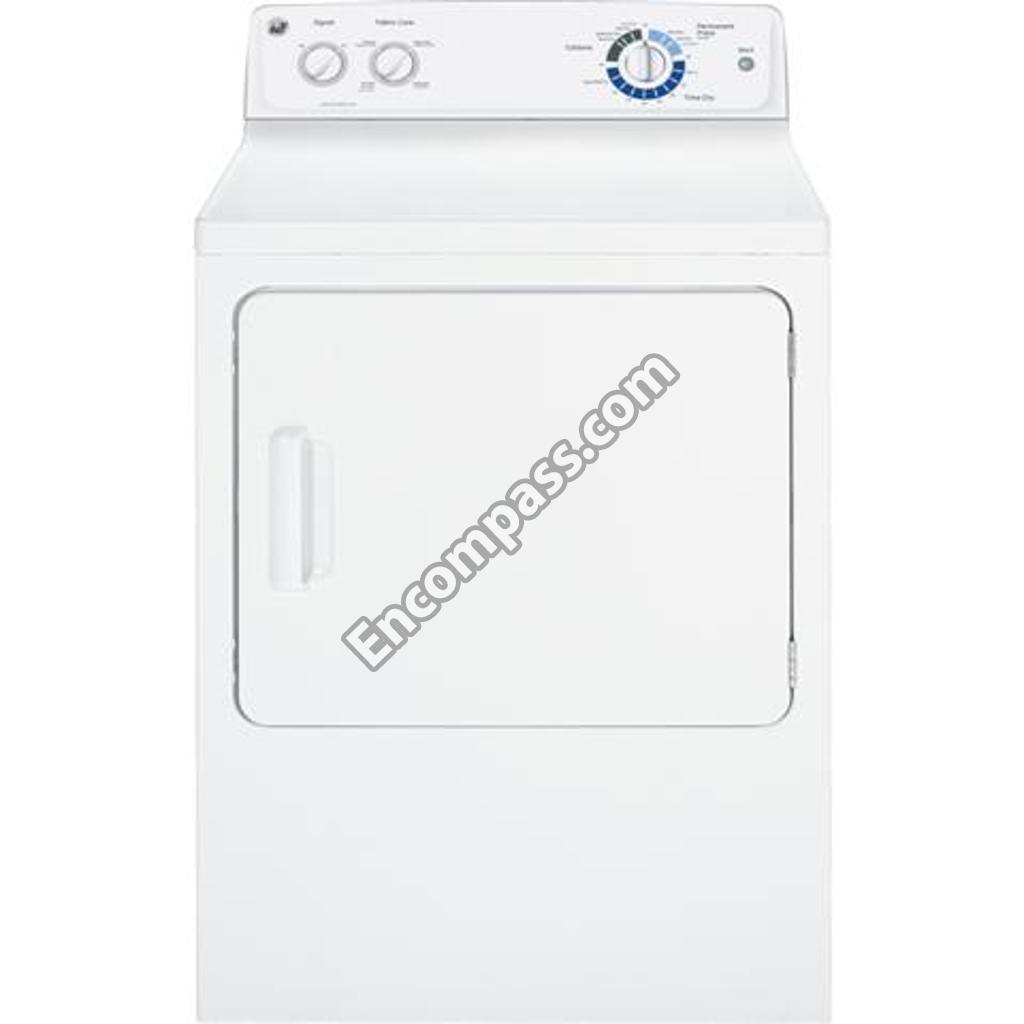

Model Image
Manufacturer

GE

Model Number

GTDP180GD4WW

Description

Gas Dryer

Interactive Exploded View

Parts List

Part Number Description
WE1M1002 WE1M1002 120 VOLT DRYER POWER FUSE 30 AMP
WE05X20431 WE05X20431 120V DRYER BULB - 10W
WE19X22614 WE19X22614 BACKSPLASH GRAPHIC ASSEMBLY
WE1M300 WE1M300 BEARING RETAINER
WE12M29 WE12M29 BELT DRIVE
WE1M966 WE1M966 BLOWER GASKET (EXHAUST)
WE14X20392 WE14X20392 BLOWER HOUSING ASSEMBLY
WE16X20393 WE16X20393 BLOWER WHEEL
WE11X29440 WE11X29440 CHAMBER COMBUSTION
WE1M650 WE1M650 CONNECTOR MOTOR
WE1M1007 WE1M1007 COVER FUSE TERMINAL
WE14X20408 WE14X20408 DIFFUSER
WE11X20712 WE11X20712 DIFFUSER GAS AND PLATE A
WE21X22675 WE21X22675 DRUM ASSEMBLY
WE20X20417 WE20X20417 DRYER ACCESS PANEL- WHITE
WE14X20683 WE14X20683 DRYER BAFFLE
WE3M51 WE3M51 DRYER BEARING SLIDE
WE20X20412 WE20X20412 DRYER BOTTOM COVER
WE4M318 WE4M318 DRYER BUZZER
WE20X20391 WE20X20391 DRYER CHASSIS BASE
WE4M181 WE4M181 DRYER CYCLING THERMOSTAT - 4 WIRE
WE4M415 WE4M415 DRYER DOOR SWITCH
WE1M462 WE1M462 DRYER DRUM SLEEVE
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE14M104 WE14M104 DRYER GAS BURNER

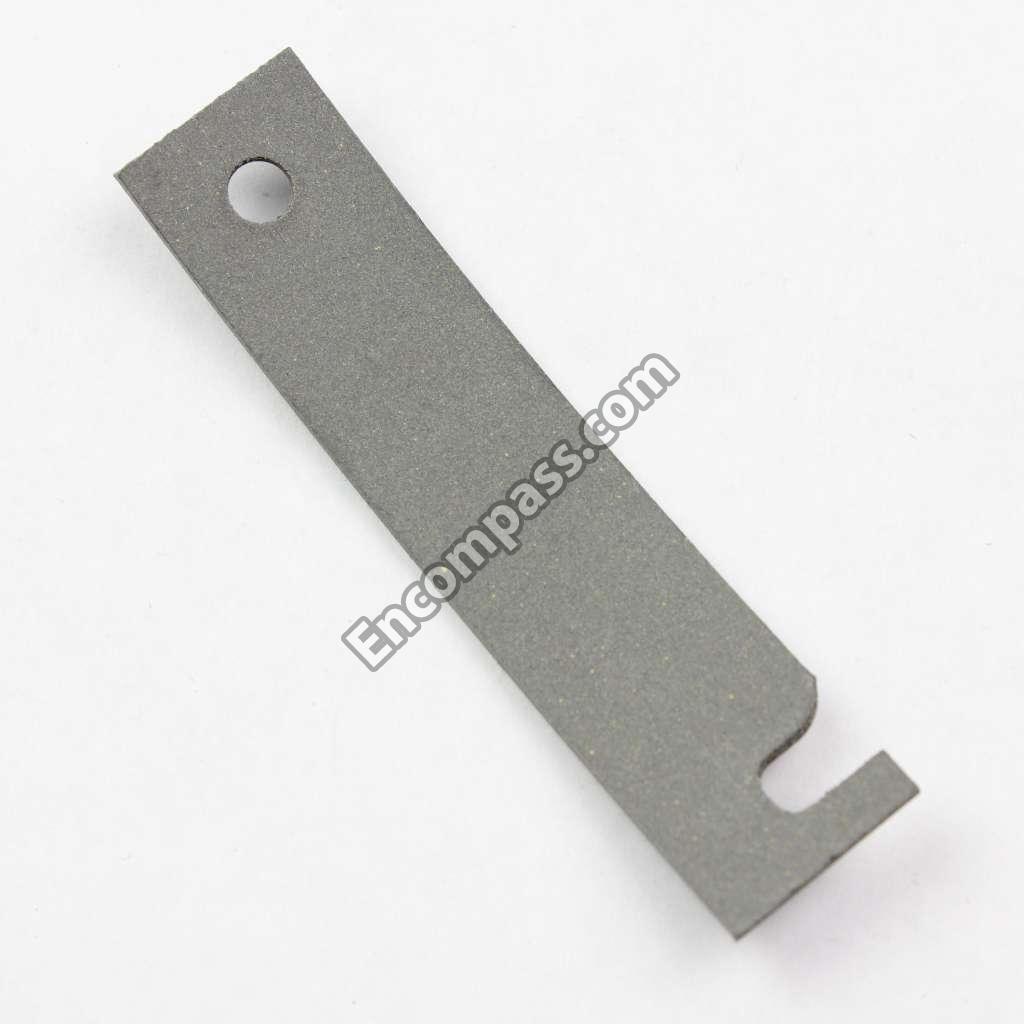

WE3M52 WE3M52 DRYER GREEN BEARING SLIDE
WE1M1015 WE1M1015 DRYER GROUND STRAP
WE1X921 WE1X921 DRYER MOTOR STRAP
WE26M345 WE26M345 DRYER POWER CORD - 120V GAS
WE20X20559 WE20X20559 DRYER REAR PANEL
WE4M137 WE4M137 DRYER THERMOSTAT
WE4M182 WE4M182 DRYER THERMOSTAT TRIMMER
WE04X20415 WE04X20415 DRYER TIMER
WE03X27679 WE03X27679 DRYER TOP BEARING
WE14M197 WE14M197 DRYER TRANSITION DUCT
WE19X20467 WE19X20467 END CAP LH
WE19X20466 WE19X20466 END CAP RH
WE14X20421 WE14X20421 EXHAUST DUCT
WE18X25100 WE18X25100 FILTER AND MESH ASSEMBLY.
WE4X448 WE4X448 FLAME DETECTOR
WE2M188 WE2M188 FRONT STABILIZING LEGS
WE4M449 WE4M449 GAS IGNITER ASSEMBLY
WE13X20405 WE13X20405 GAS VALVE BRACKET
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE01X20419 WE01X20419 HANDLE WHITE
WE1M1033 WE1M1033 HINGE
WE1M1003 WE1M1003 HOLDER FUSE
WE03X20434 WE03X20434 IDLER ARM
WE12X20395 WE12X20395 IDLER PULLEY
WE10X20579 WE10X20579 INNER DOOR ASSEMBLY
WE01X20374 WE01X20374 KNOB ASSEMBLY TIMER - WH
WE1M1011 WE1M1011 LATCH
WE01X29357 WE01X29357 LEVELLING FOOT
WE17X22217 WE17X22217 MOTOR
WE13X20394 WE13X20394 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE10X20468 WE10X20468 OUTER DOOR WH
WE20X20758 WE20X20758 PANEL FRONT
WE1M934 WE1M934 PLUG BUTTON WHITE
WE4M416 WE4M416 PUSH TO START SWITCH
WE1M659 WE1M659 PUSH/ START BUTTON GREY
WE4M399 WE4M399 R.SWITCH (XCARE) ON/OFF
WE19M1481 WE19M1481 REAR PANEL
WE4M520 WE4M520 ROTARY SWITCH 4TEMP
WE2M307 WE2M307 SCR 10-16 X 1/2 AB
WE02X20846 WE02X20846 SCR 30 X 20 IA PP
WR2X9260 WR2X9260 SCR 6-20X0.84 AB PAN #6 QUADREX #1
WD02X10057 WD02X10057 SCREW
WE2M302 WE2M302 SCREW
WD2M101 WD2M101 SCREW
WE1M280 WE1M280 SCREW
WE2M173 WE2M173 SCREW
WE2M180 WE2M180 SCREW
WE2M189 WE2M189 SCREW
WE2M202 WE2M202 SCREW
WE2M223 WE2M223 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M160 WE2M160 SCREW #8
WE2M196 WE2M196 SCREW #8
WE2M200 WE2M200 SCREW GROUND
WZ5X158D WZ5X158D SCREW-PKG 12
WE00X181L WE00X181L SHAFT
WE1M486 WE1M486 SHUTTER
WE20X20406 WE20X20406 SIDE PANEL WHITE
WE5M48 WE5M48 SOCKET ASSEMBLY
WE01X20424 WE01X20424 STRAIN RELIEF BRACKET GA
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M216 WE4M216 THERMOSTAT BIAS DRUM OUT
WE4M80 WE4M80 THERMOSTAT SAFETY
WE14X25080 WE14X25080 TRAP DUCT ASSEMBLY
WE11X20711 WE11X20711 VALVE AND PIPE ASSEMBLY
WE1X1091 WE1X1091 WE1X1091
