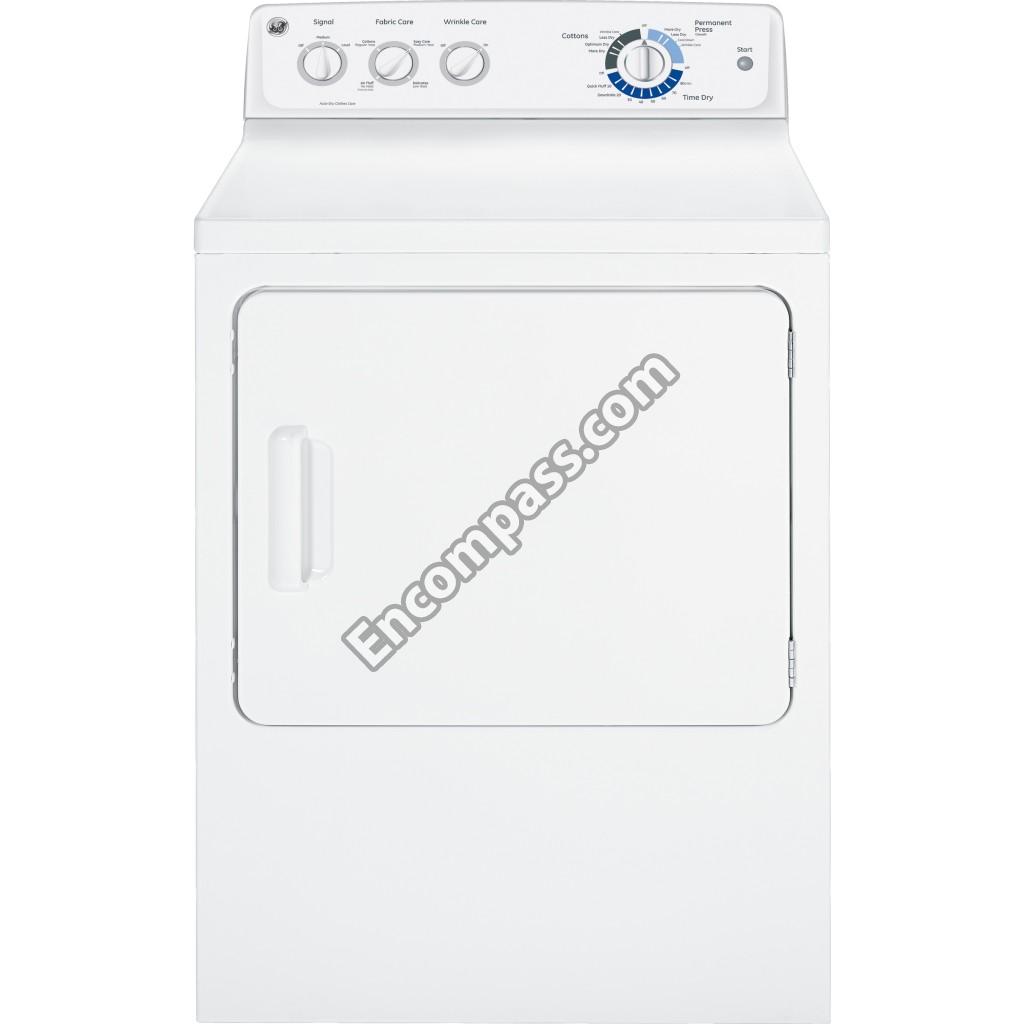

Model Image
Manufacturer

GE

Model Number

GTDP280GD2WW

Description

Dryer Gas

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE14X25080 WE14X25080 AIR DUCT ASSEMBLY
WE19X20573 WE19X20573 BACKSPLASH GRAPHIC ASSEMBLY
WE14X20426 WE14X20426 BAFFLE
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE03X37317 WE03X37317 BEARING SLIDE
WE3M56 WE3M56 BEARING TOP
WE03X37318 WE03X37318 BEARING-SLIDE WHITE
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE14X20392 WE14X20392 BLOWER HOUSING ASM
WE16X20393 WE16X20393 BLOWER WHEEL
WE20X20412 WE20X20412 BOTTOM COVER
WE13X20405 WE13X20405 BRACKET GAS VALVE
WE14M104 WE14M104 BURNER ASM.
WE04X20556 WE04X20556 BUZZER VARIABLE
WE20X20391 WE20X20391 CHASSIS BASE
WH01X10106 WH01X10106 CLIP-KNOB
WE04X0692 WE04X0692 COIL DUAL
WE04X0693 WE04X0693 COIL MAIN
WE11X29440 WE11X29440 COMBUSTION CHAMBER
WE1M650 WE1M650 CONNECTOR MOTOR
WE01X20378 WE01X20378 CONTROL KNOB WHITE ASM
WE26M341 WE26M341 CORD SET - GAS
WE20X20417 WE20X20417 COVER WH
WE11X29438 WE11X29438 DEFLECTOR HEAT
WE11X29443 WE11X29443 DIFFUSER GAS
WE21X20566 WE21X20566 DRUM ASSEMBLY
WE1M1011 WE1M1011 DRYER DOOR LATCH
WE4M415 WE4M415 DRYER DOOR SWITCH
WE17X22217 WE17X22217 DRYER DRIVE MOTOR
WE03X29897 WE03X29897 DRYER DRUM DRIVE BELT
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE20X20559 WE20X20559 DRYER REAR PANEL
WE4X692 WE4X692 DUAL COIL
WE11X29441 WE11X29441 DUCT TRANSITION
WE14X20421 WE14X20421 ELBOW EXHAUST
WE19X20467 WE19X20467 END CAP RH WH
WE18X25100 WE18X25100 FILTER & MESH ASM.
WE4X448 WE4X448 FLAME DETECTOR
WE49X22295 WE49X22295 FRONT PANEL
WE2M188 WE2M188 FRONT STABILIZING LEGS
WE1M1002 WE1M1002 FUSE CCMR 30 AMP 120V
WE4M449 WE4M449 GAS IGNITER ASM
WE1M825 WE1M825 GASKET (SEAL)
WE1M966 WE1M966 GASKET SEAL
WE1M1015 WE1M1015 GROUND STRAP ASM
WE01X20419 WE01X20419 HANDLE WHITE
WE1M1033 WE1M1033 HINGE
WE1M1003 WE1M1003 HOLDER FUSE
WE03X20434 WE03X20434 IDLER ARM
WE49X22294 WE49X22294 KIT OF SERVICE END CAP
WE05X20431 WE05X20431 LAMP
WE01X1076 WE01X1076 LEAK LIMITER
WE1X1076 WE1X1076 LEAK LIMITER
WE01X29357 WE01X29357 LEVELLING LEG
WE4X693 WE4X693 MAIN COIL
WE13X20394 WE13X20394 MOTOR PLATE
WE1X921 WE1X921 MOTOR STRAP
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE01X1148 WE01X1148 ORIFICE
WE1X1148 WE1X1148 ORIFICE MAIN
WE10X20468 WE10X20468 OUTER DOOR WH
WR01X21159 WR01X21159 PLUG DR WHT
31-16225-2 31-16225-2 PM INSTALL INSTRUCTIONS
WE12X83 WE12X83 PULLEY IDLER
WE03X31620 WE03X31620 PULLEY IDLER
WE4M416 WE4M416 PUSH TO START SWITCH
WE1M659 WE1M659 PUSH/ START BUTTON GREY
WE4M399 WE4M399 R.SWITCH (XCARE) ON/OFF
WE19M1481 WE19M1481 REAR PANEL
WE4M520 WE4M520 ROTARY SWITCH 4TEMP
WE2M307 WE2M307 SCR 10-16 X 1/2 AB
WR01X10317 WR01X10317 SCR 8-32 CA HXW 1/2
WE2M308 WE2M308 SCR 815 X 7/16 AB
WD2M101 WD2M101 SCREW
WE2M180 WE2M180 SCREW
WE2M189 WE2M189 SCREW
WE2M173 WE2M173 SCREW
WR2X9260 WR2X9260 SCREW
WE2M202 WE2M202 SCREW
WE1M280 WE1M280 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M160 WE2M160 SCREW #8
WE2M196 WE2M196 SCREW #8
WE02X0333 WE02X0333 SCREW (COIL MTG BRKT)
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WE2M200 WE2M200 SCREW GROUND
WE2M228 WE2M228 SCREW NO.8 ( GROUND )
WE20X20406 WE20X20406 SIDE PANEL WHITE
WE1M462 WE1M462 SLEEVE DRUM
WE5M48 WE5M48 SOCKET ASM
WE01X20424 WE01X20424 STRAIN RELIEF BRACKET GA
WE13X0200 WE13X0200 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE1M1102 WE1M1102 TERM BLOCK COVER
WE4M181 WE4M181 THERMOSTAT BIAS CTR INLT
WE4M216 WE4M216 THERMOSTAT BIAS DRUM OUT
WE4M137 WE4M137 THERMOSTAT HI-LIMIT
WE4M80 WE4M80 THERMOSTAT SAFETY
WE4M182 WE4M182 THERMOSTAT TRIMMER
WE04X20089 WE04X20089 TIMER
WE01X20374 WE01X20374 TIMER KNOB WHITE ASM
49-90407-1 49-90407-1 USE & CARE ( GE )
WE11X20711 WE11X20711 VALVE AND PIPE ASSEMBLY
WE4M368 WE4M368 VARIABLE BUZZER
WE1X1091 WE1X1091 WE1X1091
WE2M96 WE2M96 WE2X329
31-16278 31-16278 WIRING DIAGRAM (FRONT SI
WZ5X158D WZ5X158D WZ5X158D
