Model Image
Manufacturer

GE

Model Number

GTDP740GD1WW

Description

Dryer Gas

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE12M54 WE12M54 BACKSPLASH TRIM
WE14X21665 WE14X21665 BAFFLE
WE12M37 WE12M37 BELT
WE12M38 WE12M38 BELT
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE14M213 WE14M213 BLOWER HOUSING ASM
WE16M24 WE16M24 BLOWER WHEEL

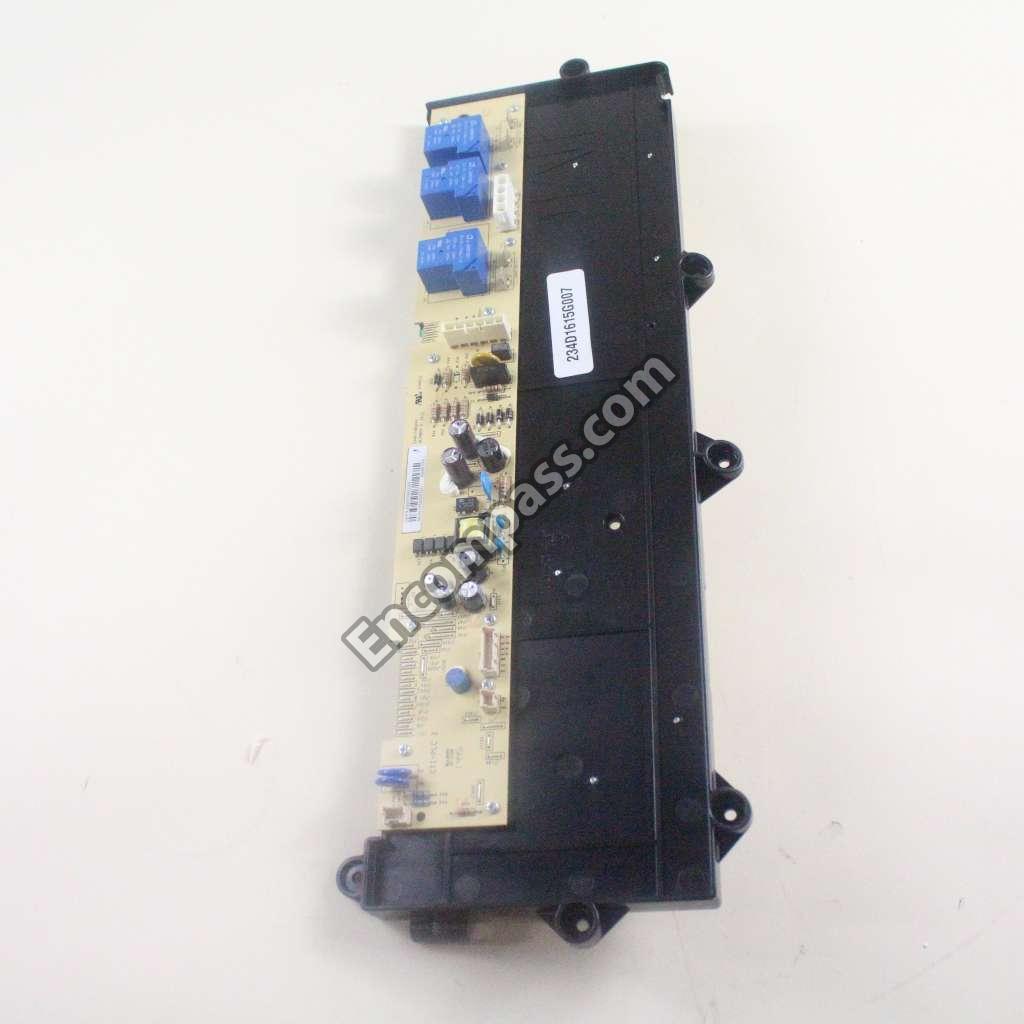

WE4M549 WE4M549 BOARD DSM
EMX1538P001 EMX1538P001 BOM/AVL
WE1M1090 WE1M1090 BRACKET
WE1M1089 WE1M1089 BRACKET BOTTOM
WE1M1066 WE1M1066 BRACKET COMBUSTION CHAMB
WE13M71 WE13M71 BRACKET GAS VALVE
WE1M1071 WE1M1071 BRACKET IDLER ARM
WE1M1061 WE1M1061 BRACKET REAR ROLLER
WE1M1069 WE1M1069 BRACKET SWITCH
WE1M1062 WE1M1062 BRACKET TOP
WE14M220 WE14M220 BURNER ASSEMBLY
WE1M1053 WE1M1053 CAP BEAUTY
WE14M216 WE14M216 CHAMBER COMBUSTION
WE20M495 WE20M495 CHASSIS BASE
WE1M1088 WE1M1088 CLAMP PIPE
WE1M1075 WE1M1075 CLIP LOCKING
WE20X21414 WE20X21414 CONTROL PANEL
WE20X22618 WE20X22618 COVER TOP
WE10M165 WE10M165 DOOR ASM
WE21X21663 WE21X21663 DRUM AND BAFFLE ASSEMBLY
WE4M415 WE4M415 DRYER DOOR SWITCH
WE1X921 WE1X921 DRYER MOTOR STRAP
WE14M218 WE14M218 DUCT ASSEMBLY
WE14M107 WE14M107 EXHAUST DUCT
WE18M54 WE18M54 FILTER ASM
WE4X448 WE4X448 FLAME DETECTOR
WE1M1097 WE1M1097 FOOT LEVELING
WE4M449 WE4M449 GAS IGNITER ASM
WE9M61 WE9M61 GASKET
WE9M60 WE9M60 GASKET DOOR
WE9M62 WE9M62 GASKET FOAM FRONT PNL
WE18M56 WE18M56 GRID ASM
WE1M1093 WE1M1093 GUIDE

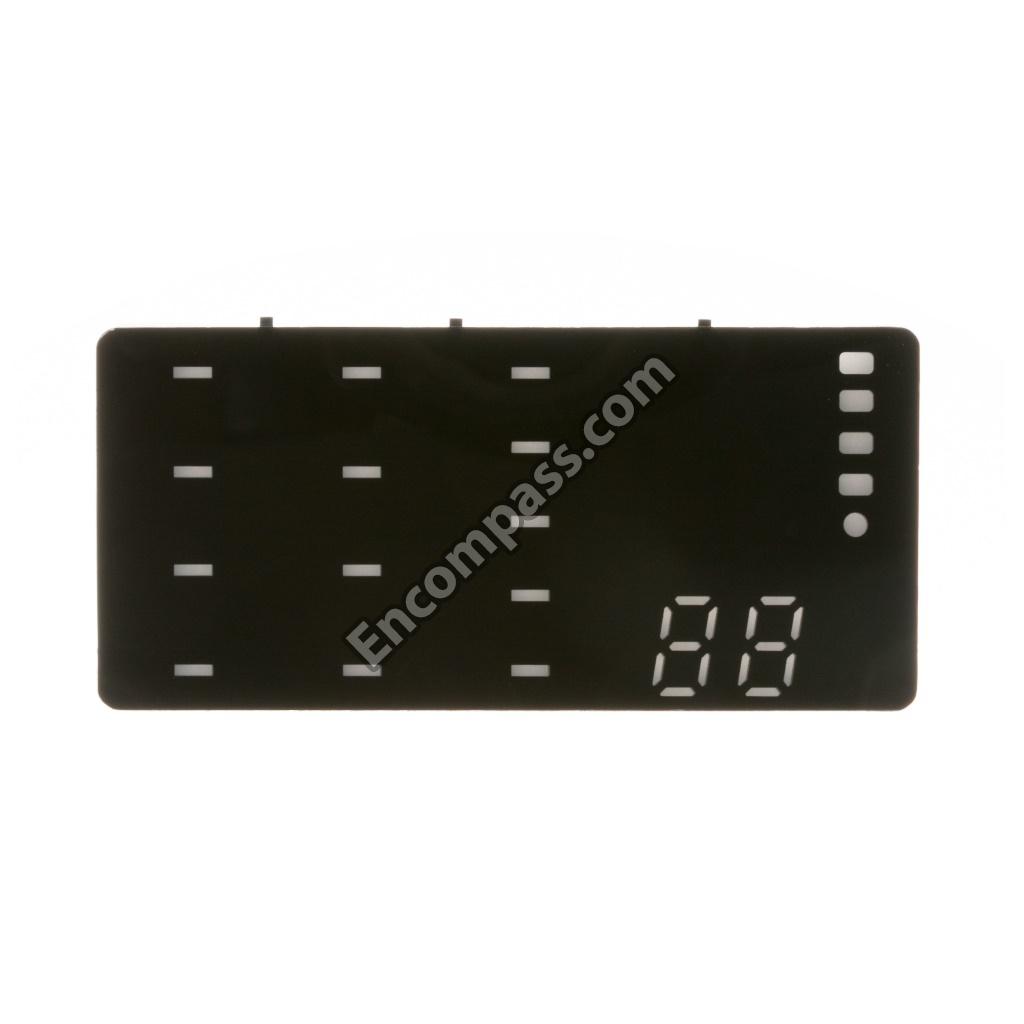

WE5M103 WE5M103 GUIDE LIGHT LABEL ASM
WE26M394 WE26M394 HARNESS BLOWER ASM
WE26X21657 WE26X21657 HARNESS GAS ASSEMBLY
WE5M93 WE5M93 HARNESS SENSORS ASM
WE1M1033 WE1M1033 HINGE
WE2M176 WE2M176 INSULATED WASHER
WE25M87 WE25M87 KIT NATURAL GAS TO PROPANE
WE25M88 WE25M88 KIT PROP GAS TO NAT GAS
WH01X10679 WH01X10679 KNOB ASM
WE1M1011 WE1M1011 LATCH DOOR
WE5M94 WE5M94 LED
WE01X21667 WE01X21667 LID FUSE
WE1M1065 WE1M1065 LOCK
WE17M67 WE17M67 MOTOR AND PULLEY ASM
WE01X0921 WE01X0921 MOTOR BRACKET
WE1M1107 WE1M1107 PAINTED HANDLE DR
WE19X21666 WE19X21666 PANEL BACK ASSEMBLY
WE20M497 WE20M497 PANEL FRONT
WE20M498 WE20M498 PANEL REAR
WE20M496 WE20M496 PANEL SIDE
WE04X20527 WE04X20527 PLATFORM & BOARD ASM
234D1671P001 234D1671P001 PLATFORM BOARD
WE1M934 WE1M934 PLUG BUTTON WHITE
31-16699 31-16699 PM INSTRUCTIONS INSTALL
49-90461 49-90461 PM MANUAL USE & CARE
31-16875 31-16875 PM MINI MANUAL
WE26M345 WE26M345 POWER CORD (120V GAS)
WE2M282 WE2M282 SCR 6-18 B B1Q1 3/4 S ZN
WB01K10042 WB01K10042 SCR 8-18 AB IHW 3/8 SN
WE1M280 WE1M280 SCREW
WE2M302 WE2M302 SCREW
WD2M101 WD2M101 SCREW
WR2X9260 WR2X9260 SCREW
WE2M174 WE2M174 SCREW # 10
WE1M582 WE1M582 SCREW #8 X 5/8 SS DOOR H
WE02X25454 WE02X25454 SCREW FLAT HEAD/AB
WE2M211 WE2M211 SCREW FRONT
WE2M200 WE2M200 SCREW GROUND
WZ5X158D WZ5X158D SCREW-PKG 12
WE1M1058 WE1M1058 SENSOR ROD LFT
WE3M53 WE3M53 SHAFT ROLLER
WE01M10007 WE01M10007 STRIKE
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WE20M514 WE20M514 SUPPORT FRONT ROLLER
WE20M527 WE20M527 SUPPORT ROLLER REAR
WE13M69 WE13M69 SUPPORT U
WE4M550 WE4M550 THERMISTOR INLET
WE14X21661 WE14X21661 TRANSITION DUCT ASSEMBLY
WE14M219 WE14M219 VALVE AND PIPE ASM
WE2M312 WE2M312 WASHER PLAIN 3/8
WE1X1091 WE1X1091 WE1X1091
WE2X263D WE2X263D WE2X263D
WE03X10016 WE03X10016 WHEEL
