Model Image
Manufacturer

GE

Model Number

GTDS560GF1WS

Description

Dryer Gas

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE14X25081 WE14X25081 AIR DUCT ASSEMBLY
WE19M1777 WE19M1777 BACKSPLASH
WE14X20426 WE14X20426 BAFFLE
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE03X37317 WE03X37317 BEARING SLIDE
WE3M56 WE3M56 BEARING TOP
WE03X37318 WE03X37318 BEARING-SLIDE WHITE
WR01X21159 WR01X21159 BEAUTY BUTTON-WHT
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE14M235 WE14M235 BLOWER HOUSING ASSEMBLY
WE16X20393 WE16X20393 BLOWER WHEEL
WE4M551 WE4M551 BOARD ASM MOUNTED
WE20X20412 WE20X20412 BOTTOM COVER
WE13X20405 WE13X20405 BRACKET GAS VALVE
WE14M104 WE14M104 BURNER ASM.
WE20X20391 WE20X20391 CHASSIS BASE
WE04X0692 WE04X0692 COIL DUAL
WE04X0693 WE04X0693 COIL MAIN
WE11X29440 WE11X29440 COMBUSTION CHAMBER
WE1M650 WE1M650 CONNECTOR MOTOR
WE26M341 WE26M341 CORD SET - GAS
WE20X20417 WE20X20417 COVER WH
WE11X29438 WE11X29438 DEFLECTOR HEAT
WE11X29443 WE11X29443 DIFFUSER GAS
WE21M69 WE21M69 DRUM ASM
WE21X20565 WE21X20565 DRUM ASSEMBLY
WE1M1011 WE1M1011 DRYER DOOR LATCH
WE4M415 WE4M415 DRYER DOOR SWITCH
WE17X22217 WE17X22217 DRYER DRIVE MOTOR
WE03X29897 WE03X29897 DRYER DRUM DRIVE BELT
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE20X20559 WE20X20559 DRYER REAR PANEL
WE4X692 WE4X692 DUAL COIL
WE11X29441 WE11X29441 DUCT TRANSITION
WE1M943 WE1M943 ELBOW & NOZZLE ASM
WE14X20421 WE14X20421 ELBOW EXHAUST
WE19X20467 WE19X20467 END CAP RH WH
WE18X25100 WE18X25100 FILTER & MESH ASM.
WE4X448 WE4X448 FLAME DETECTOR
WE1M978 WE1M978 FLAME DETECTOR SHIELD
WE49X22295 WE49X22295 FRONT PANEL
WE2M188 WE2M188 FRONT STABILIZING LEGS
WE01X29060 WE01X29060 FT HEAT DEFLECTION PLATE
WE1M1002 WE1M1002 FUSE CCMR 30 AMP 120V
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE1M966 WE1M966 GASKET SEAL
WE1M1015 WE1M1015 GROUND STRAP ASM
WE01X20419 WE01X20419 HANDLE WHITE
WE26M409 WE26M409 HARNESS ASM GAS
WE5M105 WE5M105 HARNESS JUMPER
WE5M39 WE5M39 HARNESS SENSOR
WE1M1033 WE1M1033 HINGE
WE1M1003 WE1M1003 HOLDER FUSE
WE49X22597 WE49X22597 HOSE BACK ASM KIT
WE03X20434 WE03X20434 IDLER ARM
WE4M456 WE4M456 IGNITOR
31-16306 31-16306 INI MANUALN++,1
WE4M398 WE4M398 INLET CONTROL THERMISTOR
WE1M847 WE1M847 INLET HOSE (LONG)
WE1M848 WE1M848 INLET HOSE(SHORT) W/M & F ENDS
WE2M176 WE2M176 INSULATED WASHER
WE49X22294 WE49X22294 KIT OF SERVICE END CAP
WE25M71 WE25M71 KIT SERVICE NOZZLE ASSEMBLY
WH01X10645 WH01X10645 KNOB ASM
WE05X20431 WE05X20431 LAMP
WE01X1076 WE01X1076 LEAK LIMITER
WE1X1076 WE1X1076 LEAK LIMITER
WE01X29357 WE01X29357 LEVELLING LEG
WE4X693 WE4X693 MAIN COIL
WE13X20394 WE13X20394 MOTOR PLATE
WE1X921 WE1X921 MOTOR STRAP
WE13M39 WE13M39 MOTOR SUPPORT
WE40M107 WE40M107 NOZZLE ASM
WE1M461 WE1M461 O RING
WE01X1148 WE01X1148 ORIFICE
WE1X1148 WE1X1148 ORIFICE MAIN
WE10X20468 WE10X20468 OUTER DOOR WH
WE4M448 WE4M448 OUTLET CNTRL THERMISTOR
31-16225-2 31-16225-2 PM INSTALL INSTRUCTIONS
49-90452 49-90452 PM OWNERS MANUAL
WE12X83 WE12X83 PULLEY IDLER
WE03X31620 WE03X31620 PULLEY IDLER
WE01X20560 WE01X20560 QUICK CONNECTOR - TUBING
WE19M1481 WE19M1481 REAR PANEL
WE1M851 WE1M851 RUBBER WASHER FOR INTAKE HOSE
WE2M307 WE2M307 SCR 10-16 X 1/2 AB
WE2M282 WE2M282 SCR 6-18 B B1Q1 3/4 S ZN
WR01X10317 WR01X10317 SCR 8-32 CA HXW 1/2
WE2M308 WE2M308 SCR 815 X 7/16 AB
WE1M850 WE1M850 SCREEN FOR WASHER HOSE
WE2M189 WE2M189 SCREW
WE2M202 WE2M202 SCREW
WR2X9260 WR2X9260 SCREW
WE2M173 WE2M173 SCREW
WE1M280 WE1M280 SCREW
WE2M223 WE2M223 SCREW
WD2M101 WD2M101 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M196 WE2M196 SCREW #8
WE2M160 WE2M160 SCREW #8
WE02X0333 WE02X0333 SCREW (COIL MTG BRKT)
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WR01X10196 WR01X10196 SCREW 8-18 HI/LO 5/8
WE2M200 WE2M200 SCREW GROUND
WE2M228 WE2M228 SCREW NO.8 ( GROUND )
WE1M977 WE1M977 SHIELD GAS VALVE
WE1M931 WE1M931 SHIELD MOTOR
WE1M976 WE1M976 SHIELD THERMOSTAT
WE01X20677 WE01X20677 SHOERACK LEADER
WE20X20406 WE20X20406 SIDE PANEL WHITE
WE1M462 WE1M462 SLEEVE DRUM
WE1M948 WE1M948 SLEEVE WATER TUBE
WE5M48 WE5M48 SOCKET ASM
WE01X20424 WE01X20424 STRAIN RELIEF BRACKET GA
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE1M1102 WE1M1102 TERM BLOCK COVER
WE4M216 WE4M216 THERMOSTAT BIAS DRUM OUT
WE4M137 WE4M137 THERMOSTAT HI-LIMIT
WE4M80 WE4M80 THERMOSTAT SAFETY
WE1M1099 WE1M1099 TUBE WATER FRONT 11
WE11X20711 WE11X20711 VALVE AND PIPE ASSEMBLY

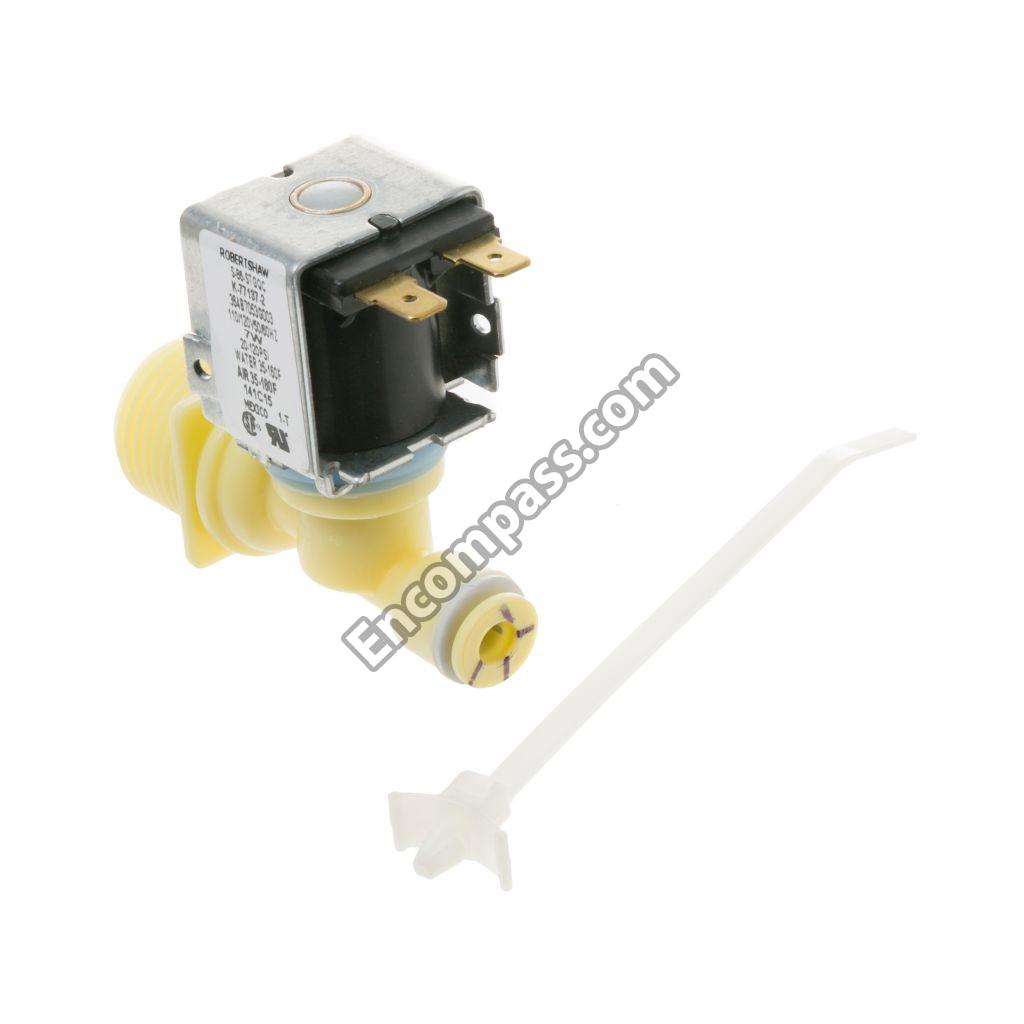

WE49X22600 WE49X22600 WATER VALVE ASM KIT
WE25M90 WE25M90 WATER VALVE SHIELD KIT
WE1X1091 WE1X1091 WE1X1091
WE2M96 WE2M96 WE2X329
WZ5X158D WZ5X158D WZ5X158D
WE25X20060 WE25X20060 Y ADAPTOR
