Model Image
Manufacturer

GE

Model Number

GTDS850ED0WS

Description

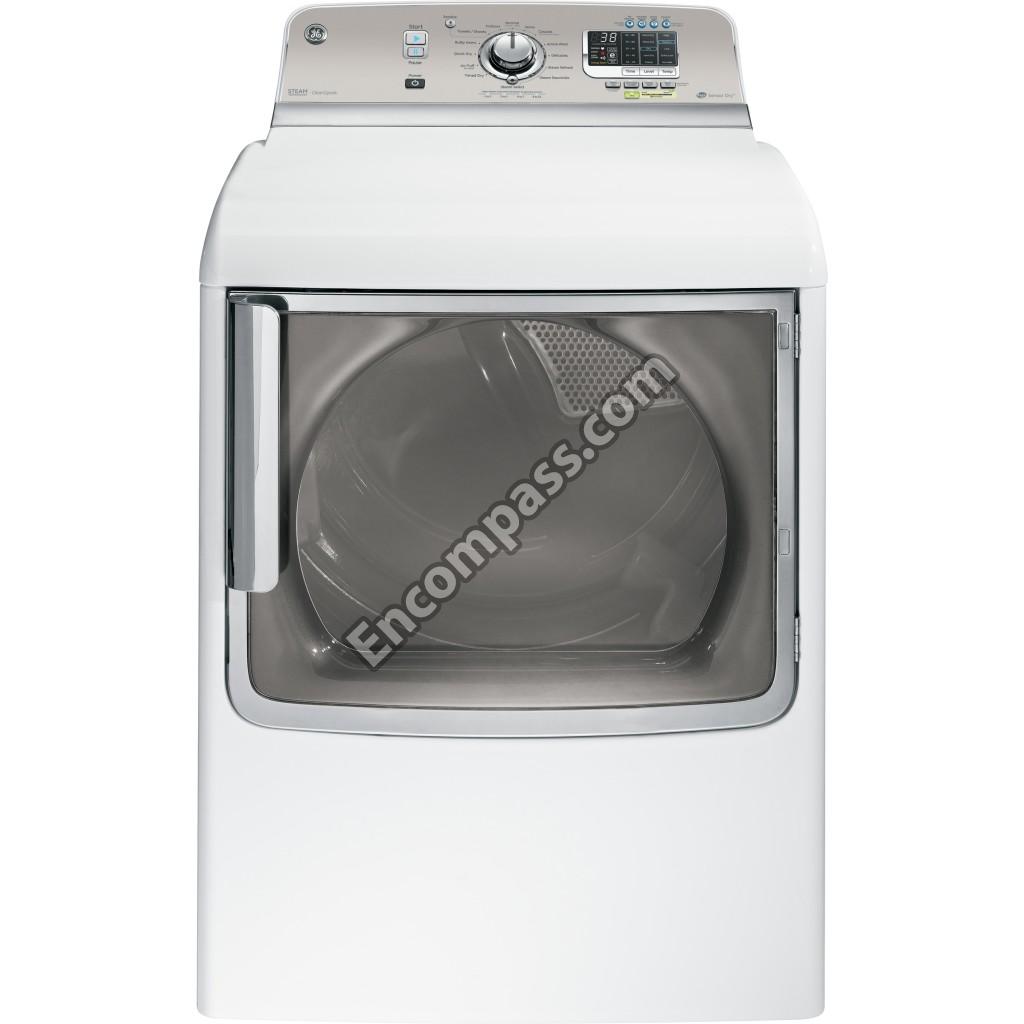

Ge 7.8 Cu. Ft. Capacity Electric Dryer With Stainl

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE19M1624 WE19M1624 BADGE GE - GRAY
WE14X21614 WE14X21614 BAFFLE
WE14M217 WE14M217 BAFFLE
WE12M37 WE12M37 BELT
WE12M38 WE12M38 BELT

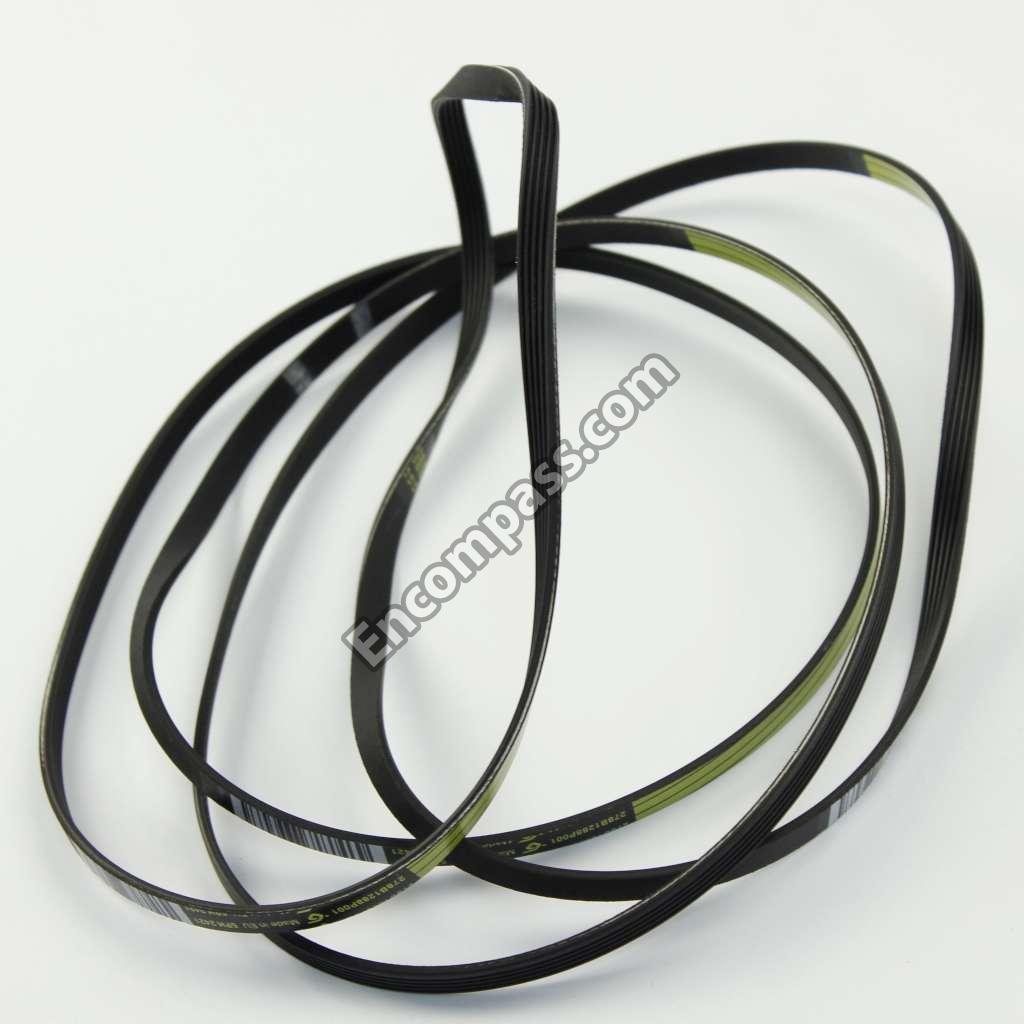

WE12M53 WE12M53 BELT DRIVE
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)

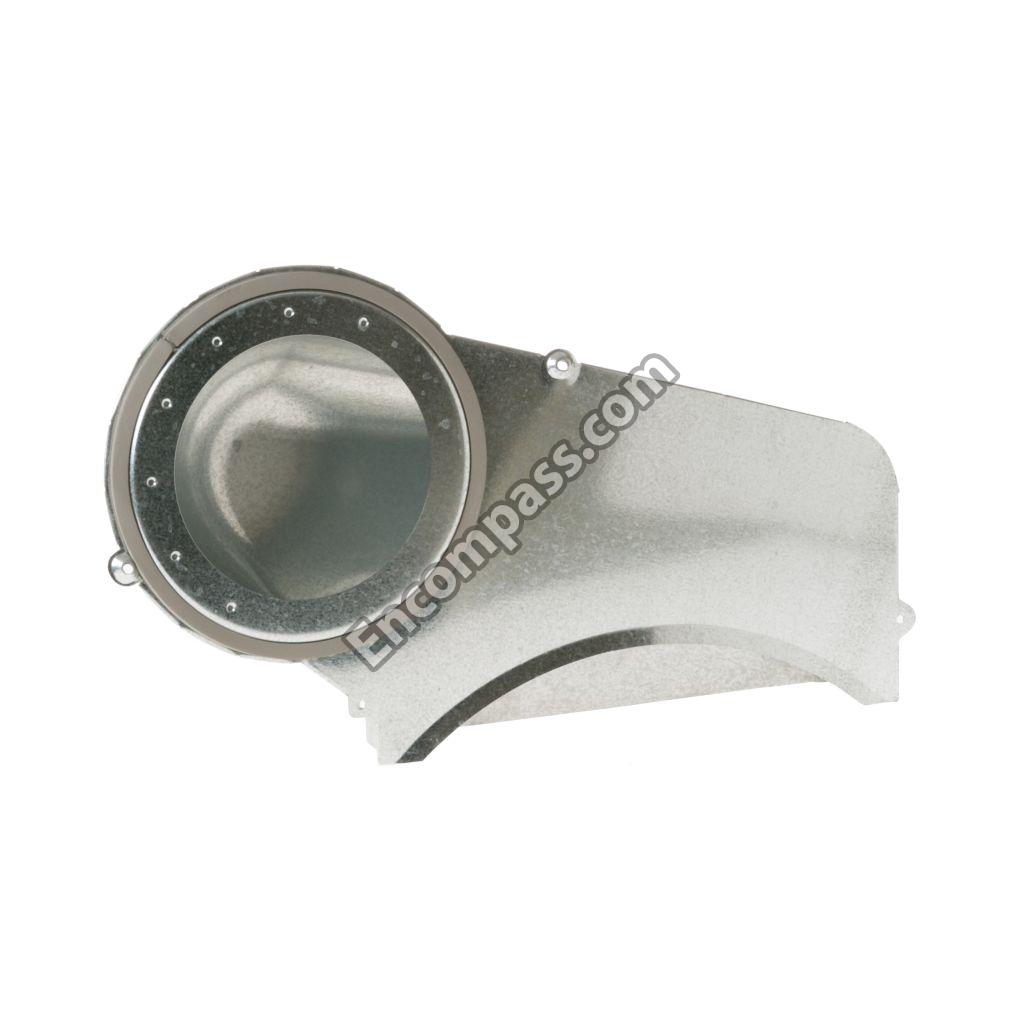

WE14M213 WE14M213 BLOWER HOUSING ASM

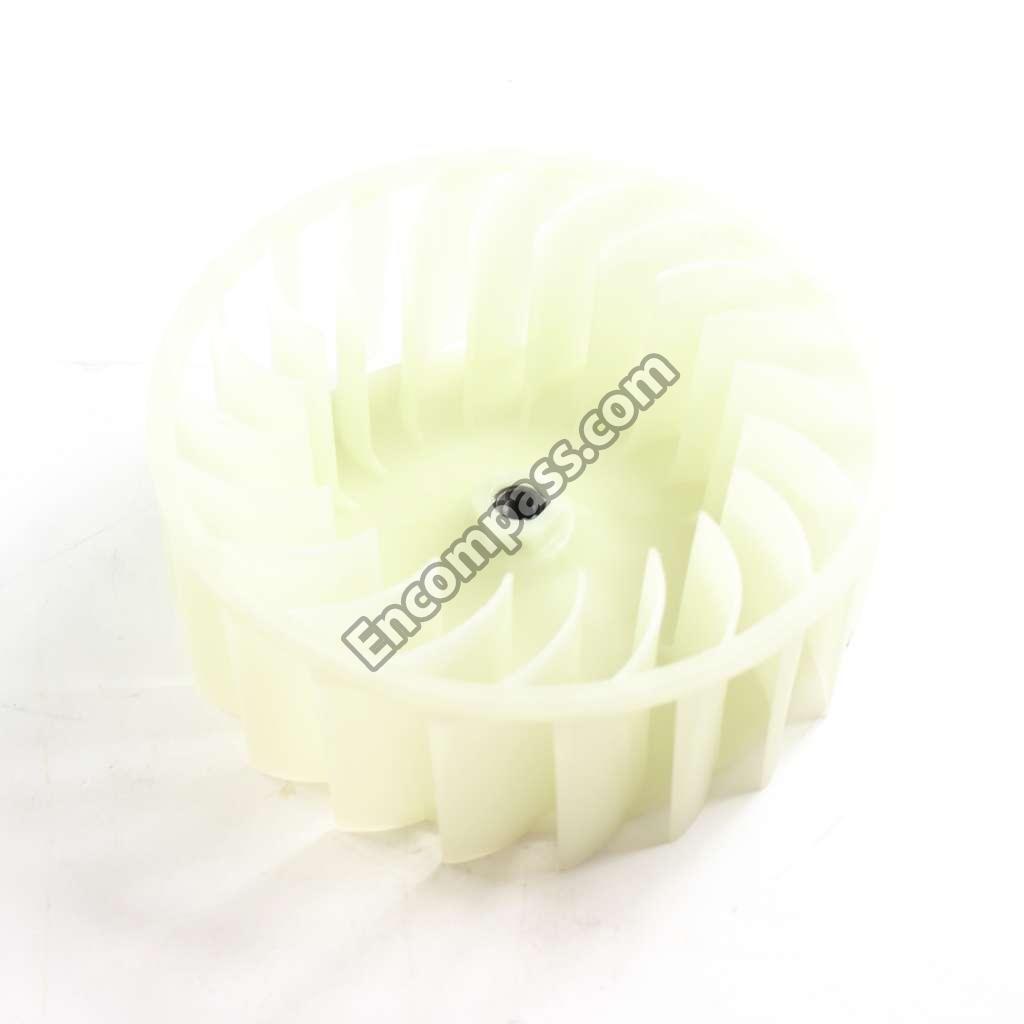

WE16M24 WE16M24 BLOWER WHEEL
WE4M549 WE4M549 BOARD DSM

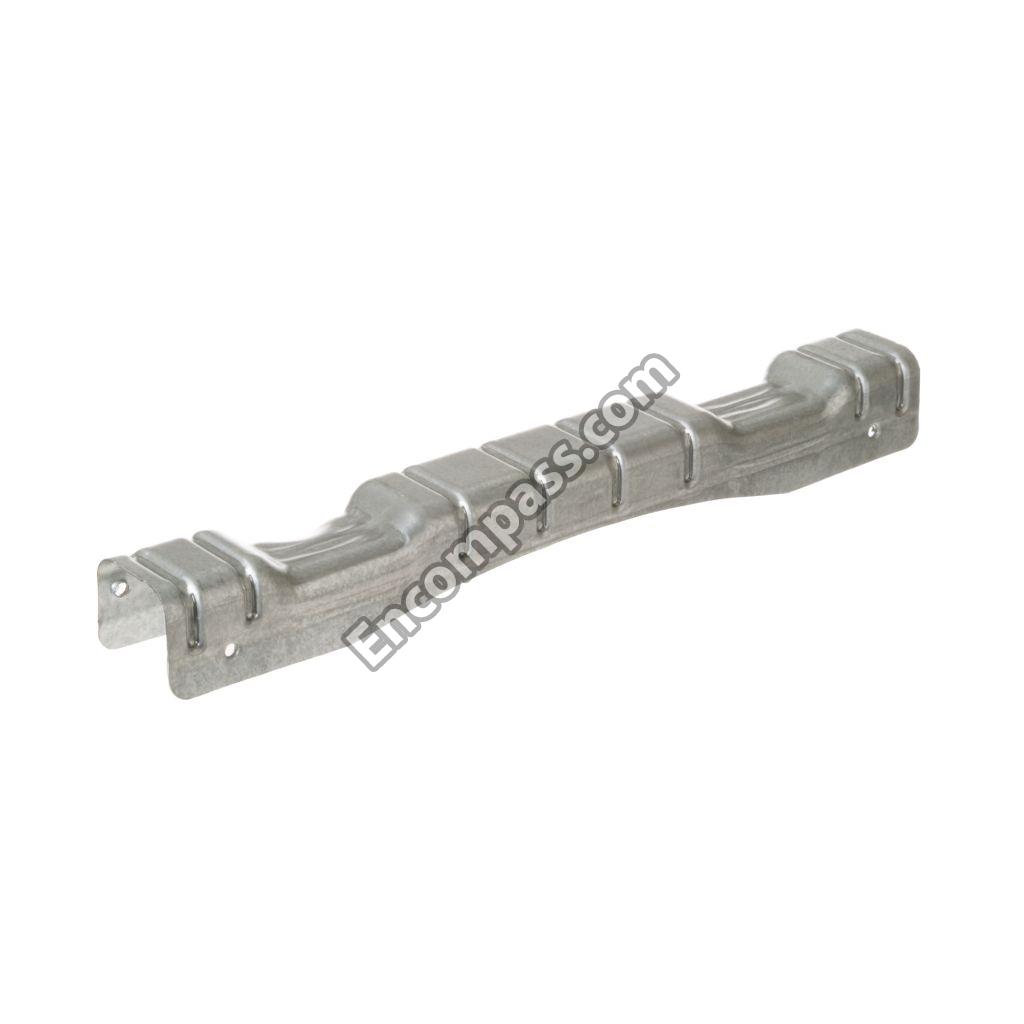

WE1M1090 WE1M1090 BRACKET
WE1M1089 WE1M1089 BRACKET BOTTOM
WE1M1071 WE1M1071 BRACKET IDLER ARM
WE1M1061 WE1M1061 BRACKET REAR ROLLER
WE1M1069 WE1M1069 BRACKET SWITCH
WE1M1062 WE1M1062 BRACKET TOP
WE1M226 WE1M226 BUMPER

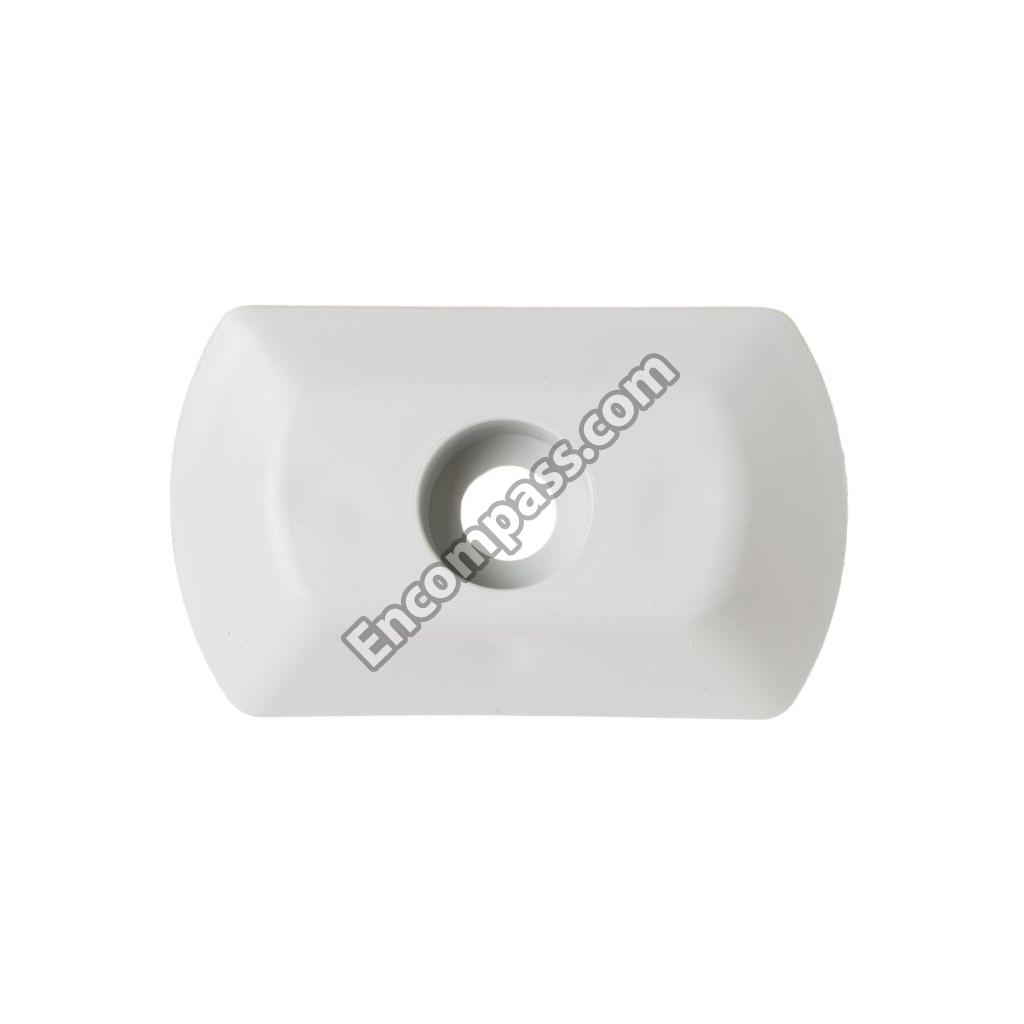

WE1M1054 WE1M1054 CAP BEAUTY
WE20M495 WE20M495 CHASSIS BASE
WE1M1075 WE1M1075 CLIP LOCKING
WE1M1094 WE1M1094 COVER TERMINAL
WE20X22618 WE20X22618 COVER TOP
WE10M167 WE10M167 DOOR GLASS ASM
WE1M1079 WE1M1079 DR HANDLE

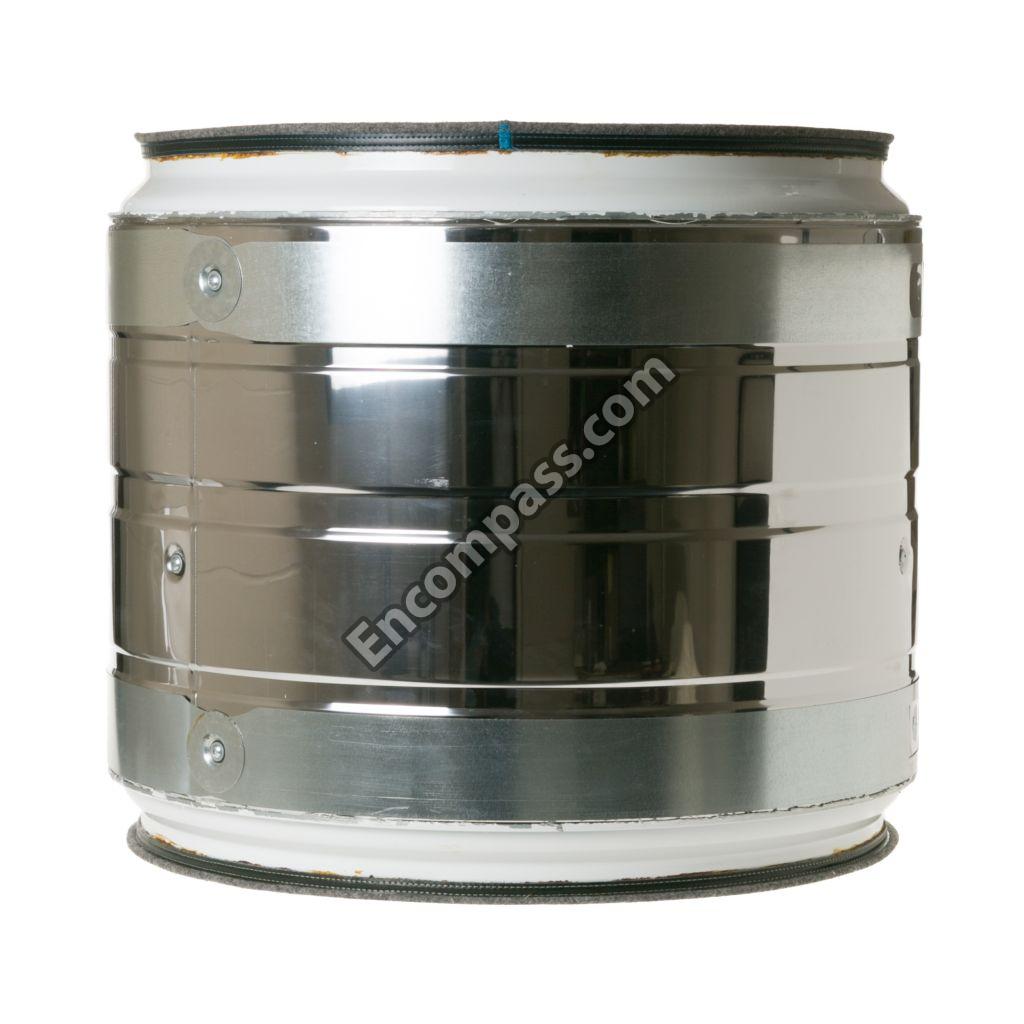

WE21M49 WE21M49 DRUM AND BAFFLE ASSEMBLY
WE4M415 WE4M415 DRYER DOOR SWITCH
WE1X921 WE1X921 DRYER MOTOR STRAP
WE14M218 WE14M218 DUCT ASSEMBLY
WE1M943 WE1M943 ELBOW & NOZZLE ASM
WE1M1080 WE1M1080 ENCLOSURE FUSE
WE14M107 WE14M107 EXHAUST DUCT

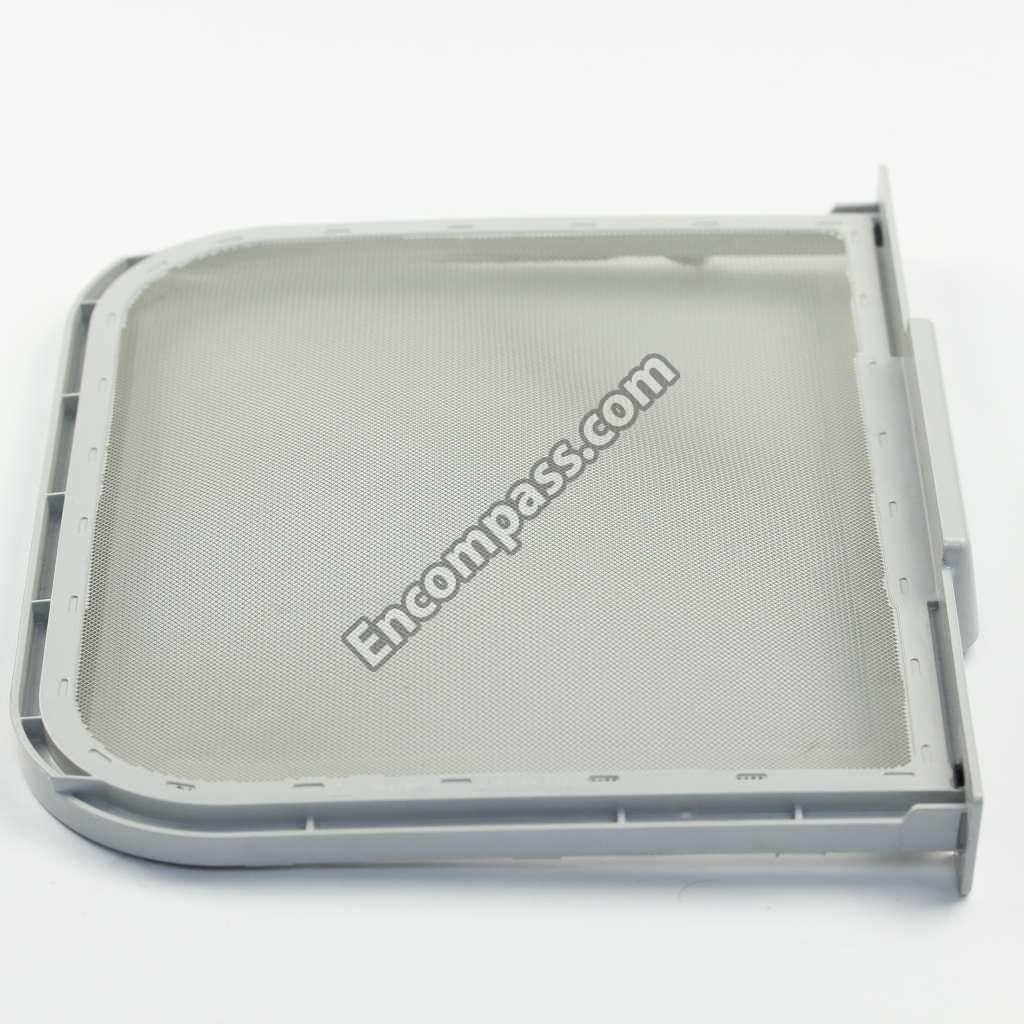

WE18M54 WE18M54 FILTER ASM
WE1M1097 WE1M1097 FOOT LEVELING
WE1M1002 WE1M1002 FUSE CCMR 30 AMP 120V

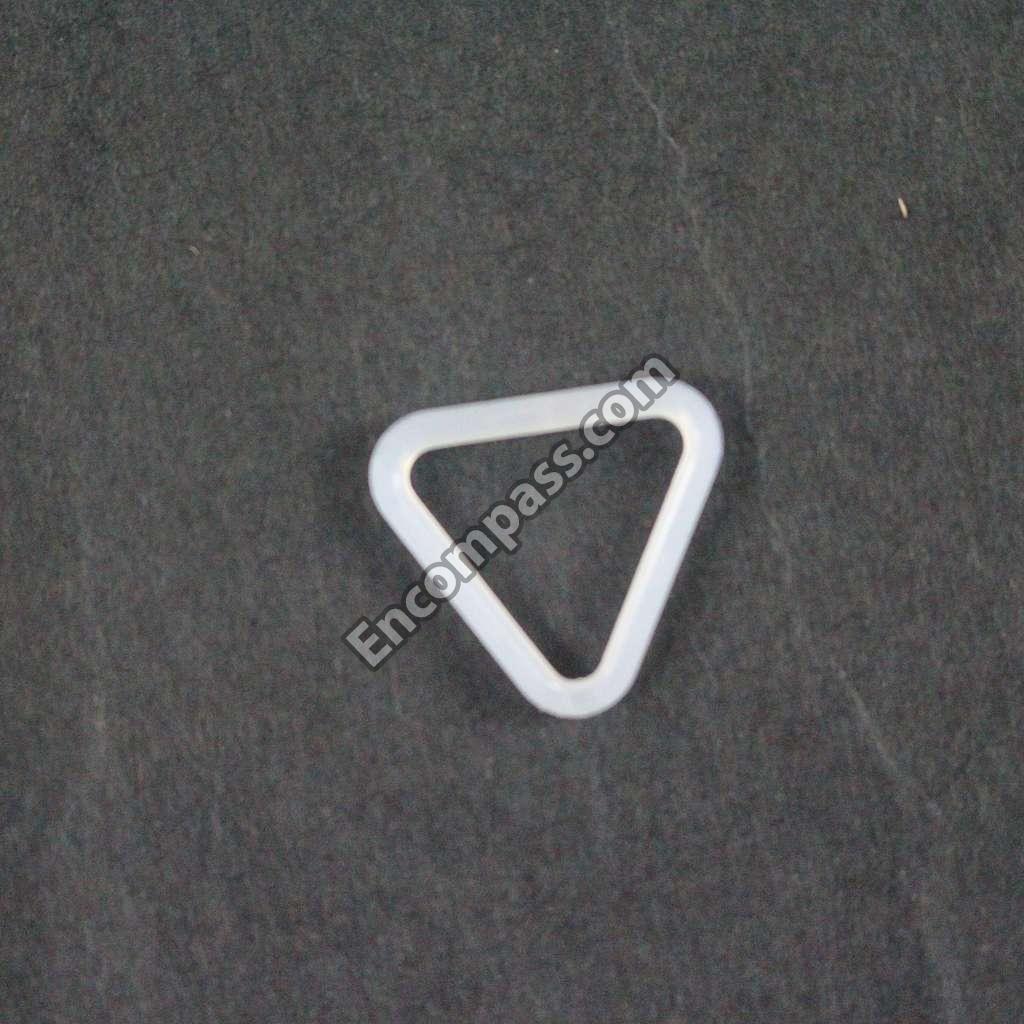

WE9M61 WE9M61 GASKET
WE9M60 WE9M60 GASKET DOOR

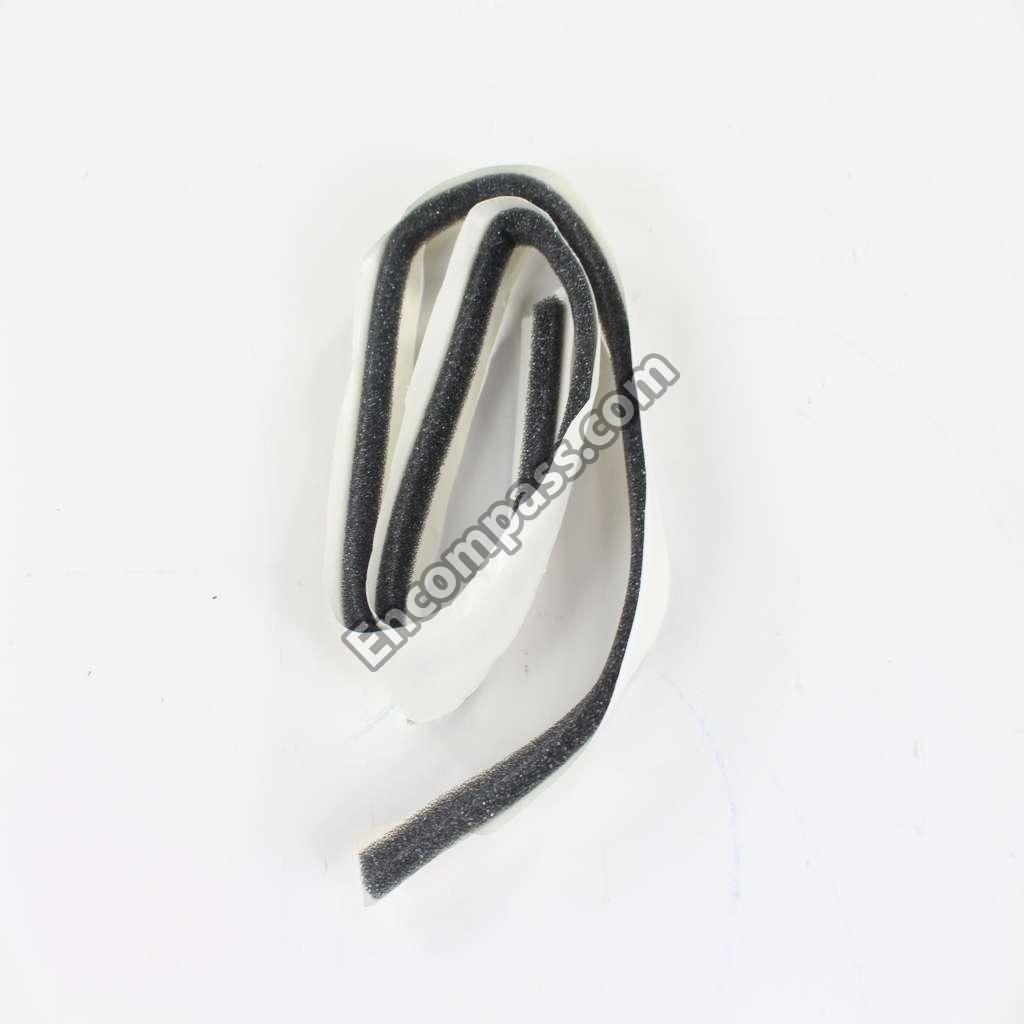

WE9M62 WE9M62 GASKET FOAM FRONT PNL
WE18M56 WE18M56 GRID ASM
WE1M1093 WE1M1093 GUIDE

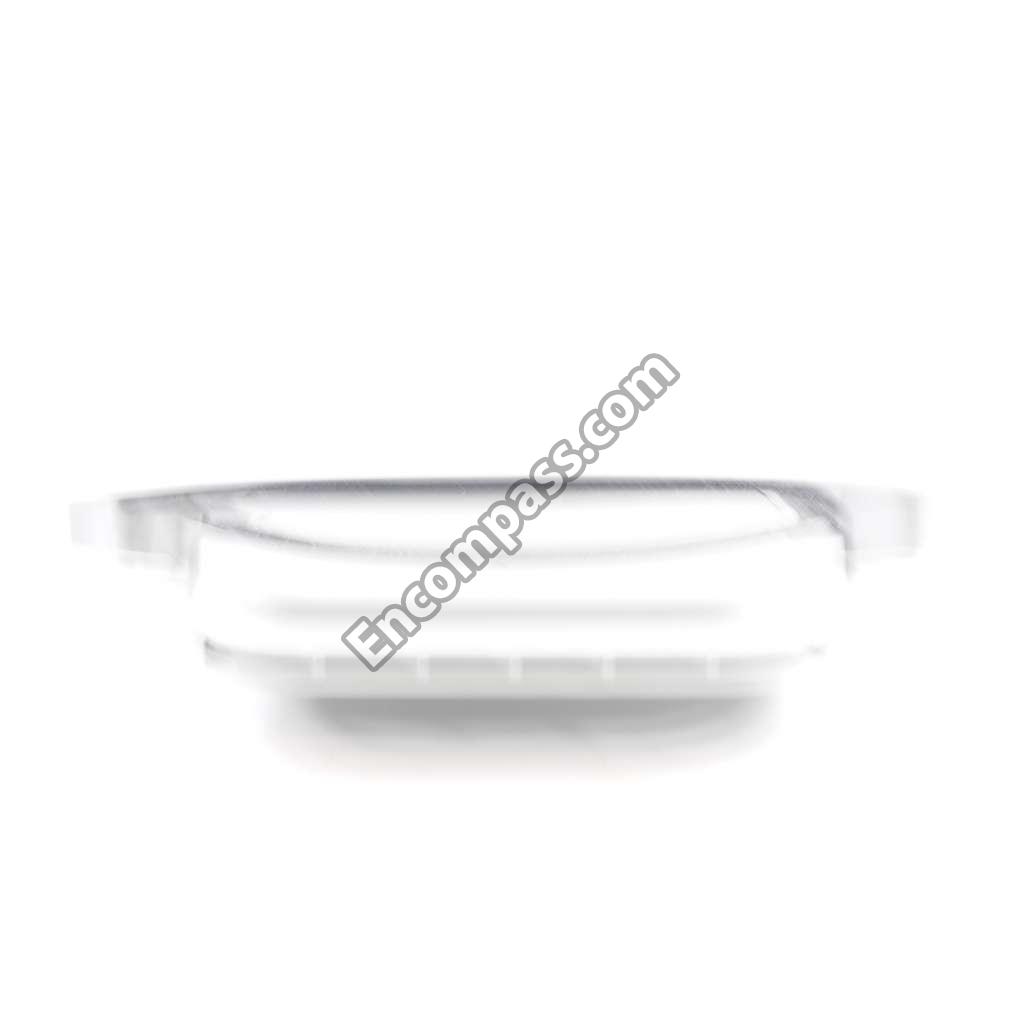

WE5M100 WE5M100 GUIDE LIGHT LABEL ASM

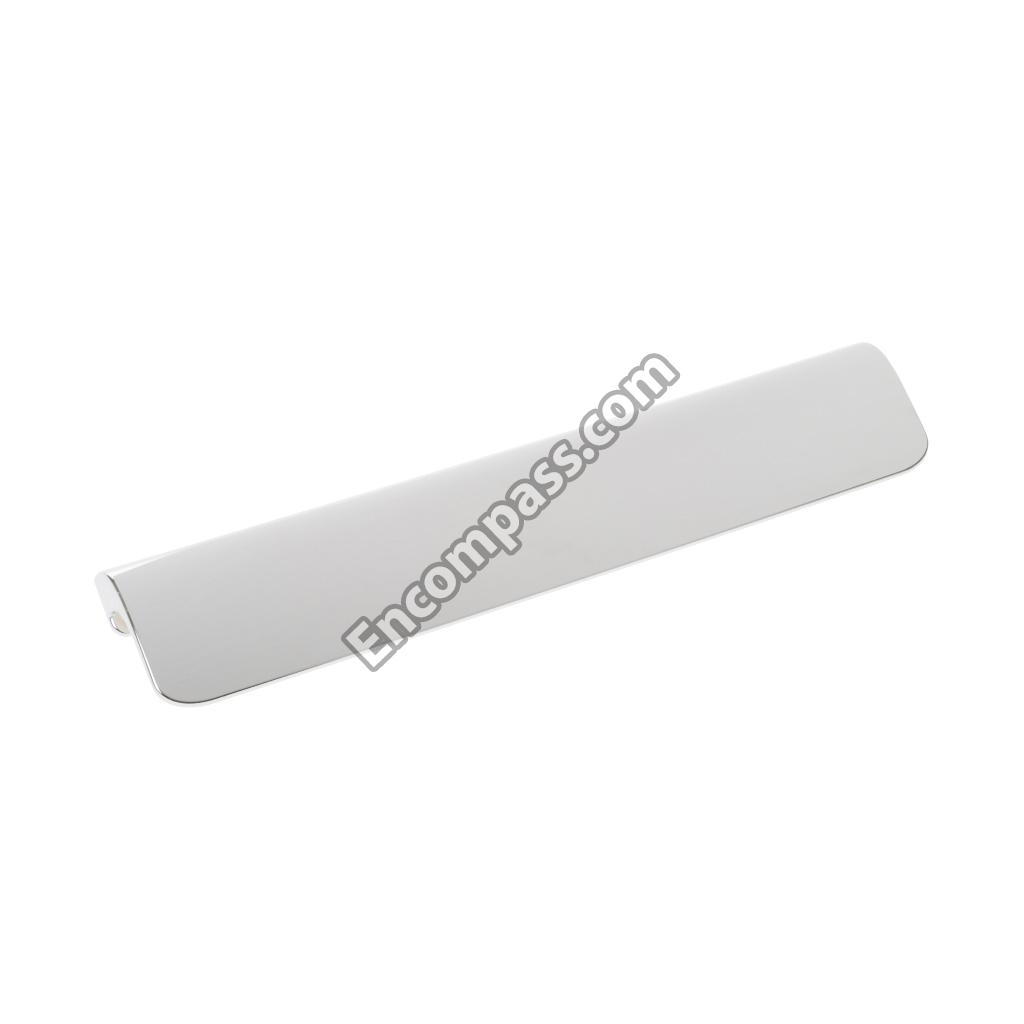

WE10M169 WE10M169 HANDLE

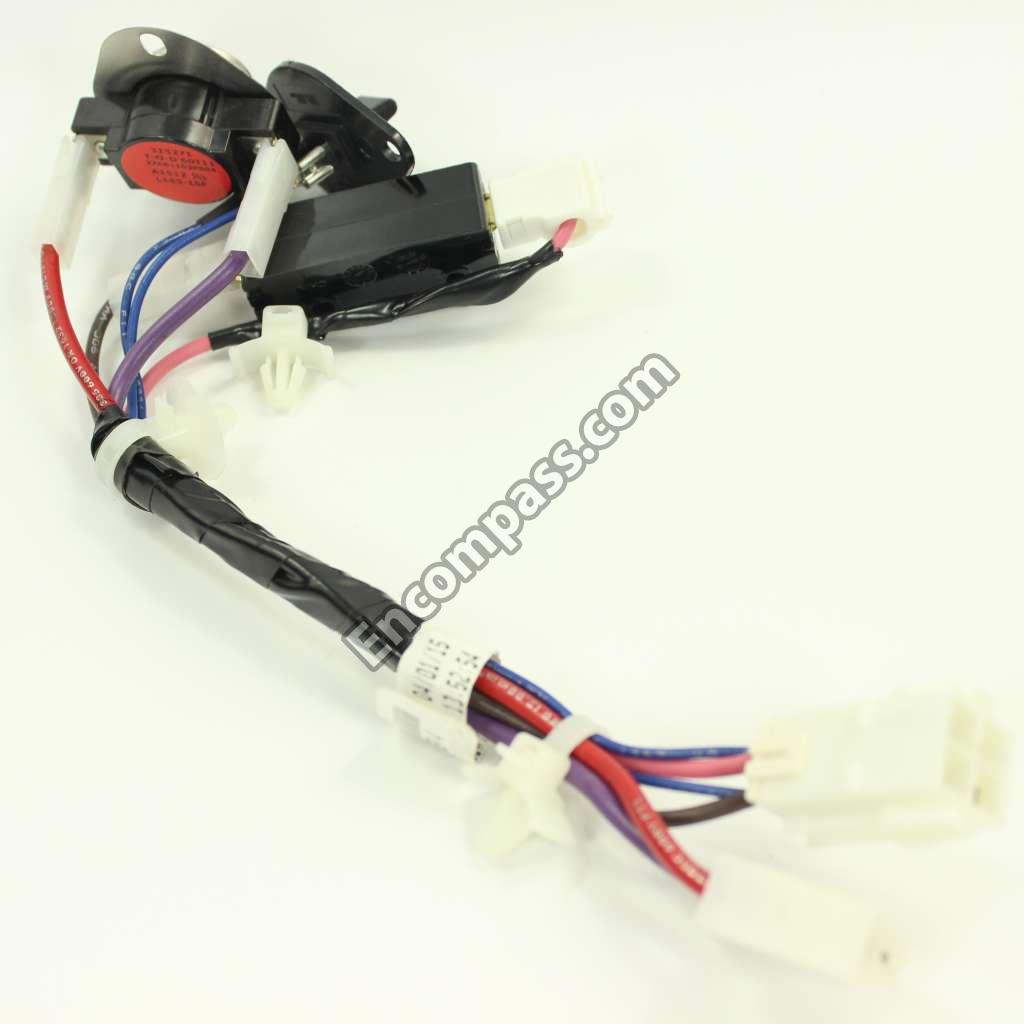

WE26M393 WE26M393 HARNESS BLOWER ASM
WE26M412 WE26M412 HARNESS ELEC ASSEMBLY
WE5M93 WE5M93 HARNESS SENSORS ASM
WE1M1033 WE1M1033 HINGE
WE1M1003 WE1M1003 HOLDER FUSE
WE1M847 WE1M847 INLET HOSE (LONG)
WE1M848 WE1M848 INLET HOSE(SHORT) W/M & F ENDS
WE2M176 WE2M176 INSULATED WASHER
WE25M71 WE25M71 KIT SERVICE NOZZLE ASSEMBLY
WH01X10679 WH01X10679 KNOB ASM
WE1M1011 WE1M1011 LATCH DOOR

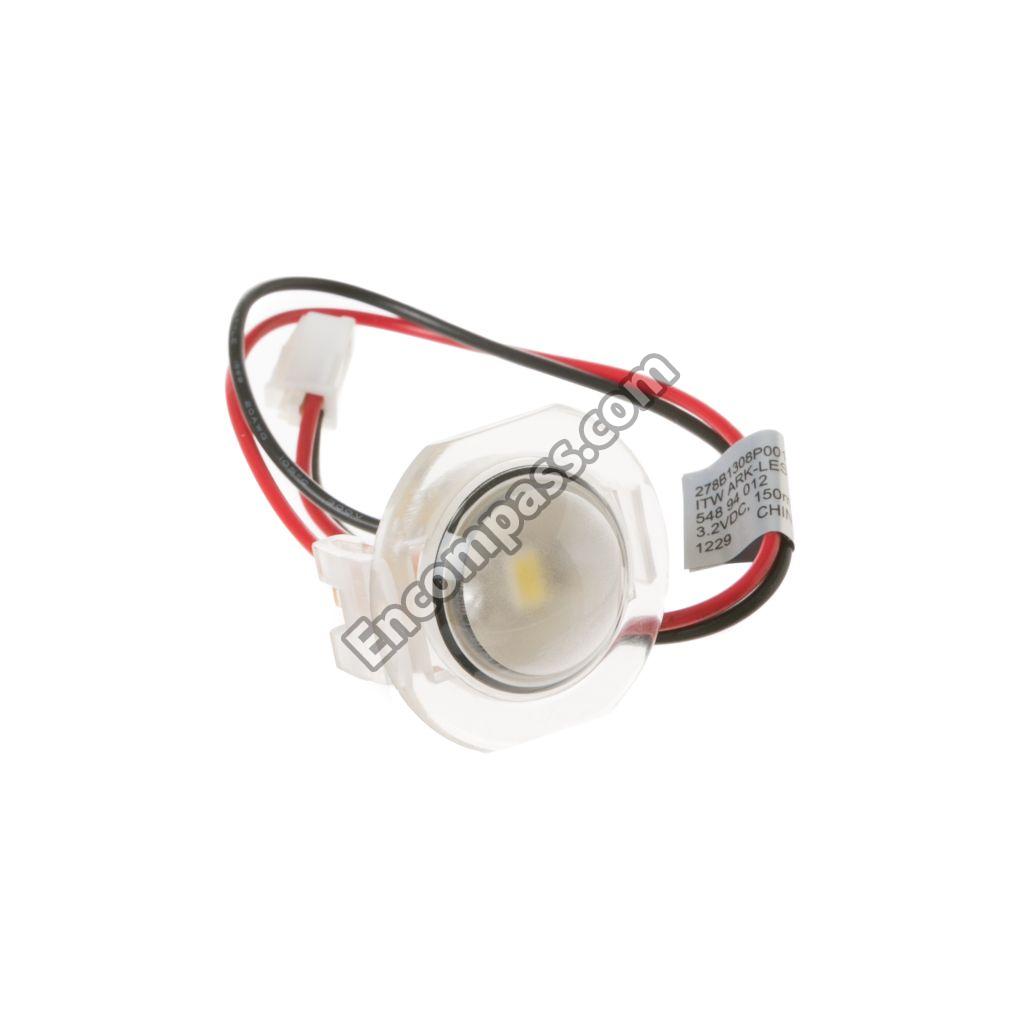

WE5M94 WE5M94 LED
WE01X29357 WE01X29357 LEVELING LEG
WE1M1081 WE1M1081 LID FUSE
WE1M1065 WE1M1065 LOCK

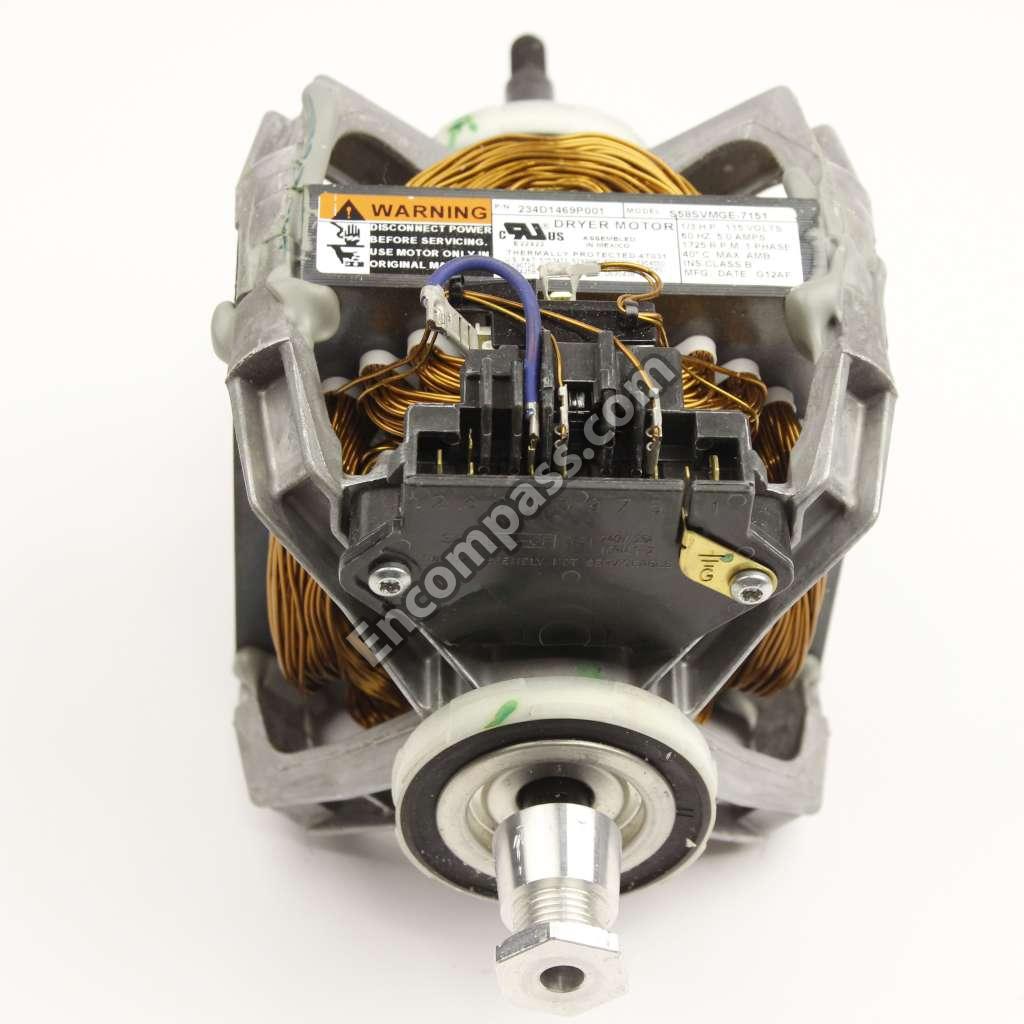

WE17M67 WE17M67 MOTOR AND PULLEY ASM
WE01X0921 WE01X0921 MOTOR BRACKET
WE19M1753 WE19M1753 PANEL BACK ASM

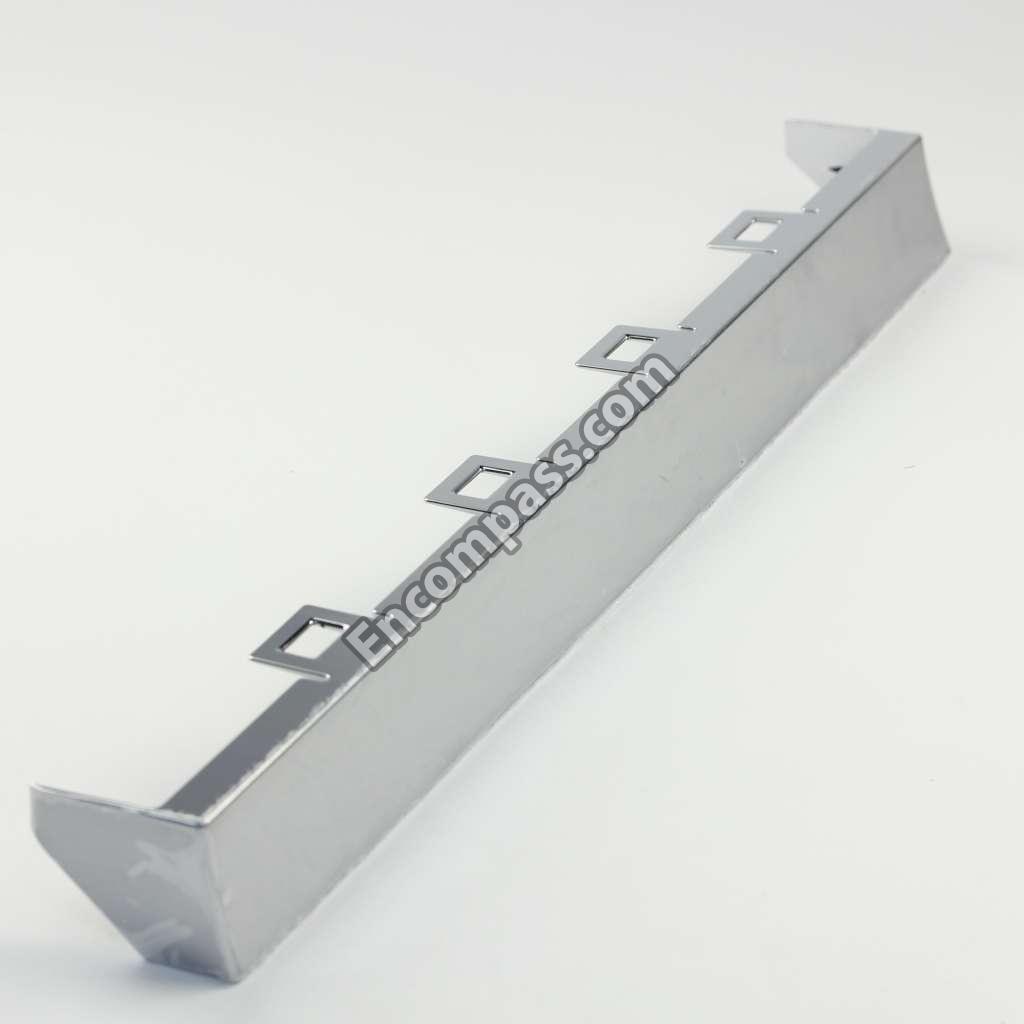

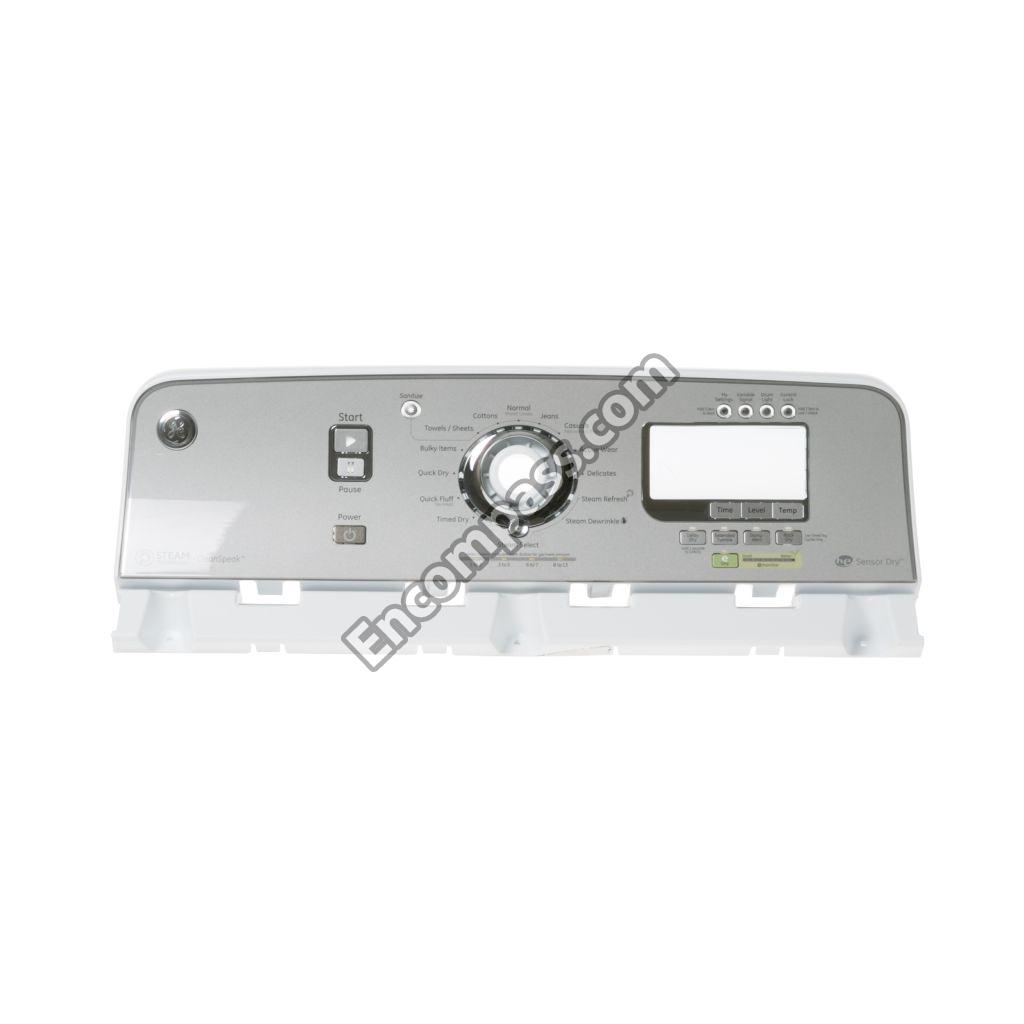

WE19M1760 WE19M1760 PANEL CONTROL ASM
WE20M497 WE20M497 PANEL FRONT

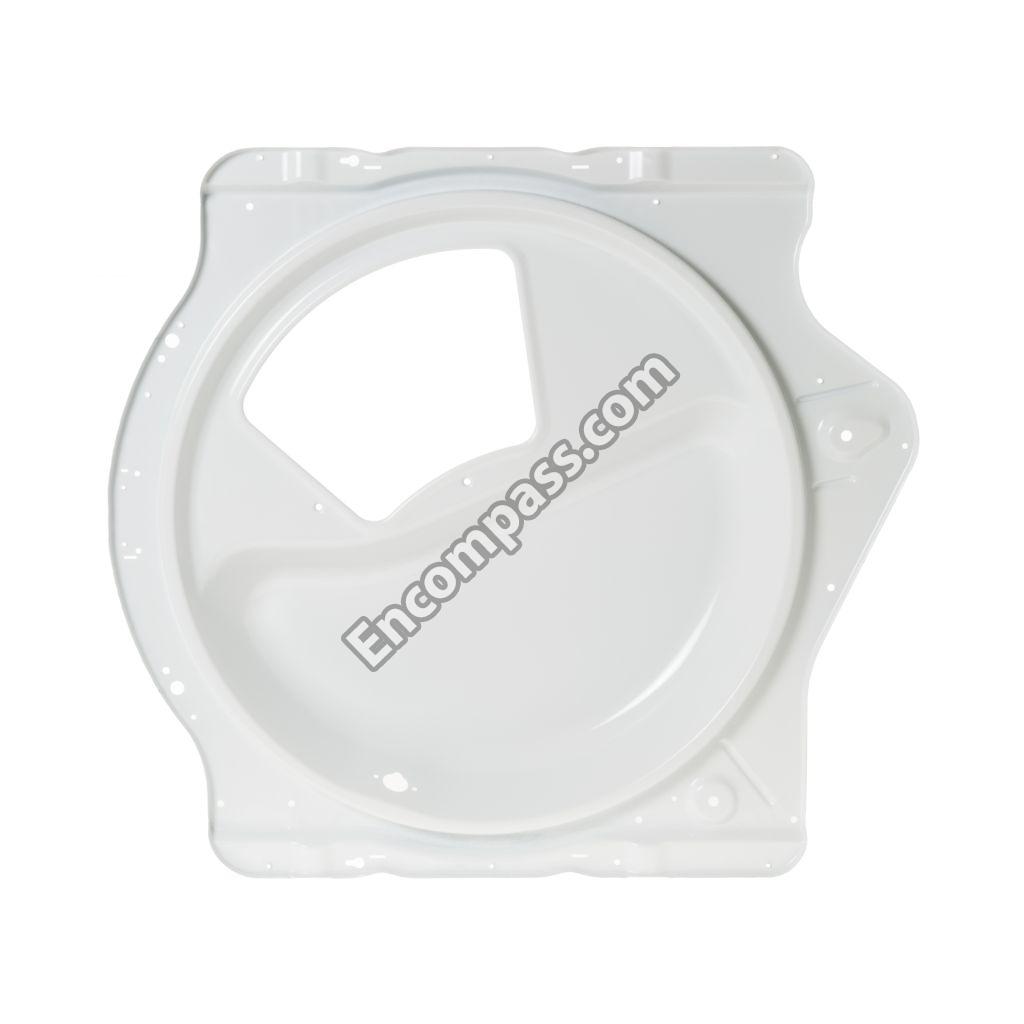

WE20M498 WE20M498 PANEL REAR

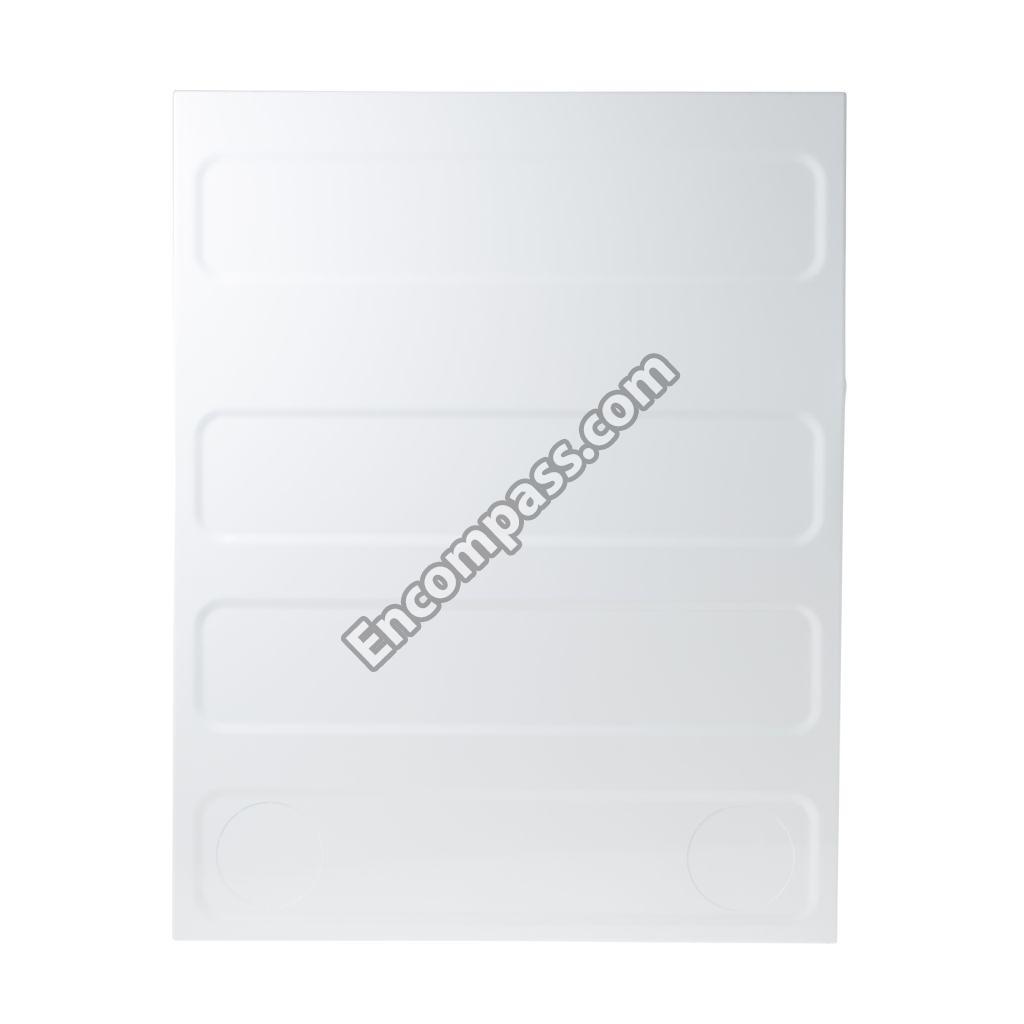

WE20M496 WE20M496 PANEL SIDE
WE04X20529 WE04X20529 PLATFORM BOARD ASM
WE1M934 WE1M934 PLUG BUTTON WHITE
31-16697 31-16697 PM INSTRUCTIONS INSTALL
49-90462 49-90462 PM MANUAL USE & CARE
31-16856 31-16856 PM MINI MANUAL

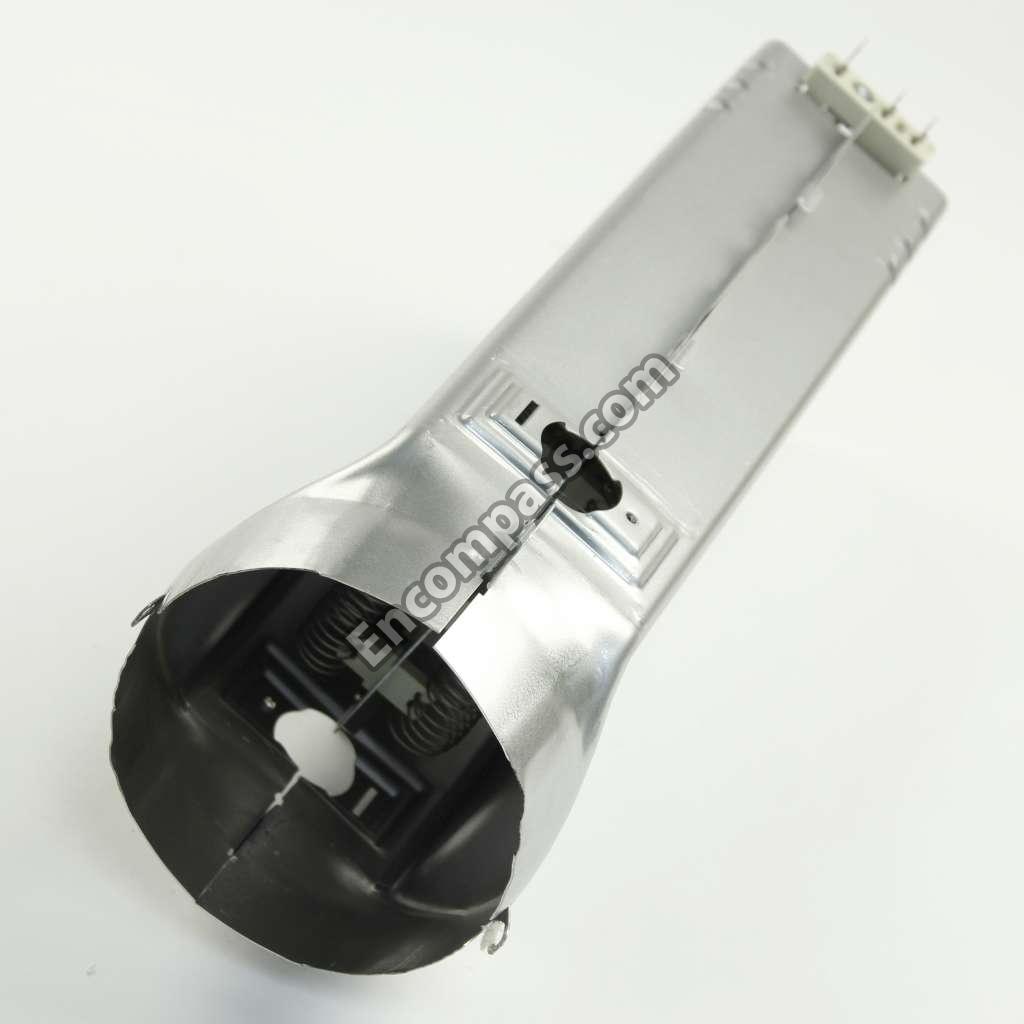

WE11M58 WE11M58 REMOTE HEATER ASM
WE1M851 WE1M851 RUBBER WASHER FOR INTAKE HOSE
WE2M282 WE2M282 SCR 6-18 B B1Q1 3/4 S ZN
WB01K10042 WB01K10042 SCR 8-18 AB IHW 3/8 SN
WE1M850 WE1M850 SCREEN FOR WASHER HOSE
WE1M280 WE1M280 SCREW
WE2M302 WE2M302 SCREW
WD2M101 WD2M101 SCREW
WR2X9260 WR2X9260 SCREW
WE2M174 WE2M174 SCREW # 10
WE1M582 WE1M582 SCREW #8 X 5/8 SS DOOR H
WE02X25454 WE02X25454 SCREW FLAT HEAD/AB
WE2M211 WE2M211 SCREW FRONT
WE2M200 WE2M200 SCREW GROUND
WZ5X158D WZ5X158D SCREW-PKG 12
WZ4X241D WZ4X241D SCREW-PKG 12

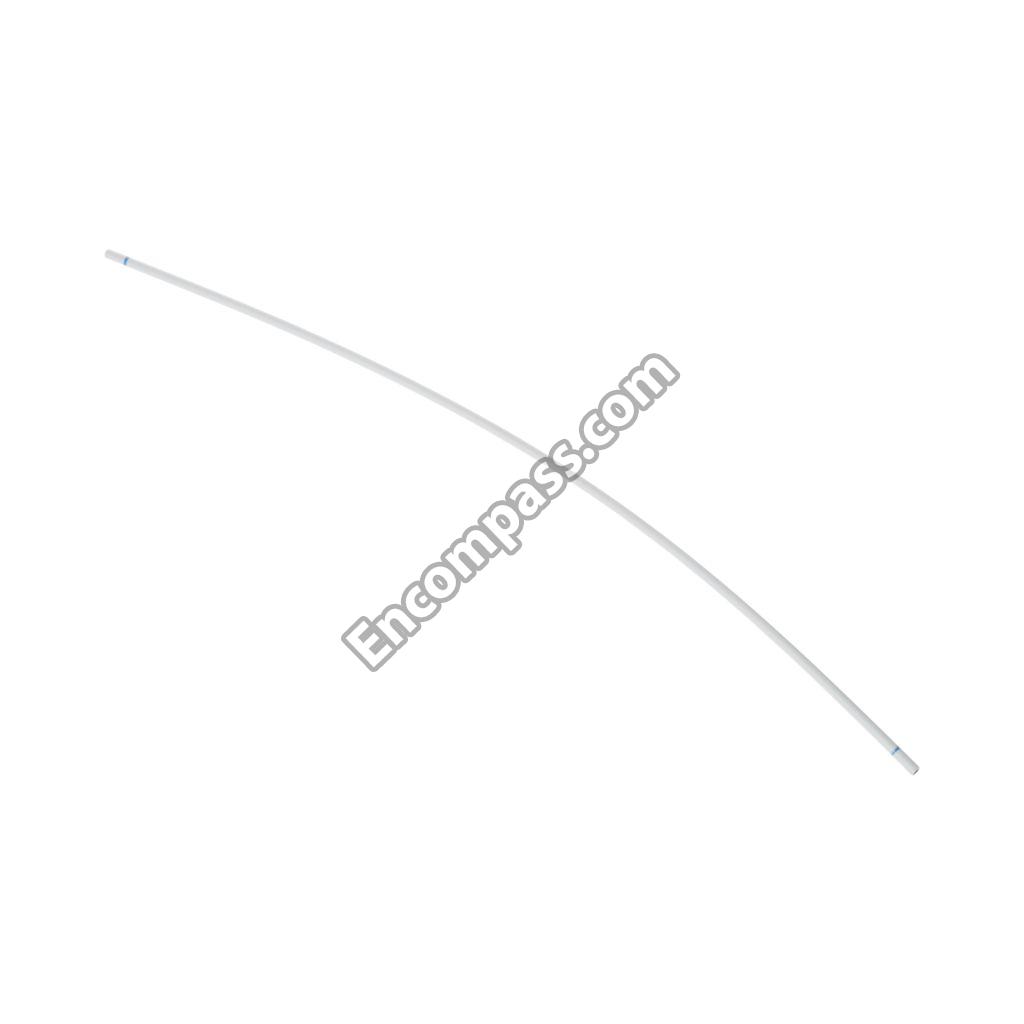

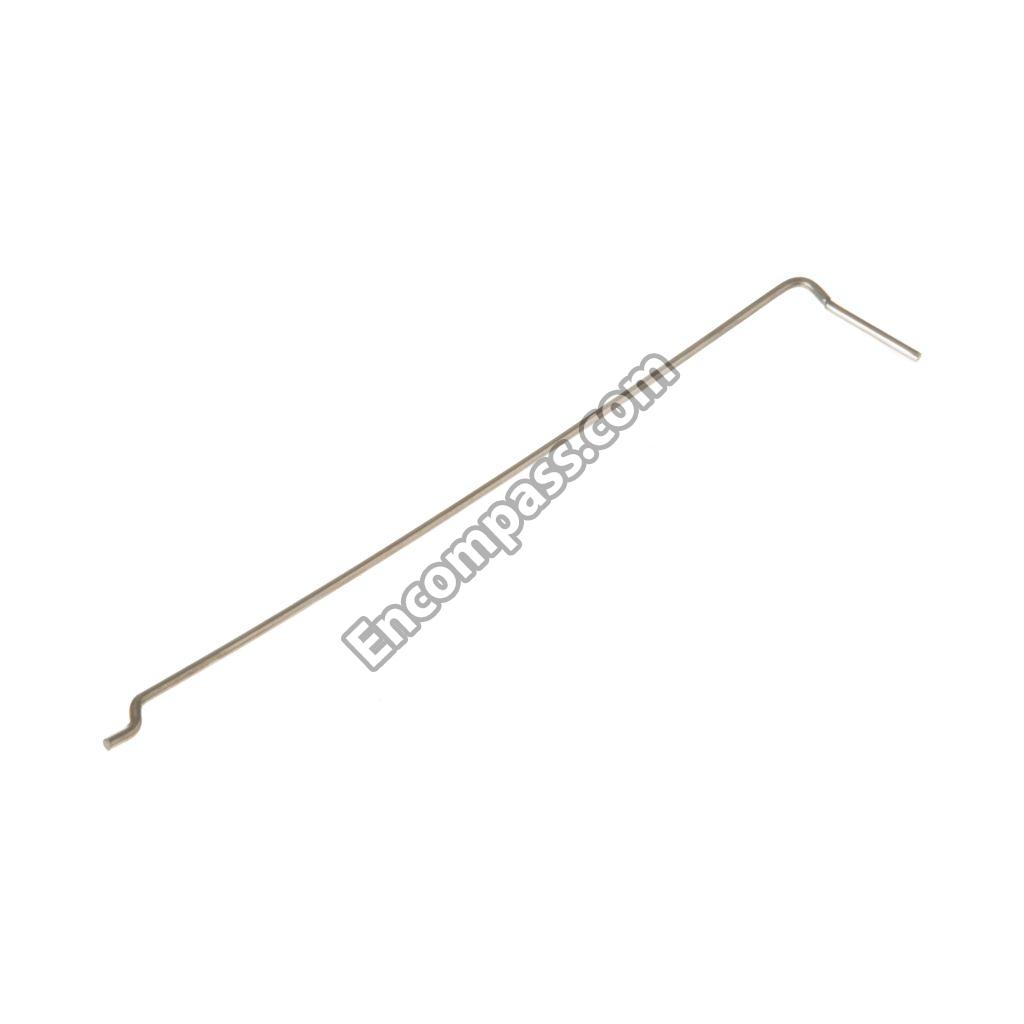

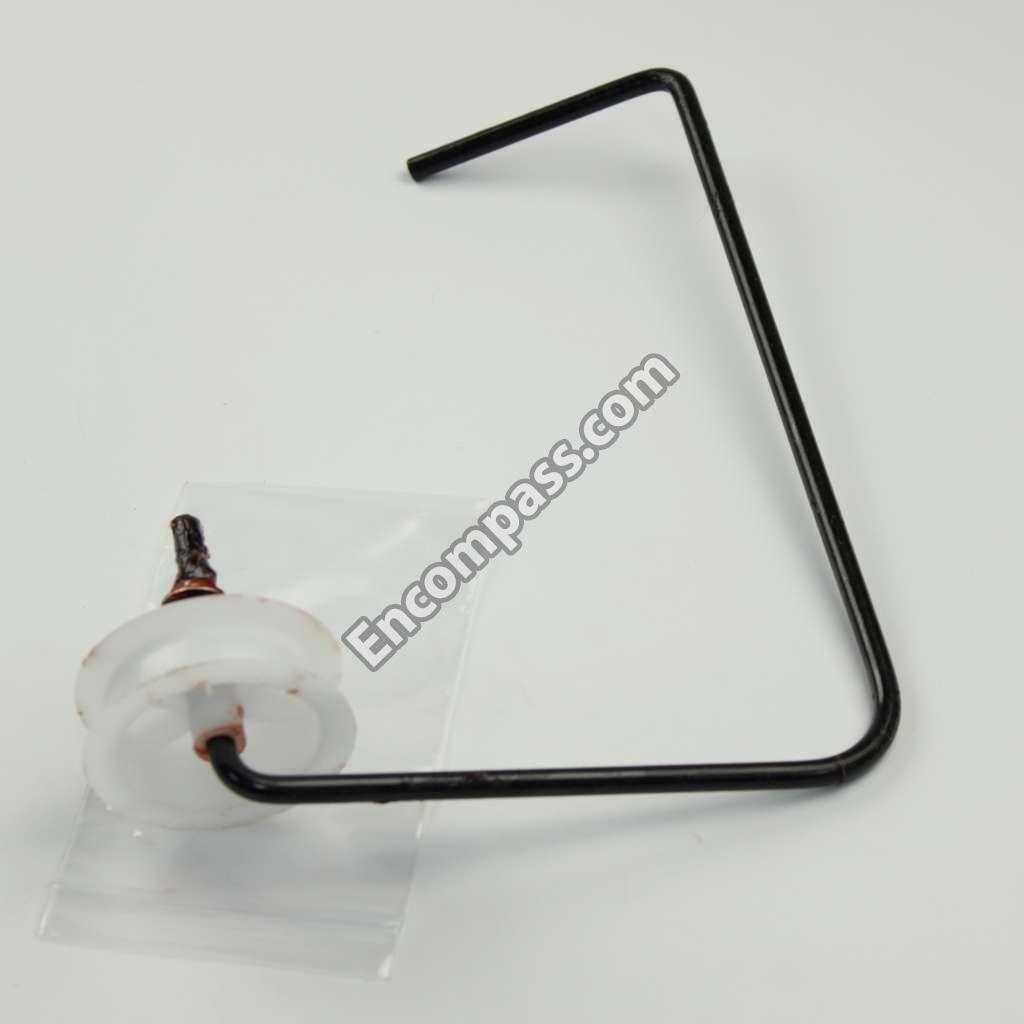

WE1M1058 WE1M1058 SENSOR ROD LFT

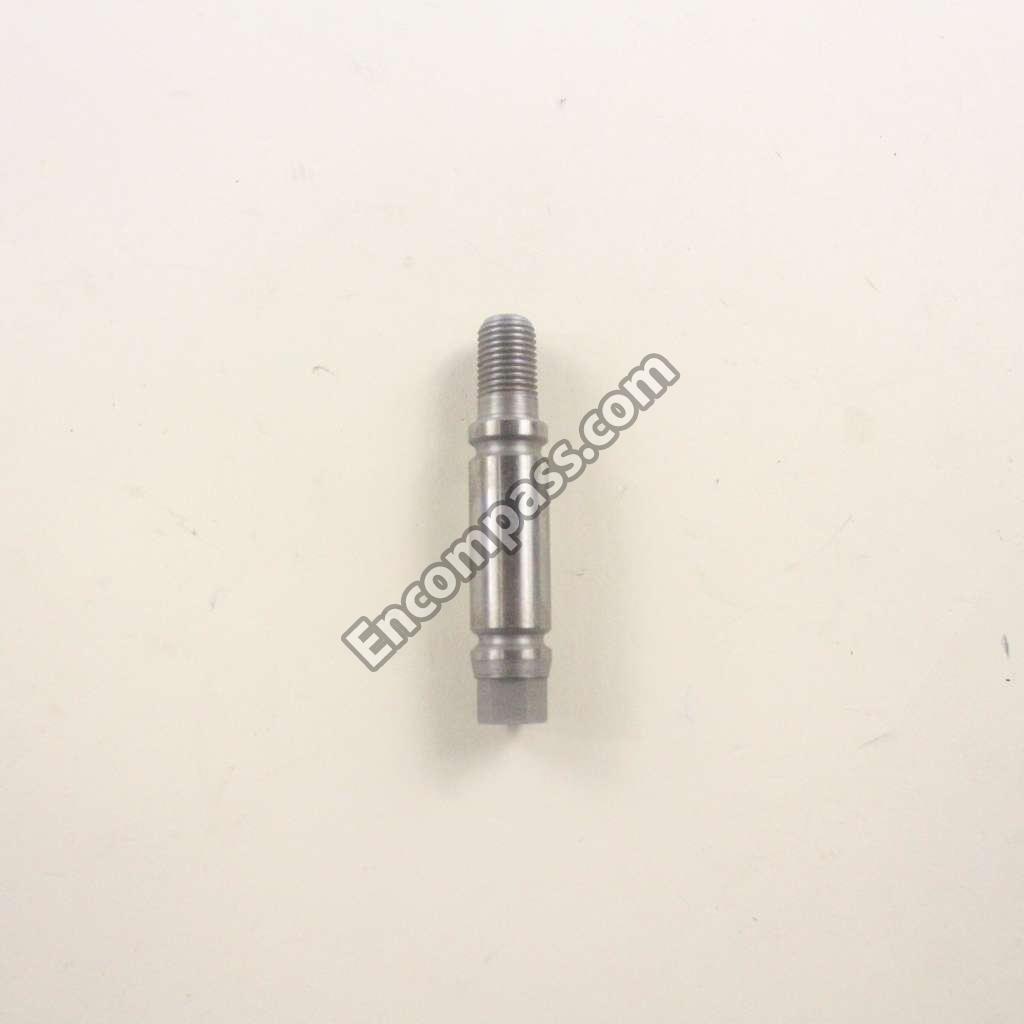

WE3M53 WE3M53 SHAFT ROLLER
WE1M1092 WE1M1092 SHIELD VALVE
WE1M1038 WE1M1038 SHOE RACK
WE20M524 WE20M524 SIDE PANEL ASSEMBLY
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET EL
WE01M10007 WE01M10007 STRIKE
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE

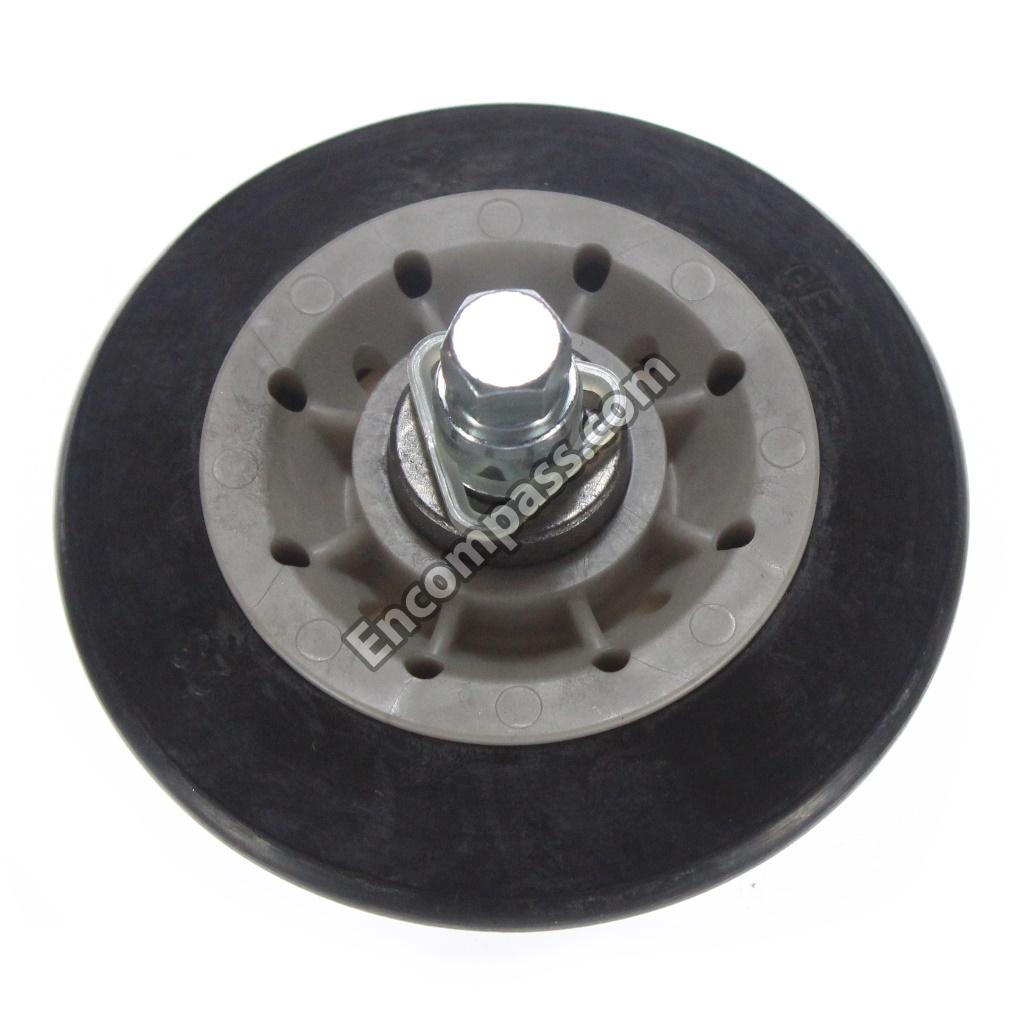

WE20M514 WE20M514 SUPPORT FRONT ROLLER
WE1M1051 WE1M1051 SUPPORT HOUSING
WE1M1037 WE1M1037 SUPPORT NOZZLE
WE20M512 WE20M512 SUPPORT ROLLER REAR
WE13M69 WE13M69 SUPPORT U
WE4M525 WE4M525 TERM BLK & GRND STRAP
WE1M1059 WE1M1059 TERMINAL BLOCK

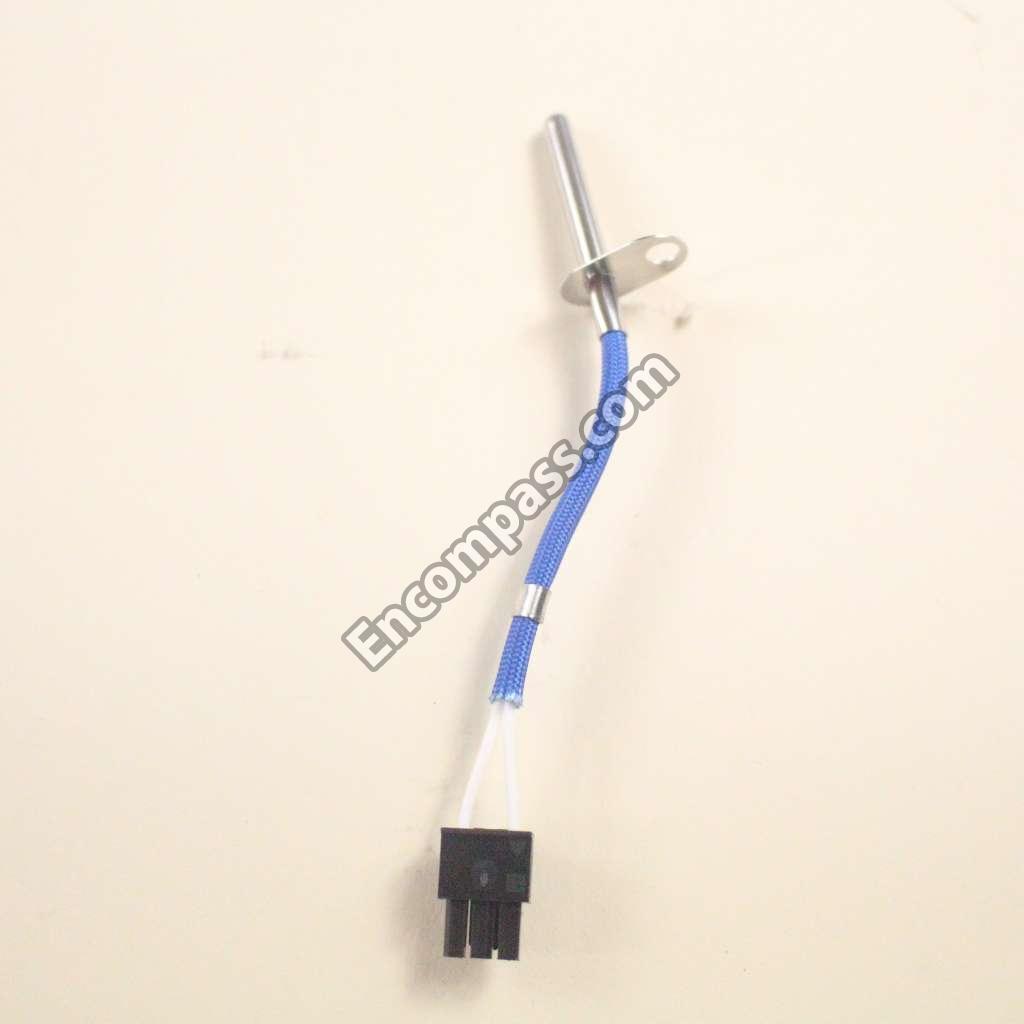

WE4M550 WE4M550 THERMISTOR INLET

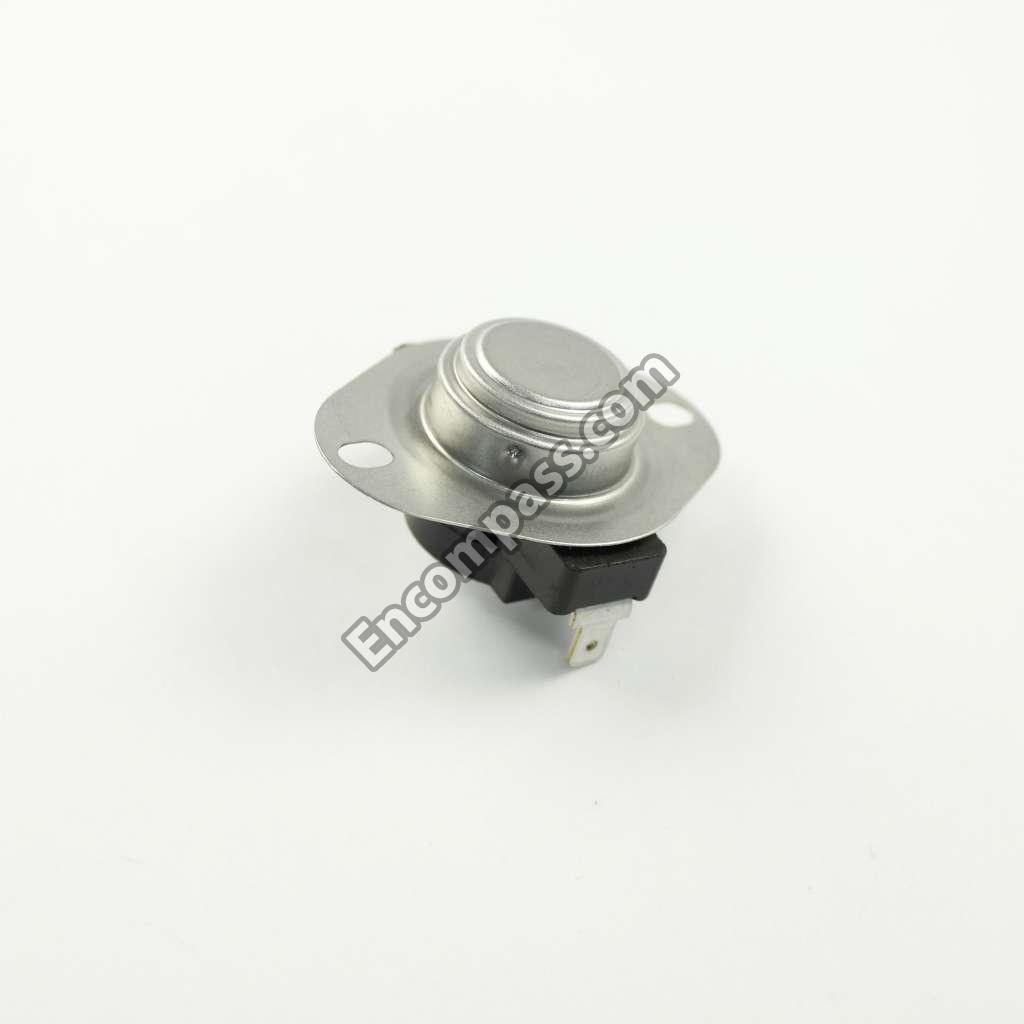

WE4M547 WE4M547 THERMOSTAT HI LIMIT
WE14X21660 WE14X21660 TRANSITION DUCT ASM
WE1M1035 WE1M1035 TUBE
WE40M108 WE40M108 VALVE WATER ASM

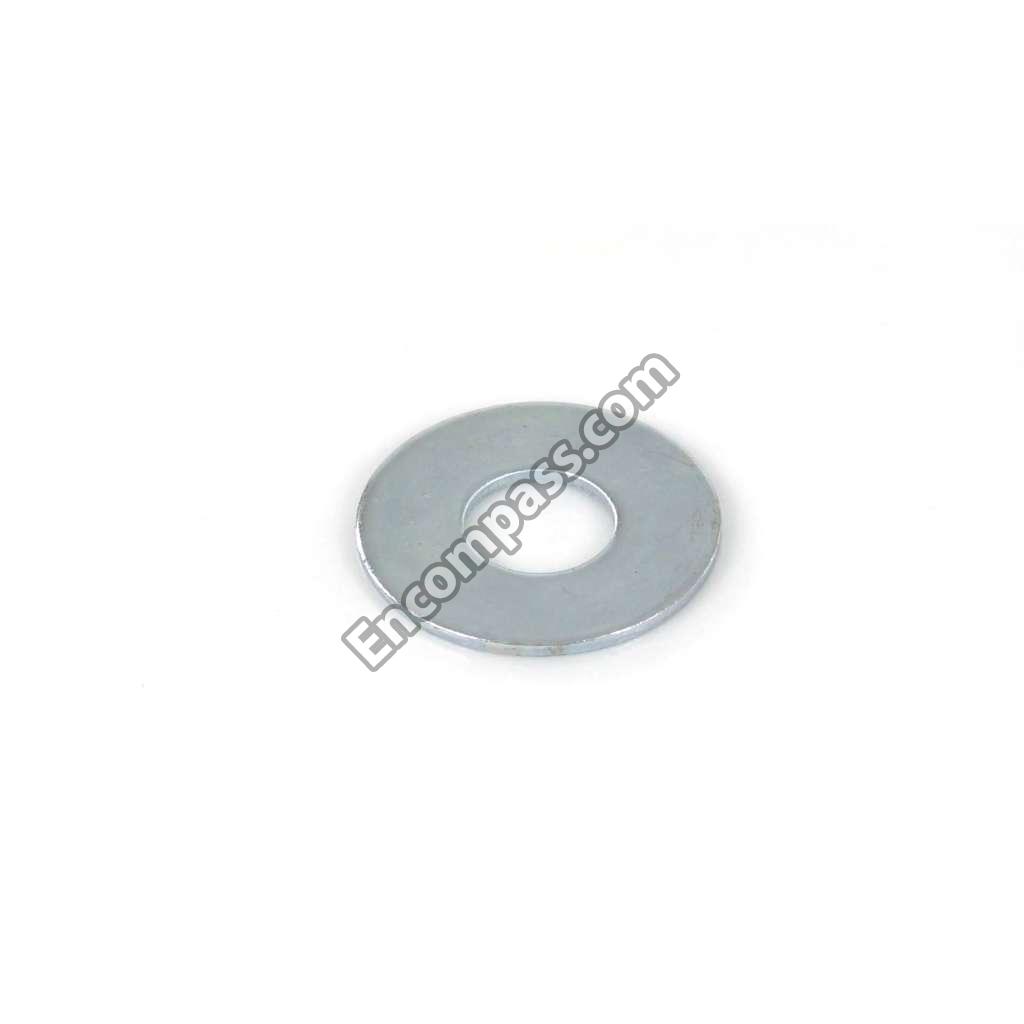

WE2M312 WE2M312 WASHER PLAIN 3/8
WE2X263D WE2X263D WE2X263D
WE03X10016 WE03X10016 WHEEL
WE25X20060 WE25X20060 Y ADAPTOR
