Model Image
Manufacturer

GE

Model Number

GTDX100GM1WW

Description

Dryer Gas

Interactive Exploded View

Parts List

Part Number Description
WE14X21334 WE14X21334 AIR DUCT ASSEMBLY
WE14X25080 WE14X25080 AIR DUCT ASSEMBLY
WE14M75 WE14M75 BAFFLE
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE1M504 WE1M504 BEARING-SLIDE WHITE
WR02X8693 WR02X8693 BEAUTY BUTTON-WHT

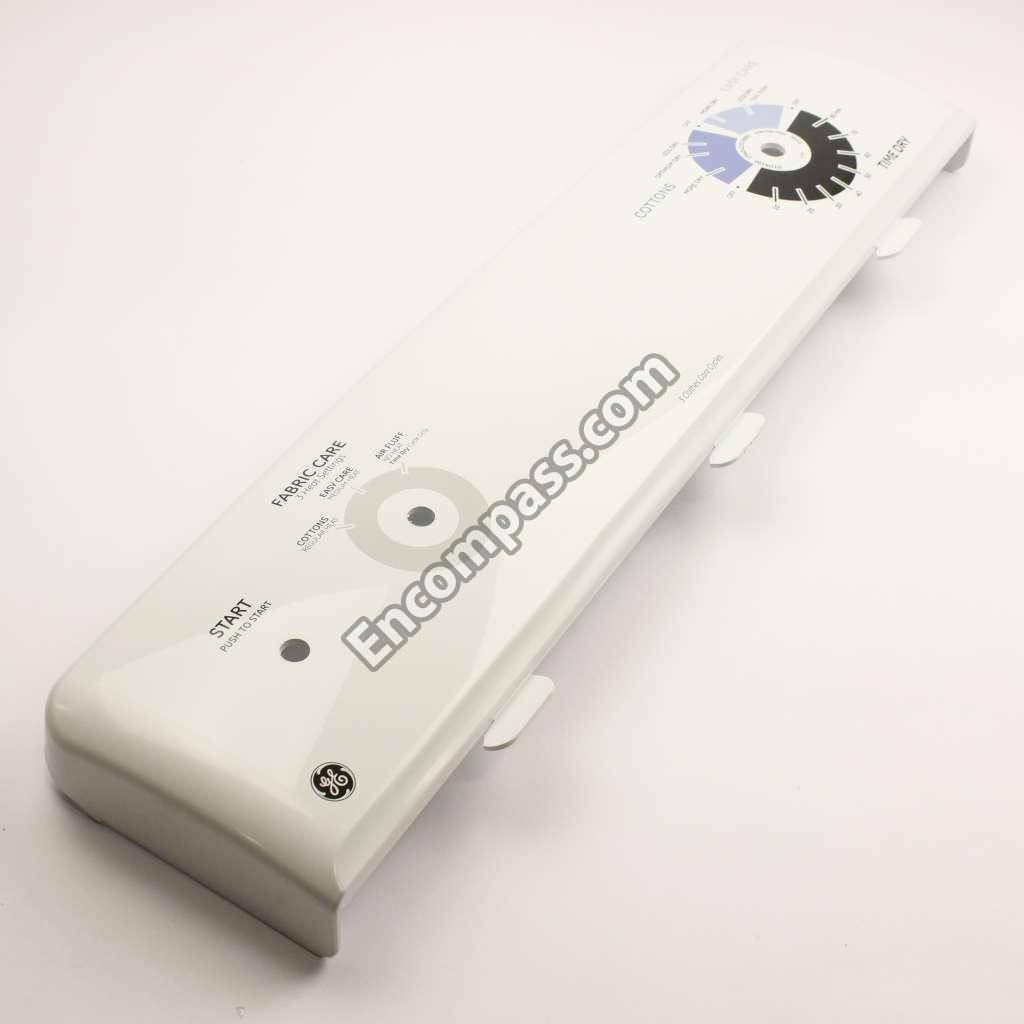

WE19M1671 WE19M1671 BKSPL. ASM. & GRAPH. WH
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE14X20392 WE14X20392 BLOWER HOUSING ASSEMBLY
WE16X20393 WE16X20393 BLOWER WHEEL
WE20M428 WE20M428 BOTTOM COVER
WE13X169 WE13X169 BRACKET COIL
WE13X20405 WE13X20405 BRACKET GAS VALVE
WE13X0169 WE13X0169 BRKT. COIL
WE14M104 WE14M104 BURNER ASM.
WE14M91 WE14M91 CHAMBER COMBUSTION 6
WE20X20391 WE20X20391 CHASSIS BASE
WH01X10106 WH01X10106 CLIP KNOB
WE04X0692 WE04X0692 COIL DUAL
WE04X0693 WE04X0693 COIL MAIN
WE1M650 WE1M650 CONNECTOR MOTOR
WE26M341 WE26M341 CORD SET - GAS
WE20X20417 WE20X20417 COVER WH
WE14X20408 WE14X20408 DEFLECTOR HEAT
WE11X29438 WE11X29438 DEFLECTOR HEAT
WE11X29443 WE11X29443 DIFFUSER GAS
WE21X20562 WE21X20562 DRUM ASSEMBLY
WE1M1011 WE1M1011 DRYER DOOR LATCH
WE4M415 WE4M415 DRYER DOOR SWITCH
WE17X22217 WE17X22217 DRYER DRIVE MOTOR
WE03X29897 WE03X29897 DRYER DRUM DRIVE BELT
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE1X921 WE1X921 DRYER MOTOR STRAP
WE4X692 WE4X692 DUAL COIL
WE14M197 WE14M197 DUCT TRANSITION
WE11X29441 WE11X29441 DUCT TRANSITION
WE14X20421 WE14X20421 ELBOW EXHAUST
WE19X20467 WE19X20467 END CAP RH WH
WE09X20441 WE09X20441 FELT
WE18X25100 WE18X25100 FILTER WH PLASTIC MESH
WE4X448 WE4X448 FLAME DETECTOR
WE49X22295 WE49X22295 FRONT PANEL AND INNE
WE2M188 WE2M188 FRONT STABILIZING LEGS
WE14X20401 WE14X20401 GAS DIFFUSER & PLATE ASM
WE4M449 WE4M449 GAS IGNITER ASM
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE1M966 WE1M966 GASKET SEAL
WE1M1015 WE1M1015 GROUND STRAP
WE01X20419 WE01X20419 HANDLE WHITE
WE1M1033 WE1M1033 HINGE
WE03X20434 WE03X20434 IDLER ARM
WE10X20418 WE10X20418 INNER DOOR GSKT ASM
31-16225 31-16225 INSTALLATION INSTRUCTION
WE49X22294 WE49X22294 KIT OF SERVICE END CAP
WE01X20378 WE01X20378 KNOB AND CLIP ASSEMBLY
WE01X20374 WE01X20374 KNOB ASSEMBLY TIMER - WH
WE05X20431 WE05X20431 LAMP
WE01X1076 WE01X1076 LEAK LIMITER
WE1X1076 WE1X1076 LEAK LIMITER
WE01X29357 WE01X29357 LEVELING LEG
WE4X693 WE4X693 MAIN COIL
31-16250 31-16250 MINI-MANUAL
WE01X0921 WE01X0921 MOTOR BRACKET
WE13X20394 WE13X20394 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE01X1148 WE01X1148 ORIFICE
WE1X1148 WE1X1148 ORIFICE MAIN
WE10X20468 WE10X20468 OUTER DOOR WH
WR01X21159 WR01X21159 PLUG DOOR
49-90407 49-90407 PM MANUAL USE & CARE
WE12X83 WE12X83 PULLEY IDLER
WE4M416 WE4M416 PUSH TO START SWITCH
WE1M659 WE1M659 PUSH/ START BUTTON GREY
WE19M1481 WE19M1481 REAR PANEL
WE20X23559 WE20X23559 REAR PANEL 6 CU FT
WE4M400 WE4M400 ROTARY SWITCH 3TEMP GAS
WR01X10317 WR01X10317 SCR 8-32 CA HXW 1/2
WE2M173 WE2M173 SCREW
WE2M202 WE2M202 SCREW
WR2X9260 WR2X9260 SCREW
WD2M101 WD2M101 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M196 WE2M196 SCREW #8
WE2M160 WE2M160 SCREW #8
WE02X0333 WE02X0333 SCREW (COIL MTG BRKT)
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WE2M200 WE2M200 SCREW GROUND
WZ4X241D WZ4X241D SCREW-PKG 12
WZ5X158D WZ5X158D SCREW-PKG 12
WE20X20406 WE20X20406 SIDE PANEL WHITE
WE20M478 WE20M478 SIDE PANEL WW
WE1M462 WE1M462 SLEEVE DRUM
WE1M1067 WE1M1067 SLIDE DRUM - GREEN
WE03X37317 WE03X37317 SLIDE DRUM - GREEN
WE5M48 WE5M48 SOCKET ASM
WE13X0200 WE13X0200 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M181 WE4M181 THERMOSTAT BIAS CTR INLT
WE4M127 WE4M127 THERMOSTAT DRUM OUT
WE4M137 WE4M137 THERMOSTAT HI-LIMIT
WE4M80 WE4M80 THERMOSTAT SAFETY
WE04X20415 WE04X20415 TIMER PLAS. SHAFT
WE3M26 WE3M26 TOP BEARING
WE01X0980 WE01X0980 U CLIP
WE11X20711 WE11X20711 VALVE AND PIPE ASSEMBLY
WE1X1091 WE1X1091 WE1X1091
WE2X263D WE2X263D WE2X263D
WE2M96 WE2M96 WE2X329
