Model Image
Manufacturer

GE

Model Number

GTDX180ED6WW

Description

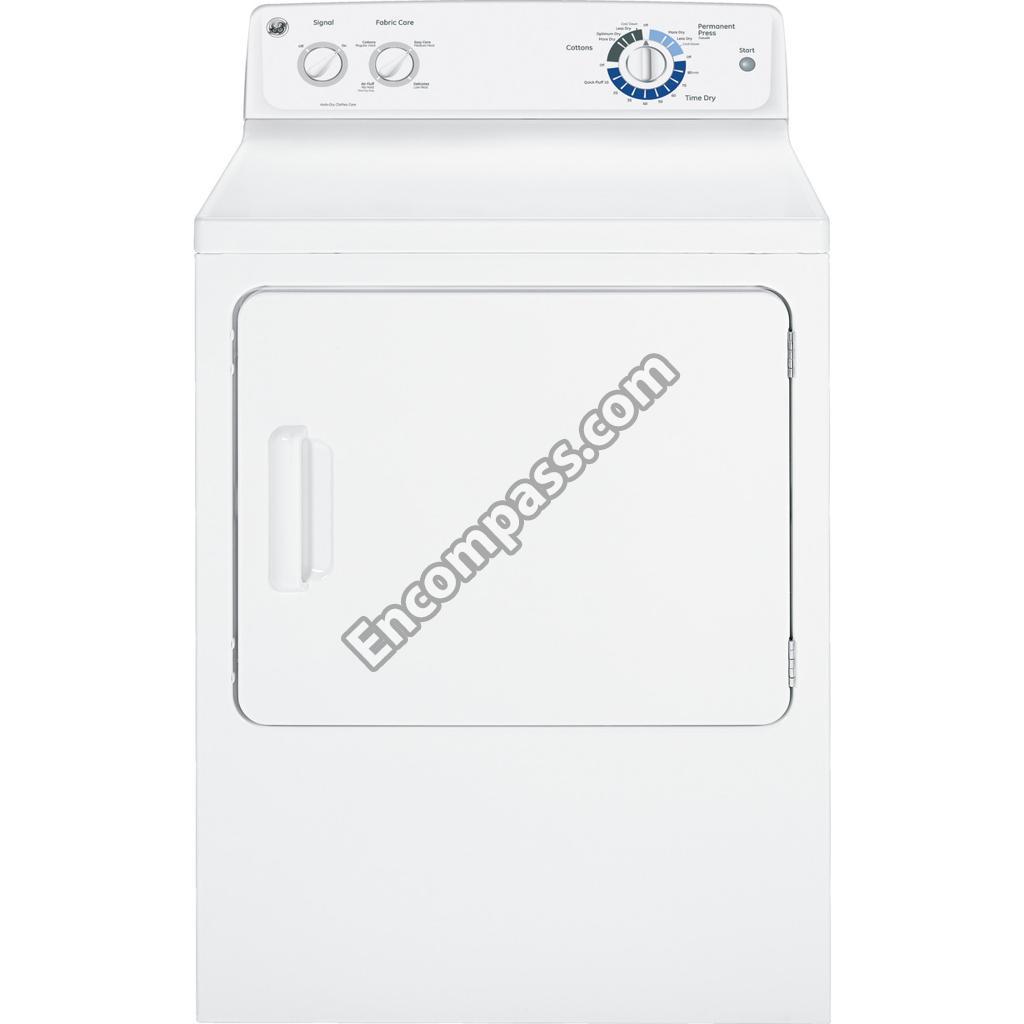

Dryer Electric

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE05X20431 WE05X20431 120V DRYER BULB - 10W

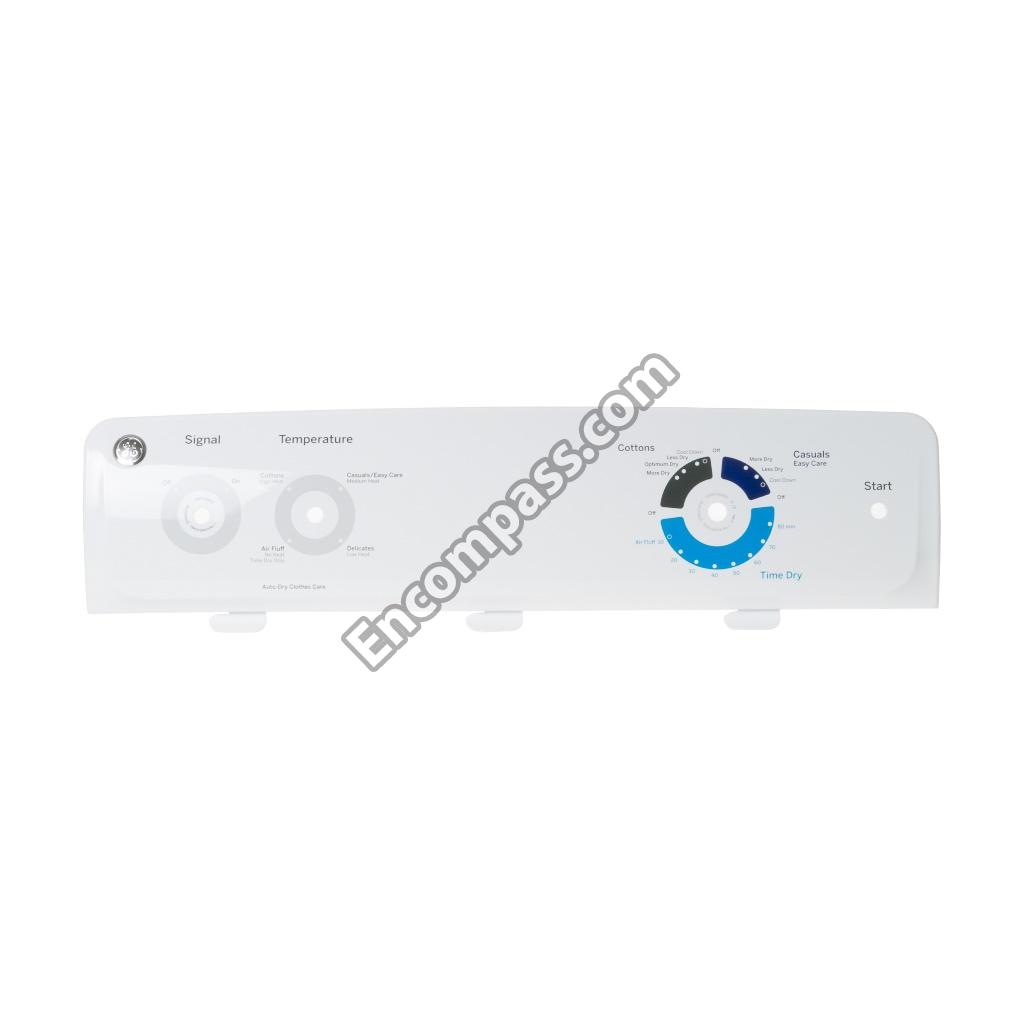

WE19X22614 WE19X22614 BACKSPLASH GRAPHIC ASSEMBLY
WE1M300 WE1M300 BEARING RETAINER
WE03X37320 WE03X37320 BEARING SLIDE
WE03X29897 WE03X29897 BELT DRIVE
WE14X20392 WE14X20392 BLOWER HOUSING ASSEMBLY
WE16X20393 WE16X20393 BLOWER WHEEL
WE1M650 WE1M650 CONNECTOR MOTOR

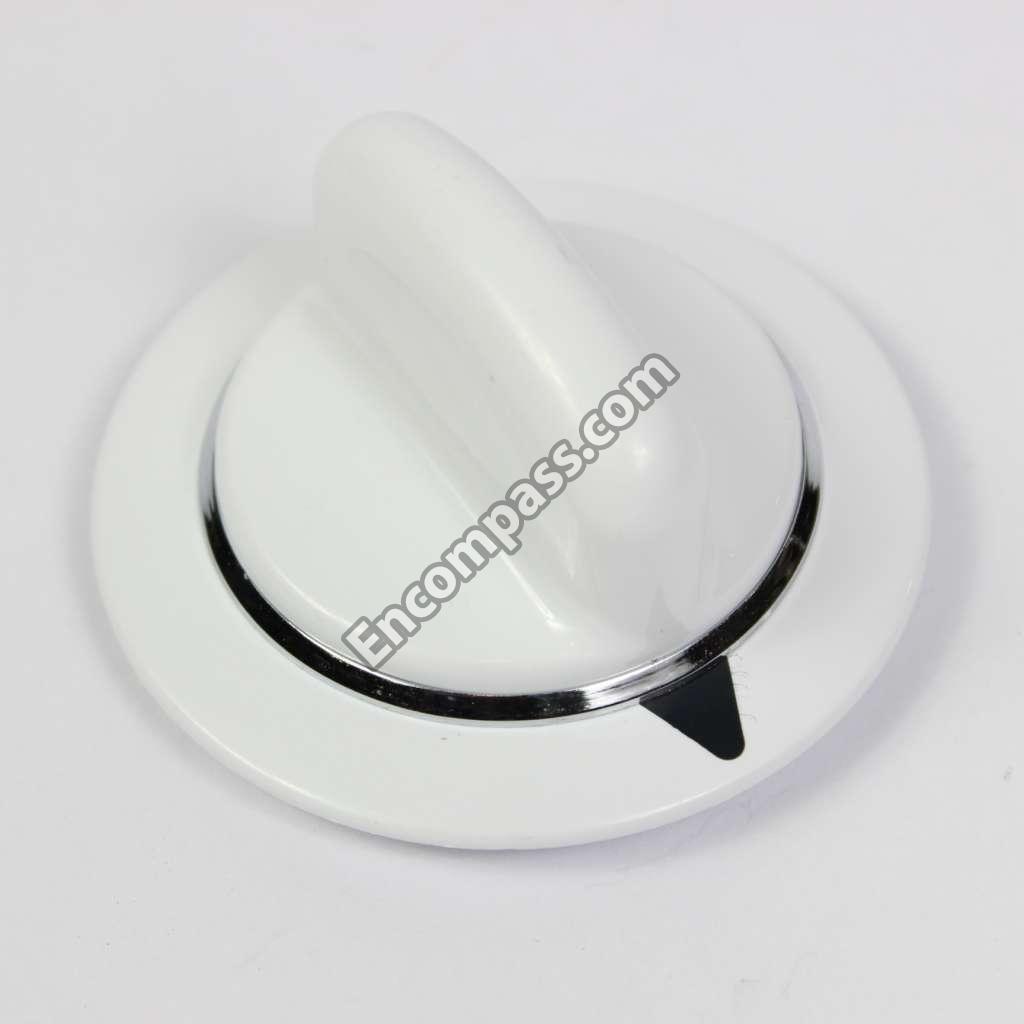

WE01X20378 WE01X20378 CONTROL KNOB WHITE ASM
WE1M1007 WE1M1007 COVER FUSE TERMINAL
WE11X29438 WE11X29438 DIFFUSER
WE21X20562 WE21X20562 DRUM ASSEMBLY 6.0 CU.FT WH
WE20X20417 WE20X20417 DRYER ACCESS PANEL- WHITE
WE14X20683 WE14X20683 DRYER BAFFLE
WE03X37319 WE03X37319 DRYER BEARING SLIDE
WE20X20412 WE20X20412 DRYER BOTTOM COVER
WE4M318 WE4M318 DRYER BUZZER
WE20X20391 WE20X20391 DRYER CHASSIS BASE
WE4M181 WE4M181 DRYER CYCLING THERMOSTAT - 4 WIRE
WE4M415 WE4M415 DRYER DOOR SWITCH
WE1M462 WE1M462 DRYER DRUM SLEEVE
WE1X21975 WE1X21975 DRYER FUSE 3AB
WE1M1015 WE1M1015 DRYER GROUND STRAP

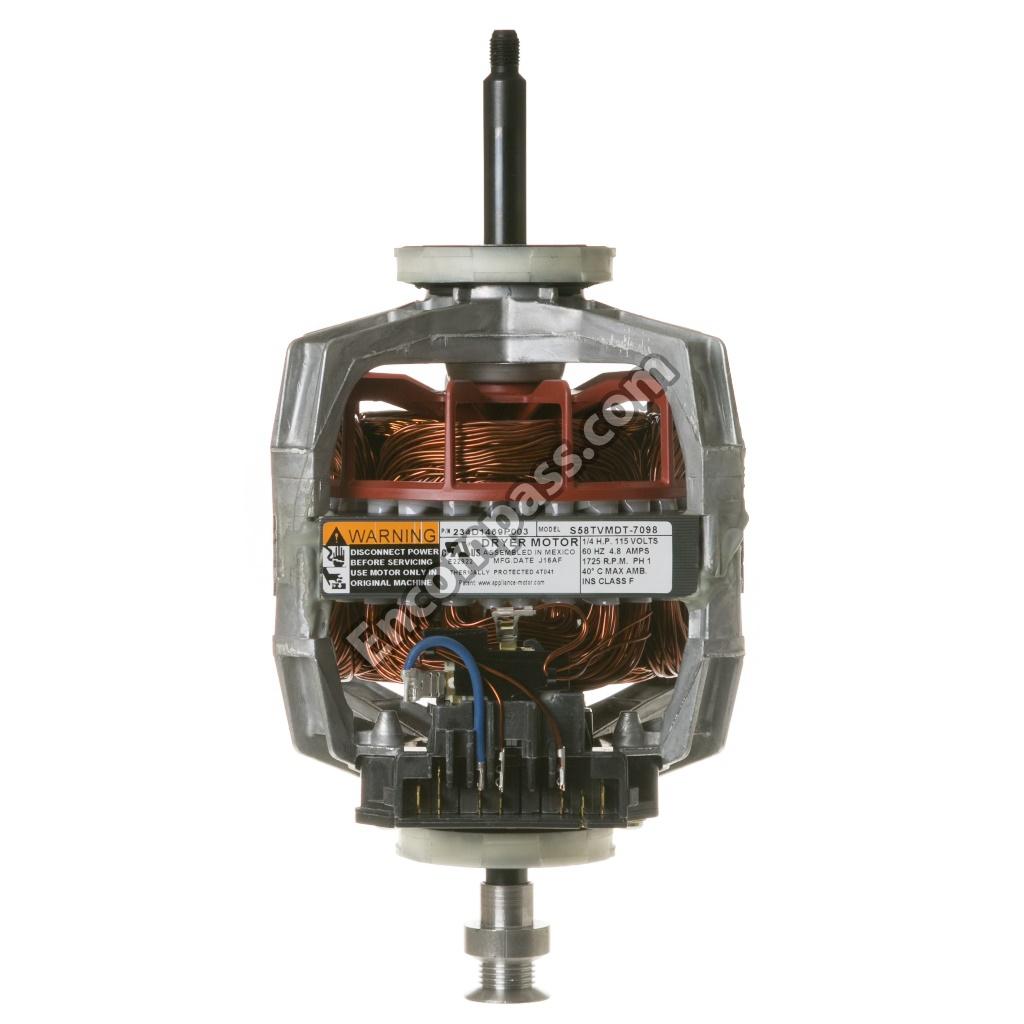

WE17X22215 WE17X22215 DRYER MOTOR AND PULLEY
WE13X200 WE13X200 DRYER MOTOR STRAP
WE1X921 WE1X921 DRYER MOTOR STRAP
WE4M137 WE4M137 DRYER THERMOSTAT
WE4M533 WE4M533 DRYER TIMER
WE03X27679 WE03X27679 DRYER TOP BEARING
WE19X20467 WE19X20467 END CAP LH
WE19X20466 WE19X20466 END CAP RH
WE14X20421 WE14X20421 EXHAUST DUCT
WE04X24814 WE04X24814 FELT TRAP DUCT
WE18X25100 WE18X25100 FILTER AND MESH ASSEMBLY.
WE1X21955 WE1X21955 FUSE HOLDER 3AB
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE1M966 WE1M966 GASKET SEAL
WE09X27636 WE09X27636 GASKET SEAL
WE01X20419 WE01X20419 HANDLE WHITE
WE15X20061 WE15X20061 HARNESS FCT THERMO
WE11M10002 WE11M10002 HEATER HOUSING
WE1M1033 WE1M1033 HINGE
WE03X20434 WE03X20434 IDLER ARM
WE49X22295 WE49X22295 INNER DOOR ASSEMBLY WHITE
WE01X20374 WE01X20374 KNOB ASSEMBLY TIMER - WH
WE1M1011 WE1M1011 LATCH
WE01X29357 WE01X29357 LEVELLING FOOT
WE11M10001 WE11M10001 MICA HEATER
WE11X20397 WE11X20397 MICA HEATER AND HOUSING AS
31-16291 31-16291 MINI MANUAL
WE13X20394 WE13X20394 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE10X20468 WE10X20468 OUTER DOOR WH
WE20X22497 WE20X22497 PANEL REAR LEADERSHIP
WE1M934 WE1M934 PLUG BUTTON WHITE
31-16308 31-16308 PM INSTALL INSTRUCTIONS
WE1M780 WE1M780 PROTECTION BRACKET
WE03X31620 WE03X31620 PULLEY BELT DRIVE
WE4M416 WE4M416 PUSH TO START SWITCH
WE1M659 WE1M659 PUSH/ START BUTTON GREY
WE4M399 WE4M399 R.SWITCH (XCARE) ON/OFF
WE19M1481 WE19M1481 REAR PANEL
WE4M255 WE4M255 RESISTOR
WE4M407 WE4M407 ROTARY SWITCH 4TEMP REG
WE2M307 WE2M307 SCR 10-16 X 1/2 AB
WE02X20846 WE02X20846 SCR 30 X 20 IA PP
WE2X21976 WE2X21976 SCR 6-20 AB PNP#2 1
WR2X9260 WR2X9260 SCR 6-20X0.84 AB PAN #6 QUADREX #1
WE2M196 WE2M196 SCREW
WD02X10057 WD02X10057 SCREW
WE1M280 WE1M280 SCREW
WE2M173 WE2M173 SCREW
WE2M189 WE2M189 SCREW
WE2M202 WE2M202 SCREW
WE2M223 WE2M223 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M160 WE2M160 SCREW #8
WE02X20422 WE02X20422 SCREW 8-18X7 16
WE2M200 WE2M200 SCREW GROUND
WZ5X158D WZ5X158D SCREW-PKG 12
WZ4X241D WZ4X241D SCREW-PKG 12
WE00X181L WE00X181L SHAFT
WE1M1030 WE1M1030 SHIELD BOTTOM COVER
WE20X20406 WE20X20406 SIDE PANEL WHITE
WE5M48 WE5M48 SOCKET ASSEMBLY
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET
WE1X1192 WE1X1192 STRIKE DOOR
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M325 WE4M325 TERM BLK AND GRND STRAP
WE4M216 WE4M216 THERMOSTAT BIAS DRUM OUT
WE4M160 WE4M160 THERMOSTAT SAFETY LEFT
WE03X25079 WE03X25079 TOP BEARING
WE14X25080 WE14X25080 TRAP DUCT
49-90407-1 49-90407-1 USE & CARE ( GE )
WE2M96 WE2M96 WE2X329
