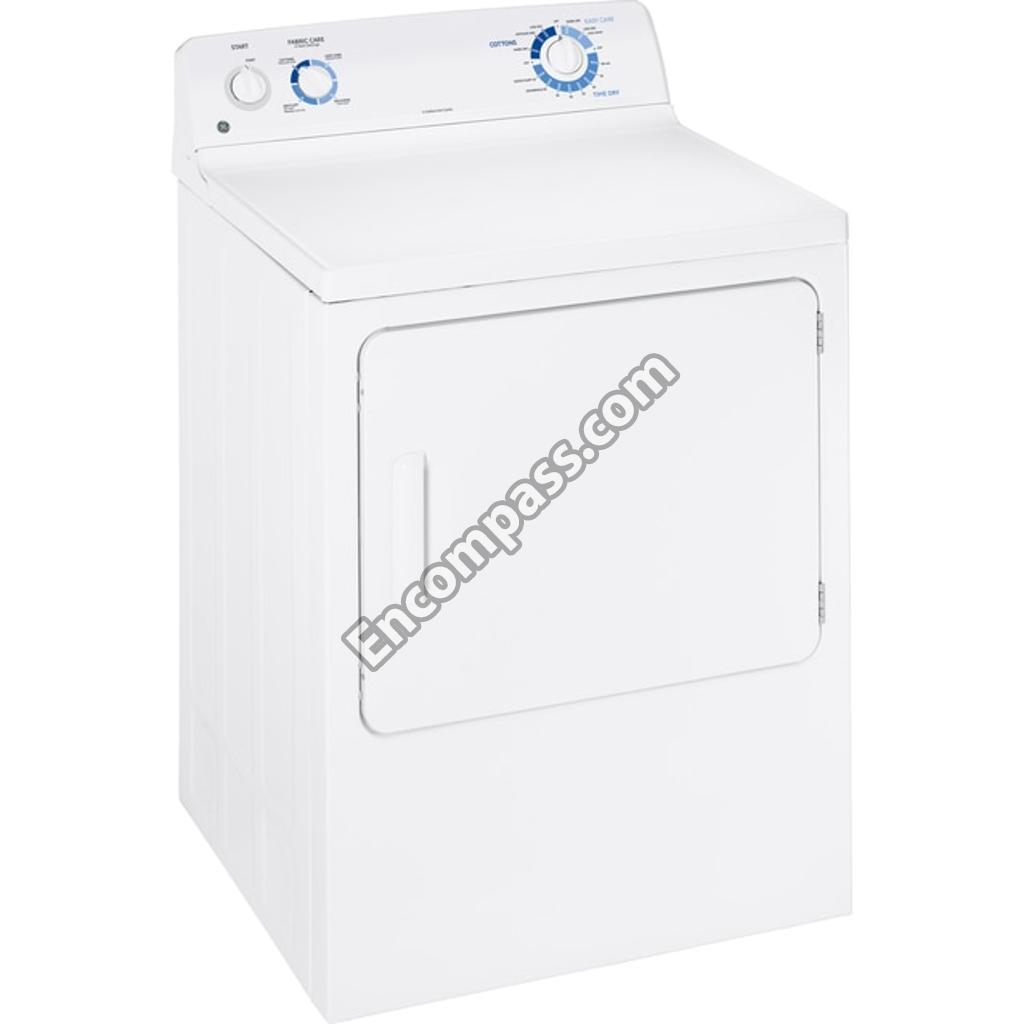

Model Image
Manufacturer

GE

Model Number

GTDX200EM2WW

Description

Dryer Electric

Interactive Exploded View

Parts List

Part Number Description
WE14X21334 WE14X21334 AIR DUCT ASSEMBLY
WE14X25080 WE14X25080 AIR DUCT ASSEMBLY
WE14M75 WE14M75 BAFFLE
WE25M40 WE25M40 BEARING KIT
WE1M300 WE1M300 BEARING RETAINER
WE1M504 WE1M504 BEARING-SLIDE WHITE
WR02X8693 WR02X8693 BEAUTY BUTTON-WHT

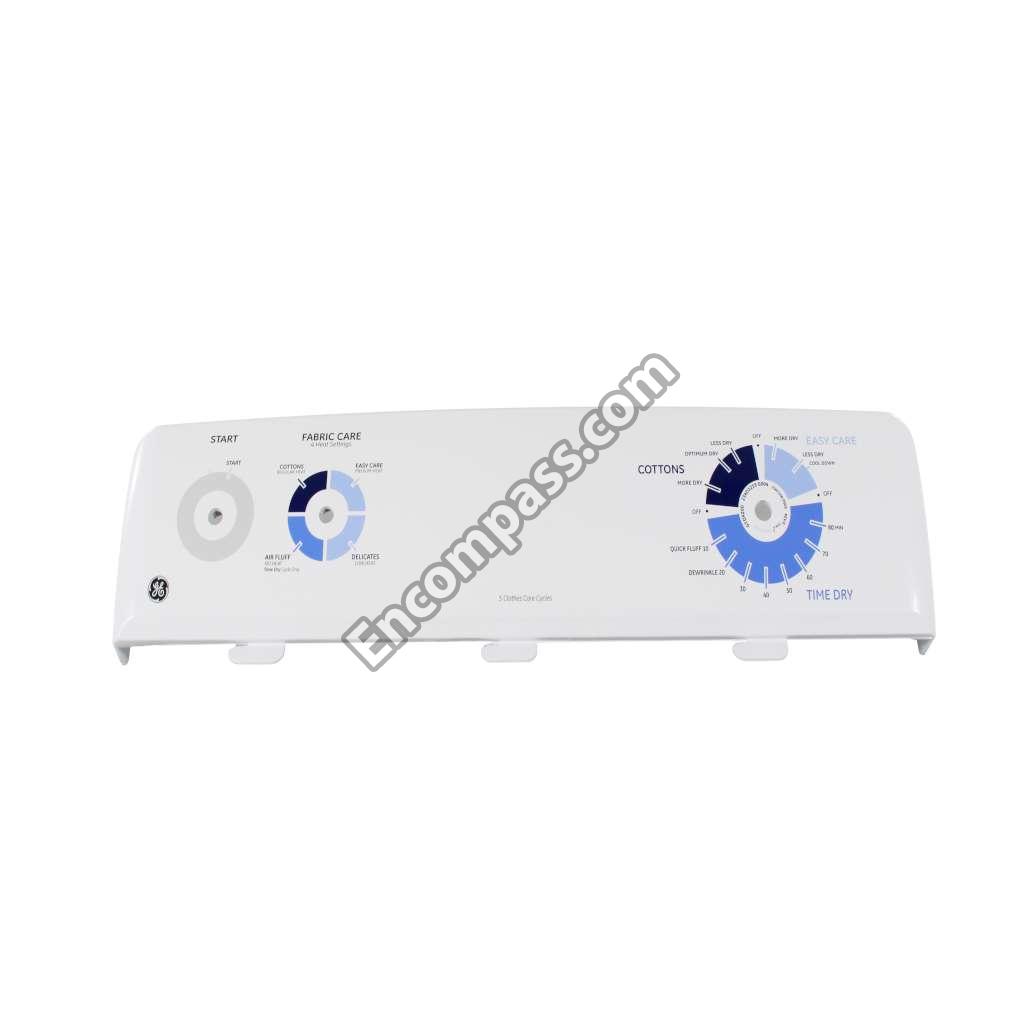

WE19M1678 WE19M1678 BKSPL. ASSEMBLY. AND GRAPH.WH
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE14X20392 WE14X20392 BLOWER HOUSING ASSEMBLY
WE16X20393 WE16X20393 BLOWER WHEEL
WE20X20412 WE20X20412 BOTTOM COVER
WE1M1030 WE1M1030 BOTTOM COVER HEAT SHIELD
WE4M318 WE4M318 BUZZER FIXED
WE20X20391 WE20X20391 CHASSIS BASE
WH01X10106 WH01X10106 CLIP KNOB
WE1M650 WE1M650 CONNECTOR MOTOR
WE20X20417 WE20X20417 COVER WH
WE14X20408 WE14X20408 DEFLECTOR HEAT
WE11X29438 WE11X29438 DEFLECTOR HEAT
WE21X20562 WE21X20562 DRUM ASSEMBLY
WE1M1011 WE1M1011 DRYER DOOR LATCH
WE4M415 WE4M415 DRYER DOOR SWITCH
WE17X22217 WE17X22217 DRYER DRIVE MOTOR
WE03X29897 WE03X29897 DRYER DRUM DRIVE BELT
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE1X921 WE1X921 DRYER MOTOR STRAP
WE4M533 WE4M533 DRYER TIMER
WE14X20421 WE14X20421 ELBOW EXHAUST
WE19X20467 WE19X20467 END CAP RH WH
WE09X20441 WE09X20441 FELT
WE18X25100 WE18X25100 FILTER WH PLASTIC MESH
WE49X22295 WE49X22295 FRONT PANEL AND INNE
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE1M966 WE1M966 GASKET SEAL
WE1M1015 WE1M1015 GROUND STRAP
WE01X20419 WE01X20419 HANDLE WHITE
WE11M10002 WE11M10002 HEATER HOUSING
WE1M1033 WE1M1033 HINGE
WE03X20434 WE03X20434 IDLER ARM
WE10X20418 WE10X20418 INNER DOOR GSKT ASM
31-16224 31-16224 INSTALLATION INSTRUCTION
WE49X22294 WE49X22294 KIT OF SERVICE END CAP
WE01X20374 WE01X20374 KNOB ASSEMBLY TIMER - WH
WE05X20431 WE05X20431 LAMP
WE01X29357 WE01X29357 LEVELING LEG
WE11X20397 WE11X20397 MICA HEATER AND HSNG ASSEMBLY
WE11M10001 WE11M10001 MICA UNIT ASSEMBLY
31-16165 31-16165 MINI-MANUAL
WE01X0921 WE01X0921 MOTOR BRACKET
WE13X20394 WE13X20394 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE10X20468 WE10X20468 OUTER DOOR WH
WE19M1481 WE19M1481 PANEL BACK
WR01X21159 WR01X21159 PLUG DOOR
49-90407 49-90407 PM MANUAL USE & CARE
WE1M780 WE1M780 PROTECTION BRACKET
WE12X83 WE12X83 PULLEY IDLER
WE20X23559 WE20X23559 REAR PANEL 6 CU FT
WE4M255 WE4M255 RESISTOR
WE4M519 WE4M519 ROTARY START SWITCH REG
WE4M407 WE4M407 ROTARY SWITCH 4TEMP REG
WE2M307 WE2M307 SCR 10-16 X 1/2 AB
WE2M308 WE2M308 SCR 815 X 7/16 AB
WE2M202 WE2M202 SCREW
WR2X9260 WR2X9260 SCREW
WE2M173 WE2M173 SCREW
WE2M189 WE2M189 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M196 WE2M196 SCREW #8
WE2M160 WE2M160 SCREW #8
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WE2M200 WE2M200 SCREW GROUND
WE2M215 WE2M215 SCREW SWITCH PLATE 8-18
WZ4X241D WZ4X241D SCREW-PKG 12
WZ5X158D WZ5X158D SCREW-PKG 12
WE20X20406 WE20X20406 SIDE PANEL WHITE
WE20M478 WE20M478 SIDE PANEL WW
WE1M462 WE1M462 SLEEVE DRUM
WE1M1067 WE1M1067 SLIDE DRUM - GREEN
WE03X37317 WE03X37317 SLIDE DRUM - GREEN
WE5M48 WE5M48 SOCKET ASM
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET
WE13X0200 WE13X0200 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WD21X0557 WD21X0557 SWITCH INTERLOCK
WD21X10261 WD21X10261 SWITCH INTERLOCK
WE4M325 WE4M325 TERM BLK & GRND STRAP
WE1M1102 WE1M1102 TERM. BLOCK COVER
WE4M181 WE4M181 THERMOSTAT BIAS CTR INLT
WE4M216 WE4M216 THERMOSTAT BIAS DRUM OUT
WE4M137 WE4M137 THERMOSTAT HI-LIMIT
WE4M160 WE4M160 THERMOSTAT SAFETY LEFT
WE3M26 WE3M26 TOP BEARING
WE01X0980 WE01X0980 U CLIP
WE01X20378 WE01X20378 WASHING MACHINE KNOB - WHITE
WE2M96 WE2M96 WE2X329
