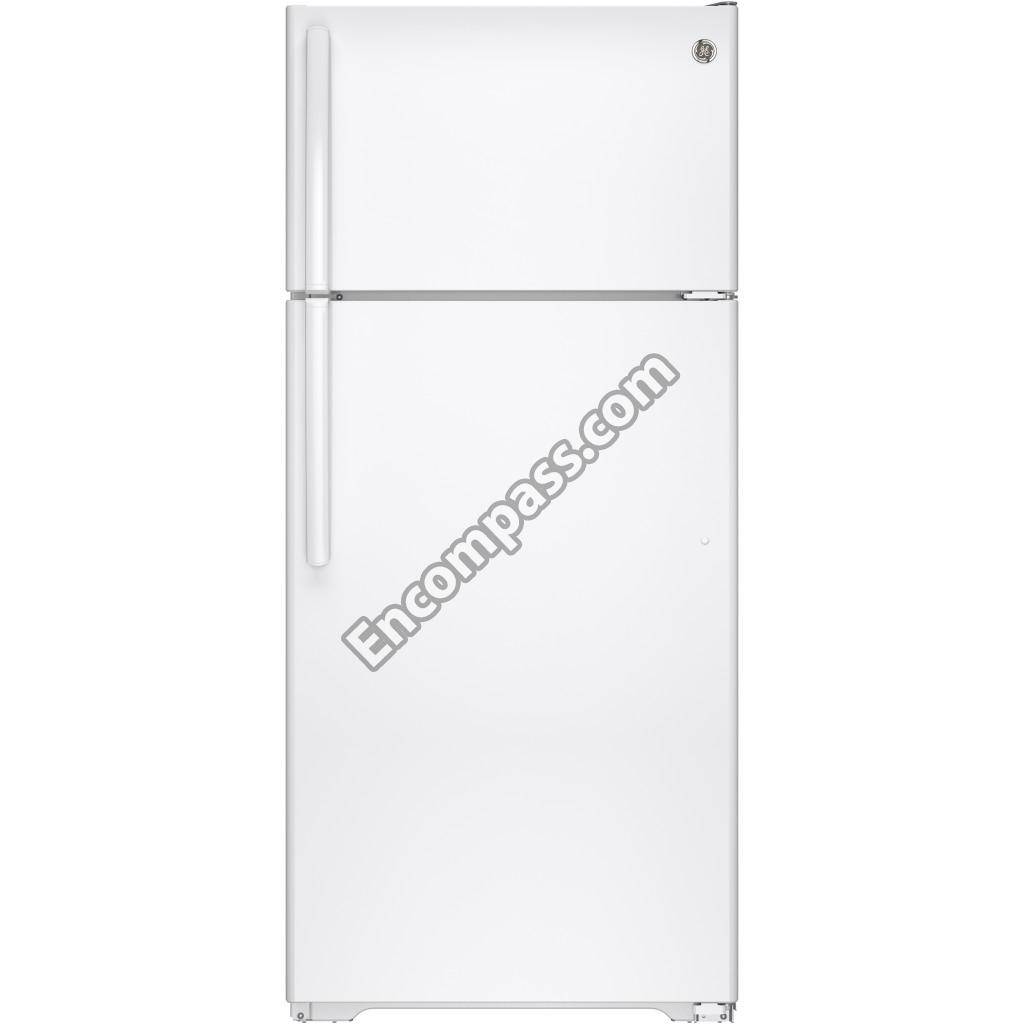

Model Image
Manufacturer

GE

Model Number

GTE18LGHERWW

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WR49X26875 WR49X26875 GE ACTUATOR AIR FOAM
WR02X4039 WR02X4039 GE ADHESIVE CLIP
WR04X10222 WR04X10222 GE BADGE ASSEMBLY GE
WR17X21164 WR17X21164 GE BAFFLE CONDENSER
WR17X36193 WR17X36193 GE BASEPLATE W/ COMPRESSOR STUDS
WR60X10207 WR60X10207 GE BLADE COND FAN ASSEMBLY
WR60X46086 WR60X46086 GE BLADE EVAPORATOR FAN ASSEMBLY.
WR21X30022 WR21X30022 GE BRACKET EVAPORATOR FAN REAR
WR30X30034 WR30X30034 GE BUCKET ICE
WR02X10540 WR02X10540 GE BUMPER
WR02X10703 WR02X10703 GE CAP CORNER OC WHITE
WR2X4039 WR2X4039 GE CLAMP
WR02X11437 WR02X11437 GE CLAMP
WR02X8203 WR02X8203 GE CLIP COMPRESSOR MOUNT
WR02X22564 WR02X22564 GE CLIP RETAINER COMBO
WR01X10182 WR01X10182 GE CLIP U
WR17X24348 WR17X24348 GE CONDENSER FAN SHROUD ASM
WR84X23222 WR84X23222 GE CONDENSER FORMED ASM
WR02X30173 WR02X30173 GE CONTROL HOUSING
WR17X29343 WR17X29343 GE COVER EVAP ASM
WR29X10084 WR29X10084 GE COVER ICEMAKER
WR32X10537 WR32X10537 GE COVER PAN VEG
WR29X10092 WR29X10092 GE CUP FILL IM
WR22X30023 WR22X30023 GE DOOR DAIRY
WR78X23295 WR78X23295 GE DOOR FOAM ASM FF
WR78X23284 WR78X23284 GE DOOR FOAM ASM FZ GLOSS WW
WR01X27364 WR01X27364 GE DOOR HINGE WASHER
WR17X30031 WR17X30031 GE DRAIN TROUGH
WR87X28948 WR87X28948 GE EVAP AND TUBE ASM
WR21X30013 WR21X30013 GE EVAPORATOR FAN FRONT BRACKET
WR01X48767 WR01X48767 GE FASTENER DOOR H AND LE
WR02X9223 WR02X9223 GE GASKET DONUT
WR2X9223 WR2X9223 GE GASKET DONUT
WR14X27231 WR14X27231 GE GASKET DOOR FF WW
WR14X27230 WR14X27230 GE GASKET DOOR FZ
WR02X39772 WR02X39772 GE GASKET SUPPLY FOAM
WR2X7877 WR2X7877 GE GLIDER ADJ
WR02X22869 WR02X22869 GE GROMMET
WR02X10967 WR02X10967 GE GROMMET AND GASKET ASSEMBLY
WR02X12008 WR02X12008 GE GROMMET EVAPORATOR FAN
WR12X32352 WR12X32352 GE HANDLE PLASTIC ASM WHITE
WR12X48765 WR12X48765 GE HANDLE PLASTIC ASM WHITE
WR55X25825 WR55X25825 GE HARNESS JUMPER FUSE
WR55X22872 WR55X22872 GE HARNESS MECH CONTROL
WR09X21107 WR09X21107 GE HEATER DEF ASSEMBLY
WR13X21175 WR13X21175 GE HINGE BOTTOM
WR13X21174 WR13X21174 GE HINGE CENTER
WR13X27091 WR13X27091 GE HINGE TOP AND PIN ASSEMBLY
WR02X13678 WR02X13678 GE HOLDER ELEMENT ASSEMBLY
WR02X21250 WR02X21250 GE KNOB CONTROL
WR02X47625 WR02X47625 GE LEFT FRONT WHEEL ASSEMBLY
WR02X27092 WR02X27092 GE METAL HINGE PIN
WR02X31376 WR02X31376 GE MOBILITY ASM FRONT RH
WR02X47626 WR02X47626 GE MOBILITY ASM FRONT RH
WR60X31522 WR60X31522 GE MOTOR AC/DC EVAP FAN
WR02X21253 WR02X21253 GE NOZZLE SUPPLY FOAM
WR32X31467 WR32X31467 GE PAN SNACK
WR02X31766 WR02X31766 GE PAN VEG TWIN
WR02X21173 WR02X21173 GE PIN HINGE CTR
WR2X8233 WR2X8233 GE PLUG BTN WHT
WR01X21159 WR01X21159 GE PLUG DOOR RVSBL
31-46556-2 31-46556-2 GE PM ATTENTION INSTALLER
31-51921-1 31-51921-1 GE PM MINI MANUAL WIRING
49-60697-4 49-60697-4 GE PM QUICK USE & CARE
WR72X21685 WR72X21685 GE RAIL PAN SNACK LH
WR72X21684 WR72X21684 GE RAIL PAN SNACK RH
WR02X11123 WR02X11123 GE REFER ICE MAKER RECEPTACLE COVER - WHITE
WR17X30028 WR17X30028 GE REFR. FRESH FOOD BOTTOM SHELF - FIXED
WR82X31325 WR82X31325 GE REFRIGERATOR ACCESS COVER
WR02X11760 WR02X11760 GE REFRIGERATOR BUTTON PLUG
WR55X24064 WR55X24064 GE REFRIGERATOR CAPACITOR
WR2X8203 WR2X8203 GE REFRIGERATOR CLIP
WR9X502 WR9X502 GE REFRIGERATOR DEFROST CONTROL
WR23X31507 WR23X31507 GE REFRIGERATOR DOOR LIGHT SWITCH
WR86X10095 WR86X10095 GE REFRIGERATOR DRYER
WR32X21260 WR32X21260 GE REFRIGERATOR GLASS SHELF
WR55X26144 WR55X26144 GE REFRIGERATOR HARNESS ASSEMBLY
WR30X10093 WR30X10093 GE REFRIGERATOR ICE MAKER KIT
WR08X22874 WR08X22874 GE REFRIGERATOR RELAY AND OVERLOAD KIT
WR57X39965 WR57X39965 GE REFRIGERATOR VALVE AND TUBE ASSEMBLY
WR2X8344 WR2X8344 GE REFRIGERATOR VINYL SLEEVE
WD02X10151 WD02X10151 GE SCR 10-16 AB 43WHEX 5/8
WZ04X0263 WZ04X0263 GE SCR 10-16 AB HXW 1/2
WR01X21151 WR01X21151 GE SCR 10-16 AB TRP 3/4 NBS
WR01X26527 WR01X26527 GE SCR 12-24 B UTRPS .700 S
WR01X10589 WR01X10589 GE SCR 8-15 AB IHXW 1/2 S
WR01X1804 WR01X1804 GE SCR 8-18 AB HXW 3/4 WH
WR01X10448 WR01X10448 GE SCR 8-19 HI/LO TRP 1 S
WR01X23006 WR01X23006 GE SCR 8-32 CA HXW 1/2 NS
WR01X10860 WR01X10860 GE SCR 8-32 TT HXW 3/8 S
WR01X10606 WR01X10606 GE SCREW
WD2X5166 WD2X5166 GE SCREW
WR71X21218 WR71X21218 GE SHELF ENCAP
WR17X30024 WR17X30024 GE SHELF FIXED FF
WR71X30014 WR71X30014 GE SHELF FIXED FZ
WR71X21169 WR71X21169 GE SHELF WIRE FZ
WR02X21249 WR02X21249 GE SHIELD REFLECTOR
WR02X26086 WR02X26086 GE SHIELD REFLECTOR
WR02X8344 WR02X8344 GE SLEEVE VINYL
WR17X21210 WR17X21210 GE SLIDE HUMIDITY VEGETABLE PAN
WR87X33165 WR87X33165 GE SNGL SPD COMP KIT 615BTU
WR02X9391 WR02X9391 GE SOCKET & TERMINAL ASM
WR2X9391 WR2X9391 GE SOCKET AND TERM
WR02X28287 WR02X28287 GE STOP DOOR
WR02X21152 WR02X21152 GE STOP DOOR
WR02X3736 WR02X3736 GE STR RELIEF
WR1X5278 WR1X5278 GE STR RELIEF
WR01X27406 WR01X27406 GE STRAP COND ASSEMBLY
WR29X10083 WR29X10083 GE STRIPPER IM
WR02X21166 WR02X21166 GE SUPPORT CONDENSER
WR50X10071 WR50X10071 GE THERMOSTAT DEF
WR17X11492 WR17X11492 GE TUBE PLASTIC
WR32X32505 WR32X32505 GE VEGETABLE PAN COVER W/ SLIDES
WZ4X416 WZ4X416 GE WZ04X0408
