Model Image
Manufacturer

GE

Model Number

GTE21GTHBCC

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR04X10222 WR04X10222 BADGE ASM
WR60X42350 WR60X42350 BLADE COND FAN ASM
WR60X25785 WR60X25785 BLADE FAN EVAPORATOR ASSEMBLY
WR55X22023 WR55X22023 CAPACITOR
WR87X22665 WR87X22665 CONDENSER FORMED ASSEMBLY
WR09X22737 WR09X22737 CONTROL DEFROST
WR09X25787 WR09X25787 CONTROL TEMP
WR13X25651 WR13X25651 COVER ACCESS
WR13X25788 WR13X25788 COVER EVAPORATOR ASSEMBLY
WR02X11123 WR02X11123 COVER IM RECEPTACLE
WR13X24893 WR13X24893 COVER TOP HINGE LH CC
WR13X24892 WR13X24892 COVER TOP HINGE RH CC
WR01X25792 WR01X25792 DAIRY BIN ASSEMBLY
WR02X22674 WR02X22674 DEFROST DRAIN TRAY
WR78X24884 WR78X24884 DOOR FOAM ASSEMBLY FF CC
WR23X20371 WR23X20371 DOOR SWITCH
WR86X22669 WR86X22669 DRYER
WR87X42865 WR87X42865 EVAP ASM
WR87X25797 WR87X25797 EVAP ASM

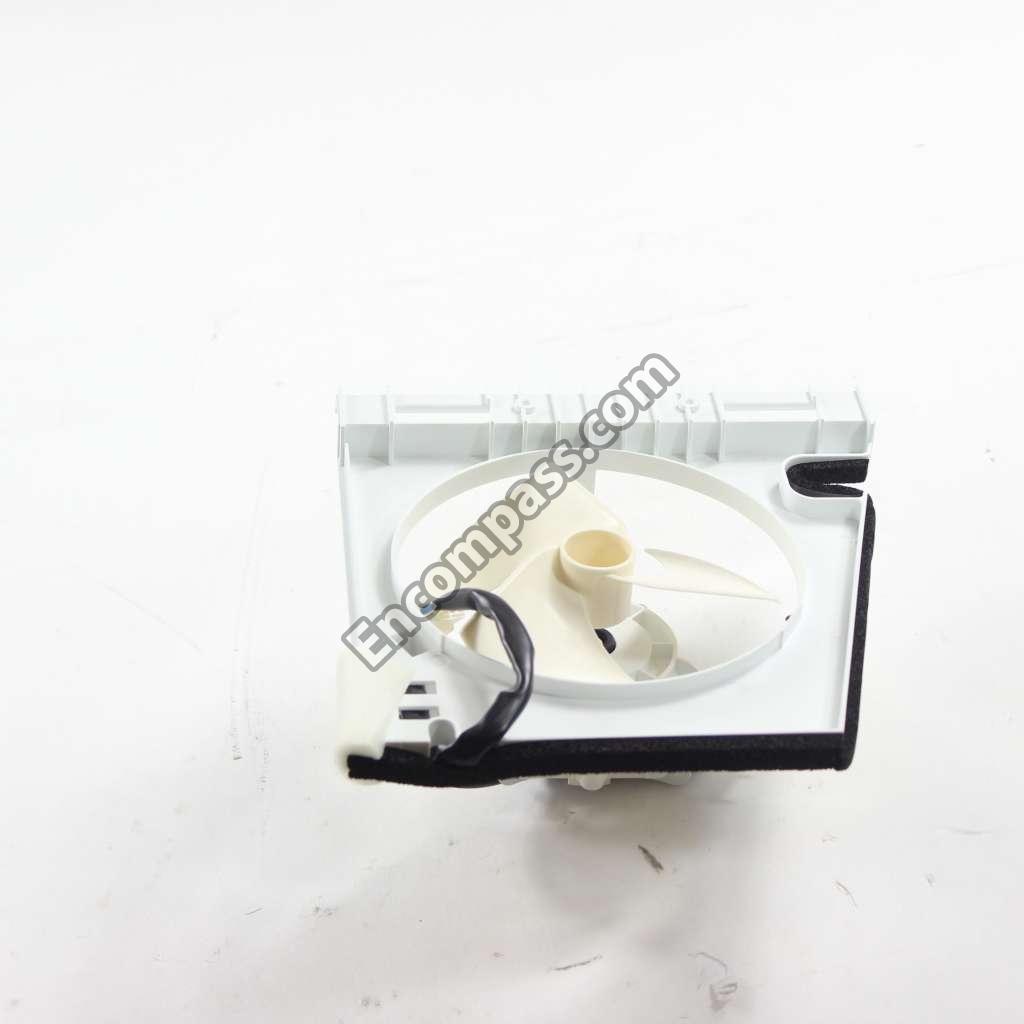

WR60X25798 WR60X25798 FAN EVAPORATOR ASSEMBLY
WR01X25799 WR01X25799 FASTENER DOOR H AND LE
WR02X25800 WR02X25800 FF AIR DUCT FOAM ASSEMBLY
WR01X22740 WR01X22740 FIXED CLAMP
WR78X42871 WR78X42871 FREEZER DOOR - BISQUE
WR13X22760 WR13X22760 GASKET DOOR FF WW
WR13X22762 WR13X22762 GASKET DOOR FZ WW
WR12X37045 WR12X37045 HANDLE PACK CC
WR55X42867 WR55X42867 HARNESS POWER CORD
WR09X24623 WR09X24623 HEATER DEF ASSEMBLY
WR13X22734 WR13X22734 HINGE BOTTOM
WR13X22736 WR13X22736 HINGE CENTER
WR13X24891 WR13X24891 HINGE COVER RVSBL CC
WR13X22745 WR13X22745 HINGE TOP AND PIN ASSEMBLY LH
WR13X22747 WR13X22747 HINGE TOP AND PIN ASSEMBLY RH
WR13X22738 WR13X22738 HOUSING CONTROL
WR02X25804 WR02X25804 KNOB CONTROL
WR02X22732 WR02X22732 KNOB HUMIDITY VEGETABLE PAN
WR02X22743 WR02X22743 LAMP
WR02X22746 WR02X22746 MIDDLE HINGE WASHER
WR02X22741 WR02X22741 MOBILITY ASSEMBLY FRONT
WR01X22823 WR01X22823 PAINTED SCREW
WR71X22728 WR71X22728 PAN SNACK
WR01X22804 WR01X22804 PLUG BUTTON THIMBLE CC
WR01X24888 WR01X24888 PLUG DOOR RVSBL CC
WR02X22803 WR02X22803 PLUG RVSBL BOTTOM CC
WR13X22906 WR13X22906 PLUG RVSBL MIDDLE CC
39-49051 39-49051 PM ATTENTION INSTALLER
49-60726 49-60726 PM GUIDE OWNERS
31-51893 31-51893 PM MINI MANUAL WIRING
49-60728 49-60728 PM QUICK USE & CARE
WR78X27512 WR78X27512 PS DOOR FZ BISQUE
WR55X31710 WR55X31710 PTC STARTER
WR72X22726 WR72X22726 RAIL PAN SNACK LH
WR72X22729 WR72X22729 RAIL PAN SNACK RH
WR01X29548 WR01X29548 REFRIGERATOR BULB COVER
WR60X25786 WR60X25786 REFRIGERATOR CONDENSER FAN
WR71X22723 WR71X22723 REFRIGERATOR FRESH FOOD SHELF ASSEMBLY
WR01X22758 WR01X22758 SCREW
WR01X25813 WR01X25813 SCREW
WR01X22731 WR01X22731 SCREW
WR01X22680 WR01X22680 SCREW
WR01X22673 WR01X22673 SCREW
WR01X20386 WR01X20386 SCREW
WR01X20385 WR01X20385 SCREW
WR01X25811 WR01X25811 SCREW
WR01X25812 WR01X25812 SCREW
WR01X42868 WR01X42868 SCREW
WR71X22904 WR71X22904 SHELF ENDCAP
WR71X22755 WR71X22755 SHELF FIXED FF
WR71X22780 WR71X22780 SHELF FIXED FZ
WR71X22756 WR71X22756 SHELF FIXED UPPER FF
WR71X22724 WR71X22724 SHELF WIRE FZ
WR01X22744 WR01X22744 SHIELD REFLECTOR
WR02X22725 WR02X22725 SLIDE HUMIDITY VEGETABLE PAN
WR87X25648 WR87X25648 SNGL SPD COMPRESSOR KIT
WR02X22749 WR02X22749 SOCKET AND TERMINAL ASSEMBLY
WR01X22805 WR01X22805 STOP DOOR CC
WR02X22668 WR02X22668 SUPPORT CONDENSER
WR08X25646 WR08X25646 THERMAL PROTECTOR OLP
WR50X24624 WR50X24624 THERMOSTAT DEF
WR14X25816 WR14X25816 TOWER AIR
WR71X22730 WR71X22730 VEGETABLE PAN LH
WR71X22727 WR71X22727 VEGETABLE PAN RH
WR02X25817 WR02X25817 WHEEL ADJ FOOT
