Model Image
Manufacturer

GE

Model Number

GTH20SBBASS

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB
WR82X22566 WR82X22566 ACCESS COVER
WR02X13558 WR02X13558 ALUMINIUM FOIL
WR02X13549 WR02X13549 ALUMINIUM FOIL
WR02X13551 WR02X13551 ALUMINUM FOIL
WR02X13550 WR02X13550 ALUMINUM FOIL
WR04X10149 WR04X10149 BADGE ASM GE
WR17X12508 WR17X12508 BAFFLE COND AIR
WR60X10207 WR60X10207 BLADE COND FAN ASM
WR60X30922 WR60X30922 BLADE EVAP FAN ASM
WR55X11104 WR55X11104 BOARD
WR02X11863 WR02X11863 BRACKET COND FAN (MTG)
WR17X12576 WR17X12576 BRACKET CONDENSER BAR
WR02X10100 WR02X10100 BRACKET EVAPORATOR FAN SM
WR17X12507 WR17X12507 BRACKET FAN EVAP FRONT
WR02X10540 WR02X10540 BUMPER
WR02X13540 WR02X13540 CAP CORNER BOTTOM
WR02X13539 WR02X13539 CAP CORNER BOTTOM
WR02X12704 WR02X12704 CAP CORNER OC
WR02X13544 WR02X13544 CAP CORNER TOP
WR02X13543 WR02X13543 CAP CORNER TOP
WR02X13542 WR02X13542 CAP CORNER TOP
WR02X13541 WR02X13541 CAP CORNER TOP
WR62X0079 WR62X0079 CAPACITOR
WR55X24064 WR55X24064 CAPACITOR
WR01X10684 WR01X10684 CLAMP CABLE
WR02X10522 WR02X10522 CLAMP TUBE
WR02X8203 WR02X8203 CLIP COMPRESSOR MOUNT
WR02X10879 WR02X10879 CLIP EVAP THERMISTOR
WR02X11999 WR02X11999 CLIP RETAINER MEI
WR87X20798 WR87X20798 COMPRESSOR ASM MEI
WR84X10104 WR84X10104 CONDENSER BRKT ASM
WR17X13017 WR17X13017 COVER EVAPORATOR
WR02X13552 WR02X13552 COVER MULLION SCREW
WR17X12570 WR17X12570 DAMPER HUMIDITY CTRL
WR17X12569 WR17X12569 DAMPER HUMIDITY CTRL
WR22X10074 WR22X10074 DOOR DAIRY
WR78X12776 WR78X12776 DOOR FOAM FF ASM
WR78X12775 WR78X12775 DOOR FOAM FZ
WR02X13555 WR02X13555 DUCT ASSEMBLY STD
WR02X13548 WR02X13548 EPS BLOCK EVAP
WR02X12800 WR02X12800 FASTENER HANDLE SS
WR02X13556 WR02X13556 FOAM STRIP SE ADH
WR14X10053 WR14X10053 FOAM STRIP SE ADH
WR14X10361 WR14X10361 FOAM STRIP SE ADH
WR14X10360 WR14X10360 FOAM STRIP SE ADH
WR14X10362 WR14X10362 FOAM STRIP SE ADH
WR02X13559 WR02X13559 FOIL BOARD COVER
WR02X13547 WR02X13547 FOIL COVER EVAP
WR72X10331 WR72X10331 FRAME COVER VEG PAN
WR24X10277 WR24X10277 GASKET
WR24X10278 WR24X10278 GASKET
WR02X13557 WR02X13557 GASKET DUCT TOP
WR32X10696 WR32X10696 GLASS COVER VEG PAN
WR02X22869 WR02X22869 GROMMET
WR02X11331 WR02X11331 GROMMET EVAP FAN
WR12X10906 WR12X10906 HANDLE AND CAP ASM
WR12X10905 WR12X10905 HANDLE AND CAP ASM
WR23X10717 WR23X10717 HARNESS CONTROL
WR51X10038 WR51X10038 HEATER CONDUCTION
WR51X10052 WR51X10052 HEATER CONDUCTION
WR13X10952 WR13X10952 HINGE BOTTOM

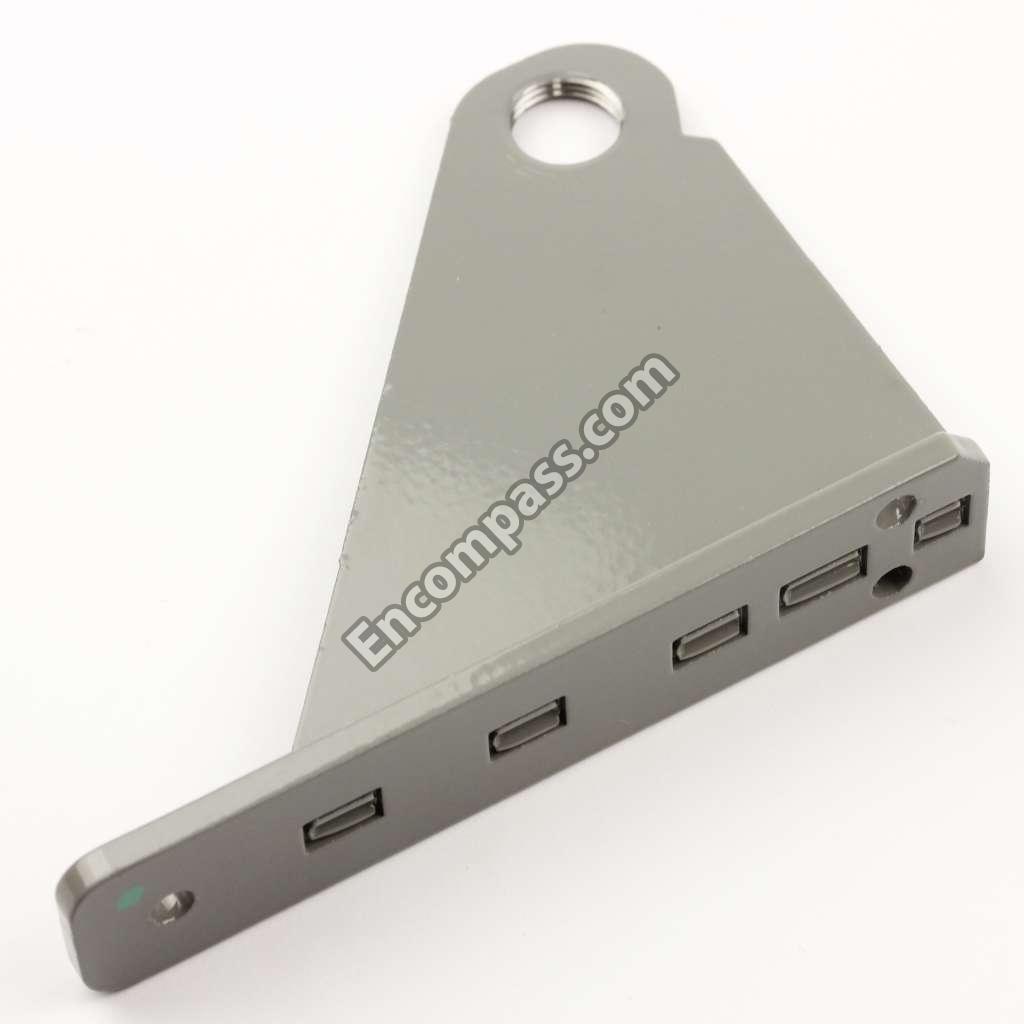

WR13X10950 WR13X10950 HINGE CENTER ASM
WR13X10949 WR13X10949 HINGE TOP AND PIN ASM
WR02X10518 WR02X10518 HOLDER ELEMENT
WR17X13019 WR17X13019 HOUSING CONTROL
WR17X12728 WR17X12728 HSG/BRACKET COND FAN
WR17X12572 WR17X12572 KNOB HUMIDITY CTRL
WR17X12571 WR17X12571 KNOB HUMIDITY CTRL
WR02X13554 WR02X13554 KNOB THUMB CONTROL
WR02X9318 WR02X9318 LIGHT SHIELD
WR2X9318 WR2X9318 LIGHT SHIELD
WR85X10113 WR85X10113 LOW SIDE ASM
WR02X12334 WR02X12334 MOBILITY FRONT ASM
WR60X21887 WR60X21887 MOTOR AC/DC EVAPORATOR FAN.
WR60X10220 WR60X10220 MOTOR COND FAN
WR04X10175 WR04X10175 OVERLAY HOUSING
WR07X10143 WR07X10143 OVERLOAD PTCR COMBO
WR86X25269 WR86X25269 P/S DRYER KIT R134A
WR32X10698 WR32X10698 PAN SNACK

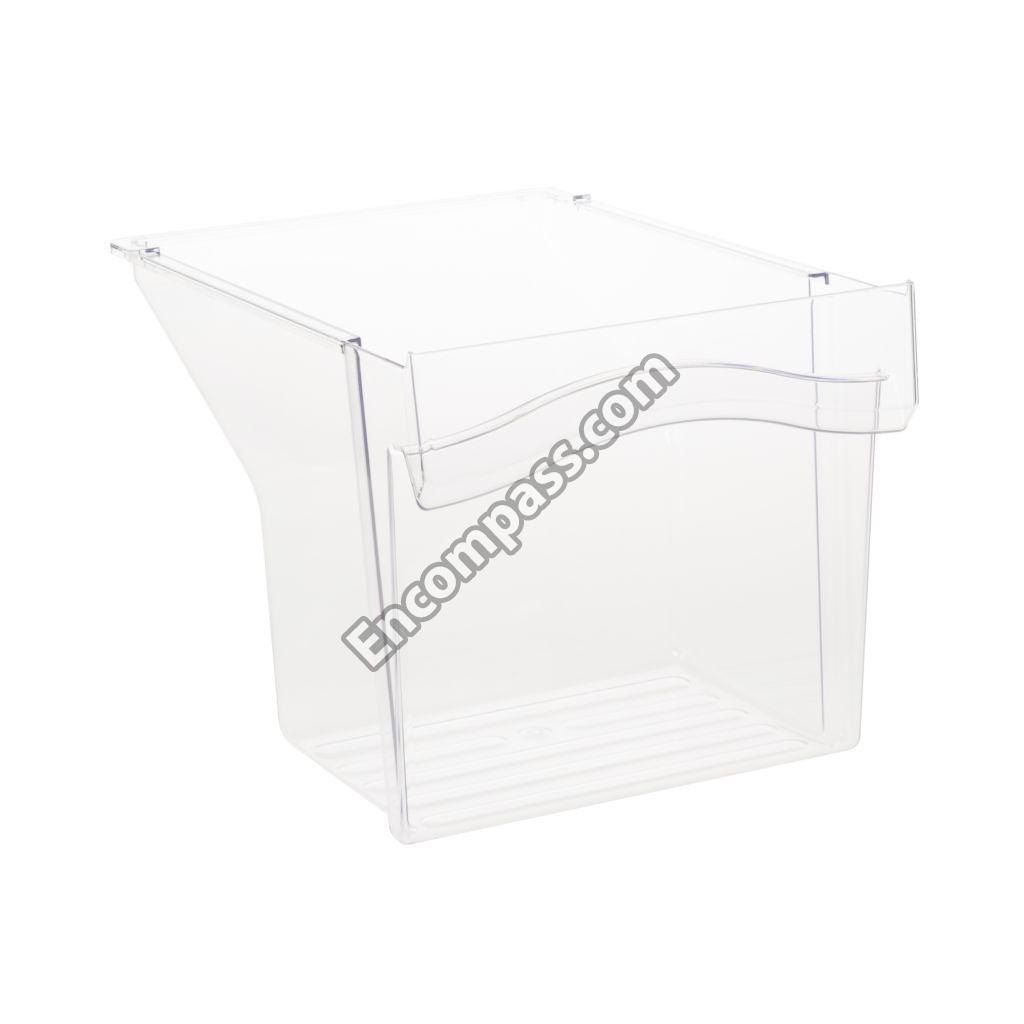

WR32X10850 WR32X10850 PAN VEG
WR13X10179 WR13X10179 PIN HINGE CENTER
WR13X10951 WR13X10951 PIN HINGE METAL
WR02X7148 WR02X7148 PLUG BUTTON
WR02X11760 WR02X11760 PLUG BUTTON
WR02X13560 WR02X13560 PLUG BUTTON
WR02X13047 WR02X13047 PLUG BUTTON
WR02X13545 WR02X13545 PLUG BUTTON THIMBLE
WR02X13048 WR02X13048 PLUG COVER
WR02X10693 WR02X10693 PLUG COVER AND GASKET ASSEMBLY
WR02X12039 WR02X12039 PLUG DOOR REV SS

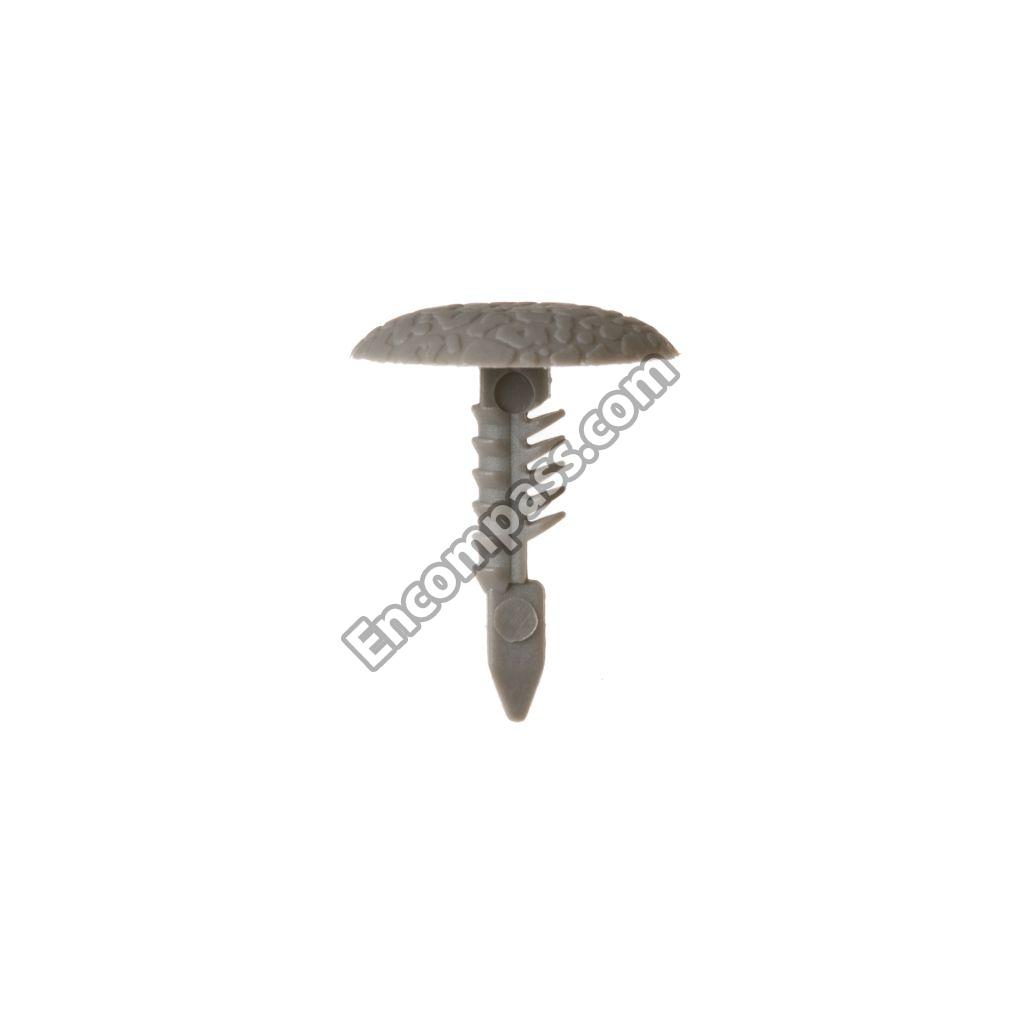

WR02X13546 WR02X13546 PLUG DOOR RVSBL
49-60654 49-60654 PM GUIDE OWNERS
31-51817 31-51817 PM MINI WIRING MANUAL
WR23X0108 WR23X0108 POWER CORD
WR23X10300 WR23X10300 POWER CORD
WR2X8203 WR2X8203 REFRIGERATOR CLIP
WR2X9000 WR2X9000 REFRIGERATOR CONDENSER CLIP
WR23X37285 WR23X37285 REFRIGERATOR LIGHT SWITCH
WR02X12149 WR02X12149 RING COMPRESSION
WR01X10611 WR01X10611 SCR 10-16
WR01X1726 WR01X1726 SCR 10-16 AB 3/4 SS
WR01X10620 WR01X10620 SCR 10-32
WR01X10622 WR01X10622 SCR 10-32 B IHXW 1/2
WR01X10792 WR01X10792 SCR 12-24 TT HX 7/8 S
WR01X10986 WR01X10986 SCR 1224 TT HXT20 90 S
WR01X10606 WR01X10606 SCR 8-18 AB HXW 1/2 S
WR01X10625 WR01X10625 SCR 8-18 AB HXW 1/4 S
WR01X10626 WR01X10626 SCR 8-18 AB HXW 5/4 S
WR01X1554 WR01X1554 SCR 8-18 AB IHXW 1/2 S
WR1X1466 WR1X1466 SCR 8-32 T HXW 3/8 S
WZ5X158D WZ5X158D SCR 8-32 T HXW 3/8 S
WR1X1786 WR1X1786 SCREW
WR1X1753 WR1X1753 SCREW
WR01X10654 WR01X10654 SCREW 10-32 TT HXW 5/16 S
WR01X1753 WR01X1753 SCREW 12-24
WR01X10210 WR01X10210 SCREW MOBILITY.
WR1X1726D WR1X1726D SCREW-PKG 12
WR55X10025 WR55X10025 SENSOR TEMP FF
WR71X11017 WR71X11017 SHELF DOOR FF
WR71X11015 WR71X11015 SHELF DOOR FZ
WR72X10412 WR72X10412 SHELF FULL SP ASM
WR71X11016 WR71X11016 SHELF MODULE
WR71X11019 WR71X11019 SHELF SPLIT SP ASM
WR71X11020 WR71X11020 SHELF SPLIT SP ASM
WR71X11018 WR71X11018 SHELF WIRE FZ
WR02X13341 WR02X13341 SHIELD LIGHT FZ
WR01X10623 WR01X10623 SHOULDER SCR
WR02X9391 WR02X9391 SOCKET & TERMINAL ASM
WR2X9391 WR2X9391 SOCKET AND TERM
WR02X13553 WR02X13553 SPACER BOTTOM HINGE
WR01X10220 WR01X10220 SPRING KNOB
WR01X20124 WR01X20124 SPRING KNOB
WR02X13536 WR02X13536 STOP DOOR
WR1X1779 WR1X1779 STUD MTGCOMP
WR02X13504 WR02X13504 SUPPORT VEGETABLE PAN ASSEMBLY
WR2X7973 WR2X7973 SUPT SHELF
WR23X10244 WR23X10244 SWITCH LIGHT FF
WR50X10071 WR50X10071 THERMOSTAT DEF

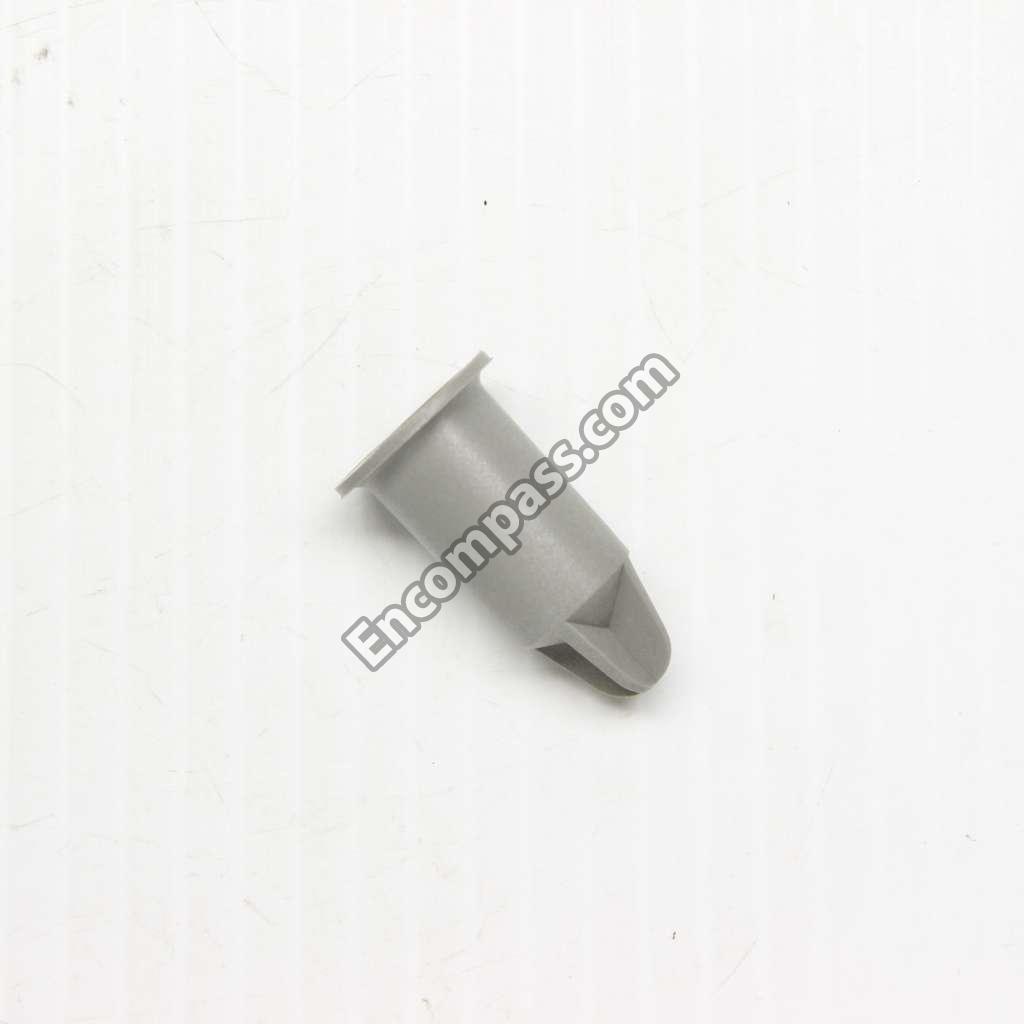

WR02X13538 WR02X13538 THIMBLE DOOR PLASTIC

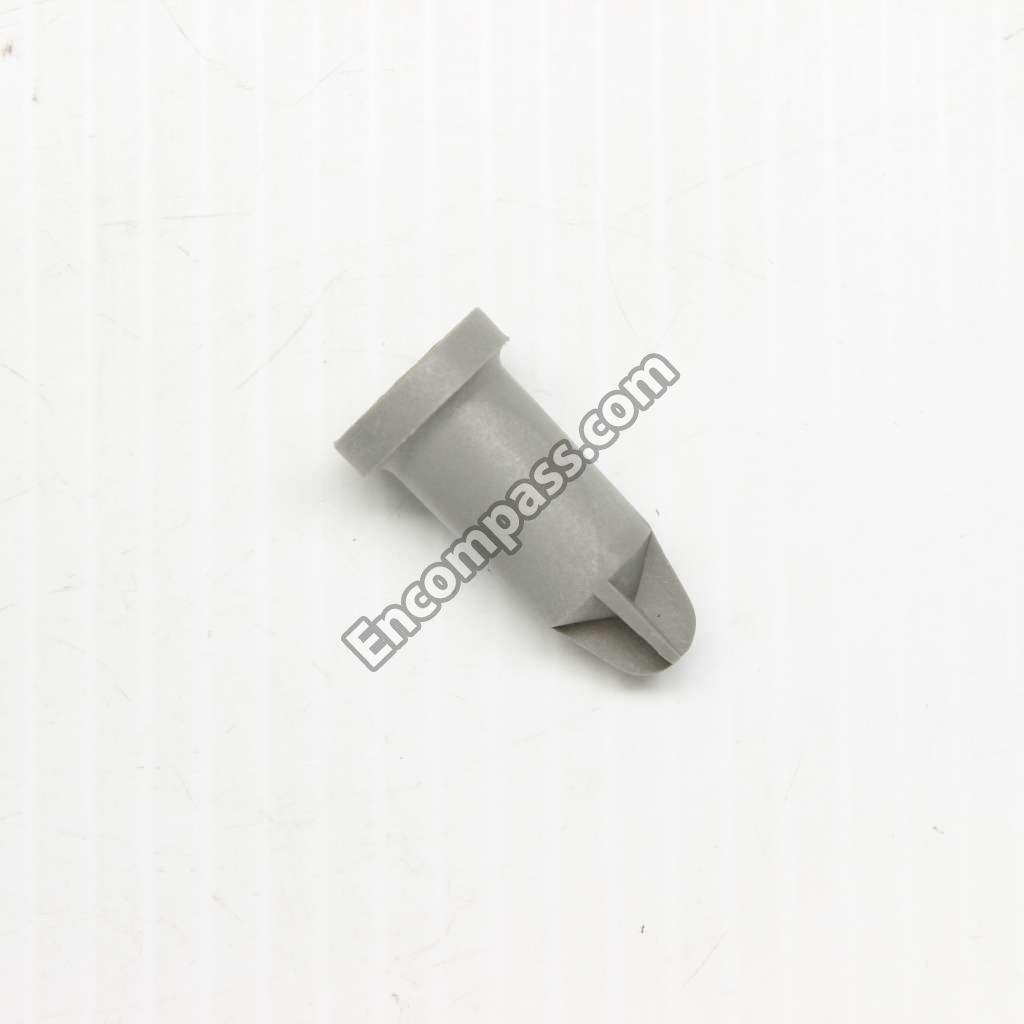

WR02X13537 WR02X13537 THIMBLE DOOR PLASTIC
WR17X13018 WR17X13018 TOWER AIR
WR30X10026 WR30X10026 TRAY ICE
WR17X10988 WR17X10988 TROUGH DRAIN ASSEMBLY
WR02X11426 WR02X11426 TUBE DRAIN
WR02X10695 WR02X10695 WHEEL MOBILITY
WR02X11027 WR02X11027 WIRE TIE
