Model Image
Manufacturer

GE

Model Number

GTH21SBXASS

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR87X20798 WR87X20798 A ASSEMBLY HI SIDE
WR01X10722 WR01X10722 ABSORBER C FAN MOTOR
WR01X10724 WR01X10724 ABSORBER COMP
WR01X10723 WR01X10723 ABSORBER MUFFLER
WR02X12523 WR02X12523 ABSORBER PIPE B
WR04X10149 WR04X10149 BADGE ASM GE
WR17X12332 WR17X12332 BASE COMP SAS
WR17X12341 WR17X12341 BOX CONTROL DBL
WR02X12518 WR02X12518 BRACKET VALVE
WR02X12515 WR02X12515 BUSHING PIPE
WR02X12504 WR02X12504 CAP BUSHING
WR02X12516 WR02X12516 CAP BUSHING
WR02X12524 WR02X12524 CAP F DRN P(B)
WR01X10730 WR01X10730 CAP HANDLE SCREW (BLACK)
WR02X12508 WR02X12508 CAP HI M HOLE
WR02X12506 WR02X12506 CAP HINGE M
WR02X12505 WR02X12505 CAP HINGE T HOLE
WR02X12503 WR02X12503 CAP SLIDING

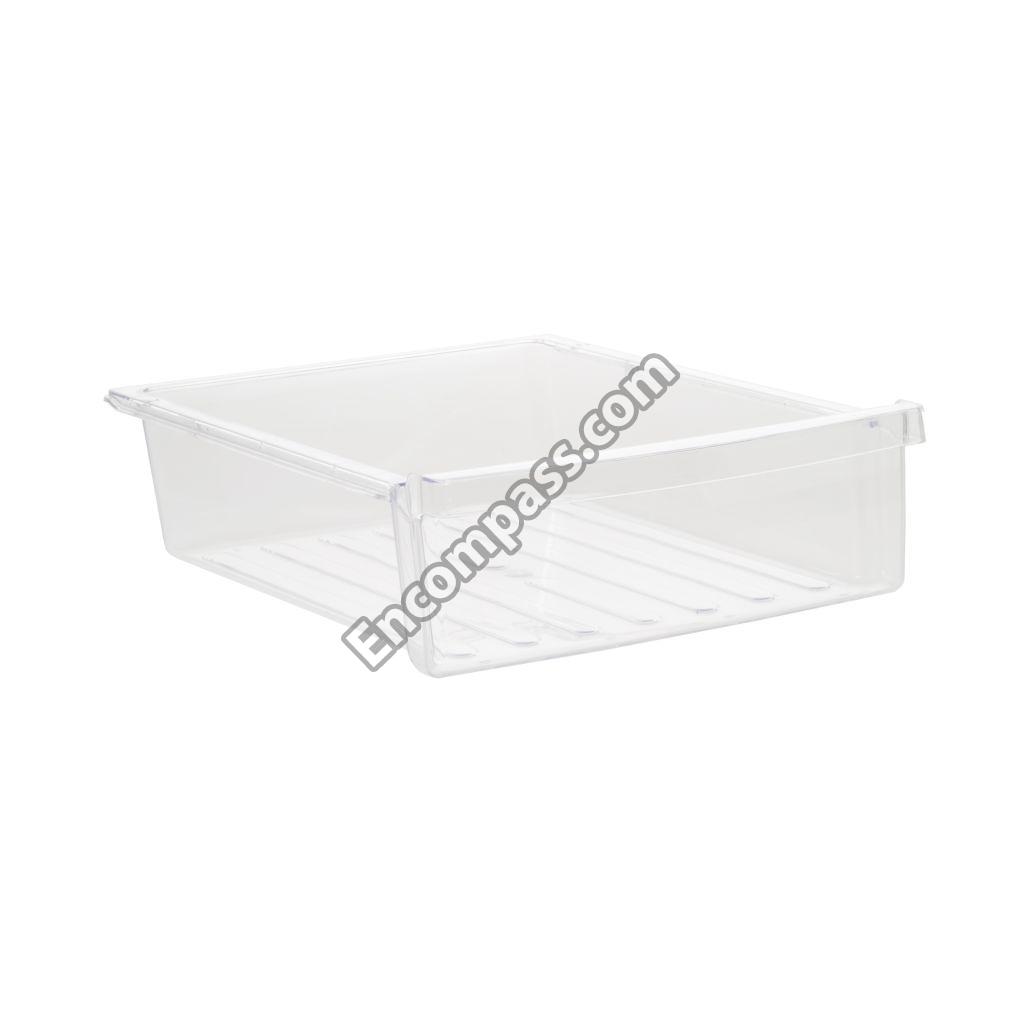

WR32X10640 WR32X10640 CASE CHILLED
WR02X12542 WR02X12542 CASE ICING
WR02X12543 WR02X12543 CASE VAPORI
WR32X10641 WR32X10641 CASE VEGETB
WR02X12541 WR02X12541 CASTER FZ
WR02X12539 WR02X12539 CASTER FZ ASM
WR02X12495 WR02X12495 CLAMP FAN
WR02X12496 WR02X12496 CLAMP RELAY COVER
WR32X10635 WR32X10635 COVER CAB BRKT FZ ASM
WR32X10638 WR32X10638 COVER DAIRY
WR13X10460 WR13X10460 COVER FAN FZ ASM
WR02X12500 WR02X12500 COVER ICE HOUSING
WR32X10630 WR32X10630 COVER LEAD WATER
WR32X10634 WR32X10634 COVER M/F DUCT
WR32X10631 WR32X10631 COVER RELAY
WR32X10633 WR32X10633 COVER T HI
WR32X10645 WR32X10645 COVER VEGETB CASE
WR02X12544 WR02X12544 DECO M/F DUCT

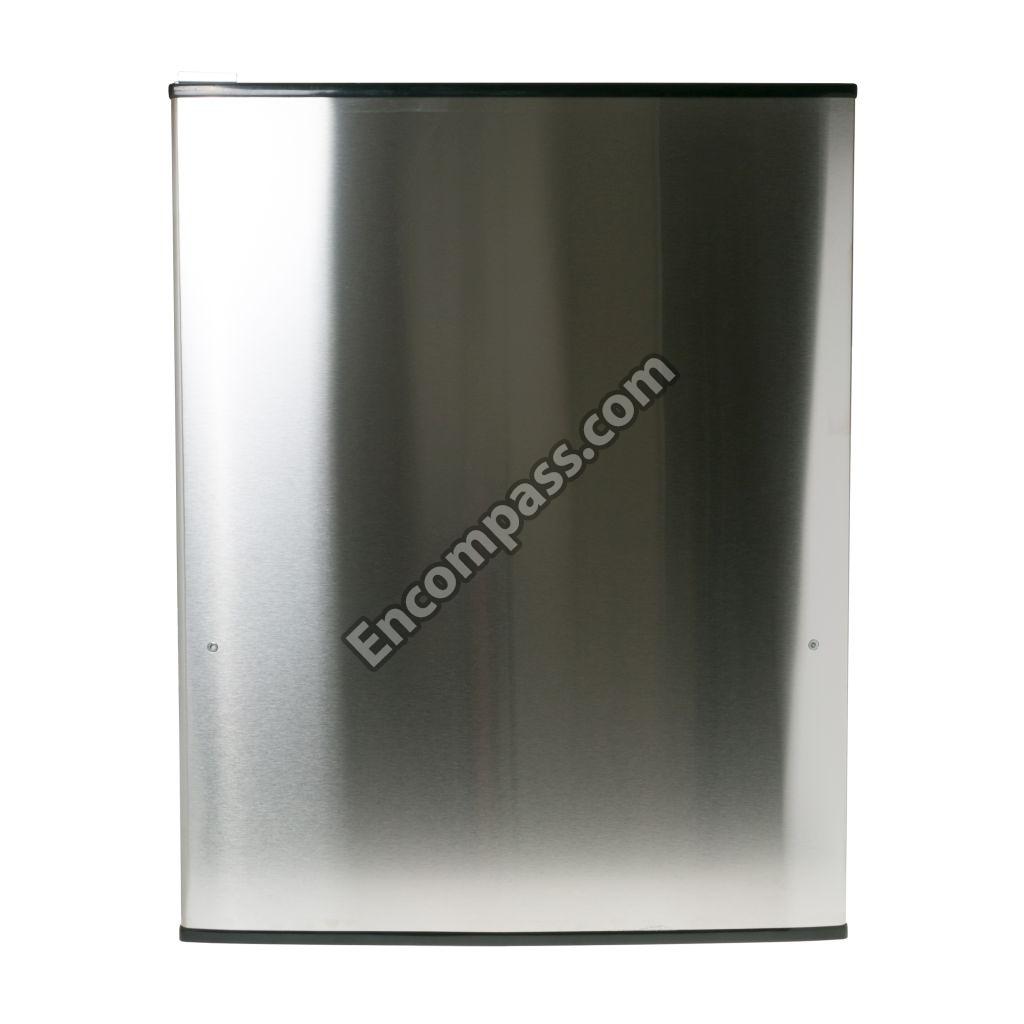

WR78X12090 WR78X12090 DOOR ASM FF SS
WR78X12089 WR78X12089 DOOR ASM FZ SS
WR86X10043 WR86X10043 DRYER
WR17X12331 WR17X12331 EVAPORATOR ASM

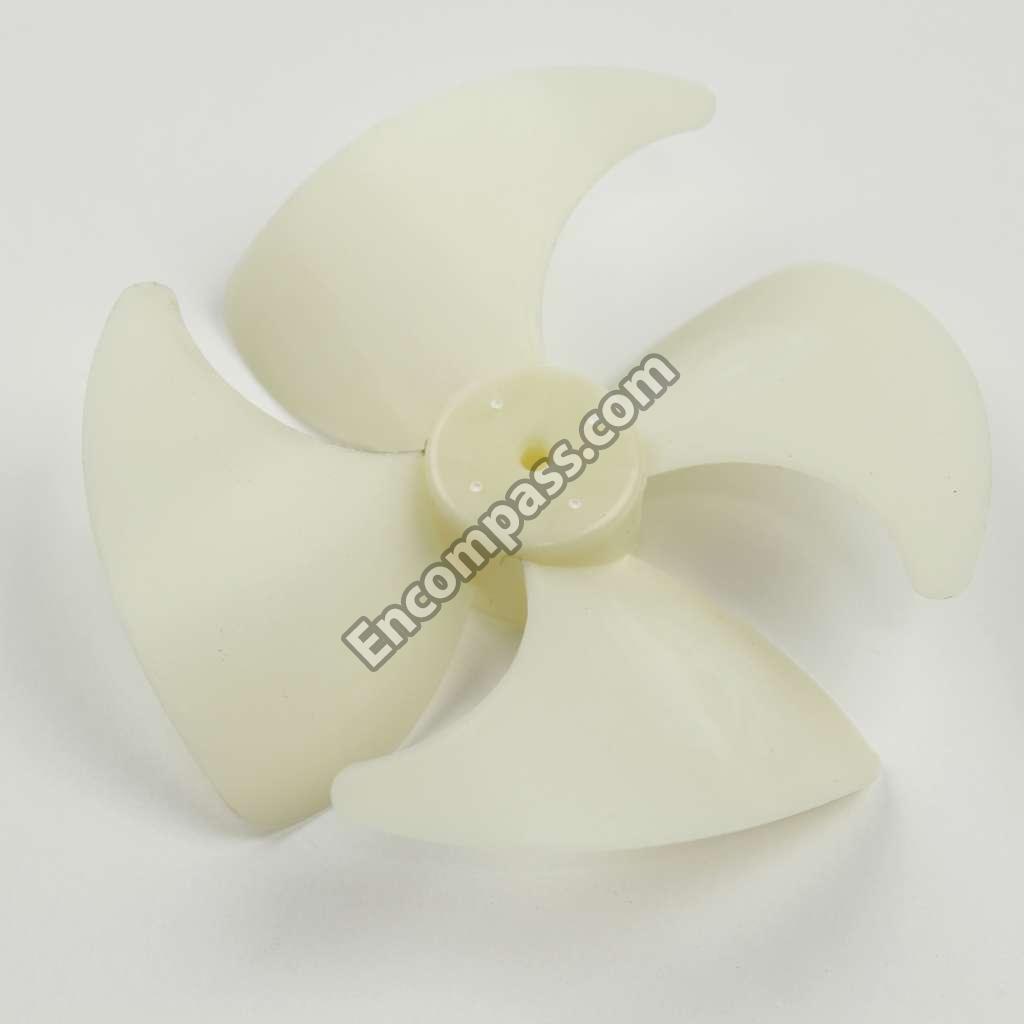

WR02X12499 WR02X12499 FAN
WR02X12498 WR02X12498 FAN C
WR01X10699 WR01X10699 FIXTURE DC FZ MOTOR
WR01X10695 WR01X10695 FIXTURE FAN C
WR01X10696 WR01X10696 FIXTURE FAN MOTOR B

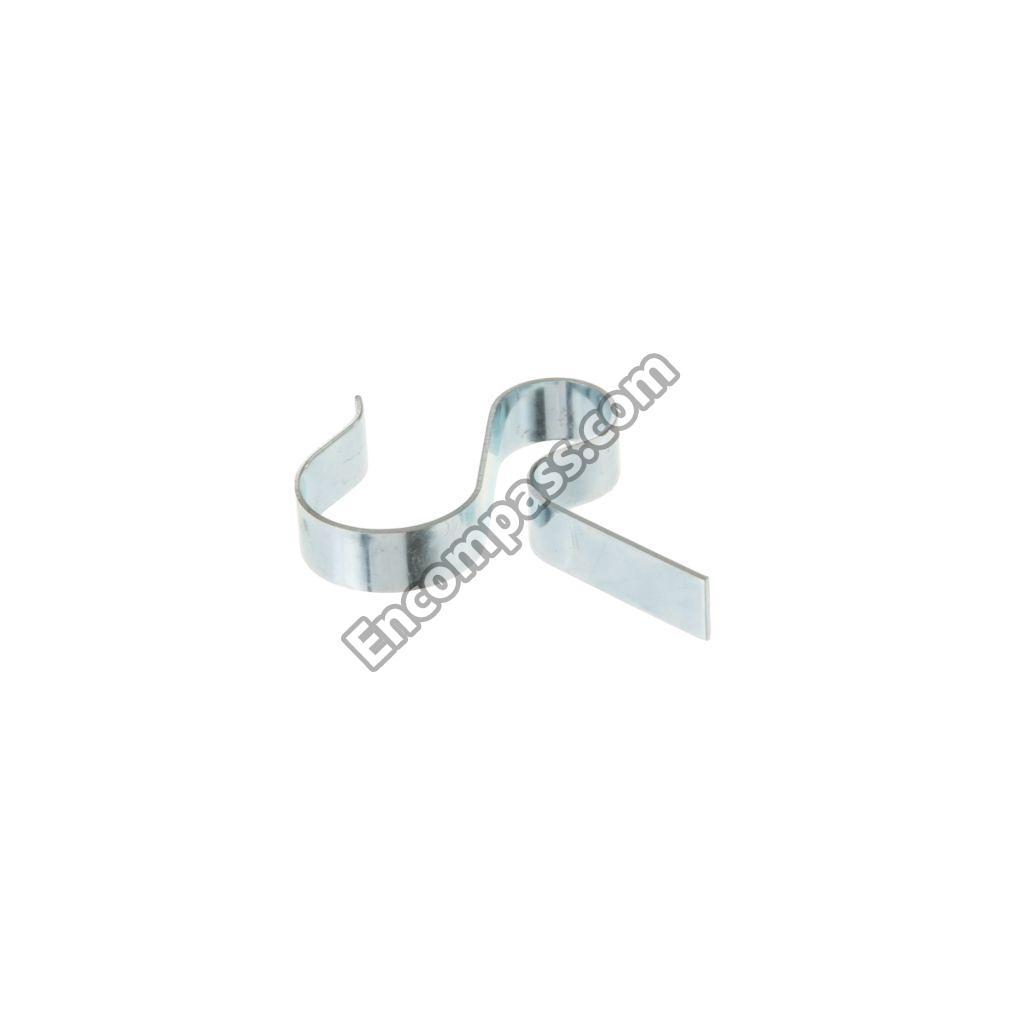

WR01X10697 WR01X10697 FIXTURE HEATER
WR01X10700 WR01X10700 FIXTURE POWER CORD
WR02X12540 WR02X12540 FLAP DUCT
WR02X12545 WR02X12545 FOOT ADJUST ASM
WR02X12546 WR02X12546 FRAME MOTOR C
WR14X10242 WR14X10242 GASKET COVER VEGTB B
WR14X10240 WR14X10240 GASKET COVER VEGTB F
WR14X10287 WR14X10287 GASKET FF DOOR ASM BB

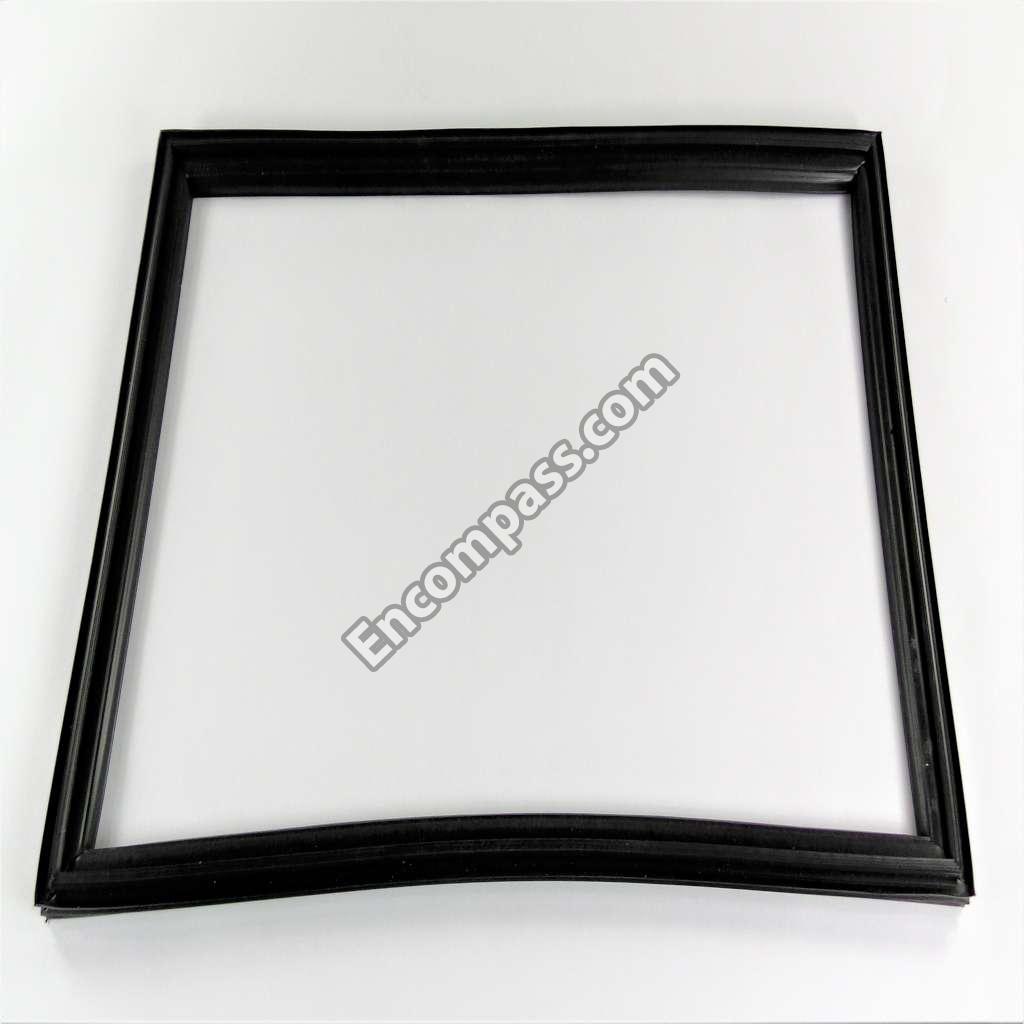

WR14X10286 WR14X10286 GASKET FZ DOOR ASM BB
WR14X10241 WR14X10241 GASKET LOUVER
WR17X12329 WR17X12329 GRILLE
WR02X12519 WR02X12519 GUIDE COVER VEGETB
WR17X12330 WR17X12330 GUIDE DRN
WR02X12520 WR02X12520 GUIDE FF SENS DBL
WR12X10890 WR12X10890 HANDLE PACK ASM SS
WR23X10563 WR23X10563 HARNESS BOX CONT ASM
WR23X10561 WR23X10561 HARNESS C FAN MOTR
WR23X10562 WR23X10562 HARNESS LUVR ASM
WR23X10560 WR23X10560 HARNESS P RELAY ASM

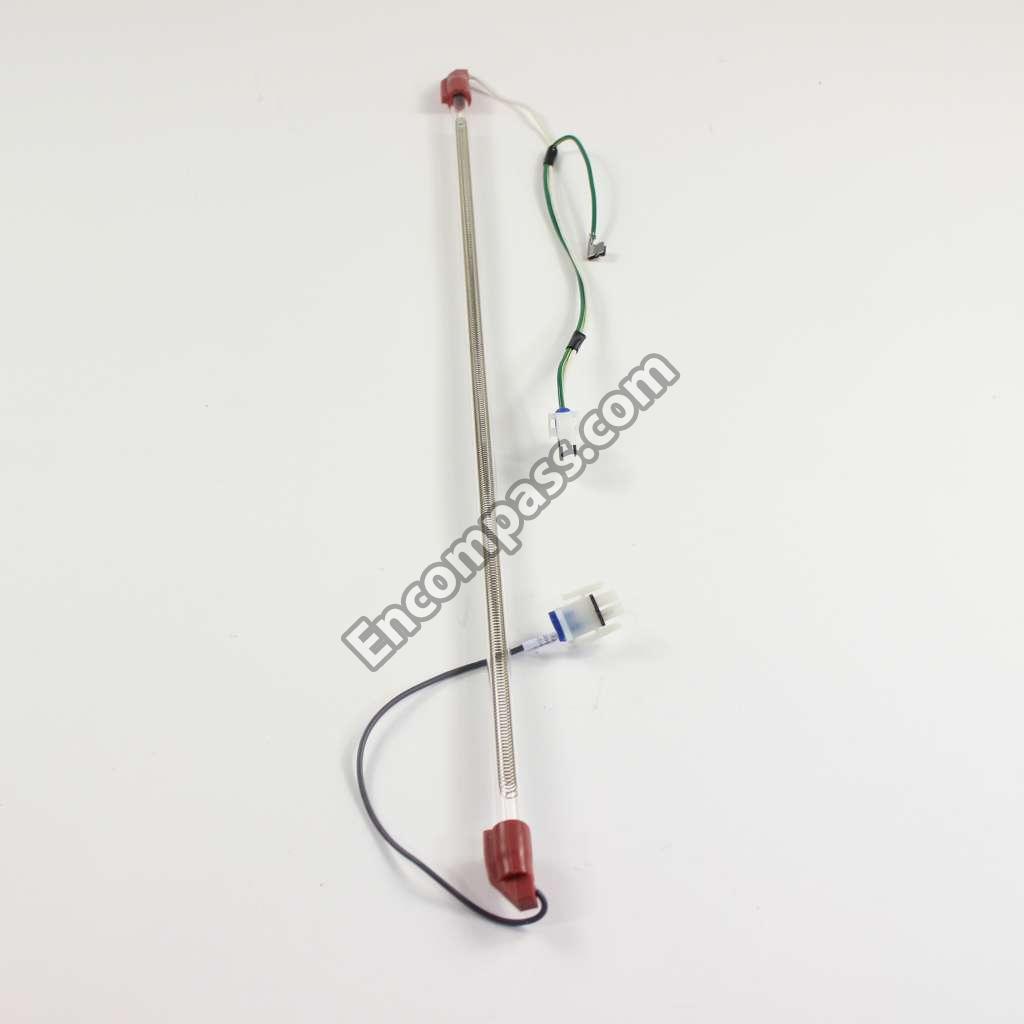

WR51X10096 WR51X10096 HEATER DEFROST ASM
WR13X10459 WR13X10459 HINGE M ASM BLK
WR13X10464 WR13X10464 HINGE T ASM

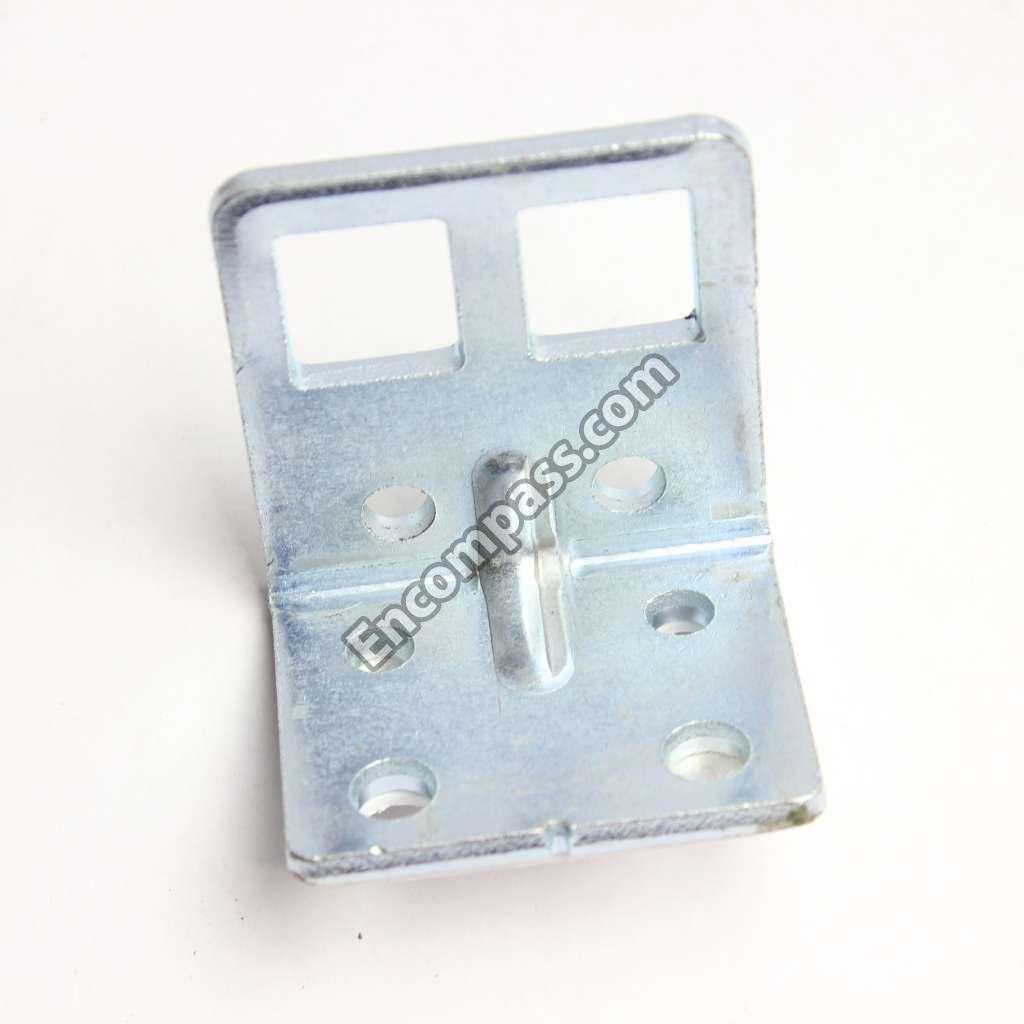

WR13X10457 WR13X10457 HINGE U ASM
WR72X10243 WR72X10243 HOLDER C/C SHELF L
WR72X10244 WR72X10244 HOLDER C/C SHELF R
WR02X12521 WR02X12521 HOLDER PIPE WICON
WR72X10242 WR72X10242 HOLDER SHELF L
WR72X10245 WR72X10245 HOLDER SHELF R
WR17X12336 WR17X12336 INSU M/F DUCT ASM
WR17X12335 WR17X12335 INSU R DUCT (T) DBL
WR17X12334 WR17X12334 INSU R DUCT M DBL

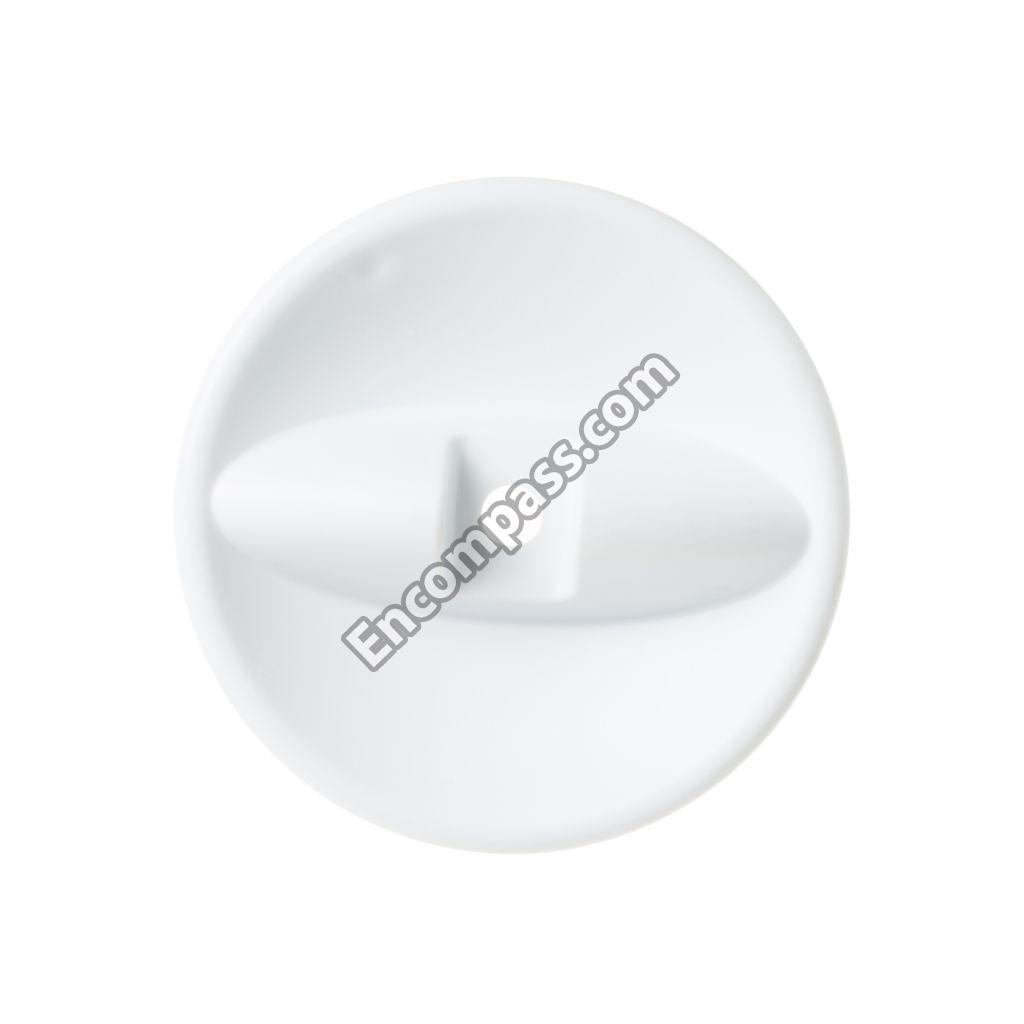

WR02X12547 WR02X12547 KNOB FF DIAL
WR02X12549 WR02X12549 KNOB FZ DIAL
WR02X12548 WR02X12548 KNOB HUMID
40A15 40A15 LAMP ASM
WR02X12531 WR02X12531 LEVER FLAP
WR13X10465 WR13X10465 LOUVER FZ
31-46109 31-46109 MINI MANUAL
WR60X20329 WR60X20329 MOTOR C ASSEMBLY
WR60X26085 WR60X26085 MOTOR FZ ASSEMBLY
WR01X10728 WR01X10728 PAD EVAP (L)
WR01X10729 WR01X10729 PAD EVAP (R)
WR02X12535 WR02X12535 PIPE CONN DEL
WR02X12532 WR02X12532 PIPE MUFFLER
WR02X12534 WR02X12534 PIPE SUC CONN
WR02X12533 WR02X12533 PIPE SVC
WR84X10084 WR84X10084 PIPE WICON SAS
WR79X10044 WR79X10044 PLATE INST GLASS
WR02X12536 WR02X12536 PLATE LAMP
WR12X10942 WR12X10942 PLUG BUTTON
49-60505 49-60505 PM GUIDE OWNERS
WR71X10769 WR71X10769 POCKET BOTTLE
WR71X10771 WR71X10771 POCKET DAIRY
WR71X10770 WR71X10770 POCKET FF
WR71X10768 WR71X10768 POCKET FZ DOOR

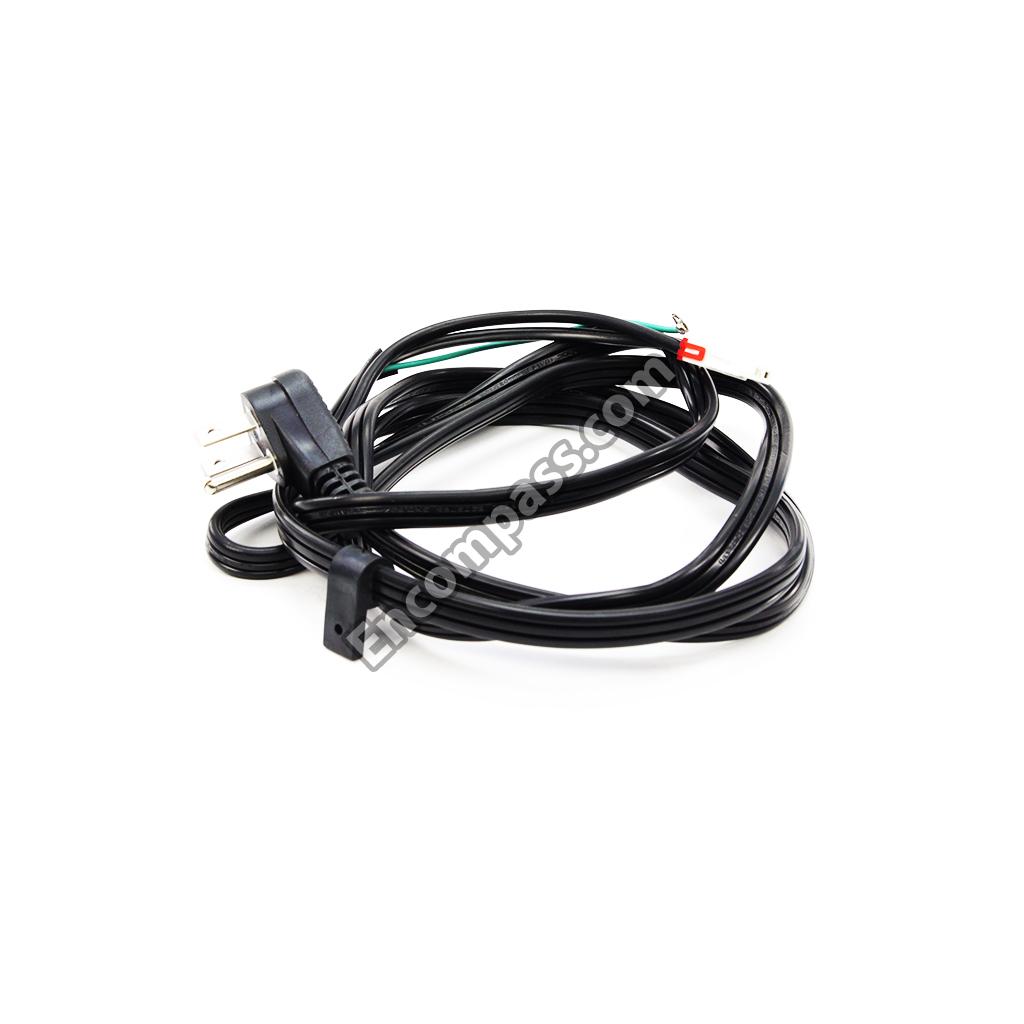

WR23X10570 WR23X10570 POWER CORD ASM
WR38X10405 WR38X10405 REIN COVER VEGET B
WR07X10101 WR07X10101 RELAY OL
WR07X10100 WR07X10100 RELAY STARTING
WR62X10062 WR62X10062 RUNNING CAPACITOR
WR01X10718 WR01X10718 SCREW MACHINE
7112400811 7112400811 SCREW TAPPING
WR01X10719 WR01X10719 SCREW TAPPING

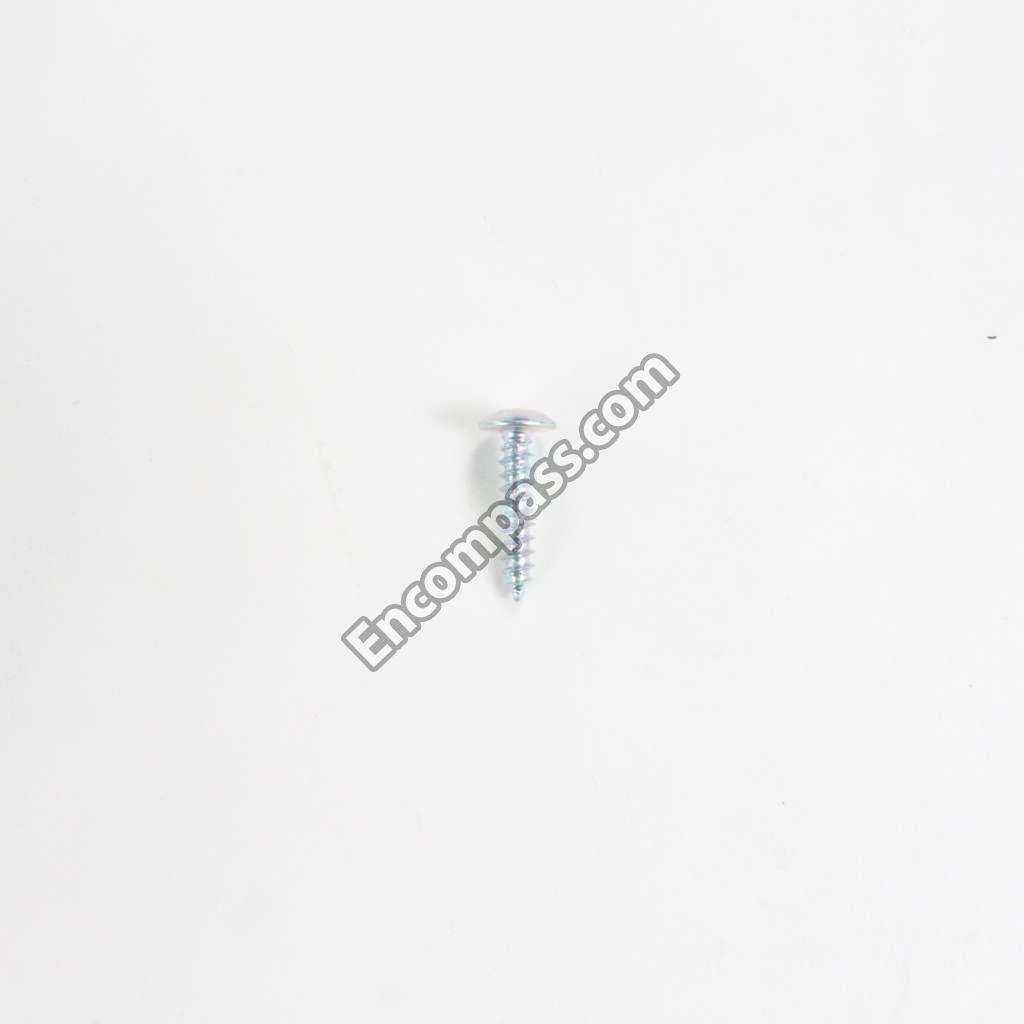

WR01X10721 WR01X10721 SCREW TAPPING
WR01X10720 WR01X10720 SCREW TAPPING
WR02X12529 WR02X12529 SEAL INSU DUCT B
WR02X12528 WR02X12528 SEAL LUVR
WR02X12537 WR02X12537 SHAFT CASTR
WR02X13143 WR02X13143 SHAFT HINGE U

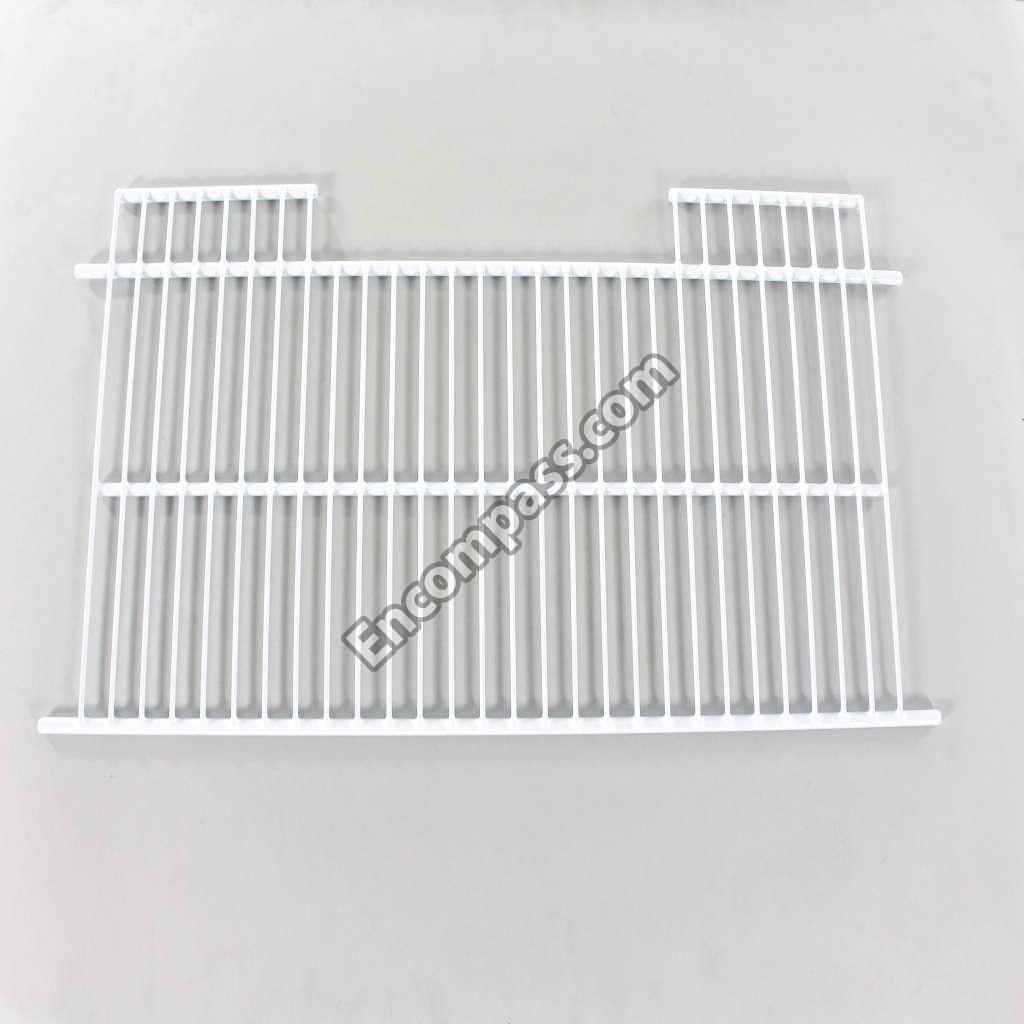

WR71X10772 WR71X10772 SHELF FZ WIRE
WR71X10767 WR71X10767 SHELF R SM I
WR02X12522 WR02X12522 SOCKET LAMP ASM
WR02X12517 WR02X12517 SPECIAL BOLT
WR01X10709 WR01X10709 SPECIAL BOLT
WR01X10737 WR01X10737 SPECIAL BOLT T
WR01X10707 WR01X10707 SPECIAL C MOTOR BOLT
WR01X10711 WR01X10711 SPECIAL C/B BOLT
WR01X10732 WR01X10732 SPECIAL DC MOTR BOLT
WR01X10713 WR01X10713 SPECIAL HI BOLT M
WR01X10712 WR01X10712 SPECIAL HI BOLT T
WR01X10714 WR01X10714 SPECIAL HI BOLT U
WR01X10706 WR01X10706 SPECIAL LUVR BOLT B
WR01X10715 WR01X10715 SPECIAL SCREW HANDLE
WR01X10450 WR01X10450 SPECIAL SETSCREW

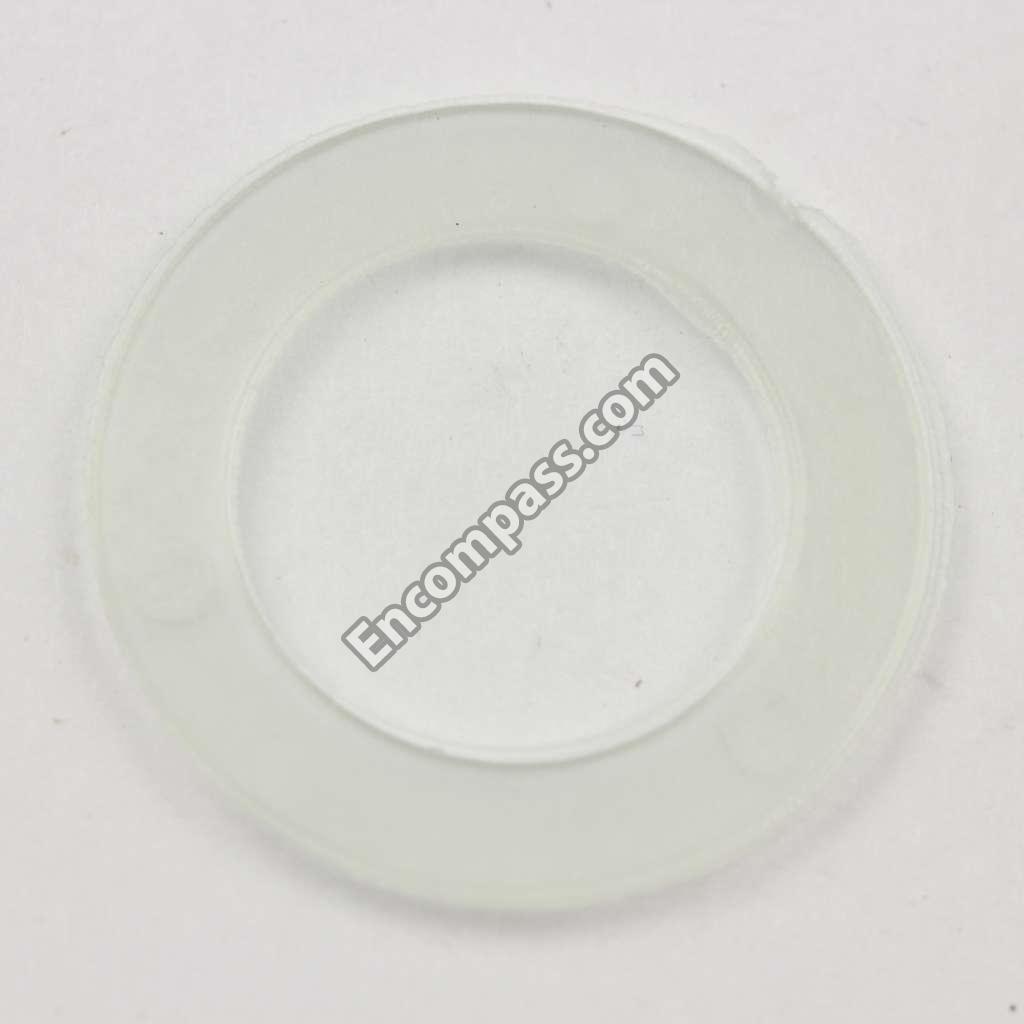

WR01X10710 WR01X10710 SPECIAL WASHER
WR01X10704 WR01X10704 SPECIAL WASHER COMP
WR01X10705 WR01X10705 SPECIAL WICON BOLT
WR01X10727 WR01X10727 SPRING CAB BRKT COVR
WR01X10726 WR01X10726 SPRING WASHER COMP
WR01X10702 WR01X10702 STOPPER F DR
WR01X10703 WR01X10703 STOPPER FF DOOR
WR02X12509 WR02X12509 STOPPER M/F DUCT
WR72X10246 WR72X10246 SUPPORTER SHELF R M

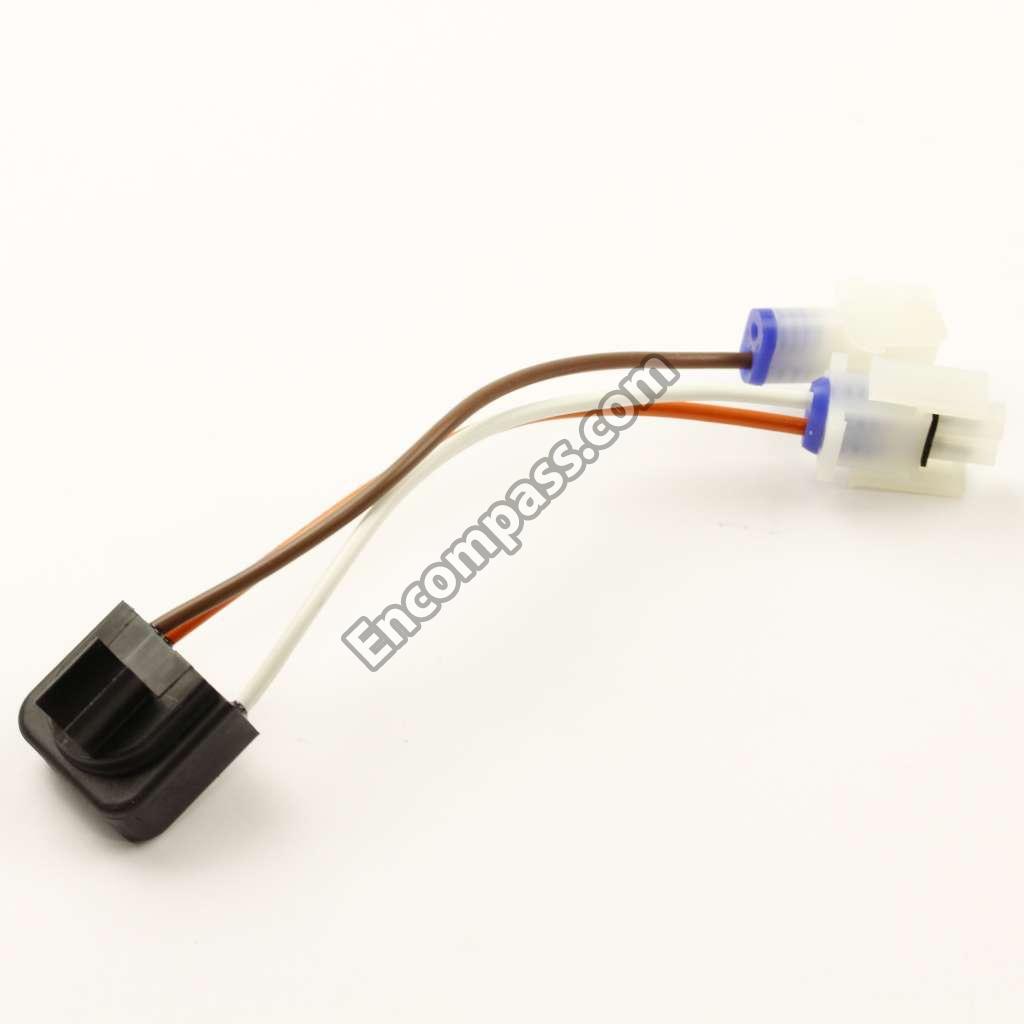

WR02X12513 WR02X12513 SWITCH BIMETAL ASM
WR02X12510 WR02X12510 SWITCH DOOR ASM

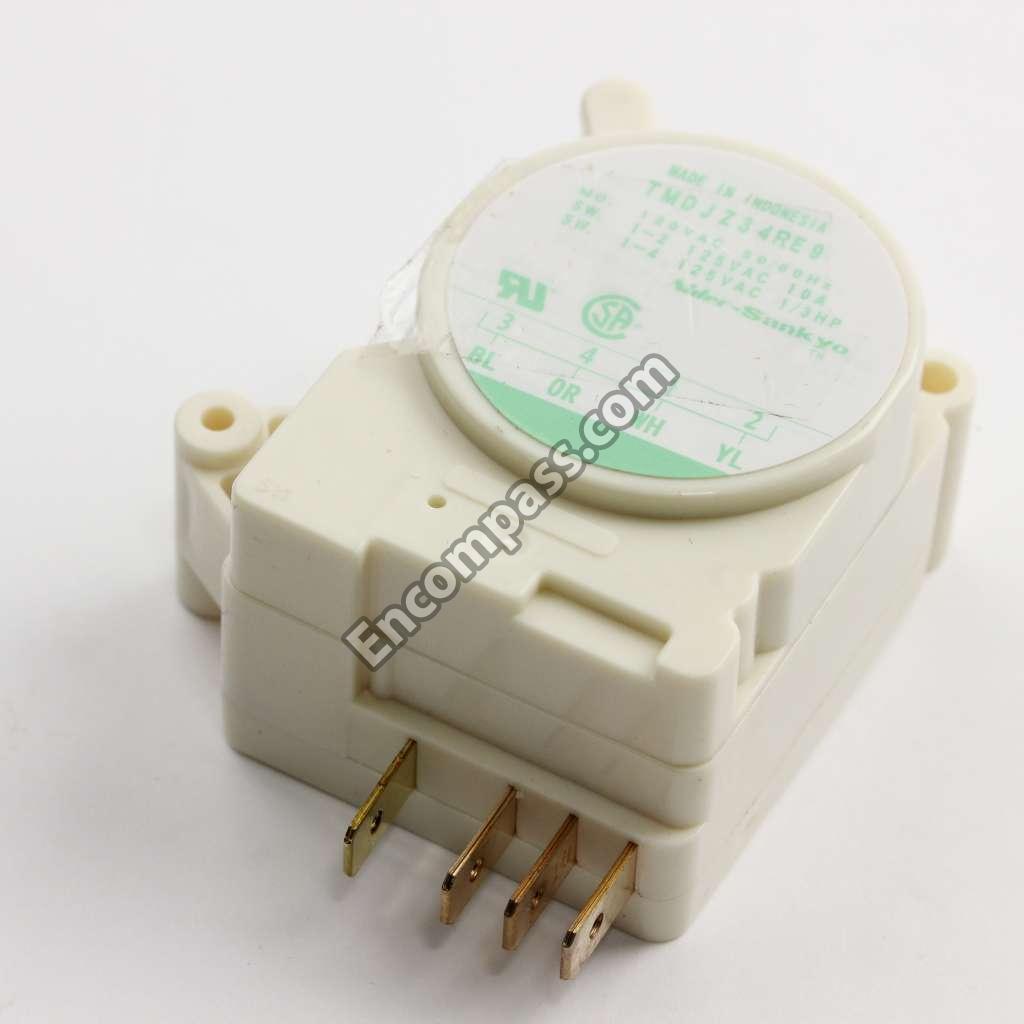

WR02X20858 WR02X20858 SWITCH TIMER ASSEMBLY
7122401211 7122401211 TAPPING SCREW
7112401211 7112401211 TAPPING SCREW
WR01X10741 WR01X10741 TAPPING SCREW

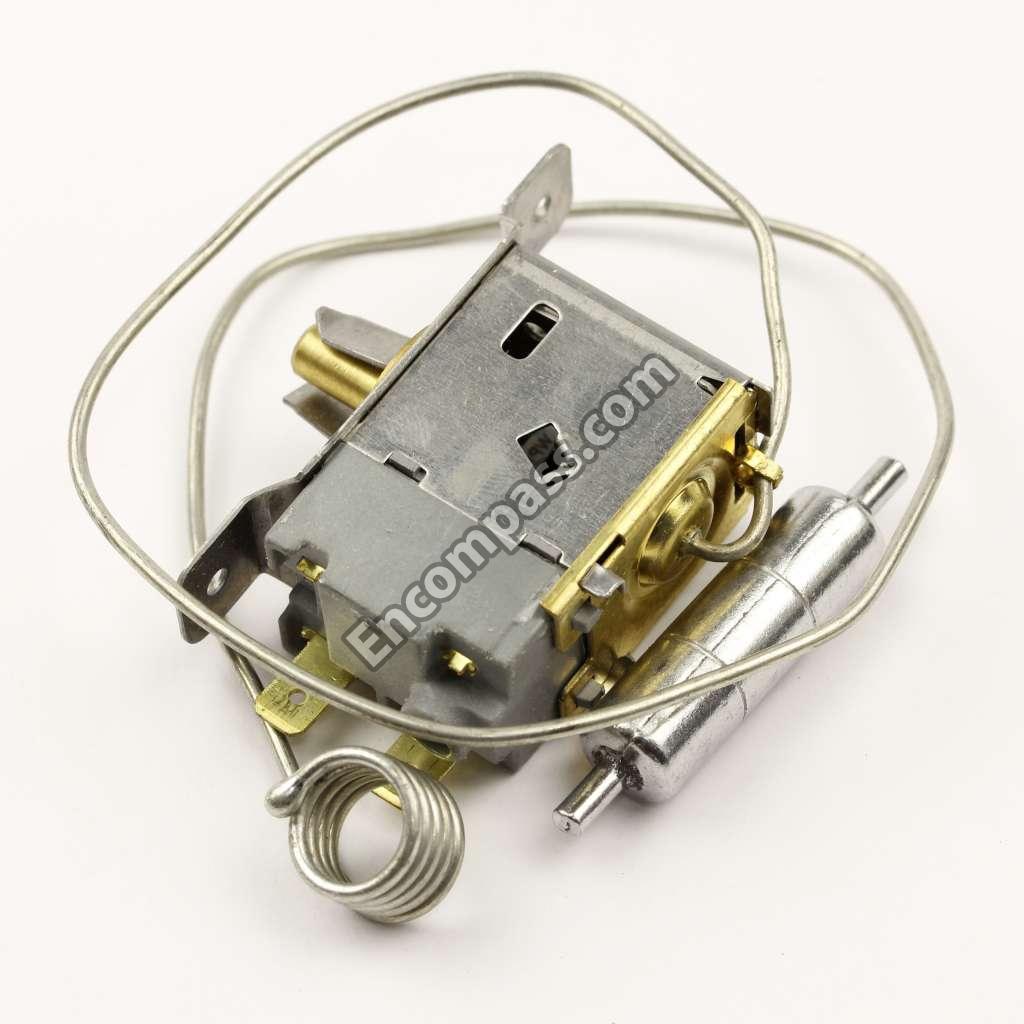

WR50X10104 WR50X10104 THERMOSTAT ASSEMBLY

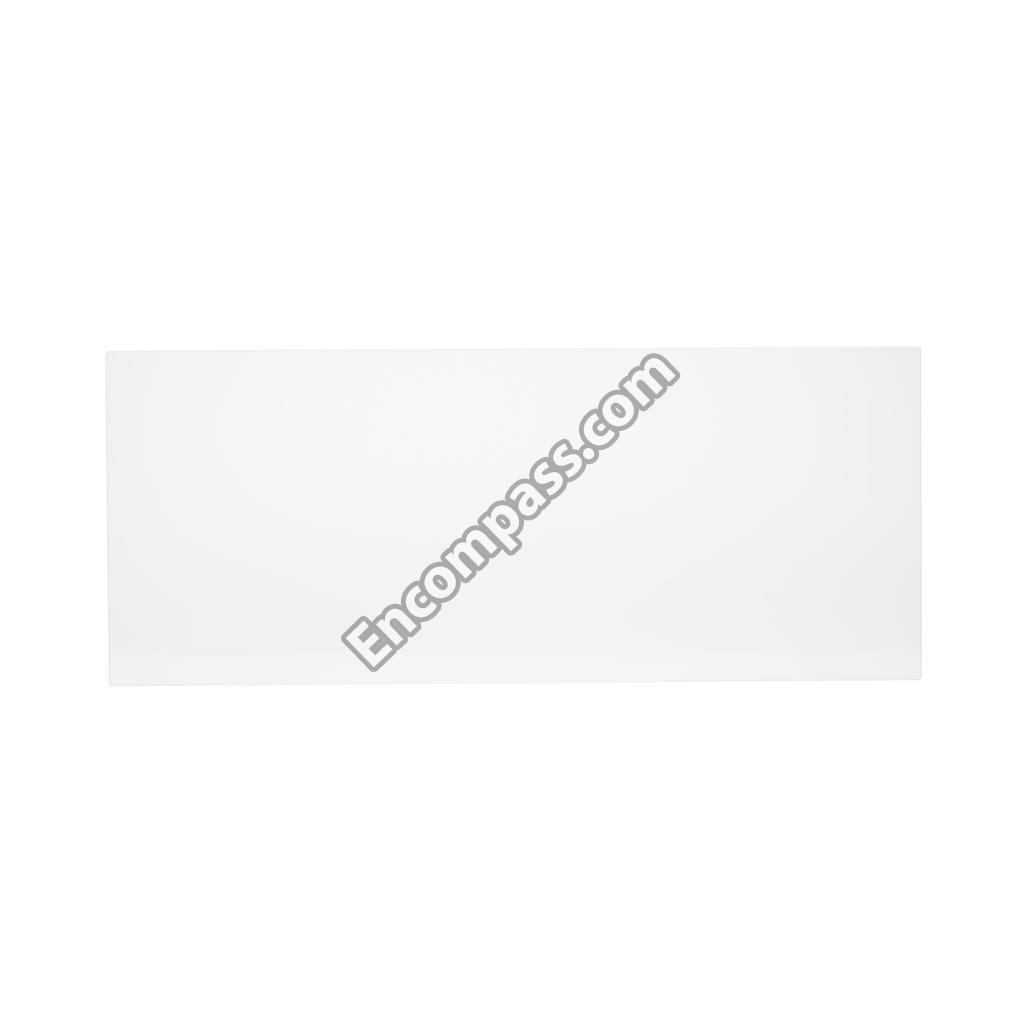

WR32X10639 WR32X10639 VEG PAN GLASS
