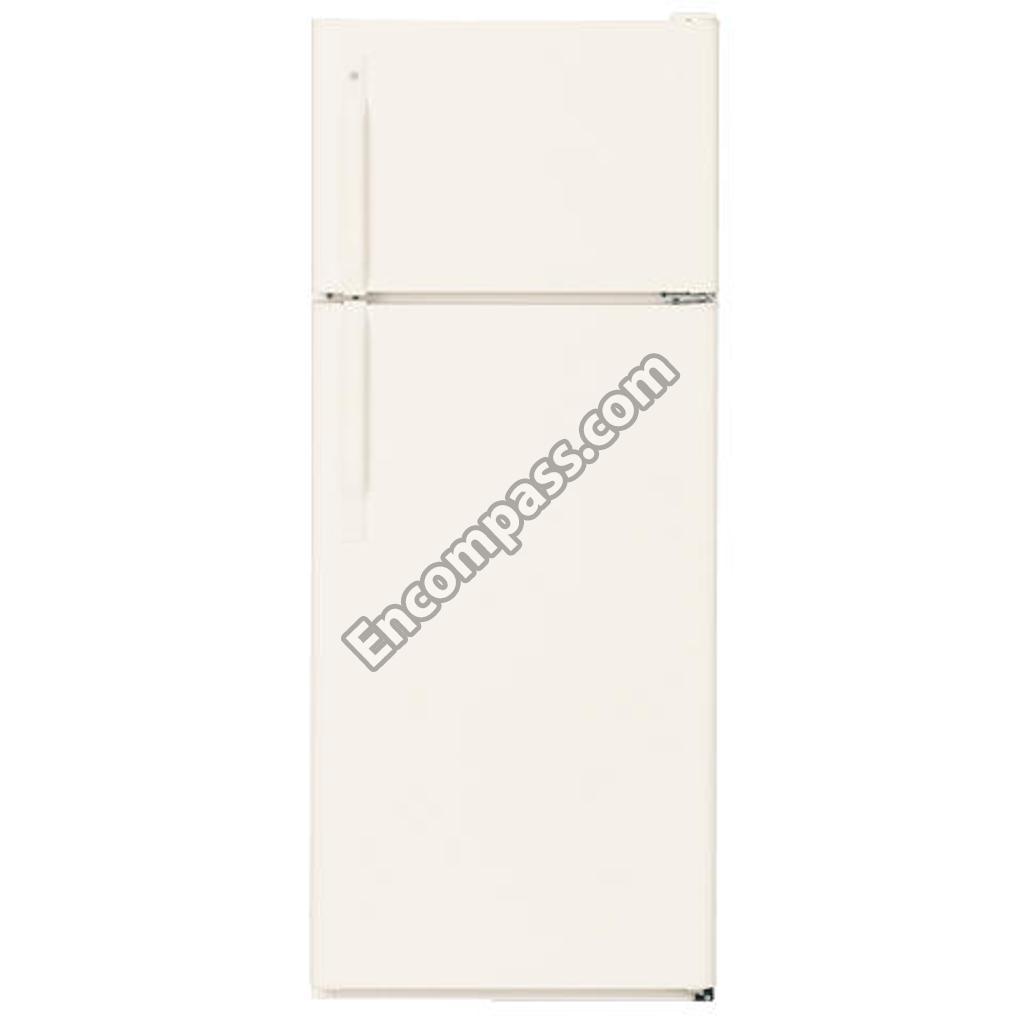

Model Image
Manufacturer

GE

Model Number

GTS12BBMALCC

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR2X7226 WR2X7226 *NLA*CLIP COVER
WR02X9274 WR02X9274 BEARING
WR2X9274 WR2X9274 BEARING
WR3M496 WR3M496 BEZEL NAMEPLATE
WR60X10011 WR60X10011 BLADE EVAP FAN
WR01X2156 WR01X2156 BOLT
WR1X2156 WR1X2156 BOLT COMP.
WR2M3566 WR2M3566 BOTTOM FZ
WR02X9255 WR02X9255 BRACKET
WR2X9255 WR2X9255 BRACKET
WR02X11863 WR02X11863 BRACKET COND FAN (MTG)
WR2M3562 WR2M3562 BRACKET EVAP FAN
WR02X9271 WR02X9271 BUMPER
WR2X9271 WR2X9271 BUMPER
WR02X10209 WR02X10209 CAP CORNER - WHITE
WR2M3574 WR2M3574 CAP CORNER BISQUE
WR62X0079 WR62X0079 CAPACITOR
WR55X24064 WR55X24064 CAPACITOR
WR02X9269 WR02X9269 CLAMP
WR2X9269 WR2X9269 CLAMP
WR02X7226 WR02X7226 CLAMP COVER
WR2X9268 WR2X9268 CLAMP HT EXC
WR02X9268 WR02X9268 CLAMP, HEAT EXCHANGER
WR02X9267 WR02X9267 CLIP
WR2X9267 WR2X9267 CLIP
WR02X10076 WR02X10076 CLIP CORD SET
WR87X10224 WR87X10224 COMPRESSOR KIT EGYS60
WR84X0211 WR84X0211 CONDENSER ASM
WR84X211 WR84X211 CONDENSR ASM
WR09X0490 WR09X0490 CONTROL DEFROST
WR09X10074 WR09X10074 CONTROL TEMPERATURE
WR09X0551 WR09X0551 CONTROL, TEMPERATURE
WR2M3589 WR2M3589 CORNER DOOR
WR2M3569 WR2M3569 CORNER DOOR
WR2M3568 WR2M3568 CORNER DOOR
WR02X7834 WR02X7834 COVER
WR2M3565 WR2M3565 COVER EVAPORATOR
WR02X10510 WR02X10510 COVER IM RECEPTACLE
WR2X7834 WR2X7834 COVER RELAY
WR2M3592 WR2M3592 COVER TOP HINGE BISQUE
WR32X1464 WR32X1464 CRISPER PAN
WR9X502 WR9X502 DEF CONTROL
WR2X9263 WR2X9263 DIVIDER PAN
WR02X9263 WR02X9263 DIVIDER, PAN
WR78M5747 WR78M5747 DOOR ASSEMBLY FZ BISQUE
WR22X499 WR22X499 DOOR DAIRY
WR22X0499 WR22X0499 DOOR, DAIRY
WR86X10018 WR86X10018 DRYER
WR2X9270 WR2X9270 ELBOW DRAIN
WR02X9270 WR02X9270 ELBOW, DRAIN
WR02X9273 WR02X9273 END CAP
WR2X5795 WR2X5795 END CAPS
WR85X314 WR85X314 EVAPORAT ASM
WR85X0314 WR85X0314 EVAPORATOR
WR60X10300 WR60X10300 EVAPORATOR FAN MOTOR KIT
WR17X3868 WR17X3868 FRONT SHELF
WR17X3867 WR17X3867 FRONT, SHELF
WR02X7640 WR02X7640 FUNNEL DRAIN
WR2X7640 WR2X7640 FUNNEL DRAIN
WR14X0467 WR14X0467 GASKET
WR14X467 WR14X467 GASKET
WB2X8248 WB2X8248 GLIDER ADJ
WR02X10520 WR02X10520 GROMMET FAN MOTOR
WR02X9389 WR02X9389 GROMMET TUBE
WR2X9389 WR2X9389 GROMMET&TUBE
WR12M973 WR12M973 HANDLE BISQUE
WR23X431 WR23X431 HARNESS WIR
WR23X0431 WR23X0431 HARNESS, WIRING
WR63M214 WR63M214 HEAT EXCHANGER
WR51X0419 WR51X0419 HEATER DEFROST
WR13M231 WR13M231 HINGE BOTTOM
WR13X0749 WR13X0749 HINGE BRACKET CENTER
WR13X749 WR13X749 HINGE BRKT
WR13X711 WR13X711 HINGE TOP
WR13X0711 WR13X0711 HINGE, TOP
WR2X9284 WR2X9284 HOSE DRAIN
WR02X9284 WR02X9284 HOSE, DRAIN
WR17X3866 WR17X3866 HOUSING CONTROL
WR2M3563 WR2M3563 HOUSING EVAPORATOR
WR2M3584 WR2M3584 HOUSING FAN
WR51X419 WR51X419 HTR DEFROST
WR2M3588 WR2M3588 IMK HARNESS
WR02X10059 WR02X10059 INSERT - COPPER
WR3M493 WR3M493 INSERT HOUSING
31-47012 31-47012 INSTRUCTION,INSTALLATION
WR2M3585 WR2M3585 INSULATION HOUSING
WR77M441 WR77M441 LINER FF
WR77M440 WR77M440 LINER FZ
WR17X3864 WR17X3864 LINER-TOP
31-47013 31-47013 MINI-MANUAL
WR2M3586 WR2M3586 MULLION BQ
WR2M3564 WR2M3564 MULLION WH
WR3M495 WR3M495 NAMEPLATE BQ
WR02X10079 WR02X10079 NOZZLE
WR01X2155 WR01X2155 NUT
WR02X9277 WR02X9277 NUT STRIP
WR2X9280 WR2X9280 NUT STRIP
WR2X9277 WR2X9277 NUT STRIP
WR02X9280 WR02X9280 NUT STRIP, CENTRE
WR2M3560 WR2M3560 NUTSTRIP MID HINGE
WR08X0167 WR08X0167 OVERLOAD
WR8X167 WR8X167 OVERLOAD
WR32X1463 WR32X1463 PAN COVER
WR78M5748 WR78M5748 PANEL DOOR BISQUE
WR2M3561 WR2M3561 PIN MID HINGE
WR2X9253 WR2X9253 PLATE TIMER
WR02X10061 WR02X10061 PLATE, COMPRESSOR
WR02X9253 WR02X9253 PLATE, TIMER
WR2X9254 WR2X9254 PLUG BUTTON
WR2M3251 WR2M3251 PLUG BUTTON - WHITE
WR2M3593 WR2M3593 PLUG BUTTON WHITE
WR02X9254 WR02X9254 PLUG BUTTON, TIMER
WR2M3577 WR2M3577 PLUG DOOR RVSBL BISQUE
WR2X7453 WR2X7453 PLUG HANDLE BISQUE
WR2M3355 WR2M3355 PLUG HANDLE WHITE
WR2M3575 WR2M3575 PLUG TOP DOOR WHITE
WR07X10031 WR07X10031 RELAY PTCR
WR2X9272 WR2X9272 RING COMPRES
WR02X9272 WR02X9272 RING COMPRESSION
WR01X2068 WR01X2068 SCR-MTNG/TMR
WR01X2069 WR01X2069 SCREW
WR02X9260 WR02X9260 SCREW
WR01X2054 WR01X2054 SCREW
WR1X1937 WR1X1937 SCREW
WR2X9260 WR2X9260 SCREW
WE2X394 WE2X394 SCREW
WR1X5705 WR1X5705 SCREW
WR1M551 WR1M551 SCREW
WR01X10029 WR01X10029 SCREW
WR01X2061 WR01X2061 SCREW (10-32 X 5/8)
WR01X2062 WR01X2062 SCREW (10-32 X 7/8)
WR01X10088 WR01X10088 SCREW (10-32 X 7/8)
WR01X2058 WR01X2058 SCREW (BTM)
WR01X2057 WR01X2057 SCREW (TOP)
WR1M726 WR1M726 SCREW - HANDLE BISQUE
WR1M717 WR1M717 SCREW - HANDLE WHITE
WB1M803 WB1M803 SCREW 8-16 X 3/8
WR1M712 WR1M712 SCREW HANDLE SS
WB1M825 WB1M825 SCREW MOTOR BRACKET
WR1X2068 WR1X2068 SCREW MTG
WR02X9264 WR02X9264 SCREW, LEVELING
WR01X2070 WR01X2070 SCREW, MULLION
WR1X2069 WR1X2069 SCREW/VIS
WR71X2532 WR71X2532 SHELF
WR02X9387 WR02X9387 SHIM
WR02X9275 WR02X9275 SHIM
WR2X9275 WR2X9275 SHIM
WR2X9276 WR2X9276 SHIM BOTTOM
WR2X9387 WR2X9387 SHIM CTR HNG
WR2M3571 WR2M3571 SHIM DOOR STOP
WR2X9282 WR2X9282 SHIM TOP HNG
WR02X9276 WR02X9276 SHIM, BOTTOM (.062)
WR02X9282 WR02X9282 SHIM, TOP HINGE
WR02X7270 WR02X7270 SOCKET TERMINAL ASM
WR2X9391 WR2X9391 SOCKET&TERM
WR2M3591 WR2M3591 STOP DOOR LH
WR13M232 WR13M232 STOP DOOR RH
WR02X10078 WR02X10078 STRAP HEATER
WR02X9257 WR02X9257 SUPPORT
WR2X9257 WR2X9257 SUPPORT
WR02X9261 WR02X9261 SUPPORT, HOUSING
WR2X9261 WR2X9261 SUPT HOUSING
WR23X430 WR23X430 SW LIGHT
WR23X0430 WR23X0430 SWITCH, LIGHT (FZ)
WR2M3570 WR2M3570 THERMAL BREAK
WR50X133 WR50X133 THERMOST DEF
WR50X0133 WR50X0133 THERMOSTAT DEFROST
WR30X314 WR30X314 TRAY ICE
WR30X0314 WR30X0314 TRAY, ICE
WR01X2154 WR01X2154 WASHER
WR01X2060 WR01X2060 WASHER
WR01X2055 WR01X2055 WASHER
WR1X2060 WR1X2060 WASHER
WR01X2056 WR01X2056 WASHER (NYLON)
WR1X2056 WR1X2056 WASHER NYLON
WR2X9258 WR2X9258 WHEEL CONTRL
WR02X9258 WR02X9258 WHEEL, CONTROL
WR24X563 WR24X563 WR24X563
WR24X564 WR24X564 WR24X564
