Model Image
Manufacturer

GE

Model Number

GTS16DTNMRWW

Description

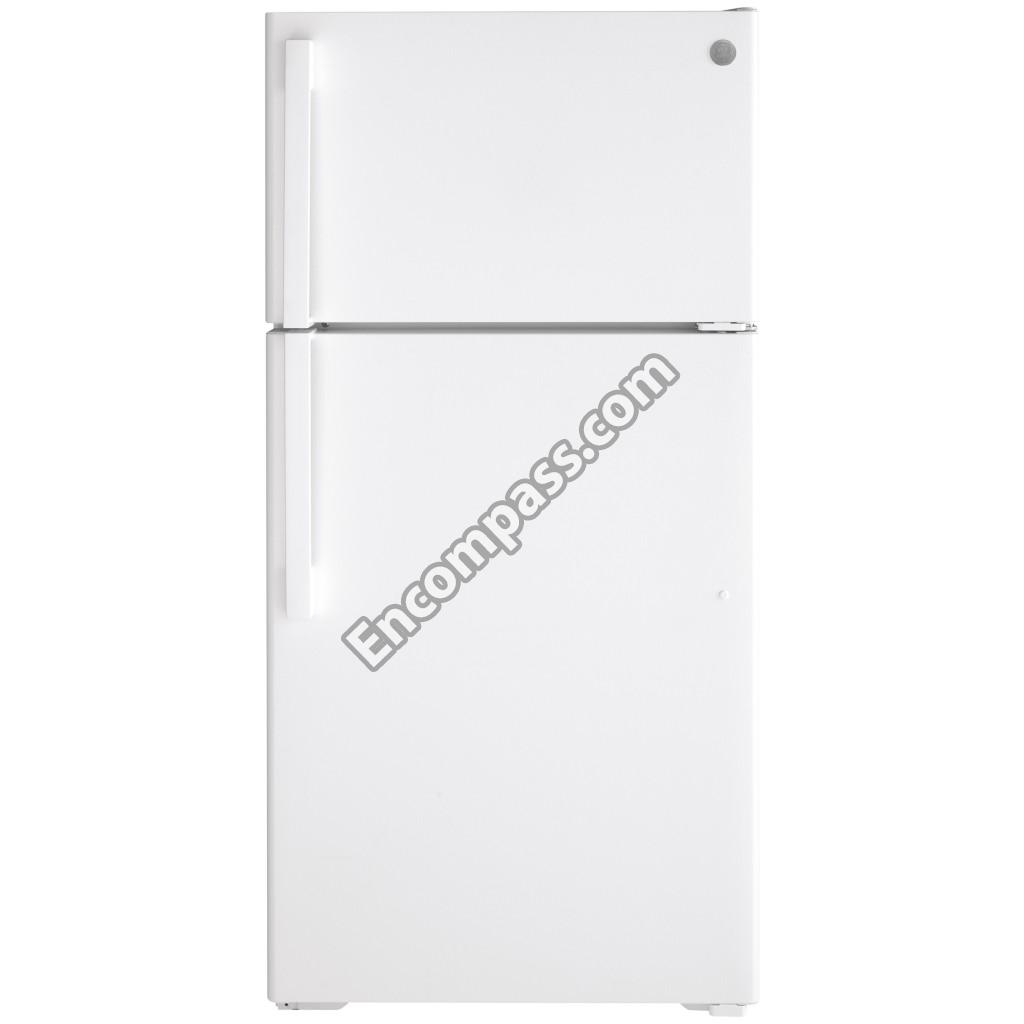

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR97X10032 WR97X10032 GE 6MM X 2MM LOKRING
WR97X10033 WR97X10033 GE 6MM X 4MM LOKRING
WR97X10034 WR97X10034 GE 6MM X 5MM LOKRING
WR97X10031 WR97X10031 GE 6MM X 6MM LOKRING
WR97X25268 WR97X25268 GE 7MM X 5MM LOKRING
WR97X10036 WR97X10036 GE 8MM X 6MM LOKRING
WR97X10021 WR97X10021 GE 8MM X 8MM LOKRING
WR02X4039 WR02X4039 GE ADHESIVE CLIP
WR02X31092 WR02X31092 GE ADJUSTABLE DAMPER
WR17X31193 WR17X31193 GE AIR TOWER
WR17X45294 WR17X45294 GE BAFFLE
WR17X36193 WR17X36193 GE BASEPLATE W/ COMPRESSOR STUDS
WR60X10207 WR60X10207 GE BLADE COND FAN ASM
WR60X46086 WR60X46086 GE BLADE EVAP FAN ASM
WR30X30034 WR30X30034 GE BUCKET ICE
WR02X10540 WR02X10540 GE BUMPER
WR02X10703 WR02X10703 GE CAP CORNER OC WHITE
WR55X31290 WR55X31290 GE CAPACITOR
WR02X31104 WR02X31104 GE CHROME GE BADGE
WR02X35066 WR02X35066 GE CHROME GE BADGE
WR02X11437 WR02X11437 GE CLAMP
WR87X31765 WR87X31765 GE COMPRESSOR JIAXIPERA PRODUCTION
WR02X28781 WR02X28781 GE COMPRESSOR MOUNTING CLIP
WR84X31398 WR84X31398 GE CONDENSER
WR17X31476 WR17X31476 GE CONDENSER FAN AND HOUSING
WR01X40071 WR01X40071 GE CONDENSER STRAP
WR02X31487 WR02X31487 GE CONDENSER SUPPORT
WR02X31466 WR02X31466 GE CONTROL KNOB
WR02X31093 WR02X31093 GE CONTROL SHIELD
WR22X30023 WR22X30023 GE DAIRY DOOR
WR78X23265 WR78X23265 GE DOOR FOAM ASM FZ WW
WR17X30031 WR17X30031 GE DRAIN TROUGH
WR78X47306 WR78X47306 GE EVAP AND TUBE ASM
WR87X47505 WR87X47505 GE EVAP AND TUBE ASM
WR02X31293 WR02X31293 GE EVAPORATOR CLIP
WR17X33511 WR17X33511 GE EVAPORATOR COVER
WR21X30013 WR21X30013 GE EVAPORATOR FAN FRONT BRACKET
WR60X31522 WR60X31522 GE EVAPORATOR FAN MOTOR
WR21X30022 WR21X30022 GE EVAPORATOR FAN REAR BRACKET
WR01X48767 WR01X48767 GE FASTENER DOOR HANDLE
WR14X31738 WR14X31738 GE FILL TUBE PORT COVER
WR02X31112 WR02X31112 GE FOAM SUPPLY NOZZLE
WR02X28287 WR02X28287 GE FREEZER DOOR STOP WHITE
WR71X30014 WR71X30014 GE FREEZER FIXED SHELF
WR17X30024 WR17X30024 GE FRESH FOOD SHELF
WR71X31099 WR71X31099 GE FRESH FOOD WIRE SHELF 28
WR02X31088 WR02X31088 GE FRONT CONTROL HOUSING
WR14X27233 WR14X27233 GE GASKET DOOR FF WW
WR14X27230 WR14X27230 GE GASKET DOOR FZ WW
WR02X39772 WR02X39772 GE GASKET SUPPLY FOAM
WR02X43685 WR02X43685 GE GLIDER - LEG ADJUSTABLE
WR02X22869 WR02X22869 GE GROMMET
WR02X12008 WR02X12008 GE GROMMET EVAP FAN
WR02X25516 WR02X25516 GE GROMMET WATER FILL ASM
WR55X47305 WR55X47305 GE HEATER HARNESS ASM
WR13X21175 WR13X21175 GE HINGE BOTTOM
WR13X21174 WR13X21174 GE HINGE CENTER
WR13X27091 WR13X27091 GE HINGE TOP AND PIN ASM
WR30X30972 WR30X30972 GE ICEMAKER
WR29X10092 WR29X10092 GE ICEMAKER FILL CUP
WR82X31109 WR82X31109 GE ICEMAKER RECEPTACLE COVER
WR02X31473 WR02X31473 GE LED COVER
WR02X47625 WR02X47625 GE LEFT FRONT WHEEL ASSEMBLY
WR55X31301 WR55X31301 GE MACHINE COMPARTMENT HARNESS AND POWER CO
WR55X34425 WR55X34425 GE OL PTCR COMBO
WR02X27092 WR02X27092 GE PIN HINGE BOTTOM
WR02X21173 WR02X21173 GE PIN HINGE CTR
WR2X8233 WR2X8233 GE PLUG BTN WHT
WR02X11760 WR02X11760 GE PLUG BUTTON
WR01X21159 WR01X21159 GE PLUG DOOR RVSBL
31-1000678 31-1000678 GE PM MINI MANUAL AND WIRING
WR87X30875 WR87X30875 GE R600 DRIER W/ RED CAP
WR98X45 WR98X45 GE R600A CHARGE CAN 45 GRAMS
WR82X31511 WR82X31511 GE REAR ACCESS COVER 28
WR02X31486 WR02X31486 GE REAR CONTROL HOUSING 28
WR02X40545 WR02X40545 GE RECEPTACLE COVER GASKET
WR23X31507 WR23X31507 GE REFRIGERATOR DOOR LIGHT SWITCH
WR02X28283 WR02X28283 GE REFRIGERATOR DOOR STOP WHITE
WR55X43779 WR55X43779 GE REFRIGERATOR MAIN CONTROL BOARD
WR02X31516 WR02X31516 GE RETAINER CLIP
WR02X47626 WR02X47626 GE RIGHT FRONT WHEEL ASSEMBLY
WD02X10151 WD02X10151 GE SCR 10-16 AB 43WHEX 5/8
WR01X21151 WR01X21151 GE SCR 10-16 AB TRP 3/4 NBS
WR01X26527 WR01X26527 GE SCR 12-24 TT PNPSD .785
WR01X10589 WR01X10589 GE SCR 8-15 AB IHXW 1/2 S
WR01X10317 WR01X10317 GE SCR 8-32 CA HXW 1/2
WR01X23006 WR01X23006 GE SCR 8-32 CA HXW 1/2 NS
WR01X43665 WR01X43665 GE SCR 8-32 CA IHXW .615 S
WR01X10860 WR01X10860 GE SCR 8-32 TT HXW 3/8 S
WR02X29370 WR02X29370 GE SCREW 8-18 AB HXW 1/2 S
WR32X21260 WR32X21260 GE SHELF GLASS
WR71X21169 WR71X21169 GE SHELF WIRE FZ
WR1X1779 WR1X1779 GE STUD MTGCOMP
WR02X31289 WR02X31289 GE THERMAL FUSE CLIP
WR02X31766 WR02X31766 GE VEGETABLE PAN
WR32X31471 WR32X31471 GE VEGETABLE PAN COVER 28
WR01X27364 WR01X27364 GE WASHER HINGE
WR29X31127 WR29X31127 GE WATER DIVERTER
WR17X32212 WR17X32212 GE WATER TUBE
WR57X32213 WR57X32213 GE WATER VALVE
WR78X31394 WR78X31394 GE WHITE FRESH FOOD DOOR 16
WR12X48505 WR12X48505 GE WHITE HANDLE
