Model Image
Manufacturer

GE

Model Number

GTS17BBRELWW

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 40WATT 15AMP INC AND ESCENT BULB

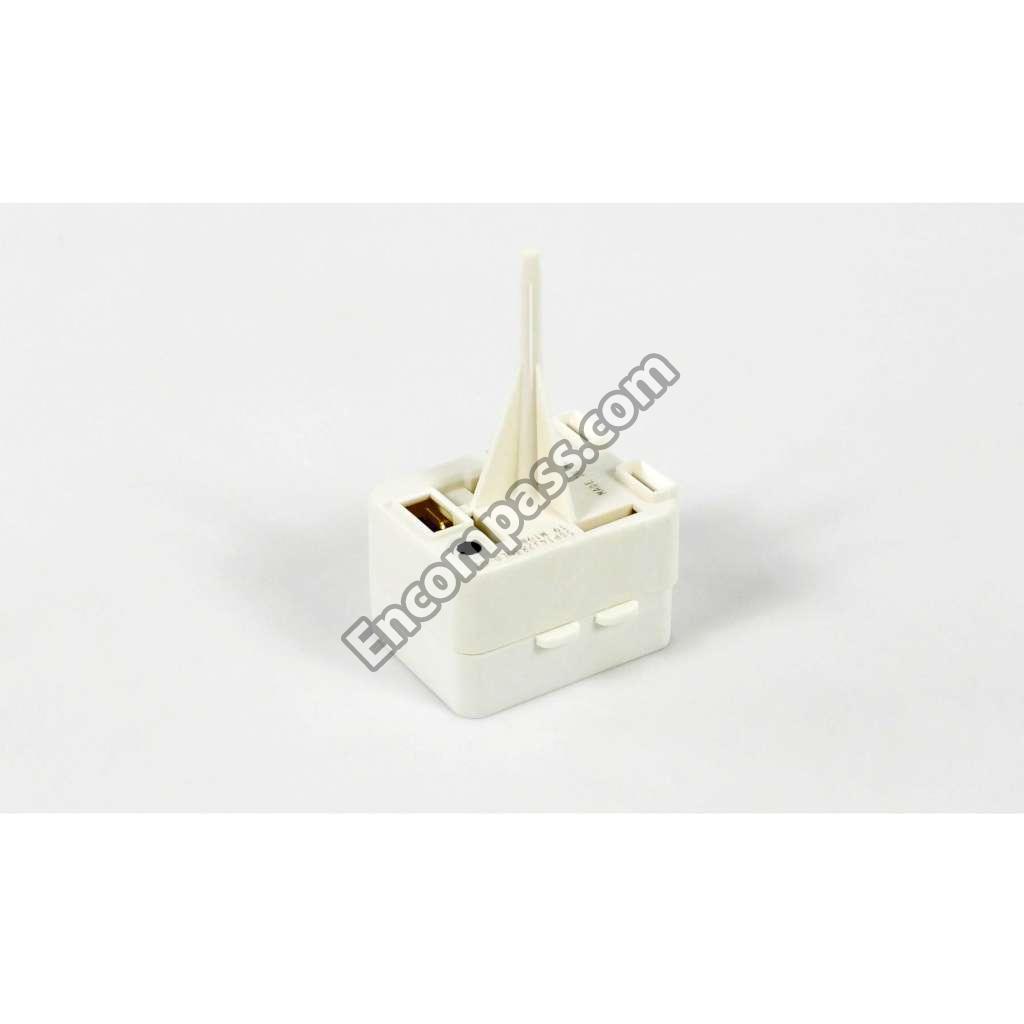

WR09X10106 WR09X10106 5SP OVERLOAD/PTC
WR02X11796 WR02X11796 ACTUATOR AIR
WR2X8949 WR2X8949 AXLE WHEEL
WR02X8949 WR02X8949 AXLE WHEEL FRONT
WR02X8214 WR02X8214 AXLE WHEEL REAR
WR17X11225 WR17X11225 BAFFLE FAN ASSEMBLY
WR02X8693 WR02X8693 BEAUTY BUTTON-WHT
WR60X10207 WR60X10207 BLADE COND FAN ASSEMBLY
WR60X10204 WR60X10204 BLADE EVAP FAN ASM
WR21X30013 WR21X30013 BRACKET EVAP FAN FRT
WR21X30022 WR21X30022 BRACKET EVAPORATOR FAN REAR
WR02X10100 WR02X10100 BRACKET EVAPORATOR FAN SM
WR02X10540 WR02X10540 BUMPER LID
WR2X7051 WR2X7051 BUTTON PLUG
WR1X5278 WR1X5278 CABLE CLAMP
WR02X10700 WR02X10700 CAP CORNER OC BISQUE
WR02X10703 WR02X10703 CAP CORNER OC WHITE
WR2X9162 WR2X9162 CAP SHELF FR
WR02X9162 WR02X9162 CAP SHLF FRNT NARROW
WR02X9144 WR02X9144 CAP SHLF FRT
WR2X9144 WR2X9144 CAP SHLF FRT
WR62X0080 WR62X0080 CAPACITOR
WR55X24065 WR55X24065 CAPACITOR
WR01X5278 WR01X5278 CLAMP CABLE
WR01X2008 WR01X2008 CLAMP WIRE
WR2X8583 WR2X8583 CLIP
WR02X8583 WR02X8583 CLIP COMP MTNG
WR02X12561 WR02X12561 CLIP RETAINER 5SP
WR87X10224 WR87X10224 COMP REPL KIT
WR14X0313 WR14X0313 COND TOP BAFFLE FOAM
WR84X221 WR84X221 CONDENSR ASM
WR9X502 WR9X502 CONTROL DEFROST
WR09X20002 WR09X20002 CONTROL TEMP
WR23X10300 WR23X10300 CORD POWER ASSEMBLY
WR17X11660 WR17X11660 COVER EVAP ASM
WR02X11123 WR02X11123 COVER IM RECEPTACLE
WR32X10398 WR32X10398 COVER VEGETABLE PAN
WR22X487 WR22X487 DAIRY DOOR
WR02X11793 WR02X11793 DIFFUSER AIR FF
WR22X0476 WR22X0476 DOOR DAIRY
WR78X10466 WR78X10466 DOOR FOAM ASSEMBLY FF BISQUE
WR78X10460 WR78X10460 DOOR FOAM ASSEMBLY FF WHITE
WR77X550 WR77X550 DOOR INER FZ
WR77X0652 WR77X0652 DOOR INNER FF
WR77X0550 WR77X0550 DOOR INNER FZ
WR32X10455 WR32X10455 DPO DRAIN PAN
WR77X652 WR77X652 DR INNER FF
WR17X11659 WR17X11659 DUCT AIR FZ
WR02X11791 WR02X11791 DUCT FOAM
WR17X12210 WR17X12210 FAN HOUSING ASSEMBLY
WR17X10670 WR17X10670 FRONT DOOR SHELF GELG
WR17X10667 WR17X10667 FRONT DOOR SHELF GESM
WR02X8246 WR02X8246 GASKET AIR DUCT
WR2X8246 WR2X8246 GASKET DUCT
WR02X7877 WR02X7877 GLIDER ADJ
WR02X7238 WR02X7238 GROMMET COMP MTG
WR02X12008 WR02X12008 GROMMET EVAPORATOR FAN
WR02X10098 WR02X10098 GROMMET MOTOR
WR2X7238 WR2X7238 GROMMET MTG.
WR24X10236 WR24X10236 GSKT DOOR FF
WR24X10228 WR24X10228 GSKT DOOR FZ
WR02X10530 WR02X10530 GUSSET LH
WR02X10529 WR02X10529 GUSSET RH
WR12X10453 WR12X10453 HANDLE DOOR ASSEMBLY FZ BISQUE
WR12X10108 WR12X10108 HANDLE DOOR ASSEMBLY FZ WHITE
WR12X10454 WR12X10454 HANDLE DOOR FF BISQUE
WR12X10107 WR12X10107 HANDLE DOOR FF WHITE
WR23X358 WR23X358 HARN CTL MOD
WR23X0358 WR23X0358 HARNESS CONT MODULE
WR51X10072 WR51X10072 HEATER CONDUCTION
WR51X10038 WR51X10038 HEATER DEF ASM
WR13X10315 WR13X10315 HINGE BTM
WR13X10986 WR13X10986 HINGE CTR AND PIN ASSEMBLY
WR13X10325 WR13X10325 HNG TOP/PIN BQ
WR13X10323 WR13X10323 HNG TOP/PIN WHT
WR02X10518 WR02X10518 HOLDER ELEMENT
WR17X12852 WR17X12852 HOUSING CONTROL
WR02X8248 WR02X8248 INSUL ELECT
WR2X8248 WR2X8248 INSUL ELECT
WR02X13355 WR02X13355 KNOB CONTROL
WR02X10708 WR02X10708 LENS NAMEPLATE
WR04X10028 WR04X10028 LENS NAMEPLATE
WR60X23584 WR60X23584 MOTOR AC/DC
WR60X31522 WR60X31522 MOTOR AC/DC
WR60X10168 WR60X10168 MOTOR COND FAN
WR84X0221 WR84X0221 NEW CONDENSER REPAIR KIT
WR32X1455 WR32X1455 PAN VEG TWIN LOW
WR02X8232 WR02X8232 PIN HINGE CTR
WR13X10997 WR13X10997 PIN HINGE CTR
WR02X27092 WR02X27092 PIN HINGE METAL
WR17X10195 WR17X10195 PLATE COMP MTG ASSEMBLY
WR2X8233 WR2X8233 PLUG BTN WHT
WR2X8999 WR2X8999 PLUG BUT MTG
WR12X721 WR12X721 PLUG BUTN WH
WR02X11760 WR02X11760 PLUG BUTTON
WR02X7051 WR02X7051 PLUG BUTTON
WR12X0721 WR12X0721 PLUG BUTTON INSERT
WR12X10452 WR12X10452 PLUG BUTTON INSERT
WR02X8999 WR02X8999 PLUG BUTTON MTG
WR02X10850 WR02X10850 PLUG BUTTON THIMBLE BISQUE
WR02X8233 WR02X8233 PLUG BUTTON THIMBLE WH
WR01X21159 WR01X21159 PLUG DOOR
49-60250 49-60250 PM GUIDE OWNERS
31-51493 31-51493 PM MINI MANUAL WIRING
WR86X25269 WR86X25269 R134 DRIER
WR17X3188 WR17X3188 RAIL REAR
WR82X10111 WR82X10111 REFRIGERATOR ACCESS PANEL
WR2X8214 WR2X8214 REFRIGERATOR AXLE WHEEL
WR2X9000 WR2X9000 REFRIGERATOR CONDENSER CLIP
WR1X1794 WR1X1794 REFRIGERATOR DOOR SPACER
WR87X28948 WR87X28948 REFRIGERATOR EVAPORATOR
WR14X313 WR14X313 REFRIGERATOR GASKET COVER
WR2X8344 WR2X8344 REFRIGERATOR VINYL SLEEVE
WR2X9221 WR2X9221 RET STRIP V
WR02X9221 WR02X9221 RET STRIP V
WR2X8235 WR2X8235 RETAINER
WR2X8236 WR2X8236 RETAINER

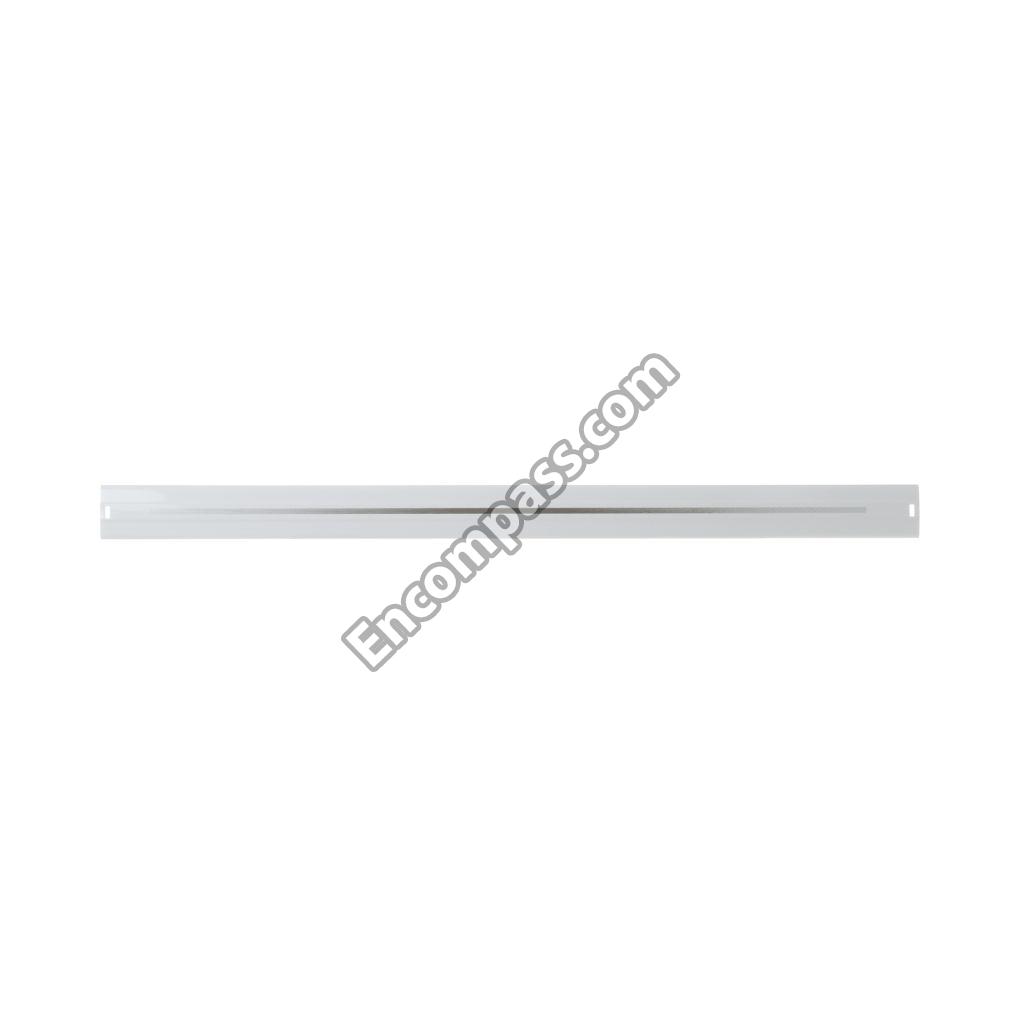

WR02X8235 WR02X8235 RETAINER STRIP H
WR02X8236 WR02X8236 RETAINER STRIP V
WR02X12149 WR02X12149 RING COMPRESSION
WR01X21263 WR01X21263 RVSBL DOOR CAPS BISQUE
WR01X1591 WR01X1591 SCR 1/4-14 X 3/4
WR01X1728 WR01X1728 SCR 10-16 1/2 PH
WR01X1726 WR01X1726 SCR 10-16 AB 3/4 SS
WZ04X0263 WZ04X0263 SCR 10-16 AB HXW 1/2
WR01X10590 WR01X10590 SCR 10-16 AB PNT20 1/2 S
WZ06X0096 WZ06X0096 SCR 8-15 A HX 1/2 S NS
WR01X1791 WR01X1791 SCR 8-15 SPEC
WR01X1554 WR01X1554 SCR 8-18 AB IHXW 1/2 S
WR01X10448 WR01X10448 SCR 8-19 HI/LO TRP 1 S
WR01X10317 WR01X10317 SCR 8-32 CA HXW 1/2
WR01X1792 WR01X1792 SCREW
WR01X1249 WR01X1249 SCREW
WR1X1591 WR1X1591 SCREW
WD2X5166 WD2X5166 SCREW
WR1X1753 WR1X1753 SCREW
WR1X1786 WR1X1786 SCREW
WR01X1754 WR01X1754 SCREW 12-24
WR01X1753 WR01X1753 SCREW 12-24
WR01X2009 WR01X2009 SCREW ASM
WZ05X0164 WZ05X0164 SCREW FAN MTR/BRKT
WZ04X0244 WZ04X0244 SCREW-FRONT
WR1X1791D WR1X1791D SCREW-PKG - 13 PACK
WZ6X96D WZ6X96D SCREW-PKG 12
WR1X1754D WR1X1754D SCREW-PKG 12
WZ5X164D WZ5X164D SCREW-PKG 12
WZ4X244D WZ4X244D SCREW-PKG 12
WR1X1249D WR1X1249D SCREW-PKG 12
WR1X1726D WR1X1726D SCREW-PKG 12
WR71X10378 WR71X10378 SHELF ASM STATIONARY
WR71X2451 WR71X2451 SHELF ICE TRAY
WR02X11597 WR02X11597 SHIELD REFLECTOR
WR02X10511 WR02X10511 SHIM HINGE CTR
WR01X10623 WR01X10623 SHOULDER SCR
WR02X8344 WR02X8344 SLEEVE VINYL
WR2X7877 WR2X7877 SLIDER ADJ
WR02X10591 WR02X10591 SOCKET AND TERMINAL ASSEMBLY
WR01X1794 WR01X1794 SPACER DOOR FZ
WR02X12211 WR02X12211 STOP DOOR FF/FZ
WR1X1779 WR1X1779 STUD MTGCOMP
WR2X8242 WR2X8242 SUPPORT
WR2X8243 WR2X8243 SUPPORT
WR2X8429 WR2X8429 SUPPORT
WR02X8429 WR02X8429 SUPPORT SHLF
WR02X8242 WR02X8242 SUPPORT TWIST CONTROL
WR02X8243 WR02X8243 SUPPORT TWIST FZ SHELF
WR23X10725 WR23X10725 SWITCH LIGHT FF
WR02X10534 WR02X10534 TAPE FELT - CONDENSER
WR50X10071 WR50X10071 THERMOSTAT DEFROST
WR30X0311 WR30X0311 TRAY ICE
WR17X11657 WR17X11657 TROUGH DRAIN
WR17X10684 WR17X10684 TUBE DRAIN
WR30X311 WR30X311 UNIVERSAL ICE TRAY
WR01X27364 WR01X27364 WASHER HINGE BROWN
WR2X8244 WR2X8244 WHEEL FRT
WR02X8245 WR02X8245 WHEEL MOBILITY REAR
WR2X8245 WR2X8245 WHEEL REAR
WR02X8244 WR02X8244 WHEEL, FRONT
WH01X10704 WH01X10704 WIRE TIE/PLUG
WR1X1749 WR1X1749 WR1X1749
WR86X96 WR86X96 WR86X96
WZ4X416 WZ4X416 WZ04X0408
