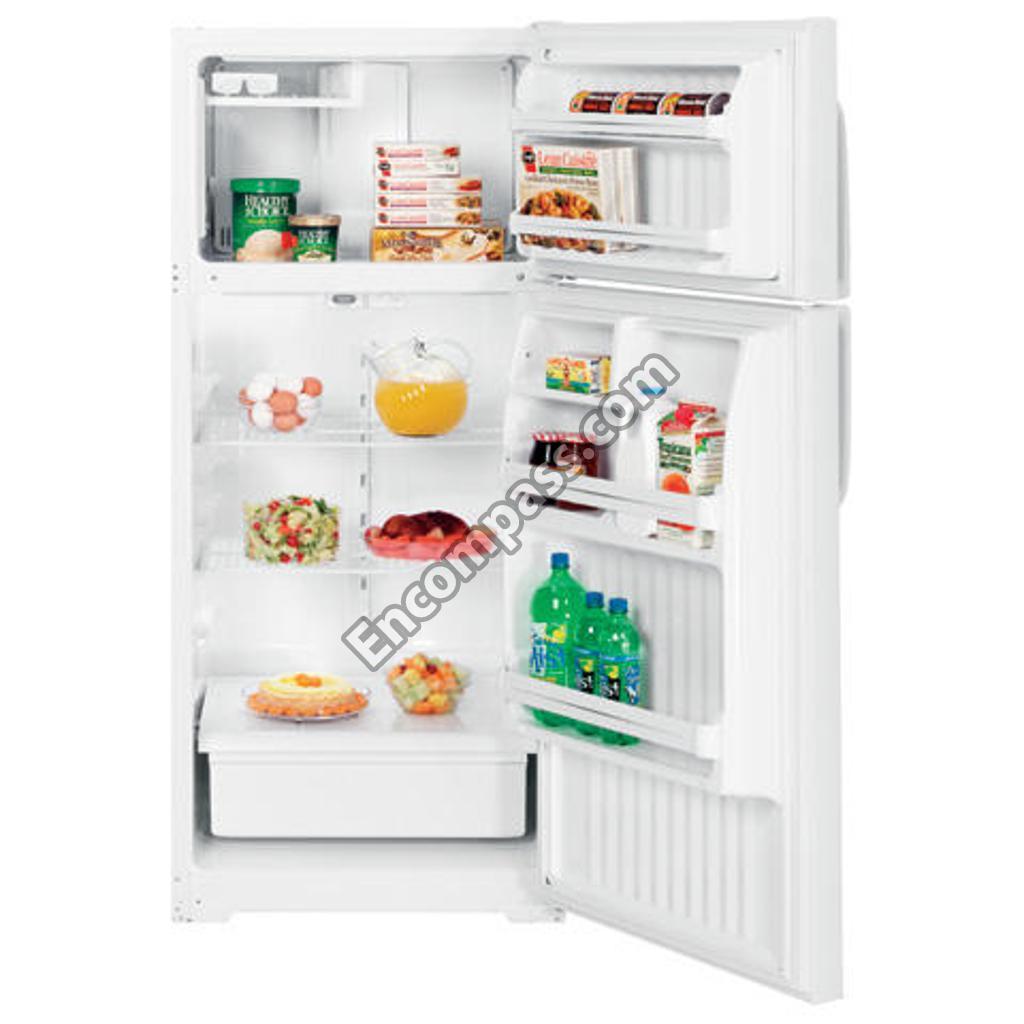

Model Image
Manufacturer

GE

Model Number

GTS18ABRELWW

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
40A15 40A15 GE 40WATT 15AMP INC AND ESCENT BULB
WR09X10106 WR09X10106 GE 5SP OVERLOAD/PTC
WR02X11796 WR02X11796 GE ACTUATOR AIR
WR2X8949 WR2X8949 GE AXLE WHEEL
WR02X8949 WR02X8949 GE AXLE WHEEL FRONT
WR02X8214 WR02X8214 GE AXLE WHEEL REAR
WR17X11225 WR17X11225 GE BAFFLE FAN ASSEMBLY
WR02X8693 WR02X8693 GE BEAUTY BUTTON-WHT
WR60X10207 WR60X10207 GE BLADE COND FAN ASSEMBLY
WR60X10204 WR60X10204 GE BLADE EVAP FAN ASM
WR21X30013 WR21X30013 GE BRACKET EVAP FAN FRT
WR21X30022 WR21X30022 GE BRACKET EVAPORATOR FAN REAR
WR02X10100 WR02X10100 GE BRACKET EVAPORATOR FAN SM
WR02X10540 WR02X10540 GE BUMPER LID
WR2X7051 WR2X7051 GE BUTTON PLUG
WR1X5278 WR1X5278 GE CABLE CLAMP
WR02X10703 WR02X10703 GE CAP CORNER OC WHITE
WR2X9162 WR2X9162 GE CAP SHELF FR
WR02X9162 WR02X9162 GE CAP SHLF FRNT NARROW
WR02X9144 WR02X9144 GE CAP SHLF FRT
WR2X9144 WR2X9144 GE CAP SHLF FRT
WR62X0080 WR62X0080 GE CAPACITOR
WR55X24065 WR55X24065 GE CAPACITOR
WR01X5278 WR01X5278 GE CLAMP CABLE
WR01X2008 WR01X2008 GE CLAMP WIRE
WR2X8583 WR2X8583 GE CLIP
WR02X8583 WR02X8583 GE CLIP COMP MTNG
WR02X12561 WR02X12561 GE CLIP RETAINER 5SP
WR87X10224 WR87X10224 GE COMP REPL KIT
WR14X0313 WR14X0313 GE COND TOP BAFFLE FOAM
WR84X221 WR84X221 GE CONDENSR ASM
WR9X502 WR9X502 GE CONTROL DEFROST
WR23X10300 WR23X10300 GE CORD POWER ASSEMBLY
WR17X11660 WR17X11660 GE COVER EVAP ASM
WR02X11123 WR02X11123 GE COVER IM RECEPTACLE
WR32X10398 WR32X10398 GE COVER VEGETABLE PAN
WR22X487 WR22X487 GE DAIRY DOOR
WR02X11793 WR02X11793 GE DIFFUSER AIR FF
WR22X0476 WR22X0476 GE DOOR DAIRY
WR78X24554 WR78X24554 GE DOOR FOAM ASSEMBLY FF
WR24X10228 WR24X10228 GE DOOR FOAM ASSEMBLY FZ
WR77X0651 WR77X0651 GE DOOR INNER FF
WR77X0648 WR77X0648 GE DOOR INNER FZ
WR32X10455 WR32X10455 GE DPO DRAIN PAN
WR77X651 WR77X651 GE DR INNER FF
WR77X648 WR77X648 GE DR INNER FZ
WR17X11659 WR17X11659 GE DUCT AIR FZ
WR02X11791 WR02X11791 GE DUCT FOAM
WR17X12210 WR17X12210 GE FAN HOUSING ASSEMBLY
WR17X10685 WR17X10685 GE FRONT DOOR SHELF GESM
WR17X10846 WR17X10846 GE FRONT DOOR SHLF GELG
WR02X8246 WR02X8246 GE GASKET AIR DUCT
WR2X8246 WR2X8246 GE GASKET DUCT
WR02X7877 WR02X7877 GE GLIDER ADJ
WR02X7238 WR02X7238 GE GROMMET COMP MTG
WR02X12008 WR02X12008 GE GROMMET EVAPORATOR FAN
WR02X10098 WR02X10098 GE GROMMET MOTOR
WR2X7238 WR2X7238 GE GROMMET MTG.
WR24X10236 WR24X10236 GE GSKT DOOR FF
WR02X10530 WR02X10530 GE GUSSET LH
WR02X10529 WR02X10529 GE GUSSET RH
WR12X10108 WR12X10108 GE HANDLE DOOR ASSEMBLY FZ WHITE
WR12X10107 WR12X10107 GE HANDLE DOOR FF WHITE
WR23X358 WR23X358 GE HARN CTL MOD
WR23X0358 WR23X0358 GE HARNESS CONT MODULE
WR51X10072 WR51X10072 GE HEATER CONDUCTION
WR51X10038 WR51X10038 GE HEATER DEF ASM
WR13X10316 WR13X10316 GE HINGE BTM
WR49X20708 WR49X20708 GE HINGE CTR WH
WR02X10518 WR02X10518 GE HOLDER ELEMENT
WR17X12852 WR17X12852 GE HOUSING CONTROL
WR02X8248 WR02X8248 GE INSUL ELECT
WR2X8248 WR2X8248 GE INSUL ELECT
WR02X13355 WR02X13355 GE KNOB CONTROL
WR04X10028 WR04X10028 GE LENS NAMEPLATE
WR60X23584 WR60X23584 GE MOTOR AC/DC
WR60X31522 WR60X31522 GE MOTOR AC/DC
WR60X10168 WR60X10168 GE MOTOR COND FAN
WR84X0221 WR84X0221 GE NEW CONDENSER REPAIR KIT
WR32X1104 WR32X1104 GE PAN VEG FULL
WR02X8232 WR02X8232 GE PIN HINGE CTR
WR13X10997 WR13X10997 GE PIN HINGE CTR
WR02X27092 WR02X27092 GE PIN HINGE METAL
WR17X10195 WR17X10195 GE PLATE COMP MTG ASSEMBLY
WR2X8233 WR2X8233 GE PLUG BTN WHT
WR2X8999 WR2X8999 GE PLUG BUT MTG
WR12X721 WR12X721 GE PLUG BUTN WH
WR02X11760 WR02X11760 GE PLUG BUTTON
WR02X7051 WR02X7051 GE PLUG BUTTON
WR12X0721 WR12X0721 GE PLUG BUTTON INSERT
WR02X8999 WR02X8999 GE PLUG BUTTON MTG
WR02X8233 WR02X8233 GE PLUG BUTTON THIMBLE WH
WR01X21159 WR01X21159 GE PLUG DOOR
49-60255-1 49-60255-1 GE PM GUIDE OWNERS
31-51493 31-51493 GE PM MINI MANUAL WIRING
WR86X25269 WR86X25269 GE R134 DRIER
WR17X3188 WR17X3188 GE RAIL REAR
WR82X10111 WR82X10111 GE REFRIGERATOR ACCESS PANEL
WR2X8214 WR2X8214 GE REFRIGERATOR AXLE WHEEL
WR2X9000 WR2X9000 GE REFRIGERATOR CONDENSER CLIP
WR1X1794 WR1X1794 GE REFRIGERATOR DOOR SPACER
WR87X28948 WR87X28948 GE REFRIGERATOR EVAPORATOR
WR14X313 WR14X313 GE REFRIGERATOR GASKET COVER
WR2X8344 WR2X8344 GE REFRIGERATOR VINYL SLEEVE
WR2X9221 WR2X9221 GE RET STRIP V
WR02X9221 WR02X9221 GE RET STRIP V
WR2X8235 WR2X8235 GE RETAINER
WR2X8236 WR2X8236 GE RETAINER
WR02X8235 WR02X8235 GE RETAINER STRIP H
WR02X8236 WR02X8236 GE RETAINER STRIP V
WR02X12149 WR02X12149 GE RING COMPRESSION
WR01X1591 WR01X1591 GE SCR 1/4-14 X 3/4
WR01X1728 WR01X1728 GE SCR 10-16 1/2 PH
WR01X1726 WR01X1726 GE SCR 10-16 AB 3/4 SS
WZ04X0263 WZ04X0263 GE SCR 10-16 AB HXW 1/2
WR01X10590 WR01X10590 GE SCR 10-16 AB PNT20 1/2 S
WZ06X0096 WZ06X0096 GE SCR 8-15 A HX 1/2 S NS
WR01X1791 WR01X1791 GE SCR 8-15 SPEC
WR01X1554 WR01X1554 GE SCR 8-18 AB IHXW 1/2 S
WR01X10448 WR01X10448 GE SCR 8-19 HI/LO TRP 1 S
WR01X10317 WR01X10317 GE SCR 8-32 CA HXW 1/2
WR01X1792 WR01X1792 GE SCREW
WR01X1249 WR01X1249 GE SCREW
WR1X1591 WR1X1591 GE SCREW
WD2X5166 WD2X5166 GE SCREW
WR1X1753 WR1X1753 GE SCREW
WR1X1786 WR1X1786 GE SCREW
WR01X1754 WR01X1754 GE SCREW 12-24
WR01X1753 WR01X1753 GE SCREW 12-24
WR01X2009 WR01X2009 GE SCREW ASM
WZ05X0164 WZ05X0164 GE SCREW FAN MTR/BRKT
WZ04X0244 WZ04X0244 GE SCREW-FRONT
WR1X1791D WR1X1791D GE SCREW-PKG - 13 PACK
WZ5X164D WZ5X164D GE SCREW-PKG 12
WR1X1754D WR1X1754D GE SCREW-PKG 12
WZ4X244D WZ4X244D GE SCREW-PKG 12
WZ6X96D WZ6X96D GE SCREW-PKG 12
WR1X1249D WR1X1249D GE SCREW-PKG 12
WR1X1726D WR1X1726D GE SCREW-PKG 12
WR71X10378 WR71X10378 GE SHELF ASM STATIONARY
WR02X11597 WR02X11597 GE SHIELD REFLECTOR
WR2X9212 WR2X9212 GE SHIM HINGE
WR02X9212 WR02X9212 GE SHIM HINGE CTR
WR01X10623 WR01X10623 GE SHOULDER SCR
WR02X8344 WR02X8344 GE SLEEVE VINYL
WR2X7877 WR2X7877 GE SLIDER ADJ
WR02X10591 WR02X10591 GE SOCKET AND TERMINAL ASSEMBLY
WR01X1794 WR01X1794 GE SPACER DOOR FZ
WR02X12212 WR02X12212 GE STOP DOOR FF
WR02X9219 WR02X9219 GE STOP DOOR FF/FZ
WR1X1779 WR1X1779 GE STUD MTGCOMP
WR2X8243 WR2X8243 GE SUPPORT
WR2X8242 WR2X8242 GE SUPPORT
WR2X8429 WR2X8429 GE SUPPORT
WR02X8429 WR02X8429 GE SUPPORT SHLF
WR02X8242 WR02X8242 GE SUPPORT TWIST CONTROL
WR02X8243 WR02X8243 GE SUPPORT TWIST FZ SHELF
WR23X10725 WR23X10725 GE SWITCH LIGHT FF
WR02X10534 WR02X10534 GE TAPE FELT - CONDENSER
WR09X20002 WR09X20002 GE TEMPERATURE CONTROL
WR50X10071 WR50X10071 GE THERMOSTAT DEFROST
WR30X0311 WR30X0311 GE TRAY ICE
WR17X11657 WR17X11657 GE TROUGH DRAIN
WR17X10684 WR17X10684 GE TUBE DRAIN
WR30X311 WR30X311 GE UNIVERSAL ICE TRAY
WR01X27364 WR01X27364 GE WASHER HINGE BROWN
WR2X8244 WR2X8244 GE WHEEL FRT
WR02X8245 WR02X8245 GE WHEEL MOBILITY REAR
WR2X8245 WR2X8245 GE WHEEL REAR
WR02X8244 WR02X8244 GE WHEEL, FRONT
WH01X10704 WH01X10704 GE WIRE TIE/PLUG
WR1X1749 WR1X1749 GE WR1X1749
WR86X96 WR86X96 GE WR86X96
WZ4X416 WZ4X416 GE WZ04X0408
