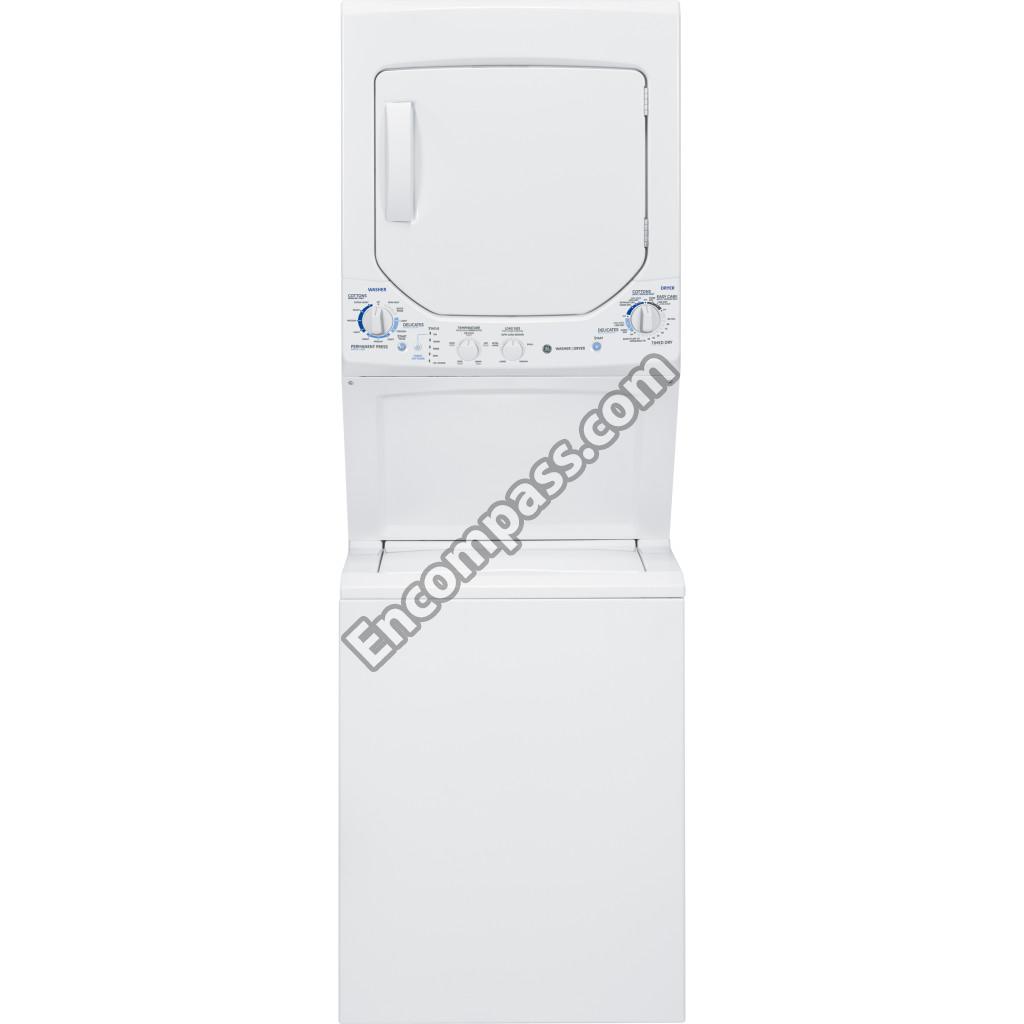

Model Image
Manufacturer

GE

Model Number

GTUP240EM6WW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WH01X10612 WH01X10612 1/4-20 TAPTITE HWH
WH43X10057 WH43X10057 ACTUATOR LID
WH43X10056 WH43X10056 AGITATOR
WE21M39 WE21M39 BAFFLE
WH45X10107 WH45X10107 BASKET ASSEMBLY 24
WE03X37320 WE03X37320 BEARING SLIDE
WE03X37319 WE03X37319 BEARING SLIDE
WE03X25099 WE03X25099 BEARING TOP
WE12M51 WE12M51 BELT DRIVE
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE16X20393 WE16X20393 BLOWER WHEEL
WH12X10586 WH12X10586 BOARD CONTROL ASM
WH16X10144 WH16X10144 BRACE FRONT UPPER
WH16X10172 WH16X10172 BRACKET COVER
WH16X10153 WH16X10153 BRACKET SPRING
WH01X10627 WH01X10627 BUMPER LID
WH01X10625 WH01X10625 BUSHING HINGE
WE4M524 WE4M524 BUTTON AND CLIP ASM
WH01X10591 WH01X10591 BUTTON SELECTOR
WH01X10649 WH01X10649 CLAMP
WH01X10598 WH01X10598 CLAMP
WH01X10599 WH01X10599 CLAMP
WH01X10603 WH01X10603 CLAMP TUB OUTLET
WH01X10601 WH01X10601 CLIP CAPACITOR
WH01X10623 WH01X10623 CLIP COVER
WH01X10604 WH01X10604 CLIP DRAINING HOSE
WE2M301 WE2M301 CLIP FRONT PANEL
WH01X10597 WH01X10597 CLIP GROUND
WH01X10592 WH01X10592 CLIP HOSE
WH01X10595 WH01X10595 CLIP LOCKING
WH44X10287 WH44X10287 COVER FSD
WE1M1007 WE1M1007 COVER FUSE TERMINAL
WE1M1000 WE1M1000 COVER HARNESS MAIN
WH44X10280 WH44X10280 COVER HOSE
WH44X10283 WH44X10283 COVER TOP
WH01X10630 WH01X10630 DAMPER PAD
WE10M150 WE10M150 DOOR ASM
WH01X20436 WH01X20436 DRIVE 3L
WE21X28956 WE21X28956 DRUM ASM 24
WE1M1011 WE1M1011 DRYER DOOR LATCH
WE4M415 WE4M415 DRYER DOOR SWITCH
WE1M462 WE1M462 DRYER DRUM SLEEVE
WE1X921 WE1X921 DRYER MOTOR STRAP
WE14M189 WE14M189 DUCT EXHAUST
WH01X10605 WH01X10605 ELBOW OVER FLOW
WE19M1774 WE19M1774 ENCLOSURE BOARD
WH01X10619 WH01X10619 ENS. TORNILLO AGITADOR
WE1M997 WE1M997 FELT TRAP DUCT
WH16X10147 WH16X10147 FORK SUPPORT ASSEMBLY
WH01X10621 WH01X10621 FUNNEL BLEACH
WE9M58 WE9M58 GASKET DOOR
WE9M59 WE9M59 GASKET DOOR LOWER
WE1M999 WE1M999 GASKET EXHAUST
WE22X35337 WE22X35337 GRID
WE01X30378 WE01X30378 HANDLE DOOR
WE26M360 WE26M360 HARNESS DOOR ASM
WH19X10084 WH19X10084 HARNESS EXTENSION ASM
WE26X20714 WE26X20714 HARNESS MAIN ASSEMBLY
WH19X10087 WH19X10087 HARNESS PRESSURE
WH49X10101 WH49X10101 HARNESS PRINCIPAL ASSEMBLY
WH19X10082 WH19X10082 HARNESS SELECTOR
WE26M362 WE26M362 HARNESS UI ASM
WE11M61 WE11M61 HEATER AND HOUSING ASM
WH01X10614 WH01X10614 HEX SCREW 5/16-18
WH01X10616 WH01X10616 HEX. PT SCREW K80 X 3.59
WH01M10001 WH01M10001 HEXSCREW832TRILOBULAR
WE1M1033 WE1M1033 HINGE
WH44X10290 WH44X10290 HINGE WASHER COVER LH
WH44X10289 WH44X10289 HINGE WASHER COVER RH
WH41X26574 WH41X26574 HOSE DRAIN ASM
WH41X10280 WH41X10280 HOSE DRAIN INLET
WH41X10300 WH41X10300 HOSE PRESSURE
WE14M188 WE14M188 HOUSING BLOWER
WE12M50 WE12M50 IDLER ARM ASM
WE01X24495 WE01X24495 KIT SHAFT BRACKET AND NU
WH16X10185 WH16X10185 KIT SUPPORTS ASSEMBLY
WE4M522 WE4M522 KNOB CONTROL ASM
WE4M523 WE4M523 KNOB ROTATORY ASM
WH01X10594 WH01X10594 LEG LEVELING
WH44X10285 WH44X10285 LID WASHER
WE18X20437 WE18X20437 LINT TRAP ASSEMBLY
WH44X10288 WH44X10288 LOCK LID
WH01X10626 WH01X10626 MAGNET
WH49X20495 WH49X20495 MOTOR
WE17X22214 WE17X22214 MOTOR AND PULLEY
WE01X0921 WE01X0921 MOTOR BRACKET
WE13X24974 WE13X24974 MOTOR BRACKET
WE03X27285 WE03X27285 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WH01X10618 WH01X10618 NUT HUB
WH01X10611 WH01X10611 NUT PULLEY
WE02X20269 WE02X20269 NUT SPEED
WE1M461 WE1M461 O RING
WE20M469 WE20M469 PANEL ACCESS
WE19M1697 WE19M1697 PANEL CTRL & HEAT TR ASM
WE20M467 WE20M467 PANEL FRONT
WH42X10885 WH42X10885 PANEL FRONT ASM
WH01X10596 WH01X10596 PIN ALIGNMENT
31-16652 31-16652 PM INSTALL INSTRUCTION
49-90417 49-90417 PM USE & CARE
WH16X10152 WH16X10152 PRESS HOSE CLAMP
WH12X10530 WH12X10530 PRESSURE SWITCH
31-16868 31-16868 PUB # MINI MANUAL
WH23X10040 WH23X10040 PUMP DRAIN
WE4M416 WE4M416 PUSH TO START SWITCH
WH16X10148 WH16X10148 ROD ASSEMBLY FRONT
WH16X10149 WH16X10149 ROD ASSEMBLY REAR
WH12X10513 WH12X10513 RUN CAPACITOR
WE4M528 WE4M528 SAFETY LEFT TSTAT 24 E
WH01X10624 WH01X10624 SCR 6-20 B TRT 3/8 S
WH01X10631 WH01X10631 SCR 8-16 B FLP .525 S ZN
WE2M281 WE2M281 SCR 8-18 AB 1/2
WB01K10042 WB01K10042 SCR 8-18 AB IHW 3/8 SN
WE2M304 WE2M304 SCR 8-18 AB OVQ1 2 S ZN
WE2M305 WE2M305 SCR 8-18 AB TRQ2 5/8 S
WH01X10600 WH01X10600 SCR 8-18 B HXW 3/8 S ZN
WH01X10610 WH01X10610 SCR 915 TWIN HEL 3/4
WH01X20231 WH01X20231 SCREW
WH2X1211 WH2X1211 SCREW
WH2X1217 WH2X1217 SCREW
WE1M280 WE1M280 SCREW
WE2M223 WE2M223 SCREW
WE2M302 WE2M302 SCREW
WR2X9260 WR2X9260 SCREW
WE2M202 WE2M202 SCREW
WD2M101 WD2M101 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WZ5X158D WZ5X158D SCREW-PKG 12
WZ4X241D WZ4X241D SCREW-PKG 12
WH08X24594 WH08X24594 SEAL TUB
WH01X10602 WH01X10602 SEAT BALL JOINT
WH01X10609 WH01X10609 SET SCREW PULLEY M. ASSEMBLY
WE00X181L WE00X181L SHAFT
WE3M33 WE3M33 SHAFT AND BRACKET ASSEMBLY
WH01X10613 WH01X10613 SHIELD TUB
WH01X28559 WH01X28559 SHIFTER HUB
WH01X10620 WH01X10620 SOCKET ROD SUPPORT
WH12X10603 WH12X10603 SPEED SENSOR
WH01X10628 WH01X10628 SPRING COVER
WH01X10606 WH01X10606 SPRING SHIFTER
WH41X10282 WH41X10282 STOP - DRAIN HOSE
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET
WH01X20438 WH01X20438 STRAP ASSEMBLY 24
WE13X0200 WE13X0200 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WH02X10347 WH02X10347 STUD GROUNDING
WE19M1696 WE19M1696 SUPPORT CONTROLS
WH12X10514 WH12X10514 SUPPORT SENSOR BOARD
WH12X20439 WH12X20439 SUPPORT SENSOR BOARD
WD21X10261 WD21X10261 SWITCH INTERLOCK
WH12X10509 WH12X10509 SWITCH SELECTOR
WH12X10510 WH12X10510 SWITCH SELECTOR
WE4M216 WE4M216 T'STAT OUTLET CTRL
WE4M325 WE4M325 TERM BLK & GRND STRAP
WH12X10512 WH12X10512 THERMISTOR ASM
WE4M181 WE4M181 THERMOSTAT BIAS CTR INLT
WE4M137 WE4M137 THERMOSTAT HI-LIMIT
WE04X22654 WE04X22654 TIMER
WE20X20680 WE20X20680 TOP PANEL
WH38X10018 WH38X10018 TRANSMISSION PULLEY
WE14X25091 WE14X25091 TRAP DUCT ASM 24
WH45X10150 WH45X10150 TUB 24
WH44X10281 WH44X10281 TUB COVER ASM 24
WH13X27314 WH13X27314 VALVE CW47C
WH01X10617 WH01X10617 WASHER HUB
WH16X20555 WH16X20555 WASHING MACHINE BOARD SUPPORT
WH03X20508 WH03X20508 WASHING MACHINE MOTOR GROMMET
WH13X10065 WH13X10065 WATER INLET ASSEMBLY
WE2X263D WE2X263D WE2X263D
