Model Image
Manufacturer

GE

Model Number

GTW460ASJ6WW

Description

Washer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WH03X32218 WH03X32218 1/3 HP MOTOR
WH49X25376 WH49X25376 1/3 HP MOTOR
WH47X24398 WH47X24398 2"BLEACH CUP
WH43X34257 WH43X34257 AGITATOR BASE ASSEMBLY

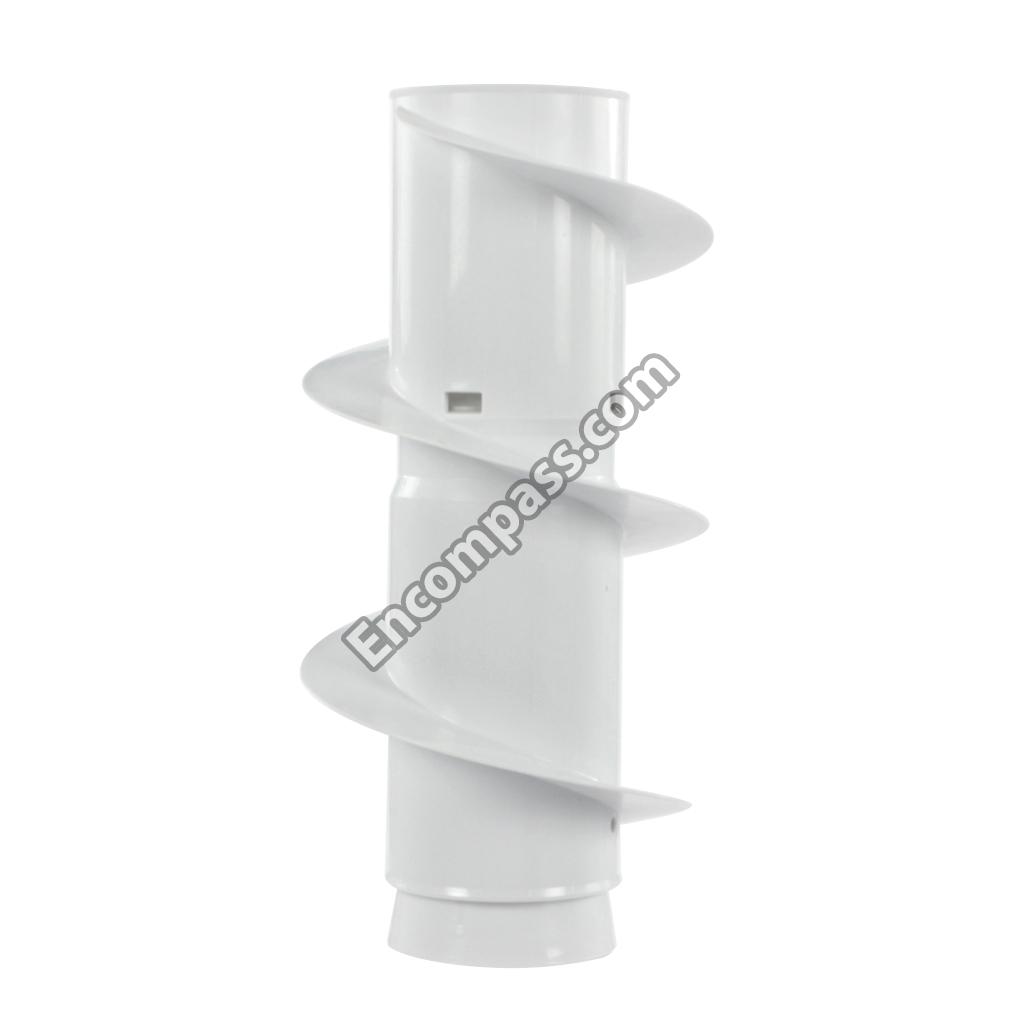

WH43X31240 WH43X31240 AUGER ASM
WH08X24099 WH08X24099 BACKSPLASH
WH45X26175 WH45X26175 BASKET ASSEMBLY
WH01X26190 WH01X26190 BELLEVILLE W
WH01X32881 WH01X32881 BELT GUARD
WH01X24381 WH01X24381 BEZEL
WH12X27614 WH12X27614 CAPACITOR
WH01X24494 WH01X24494 CLAMP
WH05X24185 WH05X24185 CLUTCH
WH01X24396 WH01X24396 CONTROL BOARD
WH02X24390 WH02X24390 COVER THERMISTOR
WH43X24454 WH43X24454 DISPENSER ASSEMBLY
WH10X24149 WH10X24149 DRAIN
WH08X24179 WH08X24179 DRAIN PUMP SEAL
WH16X24192 WH16X24192 DUAL HARNESS
WH01X29177 WH01X29177 FOOT AND BAS
WH42X24097 WH42X24097 GE BADGE
WH03X37017 WH03X37017 GREASE
WR2X8349 WR2X8349 GROMMET SCR CLOSED
WH08X29310 WH08X29310 HARNESS 2 VALVE
WH19X27495 WH19X27495 HARNESS MAIN GREEN
WH02X24634 WH02X24634 HINGE LID SC
WH41X24395 WH41X24395 HOSE
WH02X10363 WH02X10363 HUB NUT
WH02X10364 WH02X10364 HUB WASHER
WH41X24177 WH41X24177 INTERNAL DRA
WH01X24377 WH01X24377 KNOB MAIN ASSEMBLY
WH44X24385 WH44X24385 LARGE LID (WHITE)
WH02X24389 WH02X24389 LARGE LID BU
WH02X24388 WH02X24388 LARGE LID BURNER
WH16X24476 WH16X24476 LEFT BACKSPL
WH02X34898 WH02X34898 LID BUMPER
WH08X37938 WH08X37938 LID LOCK
WH19X24141 WH19X24141 LID LOCK HARNESS
WH02X24143 WH02X24143 LID LOCK HARNESS
31-16912 31-16912 MINI MANUAL
WH03X30517 WH03X30517 MODE SHIFTER ASM
WH01X27794 WH01X27794 OUTER CABINE
WH16X24375 WH16X24375 PCB BRACKET
WH22X38441 WH22X38441 PCBA 2015 LE TRIAC
WH22X38441C WH22X38441C PCBA 2015 LE TRIAC
WH16X24155 WH16X24155 PLATFROM MOTOR SHIELD
49-90549 49-90549 PM MANUAL USE AND CARE
31-3000374 31-3000374 PM MINI MANUAL AND WIRING
WH02X24417 WH02X24417 PULLEY NUT
WH03X30677 WH03X30677 PULLEY TRANSMISSION
WH01X10704 WH01X10704 PUSH MOUNT CABLE TIE
WH10X28194 WH10X28194 REAR CONTROL
WH16X24477 WH16X24477 RIGHT BACKSP
WH16X26911 WH16X26911 ROD AND SPRING
WH02X24154 WH02X24154 SCR 1/4-20 T
WH02X10396 WH02X10396 SCR 10-16 B
WD02X10159 WD02X10159 SCR 10-32 C HX 7/16 S
WH02X24116 WH02X24116 SCR 10-32 GX
WH02X24416 WH02X24416 SCR 5/16-24
WR01X10634 WR01X10634 SCR 8-18 AB 13/4 S HXW
WR01X10065 WR01X10065 SCR 8-18 BA POR 5/8 SS
WH02X24296 WH02X24296 SCR 8-18 BS
WR01X10196 WR01X10196 SCR 8-18 HI/LO 5/8
WH02X24374 WH02X24374 SCREW
WH02X10376 WH02X10376 SCREW PLATFORM
WH04X29308 WH04X29308 SELECTOR SWITCH
WH03X32158 WH03X32158 SENSOR SPEED
WH01X24434 WH01X24434 SPRING
WH02X24334 WH02X24334 SPRING CLIP
WH01X10759 WH01X10759 SPRING WASHER
WH44X24383 WH44X24383 TOP COVER WH
WH03X32097 WH03X32097 TRANSMISSION PULLEY AND NUT
WH01X24376 WH01X24376 TREE BUTTON
WH44X24150 WH44X24150 TUB COVER
49-90567 49-90567 USE AND CARE MANUAL
WH13X26535 WH13X26535 VALVE INLET ASM
WH42X28260 WH42X28260 WASHER CONTROL PANEL (WHITE)
WH41X10319 WH41X10319 WASHER DRAIN HOSE
WH1X2725 WH1X2725 WASHER DRAIN HOSE SUPPORT CLIP
WH23X28418 WH23X28418 WASHER DRAIN PUMP ASSEMBLY
WH01X24697 WH01X24697 WASHER DRIVE BELT
WH03X33729 WH03X33729 WASHER GEAR CASE
WH01X24378 WH01X24378 WASHER KNOB
WH08X28843 WH08X28843 WASHER POWER CORD
WH02X10126 WH02X10126 WASHER SCREW
WH16X26910 WH16X26910 WASHER SUSPENSION ROD AND SPRING ASSEMBLY, RIGHT
WH01X26970 WH01X26970 WASHER SUSPENSION ROD BALL JOINT
WH04X29448 WH04X29448 WASHER THERMISTOR
WH02X24057 WH02X24057 WATER VALVE
WH01X24190 WH01X24190 WIRE HARNESS
WH01X10750 WH01X10750 WIRE TIE STA
WH02X24394 WH02X24394 WIREFORM HINGE
WH02X24393 WH02X24393 WIREFORM HINGE
