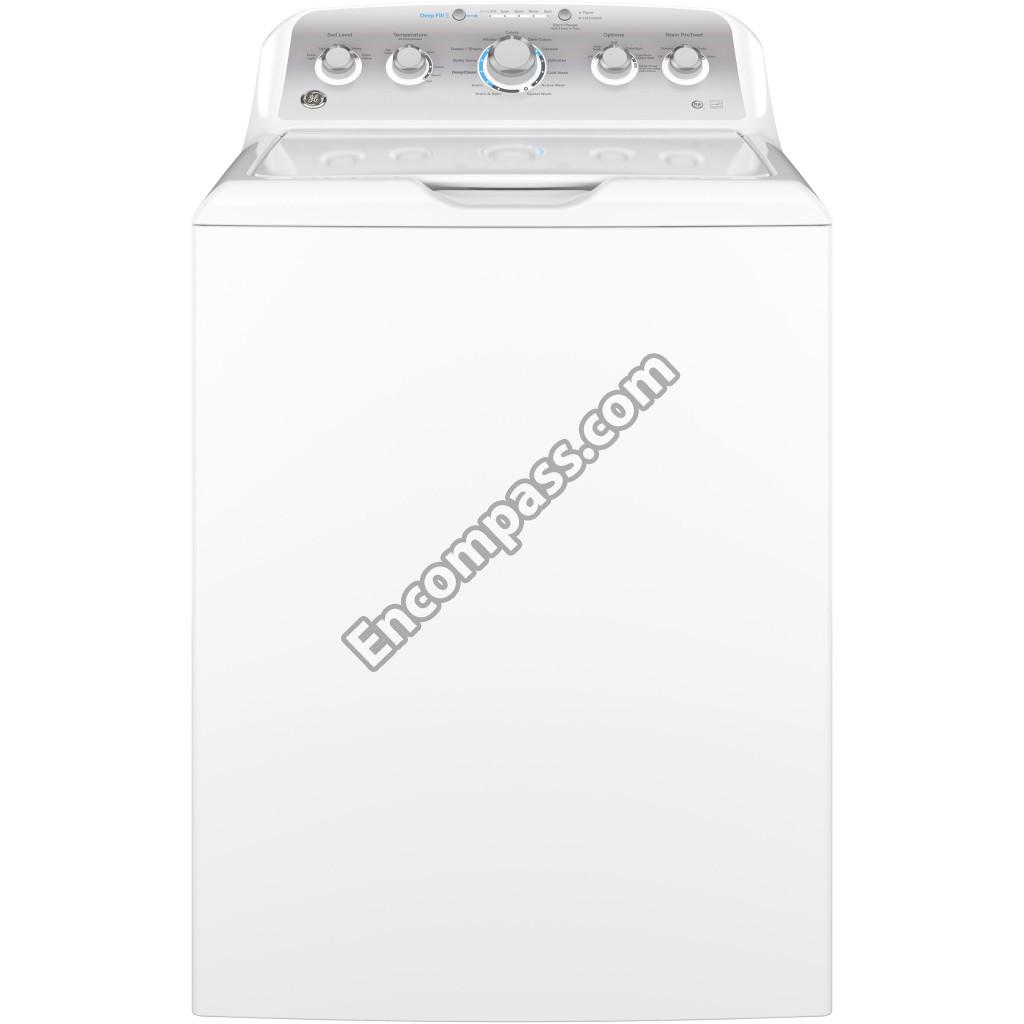

Model Image
Manufacturer

GE

Model Number

GTW500ASN1WS

Description

Washer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WH49X25375 WH49X25375 1/2 HP MOTOR AND NUT
WH03X32217 WH03X32217 1/2 HP MOTOR PULLEY AND NUT
WH02X24374 WH02X24374 2A SINULOC SCR 1/4-20
WH42X24097 WH42X24097 BADGE GE
WH01X26970 WH01X26970 BALL JOINT UPPER
WH45X26674 WH45X26674 BASKET ASSEMBLY
WH01X26190 WH01X26190 BELLEVILLE WASHER
WH47X24398 WH47X24398 BLEACH CUP 2-INCH
WH16X24375 WH16X24375 BRACKET PCB
WH02X34898 WH02X34898 BUMPER LID
WH01X24376 WH01X24376 BUTTON TREE
WH12X27614 WH12X27614 CAPACITOR
WH01X24494 WH01X24494 CLAMP
WH1X2725 WH1X2725 CLIP ANT-SIP
WH02X24334 WH02X24334 CLIP SPRING COVER
WH05X24185 WH05X24185 CLUTCH
WH01X24396 WH01X24396 CONTROL BOARD SHIELD
WH22X28846 WH22X28846 CONTROL PANEL WHITE
WH08X24179 WH08X24179 DRAIN PUMP SEAL

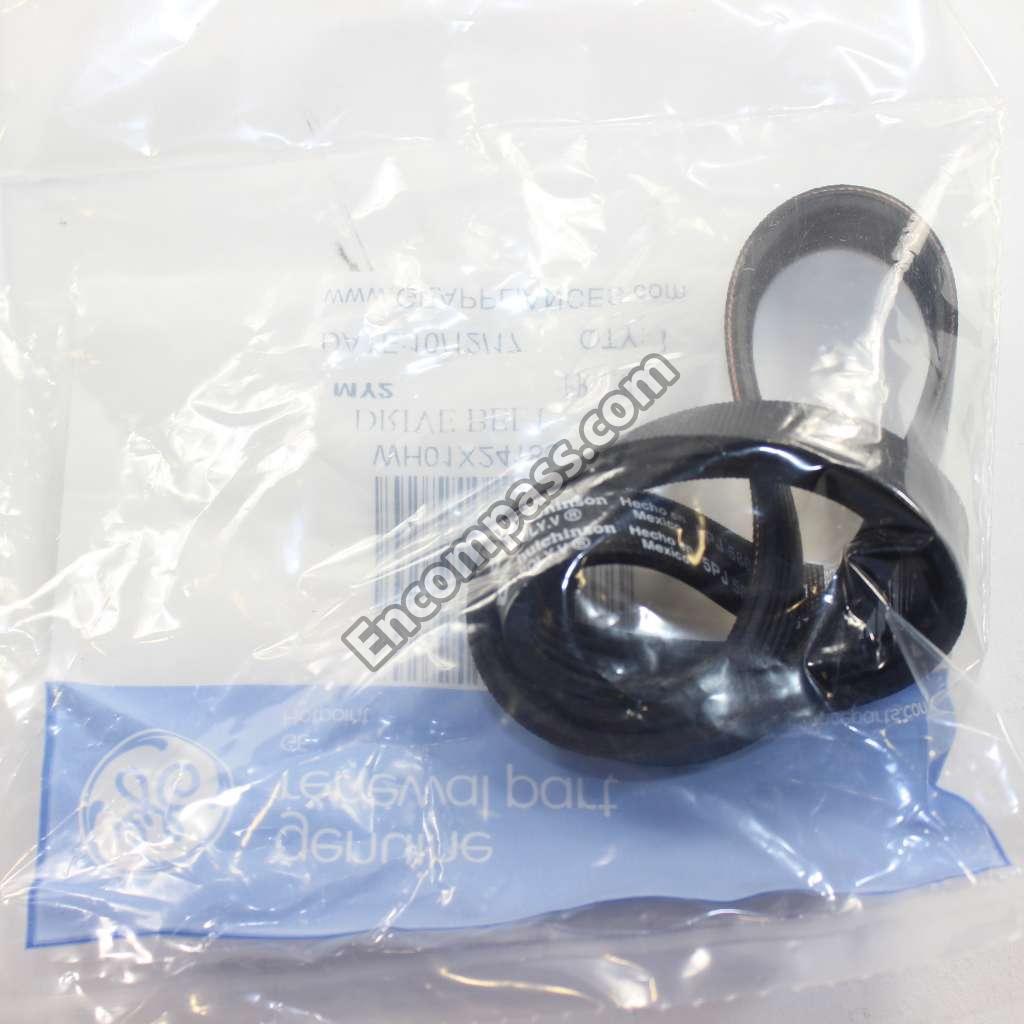

WH01X24180 WH01X24180 DRIVE BELT
WH16X24192 WH16X24192 DUAL HARNESS CONNECTOR B
WH41X32477 WH41X32477 EXTERNAL DRAIN HOSE
WH01X29177 WH01X29177 FOOT AND BASE
WH03X37017 WH03X37017 GREASE
WH08X29310 WH08X29310 HARNESS 2 VALVE
WH01X24190 WH01X24190 HARNESS WIRE TIE
WH02X24634 WH02X24634 HINGE LID SCR 6-32 MCH F
WH41X24395 WH41X24395 HOSE PRESSURE
WH43X32857 WH43X32857 IMPELLER ASM
WH01X30197 WH01X30197 IMPELLER CAP
WH13X29558 WH13X29558 INNER DRAIN HOSE MOUNTING PANEL
WH41X24177 WH41X24177 INTERNAL DRAIN HOSE ASSEMBLY
WH01X24377 WH01X24377 KNOB MAIN ASSEMBLY
WH01X24378 WH01X24378 KNOB OPTIONS ASSEMBLY
WH02X24388 WH02X24388 LARGE LID BUSHING LEFT
WH02X24389 WH02X24389 LARGE LID BUSHING RIGHT
WH44X24385 WH44X24385 LARGE LID WHITE
WH16X24477 WH16X24477 LEFT BACKSPLASH SUPPORT
WH08X37937 WH08X37937 LID LOCK AND HARNESS
WH01X31220 WH01X31220 LID LOCK BEZEL
WH02X24143 WH02X24143 LID LOCK HARNESS CLIP
WH01X37858 WH01X37858 LID LOCK STRIKER
WH22X38441 WH22X38441 MAIN CONTROL BOARD
WH22X38441C WH22X38441C MAIN CONTROL BOARD
WH19X27495 WH19X27495 MAIN HARNESS GREEN
WH03X30517 WH03X30517 MODE SHIFTER
WH02X10363 WH02X10363 NUT HUB
WH02X24417 WH02X24417 NUT PULLEY

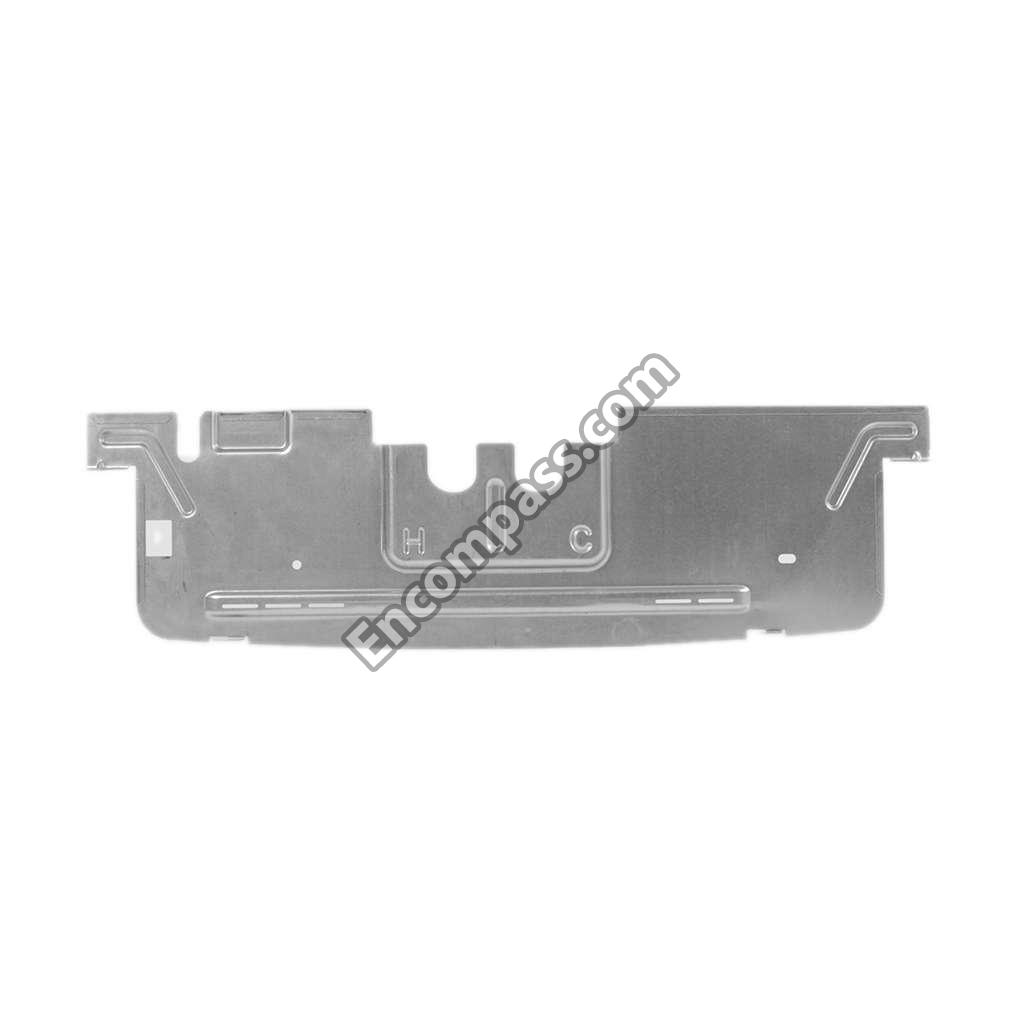

WH10X28195 WH10X28195 PANEL REAR CONTROL
WH01X27794 WH01X27794 PATCH IMPACT
WH03X33731 WH03X33731 PLATFORM TRANS ASSEMBLY KIT HE
31-3000374 31-3000374 PM MINI MANUAL AND WIRING
49-3000255 49-3000255 PM OWNERS MANUAL
WH08X28843 WH08X28843 POWER CORD
WH23X28418 WH23X28418 PUMP DRAIN ASSEMBLY
WH01X10704 WH01X10704 PUSH MOUNT CABLE TIE
WH16X24476 WH16X24476 RIGHT BACKSPLASH SUPPORT
WH16X26911 WH16X26911 ROD AND SPRING ASSEMBLY LEFT - WHITE
WH16X26910 WH16X26910 ROD AND SPRING ASSEMBLY RIGHT - GREEN
WH02X24154 WH02X24154 SCR 1/4-20 TT HXT .485 S
WH02X10396 WH02X10396 SCR 10-16 B HXW 3/8 S
WH02X24116 WH02X24116 SCR 10-32 GX 1.309 HWX S
WE02X10107 WE02X10107 SCR 10-32 GX HXW 7/16 S
WH02X24416 WH02X24416 SCR 5/16-24 MCH HX 1 SIN
WH02X24057 WH02X24057 SCR 8-16 PLASTITE HXW 5/8
WR01X10634 WR01X10634 SCR 8-18 AB 13/4 S HXW
WH01X28840 WH01X28840 SCR 8-18 AB TSQ 5/8 SS
WH02X24296 WH02X24296 SCR 8-18 BS TRP 3/8 S
WR01X10196 WR01X10196 SCREW 8-18 HI/LO 5/8
WH02X10376 WH02X10376 SCREW PLATFORM
WH04X29308 WH04X29308 SELECTOR SWITCH 4
WH03X32158 WH03X32158 SENSOR SPEED
WH01X24434 WH01X24434 SPRING CLUTCH
WH04X29448 WH04X29448 THERMISTOR
WH02X24390 WH02X24390 THERMISTOR CLIP
WH44X24383 WH44X24383 TOP COVER WHITE
WH03X32097 WH03X32097 TRANSMISSION PULLEY AND NUT
WH44X24150 WH44X24150 TUB COVER
WH02X10364 WH02X10364 WASHER HUB
WH01X10759 WH01X10759 WASHER SPRING
WH01X32881 WH01X32881 WASHING MACHINE BELT PROTECTOR
WH13X26535 WH13X26535 WATER VALVE GASKET ASSEMBLY
WH02X24393 WH02X24393 WIREFORM HINGE LID LEFT
WH02X24394 WH02X24394 WIREFORM HINGE LID RIGHT
