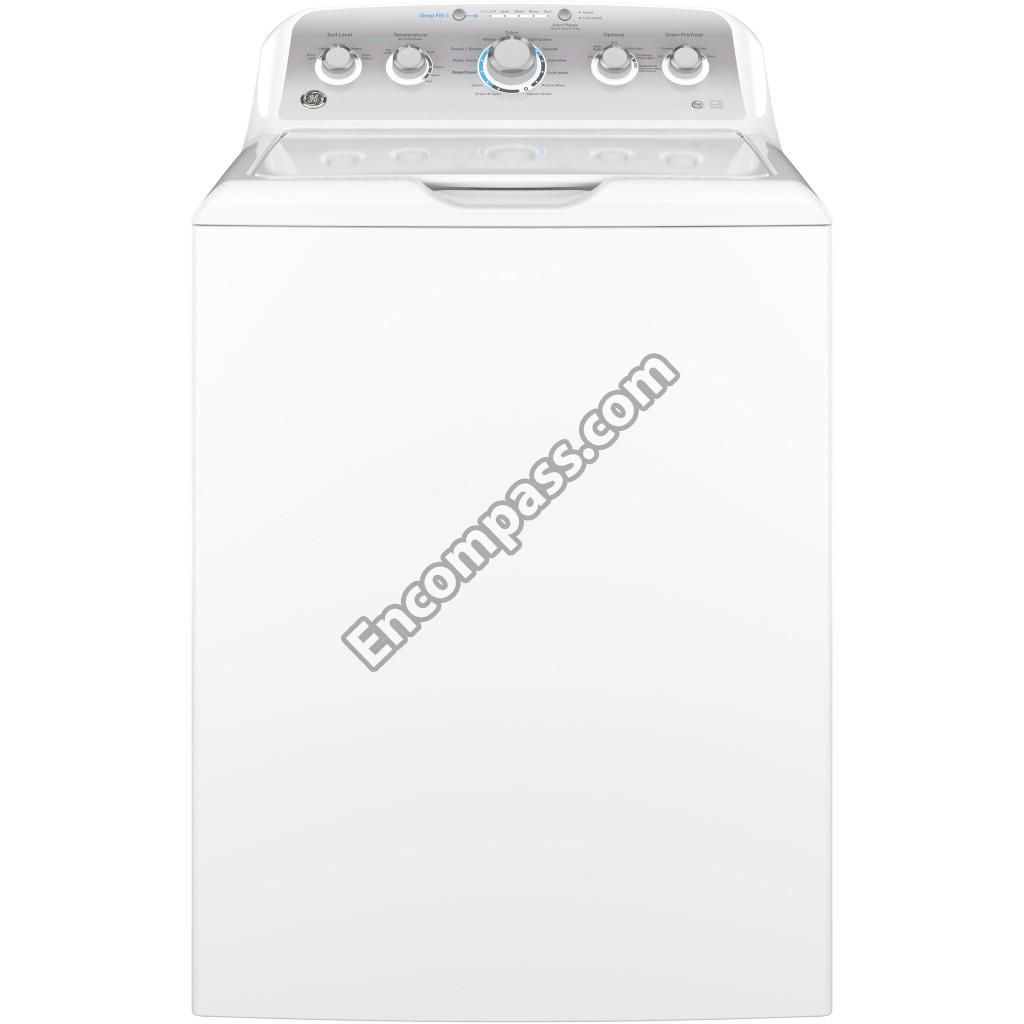

Model Image
Manufacturer

GE

Model Number

GTW500ASN6WS

Description

Washer

Interactive Exploded View

Parts List

Part Number Description
WH47X24398 WH47X24398 "BLEACH CUP 2"""
WH02X24374 WH02X24374 "SCR 1/4-20, 2A SINULOC"
WH49X25375 WH49X25375 1/2 HP MOTOR AND NUT
WH01X26970 WH01X26970 BALL JOINT UPPER
WH21X34217 WH21X34217 BASKET 4.6
WH01X26190 WH01X26190 BELLEVILLE WASHER
WH01X32881 WH01X32881 BELT PROTECTOR
WH16X24375 WH16X24375 BRACKET POWER CONTROL BOARD
WH01X24376 WH01X24376 BUTTON TREE
WH12X27614 WH12X27614 CAPACITOR
WH13X28838 WH13X28838 CAPACITOR BRACKET
WH01X24494 WH01X24494 CLAMP
WH1X2725 WH1X2725 CLIP ANT-SIP
WH02X36357 WH02X36357 CLIP SPRING COVER
WH05X24185 WH05X24185 CLUTCH
WH01X24396 WH01X24396 CONTROL BOARD SHIELD
WH22X28846 WH22X28846 CONTROL PANEL WHITE
WH08X24179 WH08X24179 DRAIN PUMP SEAL
WH01X24180 WH01X24180 DRIVE BELT
WH16X24192 WH16X24192 DUAL HARNESS CONNECTOR B
WH41X32477 WH41X32477 EXTERNAL DRAIN HOSE
WH01X29177 WH01X29177 FOOT AND BASE
WH01X29417 WH01X29417 GE BADGE
WH03X37017 WH03X37017 GREASE
WH08X29310 WH08X29310 HARNESS 2 VALVE
WH01X24190 WH01X24190 HARNESS WIRE TIE
WH02X24634 WH02X24634 HINGE LID SCR 6-32 MCH F
WH41X24395 WH41X24395 HOSE PRESSURE
WH01X30197 WH01X30197 IMPELLER CAP
WH43X32857 WH43X32857 IMPELLER/AUGER BASE
WH13X29558 WH13X29558 INNER DRAIN HOSE MOUNTING PANEL
WH41X24177 WH41X24177 INTERNAL DRAIN HOSE ASM
WH01X24377 WH01X24377 KNOB MAIN ASM
WH01X24378 WH01X24378 KNOB OPTIONS ASM
WH02X24388 WH02X24388 LARGE LID BUSHING LEFT
WH02X24389 WH02X24389 LARGE LID BUSHING RIGHT
WH44X24385 WH44X24385 LARGE LID WHITE
WH16X24476 WH16X24476 LEFT BACKSPLASH SUPPORT
WH02X34898 WH02X34898 LID BUMPER
WH08X37859 WH08X37859 LID LOCK & HARNESS TL WASHER
WH01X31220 WH01X31220 LID LOCK BEZEL
WH02X24143 WH02X24143 LID LOCK HARNESS CLIP
WH01X37858 WH01X37858 LID LOCK STRIKER TL WASHER
WH22X38438 WH22X38438 MAIN CONTROL BOARD W/INSTRUCTIONS TL WAS
WH08X28842 WH08X28842 MAIN HARNESS GREEN
WH03X30517 WH03X30517 MODE SHIFTER
WH03X33317 WH03X33317 MOTOR PULLEY & NUT
WH02X10363 WH02X10363 NUT HUB
WH02X24417 WH02X24417 NUT PULLEY
WH10X28195 WH10X28195 PANEL REAR CONTROL
WH01X27794 WH01X27794 PATCH IMPACT
WH03X34137 WH03X34137 PLATFORM BEARING RETAINER & FASTENERS
31-3000374 31-3000374 PM MINI MANUAL AND WIRING
49-3000373 49-3000373 PM OWNERS AND INSTALL
WH08X28843 WH08X28843 POWER CORD
WH23X28418 WH23X28418 PUMP DRAIN ASM
WH01X10217 WH01X10217 PUSH MOUNT CABLE TIE
WH01X10704 WH01X10704 PUSH MOUNT CABLE TIE
WH16X24477 WH16X24477 RIGHT BACKSPLASH SUPPORT
WH16X26911 WH16X26911 ROD AND SPRING ASM LEFT
WH16X26910 WH16X26910 ROD AND SPRING ASM RIGHT
WH02X24154 WH02X24154 SCR 1/4-20 TT HXT .485 S
WH02X10396 WH02X10396 SCR 10-16 B HXW 3/8 S
WE02X10107 WE02X10107 SCR 10-32 GX HXW 7/16 S
WH02X36297 WH02X36297 SCR 10-32 SEMI GX F HX 1.309
WH02X34437 WH02X34437 SCR 5/16-24 MCH HX 1 SINULOC
WH02X24057 WH02X24057 SCR 8-16 PLASTITE HXW 5/
WR01X10634 WR01X10634 SCR 8-18 AB 13/4 S HXW
WH01X28840 WH01X28840 SCR 8-18 AB TSQ 5/8 SS
WH02X24296 WH02X24296 SCR 8-18 BS TRP 3/8 S
WR01X10196 WR01X10196 SCREW 8-18 HI/LO 5/8
WH02X10376 WH02X10376 SCREW PLATFORM
WH04X29308 WH04X29308 SELECTOR SWITCH 4
WH03X32158 WH03X32158 SPEED SENSOR
WH01X24434 WH01X24434 SPRING CLUTCH
WH04X29448 WH04X29448 THERMISTOR
WH02X24390 WH02X24390 THERMISTOR CLIP
WH44X24383 WH44X24383 TOP COVER WHITE
WH03X32097 WH03X32097 TRANSMISSION PULLEY & NUT
WH44X24150 WH44X24150 TUB COVER
WH02X10364 WH02X10364 WASHER HUB
WH01X10759 WH01X10759 WASHER SPRING
WH13X26535 WH13X26535 WATER VALVE GASKET ASM
WH02X24393 WH02X24393 WIREFORM HINGE LID LEFT
WH02X24394 WH02X24394 WIREFORM HINGE LID RIGHT
