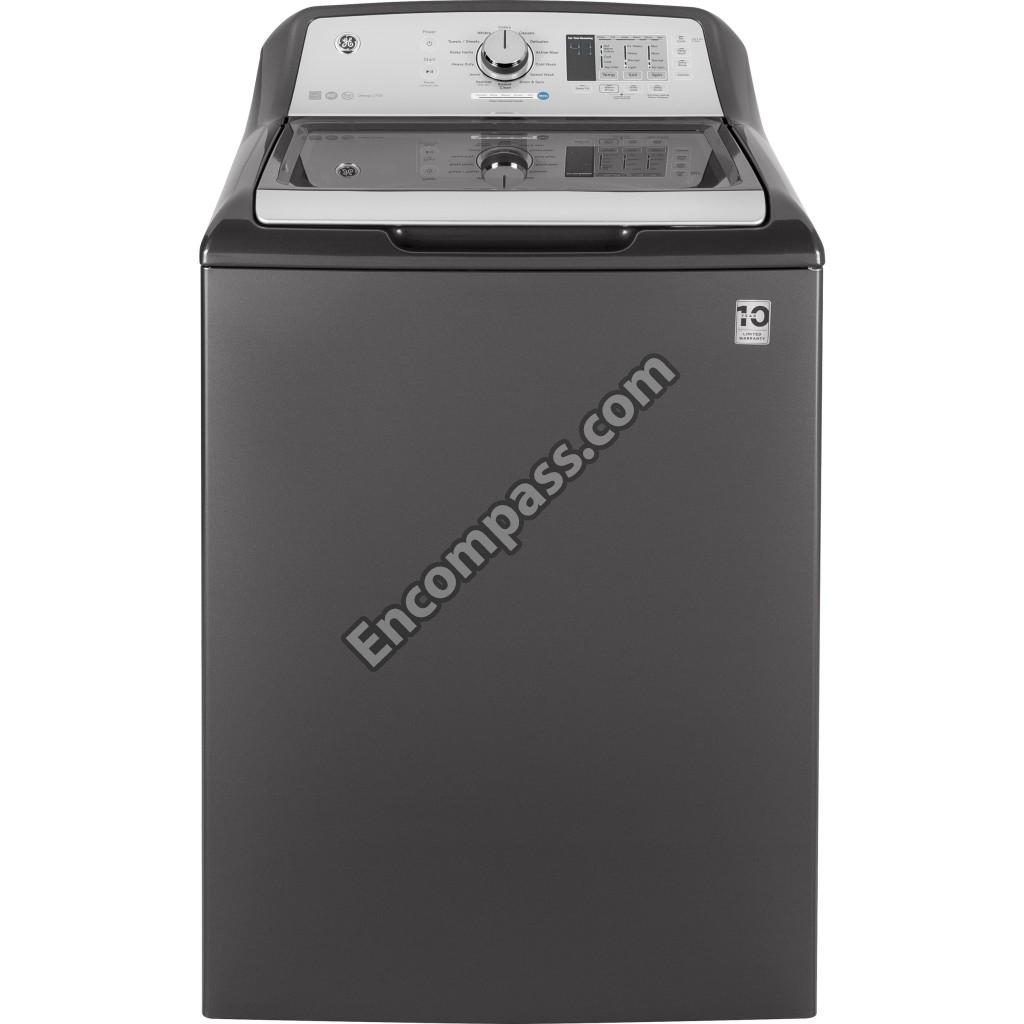

Model Image
Manufacturer

GE

Model Number

GTW680BPL0DG

Description

Washer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WH03X32217 WH03X32217 1/2 HP MOTOR PULLEY AND NUT
WH08X24099 WH08X24099 BACKSPLASH
WH45X26674 WH45X26674 BASKET ASSEMBLY
WH01X26190 WH01X26190 BELLEVILLE W
WH01X32881 WH01X32881 BELT GUARD
WH01X26694 WH01X26694 BEZEL LID LOCK
WH47X26697 WH47X26697 BLEACH CUP
WH47X27014 WH47X27014 BOX DISPENSER
WH47X26702 WH47X26702 BOX DISPENSER ASM
WH01X30197 WH01X30197 CAP IMPELLER
WH12X27614 WH12X27614 CAPACITOR
WH01X24494 WH01X24494 CLAMP
WH05X24185 WH05X24185 CLUTCH
WH01X24101 WH01X24101 CONTROL BOARD
WH47X26754 WH47X26754 DISPENSER SH
WH42X29424 WH42X29424 DISPENSER SI
WH10X24149 WH10X24149 DRAIN
WH08X24179 WH08X24179 DRAIN PUMP SEAL
WH16X24192 WH16X24192 DUAL HARNESS
WH41X32477 WH41X32477 EXTERNAL DRAIN HOSE
WH01X29177 WH01X29177 FOOT AND BAS
WH42X24097 WH42X24097 GE BADGE
WH44X26701 WH44X26701 GLASS FRAME ASM XL LID
WH03X37017 WH03X37017 GREASE
WR2X8349 WR2X8349 GROMMET SCR CLOSED
WH19X25439 WH19X25439 HARNESS MAIN ORANGE
WH19X27496 WH19X27496 HARNESS MAIN ORANGE
WH01X10698 WH01X10698 HOSE CLAMP
WH02X10363 WH02X10363 HUB NUT
WH02X10364 WH02X10364 HUB WASHER
WH43X32857 WH43X32857 IMPELLER ASM
WH41X24177 WH41X24177 INTERNAL DRA
WH19X24055 WH19X24055 JUMPER HARNE
WE01X23886 WE01X23886 KNOB ASSEMBLY
WH16X24095 WH16X24095 LEFT BACKSPL
WH01X24107 WH01X24107 LID BEAUTY P
WH02X34897 WH02X34897 LID CENTER
WH01X24108 WH01X24108 LID FRONT CO
WH02X24139 WH02X24139 LID HINGE
WH02X24414 WH02X24414 LID HINGE SC
WH02X24140 WH02X24140 LID HINGE SC
WH01X24111 WH01X24111 LID LEVER ARM
WH19X24141 WH19X24141 LID LOCK HARNESS
WH02X24143 WH02X24143 LID LOCK HARNESS
WH08X37938 WH08X37938 LID LOCK QUICK RELEASE
WH02X24106 WH02X24106 LID LOCK STIRRER
31-16928 31-16928 MINI MANUAL
WH01X27794 WH01X27794 OUTER CABINE
WH42X28268 WH42X28268 PANEL CONTROL ASM
WH16X24155 WH16X24155 PLATFROM MOTOR SHIELD
49-90576 49-90576 PM MANUAL USE AND CARE
31-3000374 31-3000374 PM MINI MANUAL AND WIRING
WH41X26995 WH41X26995 PRESSURE HOSE
WH02X24417 WH02X24417 PULLEY NUT
WH03X30677 WH03X30677 PULLEY TRANSMISSION
WH01X10704 WH01X10704 PUSH MOUNT CABLE TIE
WH10X24054 WH10X24054 REAR CONTROL
WH23X24175 WH23X24175 RECIRCULATION
WH41X24174 WH41X24174 RECIRCULATION
WH08X24176 WH08X24176 RECIRCULATION
WH16X24096 WH16X24096 RIGHT BACKSP
WH16X26911 WH16X26911 ROD AND SPRING
WH02X24154 WH02X24154 SCR 1/4-20 T
WH02X10396 WH02X10396 SCR 10-16 B
WD02X10159 WD02X10159 SCR 10-32 C HX 7/16 S
WH02X24116 WH02X24116 SCR 10-32 GX
WE02X10107 WE02X10107 SCR 10-32 GX HXW 7/16 S
WH02X24416 WH02X24416 SCR 5/16-24
WR01X10634 WR01X10634 SCR 8-18 AB 13/4 S HXW
WR01X10196 WR01X10196 SCR 8-18 HI/LO 5/8
WH02X24374 WH02X24374 SCREW
WH02X10376 WH02X10376 SCREW PLATFORM
WH16X24193 WH16X24193 SINGLE HARNE
WH03X32158 WH03X32158 SPEED SENSOR
WH01X24434 WH01X24434 SPRING
WH02X24334 WH02X24334 SPRING CLIP
WH01X10759 WH01X10759 SPRING WASHER
WH44X27354 WH44X27354 TOP COVER
WH03X32097 WH03X32097 TRANSMISSION PULLEY AND NUT
WH44X24150 WH44X24150 TUB COVER
WH22X35757 WH22X35757 UI-MC BOARD
WH13X26637 WH13X26637 VALVE QUAD WATER ASM
WH41X10319 WH41X10319 WASHER DRAIN HOSE
WH1X2725 WH1X2725 WASHER DRAIN HOSE SUPPORT CLIP
WH23X28418 WH23X28418 WASHER DRAIN PUMP ASSEMBLY
WH01X24180 WH01X24180 WASHER DRIVE BELT
WH49X25375 WH49X25375 WASHER DRIVE MOTOR
WH03X33731 WH03X33731 WASHER GEAR CASE
WH08X28843 WH08X28843 WASHER POWER CORD
WH02X10126 WH02X10126 WASHER SCREW
WH03X30517 WH03X30517 WASHER SHIFTER
WH16X26910 WH16X26910 WASHER SUSPENSION ROD AND SPRING ASSEMBLY, RIGHT
WH01X26970 WH01X26970 WASHER SUSPENSION ROD BALL JOINT
WH04X29448 WH04X29448 WASHER THERMISTOR
WH02X24057 WH02X24057 WATER VALVE
WH13X24094 WH13X24094 WATER VALVE
WH08X29860 WH08X29860 WATER VALVE
WH01X24190 WH01X24190 WIRE HARNESS
WH01X10750 WH01X10750 WIRE TIE STA
