Model Image
Manufacturer

GE

Model Number

GTX33EASK0WW

Description

Dryer Electric

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE03X25277 WE03X25277 BACKSPLASH ASSEMBLY
WE1M300 WE1M300 BEARING RETAINER
WE03X37320 WE03X37320 BEARING SLIDE
WE03X25314 WE03X25314 BEARING TOP ASSEMBLY
WE03X23956 WE03X23956 BEARING TOP SLIDES
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE03X24536 WE03X24536 BLOWER HOUSING ASSEMBLY
WH16X34317 WH16X34317 BLOWER WHEEL
WE04X24719 WE04X24719 BUTTON START ASSEMBLY
WE2M96 WE2M96 CAP NUT.
WE04X25159 WE04X25159 CHASSIS AND LEG ASSEMBLY
WE03X23883 WE03X23883 COVER BOTTOM
WE1M1007 WE1M1007 COVER FUSE TERMINAL
WE03X24721 WE03X24721 COVER TOP LOW DEPTH
WE11X29438 WE11X29438 DIFFUSER
WE10X26855 WE10X26855 DOOR ASSEMBLY
WE04X28977 WE04X28977 DOOR SWITCH
WE21X23868 WE21X23868 DRUM ASSEMBLY
WE14X20683 WE14X20683 DRYER BAFFLE
WE03X37319 WE03X37319 DRYER BEARING SLIDE
WE4M318 WE4M318 DRYER BUZZER
WE03X29897 WE03X29897 DRYER DRUM DRIVE BELT
WE1M462 WE1M462 DRYER DRUM SLEEVE
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE1M1015 WE1M1015 DRYER GROUND STRAP
WE01X25317 WE01X25317 DRYER HINGE
WE01X25316 WE01X25316 DRYER LATCH
WE03X23881 WE03X23881 DRYER LINT FILTER
WE01X25160 WE01X25160 DRYER RACK

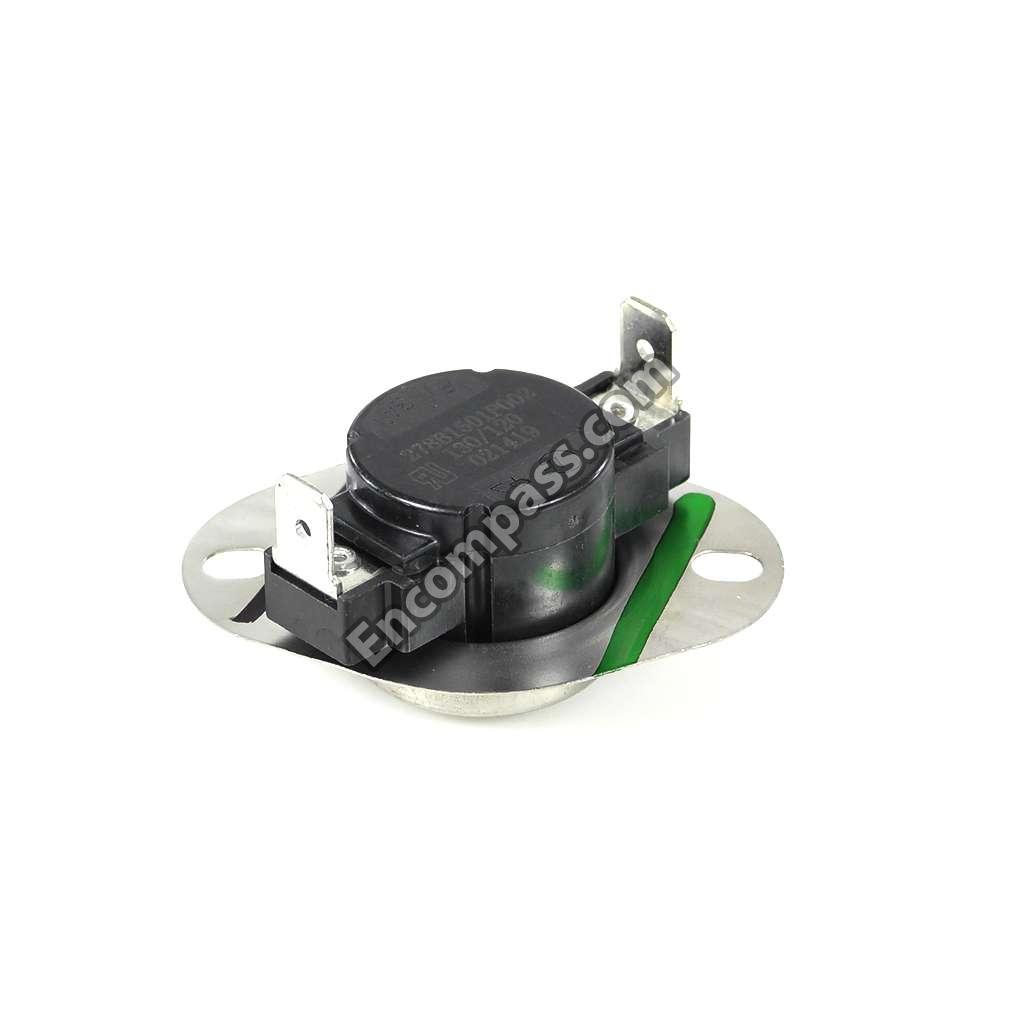

WE04X25194 WE04X25194 DRYER THERMOSTAT
WE01X23892 WE01X23892 EXHAUST DUCT
WE20X25260 WE20X25260 FRONT PANEL WHITE
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE08X37097 WE08X37097 HARNESS ASSEMBLY ELEC
WE11X21156 WE11X21156 HEATER AND HOUSING ASSEMBLY
WE11M43 WE11M43 HEATER HOUSING
WE15X26140 WE15X26140 HI-LIMIT HARNESS THERMOSTAT ASSEMBLY

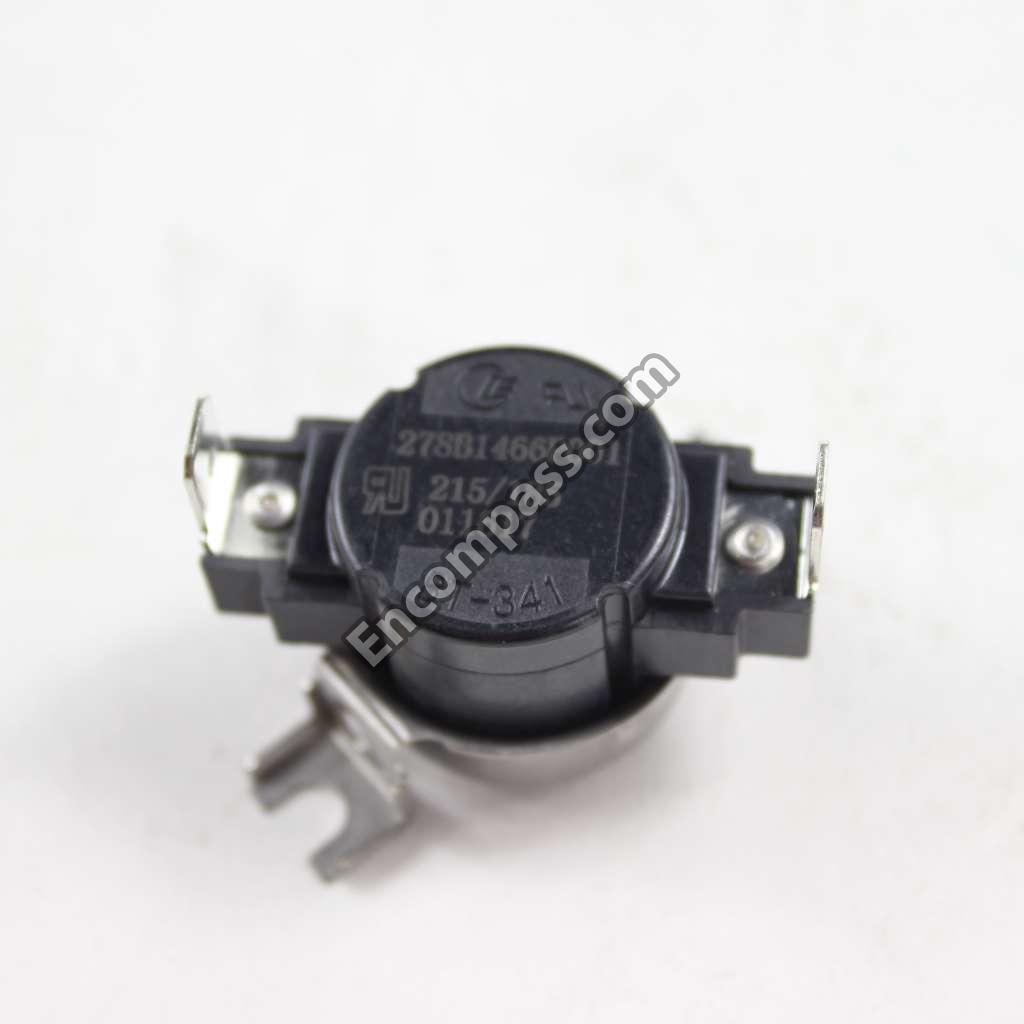

WE04X26139 WE04X26139 HIGH LIMIT THERMOSTAT
WE03X20434 WE03X20434 IDLER ARM
WE03X31620 WE03X31620 IDLER PULLEY
WE04X25201 WE04X25201 INLET THERMOSTAT
WE15X25208 WE15X25208 JUMPER HARNESS BLACK
WE15X25206 WE15X25206 JUMPER HARNESS RED
WE01X24552 WE01X24552 KNOB MAIN ASSEMBLY
WH01X24378 WH01X24378 KNOB OPTIONS ASSEMBLY
WE01X29357 WE01X29357 LEVELLING FOOT
WE11M10001 WE11M10001 MICA HEATER
WE17X24535 WE17X24535 MOTOR AND BLOWER ASSEMBLY
WE49X28295 WE49X28295 MOTOR AND PULLEY ASSEMBLY
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE20X24556 WE20X24556 PANEL BACK
WE02X25274 WE02X25274 PANEL REAR
WE13X29444 WE13X29444 PLATE BLOWER
WE03X23858 WE03X23858 PLATE MOTOR
WE1M934 WE1M934 PLUG BUTTON WHITE
31-16775 31-16775 PM INSTALLATION INSTRUCTION USA ELEC Y G
WE1M780 WE1M780 PROTECTION BRACKET
31-16918 31-16918 PUB NUMBER MINI MANUAL
WE4M416 WE4M416 PUSH TO START SWITCH
WE01X24720 WE01X24720 SCR 30 X 20 IA PP
WE2M302 WE2M302 SCREW
WE01X25535 WE01X25535 SCREW
WE01X25318 WE01X25318 SCREW
WE2M202 WE2M202 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WZ5X158D WZ5X158D SCREW-PKG 12
WZ4X241D WZ4X241D SCREW-PKG 12
WE00X181L WE00X181L SHAFT
WE3M33 WE3M33 SHAFT AND BRACKET ASSEMBLY
WE01X23880 WE01X23880 SHIELD SWITCH
WE10X29822 WE10X29822 SIDE PANEL
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET EL
WE13X0200 WE13X0200 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE1X1192 WE1X1192 STRIKE DOOR
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE

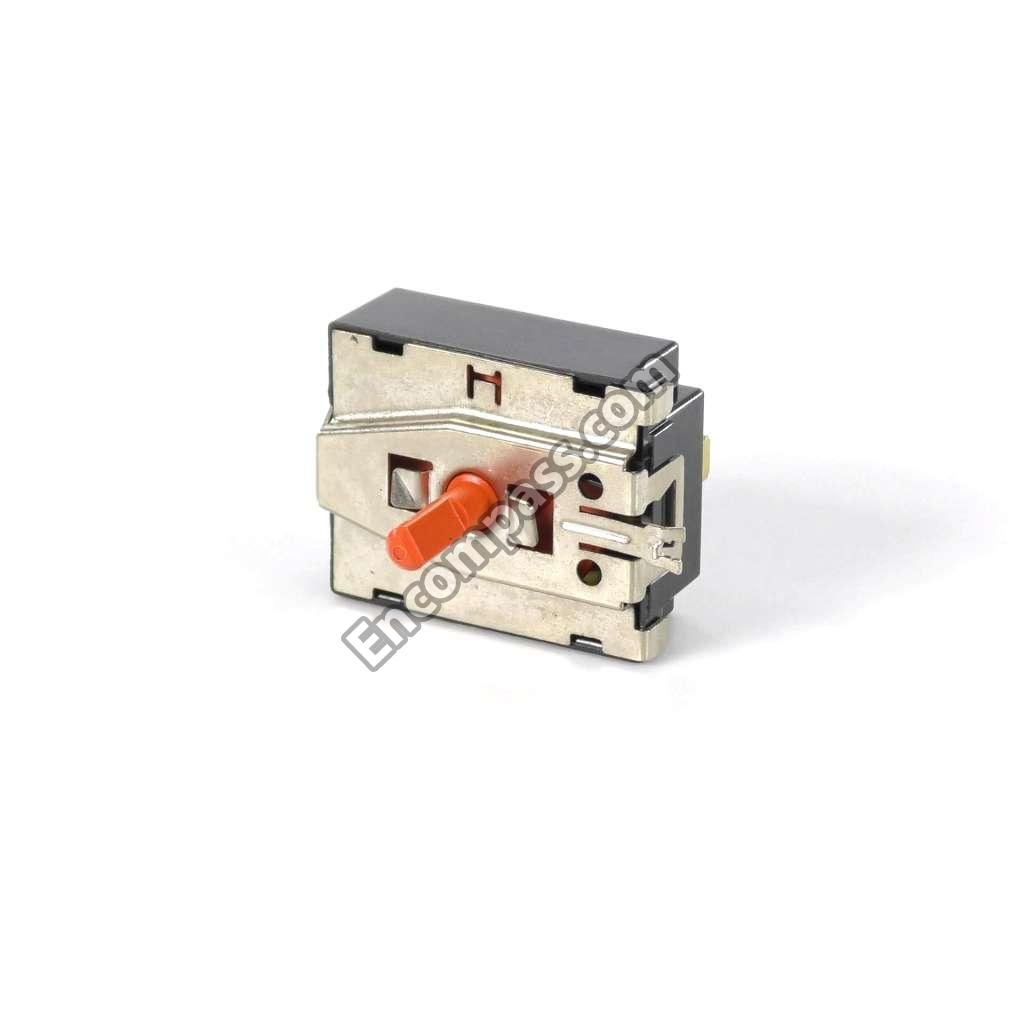

WE02X25282 WE02X25282 SWITCH ROTARY
WE4M325 WE4M325 TERM BLK AND GRND STRAP
WE04X26214 WE04X26214 THERMOSTAT

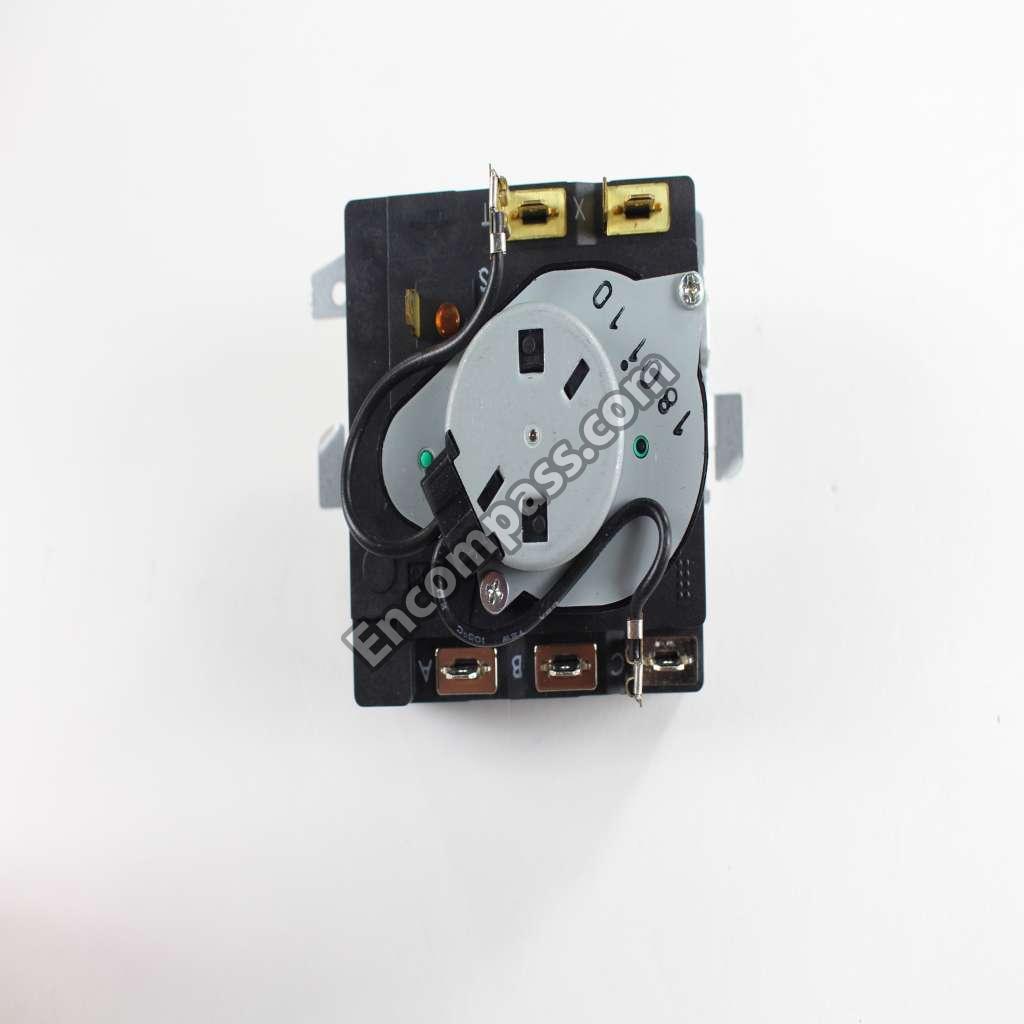

WE04X25280 WE04X25280 TIMER
WE03X25275 WE03X25275 TRAP DUCT ASSEMBLY
WE01X24546 WE01X24546 TRAP DUCT SLIDES
49-90550 49-90550 USE & CARE GE USA A1, A2
WE01X26154 WE01X26154 WASHER
WE15X25278 WE15X25278 WIRE GROUP ASSEMBLY
