Model Image
Manufacturer

GE

Model Number

GTX42GASJ1WW

Description

Dryer Gas

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE05X20431 WE05X20431 120V DRYER BULB - 10W

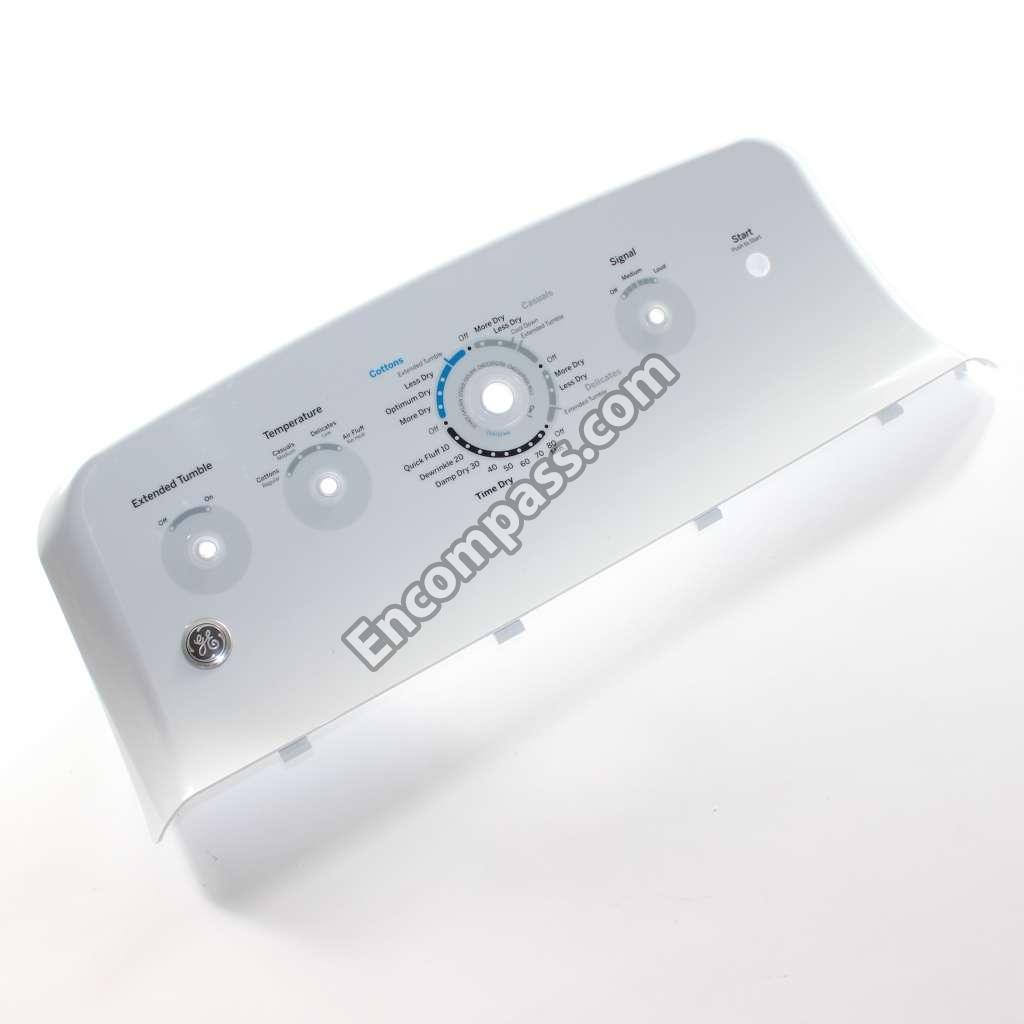

WE03X24547 WE03X24547 BACKSPLASH ASSEMBLY
WE1M300 WE1M300 BEARING RETAINER
WE03X37320 WE03X37320 BEARING SLIDE
WE03X23956 WE03X23956 BEARING TOP SLIDES
WE03X29897 WE03X29897 BELT DRIVE
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)

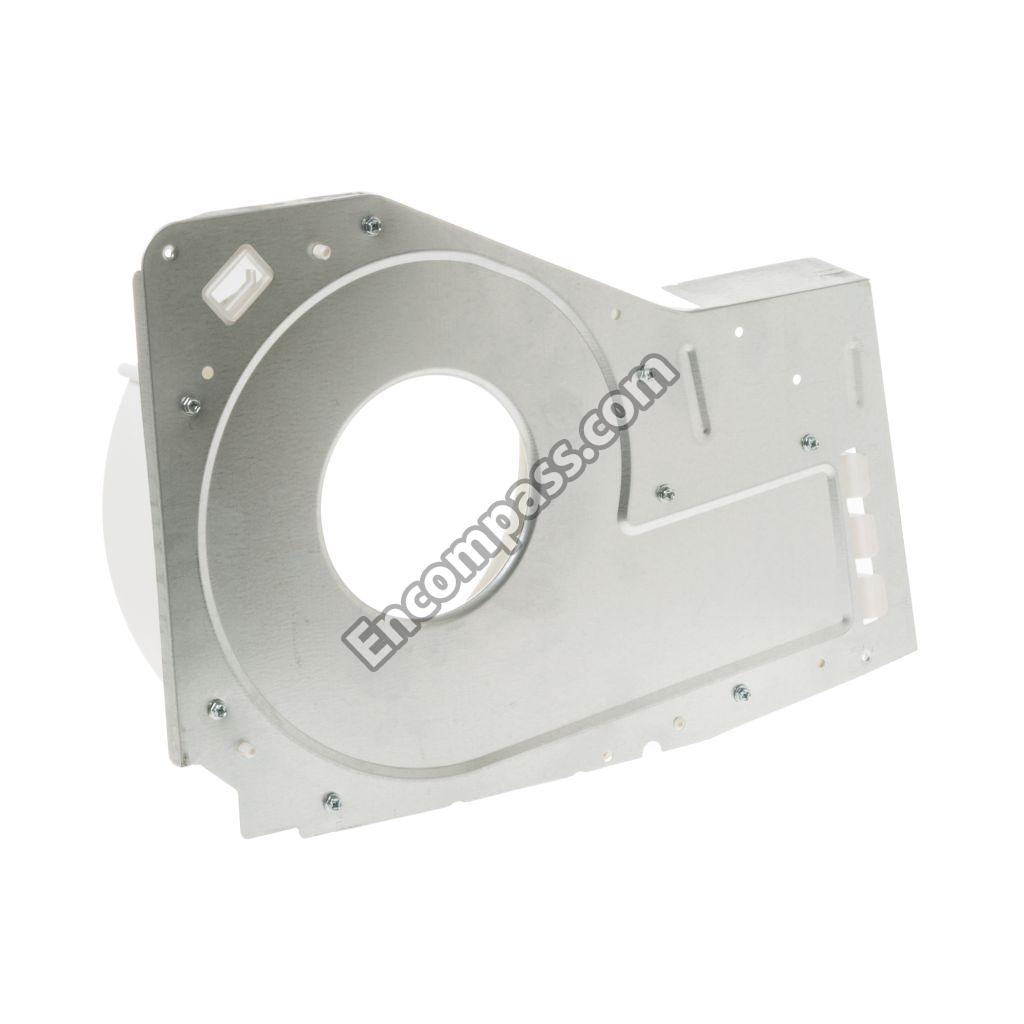

WE03X24536 WE03X24536 BLOWER HOUSING ASSEMBLY
WH16X34317 WH16X34317 BLOWER WHEEL
WE04X24719 WE04X24719 BUTTON START ASSEMBLY
WE02X24718 WE02X24718 BUZZER VARIABLE
WE14M177 WE14M177 CHAMBER COMBUSTION
WE04X25159 WE04X25159 CHASSIS AND LEG ASSEMBLY
WE1X1091 WE1X1091 CLIP CORDSET.

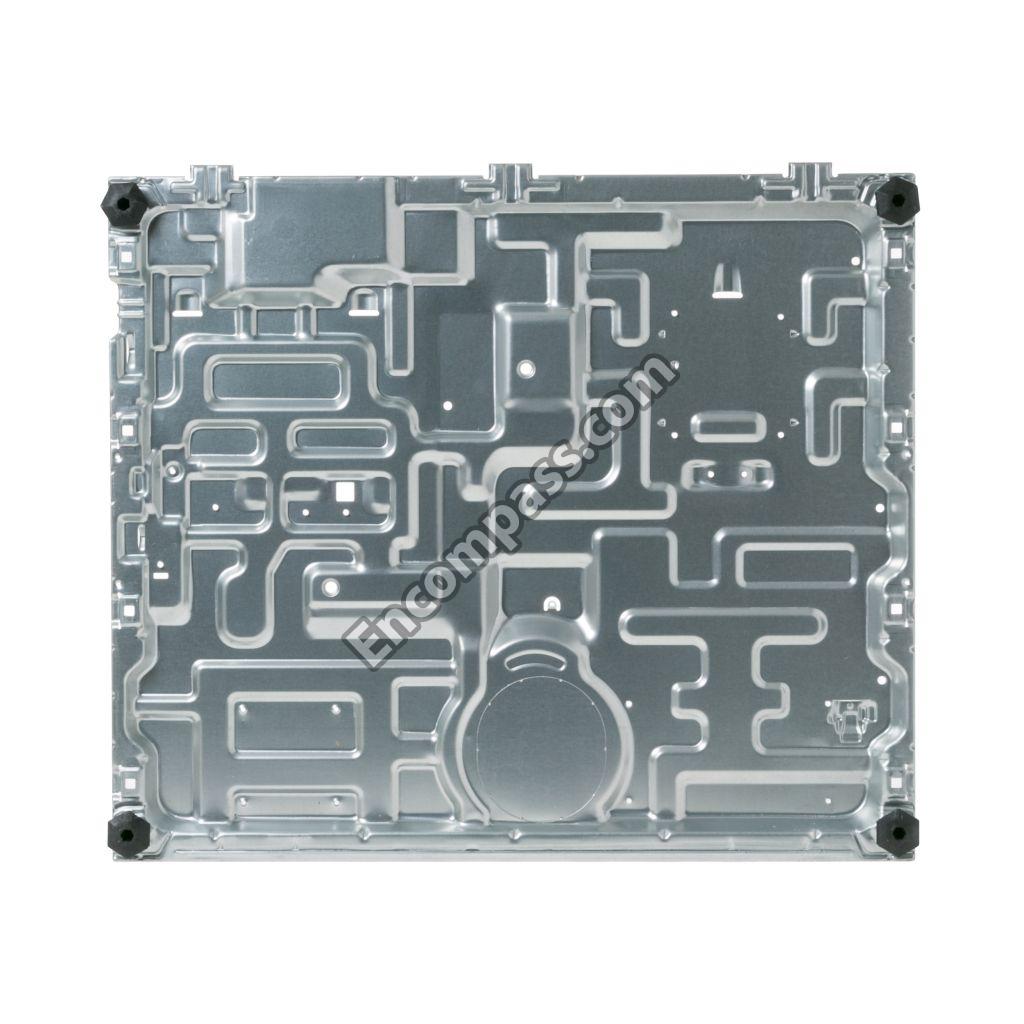

WE03X23883 WE03X23883 COVER BOTTOM
WE1M1007 WE1M1007 COVER FUSE TERMINAL

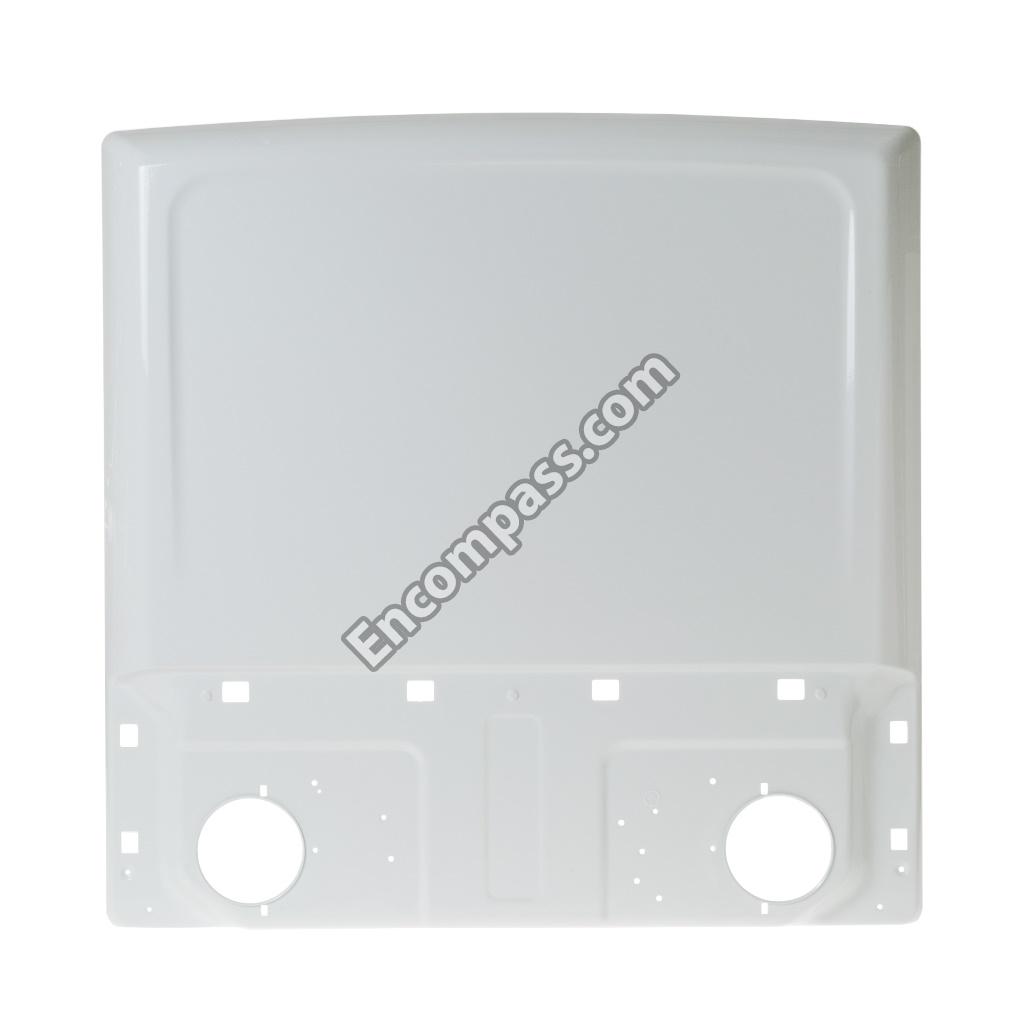

WE03X24721 WE03X24721 COVER TOP LOW DEPTH
WE11X25154 WE11X25154 DEFLECTOR FLAME
WE11X29438 WE11X29438 DIFFUSER
WE11X29443 WE11X29443 DIFFUSER GAS

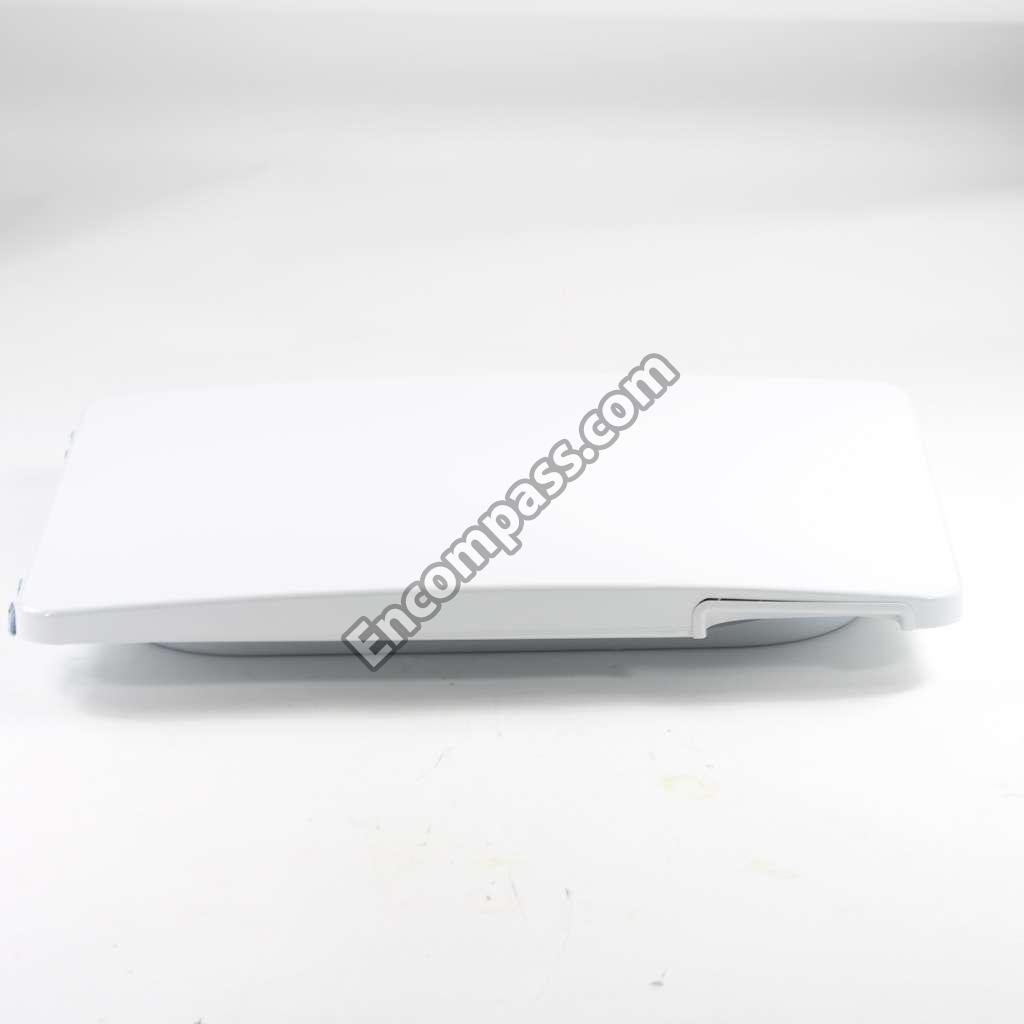

WE10X26855 WE10X26855 DOOR ASSEMBLY

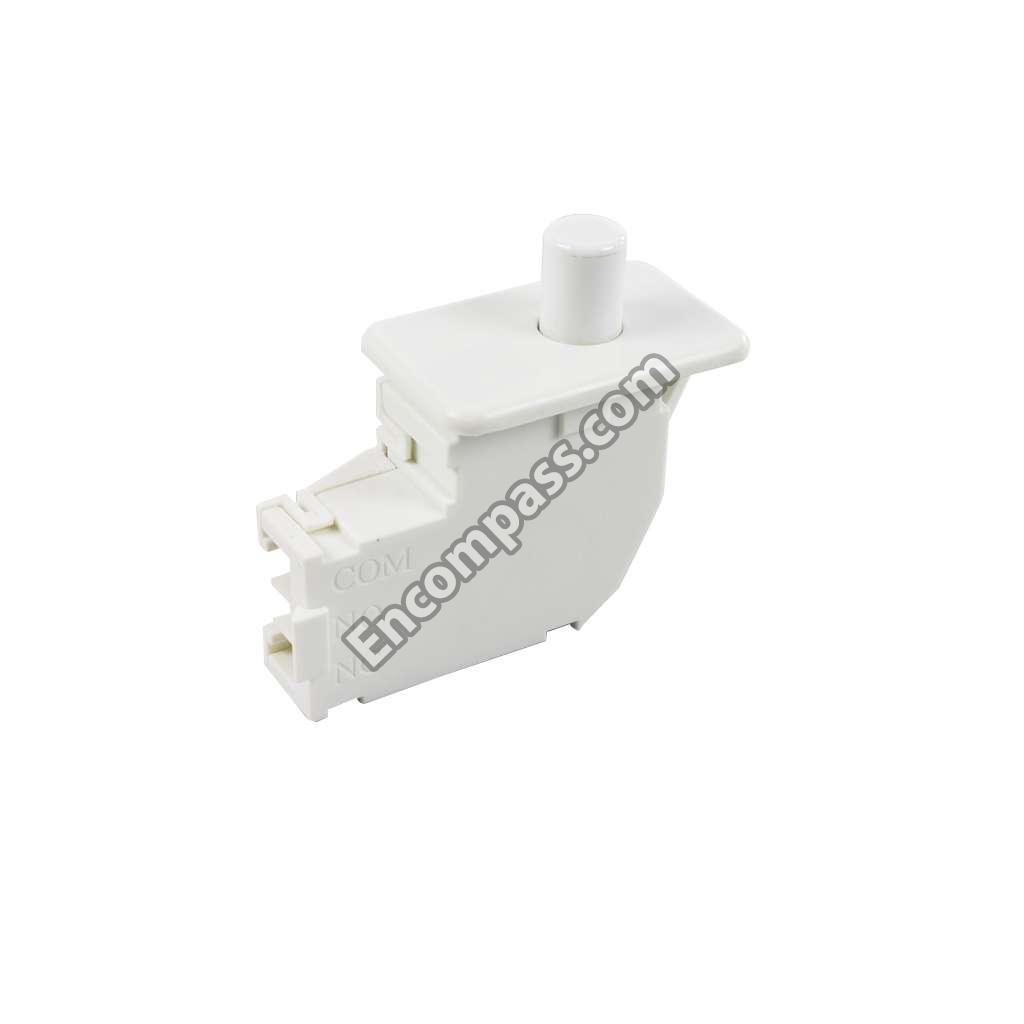

WE04X28977 WE04X28977 DOOR SWITCH

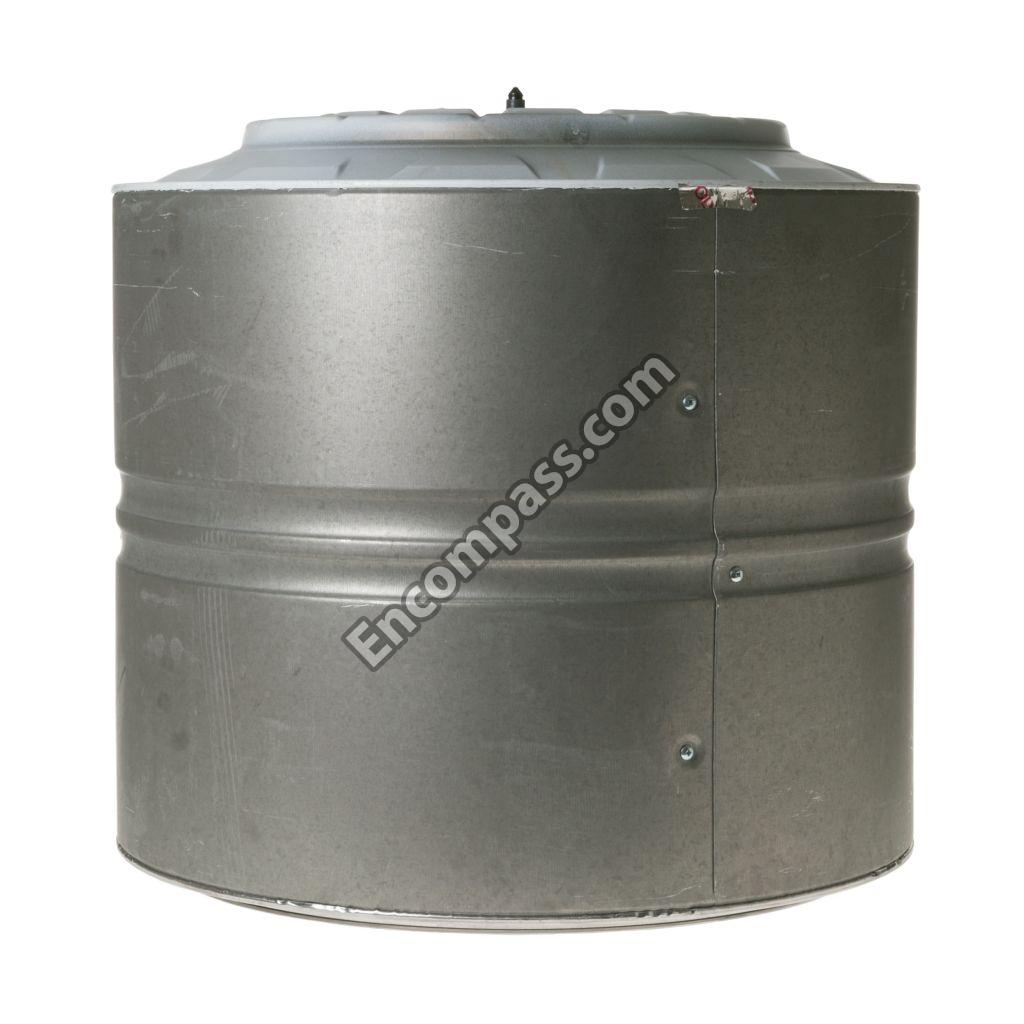

WE21X23868 WE21X23868 DRUM ASSEMBLY
WE14X20683 WE14X20683 DRYER BAFFLE
WE03X37319 WE03X37319 DRYER BEARING SLIDE
WE1M462 WE1M462 DRYER DRUM SLEEVE
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE1X21975 WE1X21975 DRYER FUSE 3AB
WE14M104 WE14M104 DRYER GAS BURNER
WE1M1015 WE1M1015 DRYER GROUND STRAP

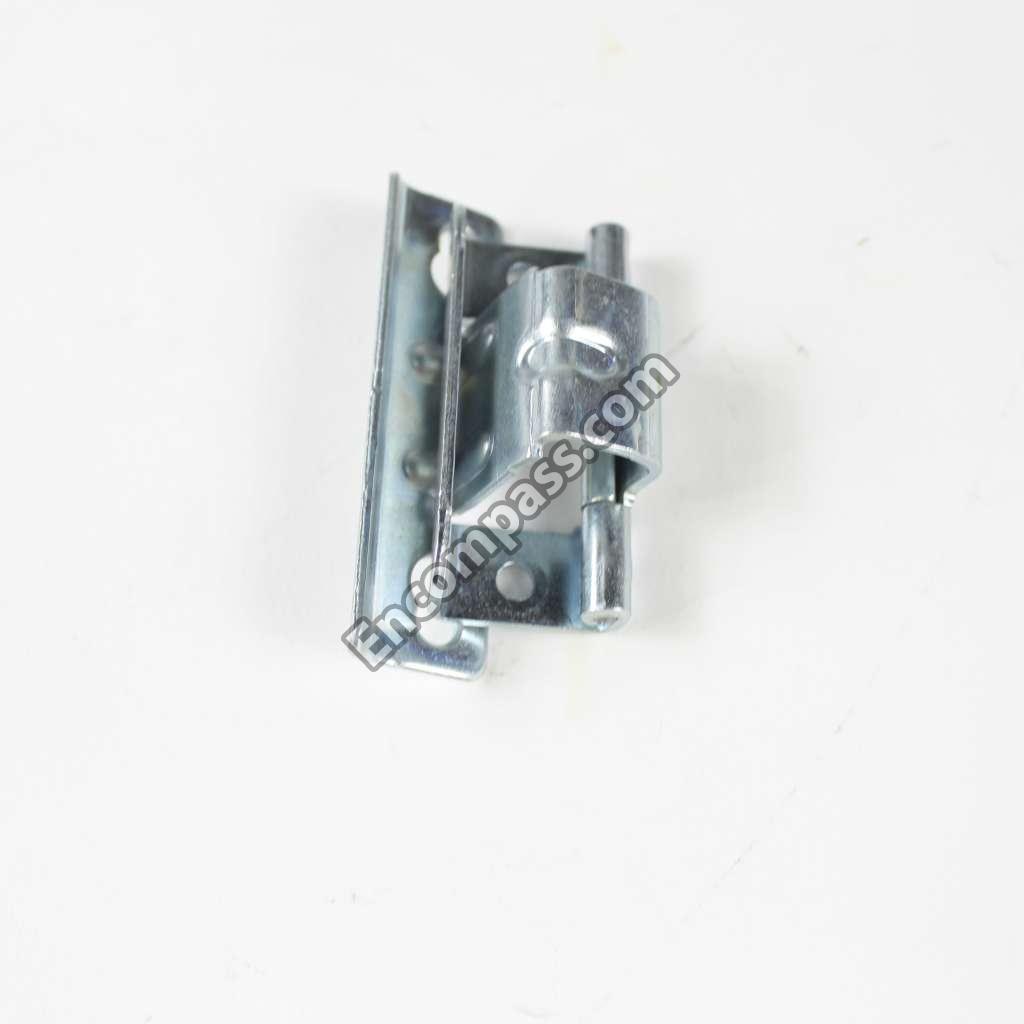

WE01X25317 WE01X25317 DRYER HINGE
WE01X25316 WE01X25316 DRYER LATCH

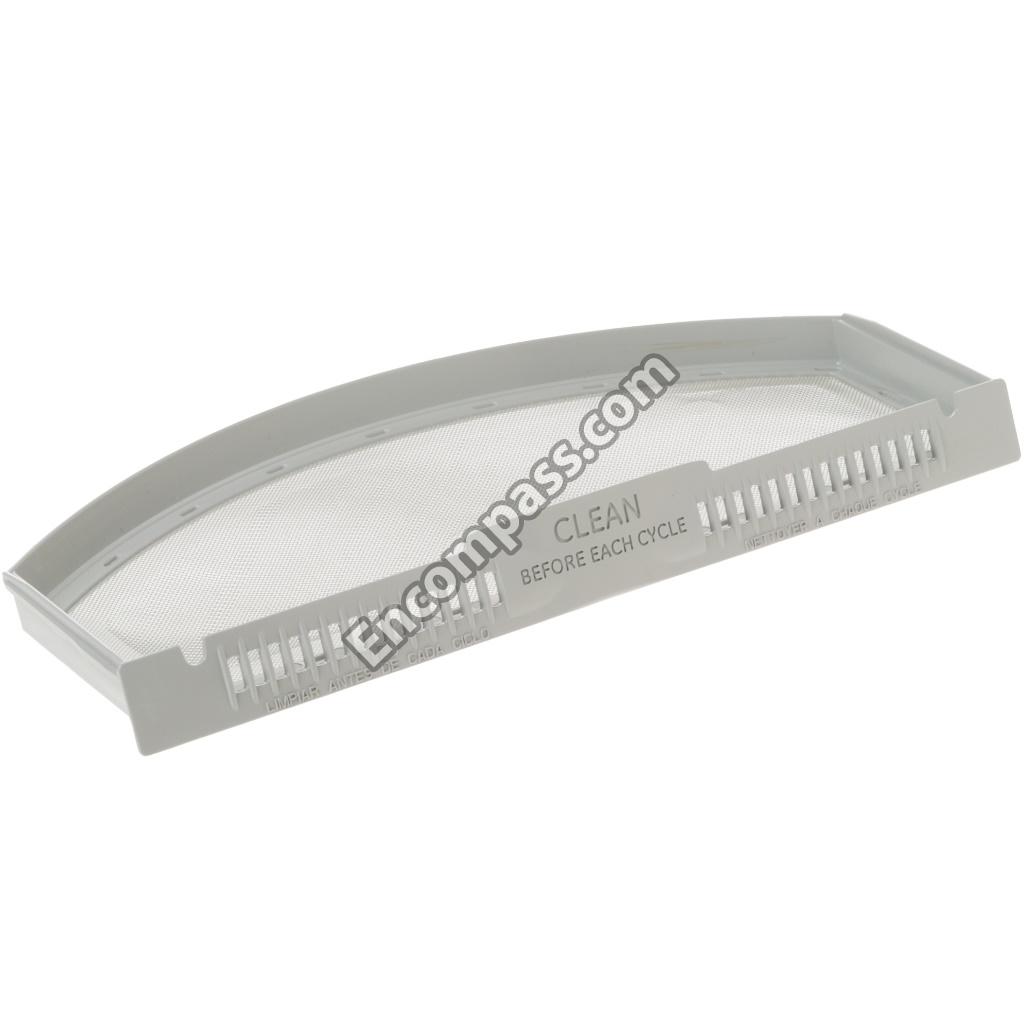

WE03X23881 WE03X23881 DRYER LINT FILTER
WE1X921 WE1X921 DRYER MOTOR STRAP
WE13X200 WE13X200 DRYER MOTOR STRAP
WE26M345 WE26M345 DRYER POWER CORD - 120V GAS

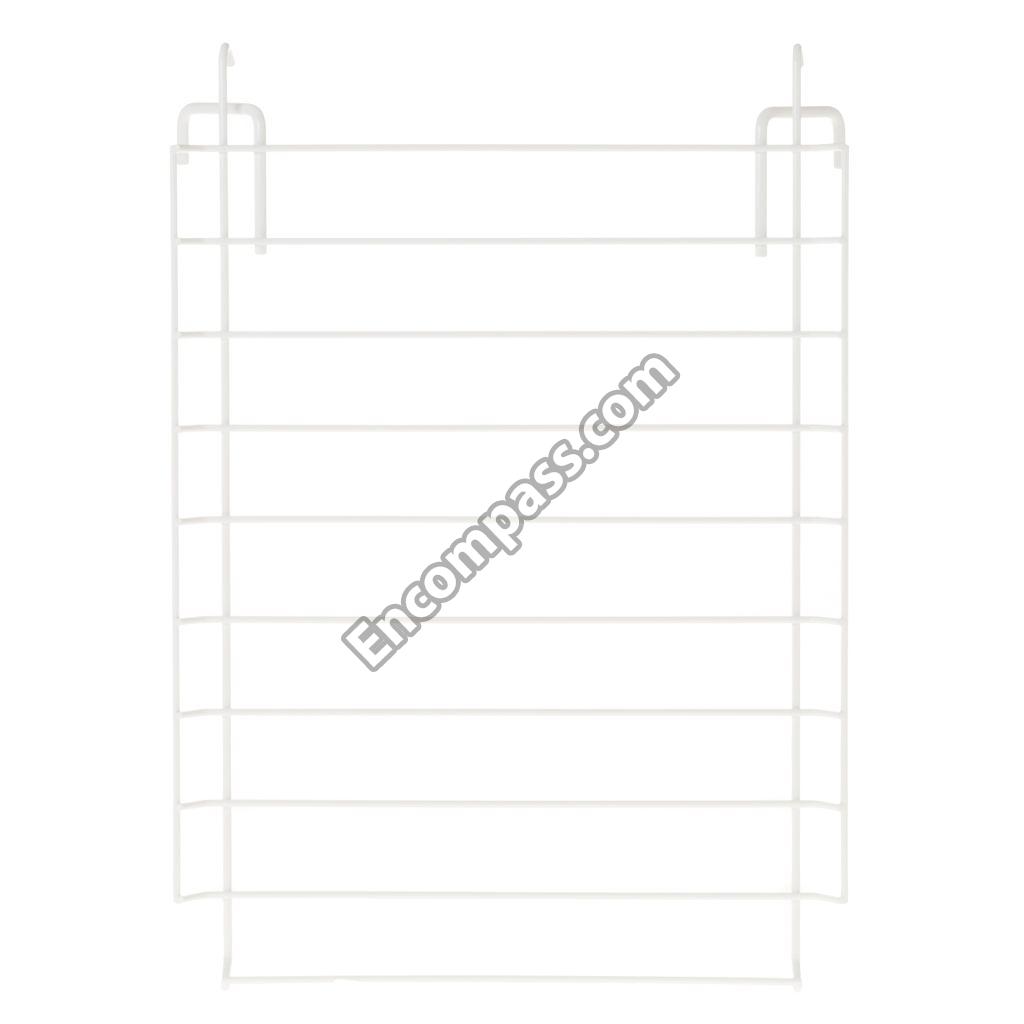

WE01X25160 WE01X25160 DRYER RACK

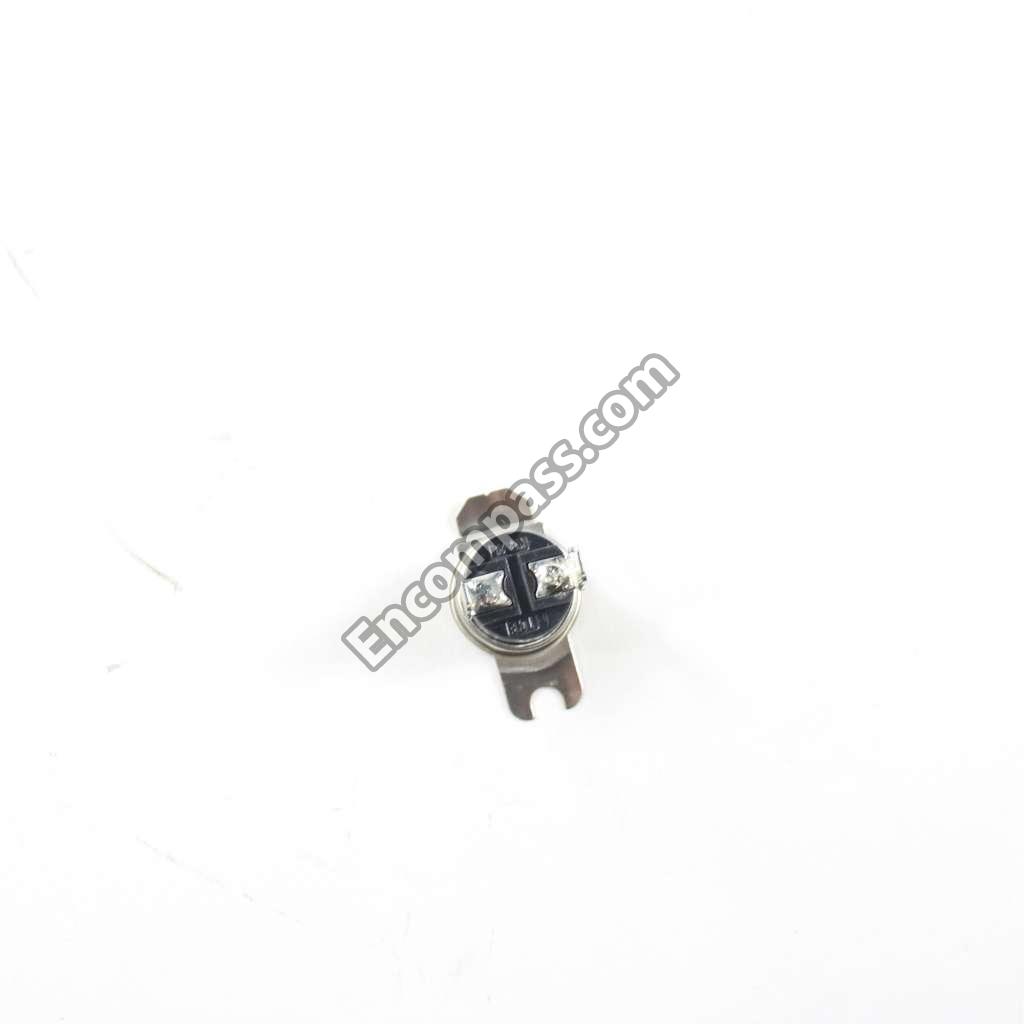

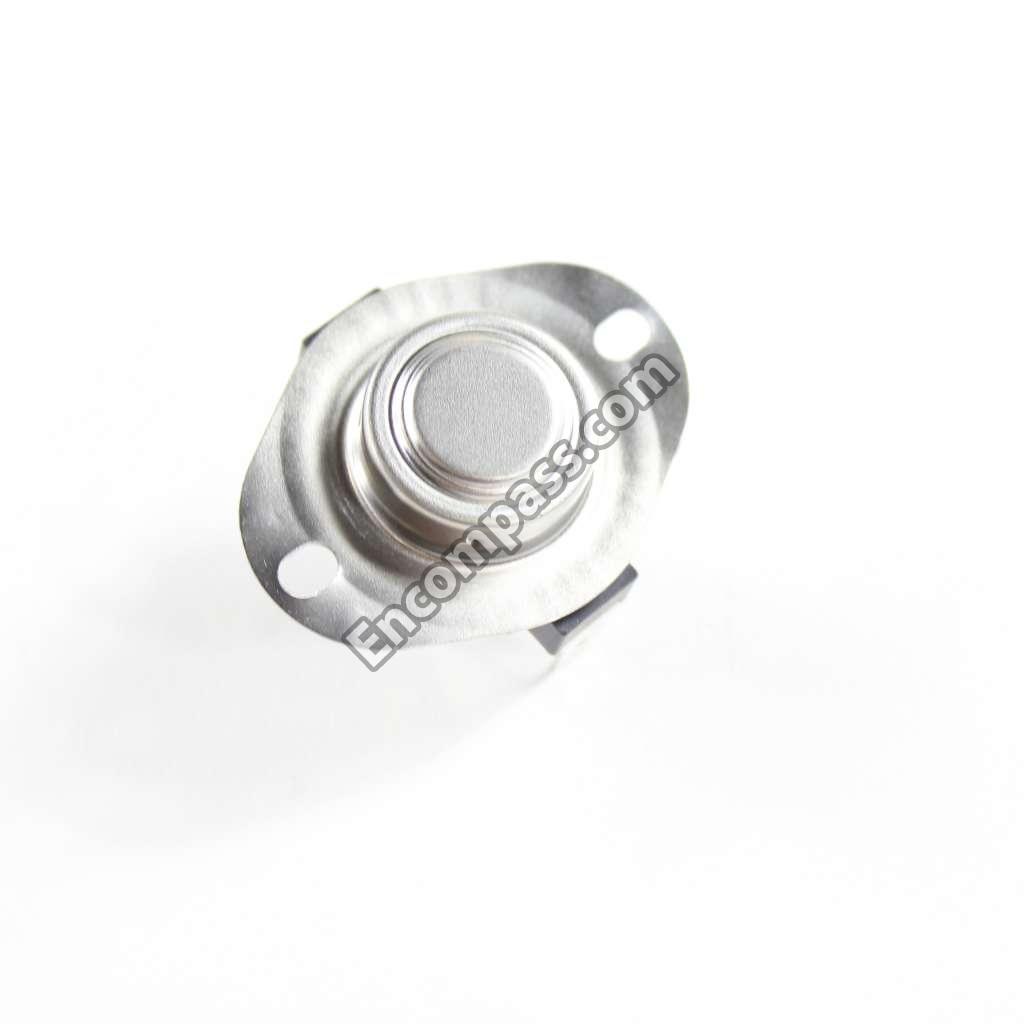

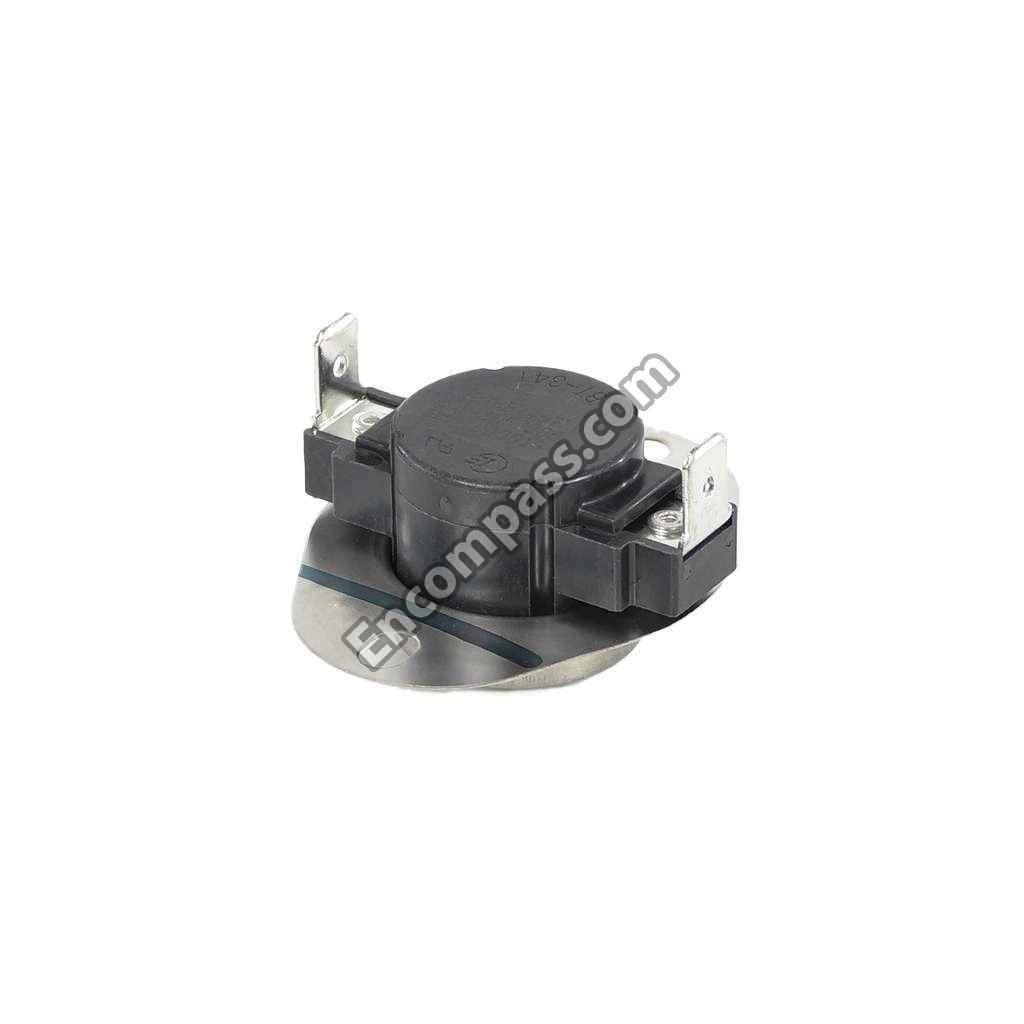

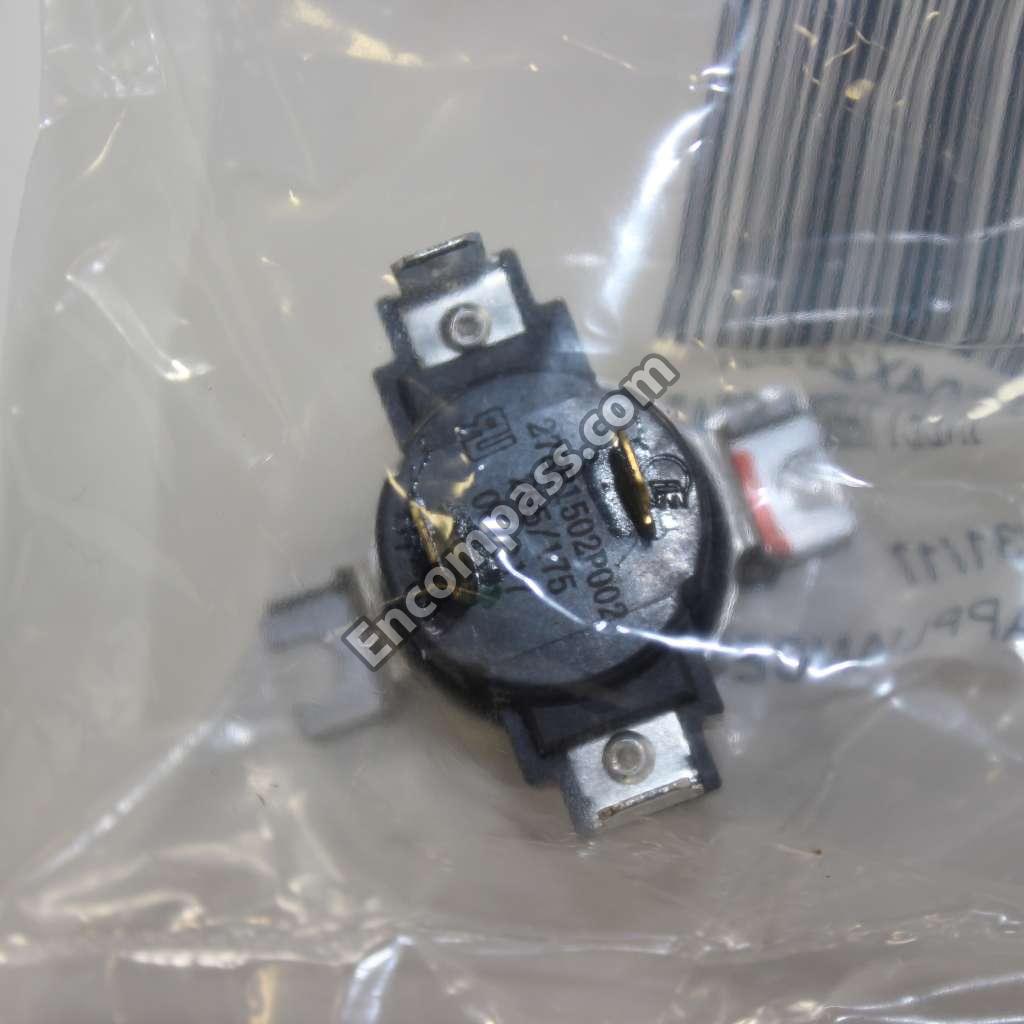

WE04X26138 WE04X26138 DRYER THERMOSTAT
WE04X25195 WE04X25195 DRYER THERMOSTAT
WE03X25217 WE03X25217 DRYER TOP BEARING
WE11X29441 WE11X29441 DRYER TRANSITION DUCT

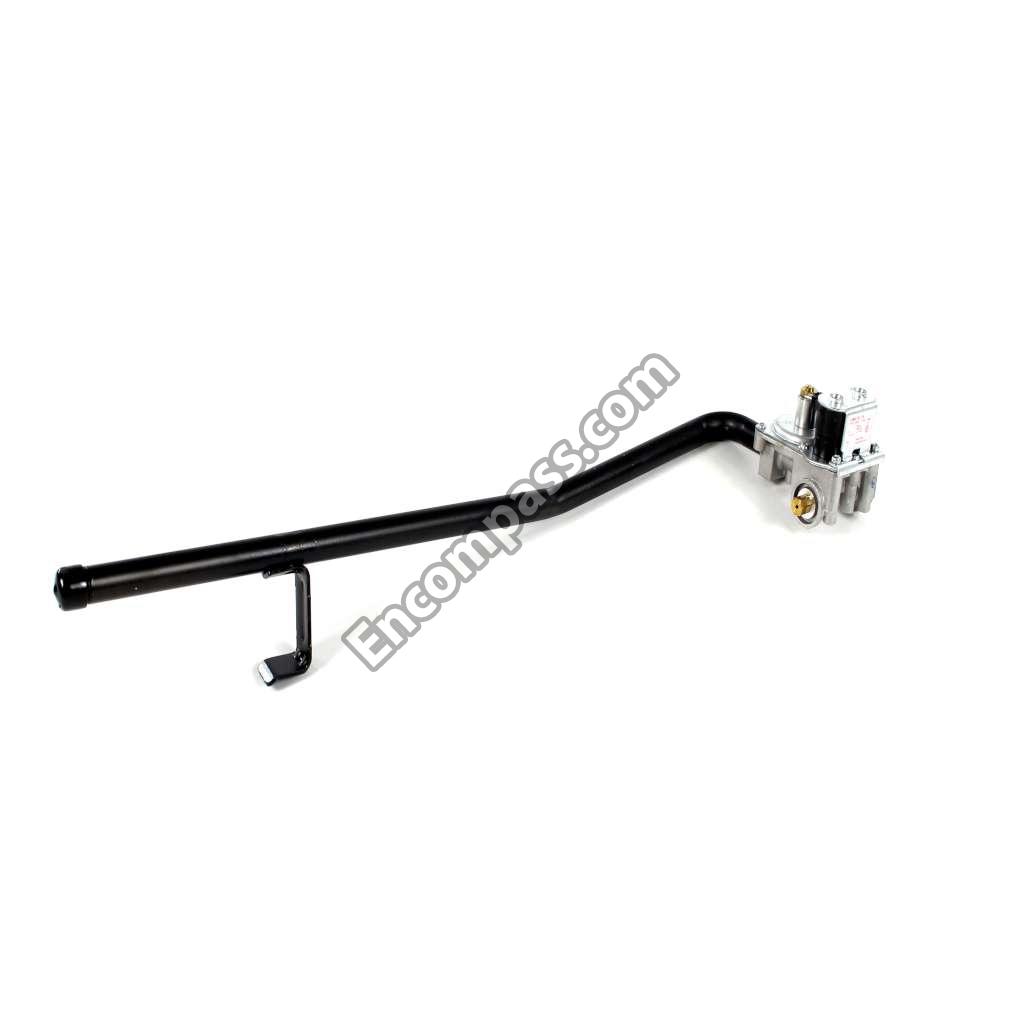

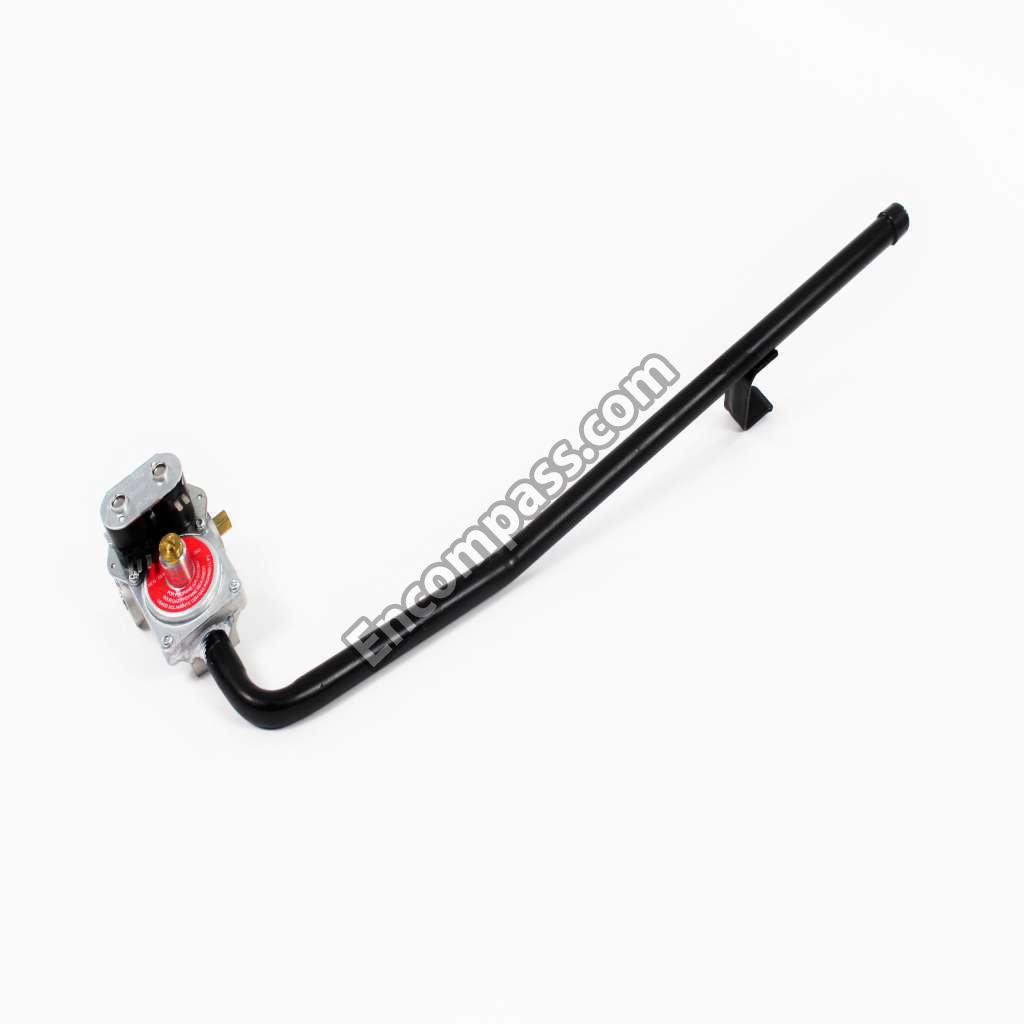

WE03X23918 WE03X23918 DRYER VALVE AND PIPE

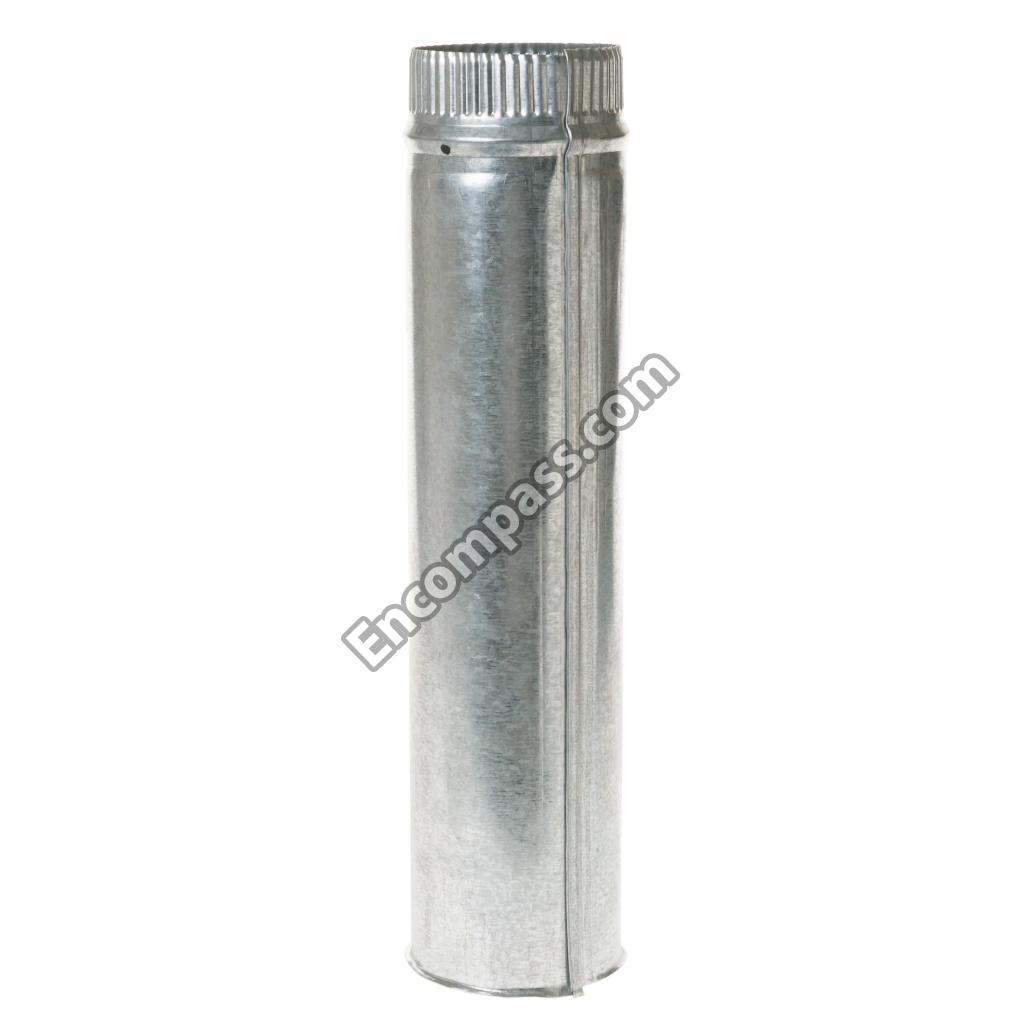

WE01X23892 WE01X23892 EXHAUST DUCT
WE4X448 WE4X448 FLAME DETECTOR
WE20X25260 WE20X25260 FRONT PANEL WHITE
WE2M188 WE2M188 FRONT STABILIZING LEGS
WE1X21955 WE1X21955 FUSE HOLDER 3AB
WE13X20405 WE13X20405 GAS VALVE BRACKET
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE15X25210 WE15X25210 HARNESS
WE15X24538 WE15X24538 HARNESS ASSEMBLY GAS
WE03X20434 WE03X20434 IDLER ARM
WE03X31620 WE03X31620 IDLER PULLEY
WE04X25996 WE04X25996 IGNITER
WE04X0739 WE04X0739 IGNITER ASM
WE04X25201 WE04X25201 INLET THERMOSTAT
WE15X25209 WE15X25209 JUMPER HARNESS
WE15X25203 WE15X25203 JUMPER HARNESS BLACK
WE15X25205 WE15X25205 JUMPER HARNESS PURPLE
WE15X25207 WE15X25207 JUMPER HARNESS RED

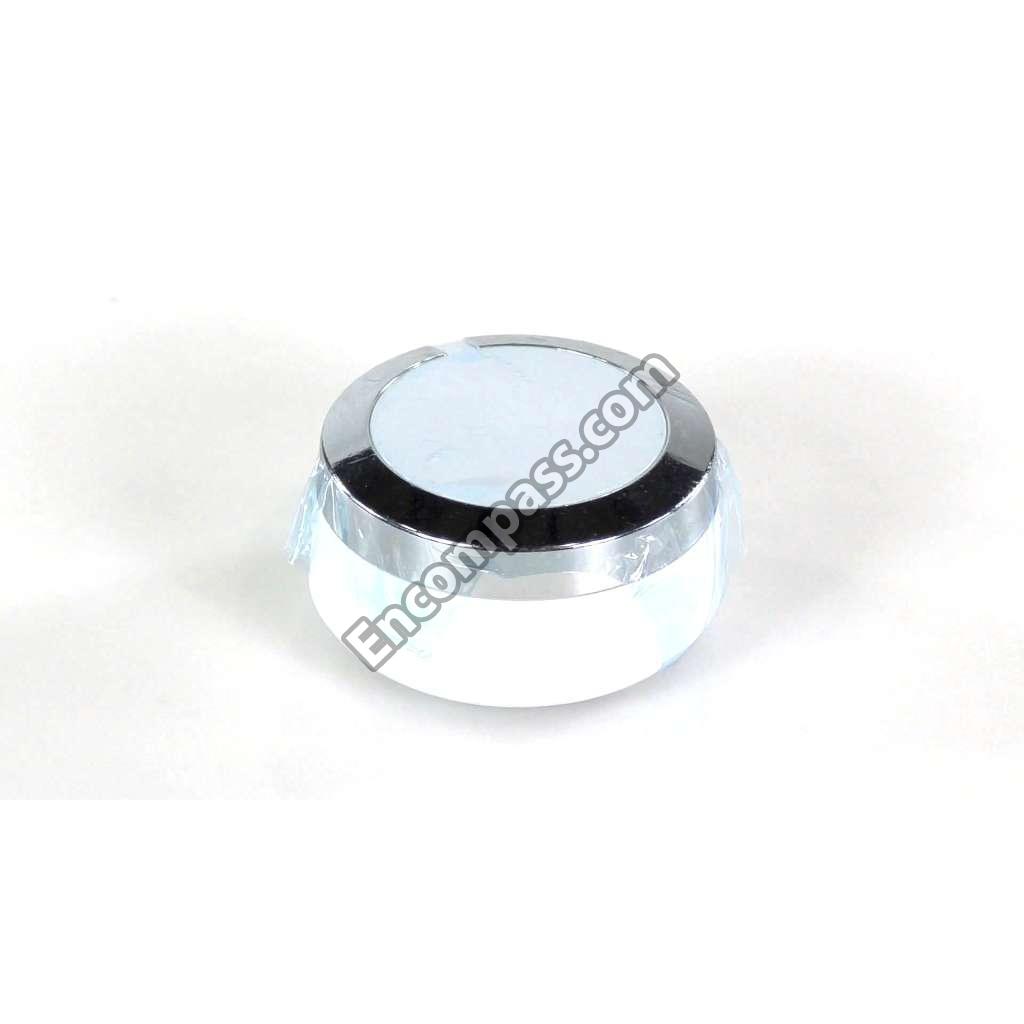

WE01X24552 WE01X24552 KNOB MAIN ASSEMBLY
WH01X24378 WH01X24378 KNOB OPTIONS ASSEMBLY
WE01X29357 WE01X29357 LEVELLING FOOT

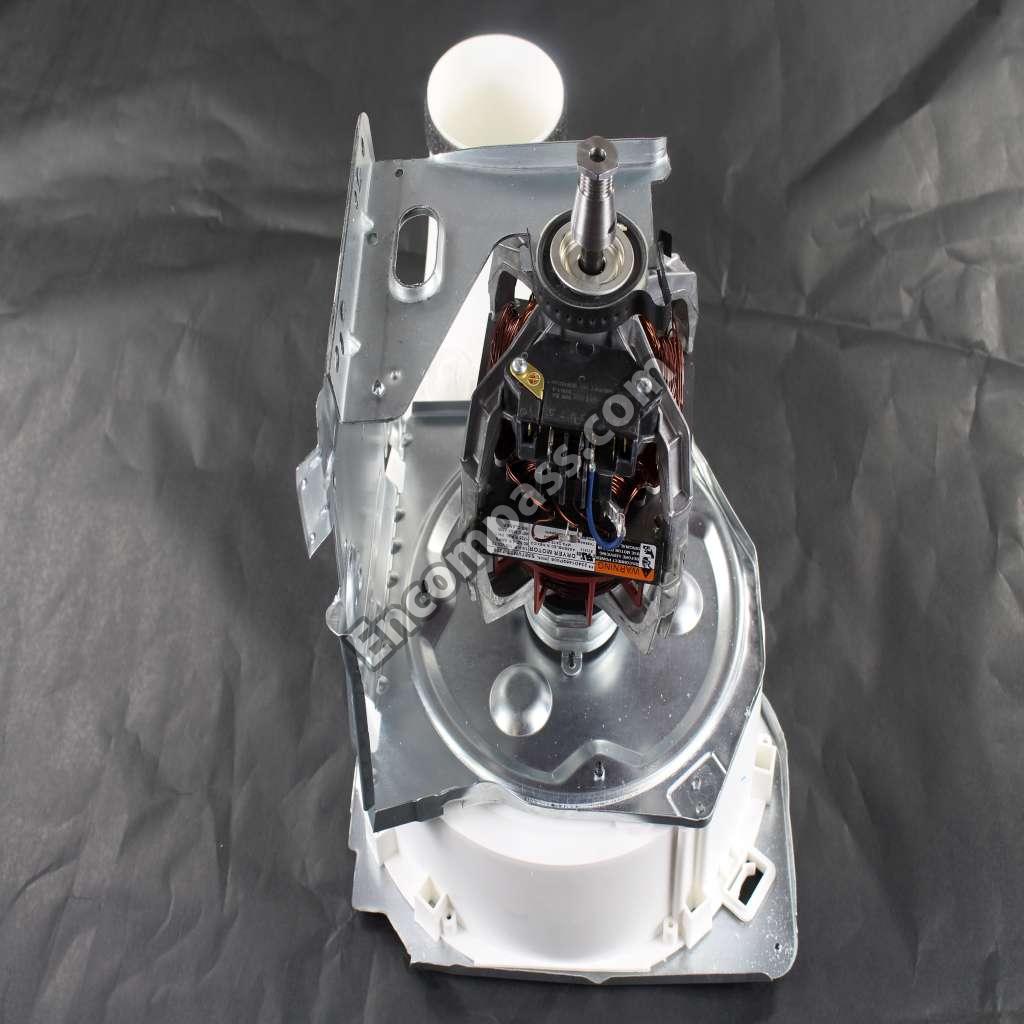

WE17X24535 WE17X24535 MOTOR AND BLOWER ASSEMBLY
WE49X28295 WE49X28295 MOTOR AND PULLEY ASSEMBLY
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE20X24556 WE20X24556 PANEL BACK
WE02X25274 WE02X25274 PANEL REAR
WE03X23858 WE03X23858 PLATE MOTOR

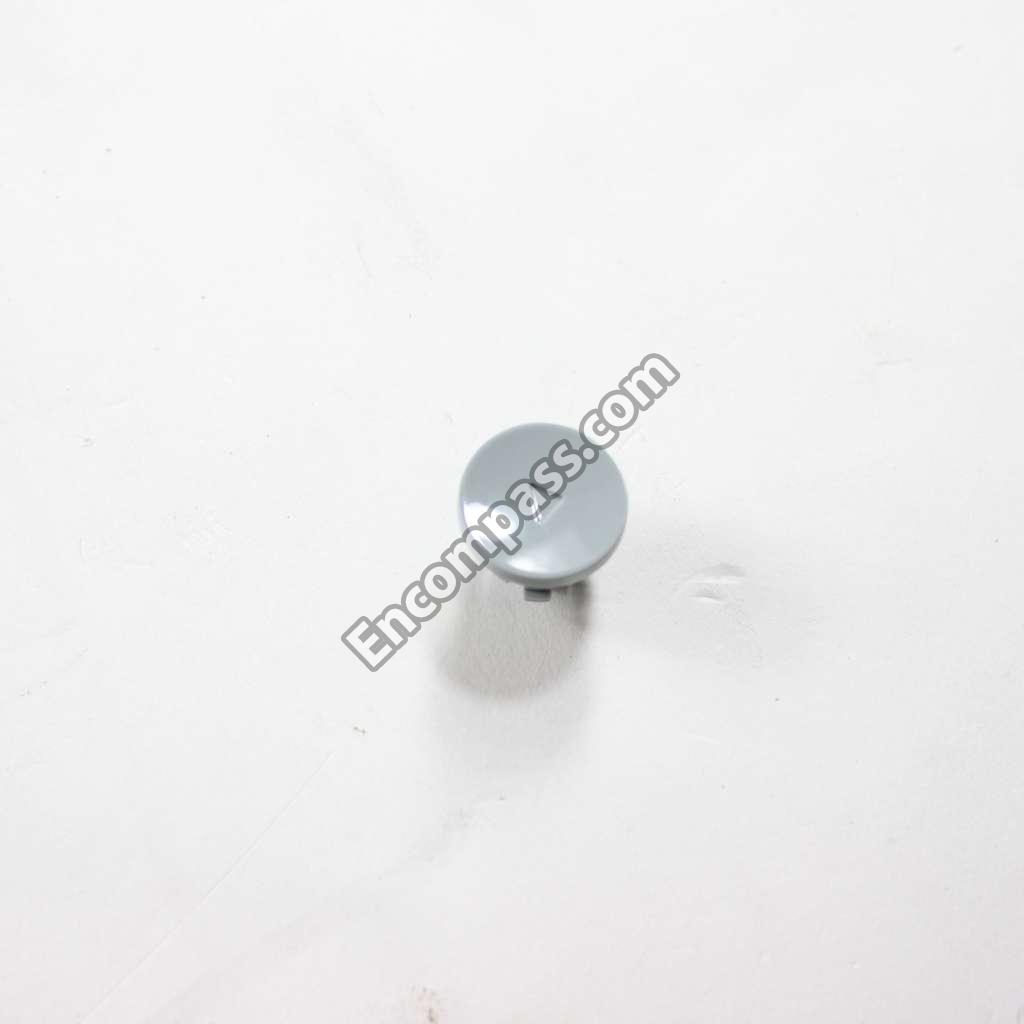

WE1M934 WE1M934 PLUG BUTTON WHITE
49-90543 49-90543 PM USE AND CARE
31-16767 31-16767 PUB NUMBER INSTALLATION
31-16892 31-16892 PUB NUMBER MINIMANUAL
WE4M416 WE4M416 PUSH TO START SWITCH
WE04X25199 WE04X25199 SAFETY THERMOSTAT
WE01X24720 WE01X24720 SCR 30 X 20 IA PP
WE2X21976 WE2X21976 SCR 6-20 AB PNP#2 1

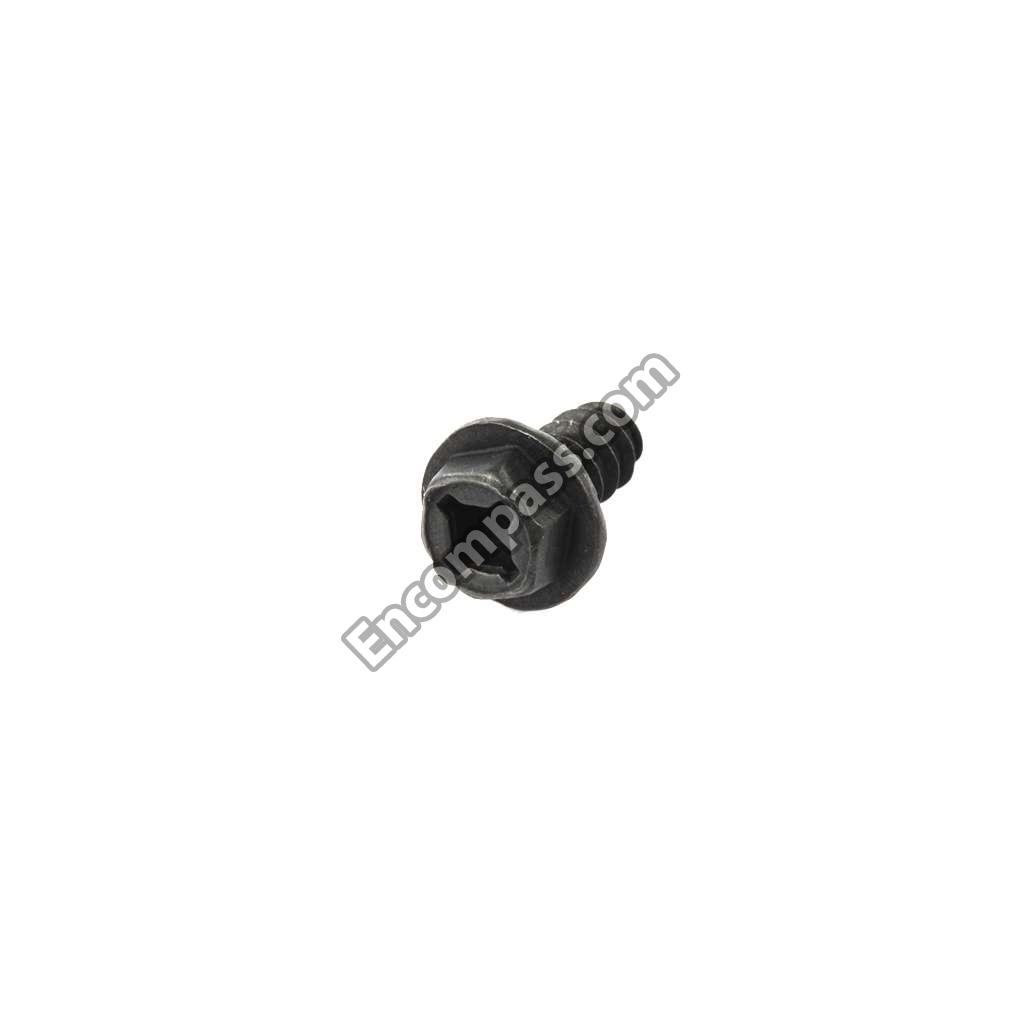

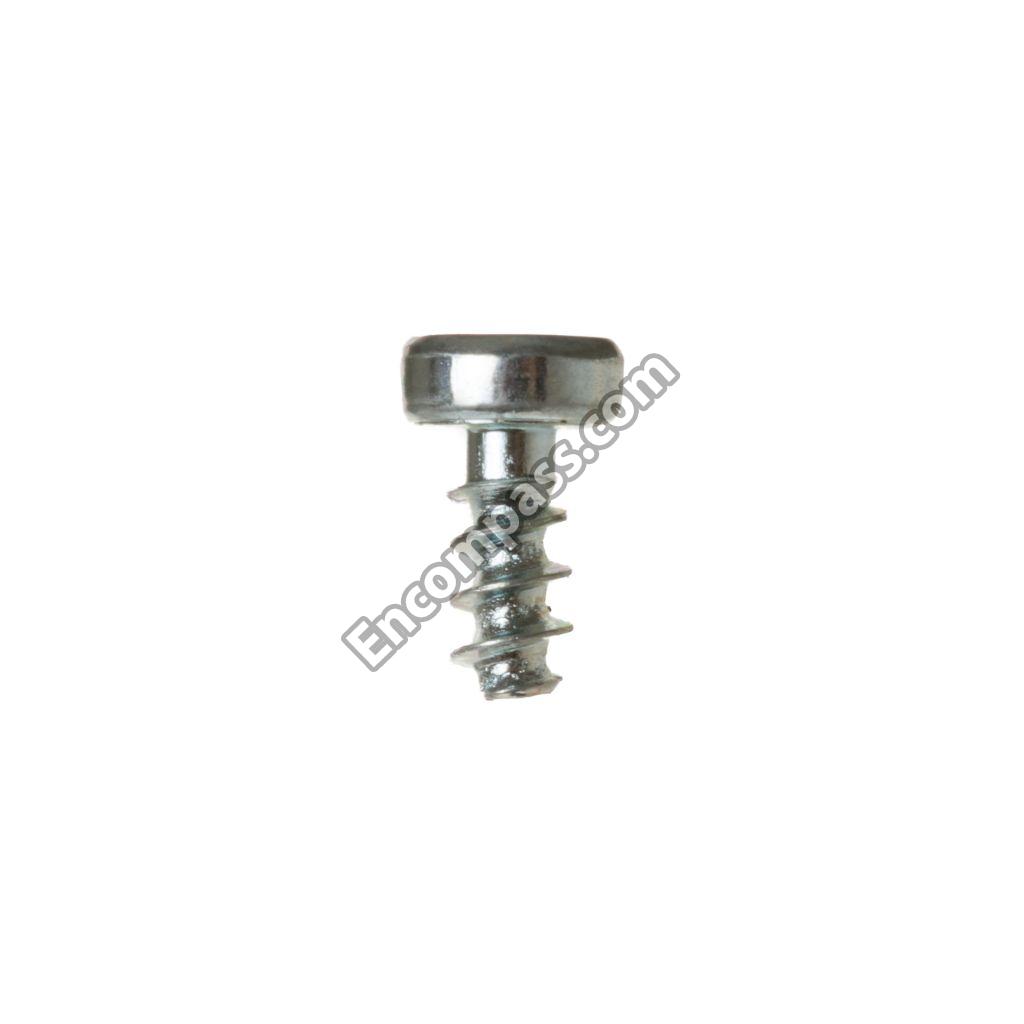

WE2M302 WE2M302 SCREW
WD2M101 WD2M101 SCREW
WE2M202 WE2M202 SCREW
WE01X25535 WE01X25535 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WZ5X158D WZ5X158D SCREW-PKG 12
WE00X181L WE00X181L SHAFT
WE3M33 WE3M33 SHAFT AND BRACKET ASSEMBLY

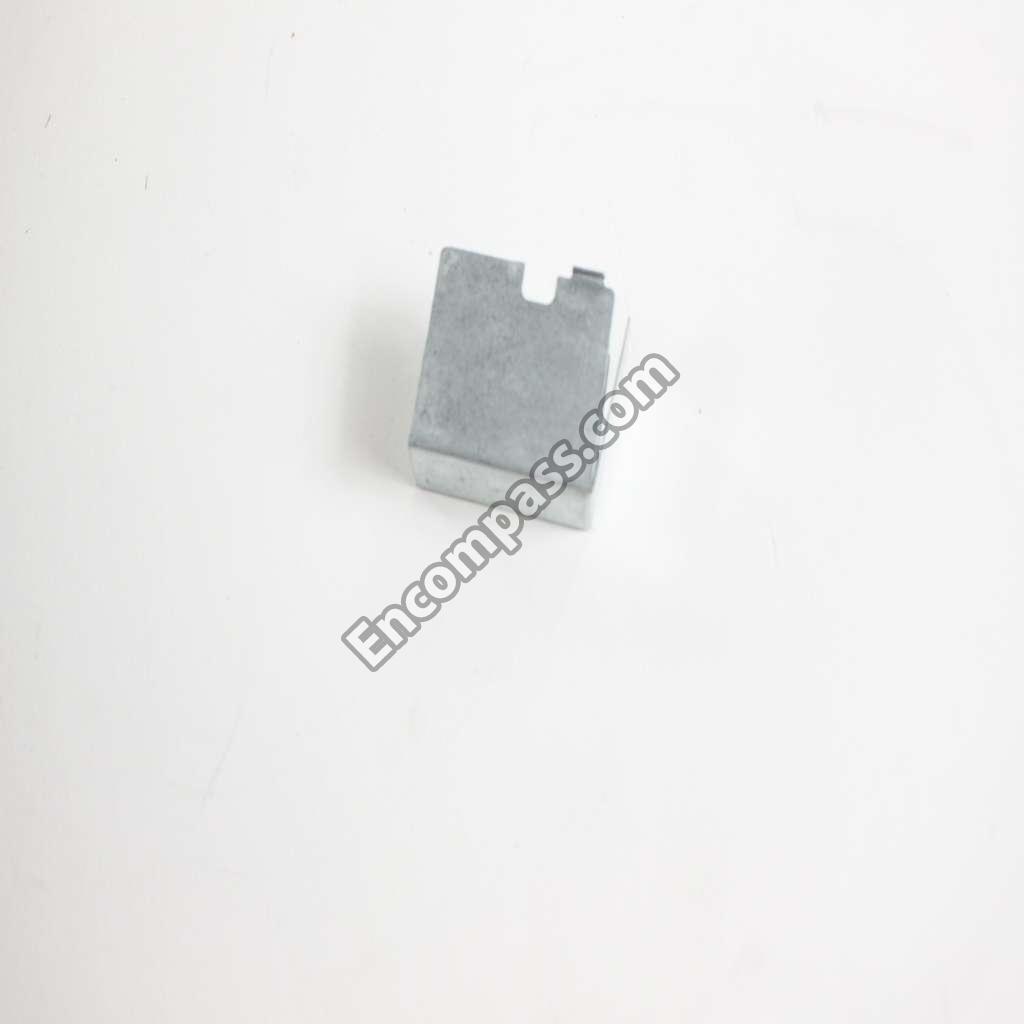

WE01X23880 WE01X23880 SHIELD SWITCH
WE02X24214 WE02X24214 SHUTTER AIR
WE10X29822 WE10X29822 SIDE PANEL

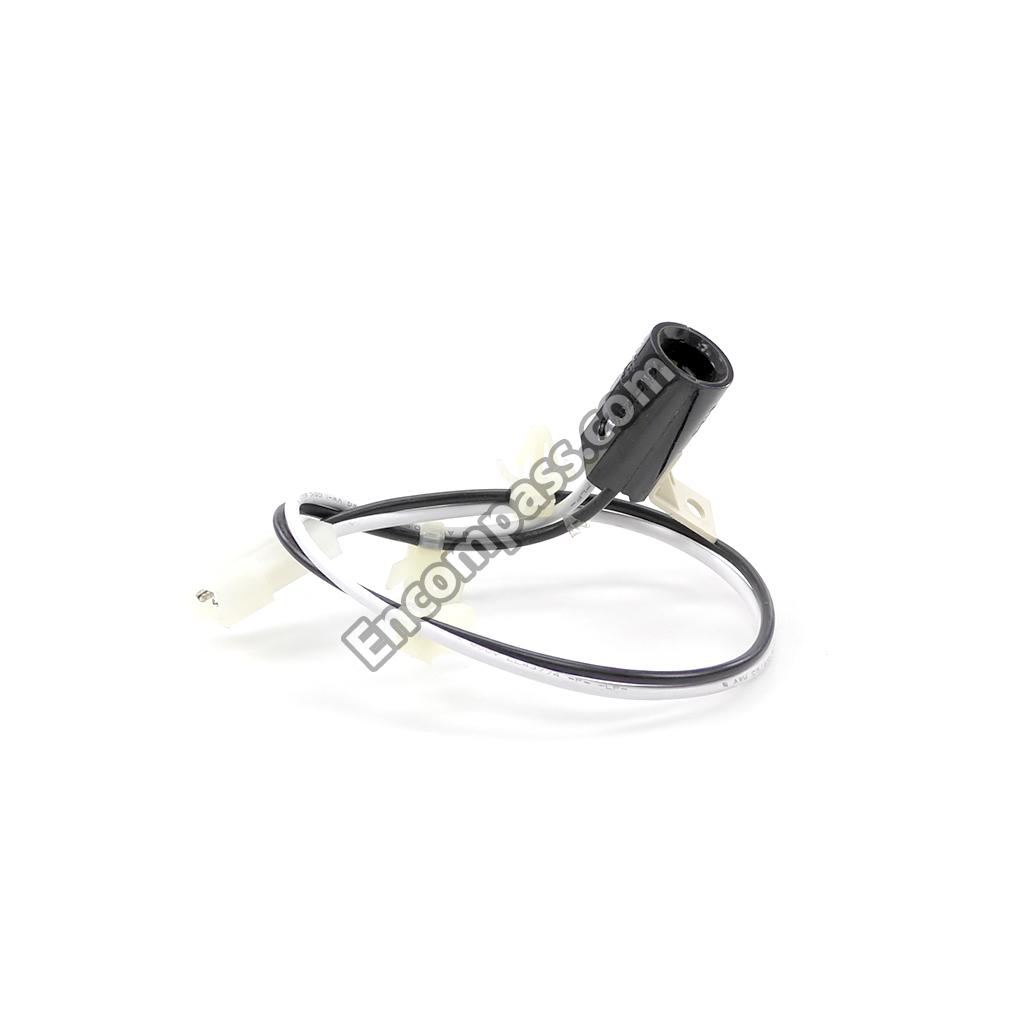

WE01X25437 WE01X25437 SOCKET ASSEMBLY
WE01X20424 WE01X20424 STRAIN RELIEF BRACKET GA

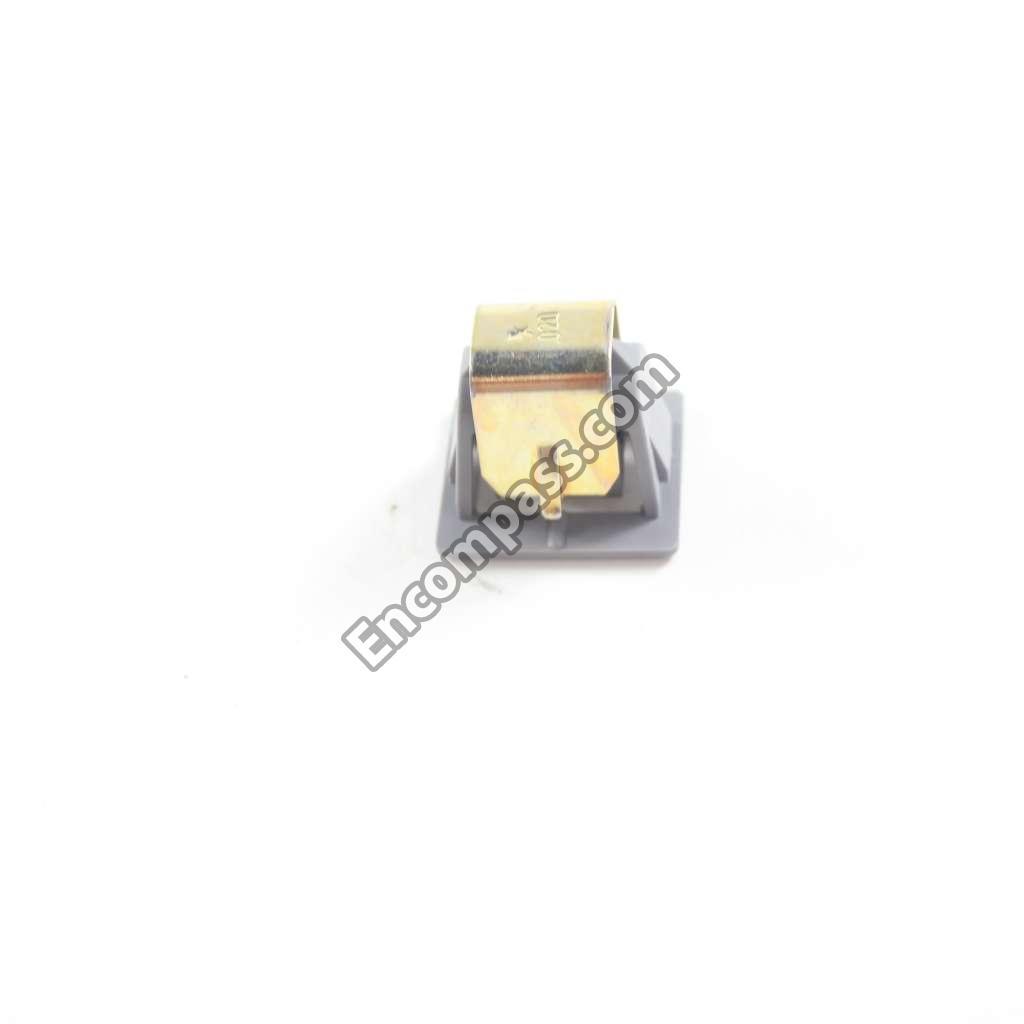

WE01M10007 WE01M10007 STRIKE
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE

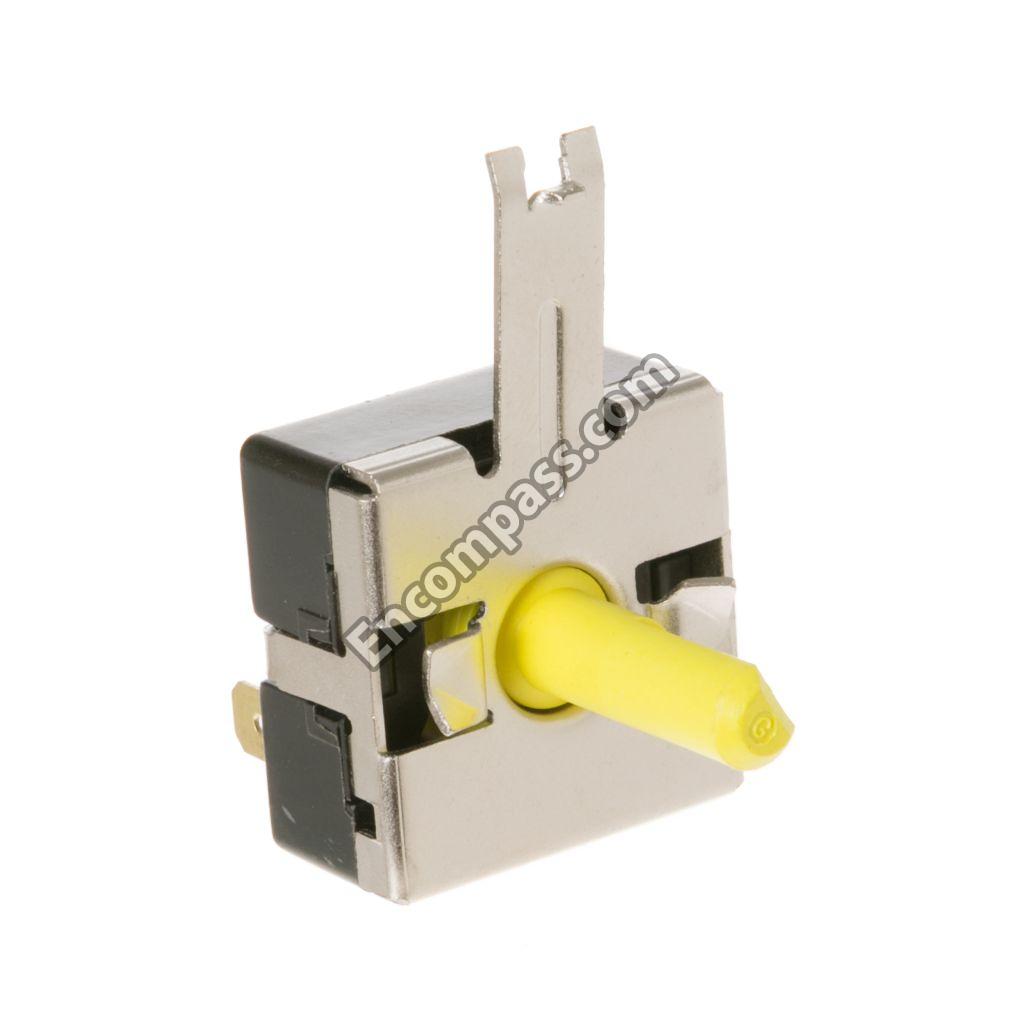

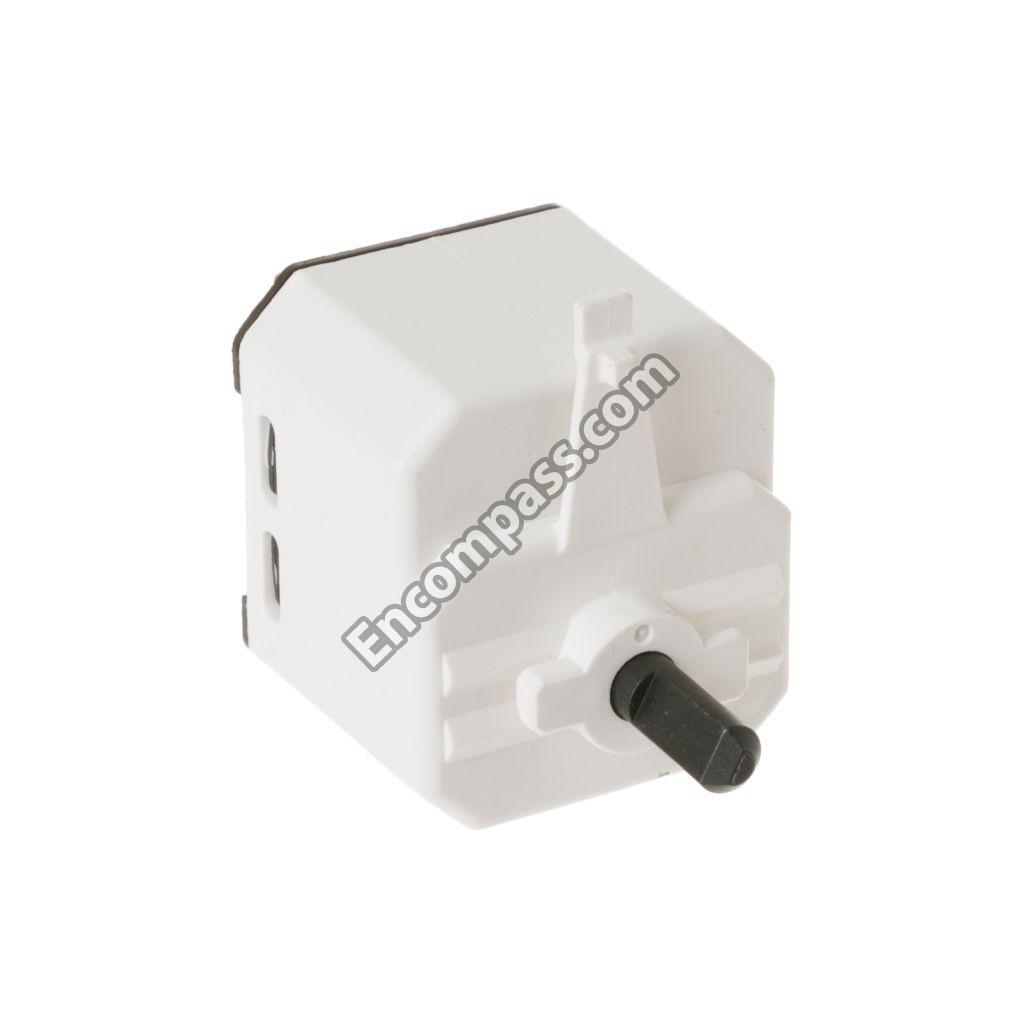

WE04X24717 WE04X24717 SWITCH ROTARY
WE04X24554 WE04X24554 SWITCH ROTARY

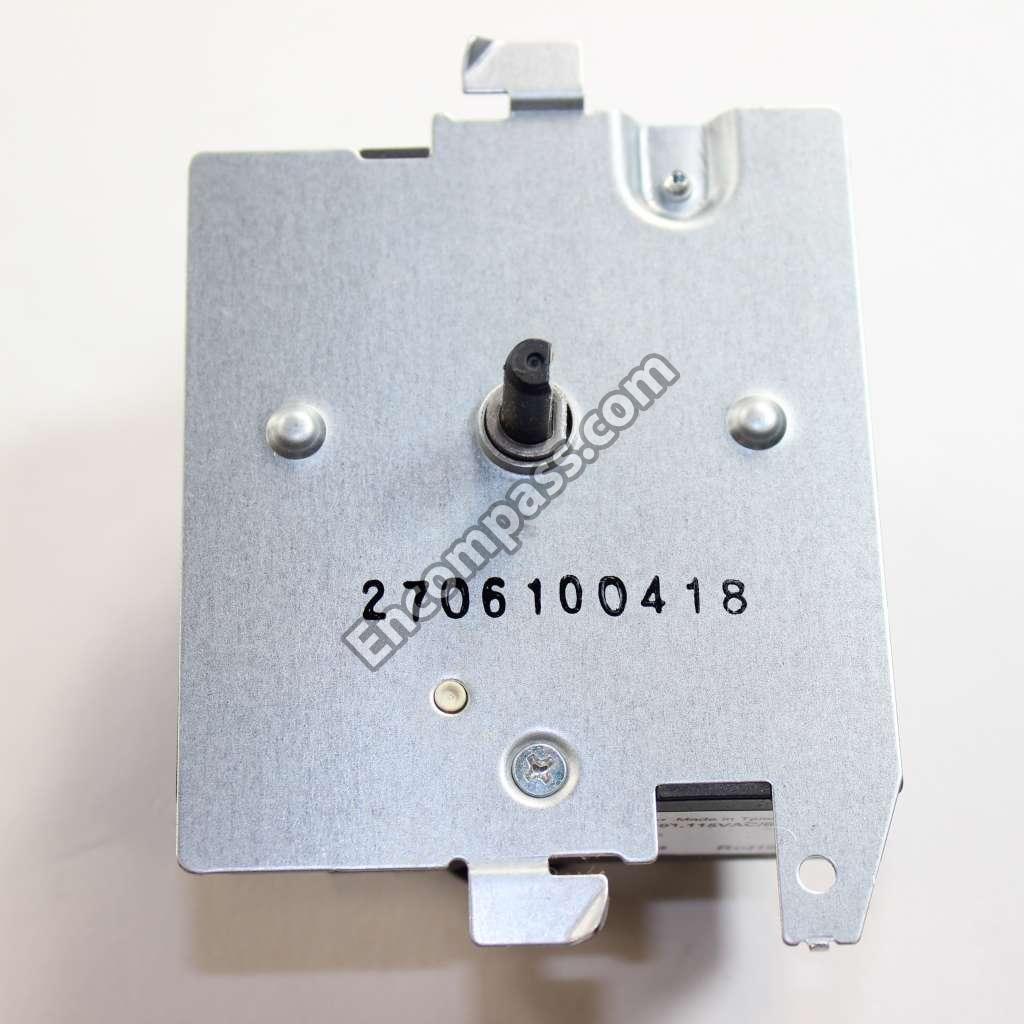

WE04X24550 WE04X24550 TIMER

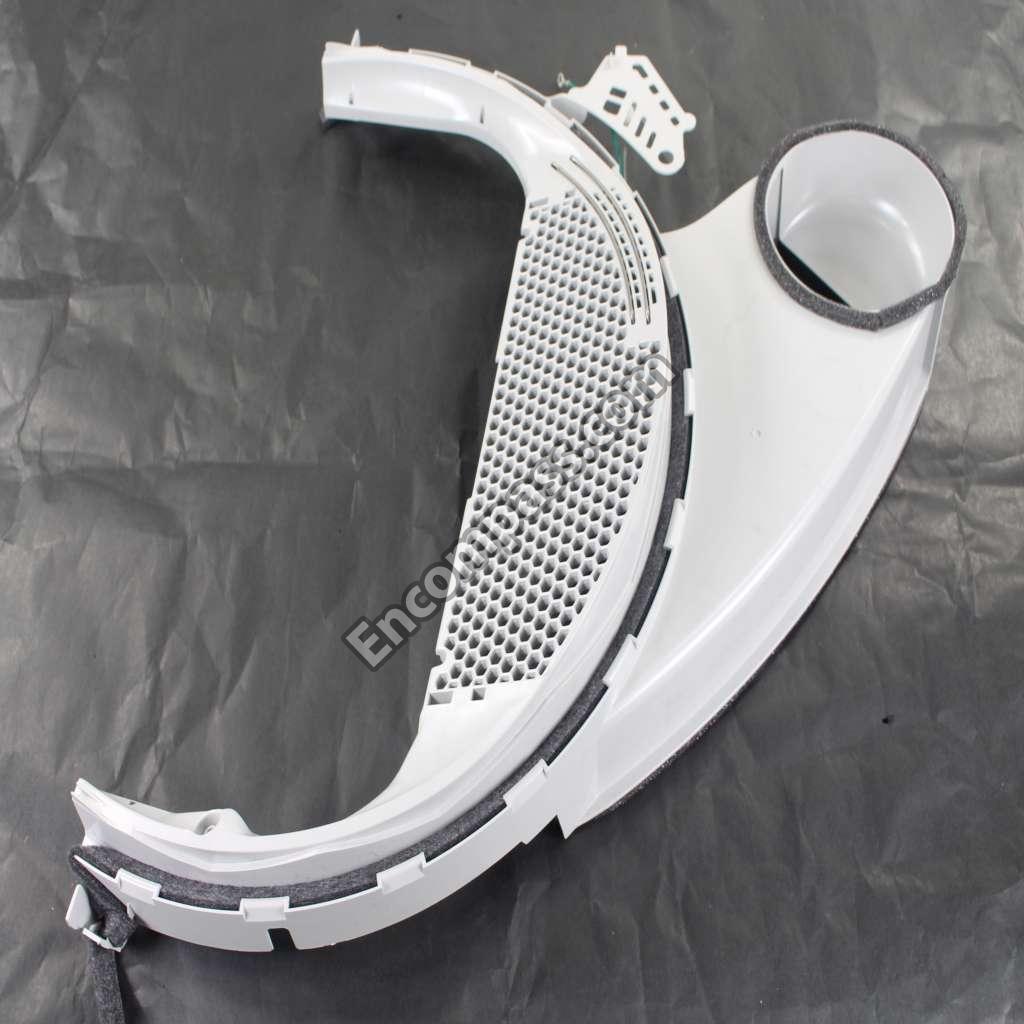

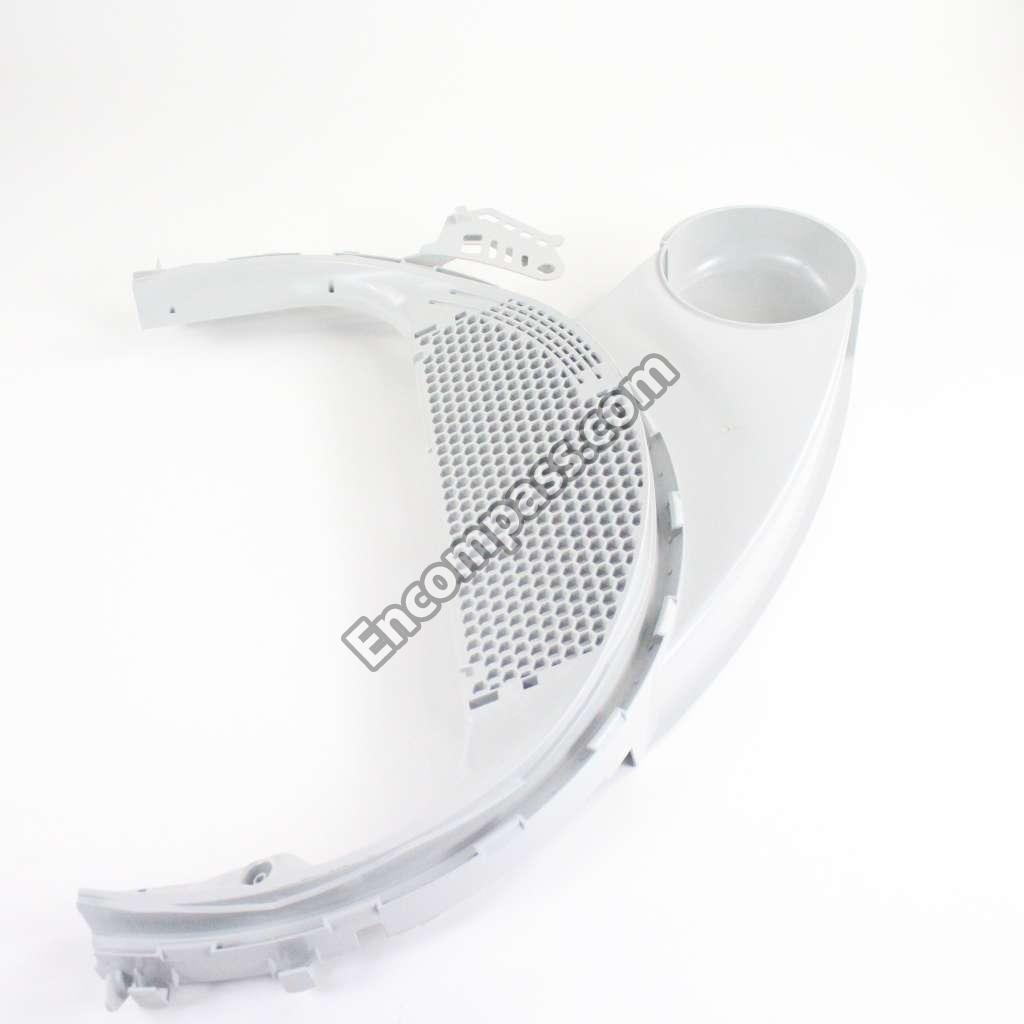

WE01X25334 WE01X25334 TRAP DUCT ASSEMBLY
WE01X24546 WE01X24546 TRAP DUCT SLIDES
WE03X29452 WE03X29452 VALVE AND BURNER ASSEMBLY
WE03X23916 WE03X23916 VALVE AND PIPE ASSEMBLY
WE01X26154 WE01X26154 WASHER
WE2M96 WE2M96 WE2X329
