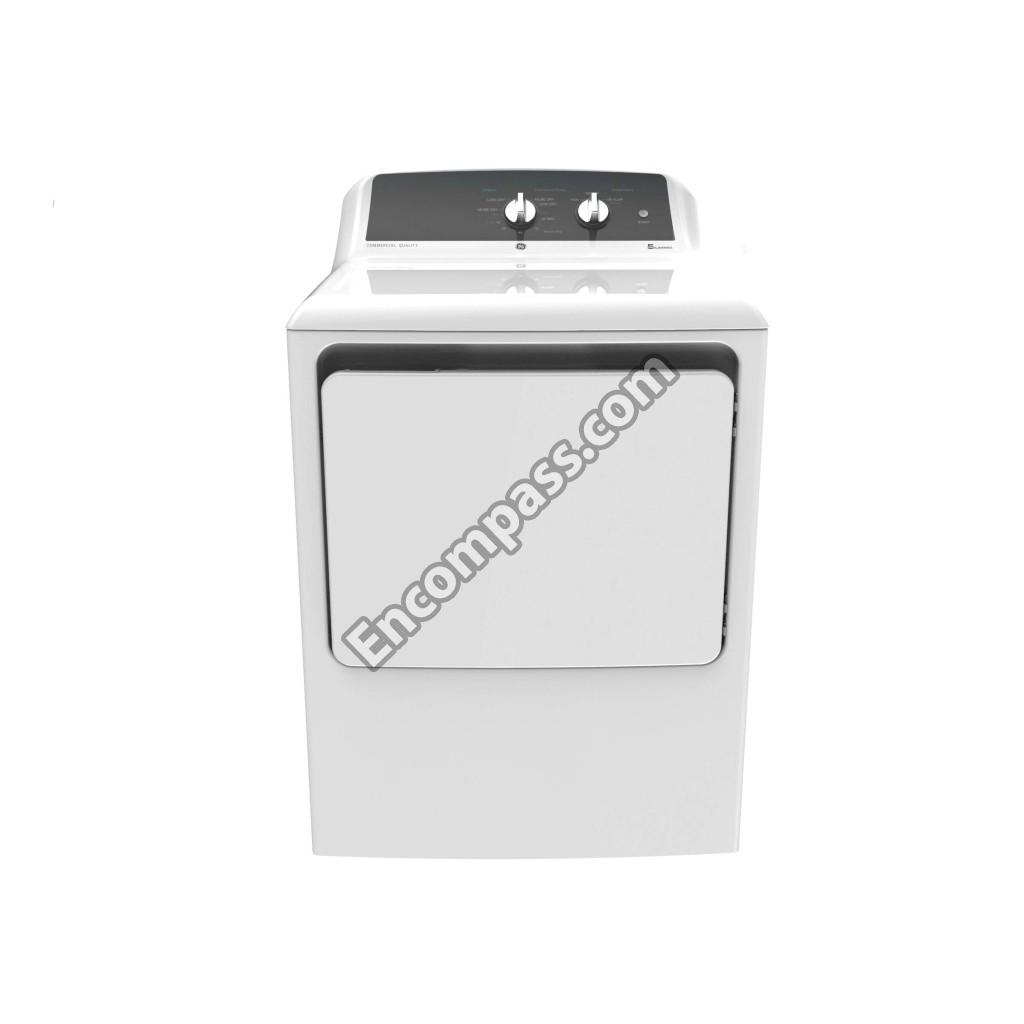

Model Image
Manufacturer

GE

Model Number

GTX52GASP0WB

Description

Dryer Gas

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE05X20431 WE05X20431 120V DRYER BULB - 10W
WE01X31000 WE01X31000 BACKSPLASH ASSEMBLY
WE1M300 WE1M300 BEARING RETAINER
WE03X37320 WE03X37320 BEARING SLIDE
WE03X25576 WE03X25576 BEARING TOP ASSEMBLY
WE03X23956 WE03X23956 BEARING TOP SLIDES
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WH16X34317 WH16X34317 BLOWER WHEEL
WE01X25074 WE01X25074 BRACKET IDLER
WE04X24719 WE04X24719 BUTTON START ASSEMBLY
WE01X32177 WE01X32177 CAP DOOR
WE14M177 WE14M177 CHAMBER COMBUSTION
WE04X25159 WE04X25159 CHASSIS AND LEG ASSEMBLY
WE1X1091 WE1X1091 CLIP CORDSET.
WE03X23883 WE03X23883 COVER BOTTOM
WE03X24721 WE03X24721 COVER TOP LOW DEPTH
WE11X25154 WE11X25154 DEFLECTOR FLAME
WE11X29438 WE11X29438 DIFFUSER
WE11X29443 WE11X29443 DIFFUSER GAS
WE10X31003 WE10X31003 DOOR ASSEMBLY
WE04X28977 WE04X28977 DOOR SWITCH
WE21X23868 WE21X23868 DRUM ASSEMBLY
WE14X20683 WE14X20683 DRYER BAFFLE
WE03X37319 WE03X37319 DRYER BEARING SLIDE
WE4M318 WE4M318 DRYER BUZZER
WE03X29897 WE03X29897 DRYER DRUM DRIVE BELT
WE1M462 WE1M462 DRYER DRUM SLEEVE
WE14M104 WE14M104 DRYER GAS BURNER
WE14X21174 WE14X21174 DRYER GAS DIFFUSER
WE01X31001 WE01X31001 DRYER KNOB BASE ASSEMBLY
WE03X23881 WE03X23881 DRYER LINT FILTER
WE1X921 WE1X921 DRYER MOTOR STRAP
WE26M345 WE26M345 DRYER POWER CORD - 120V GAS
WE01X25160 WE01X25160 DRYER RACK
WE04X26138 WE04X26138 DRYER THERMOSTAT
WE03X23918 WE03X23918 DRYER VALVE AND PIPE
WE01X23892 WE01X23892 EXHAUST DUCT
WE09X27635 WE09X27635 FELT TOP BEARING
WE09X27634 WE09X27634 FELT TRAP DUCT
WE4X448 WE4X448 FLAME DETECTOR
WE20X25260 WE20X25260 FRONT PANEL WHITE
WE2M188 WE2M188 FRONT STABILIZING LEGS
WE4M449 WE4M449 GAS IGNITER ASSEMBLY
WE14X215 WE14X215 GAS VALVE ASM
WE13X20405 WE13X20405 GAS VALVE BRACKET
WE09X25276 WE09X25276 GASKET
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE13X29439 WE13X29439 GROUND STRAP ASSEMBLY
WE01X31005 WE01X31005 HINGE ASSEMBLY
WE13X31117 WE13X31117 HOUSING BLOWER
WE03X20434 WE03X20434 IDLER ARM
WE03X27417 WE03X27417 IDLER ARM ASSEMBLY
WE03X31620 WE03X31620 IDLER PULLEY
WE04X25201 WE04X25201 INLET THERMOSTAT
WE15X25208 WE15X25208 JUMPER HARNESS BLACK
WE15X25206 WE15X25206 JUMPER HARNESS RED
WE01X31004 WE01X31004 LATCH
WE01X29357 WE01X29357 LEVELING LEG
WE08X30998 WE08X30998 MAIN HARNESS GAS
WE17X24535 WE17X24535 MOTOR AND BLOWER ASSEMBLY
WE49X28295 WE49X28295 MOTOR AND PULLEY ASSEMBLY
WE01X0921 WE01X0921 MOTOR BRACKET
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE01X31797 WE01X31797 OPTIONS KNOB
WE20X24556 WE20X24556 PANEL BACK
WE02X25274 WE02X25274 PANEL REAR
WE13X29444 WE13X29444 PLATE BLOWER
WE10X30380 WE10X30380 PLATE DIFFUSER
WE03X23858 WE03X23858 PLATE MOTOR
WE1M934 WE1M934 PLUG BUTTON WHITE
31-16775 31-16775 PM INSTALLATION INSTRUCTION USA ELEC Y G
31-3000238 31-3000238 PM MINI MANUAL AND WIRING
WE4M416 WE4M416 PUSH TO START SWITCH
WE04X25199 WE04X25199 SAFETY THERMOSTAT
WE01X24720 WE01X24720 SCR 30 X 20 IA PP
WE2M302 WE2M302 SCREW
WE01X25535 WE01X25535 SCREW
WE01X25318 WE01X25318 SCREW
WD2M101 WD2M101 SCREW
WE2M202 WE2M202 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WZ5X158D WZ5X158D SCREW-PKG 12
WE00X181L WE00X181L SHAFT
WE3M33 WE3M33 SHAFT AND BRACKET ASSEMBLY
WE01X23880 WE01X23880 SHIELD SWITCH
WE02X24214 WE02X24214 SHUTTER AIR
WE10X29822 WE10X29822 SIDE PANEL
WE01X26494 WE01X26494 SOCKET ASSEMBLY
WE13X30697 WE13X30697 STRAP MOTOR
WE01X30999 WE01X30999 STRIKE
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WE02X25283 WE02X25283 SWITCH ROTARY
WE04X26215 WE04X26215 THERMOSTAT
WE04X25281 WE04X25281 TIMER
WE11X29441 WE11X29441 TRANSITION DUCT
WE03X25275 WE03X25275 TRAP DUCT ASSEMBLY
WE01X24546 WE01X24546 TRAP DUCT SLIDES
49-90550 49-90550 USE & CARE GE USA A1, A2
WE03X29452 WE03X29452 VALVE AND BURNER ASSEMBLY
WE03X23916 WE03X23916 VALVE AND PIPE ASSEMBLY
WE01X26154 WE01X26154 WASHER
WE2M96 WE2M96 WE2X329
WE15X25279 WE15X25279 WIRE GROUP ASSEMBLY
