Model Image
Manufacturer

GE

Model Number

GTX60GBSJ0WS

Description

Gas Dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE05X20431 WE05X20431 120V DRYER BULB - 10W
WE03X23885 WE03X23885 BACKSPLASH ASSEMBLY
WE1M300 WE1M300 BEARING RETAINER
WE03X37320 WE03X37320 BEARING SLIDE
WE03X23875 WE03X23875 BEARING TOP ASSEMBLY
WE03X29897 WE03X29897 BELT DRIVE
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE03X23859 WE03X23859 BLOWER HOUSING ASSEMBLY
WH16X34317 WH16X34317 BLOWER WHEEL
WE2M96 WE2M96 CAP NUT.
WE14M177 WE14M177 CHAMBER COMBUSTION
WE22X35978 WE22X35978 CHASSIS AND BOARD ASM
WE04X25159 WE04X25159 CHASSIS AND LEG ASSEMBLY
WE1X1091 WE1X1091 CLIP CORDSET.
WE03X23883 WE03X23883 COVER BOTTOM
WE1M1007 WE1M1007 COVER FUSE TERMINAL
WE03X23889 WE03X23889 COVER TOP HIGH DEPTH
WE11X25154 WE11X25154 DEFLECTOR FLAME
WE11X29438 WE11X29438 DIFFUSER
WE10X26854 WE10X26854 DOOR ASSEMBLY
WE04X28977 WE04X28977 DOOR SWITCH
WE21X23868 WE21X23868 DRUM ASSEMBLY
WE14X20683 WE14X20683 DRYER BAFFLE
WE03X37319 WE03X37319 DRYER BEARING SLIDE
WE1M462 WE1M462 DRYER DRUM SLEEVE
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE1X21975 WE1X21975 DRYER FUSE 3AB
WE14M104 WE14M104 DRYER GAS BURNER
WE14X21174 WE14X21174 DRYER GAS DIFFUSER
WE1M1015 WE1M1015 DRYER GROUND STRAP
WE1X921 WE1X921 DRYER MOTOR STRAP
WE13X200 WE13X200 DRYER MOTOR STRAP
WE26M345 WE26M345 DRYER POWER CORD - 120V GAS
WE01X25160 WE01X25160 DRYER RACK
WE03X27679 WE03X27679 DRYER TOP BEARING
WE11X29441 WE11X29441 DRYER TRANSITION DUCT
WE01X23892 WE01X23892 EXHAUST DUCT
WE18X25100 WE18X25100 FILTER AND MESH ASSEMBLY.
WE4X448 WE4X448 FLAME DETECTOR
WE2M188 WE2M188 FRONT STABILIZING LEGS
WE01X29060 WE01X29060 FT HEAT DEFLECTION PLATE
WE1X21955 WE1X21955 FUSE HOLDER 3AB
WE13X20405 WE13X20405 GAS VALVE BRACKET
WE1M825 WE1M825 GASKET (SEAL) 39 INCH

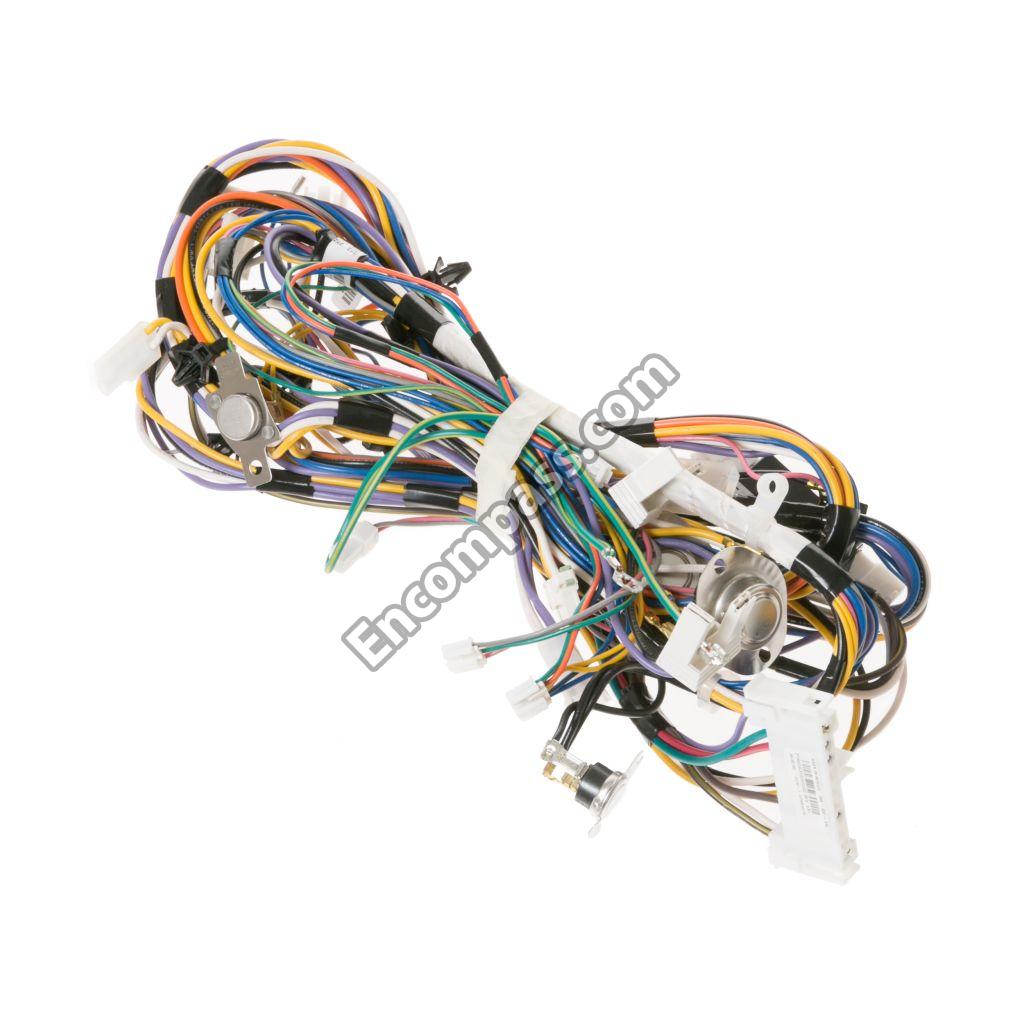

WE15X23862 WE15X23862 HARNESS ASSEMBLY ELEC
WE15X26994 WE15X26994 HARNESS SENSOR ASSEMBLY
WE03X20434 WE03X20434 IDLER ARM
WE03X31620 WE03X31620 IDLER PULLEY
WE04X25996 WE04X25996 IGNITER
WE04X0739 WE04X0739 IGNITER ASM
WE4M398 WE4M398 INLET CONTROL THERMISTOR
WE01X23886 WE01X23886 KNOB ASSEMBLY
WE17X23056 WE17X23056 MOTOR AND BLOWER ASSEMBLY
WE49X28295 WE49X28295 MOTOR AND PULLEY ASSEMBLY
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE4M448 WE4M448 OUTLET CONTROL THERMISTOR
WE20X23888 WE20X23888 PANEL BACK ASSEMBLY
WE20X25260 WE20X25260 PANEL FRONT
WE02X23954 WE02X23954 PANEL REAR
WE10X29822 WE10X29822 PANEL SIDE
WE03X23858 WE03X23858 PLATE MOTOR
WE1M934 WE1M934 PLUG BUTTON WHITE
49-90536 49-90536 PM USE AND CARE DRYER 2015
31-16887 31-16887 PUB # MINIMANUAL
31-16756 31-16756 PUB NUMBER INSTALLATION INSTRUCTION
WE2M307 WE2M307 SCR 10-16 X 1/2 AB
WE2X21976 WE2X21976 SCR 6-20 AB PNP#2 1
WE2M302 WE2M302 SCREW
WD2M101 WD2M101 SCREW
WE01X25535 WE01X25535 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WR01X10196 WR01X10196 SCREW 8-18 HI/LO 5/8
WZ5X158D WZ5X158D SCREW-PKG 12
WE00X181L WE00X181L SHAFT
WE01X23880 WE01X23880 SHIELD SWITCH
WE1M486 WE1M486 SHUTTER
WE01X20424 WE01X20424 STRAIN RELIEF BRACKET GA
WE01M10007 WE01M10007 STRIKE
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WE03X25079 WE03X25079 TOP BEARING
WE01X23877 WE01X23877 TRAP DUCT ASSEMBLY
WE03X29452 WE03X29452 VALVE AND BURNER ASSEMBLY
