Model Image
Manufacturer

GE

Model Number

GTX65EBSJ2WS

Description

Dryer Electric

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE1M300 WE1M300 BEARING RETAINER
WE03X34318 WE03X34318 BEARING SLIDE
WE03X37320 WE03X37320 BEARING SLIDE
WE03X23875 WE03X23875 BEARING TOP ASSEMBLY
WE03X23956 WE03X23956 BEARING TOP SLIDES
WE03X29897 WE03X29897 BELT DRIVE
WE09X27636 WE09X27636 BLOWER GASKET (EXHAUST)
WE03X23859 WE03X23859 BLOWER HOUSING ASSEMBLY
WH16X34317 WH16X34317 BLOWER WHEEL
WE2M96 WE2M96 CAP NUT.

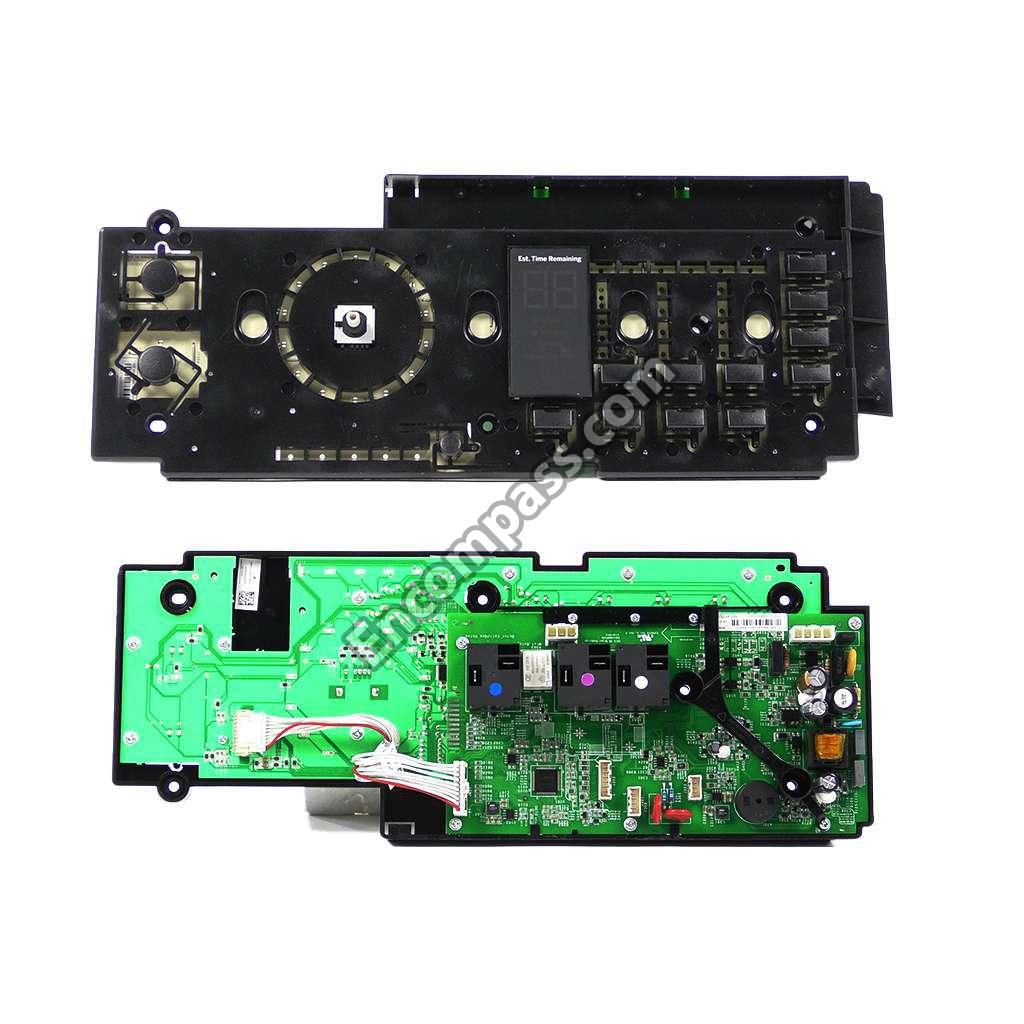

WE04X29097 WE04X29097 CHASSIS AND BOARD ASM

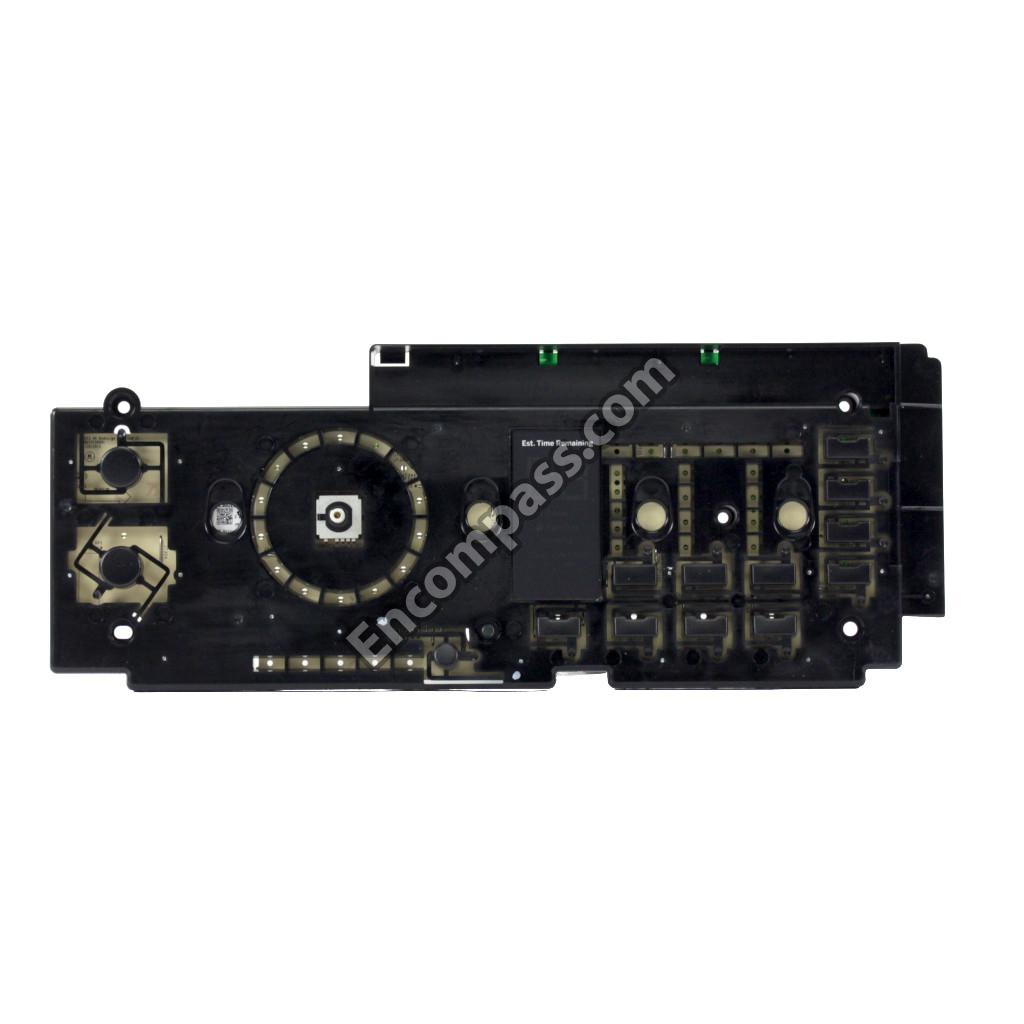

WE22X31717 WE22X31717 CHASSIS AND BOARD ASM
WE22X30157 WE22X30157 CHASSIS AND BOARD ASM
WE22X35978 WE22X35978 CHASSIS AND BOARD ASSEMBLY
WE04X25159 WE04X25159 CHASSIS AND LEG ASSEMBLY
WE03X23883 WE03X23883 COVER BOTTOM
WE1M1007 WE1M1007 COVER FUSE TERMINAL
WE03X23889 WE03X23889 COVER TOP HIGH DEPTH
WE11X29438 WE11X29438 DIFFUSER
WE10X23891 WE10X23891 DOOR ASSEMBLY
WE04X28977 WE04X28977 DOOR SWITCH
WE21X23868 WE21X23868 DRUM ASSEMBLY
WE14X20683 WE14X20683 DRYER BAFFLE
WE03X37319 WE03X37319 DRYER BEARING SLIDE

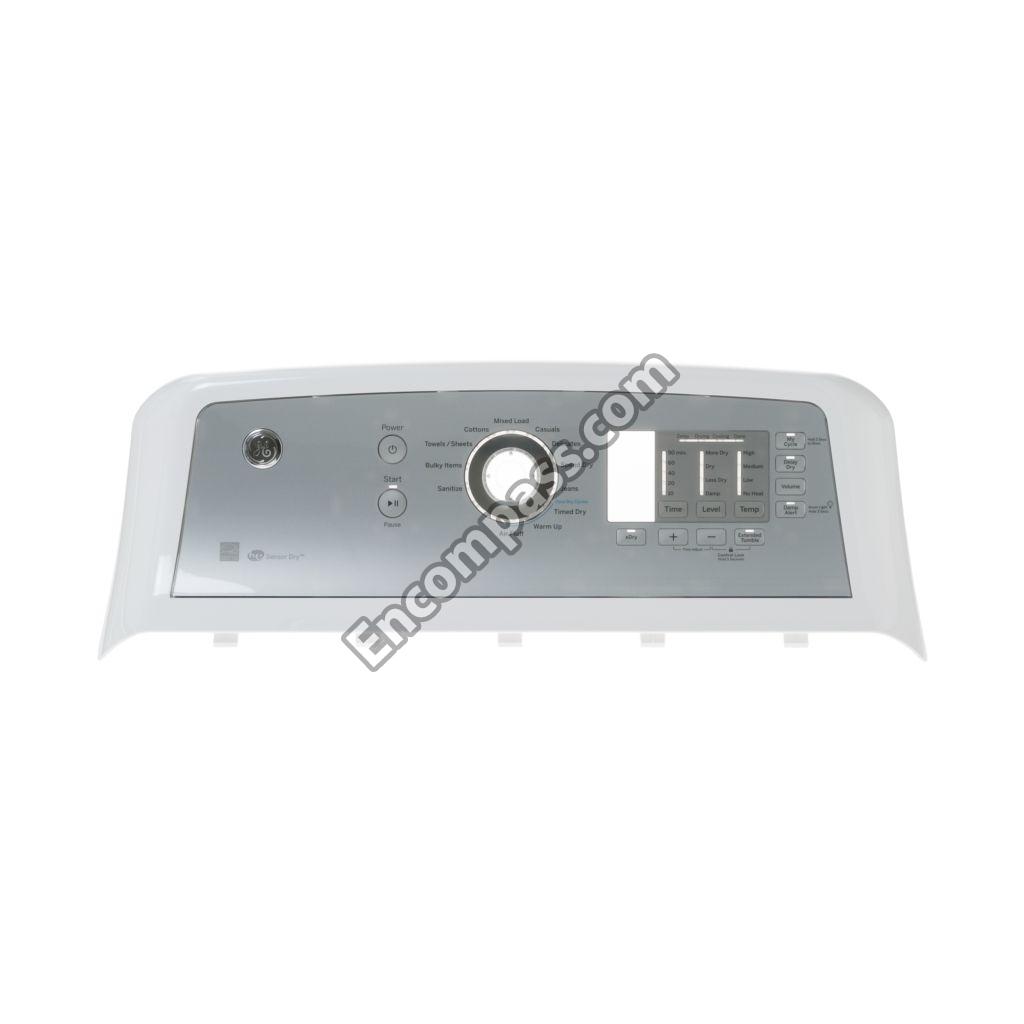

WE20X25563 WE20X25563 DRYER CONTROL PANEL
WE1M462 WE1M462 DRYER DRUM SLEEVE
WE09X27634 WE09X27634 DRYER DUCT TRAP FELT
WE01X25335 WE01X25335 DRYER EXHAUST DUCT
WE1X21975 WE1X21975 DRYER FUSE 3AB
WE1M1015 WE1M1015 DRYER GROUND STRAP
WE01X25317 WE01X25317 DRYER HINGE
WE01X25316 WE01X25316 DRYER LATCH
WE03X23881 WE03X23881 DRYER LINT FILTER
WE1X921 WE1X921 DRYER MOTOR STRAP
WE01X25160 WE01X25160 DRYER RACK
WE04X26138 WE04X26138 DRYER THERMOSTAT
WE04X25200 WE04X25200 DRYER THERMOSTAT
WE04X25194 WE04X25194 DRYER THERMOSTAT
WE01X23892 WE01X23892 EXHAUST DUCT
WE20X25260 WE20X25260 FRONT PANEL WHITE
WE1M869 WE1M869 FT HEAT DEFLECTION PLATE
WE1X21955 WE1X21955 FUSE HOLDER 3AB
WE1M825 WE1M825 GASKET (SEAL) 39 INCH
WE20X25564 WE20X25564 HARNESS ASSEMBLY ELEC
WE15X26994 WE15X26994 HARNESS SENSOR ASSEMBLY
WE11X21156 WE11X21156 HEATER AND HOUSING ASSEMBLY
WE11M43 WE11M43 HEATER HOUSING
WE03X20434 WE03X20434 IDLER ARM
WE03X31620 WE03X31620 IDLER PULLEY
WE4M398 WE4M398 INLET CONTROL THERMISTOR
WE01X23886 WE01X23886 KNOB ASSEMBLY
WE5M94 WE5M94 LED
WE01X29357 WE01X29357 LEVELLING FOOT
WE11M10001 WE11M10001 MICA HEATER
WE17X23056 WE17X23056 MOTOR AND BLOWER ASSEMBLY
WE49X28295 WE49X28295 MOTOR AND PULLEY ASSEMBLY
WE13M39 WE13M39 MOTOR SUPPORT
WE1M461 WE1M461 O RING
WE4M448 WE4M448 OUTLET CONTROL THERMISTOR
WE20X24556 WE20X24556 PANEL BACK
WE02X25274 WE02X25274 PANEL REAR
WE03X23858 WE03X23858 PLATE MOTOR
WE1M934 WE1M934 PLUG BUTTON WHITE
31-16775 31-16775 PM INSTALLATION INSTRUCTION USA ELEC Y G
49-90536 49-90536 PM USE AND CARE DRYER 2015
WE1M780 WE1M780 PROTECTION BRACKET
31-16921 31-16921 PUB NUMBER MINI MANUAL
WE2X21976 WE2X21976 SCR 6-20 AB PNP#2 1
WE2M302 WE2M302 SCREW
WE01X25535 WE01X25535 SCREW
WE2M202 WE2M202 SCREW
WE2M174 WE2M174 SCREW # 10
WE2M163 WE2M163 SCREW #10
WE2M160 WE2M160 SCREW #8
WD02X10057 WD02X10057 SCREW 10-16X1/2 AB HXW S
WR01X10196 WR01X10196 SCREW 8-18 HI/LO 5/8
WE2M200 WE2M200 SCREW GROUND
WZ5X158D WZ5X158D SCREW-PKG 12
WZ4X241D WZ4X241D SCREW-PKG 12
WE00X181L WE00X181L SHAFT
WE3M33 WE3M33 SHAFT AND BRACKET ASSEMBLY
WE01X23880 WE01X23880 SHIELD SWITCH
WE10X29822 WE10X29822 SIDE PANEL
WE01X20423 WE01X20423 STRAIN RELIEF BRACKET EL
WE13X0200 WE13X0200 STRAP MOTOR
WE13X200 WE13X200 STRAP MOTOR
WE01M10007 WE01M10007 STRIKE
WE1M569 WE1M569 STRIKE PLATE
WE1M570 WE1M570 STRIKE PLATE W/STRK HOLE
WE4M325 WE4M325 TERM BLK AND GRND STRAP
WE01X24546 WE01X24546 TRAP DUCT SLIDES
WE01X26154 WE01X26154 WASHER
