Model Image
Manufacturer

GE

Model Number

GUD24ESSJ0WW

Description

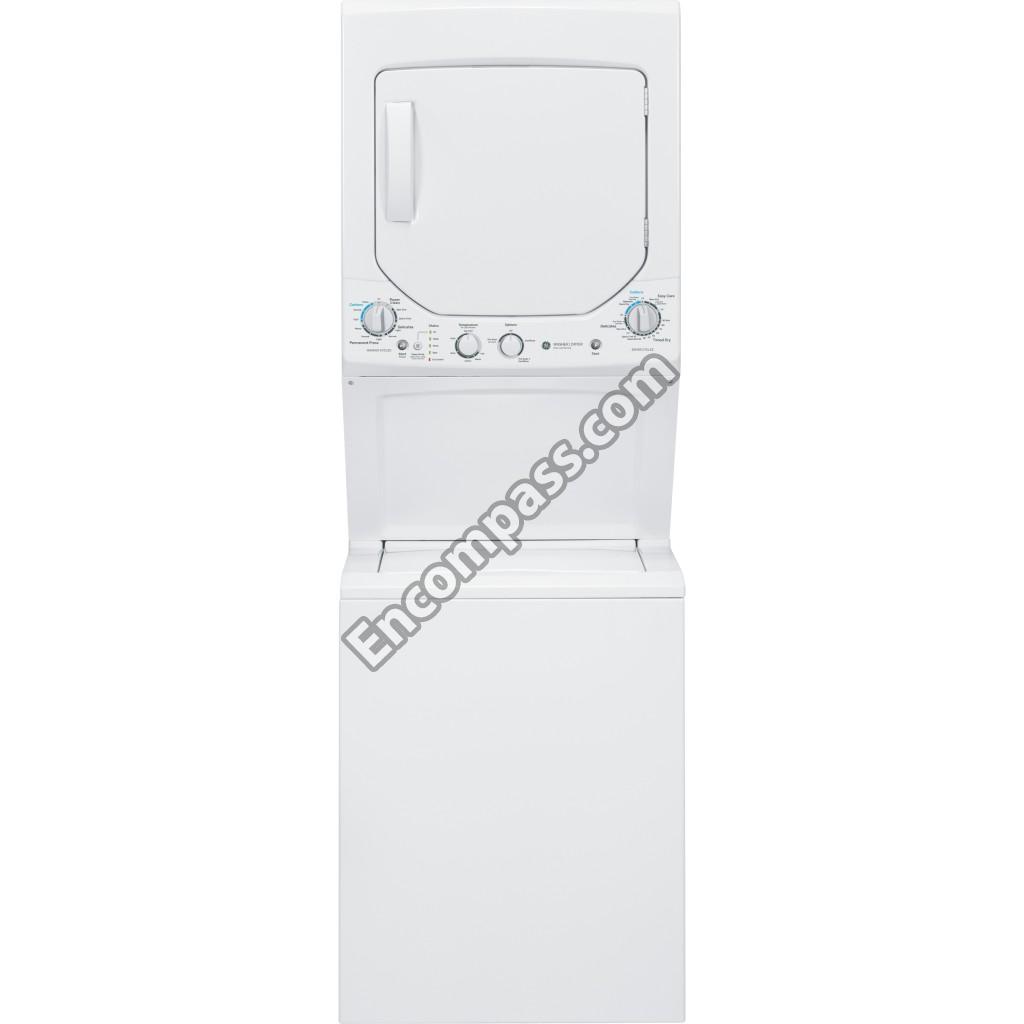

Washer/dryer Combo

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WH01X10612 WH01X10612 1/4-20 TAPTI
WE20M469 WE20M469 ACCESS PANEL
WH01X10596 WH01X10596 ALIGNMENT PIN
WE21M39 WE21M39 BAFFLE
WE03X37320 WE03X37320 BEARING SLIDE
WE03X25099 WE03X25099 BEARING TOP
WH16X10144 WH16X10144 BRACE
WH16X10172 WH16X10172 BRACKET COVER
WH49X10094 WH49X10094 BRACKET KIT
WH16X10153 WH16X10153 BRACKET SPRING
WE01X23117 WE01X23117 BUTTON
WH01X10598 WH01X10598 CLAMP
WH01X10649 WH01X10649 CLAMP
WH01X10599 WH01X10599 CLAMP
WH01X10601 WH01X10601 CLIP CAPACITOR
WH01X10604 WH01X10604 CLIP DRAININ
WE2M301 WE2M301 CLIP FRONT P
WH44X10283 WH44X10283 COVER
WH01X10623 WH01X10623 COVER CLIP
WH01X10630 WH01X10630 DAMPER PAD
WD02X10057 WD02X10057 DISHWASHER SCREW, #10-16 X 1/2-IN
WE26M360 WE26M360 DOOR HARNESS
WH23X26206 WH23X26206 DRAIN PUMP
WH41X10282 WH41X10282 DRAIN STOP
WE09X27636 WE09X27636 DRYER BLOWER GASKET
WE1M1011 WE1M1011 DRYER DOOR CATCH
WE9M58 WE9M58 DRYER DOOR GASKET
WE1M1033 WE1M1033 DRYER DOOR HINGE
WE1X1192 WE1X1192 DRYER DOOR STRIKE
WE4M415 WE4M415 DRYER DOOR SWITCH
WE21X28956 WE21X28956 DRYER DRUM AND BAFFLE ASSEMBLY
WE12M51 WE12M51 DRYER DRUM BELT
WE09X27634 WE09X27634 DRYER DRUM FELT SEAL
WE03X37319 WE03X37319 DRYER DRUM GLIDE BEARING
WE4M137 WE4M137 DRYER HIGH-LIMIT THERMOSTAT
WE18X20437 WE18X20437 DRYER LINT SCREEN
WE13X200 WE13X200 DRYER MOTOR CLAMP
WE4M181 WE4M181 DRYER OPERATING THERMOSTAT
WE4M216 WE4M216 DRYER OPERATING THERMOSTAT
WE01X20423 WE01X20423 DRYER POWER CORD ACCESS BRACKET
WE4M416 WE4M416 DRYER PUSH-TO-START SWITCH
WE4M325 WE4M325 DRYER TERMINAL BLOCK AND GROUNDING STRAP
WE14M189 WE14M189 DUCT EXHAUST
WE14X27555 WE14X27555 DUCT EXHAUST
WE14X25091 WE14X25091 DUCT TRAP ASSEMBLY
WE19M1774 WE19M1774 ENCLOSURE BO
WE1M999 WE1M999 EXHAUST GASKET
WE1M1007 WE1M1007 FUSE COVER
WE22X35337 WE22X35337 GRID
WH03X20508 WH03X20508 GROMMET MOTOR
WH01X10597 WH01X10597 GROUND CLIP
WE1M1000 WE1M1000 HARNESS COVER
WE26M362 WE26M362 HARNESS UI A
WH01X10614 WH01X10614 HEX SCREW 5/
WH01X10625 WH01X10625 HINGE BUSHING
WH44X10290 WH44X10290 HINGE WASHER
WH44X10289 WH44X10289 HINGE WASHER
WH01X10592 WH01X10592 HOSE CLIP
WH44X10280 WH44X10280 HOSE COVER
WE2M302 WE2M302 LAUNDRY APPLIANCE SCREW
WE2X263D WE2X263D LAUNDRY APPLIANCE SCREW, 12-PACK
WE14M188 WE14M188 LAUNDRY CENTER BLOWER HOUSING

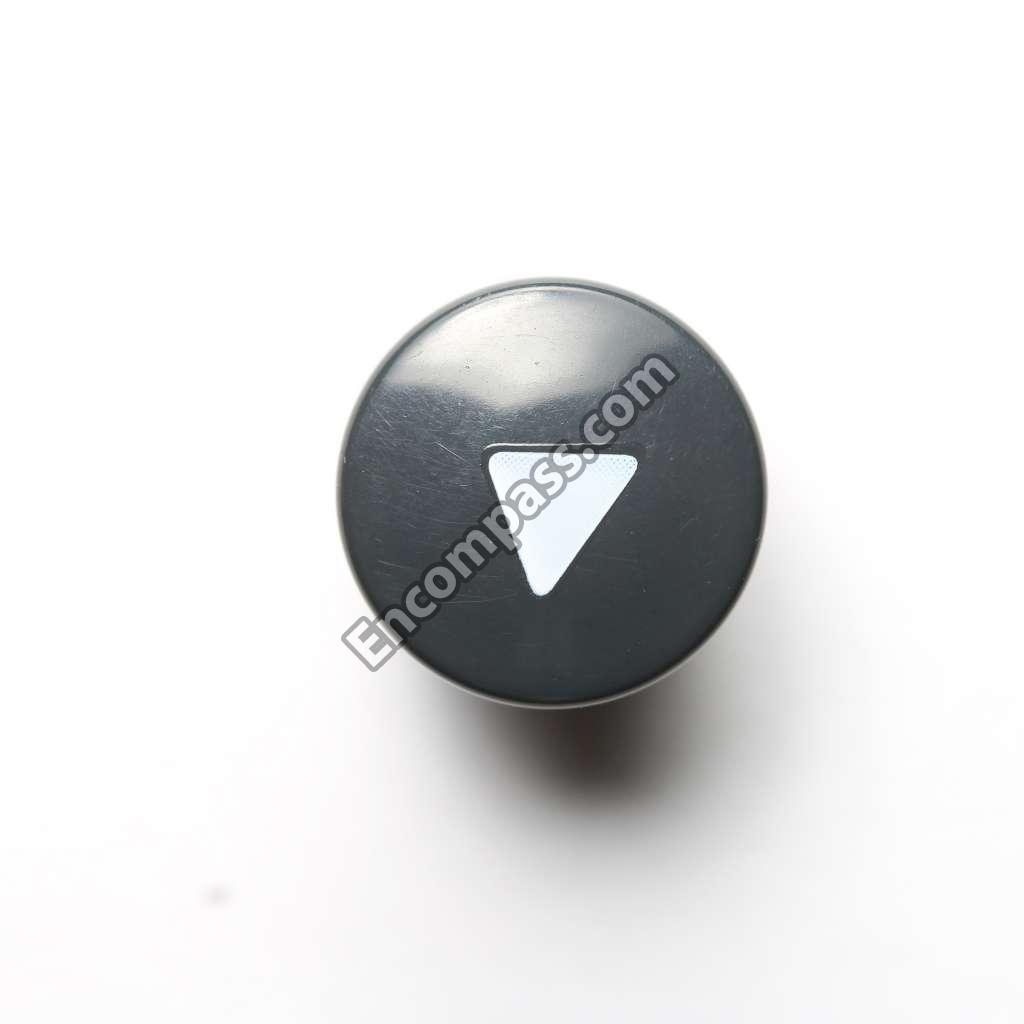

WE04X23115 WE04X23115 LAUNDRY CENTER CONTROL KNOB
WD21X10261 WD21X10261 LAUNDRY CENTER DRYER BELT SWITCH
WE16X20393 WE16X20393 LAUNDRY CENTER DRYER BLOWER WHEEL
WE10M150 WE10M150 LAUNDRY CENTER DRYER DOOR ASSEMBLY
WE01X30378 WE01X30378 LAUNDRY CENTER DRYER DOOR HANDLE
WE9M59 WE9M59 LAUNDRY CENTER DRYER DOOR SEAL, LOWER
WE11M61 WE11M61 LAUNDRY CENTER DRYER HEATING ELEMENT ASSEMBLY
WE12M50 WE12M50 LAUNDRY CENTER DRYER IDLER ARM
WE4M528 WE4M528 LAUNDRY CENTER DRYER SAFETY THERMOSTAT
WE04X22654 WE04X22654 LAUNDRY CENTER DRYER TIMER
WH01X10594 WH01X10594 LAUNDRY CENTER LEVELING LEG
WH19X10087 WH19X10087 LAUNDRY CENTER PRESSURE SWITCH WIRE HARNESS
WH12X10513 WH12X10513 LAUNDRY CENTER RUN CAPACITOR
WH01X10616 WH01X10616 LAUNDRY CENTER SCREW
WH2X1217 WH2X1217 LAUNDRY CENTER SCREW
WH19X10081 WH19X10081 LAUNDRY CENTER SELECTOR SWITCH WIRE HARNESS
WH43X10056 WH43X10056 LAUNDRY CENTER WASHER AGITATOR
WH01X10621 WH01X10621 LAUNDRY CENTER WASHER BLEACH DISPENSER
WH01X20438 WH01X20438 LAUNDRY CENTER WASHER DAMPENING STRAP
WH41X26574 WH41X26574 LAUNDRY CENTER WASHER DRAIN HOSE
WH49X20495 WH49X20495 LAUNDRY CENTER WASHER DRIVE MOTOR AND SHIELD KIT

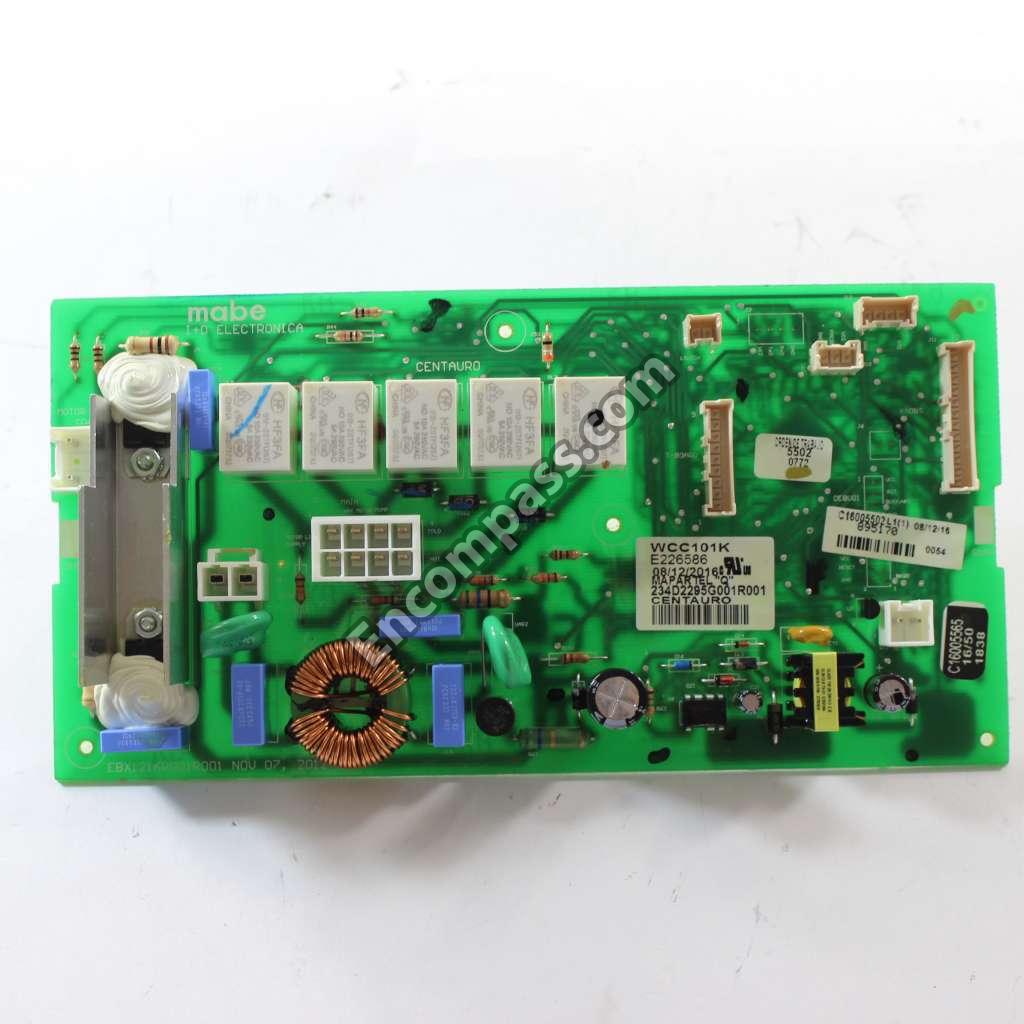

WH12X22744 WH12X22744 LAUNDRY CENTER WASHER ELECTRONIC CONTROL BOARD
WH44X10287 WH44X10287 LAUNDRY CENTER WASHER FABRIC SOFTENER DISPENSER...

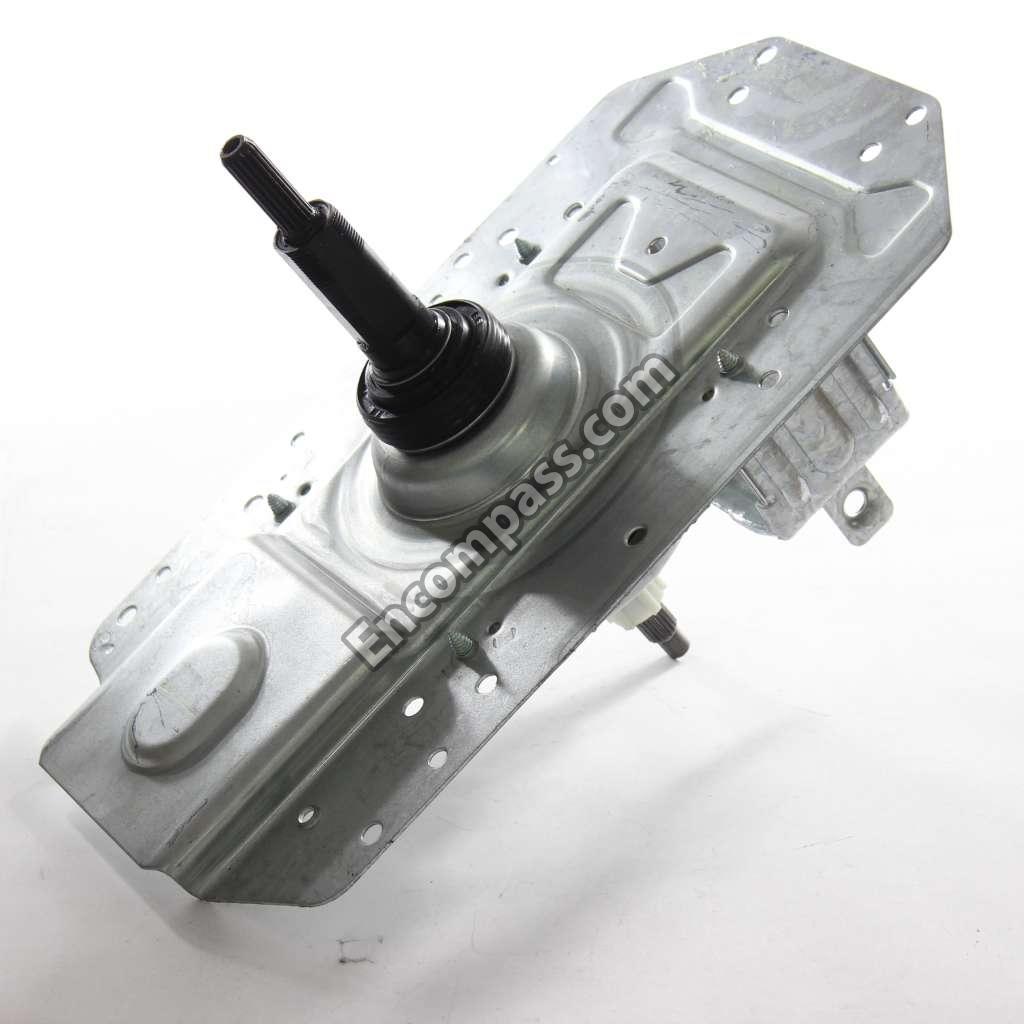

WH16X22783 WH16X22783 LAUNDRY CENTER WASHER GEAR CASE
WH43X10057 WH43X10057 LAUNDRY CENTER WASHER LID SWITCH ACTUATOR
WH01X10626 WH01X10626 LAUNDRY CENTER WASHER LID SWITCH MAGNET
WH45X10150 WH45X10150 LAUNDRY CENTER WASHER OUTER TUB
WH01X10605 WH01X10605 LAUNDRY CENTER WASHER OUTER TUB OVERFLOW HOSE
WH01X28559 WH01X28559 LAUNDRY CENTER WASHER SHIFTER HUB
WL49X20360 WL49X20360 LAUNDRY CENTER WASHER SPEED SENSOR
WH12X20439 WH12X20439 LAUNDRY CENTER WASHER SPEED SENSOR SUPPORT
WH45X22793 WH45X22793 LAUNDRY CENTER WASHER SPIN BASKET
WH01X10620 WH01X10620 LAUNDRY CENTER WASHER SUSPENSION ROD SUPPORT
WH13X10065 WH13X10065 LAUNDRY CENTER WASHER TUB FILL NOZZLE
WH01X22787 WH01X22787 LAUNDRY CENTER WASHER TUB MOUNTING HUB WASHER
WE09X21594 WE09X21594 LAUNDRY CENTER WASHER TUB SEAL
WH41X10280 WH41X10280 LAUNDRY CENTER WASHER TUB-TO-PUMP HOSE
WH12X10512 WH12X10512 LAUNDRY CENTER WASHER WATER TEMPERATURE THERMISTOR
WH49X10101 WH49X10101 LAUNDRY CENTER WIRE HARNESS
WH19X10084 WH19X10084 LAUNDRY CENTER WIRE HARNESS
WH01X10627 WH01X10627 LID BUMPER
WH01X10595 WH01X10595 LOCKING CLIP
WE26X20714 WE26X20714 MAIN HARNESS
WE17X22214 WE17X22214 MOTOR AND PULLEY
WE01X0921 WE01X0921 MOTOR BRACKET
WE13X24974 WE13X24974 MOTOR BRACKET
WE03X27285 WE03X27285 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WE20X20680 WE20X20680 PANEL
WE20M467 WE20M467 PANEL
31-16728 31-16728 PM INSTALL INSTRUCTIONS/NUM. PUB
49-90532 49-90532 PM MANUAL U&C DOE 2015 LC
WH16X10152 WH16X10152 PRESS HOSE
31-16868 31-16868 PUB # MINI MANUAL
WE20X26135 WE20X26135 REAR PANEL L

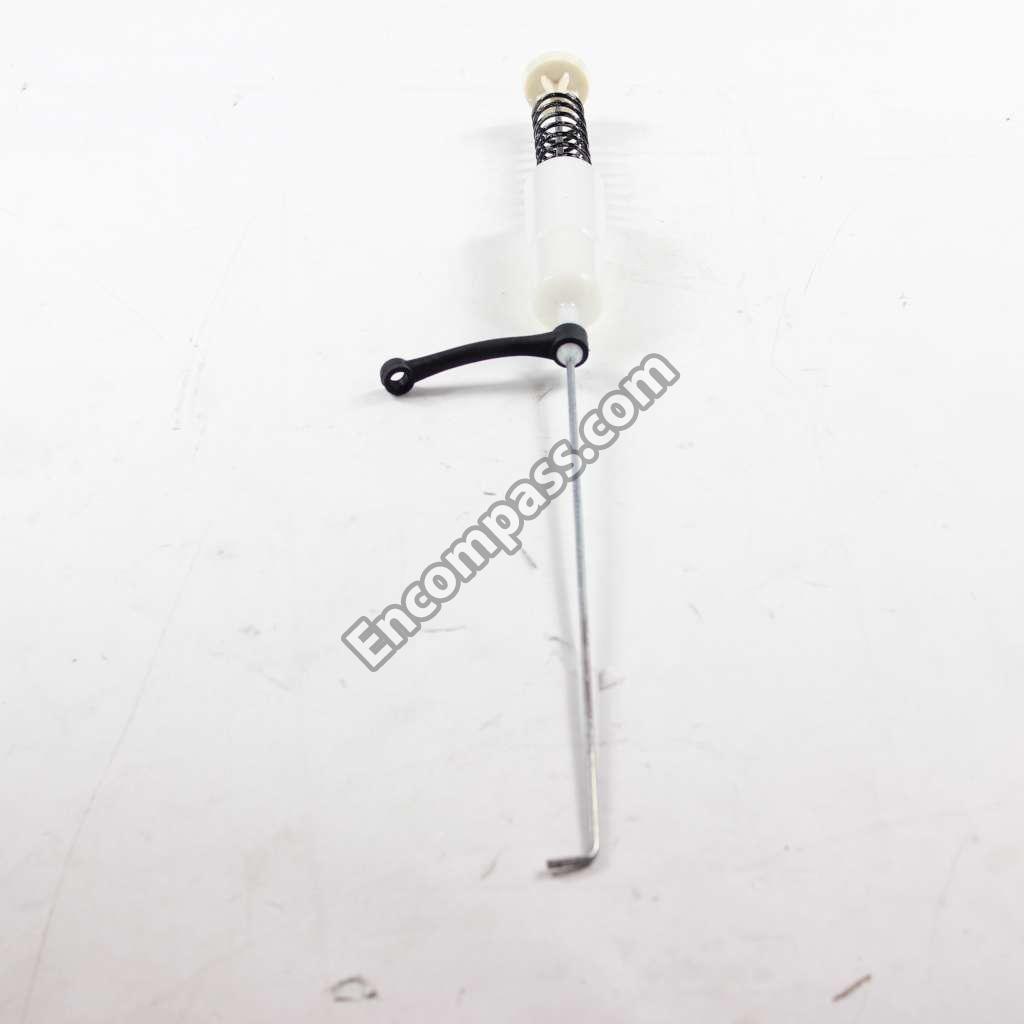

WH16X22790 WH16X22790 ROD ASSEMBLY

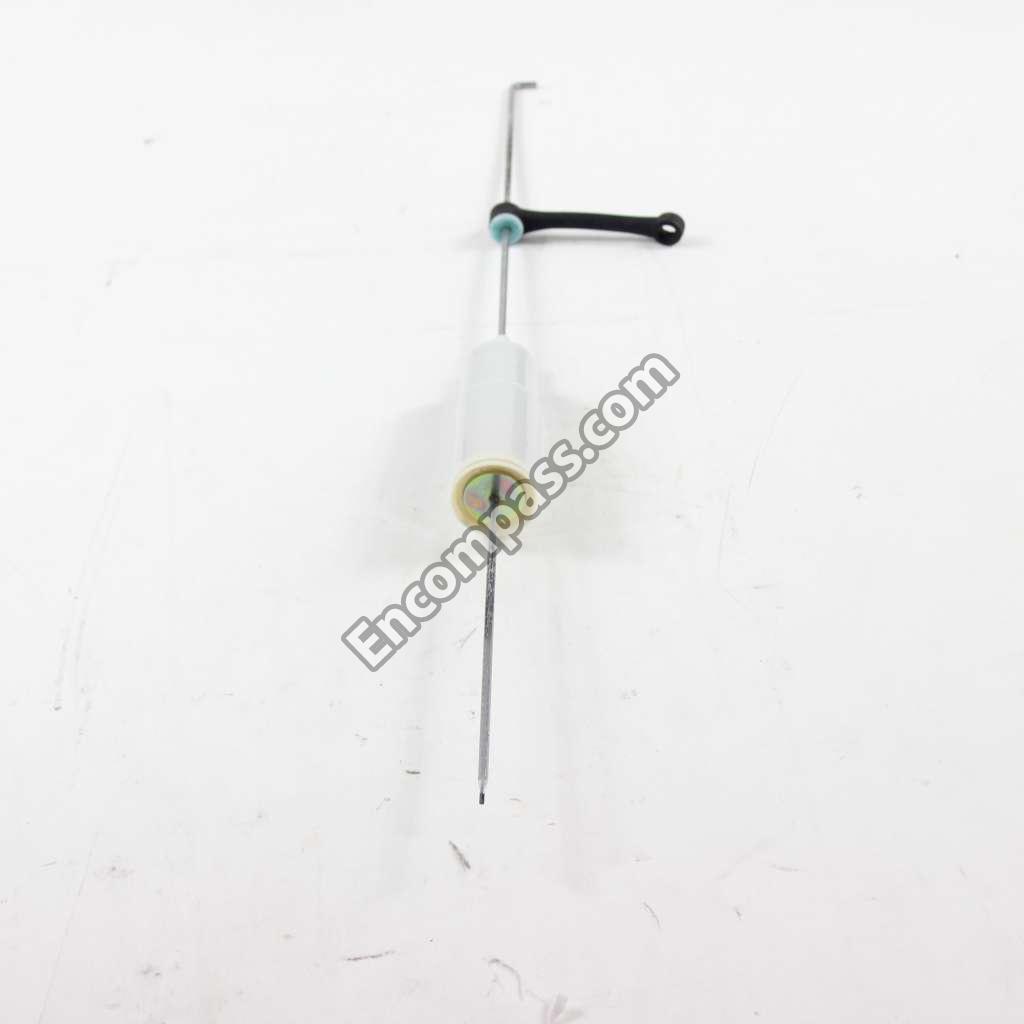

WH16X22791 WH16X22791 ROD ASSEMBLY
WH01X10624 WH01X10624 SCR 6-20 B T
WH01X10631 WH01X10631 SCR 8-16 B F
WE2M281 WE2M281 SCR 8-18 AB
WE2M305 WE2M305 SCR 8-18 AB
WE2M304 WE2M304 SCR 8-18 AB
WZ4X241D WZ4X241D SCR 8-18 AB PA 1/2 SS
WH01X10600 WH01X10600 SCR 8-18 B H
WD2M101 WD2M101 SCREW
WE2M202 WE2M202 SCREW
WH01X20231 WH01X20231 SCREW
WR2X9260 WR2X9260 SCREW
WE2M223 WE2M223 SCREW
WE1M280 WE1M280 SCREW
WZ5X158D WZ5X158D SCREW 8-32 X 3/8 GRD SCR
WB01K10042 WB01K10042 SCREW, #8-18
WH12X10510 WH12X10510 SELECTOR SWITCH
WH12X10509 WH12X10509 SELECTOR SWITCH
WH01X22786 WH01X22786 SET SCREW
WE02X20269 WE02X20269 SPEED NUT
WH01X10628 WH01X10628 SPRING COVER
WE04X23114 WE04X23114 START BUTTON
WE13X0200 WE13X0200 STRAP MOTOR
WE1X921 WE1X921 STRAP MOTOR
WH02X10347 WH02X10347 STUD GROUNDI
WH16X20555 WH16X20555 SUPPORT BOARD
WE19M1696 WE19M1696 SUPPORT CONTROL
WH01X10603 WH01X10603 TUB OUT CLAMP
WH01X10613 WH01X10613 TUB SHIELD
WH01X10619 WH01X10619 WASHER AGITATOR SCREW AND O-RING
WE19X22736 WE19X22736 WASHER CONTROL PANEL
WH01X20436 WH01X20436 WASHER DRIVE BELT
WH16X10147 WH16X10147 WASHER FORK SUPPORT ASSEMBLY
WH42X10885 WH42X10885 WASHER FRONT PANEL
WH38X10018 WH38X10018 WASHER GEAR CASE PULLEY
WH2X1211 WH2X1211 WASHER HINGE SCREW
WH01X10618 WH01X10618 WASHER HUB NUT
WE04X23116 WE04X23116 WASHER KNOB
WH44X10285 WH44X10285 WASHER LID (WHITE)
WH44X10288 WH44X10288 WASHER LID LOCK

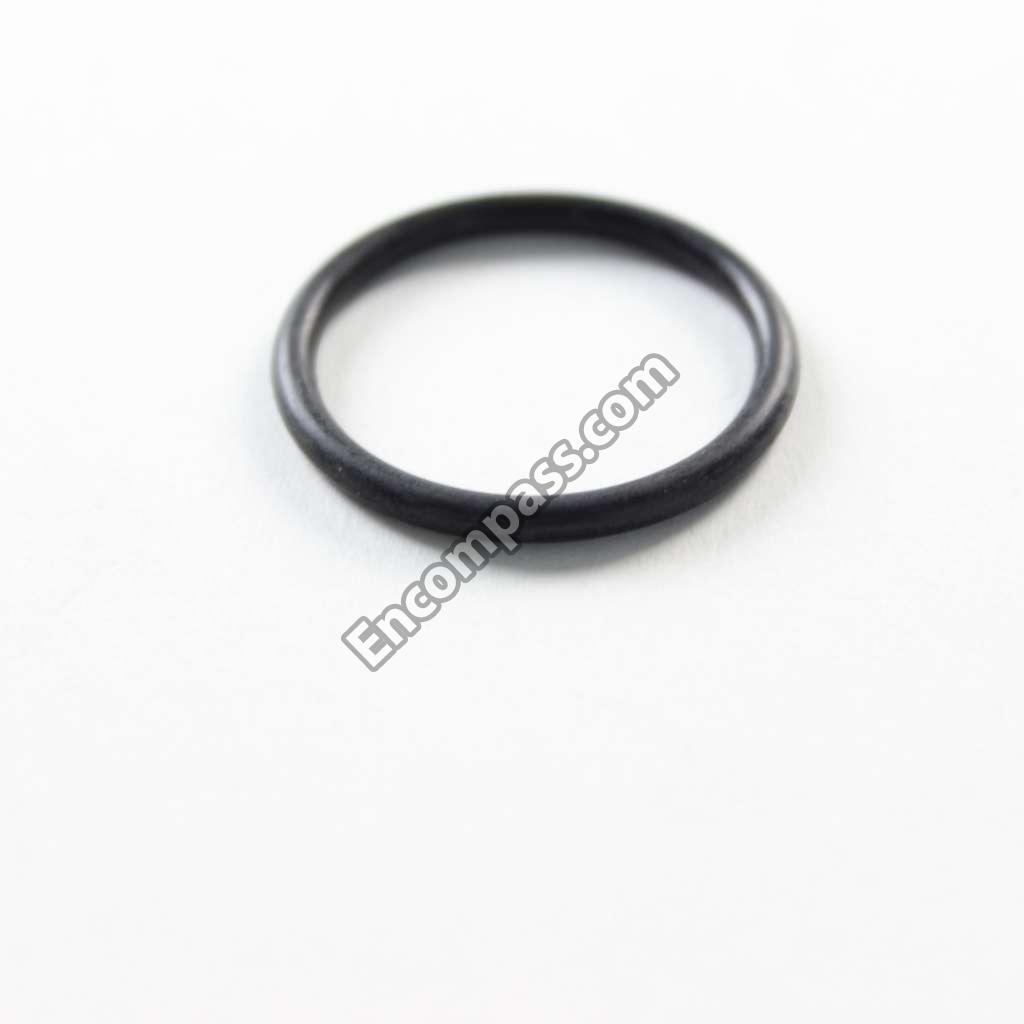

WH09X22745 WH09X22745 WASHER O-RING
WH01X10610 WH01X10610 WASHER SCREW
WE2M163 WE2M163 WASHER SCREW
WE2M174 WE2M174 WASHER SCREW
WH01X10606 WH01X10606 WASHER SHIFTER SPRING
WH01X10602 WH01X10602 WASHER SUSPENSION ROD SOCKET
WH01X10611 WH01X10611 WASHER TRANSMISSION PULLEY NUT
WH08X24594 WH08X24594 WASHER TUB GASKET
WH44X10281 WH44X10281 WASHER TUB RING
WH13X27314 WH13X27314 WASHER WATER INLET VALVE
WH12X10530 WH12X10530 WASHER WATER-LEVEL PRESSURE SWITCH
