Model Number

GUD24ESSM0WW

Description

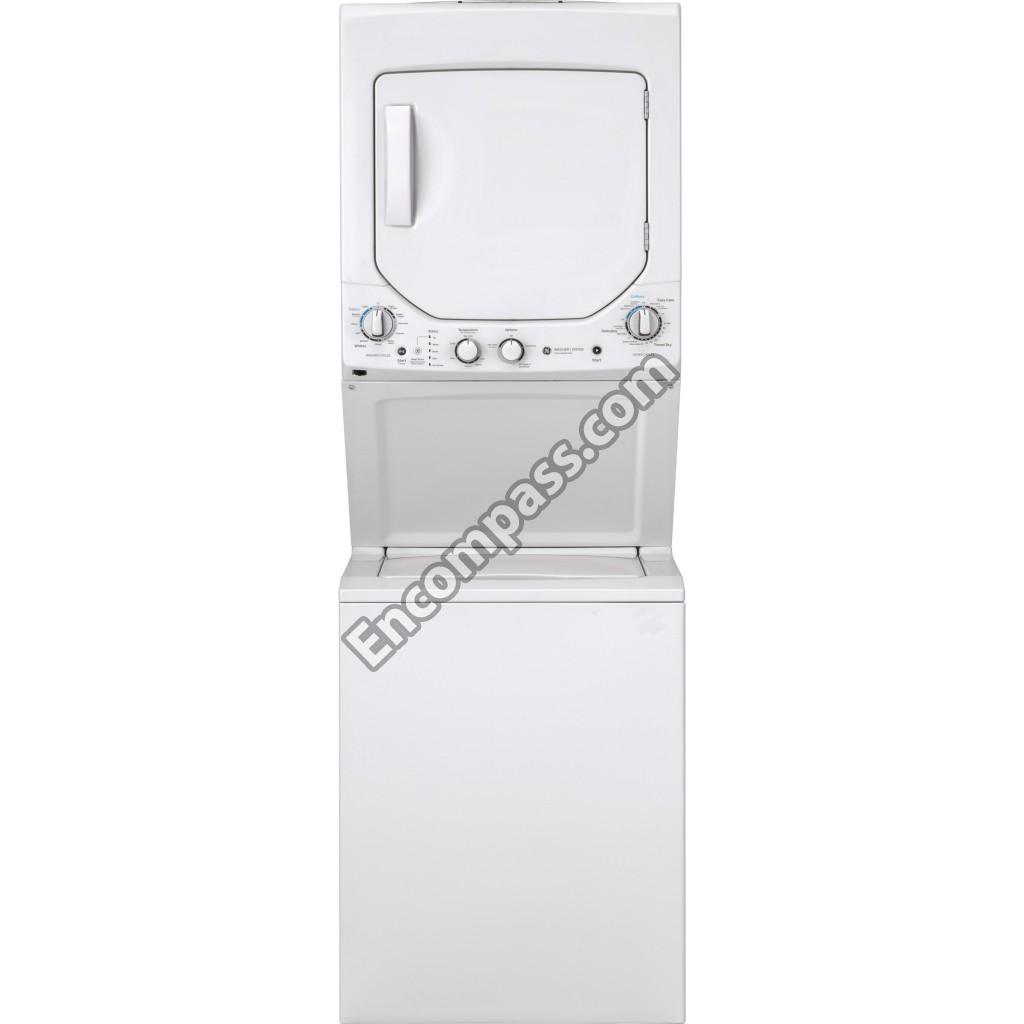

Gud24essmww Electric Laundry Center/combo

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WH01X10612 WH01X10612 GE 1/4-20 TAPTI
WE20M469 WE20M469 GE ACCESS PANEL
WH01X10596 WH01X10596 GE ALIGNMENT PIN
WE21M39 WE21M39 GE BAFFLE
WE03X37320 WE03X37320 GE BEARING SLIDE
WE03X25099 WE03X25099 GE BEARING TOP
WE16X27272 WE16X27272 GE BLOWER HOUSING
WH16X10144 WH16X10144 GE BRACE
WH18X27313 WH18X27313 GE BRACKET CONN
WH16X10172 WH16X10172 GE BRACKET COVER
WH49X10094 WH49X10094 GE BRACKET KIT
WH16X10153 WH16X10153 GE BRACKET SPRING
WE04X27654 WE04X27654 GE BUTTON START ASM
WH03X27184 WH03X27184 GE CAP FUNNEL F
WH12X27299 WH12X27299 GE CAPACITOR
WH01X10599 WH01X10599 GE CLAMP
WH01X10649 WH01X10649 GE CLAMP
WH01X10598 WH01X10598 GE CLAMP
WH01X10604 WH01X10604 GE CLIP DRAININ
WE2M301 WE2M301 GE CLIP FRONT P
WH05X27185 WH05X27185 GE CLUTCH

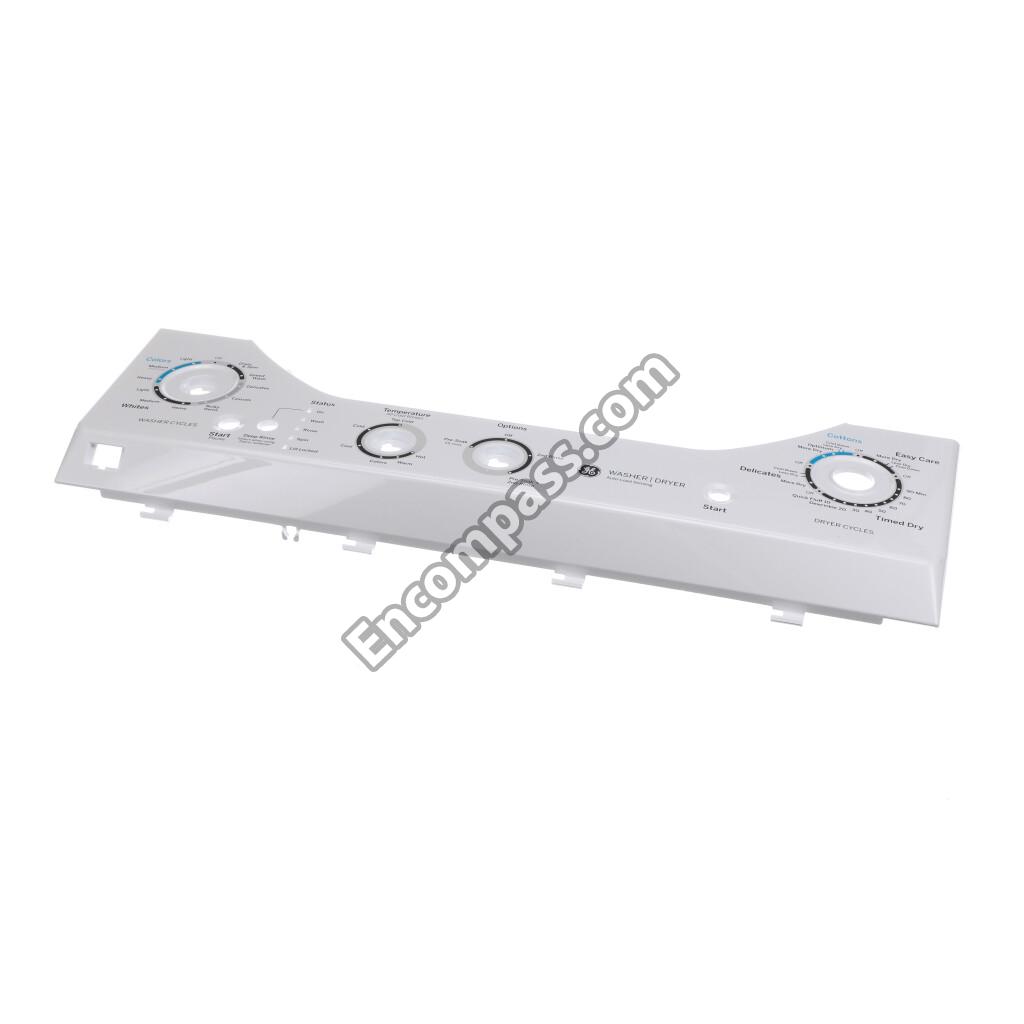

WE20X27260 WE20X27260 GE CONTROL PANEL
WH01X10623 WH01X10623 GE COVER CLIP
WE03X27255 WE03X27255 GE COVER HARNES
WH03X27183 WH03X27183 GE CUP FUNNEL F
WH01X10630 WH01X10630 GE DAMPER PAD
WE26M360 WE26M360 GE DOOR HARNESS

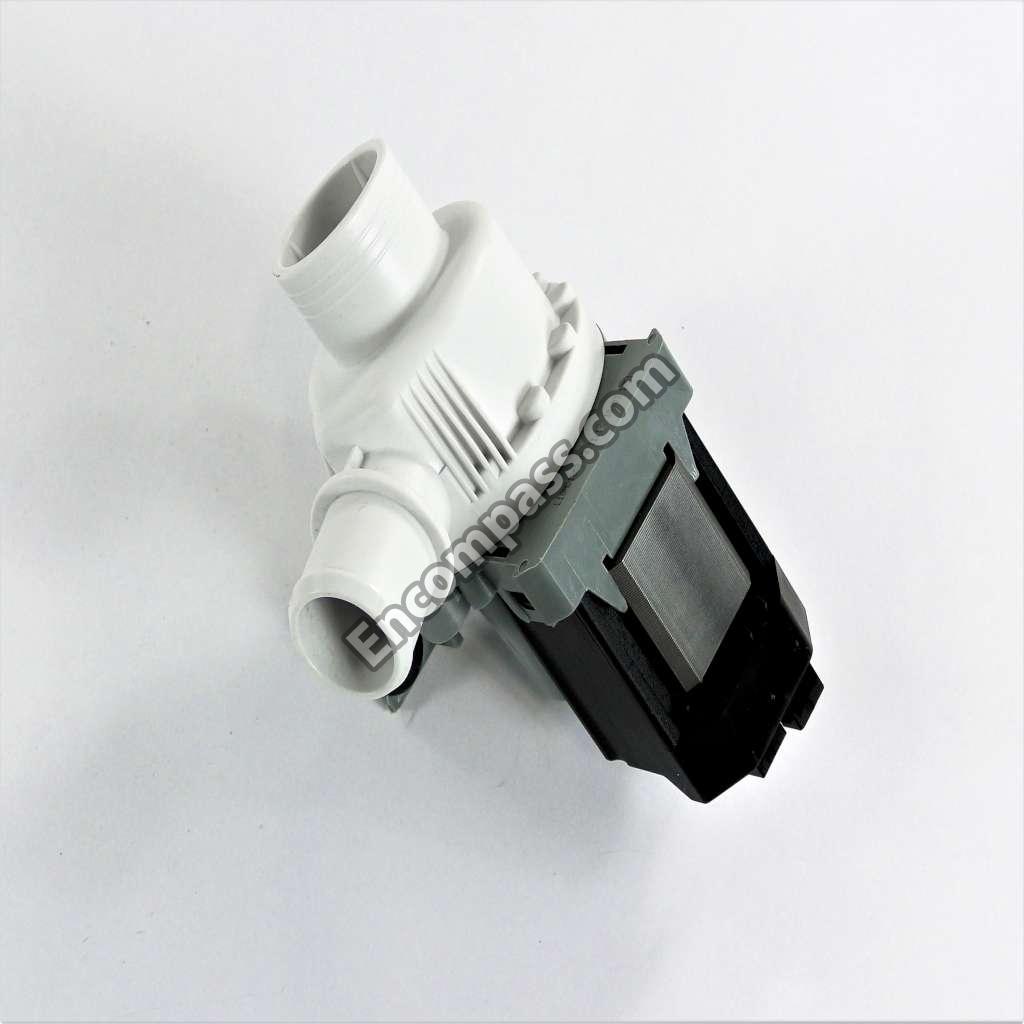

WH23X26206 WH23X26206 GE DRAIN PUMP
WH41X10282 WH41X10282 GE DRAIN STOP
WE12X27300 WE12X27300 GE DRIVE BELT
WE09X27636 WE09X27636 GE DRYER BLOWER GASKET
WE1M1011 WE1M1011 GE DRYER DOOR CATCH
WE9M58 WE9M58 GE DRYER DOOR GASKET
WE1M1033 WE1M1033 GE DRYER DOOR HINGE
WE1X1192 WE1X1192 GE DRYER DOOR STRIKE
WE4M415 WE4M415 GE DRYER DOOR SWITCH
WE21X28956 WE21X28956 GE DRYER DRUM AND BAFFLE ASSEMBLY
WE12M51 WE12M51 GE DRYER DRUM BELT

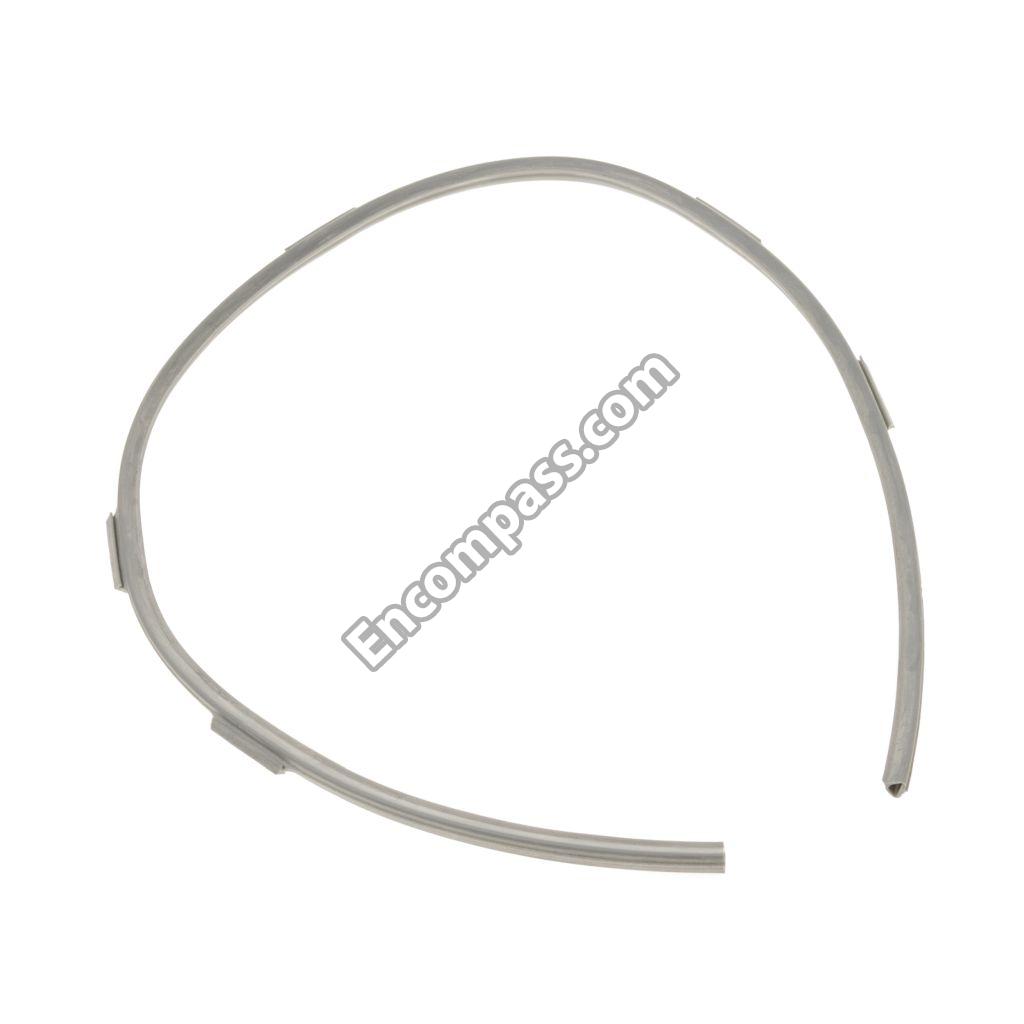

WE09X27634 WE09X27634 GE DRYER DRUM FELT SEAL
WE03X37319 WE03X37319 GE DRYER DRUM GLIDE BEARING
WE3M33 WE3M33 GE DRYER DRUM SUPPORT SHAFT
WE4M137 WE4M137 GE DRYER HIGH-LIMIT THERMOSTAT
WE18X20437 WE18X20437 GE DRYER LINT SCREEN
WE13X200 WE13X200 GE DRYER MOTOR CLAMP
WE4M216 WE4M216 GE DRYER OPERATING THERMOSTAT
WE4M181 WE4M181 GE DRYER OPERATING THERMOSTAT
WE01X20423 WE01X20423 GE DRYER POWER CORD ACCESS BRACKET
WE4M416 WE4M416 GE DRYER PUSH-TO-START SWITCH
WE1M462 WE1M462 GE DRYER REAR BEARING
WE1M461 WE1M461 GE DRYER REAR BEARING O-RING
WE4M325 WE4M325 GE DRYER TERMINAL BLOCK AND GROUNDING STRAP
WE14X27555 WE14X27555 GE DUCT EXHAUST
WE14X25091 WE14X25091 GE DUCT TRAP ASSEMBLY
WE04X27286 WE04X27286 GE ENCLOSURE BO
WE1M999 WE1M999 GE EXHAUST GASKET
WH01X27247 WH01X27247 GE FAN MAGNET A
WE1M1007 WE1M1007 GE FUSE COVER
WE22X35337 WE22X35337 GE GRID
WH01X10597 WH01X10597 GE GROUND CLIP
WE15X27258 WE15X27258 GE HARNESS COMU
WE15X27306 WE15X27306 GE HARNESS EXTE
WE15X27301 WE15X27301 GE HARNESS JUMP
WH19X27244 WH19X27244 GE HARNESS LID

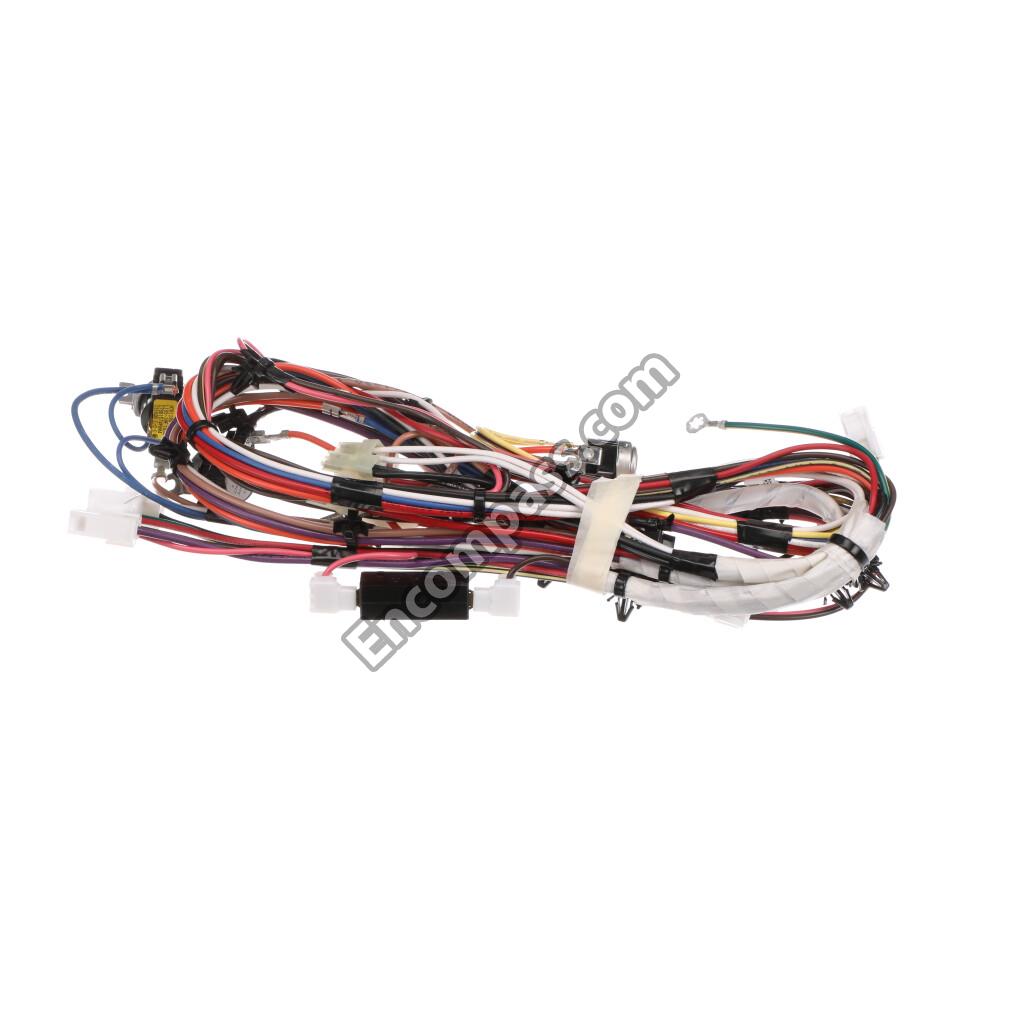

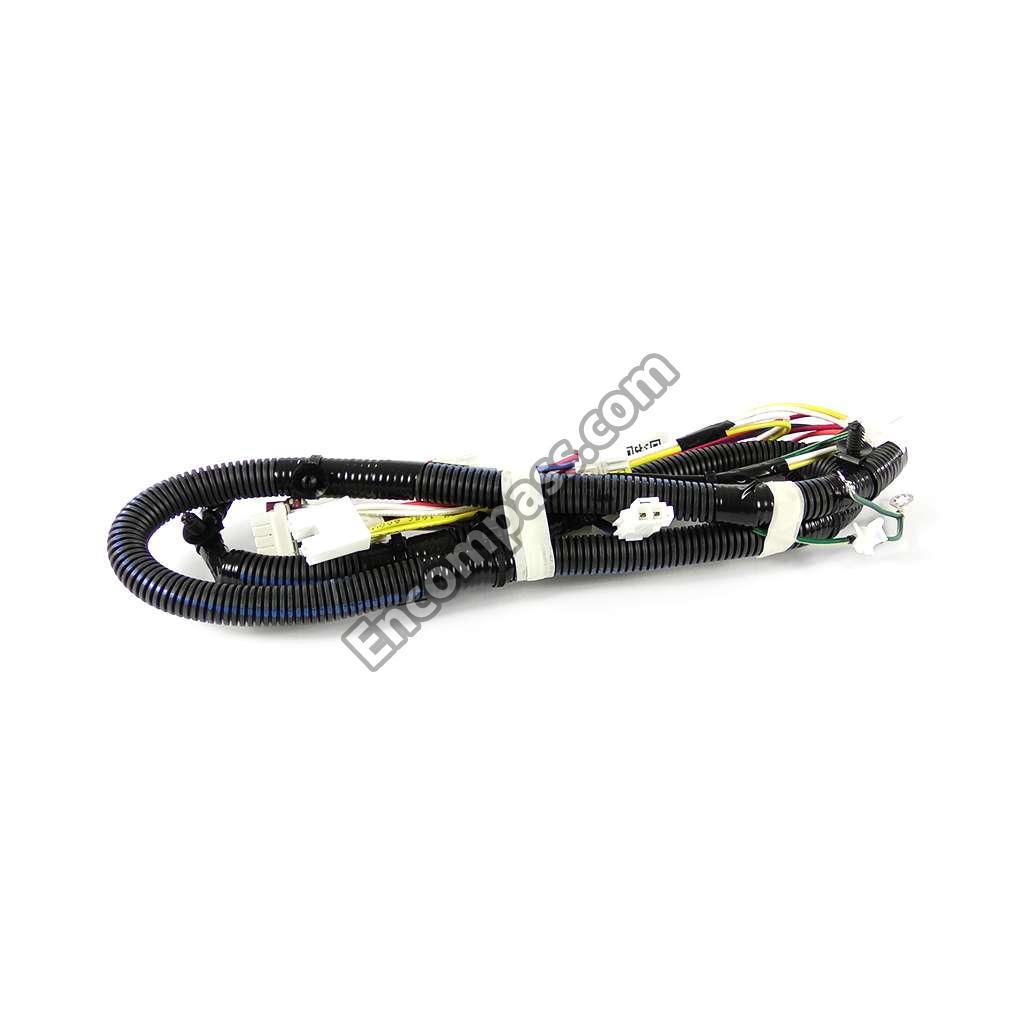

WH19X27243 WH19X27243 GE HARNESS MAIN
WE08X29055 WE08X29055 GE HARNESS MAIN DRYER NV ELEC 24"
WH19X27246 WH19X27246 GE HARNESS PUMP
WE15X27237 WE15X27237 GE HARNESS UI A
WH08X35117 WH08X35117 GE HARNESS VALV
WH01X27310 WH01X27310 GE HEX SCREW 5/
WH01X10625 WH01X10625 GE HINGE BUSHING
WH44X10289 WH44X10289 GE HINGE WASHER
WH44X10290 WH44X10290 GE HINGE WASHER
WH44X10280 WH44X10280 GE HOSE COVER
WE01X27288 WE01X27288 GE HUB NUT
WH01X27307 WH01X27307 GE HUB WASHER
WE03X27417 WE03X27417 GE IDLER ARM ASSEMBLY
WH49X27324 WH49X27324 GE KIT AGITATOR
WH49X27326 WH49X27326 GE KIT BASKET 2
WE49X35338 WE49X35338 GE KIT BRACKET AND SPACER LC 24
WH49X27554 WH49X27554 GE KIT MOTOR PULLEY & NUT
WH49X27323 WH49X27323 GE KIT TRANSMIS
WH49X27328 WH49X27328 GE KIT TUB 24,
WH49X27318 WH49X27318 GE KIT WASHER M
WE2M302 WE2M302 GE LAUNDRY APPLIANCE SCREW
WE04X23115 WE04X23115 GE LAUNDRY CENTER CONTROL KNOB
WD21X10261 WD21X10261 GE LAUNDRY CENTER DRYER BELT SWITCH
WE16X20393 WE16X20393 GE LAUNDRY CENTER DRYER BLOWER WHEEL
WE10M150 WE10M150 GE LAUNDRY CENTER DRYER DOOR ASSEMBLY
WE01X30378 WE01X30378 GE LAUNDRY CENTER DRYER DOOR HANDLE
WE9M59 WE9M59 GE LAUNDRY CENTER DRYER DOOR SEAL, LOWER
WE11M61 WE11M61 GE LAUNDRY CENTER DRYER HEATING ELEMENT ASSEMBLY
WE4M528 WE4M528 GE LAUNDRY CENTER DRYER SAFETY THERMOSTAT
WE04X22654 WE04X22654 GE LAUNDRY CENTER DRYER TIMER
WH16X27251 WH16X27251 GE LAUNDRY CENTER ELECTRONIC CONTROL BOARD
WH01X10594 WH01X10594 GE LAUNDRY CENTER LEVELING LEG
WH2X1217 WH2X1217 GE LAUNDRY CENTER SCREW
WH01X10616 WH01X10616 GE LAUNDRY CENTER SCREW
WE04X27284 WE04X27284 GE LAUNDRY CENTER USER INTERFACE ASSEMBLY
WH01X10621 WH01X10621 GE LAUNDRY CENTER WASHER BLEACH DISPENSER
WH41X26574 WH41X26574 GE LAUNDRY CENTER WASHER DRAIN HOSE
WH49X27322 WH49X27322 GE LAUNDRY CENTER WASHER GEAR CASE ASSEMBLY
WH43X10057 WH43X10057 GE LAUNDRY CENTER WASHER LID SWITCH ACTUATOR
WH01X10626 WH01X10626 GE LAUNDRY CENTER WASHER LID SWITCH MAGNET
WH16X27178 WH16X27178 GE LAUNDRY CENTER WASHER SUSPENSION ROD BALL JOINT
WH41X10280 WH41X10280 GE LAUNDRY CENTER WASHER TUB-TO-PUMP HOSE
WH01X10627 WH01X10627 GE LID BUMPER
WH01X10595 WH01X10595 GE LOCKING CLIP
WH03X36897 WH03X36897 GE MODE SHIFTER

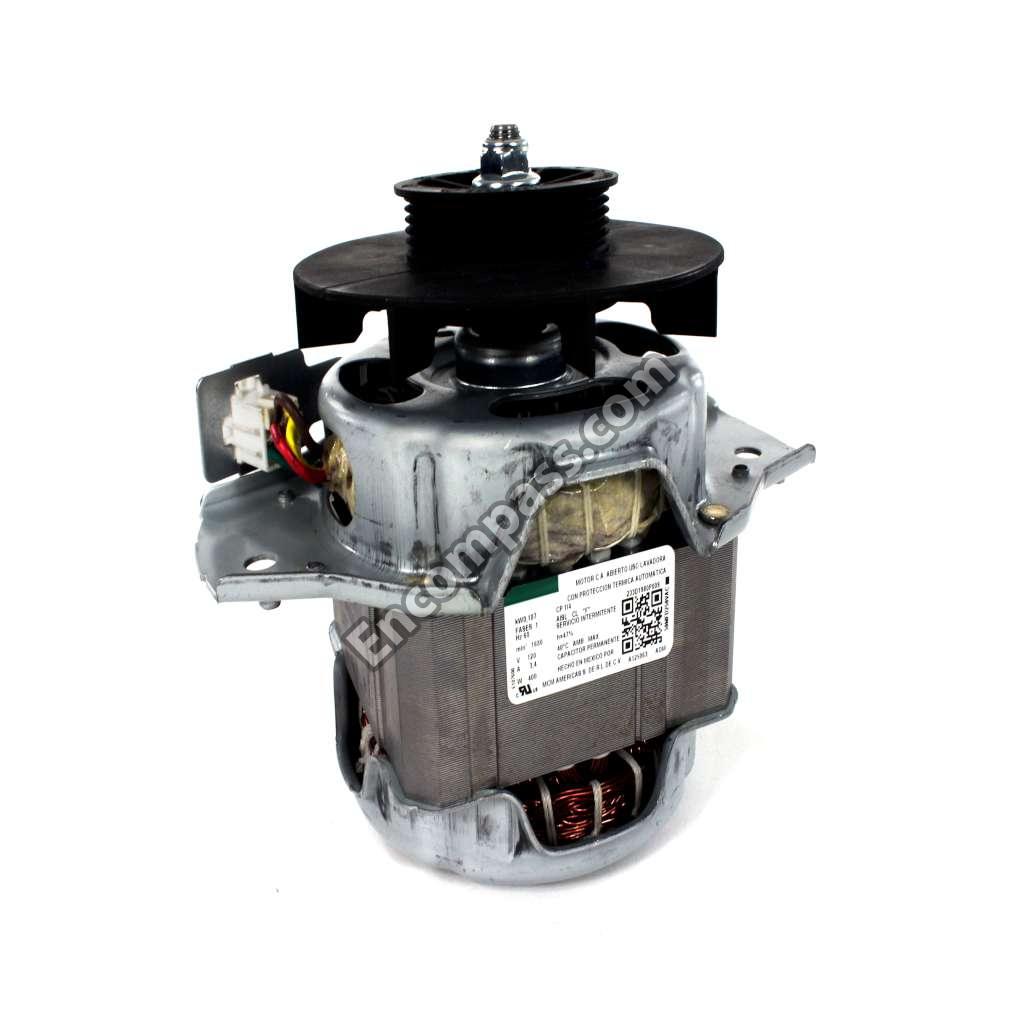

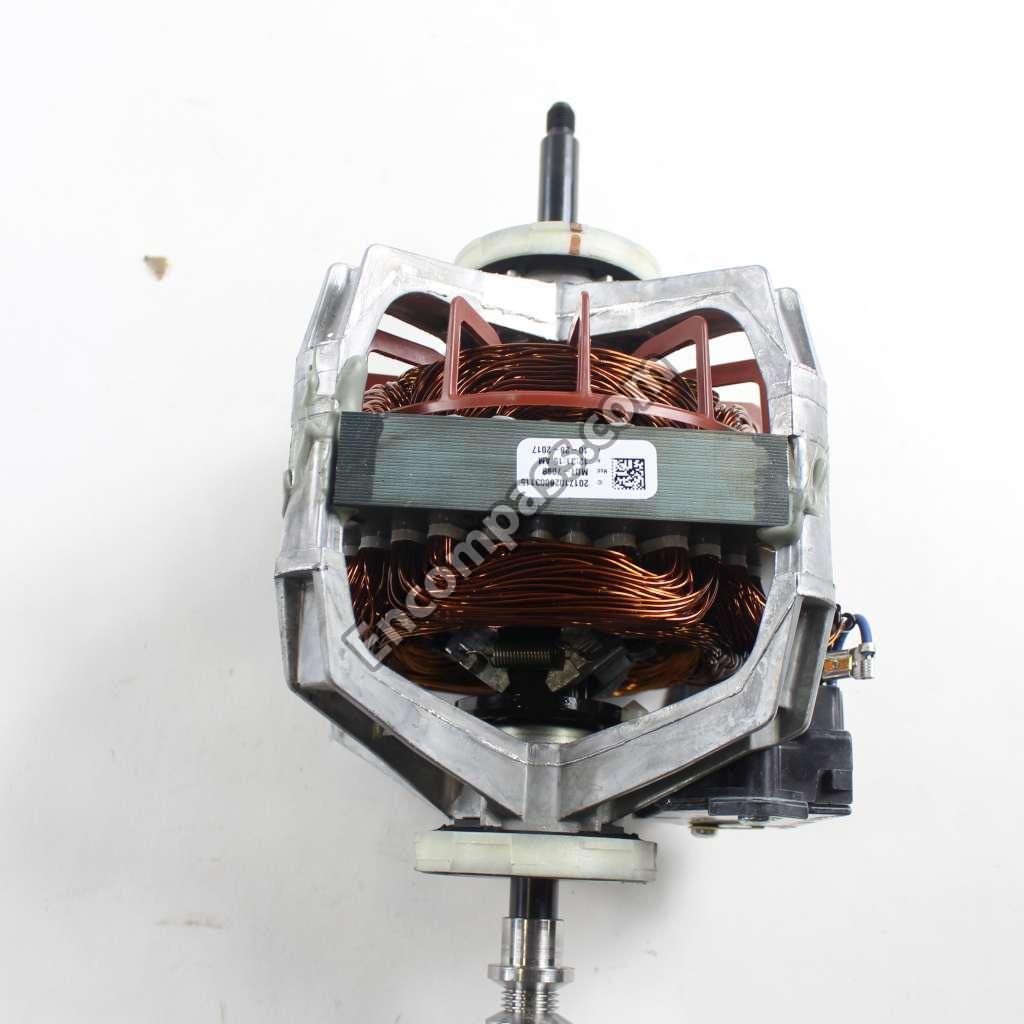

WE17X22214 WE17X22214 GE MOTOR AND PULLEY
WE01X27311 WE01X27311 GE MOTOR BRACKE
WE01X0921 WE01X0921 GE MOTOR BRACKET
WE03X27285 WE03X27285 GE MOTOR PLATE
WE13M39 WE13M39 GE MOTOR SUPPORT
WE20M467 WE20M467 GE PANEL
WE20X20680 WE20X20680 GE PANEL
WH16X24155 WH16X24155 GE PLATFROM MOT
WH16X10152 WH16X10152 GE PRESS HOSE
49-90581 49-90581 GE PUB NUMBER MANUAL USE & CARE
31-16781 31-16781 GE PUB NUMBER PM INSTALLATION INSTRUCTION
31-16930 31-16930 GE PUB NUMBER PM MINI MANUAL
WE02X27298 WE02X27298 GE PULLEY NUT
WE01X25234 WE01X25234 GE REAR LEG

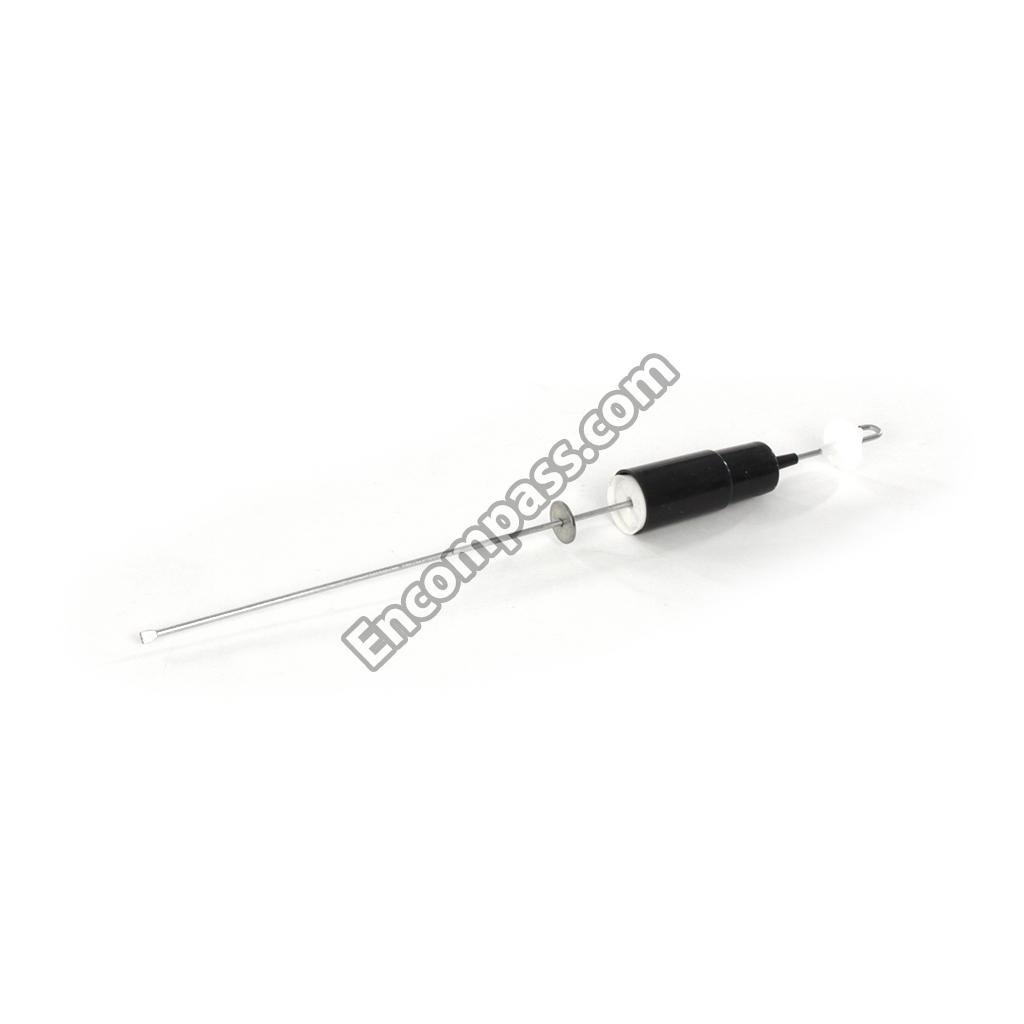

WH16X27182 WH16X27182 GE ROD ASSEMBLY

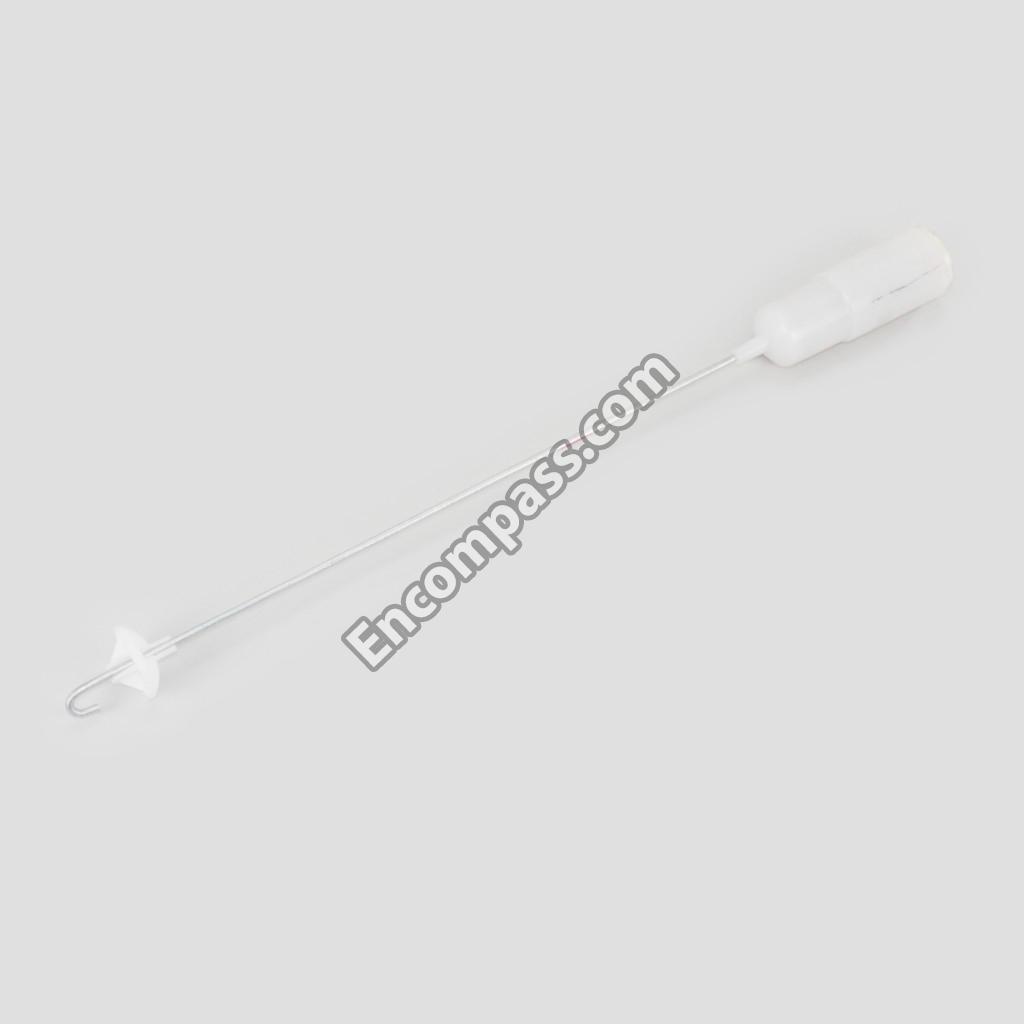

WH16X27181 WH16X27181 GE ROD ASSEMBLY
WE2M282 WE2M282 GE SCR 6-18 B B
WH01X10631 WH01X10631 GE SCR 8-16 B F
WE2M304 WE2M304 GE SCR 8-18 AB
WE2M305 WE2M305 GE SCR 8-18 AB
WE2M281 WE2M281 GE SCR 8-18 AB
WH02X1217 WH02X1217 GE SCR 8-18 AB IHW 7/16 SN
WZ4X241D WZ4X241D GE SCR 8-18 AB PA 1/2 SS
WH01X10600 WH01X10600 GE SCR 8-18 B H
WE01X25535 WE01X25535 GE SCREW
WD2M101 WD2M101 GE SCREW
WE2M223 WE2M223 GE SCREW
WE2M202 WE2M202 GE SCREW
WR2X9260 WR2X9260 GE SCREW
WZ5X158D WZ5X158D GE SCREW 8-32 X 3/8 GRD SCR
WH01X27309 WH01X27309 GE SCREW AGITAT
WB01K10042 WB01K10042 GE SCREW, #8-18
WH01X27305 WH01X27305 GE SEAT BALL JO
WH18X27241 WH18X27241 GE SELECTOR ASM
WE00X181L WE00X181L GE SHAFT
WE02X20269 WE02X20269 GE SPEED NUT
WH12X27187 WH12X27187 GE SPEED SENSOR
WH01X10628 WH01X10628 GE SPRING COVER
WE13X0200 WE13X0200 GE STRAP MOTOR
WE1X921 WE1X921 GE STRAP MOTOR
WH02X10347 WH02X10347 GE STUD GROUNDI
WE19M1696 WE19M1696 GE SUPPORT CONTROL
WH49X27330 WH49X27330 GE TOP COVER 24

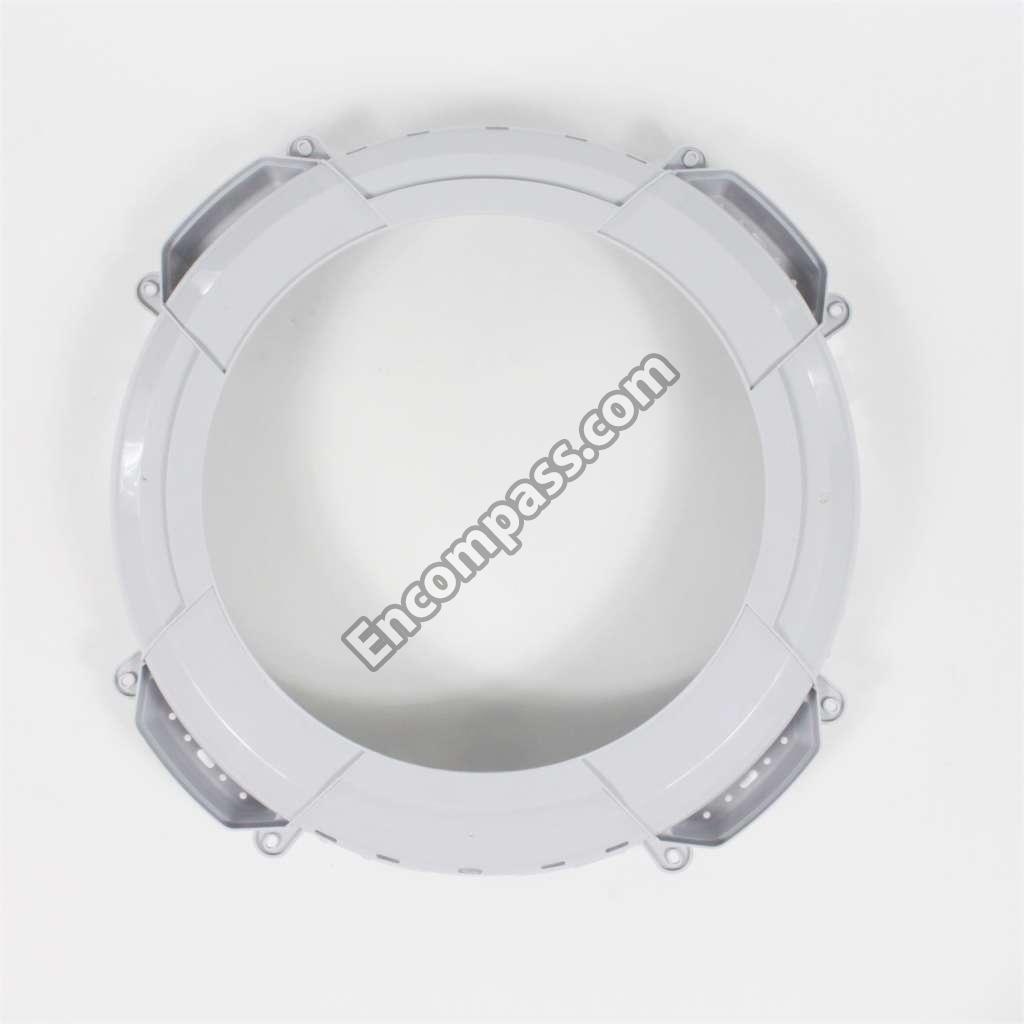

WH44X27239 WH44X27239 GE TUB COVER 24
WH01X10603 WH01X10603 GE TUB OUT CLAMP
WH01X27289 WH01X27289 GE WASHER CONIC
WH42X10885 WH42X10885 GE WASHER FRONT PANEL
WH2X1211 WH2X1211 GE WASHER HINGE SCREW
WE49X28115 WE49X28115 GE WASHER HUB NUT KIT
WE04X23116 WE04X23116 GE WASHER KNOB
WH44X10285 WH44X10285 GE WASHER LID (WHITE)
WH44X10288 WH44X10288 GE WASHER LID LOCK
WE2M174 WE2M174 GE WASHER SCREW
WE2M163 WE2M163 GE WASHER SCREW
WH01X10606 WH01X10606 GE WASHER SHIFTER SPRING
WH13X27314 WH13X27314 GE WASHER WATER INLET VALVE
WH13X27418 WH13X27418 GE WATER INLET
