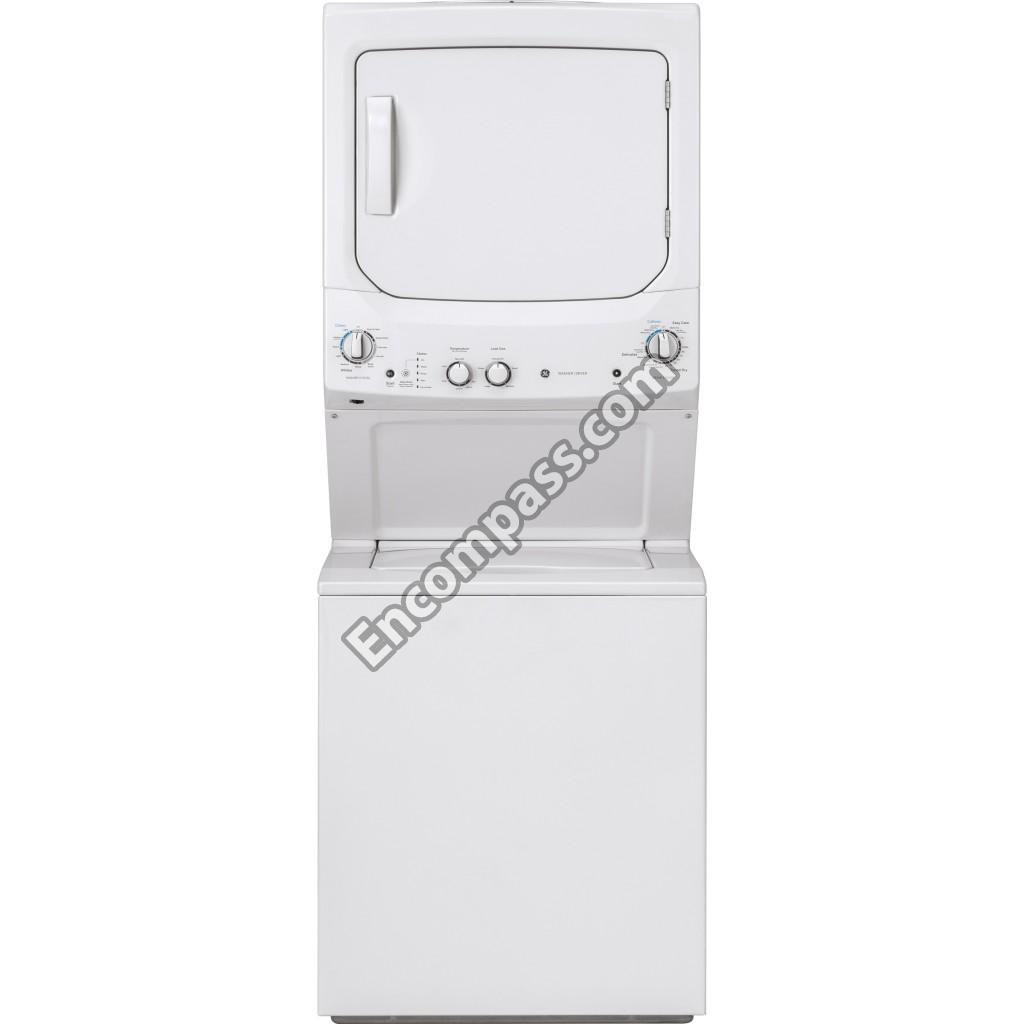

Model Image
Manufacturer

GE

Model Number

GUD27GSSM0WW

Description

Washer/dryer Combo

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE08X29056 WE08X29056 "HARNESS MAIN DRYER NV GAS 27"""
WH01X10612 WH01X10612 1/4-20 TAPTI
WH01X10596 WH01X10596 ALIGNMENT PIN
WE21M39 WE21M39 BAFFLE
WE03X37320 WE03X37320 BEARING SLIDE
WE16X27272 WE16X27272 BLOWER HOUSING
WH16X10143 WH16X10143 BRACE
WH18X27313 WH18X27313 BRACKET CONN
WH16X10153 WH16X10153 BRACKET SPRING
WE04X27654 WE04X27654 BUTTON START ASM
WH03X27184 WH03X27184 CAP FUNNEL F
WH12X27299 WH12X27299 CAPACITOR
WE14M183 WE14M183 CHAMBER COMB
WH01X10598 WH01X10598 CLAMP
WH01X10649 WH01X10649 CLAMP
WH01X10599 WH01X10599 CLAMP
WH01X10604 WH01X10604 CLIP DRAININ
WE2M301 WE2M301 CLIP FRONT P
WH05X27185 WH05X27185 CLUTCH
WE1X1091 WE1X1091 CORDSET CLIP
WH13X35357 WH13X35357 COVER BRACKET
WH01X10623 WH01X10623 COVER CLIP
WE03X27255 WE03X27255 COVER HARNES
WH03X27183 WH03X27183 CUP FUNNEL F
WH01X10630 WH01X10630 DAMPER PAD
WE01X25135 WE01X25135 DOOR GASKET
WH41X10282 WH41X10282 DRAIN STOP
WE12X27300 WE12X27300 DRIVE BELT
WE09X27636 WE09X27636 DRYER BLOWER GASKET
WE04X25996 WE04X25996 DRYER BURNER IGNITER
WE1M1011 WE1M1011 DRYER DOOR CATCH
WE1M1033 WE1M1033 DRYER DOOR HINGE
WE1X1192 WE1X1192 DRYER DOOR STRIKE
WE4M415 WE4M415 DRYER DOOR SWITCH
WE03X29897 WE03X29897 DRYER DRUM BELT
WE09X27634 WE09X27634 DRYER DRUM FELT SEAL
WE03X37319 WE03X37319 DRYER DRUM GLIDE BEARING
WE3M33 WE3M33 DRYER DRUM SUPPORT SHAFT
WE14M193 WE14M193 DRYER HEAT DUCT
WE4M137 WE4M137 DRYER HIGH-LIMIT THERMOSTAT
WE18X25102 WE18X25102 DRYER LINT SCREEN
WE13X200 WE13X200 DRYER MOTOR CLAMP
WE4M181 WE4M181 DRYER OPERATING THERMOSTAT
WE4M216 WE4M216 DRYER OPERATING THERMOSTAT
WE4M416 WE4M416 DRYER PUSH-TO-START SWITCH
WE4X448 WE4X448 DRYER RADIANT SENSOR
WE1M462 WE1M462 DRYER REAR BEARING
WE1M461 WE1M461 DRYER REAR BEARING O-RING
WE14X27556 WE14X27556 DUCT EXHAUST
WE04X27287 WE04X27287 ENCLOSURE BO
WE1M1004 WE1M1004 EXHAUST COVER
WE1M999 WE1M999 EXHAUST GASKET
WH01X27247 WH01X27247 FAN MAGNET A
WH01X10597 WH01X10597 GROUND CLIP
WE15X27258 WE15X27258 HARNESS COMU
WH15X27315 WH15X27315 HARNESS DOOR ASSEMBLY
WE15X27306 WE15X27306 HARNESS EXTE
WE15X27302 WE15X27302 HARNESS JUMP
WH19X27244 WH19X27244 HARNESS LID
WH19X27242 WH19X27242 HARNESS MAIN
WH19X27246 WH19X27246 HARNESS PUMP
WE26M362 WE26M362 HARNESS UI A
WH08X35117 WH08X35117 HARNESS VALV
WH01X27310 WH01X27310 HEX SCREW 5/
WH01X10625 WH01X10625 HINGE BUSHING
WH44X10290 WH44X10290 HINGE WASHER
WH44X10289 WH44X10289 HINGE WASHER
WH44X10280 WH44X10280 HOSE COVER
WE01X27288 WE01X27288 HUB NUT
WH01X27307 WH01X27307 HUB WASHER
WE03X27417 WE03X27417 IDLER ARM ASSEMBLY
WH49X27327 WH49X27327 KIT BASKET 2
WH13X38537 WH13X38537 KIT BRACKET AND SPACER LC 27
WH49X27554 WH49X27554 KIT MOTOR PULLEY & NUT
WH49X27323 WH49X27323 KIT TRANSMIS
WH49X27329 WH49X27329 KIT TUB 27,
WH49X27319 WH49X27319 KIT WASHER M
WE2M302 WE2M302 LAUNDRY APPLIANCE SCREW
WE04X23115 WE04X23115 LAUNDRY CENTER CONTROL KNOB
WE20X27259 WE20X27259 LAUNDRY CENTER CONTROL PANEL
WD21X10261 WD21X10261 LAUNDRY CENTER DRYER BELT SWITCH
WE16X20393 WE16X20393 LAUNDRY CENTER DRYER BLOWER WHEEL
WE10M151 WE10M151 LAUNDRY CENTER DRYER DOOR ASSEMBLY
WE01X30378 WE01X30378 LAUNDRY CENTER DRYER DOOR HANDLE
WE49X27320 WE49X27320 LAUNDRY CENTER DRYER DRIVE MOTOR
WE21X28957 WE21X28957 LAUNDRY CENTER DRYER DRUM
WE20M472 WE20M472 LAUNDRY CENTER DRYER FRONT PANEL
WE25M74 WE25M74 LAUNDRY CENTER DRYER LP CONVERSION KIT
WE4M528 WE4M528 LAUNDRY CENTER DRYER SAFETY THERMOSTAT
WE04X22654 WE04X22654 LAUNDRY CENTER DRYER TIMER
WH16X27251 WH16X27251 LAUNDRY CENTER ELECTRONIC CONTROL BOARD
WE20M474 WE20M474 LAUNDRY CENTER FRONT ACCESS PANEL
WH01X10594 WH01X10594 LAUNDRY CENTER LEVELING LEG
WE26M366 WE26M366 LAUNDRY CENTER POWER CORD
WH01X10616 WH01X10616 LAUNDRY CENTER SCREW
WH2X1217 WH2X1217 LAUNDRY CENTER SCREW
WE04X27284 WE04X27284 LAUNDRY CENTER USER INTERFACE ASSEMBLY
WH49X27325 WH49X27325 LAUNDRY CENTER WASHER AGITATOR
WH01X10621 WH01X10621 LAUNDRY CENTER WASHER BLEACH DISPENSER
WH41X26574 WH41X26574 LAUNDRY CENTER WASHER DRAIN HOSE
WH49X27322 WH49X27322 LAUNDRY CENTER WASHER GEAR CASE ASSEMBLY
WH13X30373 WH13X30373 LAUNDRY CENTER WASHER LID (WHITE)
WH43X10057 WH43X10057 LAUNDRY CENTER WASHER LID SWITCH ACTUATOR
WH01X10626 WH01X10626 LAUNDRY CENTER WASHER LID SWITCH MAGNET
WH16X27180 WH16X27180 LAUNDRY CENTER WASHER SUSPENSION ROD
WH16X27179 WH16X27179 LAUNDRY CENTER WASHER SUSPENSION ROD
WH16X27178 WH16X27178 LAUNDRY CENTER WASHER SUSPENSION ROD BALL JOINT
WH41X10280 WH41X10280 LAUNDRY CENTER WASHER TUB-TO-PUMP HOSE
WH01X10627 WH01X10627 LID BUMPER
WH01X10595 WH01X10595 LOCKING CLIP
WH03X36897 WH03X36897 MODE SHIFTER
WE01X27311 WE01X27311 MOTOR BRACKE
WE01X0921 WE01X0921 MOTOR BRACKET
WE03X27285 WE03X27285 MOTOR PLATE
WE13M39 WE13M39 MOTOR SUPPORT
WE10X32277 WE10X32277 PANEL
WH16X24155 WH16X24155 PLATFROM MOT
WH16X10152 WH16X10152 PRESS HOSE
49-90582 49-90582 PUB NUMBER MANUAL USE & CARE
31-16782 31-16782 PUB NUMBER PM INSTALLATION INSTRUCTION
31-16931 31-16931 PUB NUMBER PM MINI MANUAL
WE02X27298 WE02X27298 PULLEY NUT
WE01X25234 WE01X25234 REAR LEG
WE4M529 WE4M529 SAFETY T'STA
WH01X10593 WH01X10593 SCR 12-14 B
WE2M282 WE2M282 SCR 6-18 B B
WH01X10631 WH01X10631 SCR 8-16 B F
WE2M281 WE2M281 SCR 8-18 AB
WE2M305 WE2M305 SCR 8-18 AB
WE2M304 WE2M304 SCR 8-18 AB
WH02X1217 WH02X1217 SCR 8-18 AB IHW 7/16 SN
WZ4X241D WZ4X241D SCR 8-18 AB PA 1/2 SS
WH01X10600 WH01X10600 SCR 8-18 B H
WR2X9260 WR2X9260 SCREW
WE2M202 WE2M202 SCREW
WE2M223 WE2M223 SCREW
WD2M101 WD2M101 SCREW
WE01X25535 WE01X25535 SCREW
WZ5X158D WZ5X158D SCREW 8-32 X 3/8 GRD SCR
WH01X27309 WH01X27309 SCREW AGITAT
WB01K10042 WB01K10042 SCREW, #8-18
WH01X27305 WH01X27305 SEAT BALL JO
WH18X27241 WH18X27241 SELECTOR ASM
WE00X181L WE00X181L SHAFT
WE0X181L WE0X181L SHAFT
WE02X20269 WE02X20269 SPEED NUT
WH12X27187 WH12X27187 SPEED SENSOR
WH01X10628 WH01X10628 SPRING COVER
WE13X0200 WE13X0200 STRAP MOTOR
WE1X921 WE1X921 STRAP MOTOR
WH02X10347 WH02X10347 STUD GROUNDI
WE19M1696 WE19M1696 SUPPORT CONTROL
WE03X27679 WE03X27679 TOP BEARING
WH49X27331 WH49X27331 TOP COVER 27
WE11X29441 WE11X29441 TRANSITION
WE14X27471 WE14X27471 TRAP DUCT ASM
WH44X27188 WH44X27188 TUB COVER 27
WH01X10603 WH01X10603 TUB OUT CLAMP
WE03X27425 WE03X27425 VALVE AND BU
WH01X27289 WH01X27289 WASHER CONIC
WH23X10040 WH23X10040 WASHER DRAIN PUMP
WH42X10886 WH42X10886 WASHER FRONT PANEL
WH2X1211 WH2X1211 WASHER HINGE SCREW
WE49X28115 WE49X28115 WASHER HUB NUT KIT
WE04X23116 WE04X23116 WASHER KNOB
WH44X10288 WH44X10288 WASHER LID LOCK
WE2M163 WE2M163 WASHER SCREW
WE2M174 WE2M174 WASHER SCREW
WH01X10606 WH01X10606 WASHER SHIFTER SPRING
WH13X27314 WH13X27314 WASHER WATER INLET VALVE
WH13X27418 WH13X27418 WATER INLET
