Model Image
Manufacturer

GE

Model Number

GUV27ESSM0WW

Description

Unitized

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WE21M39 WE21M39 GE BAFFLE
WE03X37320 WE03X37320 GE BEARING SLIDE
WE12X27300 WE12X27300 GE BELT DRIVE
WE09X27636 WE09X27636 GE BLOWER GASKET (EXHAUST)
WE16X27272 WE16X27272 GE BLOWER HOUSING
WE16X20393 WE16X20393 GE BLOWER WHEEL
WH16X27251 WH16X27251 GE BOARD AND SUPPORT ASSEMBLY
WH16X10143 WH16X10143 GE BRACE FRONT UPPER
WH18X27313 WH18X27313 GE BRACKET CONNECTOR
WH13X35357 WH13X35357 GE BRACKET COVER
WE01X27308 WE01X27308 GE BRACKET IDLER
WH16X10153 WH16X10153 GE BRACKET SPRING
WH01X10627 WH01X10627 GE BUMPER LID
WH01X10625 WH01X10625 GE BUSHING HINGE
WE04X27654 WE04X27654 GE BUTTON START ASSEMBLY
WH03X27184 WH03X27184 GE CAP FUNNEL FSD
WH12X27299 WH12X27299 GE CAPACITOR
WH01X10649 WH01X10649 GE CLAMP
WH01X10599 WH01X10599 GE CLAMP
WH01X10598 WH01X10598 GE CLAMP
WH01X10603 WH01X10603 GE CLAMP TUB OUTLET
WH01X10623 WH01X10623 GE CLIP COVER
WH01X10604 WH01X10604 GE CLIP DRAINING HOSE
WE2M301 WE2M301 GE CLIP FRONT PANEL
WH01X10597 WH01X10597 GE CLIP GROUND
WH05X27185 WH05X27185 GE CLUTCH
WE1M1004 WE1M1004 GE COVER EXHAUST
WE03X27255 WE03X27255 GE COVER HARNESS MAIN
WH44X10280 WH44X10280 GE COVER HOSE
WH03X27183 WH03X27183 GE CUP FUNNEL FSD
WH01X10630 WH01X10630 GE DAMPER PAD
WD21X10261 WD21X10261 GE DISHWASHER ALL-PURPOSE SWITCH
WE10M151 WE10M151 GE DOOR ASSEMBLY
WE21X28957 WE21X28957 GE DRUM ASSEMBLY 27-INCH
WE20M474 WE20M474 GE DRYER ACCESS PANEL
WE03X37319 WE03X37319 GE DRYER BEARING SLIDE
WE4M181 WE4M181 GE DRYER CYCLING THERMOSTAT - 4 WIRE
WE1M1011 WE1M1011 GE DRYER DOOR LATCH
WE4M415 WE4M415 GE DRYER DOOR SWITCH
WE03X29897 WE03X29897 GE DRYER DRUM DRIVE BELT
WE09X27634 WE09X27634 GE DRYER DUCT TRAP FELT
WE1M1009 WE1M1009 GE DRYER FUSE TERMINAL COVER
WE01X30378 WE01X30378 GE DRYER H AND LE
WE4M137 WE4M137 GE DRYER THERMOSTAT
WE14X27556 WE14X27556 GE DUCT EXHAUST
WE04X27287 WE04X27287 GE ENCLOSURE BOARD 27-INCH
WH01X27247 WH01X27247 GE FAN MAGNET ASSEMBLY
WE18X25102 WE18X25102 GE FILTER LINT
WH01X10621 WH01X10621 GE FUNNEL BLEACH
WE01X25135 WE01X25135 GE GASKET DOOR
WE1M999 WE1M999 GE GASKET EXHAUST
WE15X27258 WE15X27258 GE HARNESS COMUNICATION RJ45
WH15X27315 WH15X27315 GE HARNESS DOOR ASSEMBLY
WH19X27249 WH19X27249 GE HARNESS FUSE 27-INCH ELEC
WE15X27302 WE15X27302 GE HARNESS JUMPER SOFTWARE 27-INCH
WH19X27244 WH19X27244 GE HARNESS LID LOCK

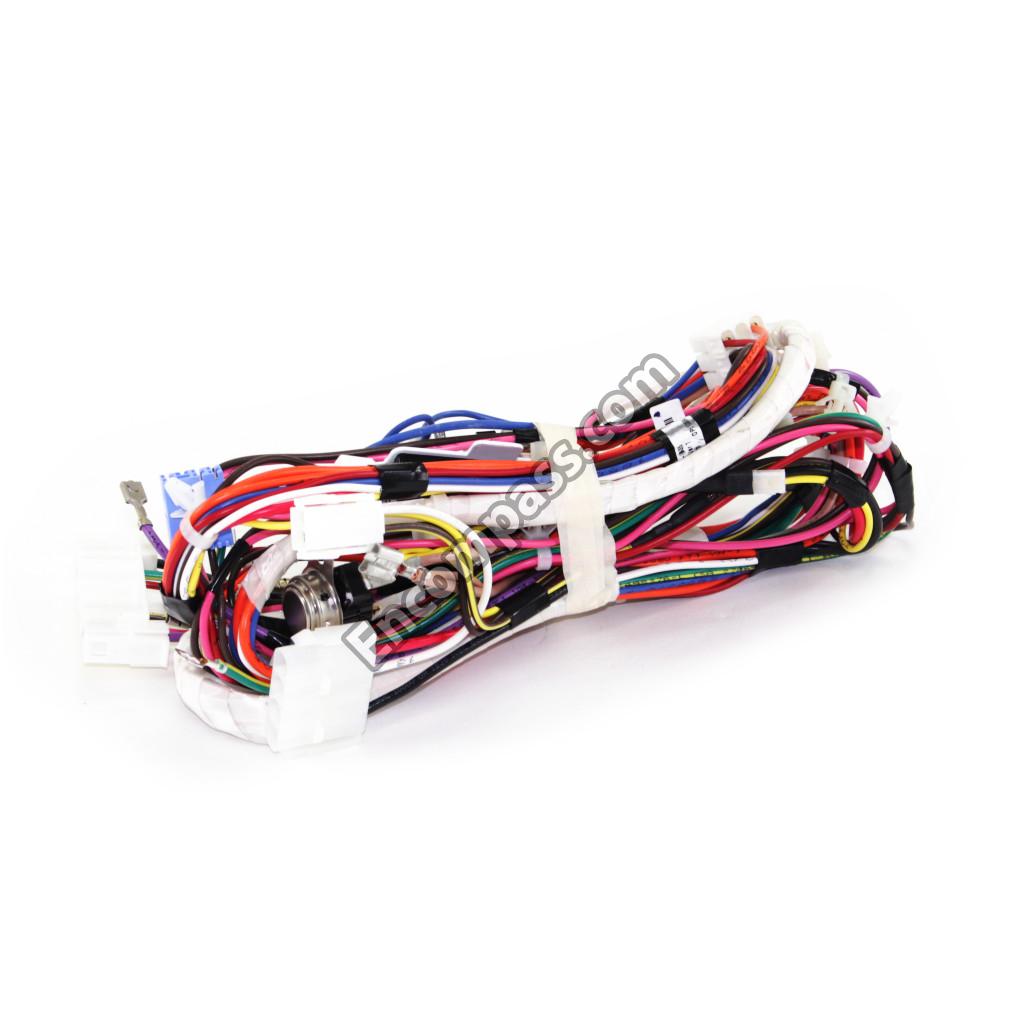

WE08X29054 WE08X29054 GE HARNESS MAIN DRYER LV
WH19X27242 WH19X27242 GE HARNESS MAIN WASHER JST 27
WH19X27246 WH19X27246 GE HARNESS PUMP AND HOSE PRESSURE
WE15X27237 WE15X27237 GE HARNESS UI ASSEMBLY ELEC
WH08X35117 WH08X35117 GE HARNESS VALVE AND THERMISTOR
WE11M62 WE11M62 GE HEATER AND HOUSING ASSEMBLY
WH01X27310 WH01X27310 GE HEX SCREW 5/16-18
WH01X10616 WH01X10616 GE HEX SCREW K80 X 3.59
WE1M1033 WE1M1033 GE HINGE
WH44X10290 WH44X10290 GE HINGE WASHER COVER LH
WH44X10289 WH44X10289 GE HINGE WASHER COVER RH
WH41X26574 WH41X26574 GE HOSE DRAIN ASSEMBLY
WH41X10280 WH41X10280 GE HOSE DRAIN INLET
WH49X27327 WH49X27327 GE HUB NUT KIT BASKET 27 WASHERS AND AGITATOR
WH49X27329 WH49X27329 GE HUB NUT KIT TUB 27 WASHERS AND AGITATOROR
WE03X27283 WE03X27283 GE IDLER ARM LONG VENT ASSEMBLY
WH49X27325 WH49X27325 GE KIT AGITATOR 27 AND BOLT
WE49X28115 WE49X28115 GE KIT HARDWARE
WE49X27321 WE49X27321 GE KIT MOTOR DRIVE AND PULLEY 27 LV
WH49X27554 WH49X27554 GE KIT MOTOR PULLEY AND NUT
WH49X27322 WH49X27322 GE KIT TRANSMISSION PLATFORM ASSEMBLY AND NUT
WH49X27323 WH49X27323 GE KIT TRANSMISSION PULLEY, NUT, WASHERS, H
WH49X27319 WH49X27319 GE KIT WASHER MOTOR AND PULLEY ASSEMBLY
WE04X23115 WE04X23115 GE KNOB CONTROL ASSEMBLY
WE04X23116 WE04X23116 GE KNOB ROTATORY ASSEMBLY
WH01X10594 WH01X10594 GE LEG LEVELING
WE01X25234 WE01X25234 GE LEG REAR LEVELING
WH13X30373 WH13X30373 GE LID WASHER
WH01X10626 WH01X10626 GE MAGNET
WH03X36897 WH03X36897 GE MODE SHIFTER ASSEMBLY
WE01X27311 WE01X27311 GE MOTOR BRACKET
WE1M555 WE1M555 GE MOTOR CLIP
WH20X27248 WH20X27248 GE MOTOR LV
WE03X27316 WE03X27316 GE MOTOR PLATE AND GROMMETS ASSEMBLY
WE01X27288 WE01X27288 GE NUT HUB
WE02X27298 WE02X27298 GE NUT PULLEY
WE02X20269 WE02X20269 GE NUT SPEED
WE20X27312 WE20X27312 GE PANEL CONTROL AND HT ASSEMBLY 27-INCH LV
WE20M472 WE20M472 GE PANEL FRONT
WH01X10596 WH01X10596 GE PIN ALIGNMENT
WH16X24155 WH16X24155 GE PLATFROM MOTOR SHIELD
WH16X10152 WH16X10152 GE PRESS HOSE CLAMP
49-90581 49-90581 GE PUB NUMBER MANUAL USE & CARE
31-16781 31-16781 GE PUB NUMBER PM INSTALLATION INSTRUCTION
31-16930 31-16930 GE PUB NUMBER PM MINI MANUAL
WH23X10040 WH23X10040 GE PUMP DRAIN
WE4M416 WE4M416 GE PUSH TO START SWITCH
WH16X27180 WH16X27180 GE ROD ASSEMBLY 27-INCH
WH16X27179 WH16X27179 GE ROD ASSEMBLY 27-INCH
WE4M528 WE4M528 GE SAFETY LEFT T'STAT 24-INCH E
WH01X10593 WH01X10593 GE SCR 12-14 B
WE2M282 WE2M282 GE SCR 6-18 B B1Q1 3/4 S ZN
WH01X10631 WH01X10631 GE SCR 8-16 B FLP .525 S ZN
WE2M281 WE2M281 GE SCR 8-18 AB 1/2
WB01K10042 WB01K10042 GE SCR 8-18 AB IHW 3/8 SN
WH02X1217 WH02X1217 GE SCR 8-18 AB IHW 7/16 SN
WE2M304 WE2M304 GE SCR 8-18 AB OVQ1 2 S ZN
WE2M305 WE2M305 GE SCR 8-18 AB TRQ2 5/8 S
WH01X10600 WH01X10600 GE SCR 8-18 B HXW 3/8 S ZN
WH2X1211 WH2X1211 GE SCREW
WE2M302 WE2M302 GE SCREW
WE01X25535 WE01X25535 GE SCREW
WH2X1217 WH2X1217 GE SCREW
WD2M101 WD2M101 GE SCREW
WE2M202 WE2M202 GE SCREW
WE2M223 WE2M223 GE SCREW
WR2X9260 WR2X9260 GE SCREW
WE2M174 WE2M174 GE SCREW # 10
WE2M163 WE2M163 GE SCREW #10
WH01X10612 WH01X10612 GE SCREW 1/4-20 TAPTITE
WH01X27309 WH01X27309 GE SCREW AGITATOR
WZ5X158D WZ5X158D GE SCREW-PKG 12
WZ4X241D WZ4X241D GE SCREW-PKG 12
WH01X27305 WH01X27305 GE SEAT BALL JOINT
WH18X27241 WH18X27241 GE SELECTOR ASSEMBLY (3S)
WH12X27187 WH12X27187 GE SPEED SENSOR
WH01X10628 WH01X10628 GE SPRING COVER
WH01X10606 WH01X10606 GE SPRING SHIFTER
WH41X10282 WH41X10282 GE STOP - DRAIN HOSE
WE01X20423 WE01X20423 GE STRAIN RELIEF BRACKET EL
WE1X1192 WE1X1192 GE STRIKE DOOR
WH02X10347 WH02X10347 GE STUD GROUNDING
WE19M1696 WE19M1696 GE SUPPORT CONTROLS
WE4M216 WE4M216 GE T'STAT OUTLET CTRL
WE4M525 WE4M525 GE TERM BLK AND GRND STRAP
WE04X22654 WE04X22654 GE TIMER
WE03X27679 WE03X27679 GE TOP BEARING 27-INCH
WH49X27331 WH49X27331 GE TOP COVER 27 - WIRE TIES
WE10X32277 WE10X32277 GE TOP PANEL
WE14X27471 WE14X27471 GE TRAP DUCT ASSEMBLY
WH44X27188 WH44X27188 GE TUB COVER 27
WE13X27238 WE13X27238 GE U SUPPORT
WE04X27284 WE04X27284 GE UI BOARD GE ASSEMBLY
WH16X27178 WH16X27178 GE UPPER BALL JOINT
WH13X27314 WH13X27314 GE VALVE 2-1
WH01X27289 WH01X27289 GE WASHER CONICAL
WH43X10057 WH43X10057 GE WASHING MACHINE ACTUATOR LID
WH42X10886 WH42X10886 GE WASHING MACHINE FRONT PANEL
WH44X10288 WH44X10288 GE WASHING MACHINE LID LOCK
WH01X10595 WH01X10595 GE WASHING MACHINE LOCKING CLIP
WH13X27418 WH13X27418 GE WATER INLET ASSEMBLY
