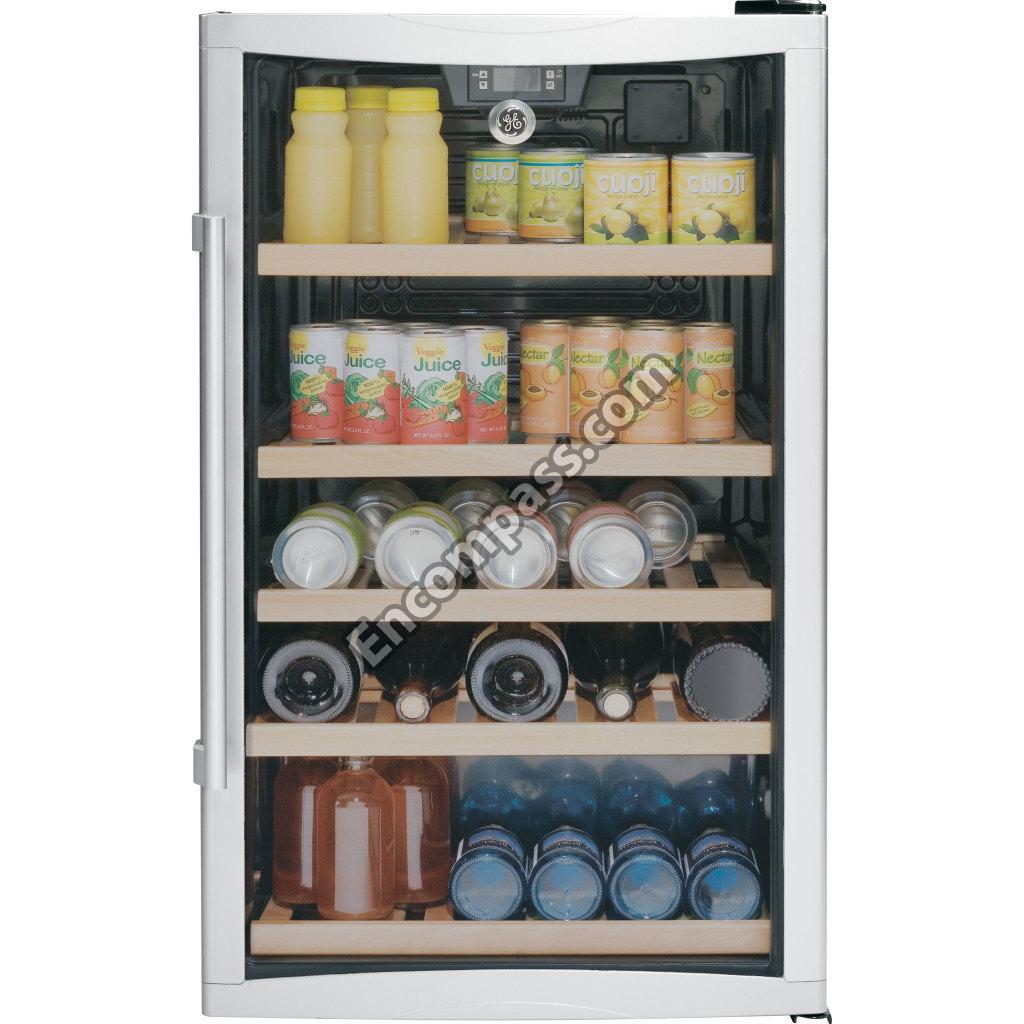

Model Image
Manufacturer

GE

Model Number

GVS04BDWDSS

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR02X20024 WR02X20024 ADJUSTABLE FOOT
WR04X10222 WR04X10222 BADGE ASSEMBLY GE
WR13X20057 WR13X20057 BOTTOM HINGE
WR01X10831 WR01X10831 BUSHING
WR01X20029 WR01X20029 BUSHING
WR17X20059 WR17X20059 CABINET
WR91X20041 WR91X20041 COMPRESSOR
WR91X20043 WR91X20043 COMPRESSOR BASE
WR23X10701 WR23X10701 COMPRESSOR WIRE
WR02X12784 WR02X12784 CONTROL BOX
WR02X12785 WR02X12785 CONTROL PCB
WR02X20022 WR02X20022 DESICATED FILTER
WR09X20038 WR09X20038 DISPLAY PANEL
WR03X10006 WR03X10006 DISPLAY PCB
WR78X20063 WR78X20063 DOOR

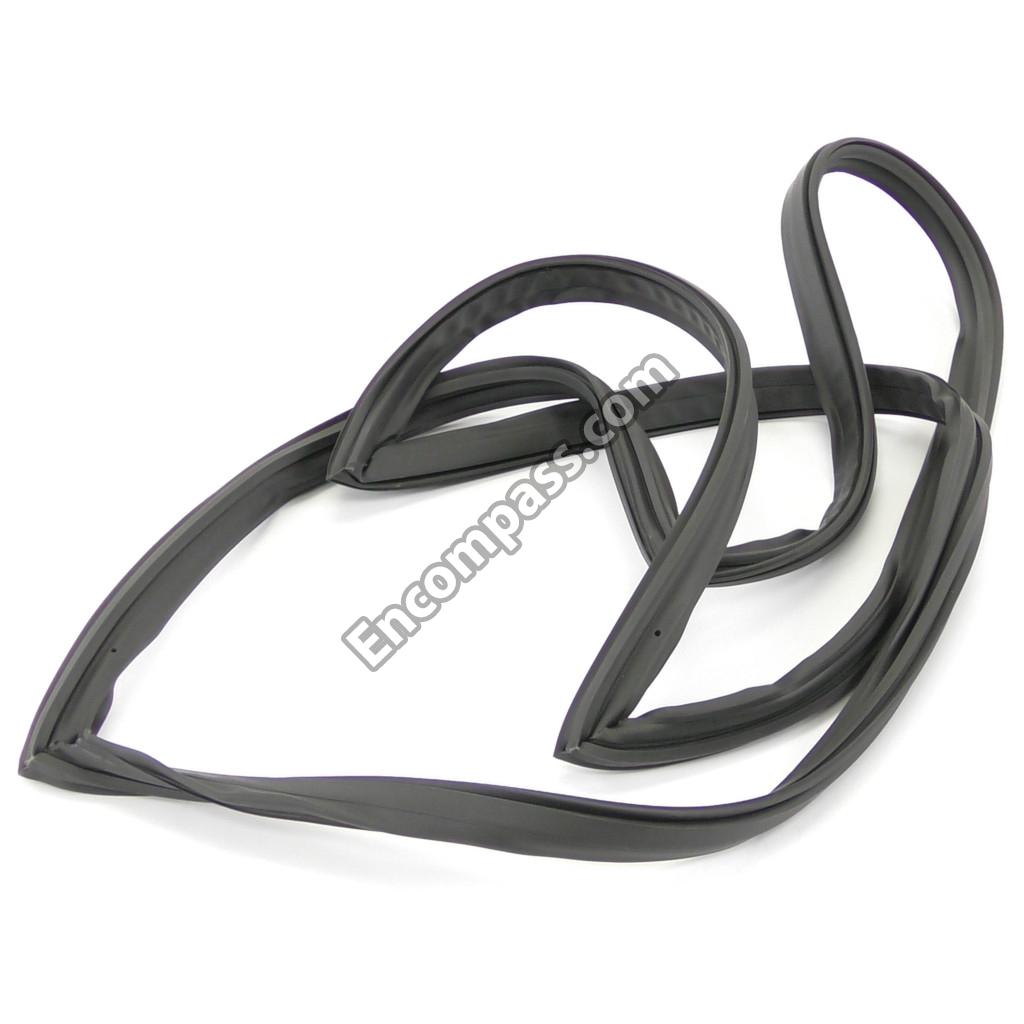

WR24X20031 WR24X20031 DOOR GASKET(BLACK)
WR31X10059 WR31X10059 DRIP TRAY
WR62X20058 WR62X20058 EVAPORATOR ASSEMBLY
WR02X12777 WR02X12777 FAN ASSEMBLY
WR32X20035 WR32X20035 FAN PROTECT COVER
WR02X12775 WR02X12775 FAN SET
WR01X10401 WR01X10401 FIXED FOOT
5166C-0004A 5166C-0004A GROMMET-COMP
WR23X10615 WR23X10615 GROUNDING WIRE
GB862_1 GB862_1 GROUNDING WIRE WASHER
WR02X12774 WR02X12774 HANDLE
WR02X12786 WR02X12786 LAMP
WR02X12787 WR02X12787 LAMP SET
WR02X12783 WR02X12783 LAMP SHIELD
WR71X10799 WR71X10799 MID SHELF
WR02X12773 WR02X12773 PLUG BUTTON(BLACK)
WR23X10614 WR23X10614 POWER SUPPLY CORD
3550C-0027A 3550C-0027A PROTECTOR COVER
WR55X20061 WR55X20061 PTC
WR01X10400 WR01X10400 SCREW
WR01X20060 WR01X20060 SCREW
WR01X20047 WR01X20047 SCREW
WR01X20039 WR01X20039 SCREW
WR01X20034 WR01X20034 SCREW
WR01X20033 WR01X20033 SCREW
WR01X20028 WR01X20028 SCREW
WR01X20018 WR01X20018 SCREW
WR71X10797 WR71X10797 SHELF WITH STOP
WR02X12237 WR02X12237 SLEEVE
WR51X20045 WR51X20045 TEMPERATURE PROBE WIRE
WR13X20026 WR13X20026 UPPER HINGE
WR13X20025 WR13X20025 UPPER HINGE COVER
WR71X10798 WR71X10798 UPPER SHELF
WR01X10853 WR01X10853 WASHER (BLACK)
WR38X10413 WR38X10413 WINE SHELF
WR40X20017 WR40X20017 WIRE BOX
