Manufacturer
GE
Model Number
GWE23GYNIFS
Description

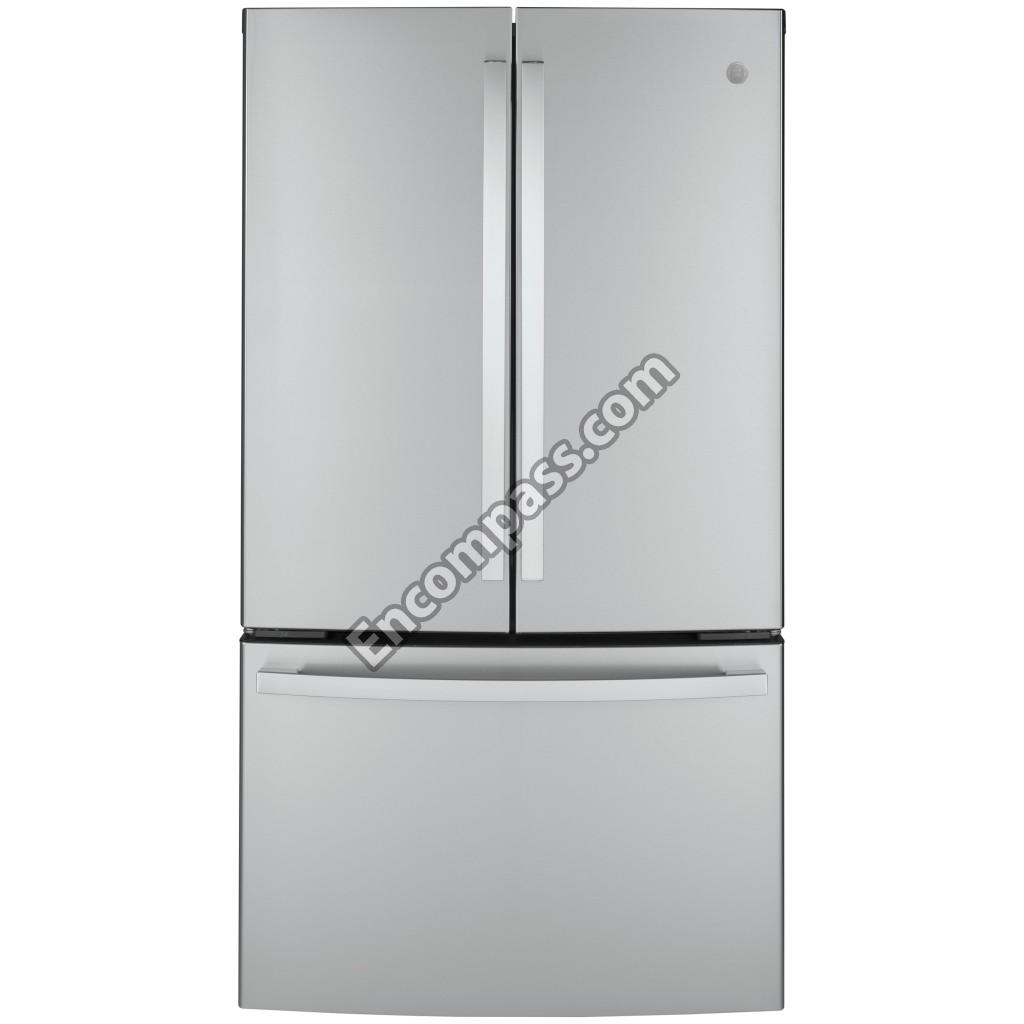

Refrigerator
Interactive Exploded View
Parts List
| Part Number | Description |
|---|---|
|
|
10.5MM X 8MM LOKRING |
|
|
3MM X 2MM LOKRING |
|
|
5MM X 4MM LOKRING |
|
|
6MM X 3.5MM BRASS CONNECTOR |
|
|
6MM X 4MM LOKRING |
|
|
7MM X 2MM LOKRING |
|
|
7MM X 5MM LOKRING |
|
|
8.5MM X 6MM LOKRING |
|
|
8MM X 7MM LOKRING |
|
|
8MM X 8MM LOKRING |
|
|
AC DOOR SWITCH HARNESS |
|
|
AIR TOWER |
|
|
ART FRAME VP ASM |
|
|
AXLE WHEEL |
|
|
BAFFLE COND AIR |
|
|
BAR REINFORCEMENT |
|
|
BASKET BOTTOM ASM |
|
|
BIN COND LH FF ASM |
|
|
BIN COND RH FF ASM |
|
|
BIN GAL LH FF ASM |
|
|
BIN GAL RH FF ASM |
|
|
BOARD ASM MAIN REFLASHED |
|
|
BRACKET SLIDE FZ LH |
|
|
BRACKET SLIDE FZ RH |
|
|
BUCKET ICE ASM |
|
|
BYPASS FILTER PLUG |
|
|
CAM VERT ADJUSTMENT |
|
|
CAP CASE CORNER ASM DGY |
|
|
CENTER MULLION HINGE |
|
|
CENTER TRACK SCREW COVER |
|
|
CLAMP TUBE |
|
|
CLIP CONNECTOR 1/4 |
|
|
CLIP EVAP THERMISTOR |
|
|
CLIP PHGL |
|
|
COIL 3 WAY VALVE |
|
|
COMBO DEVICE TSD-2 |
|
|
COMPRESSOR GROMMET |
|
|
COMPRESSOR MEIZHI |
|
|
COMPRESSOR MOUNTING CLIP |
|
|
CONDENSER |
|
|
CONDENSER FAN AND GASKET ASM |
|
|
CONDENSER STRAP |
|
|
CONDENSER SUPPORT |
|
|
CONNNECTOR GEAR PINION |
|
|
CONTROL LH DOOR SIDE ASM |
|
|
CONVERTIBLE DRAWER BRACKET SCREW |
|
|
COUPLER STRAIGHT 1/4 |
|
|
COVER HARNESS |
|
|
COVER LED FF ASM WW |
|
|
COVER LED FZ ASM |
|
|
COVER MAINBOARD |
|
|
COVER WATER FILTER ASM |
|
|
CROSSBAR PINION |
|
|
CUP FILL FZ IM |
|
|
DAMPER VEG PAN |
|
|
DELI PAN FRONT COVER W/ LED |
|
|
DELI PAN TOP REAR COVER |
|
|
DIVIDER BASKET BOTTOM |
|
|
DIVIDER BASKET UPPER |
|
|
DIVIDER MEAT PAN |
|
|
DOOR CLOSURE LH |
|
|
DOOR CLOSURE RH |
|
|
DORIAN GRAY FREEZER DOOR GASKET |
|
|
DYE DRIER |
|
|
ETHERNET BOARD SCREW |
|
|
FASTENER DOOR HANDLE |
|
|
FILTER MANIFOLD |
|
|
FOAM SEAL |
|
|
FREEZER DRAWER FRONT - STAINLESS STEEL |
|
|
FREEZER EVAPORATOR |
|
|
FREEZER EVAPORATOR COVER |
|
|
FREEZER FAN COVER |
|
|
FREEZER FAN W/ FELT |
|
|
FREEZER HEATER AND HARNESS |
|
|
FRESH FOOD DOOR GASKET DORIAN GRAY |
|
|
FRESH FOOD DOOR LIGHT SWITCH |
|
|
FRESH FOOD FAN CONNECTOR COVER |
|
|
FRESH FOOD FAN MOUNTING GASKET |
|
|
FRESH FOOD LED WHITE |
|
|
FRONT/REAR WHEEL & AXLE |
|
|
GEA BADGE FLAT CHROME |
|
|
GEAR LWR DRW LH |
|
|
GEAR LWR DRW RH |
|
|
GLASS VEG PAN |
|
|
GLIDE SUPPORT LH & RH BIS |
|
|
GROMMET |
|
|
GROMMET FF LINER |
|
|
GROMMET TUBING SLIT |
|
|
GUIDE ROLLER VEG PAN |
|
|
HARNESS DOOR CASE |
|
|
HARNESS POWER CORD |
|
|
HINGE CAP |
|
|
HINGE ENDCAP ASM DGY |
|
|
HINGE MULLION |
|
|
HINGE TOP PIN ASM LH |
|
|
HINGE TOP PIN ASM RH |
|
|
HOUSING WIRE IM FZ |
|
|
HUMIDITY BOARD |
|
|
ICEMAKER |
|
|
JUMPER COMPRESSOR DISCHARGE TUBE |
|
|
JUMPER COMPRESSOR SUCTION TUBE |
|
|
KIT ANTI TIP ASM |
|
|
KIT CAPACITOR 12 UF |
|
|
LEFT FREEZER DOOR BRACKET |
|
|
LIGHT SWITCH |
|
|
MASTIC SOUND DEADENING |
|
|
MEAT PAN SLIDE |
|
|
MULLION ARTICULATING ASM |
|
|
MULLION STRIKER |
|
|
PAN MEAT ASM |
|
|
PAN VEG ASM |
|
|
PCB ASM HUMIDITY BOARD |
|
|
PERSONALITY JUMPER |
|
|
PEX WATER LINE |
|
|
PEX WATER LINE |
|
|
PIN CROSS BAR |
|
|
PM MINI MANUAL AND WIRING |
|
|
PM QUICK USE & CARE |
|
|
PS BIS FZ BASKET & GLIDE KIT |
|
|
QUICK CLIP CONNECTOR 1/4 |
|
|
R600A CHARGE CAN 60 GRAMS |
|
|
REAR ACCESS COVER |
|
|
REFER WATER FILTER (RFID |
|
|
REFRIGERATOR CENTER HINGE LEFT |
|
|
REFRIGERATOR CENTER HINGE RIGHT |
|
|
REFRIGERATOR DOOR - LEFT HAND NON DISPEN |
|
|
REFRIGERATOR DRAIN TUBE |
|
|
REFRIGERATOR DRAIN VACUUM BREAK VALVE |
|
|
REFRIGERATOR EVAPORATOR |
|
|
REFRIGERATOR EVAPORATOR COVER |
|
|
REFRIGERATOR EVAPORATOR COVER |
|
|
REFRIGERATOR FAN MOTOR |
|
|
REFRIGERATOR HARNESS GROUND |
|
|
REFRIGERATOR HEATER AND HARNESS |
|
|
REFRIGERATOR SHELF |
|
|
RIGHT FREEZER DOOR BRACKET |
|
|
ROLLER ASM |
|
|
SCR 10-18 FLT20 3/4 S |
|
|
SCR 10-24 AB RNT 20 5/8 |
|
|
SCR 8-10 PL PNP 1/2 S |
|
|
SCR 8-18 AB HXW 9/16 S |
|
|
SCR 8-18 AB HXWP 9/16S |
|
|
SCR 8-18 AB IHXW 3/4 S |
|
|
SCR 8-18 HI/LO HWX 3/4 |
|
|
SCR 8-18 HXW 1 1/4S |
|
|
SCR 8-18 TPT 1/4 |
|
|
SCR 8-32 AB IHWS 3/8 S |
|
|
SCR 8-32 CA IHXW .625 S |
|
|
SCREW |
|
|
SCREW |
|
|
SCREW (CR) |
|
|
SCREW 8-18 AB HXW 1/2 S |
|
|
SCREW 8-18 HI/LO 5/8 |
|
|
SCREW 8-32X3/8 GRD SCR |
|
|
SCREW LEVELING ASM |
|
|
SCREW M6-1.0 T IHXW 20 S |
|
|
SCREW M6-1.0 T IHXWP 16 S |
|
|
SCREW SET DOOR FZ |
|
|
SCREW ST3.9-1.4 AB FLT20 16 S |
|
|
SCREW ST3.9-1.4 AB IHXWT20 16 S |
|
|
SCREW ST4.0-1.4 AB IHXWT20 20 S |
|
|
SCREW ST4.8-1.6 AB PNT25 19 S |
|
|
SCREW ST5.5-1.8 AB IHXW 20 S |
|
|
SET SCREW |
|
|
SLEEVE SPRING MULLION |
|
|
SLIDE HOLDER FZ LH |
|
|
SLIDE HOLDER FZ RH |
|
|
SLIDE LOWER FZ LH |
|
|
SLIDE LOWER FZ RH |
|
|
SPACER TRACK |
|
|
SPRING HINGE MULLION |
|
|
STAINLESS FREEZER HANDLE |
|
|
STAINLESS REFRIGERATOR HANDLE |
|
|
STAINLESS REFRIGERATOR RIGHT DOOR |
|
|
STOP DOOR RH/LH ASM |
|
|
STOPPER DIVIDER FZ UPPER |
|
|
SUCTION JUMPER TUBE |
|
|
SUPPORT SIDE LH |
|
|
SUPPORT SIDE RH |
|
|
SUPPORT SLIDE FZ |
|
|
TAPE FELT |
|
|
TEMPERATUR SENSOR FF |
|
|
TOP COVER MIDDLE DGY |
|
|
TRACK CENTER FF |
|
|
TRACK SIDE FF |
|
|
TROUGH DRAIN FF |
|
|
TROUGH DRAIN FZ |
|
|
TUBE FZ IM FILL HTR ASM |
|
|
TUBE FZ REPAIR ASM |
|
|
VALVE BODY ASM |
|
|
VALVE DOUBLE IM ASM |
|
|
WATER FILTER MANIFOLD BRACKET |
|
|
WHEEL |
|
|
WHEEL OVERMOLD ASM REAR |
|
|
XWFE RETAIL FILTER |
