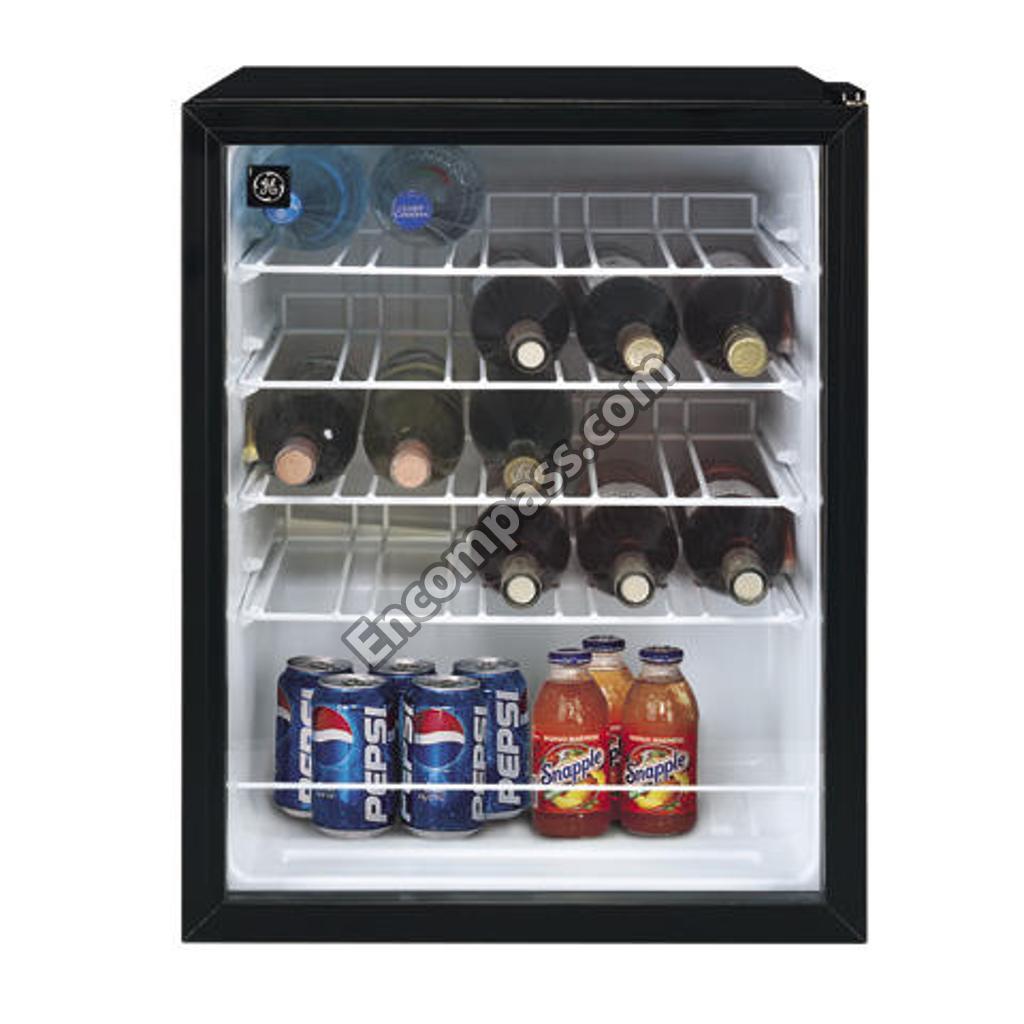

Model Image
Manufacturer

GE

Model Number

GWR03AAMABB

Description

Refrigerator

Interactive Exploded View

Parts List

Part Number Description
WR17X12263 WR17X12263 BASE PLATE
WR02X11189 WR02X11189 BLACK COVER HINGE TOP
WR1X5671 WR1X5671 BOLT
WR01X10153 WR01X10153 BOLT COMP MTG
WR01X10688 WR01X10688 BOLT# 119
WR01X5671 WR01X5671 BOLT-HINGE
WR13X10031 WR13X10031 BOTTOM HINGE
WR02X9375 WR02X9375 CLAMP
WR01X1812 WR01X1812 CLAMP
WR1X1812 WR1X1812 CLAMP
WR2X9375 WR2X9375 CLAMP
WR1X1818 WR1X1818 CLAMP
WR01X1818 WR01X1818 CLAMP NYLON 5/16""
WR02X12382 WR02X12382 CLIP RELAY COVER
WR87X10146 WR87X10146 COMPRESSOR
WR84X10035 WR84X10035 CONDENSER
WR02X11193 WR02X11193 COVER THERMO
WR78X10585 WR78X10585 DOOR FRAME ASSEMBLY
WR14X10230 WR14X10230 DOOR GASKET
WR01X10295 WR01X10295 DRAIN TRAY BLACK
WR04X10114 WR04X10114 GE NAMEPLATE
WR02X11188 WR02X11188 GROMMET BLACK
WR02X10406 WR02X10406 GROMMET COMP MTG
WR02X10407 WR02X10407 GROMMET COMP MTG
WR13X0779 WR13X0779 HINGE TOP
WR13X10010 WR13X10010 HINGE TOP
WR02X11191 WR02X11191 HINGE TOP SHIM
WR02X11196 WR02X11196 KNOB THERMOSTAT
WR02X10161 WR02X10161 LEG
WR71X10407 WR71X10407 LOWER SHELF
31-51399 31-51399 MINI-MANUAL
WR08X10014 WR08X10014 OVERLOAD RELAY
WR23X0108 WR23X0108 POWER CORD
WR23X10300 WR23X10300 POWER CORD
WR07X10022 WR07X10022 PTC THERMISTOR
WR02X11192 WR02X11192 RELAY COVER
WR1X5669 WR1X5669 SCREW
WR1X5668 WR1X5668 SCREW
WR01X10024 WR01X10024 SCREW
WR01X10023 WR01X10023 SCREW #159
WR01X5668 WR01X5668 SCREW TAPPING
WR01X5669 WR01X5669 SCREW-HINGE
WR02X11190 WR02X11190 SHELF GUARD BOTTOM
WR86X10020 WR86X10020 SINGLE DRIER
WR01X10346 WR01X10346 SUPPORT CONDENSER
WR02X12383 WR02X12383 THERMO BRACKET
WR02X11195 WR02X11195 THERMO DIAL PLATE
WR50X10080 WR50X10080 THERMOSTAT RTB-3U145
49-60163 49-60163 USE & CARE MANUAL
WR01X10296 WR01X10296 WASHER NYLON BLK
