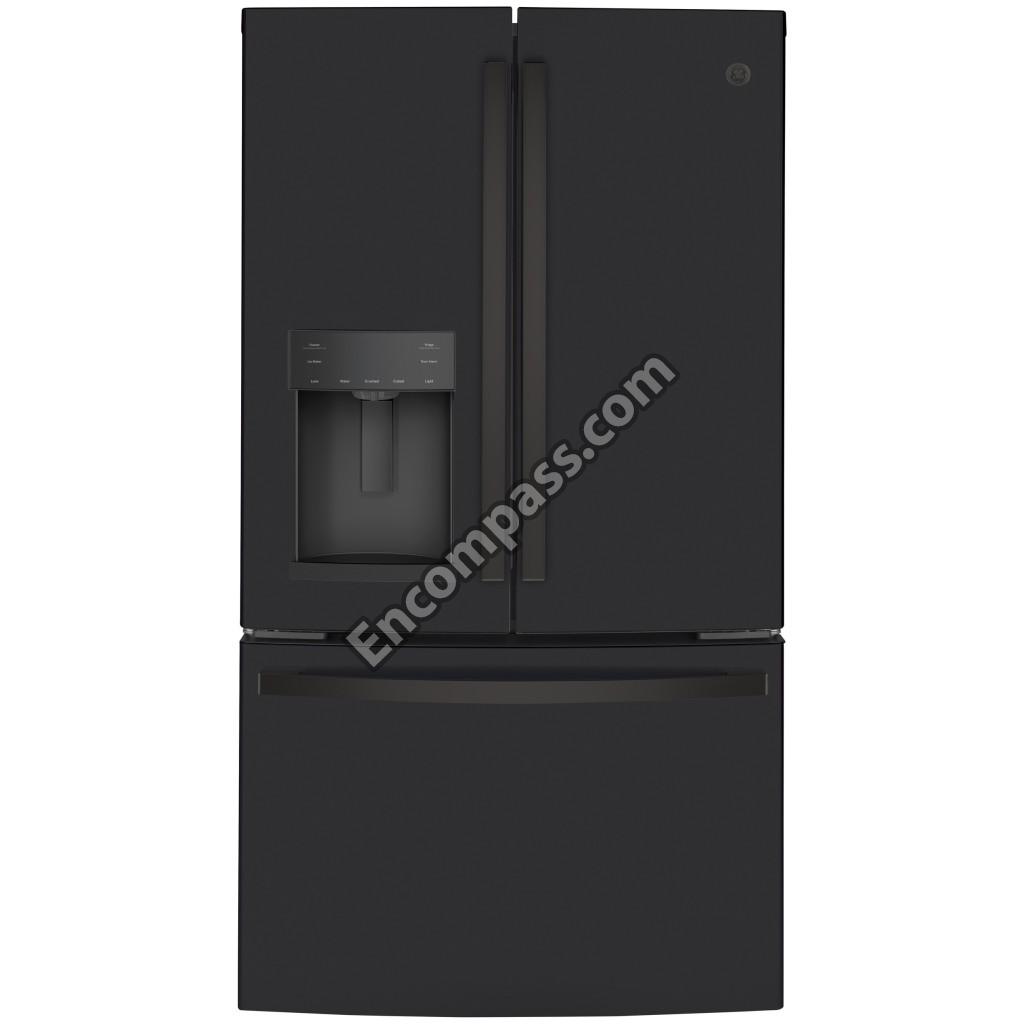

Model Image
Manufacturer

GE

Model Number

GYE22GENIDS

Description

Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WR97X33345 WR97X33345 GE 10.5MM X 8MM LOKRING
WR97X10140 WR97X10140 GE 3MM X 2MM LOKRING
WR97X33925 WR97X33925 GE 5MM X 4MM LOKRING
WD02X10129 WD02X10129 GE 6-19 X 1/4 TORX PAN HEAD
WR97X32111 WR97X32111 GE 6MM X 3.5MM BRASS CONNECTOR
WR97X10033 WR97X10033 GE 6MM X 4MM LOKRING
WR97X31409 WR97X31409 GE 7MM X 2MM LOKRING
WR97X25268 WR97X25268 GE 7MM X 5MM LOKRING
WR97X10076 WR97X10076 GE 8.5MM X 6MM LOKRING
WR97X31246 WR97X31246 GE 8MM X 7MM LOKRING
WR97X10021 WR97X10021 GE 8MM X 8MM LOKRING
WR23X28778 WR23X28778 GE AC DOOR SWITCH HARNESS
WR17X35668 WR17X35668 GE AIR TOWER
WR29X10110 WR29X10110 GE ARM FEELER IM
WR32X10910 WR32X10910 GE ART FRAME VP ASM
WR49X10322 WR49X10322 GE AUGER MOTOR ASM
WR01X11008 WR01X11008 GE AXLE WHEEL
WR17X13045 WR17X13045 GE BAFFLE COND AIR
WR02X21803 WR02X21803 GE BAR REINFORCEMENT
WR21X10254 WR21X10254 GE BASKET BOTTOM ASM
WR71X11050 WR71X11050 GE BIN COND RH FF ASM
WR71X24976 WR71X24976 GE BIN DOOR ICE BTM
WR71X11052 WR71X11052 GE BIN GAL RH FF ASM
WR71X11046 WR71X11046 GE BIN ICE DOOR MID LH
WR71X11045 WR71X11045 GE BIN ICE DOOR TOP LH
WR12X34826 WR12X34826 GE BLACK STAINLESS FREEZER HANDLE
WR12X32583 WR12X32583 GE BLACK STAINLESS REFRIGERATOR HANDLE
WR17X13195 WR17X13195 GE BRACKET SLIDE FZ LH
WR17X13194 WR17X13194 GE BRACKET SLIDE FZ RH
WR17X13069 WR17X13069 GE BRKT FILTER MANIFOLD
WR30X23327 WR30X23327 GE BUCKET ICE ASM
WR02X13627 WR02X13627 GE CAM VERT ADJUSTMENT
WR02X13759 WR02X13759 GE CAP CASE CORNER ASM DGY
WR17X28913 WR17X28913 GE CAPACITIVE TOUCH DISPLAY STANDARD BLACK
WR13X36887 WR13X36887 GE CENTER MULLION HINGE
WR02X29328 WR02X29328 GE CENTER TRACK SCREW COVER
WR02X10522 WR02X10522 GE CLAMP TUBE
WR02X10879 WR02X10879 GE CLIP EVAP THERMISTOR
WR01X11064 WR01X11064 GE CLIP PHGL
WR02X13647 WR02X13647 GE CLUTCH COUPLING AM
WR86X10094 WR86X10094 GE COIL 3 WAY VALVE
WR17X27627 WR17X27627 GE COILED COLD WATER TANK
WR14X25124 WR14X25124 GE COLLAR PORT
WR07X10131 WR07X10131 GE COMBO DEVICE TSD-2
WR02X36713 WR02X36713 GE COMPRESSOR GROMMET
WR87X41607 WR87X41607 GE COMPRESSOR MEIZHI
WR02X28299 WR02X28299 GE COMPRESSOR MOUNTING CLIP
WR84X38825 WR84X38825 GE CONDENSER
WR60X37209 WR60X37209 GE CONDENSER FAN AND GASKET ASM
WR02X37264 WR02X37264 GE CONDENSER STRAP
WR02X37286 WR02X37286 GE CONDENSER SUPPORT
WR02X13737 WR02X13737 GE CONNECTOR 90 DEG 5/16
WR02X13631 WR02X13631 GE CONNNECTOR GEAR PINION
WR02X31885 WR02X31885 GE CONVERTIBLE DRAWER BRACKET SCREW
WR02X13740 WR02X13740 GE COUPLER 1/4 Y
WR02X13738 WR02X13738 GE COUPLER STRAIGHT 1/4
WR02X23032 WR02X23032 GE COVER DOOR LATCH
WR02X23748 WR02X23748 GE COVER FILTER RFID
WR55X25754 WR55X25754 GE COVER LED FF ASM WW
WR02X25126 WR02X25126 GE COVER MAINBOARD
WR17X13226 WR17X13226 GE COVER MIDDLE ASM D. GREY
WR13X24981 WR13X24981 GE COVER VALVE AND TANK ASM
WR02X26526 WR02X26526 GE COVER WATER FILTER ASM
WR02X13765 WR02X13765 GE CROSSBAR PINION
WR30X25485 WR30X25485 GE CUP FILL FZ IM
WR17X24925 WR17X24925 GE DAMPER VEG PAN
WR32X33745 WR32X33745 GE DELI PAN FRONT COVER W/ LED
WR72X31329 WR72X31329 GE DELI PAN TOP REAR COVER
WR17X28914 WR17X28914 GE DISPENSER DOOR PADDLE BLACK SLATE
WR02X13764 WR02X13764 GE DIVIDER BASKET BOTTOM
WR02X23046 WR02X23046 GE DIVIDER BASKET UPPER
WR17X13193 WR17X13193 GE DIVIDER MEAT PAN
WR11X38266 WR11X38266 GE DOOR CLOSURE LH
WR11X38265 WR11X38265 GE DOOR CLOSURE RH
WR11X10031 WR11X10031 GE DOOR LATCH ICEBOX DOOR
WR14X36194 WR14X36194 GE DORIAN GRAY FREEZER DOOR GASKET
WR17X13241 WR17X13241 GE DUCT DOOR ASM PS
WR87X30875 WR87X30875 GE DYE DRIER
WR02X13648 WR02X13648 GE E CLIP
WR01X28379 WR01X28379 GE ETHERNET BOARD SCREW
WR60X36825 WR60X36825 GE FAN MOTOR IM ASM / SENSO
WR01X11007 WR01X11007 GE FASTENER DOOR HANDLE
WR02X13684 WR02X13684 GE FILTER MANIFOLD
WR02X29333 WR02X29333 GE FOAM SEAL
WR78X37415 WR78X37415 GE FREEZER DRAWER FRONT - BLACK SLATE
WR87X36101 WR87X36101 GE FREEZER EVAPORATOR
WR17X35667 WR17X35667 GE FREEZER EVAPORATOR COVER
WR17X35246 WR17X35246 GE FREEZER FAN COVER
WR60X35669 WR60X35669 GE FREEZER FAN W/ FELT
WR55X36087 WR55X36087 GE FREEZER HEATER AND HARNESS
WR55X30604 WR55X30604 GE FREEZER LED AND COVER
WR14X29300 WR14X29300 GE FRESH FOOD DOOR GASKET DORIAN GRAY
WR23X29161 WR23X29161 GE FRESH FOOD DOOR LIGHT SWITCH
WR17X28921 WR17X28921 GE FRESH FOOD FAN CONNECTOR COVER
WR02X30166 WR02X30166 GE FRESH FOOD FAN MOUNTING GASKET
WR55X48388 WR55X48388 GE FRESH FOOD LED WHITE
WR49X10268 WR49X10268 GE FRONT/REAR WHEEL & AXLE
WR14X10384 WR14X10384 GE GASKET DUCT FAN IM
WR17X34478 WR17X34478 GE GE DISPENSER DRIP TRAY BLACK SLATE
WR04X29375 WR04X29375 GE GEA BADGE FLAT CHROME
WR02X13630 WR02X13630 GE GEAR LWR DRW LH
WR02X13629 WR02X13629 GE GEAR LWR DRW RH
WR32X10911 WR32X10911 GE GLASS VEG PAN
WR72X27074 WR72X27074 GE GLIDE SUPPORT LH & RH BIS
WR02X13760 WR02X13760 GE GROMMET FF LINER
WR14X10055 WR14X10055 GE GROMMET TUBING SLIT
WR72X10447 WR72X10447 GE GUIDE ROLLER VEG PAN
WR23X10777 WR23X10777 GE HARNESS DOOR CASE
WR23X24389 WR23X24389 GE HARNESS POWER CORD
WR02X13739 WR02X13739 GE HINGE CAP
WR17X20164 WR17X20164 GE HINGE ENDCAP ASM DGY
WR13X10985 WR13X10985 GE HINGE MULLION
WR13X10972 WR13X10972 GE HINGE TOP DOOR ICEBOX
WR13X25911 WR13X25911 GE HINGE TOP PIN ASM LH
WR13X25910 WR13X25910 GE HINGE TOP PIN ASM RH
WR13X25912 WR13X25912 GE HOUSING TRAY VALVE TANK
WR17X23054 WR17X23054 GE HOUSING WIRE IM FZ
WR55X34647 WR55X34647 GE HUMIDITY BOARD
WR17X32870 WR17X32870 GE ICE BOX THERMISTOR COVER
WR30X10174 WR30X10174 GE ICE BUCKET & CRUSHER
WR78X26087 WR78X26087 GE ICEBOX DOOR ASM
WR30X28731 WR30X28731 GE ICEMAKER
WR30X28682 WR30X28682 GE ICEMAKER ASM
WR84X34173 WR84X34173 GE JUMPER COMPRESSOR DISCHARGE TUBE
WR02X13770 WR02X13770 GE KIT ANTI TIP ASM
WR55X24064 WR55X24064 GE KIT CAPACITOR 12 UF
WR02X36886 WR02X36886 GE LEFT FREEZER DOOR BRACKET
WR23X37285 WR23X37285 GE LIGHT SWITCH
WR02X13623 WR02X13623 GE LOUVER DUCT IM RETURN FZ
WR55X46805 WR55X46805 GE MAIN BOARD ASSEMBLY
WR02X13724 WR02X13724 GE MASTIC SOUND DEADENING
WR72X29093 WR72X29093 GE MEAT PAN SLIDE
WR60X10344 WR60X10344 GE MOTOR DUCT DOOR
WR17X13240 WR17X13240 GE MULLION ARTICULATING ASM
WR01X31733 WR01X31733 GE MULLION STRIKER
WR32X10884 WR32X10884 GE PAN MEAT ASM
WR32X26346 WR32X26346 GE PAN VEG ASM
WR55X44126 WR55X44126 GE PCB ASM DOOR CONTROL
WR55X45225 WR55X45225 GE PCB ASM LED ICON UI
WR17X13205 WR17X13205 GE PCB COVER ASM DGY
WR55X37309 WR55X37309 GE PERSONALITY JUMPER
WR02X32127 WR02X32127 GE PEX WATER LINE
WR02X48625 WR02X48625 GE PEX WATER LINE
WR01X11023 WR01X11023 GE PIN CROSS BAR
31-1000570 31-1000570 GE PM MINI MANUAL AND WIRING
49-60789 49-60789 GE PM QUICK USE & CARE
WR14X10364 WR14X10364 GE PORT GASKET
WR32X26450 WR32X26450 GE PS BIS FZ BASKET & GLIDE KIT
WR01X11040 WR01X11040 GE QUICK CLIP CONN 5/16
WR01X11041 WR01X11041 GE QUICK CLIP CONNECTOR 1/4
WR98X60 WR98X60 GE R600A CHARGE CAN 60 GRAMS
WR82X37208 WR82X37208 GE REAR ACCESS COVER
RPWFE RPWFE GE REFER WATER FILTER (RFID
WR13X32039 WR13X32039 GE REFRIGERATOR CENTER HINGE LEFT
WR13X32036 WR13X32036 GE REFRIGERATOR CENTER HINGE RIGHT
WR78X37450 WR78X37450 GE REFRIGERATOR DOOR - LEFT HAND DISPENSER
WR02X28514 WR02X28514 GE REFRIGERATOR DRAIN TUBE
WR01X28515 WR01X28515 GE REFRIGERATOR DRAIN VACUUM BREAK VALVE
WR87X36103 WR87X36103 GE REFRIGERATOR EVAPORATOR
WR17X37708 WR17X37708 GE REFRIGERATOR EVAPORATOR COVER
WR60X35205 WR60X35205 GE REFRIGERATOR FAN MOTOR
WR23X37707 WR23X37707 GE REFRIGERATOR HARNESS GROUND
WR55X36090 WR55X36090 GE REFRIGERATOR HEATER AND HARNESS
WR78X29149 WR78X29149 GE REFRIGERATOR RIGHT DOOR BLACK SLATE
WR32X31557 WR32X31557 GE REFRIGERATOR SHELF
WR02X36888 WR02X36888 GE RIGHT FREEZER DOOR BRACKET
WR02X13658 WR02X13658 GE ROLLER ASM
WR01X11013 WR01X11013 GE SCR 10-18 FLT20 3/4 S
WR01X11032 WR01X11032 GE SCR 10-24 AB RNT 20 5/8
WR01X10649 WR01X10649 GE SCR 8-10 PL PNP 1/2 S
WR01X11012 WR01X11012 GE SCR 8-18 AB HXW 9/16 S
WR01X11060 WR01X11060 GE SCR 8-18 AB HXWP 9/16S
WR01X10593 WR01X10593 GE SCR 8-18 AB IHXW 3/4 S
WR01X11028 WR01X11028 GE SCR 8-18 FLP 1/2 S
WR01X11061 WR01X11061 GE SCR 8-18 HI/LO HWX 3/4
WR01X10618 WR01X10618 GE SCR 8-18 TPT 1/4
WR01X10602 WR01X10602 GE SCR 8-32 AB IHWS 3/8 S
WR01X10635 WR01X10635 GE SCR 8-32 CA IHXW .625 S
WR1X1786 WR1X1786 GE SCREW
WH2X1217 WH2X1217 GE SCREW
WB01X5364 WB01X5364 GE SCREW (CR)
WD02X10067 WD02X10067 GE SCREW 8-16 HXW 1/2 SS
WR02X29370 WR02X29370 GE SCREW 8-18 AB HXW 1/2 S
WR01X10196 WR01X10196 GE SCREW 8-18 HI/LO 5/8
WZ5X158D WZ5X158D GE SCREW 8-32X3/8 GRD SCR
WR01X11046 WR01X11046 GE SCREW LEVELING ASM
WR02X36714 WR02X36714 GE SCREW M6-1.0 T IHXW 20 S
WR02X36725 WR02X36725 GE SCREW M6-1.0 T IHXWP 16 S
WR01X11036 WR01X11036 GE SCREW SET DOOR FZ
WR02X36719 WR02X36719 GE SCREW ST3.9-1.4 AB FLT20 16 S
WR02X36891 WR02X36891 GE SCREW ST3.9-1.4 AB IHXWT20 16 S
WR02X36721 WR02X36721 GE SCREW ST4.0-1.4 AB IHXWT20 20 S
WR02X36985 WR02X36985 GE SCREW ST4.8-1.6 AB PNT25 19 S
WR02X36717 WR02X36717 GE SCREW ST4.8-1.6 AB TRT20 19 S
WR02X36711 WR02X36711 GE SCREW ST5.5-1.8 AB IHXW 20 S
WR01X11014 WR01X11014 GE SET SCREW
WR02X13655 WR02X13655 GE SHIELD LED LIGHT
WR17X30651 WR17X30651 GE SINGLE TUBE ICE FUNNEL
WR01X11053 WR01X11053 GE SLEEVE SPRING MULLION
WR72X10453 WR72X10453 GE SLIDE HOLDER FZ LH
WR72X10451 WR72X10451 GE SLIDE HOLDER FZ RH
WR72X10454 WR72X10454 GE SLIDE LOWER FZ LH
WR72X10452 WR72X10452 GE SLIDE LOWER FZ RH
WR02X13679 WR02X13679 GE SPACER TRACK
WR01X11027 WR01X11027 GE SPRING
WR02X13645 WR02X13645 GE SPRING CLUTCH AM
WR01X11017 WR01X11017 GE SPRING DUCT DOOR
WR01X11033 WR01X11033 GE SPRING FEELER ARM
WR01X11052 WR01X11052 GE SPRING HINGE MULLION
WR02X13634 WR02X13634 GE STOP DOOR RH/LH ASM
WR02X13706 WR02X13706 GE STOPPER DIVIDER FZ UPPER
WR87X41626 WR87X41626 GE SUCTION JUMPER TUBE
WR72X10450 WR72X10450 GE SUPPORT SIDE LH
WR72X10448 WR72X10448 GE SUPPORT SIDE RH
WR02X13674 WR02X13674 GE SUPPORT SLIDE FZ
WR02X13734 WR02X13734 GE TAPE FELT
WR55X10025 WR55X10025 GE TEMPERATUR SENSOR FF
WR72X10429 WR72X10429 GE TRACK CENTER FF
WR72X21071 WR72X21071 GE TRACK SIDE FF
WR17X13091 WR17X13091 GE TROUGH DRAIN FF
WR17X13080 WR17X13080 GE TROUGH DRAIN FZ
WR02X20621 WR02X20621 GE TUBE FZ IM FILL HTR ASM
WR84X10113 WR84X10113 GE TUBE FZ REPAIR ASM
WR02X32130 WR02X32130 GE TUBE PEX MC VALVE
WR86X37548 WR86X37548 GE VALVE BODY ASM
WR57X27527 WR57X27527 GE VALVE DOUBLE IM ASM
WR57X10098 WR57X10098 GE VALVE DUAL WATER
WR01X29059 WR01X29059 GE WATER FILTER BYPASS PLUG
WR57X27487 WR57X27487 GE WATER VALVE ISO ASM
WR02X13685 WR02X13685 GE WHEEL
WR02X13616 WR02X13616 GE WHEEL OVERMOLD ASM FRONT
